16″ x 14″ x 8″ - Fiberglass Enclosure

Fiberglass Enclosure with Treated ¾” Wood backboard

Overview
Features
Specs
Docs
Diagrams
PN

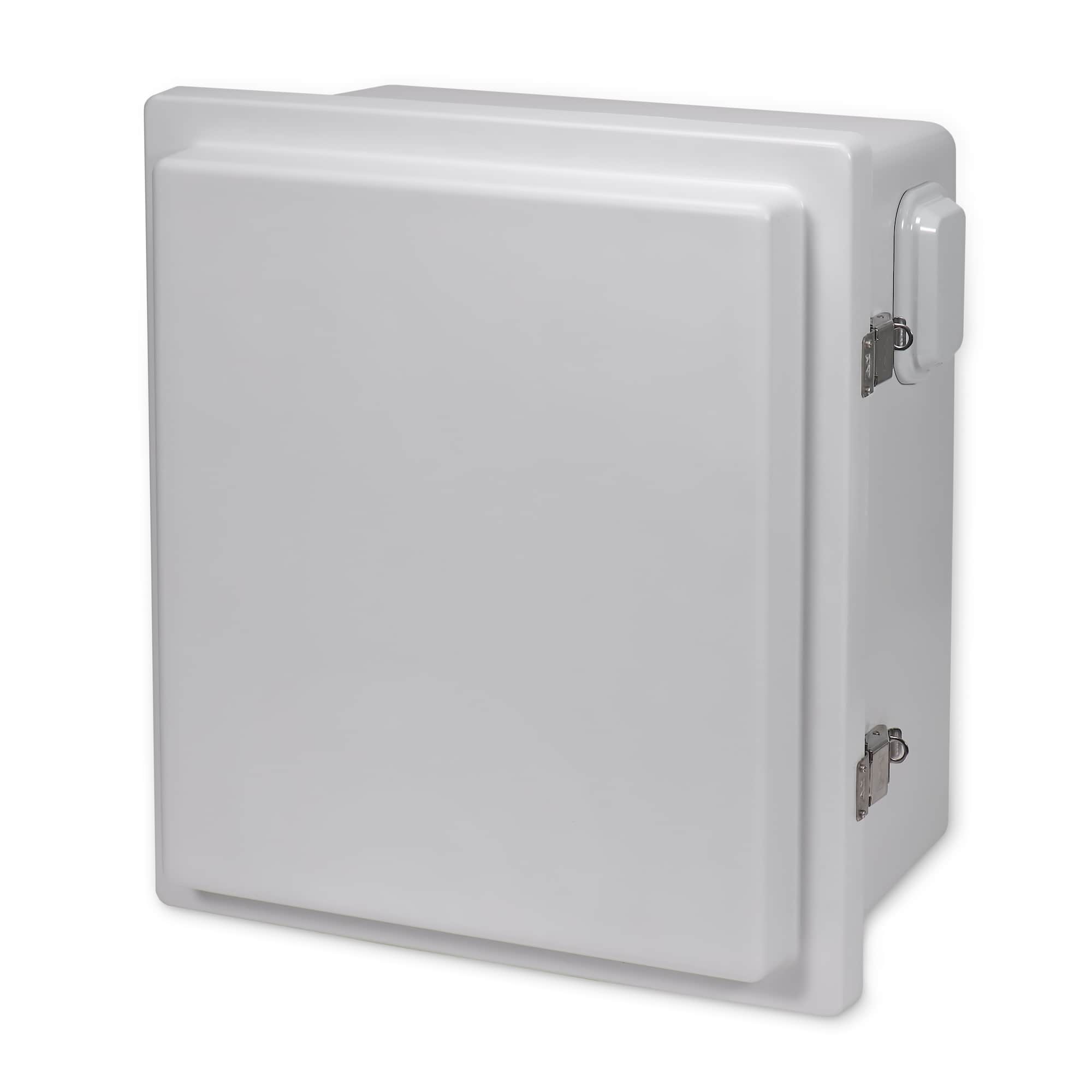

This NEMA 4X fiberglass reinforced polyester enclosure features a fire treated and painted plywood backboard for easy field installaton of communicaton devices and equipment in indoor or outdoor environments.

The enclosure is UL Listed, non-corrosive, non-conductive, light weight, and easy to modify. The added water and dust proof NEMA 4X vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock, and the included mounting feet can be used for wall or strut mounting. An optional pole mount kit is available for order separately.

Custom fabricated enclosures and turn-key solutions to fit your specific applications needs are available from the RLH design group. Please contact an RLH sales representative for more information on enclosures and equipment.

Features

Weatherproof design for outdoor use
Non-corrosive, non-conductive, light weight, and easy to modify
Fire treated and painted 3⁄4″ plywood backboard

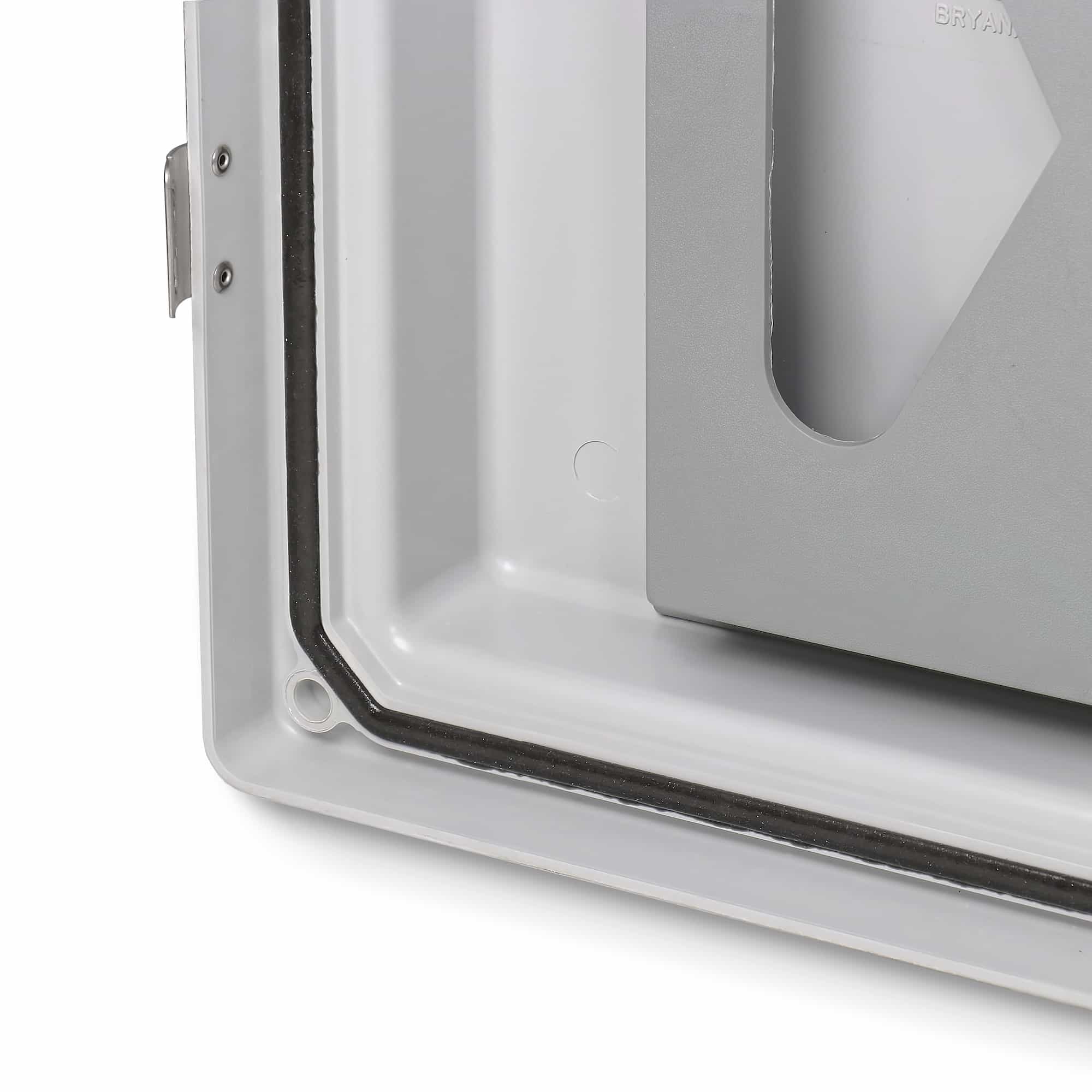

Polyurethane gasket for weathertight door seal

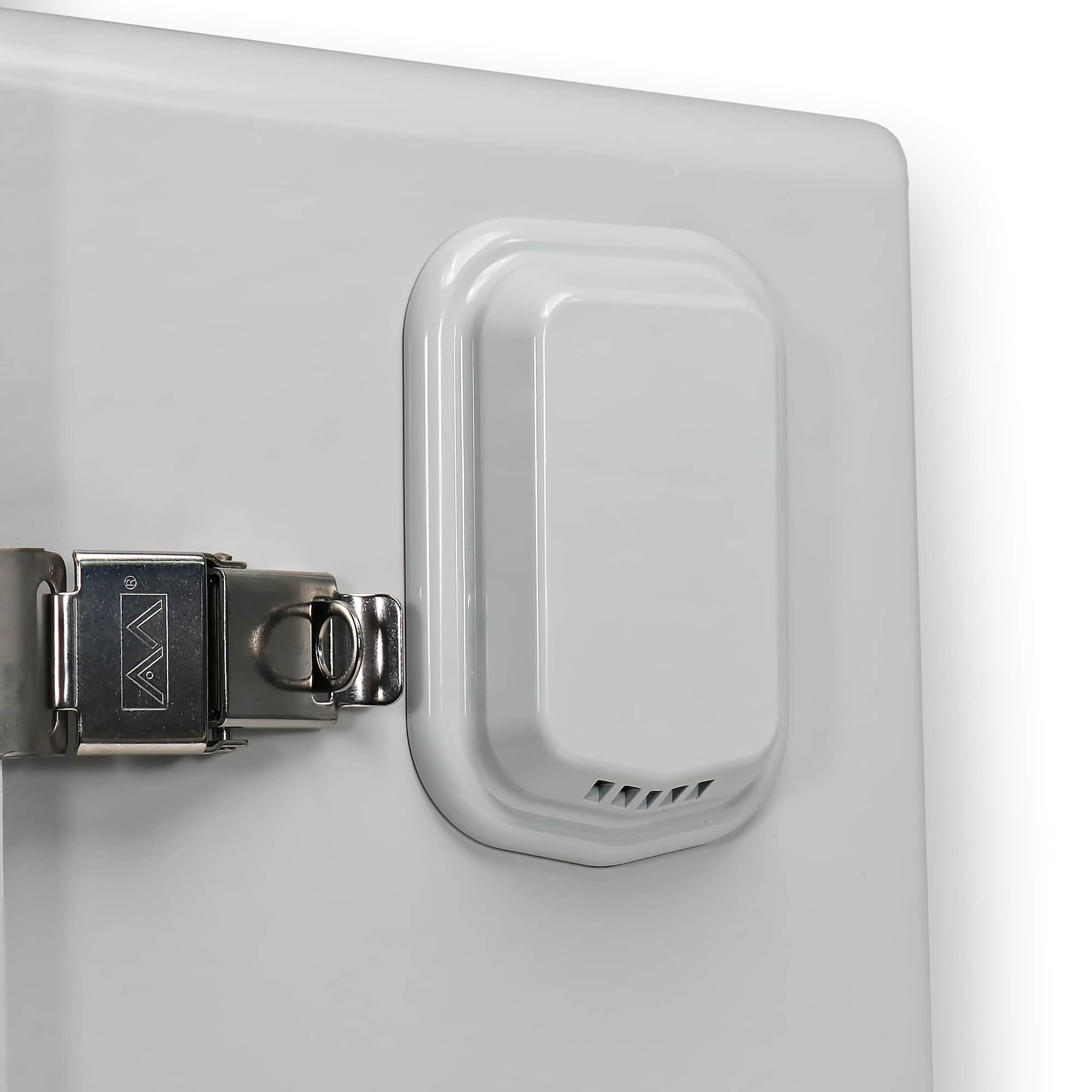

Weatherproof NEMA 4X side and bottom vents
7-position ground bar, accepts #10 to #1/0 AWG ground wire

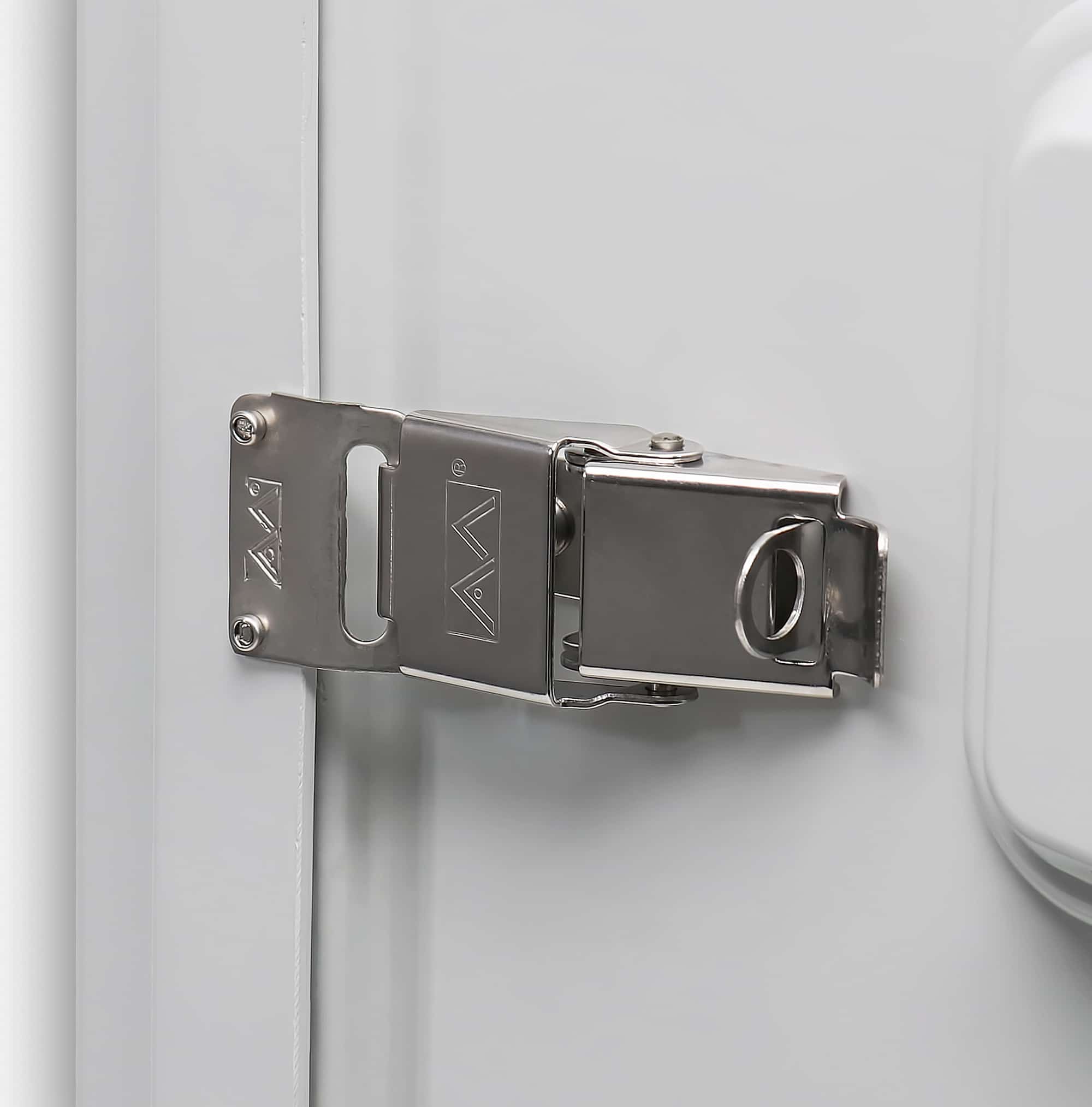

Two stainless steel pad lockable latches

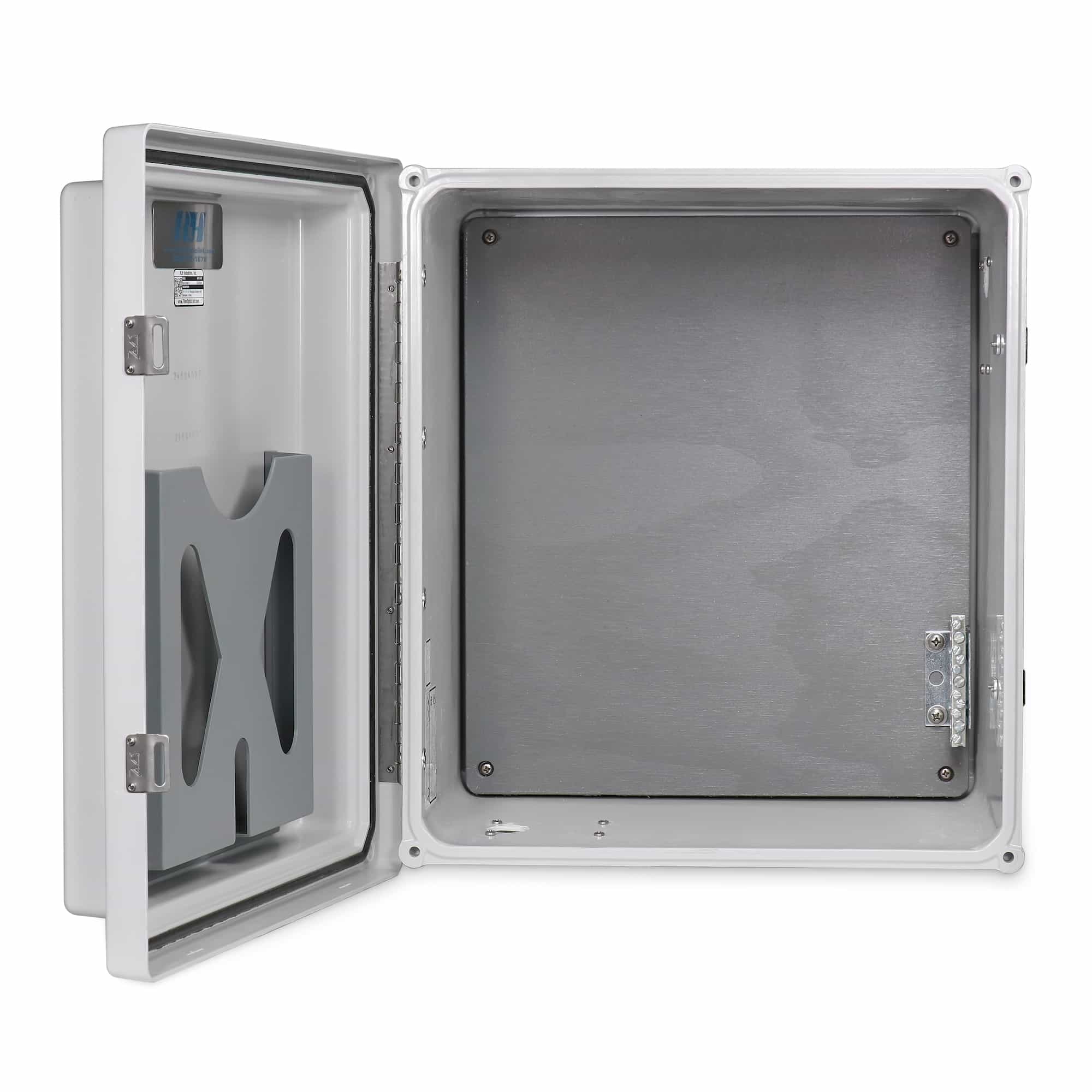

Removable door-mounted document holder
Wall/Strut mount feet included, optional pole mount kit available
Factory installed options available: include fans, heaters, thermostats, and more
Made in USA

Please see the product documentation for the complete list of specifications

Construction
Material: Fiberglass reinforced polyester
Weight: 19 lbs. / 8.6kg

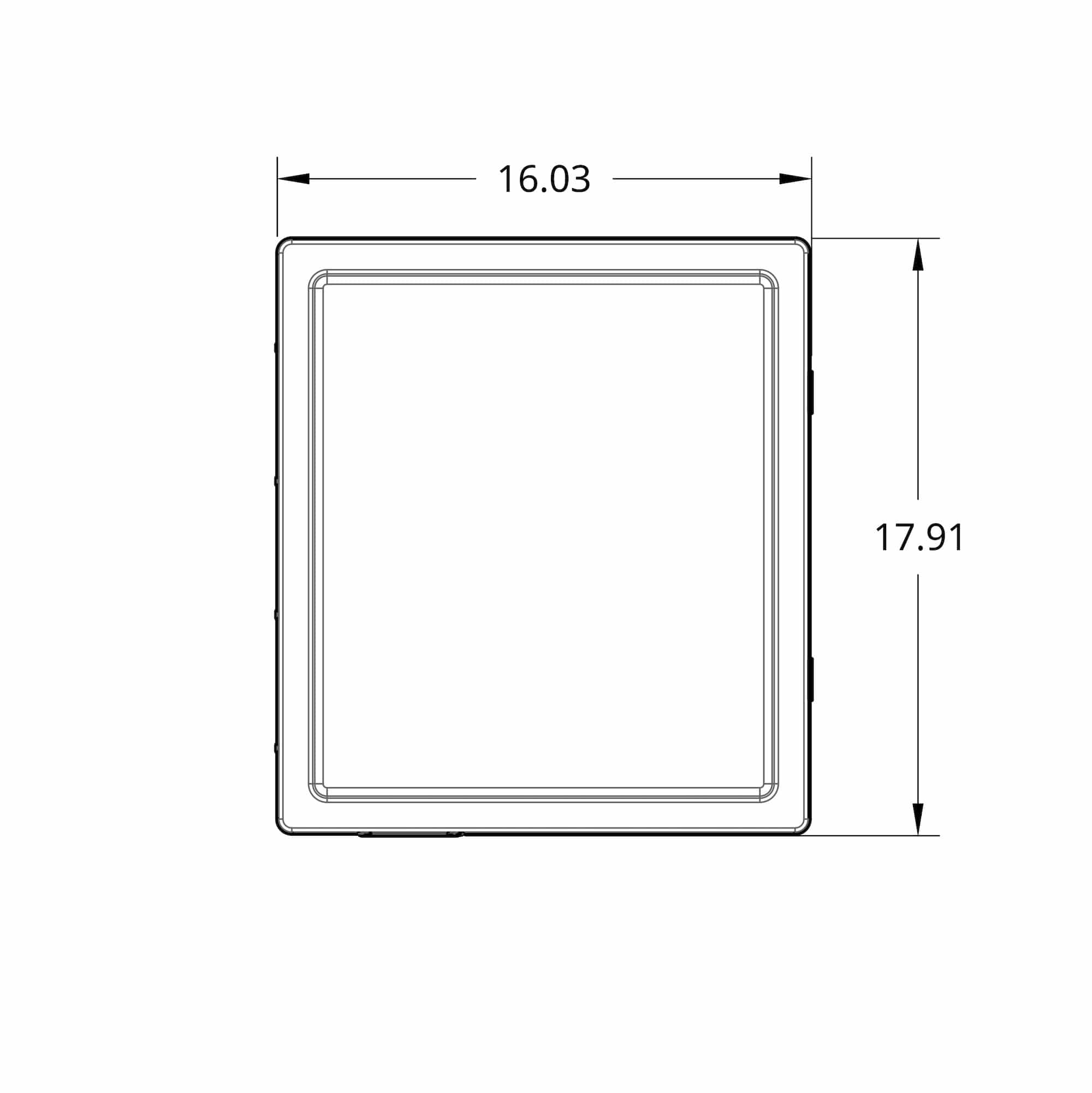

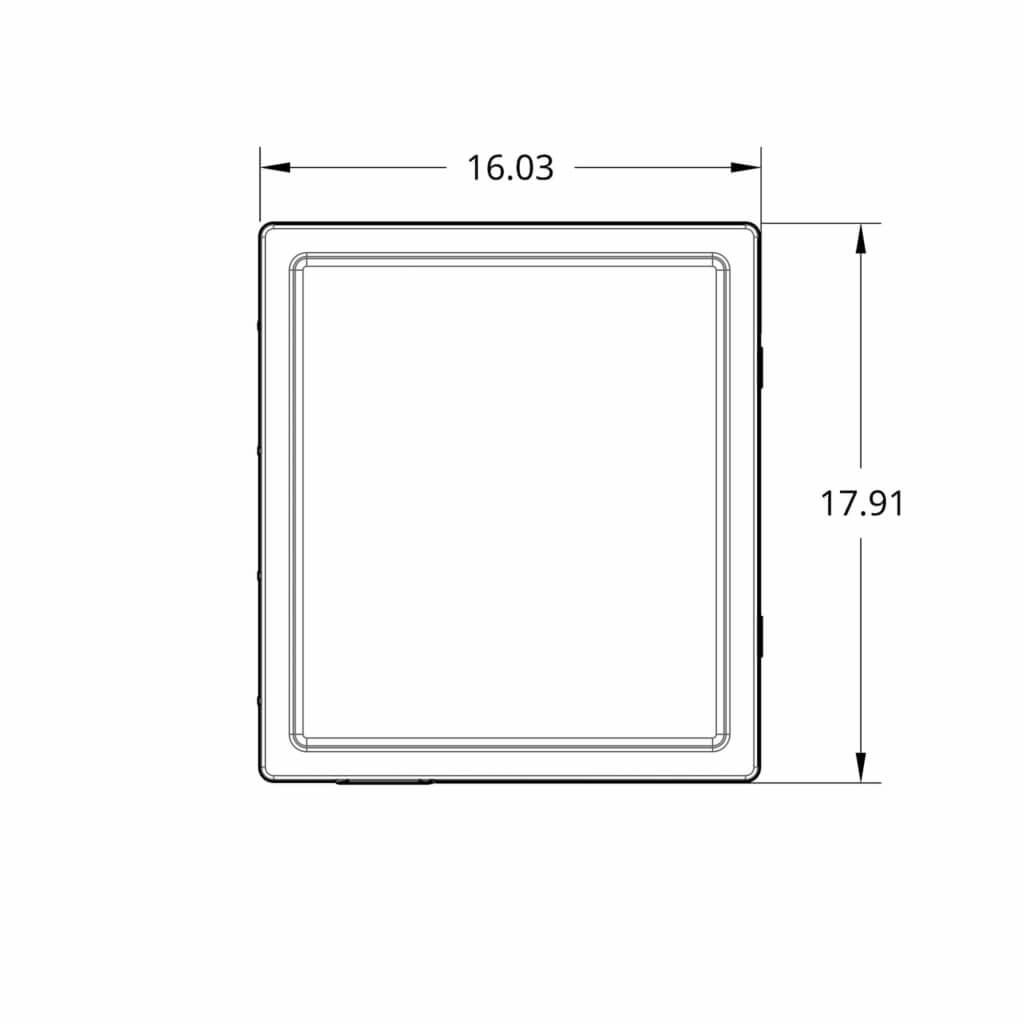

Exterior Dimensions: 16″ (W) x 10″ (D) x 17.9″ (H), (407mm x 255mm x 455mm)
*not including pole mount bracket

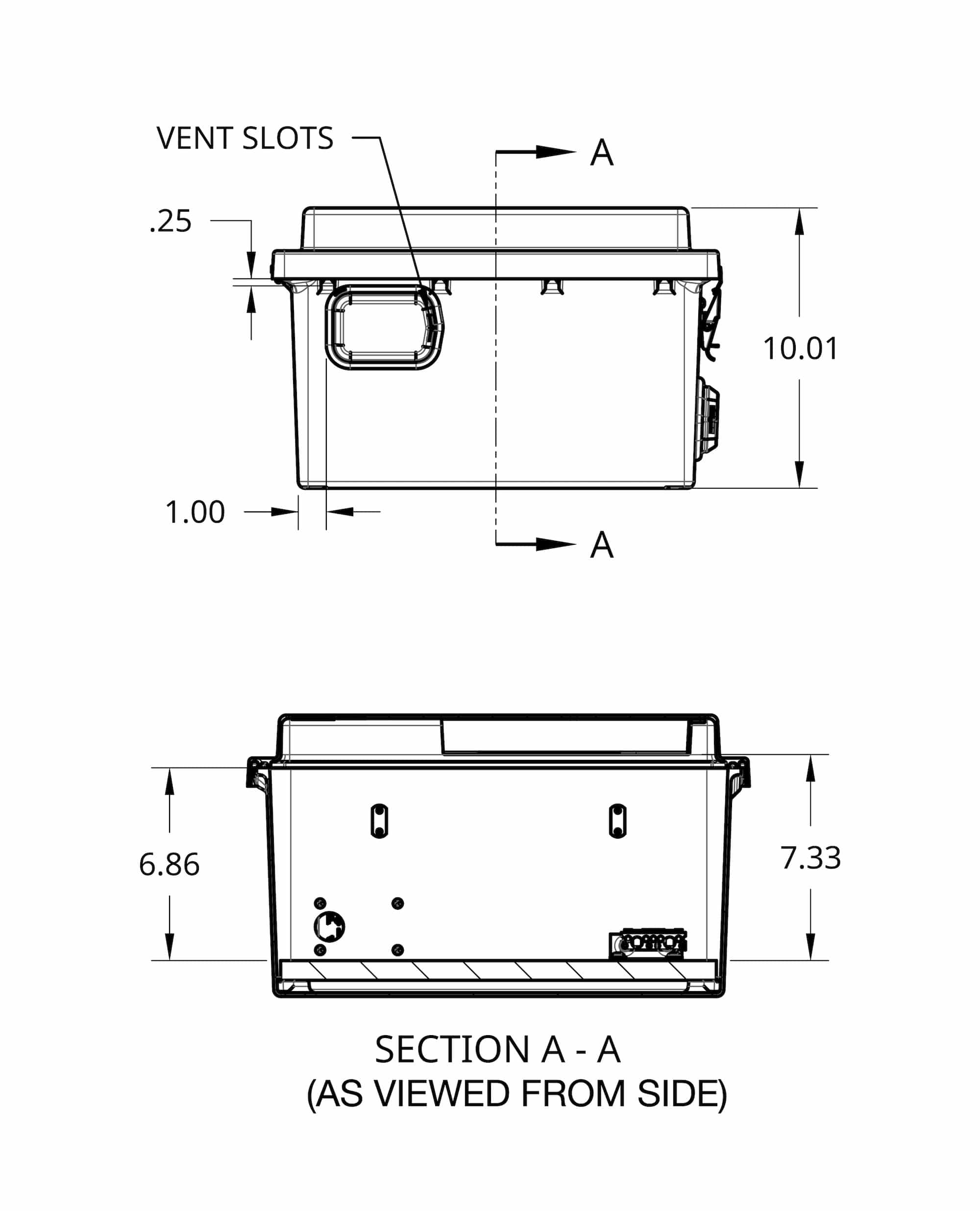

Useable interior depth: 7.3″ (185mm) (with removable document holder in place)

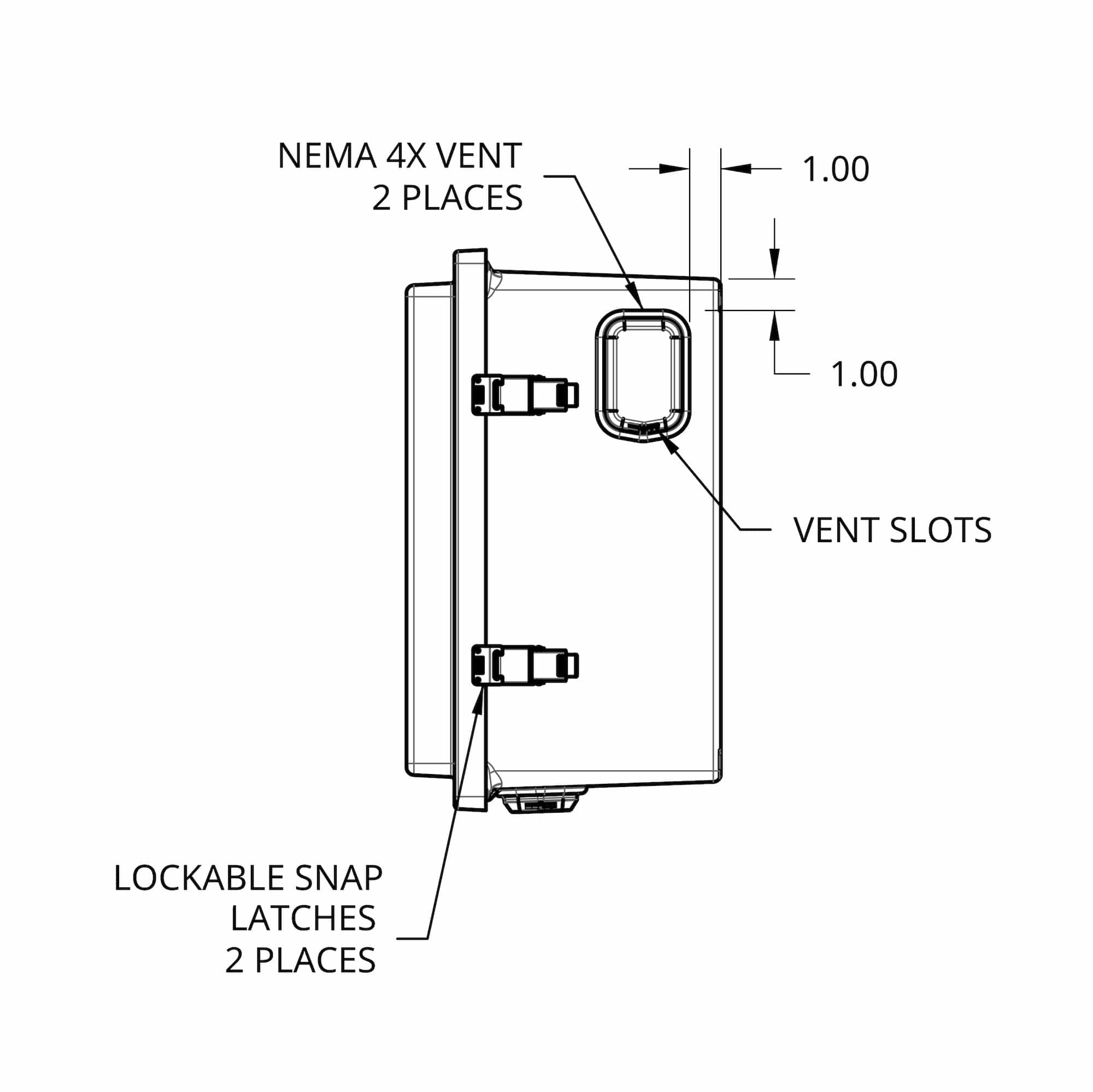

Venting: NEMA 4X Vents to provide air circulation, 1 side vent, 1 bottom vent
Complies with: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Mounting

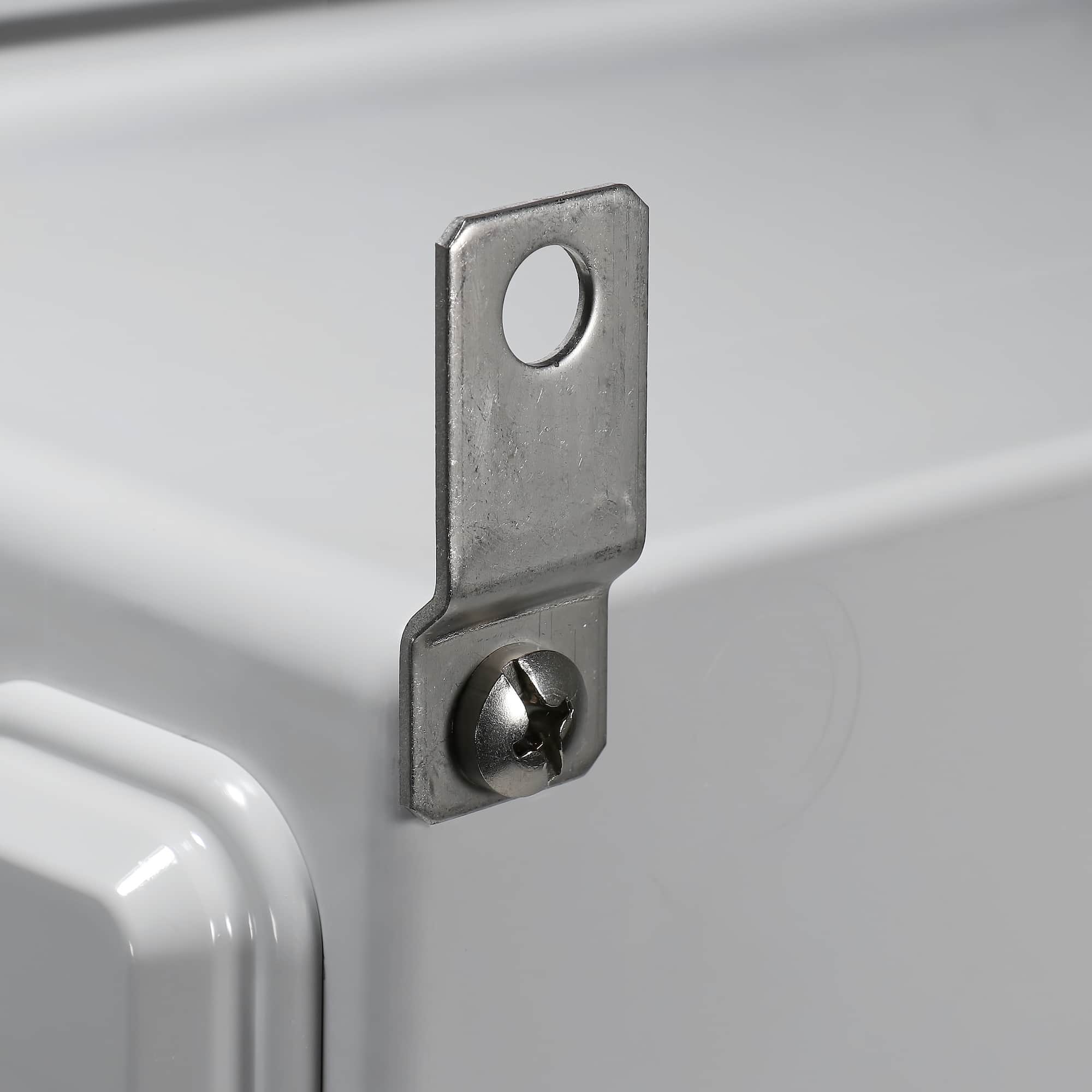

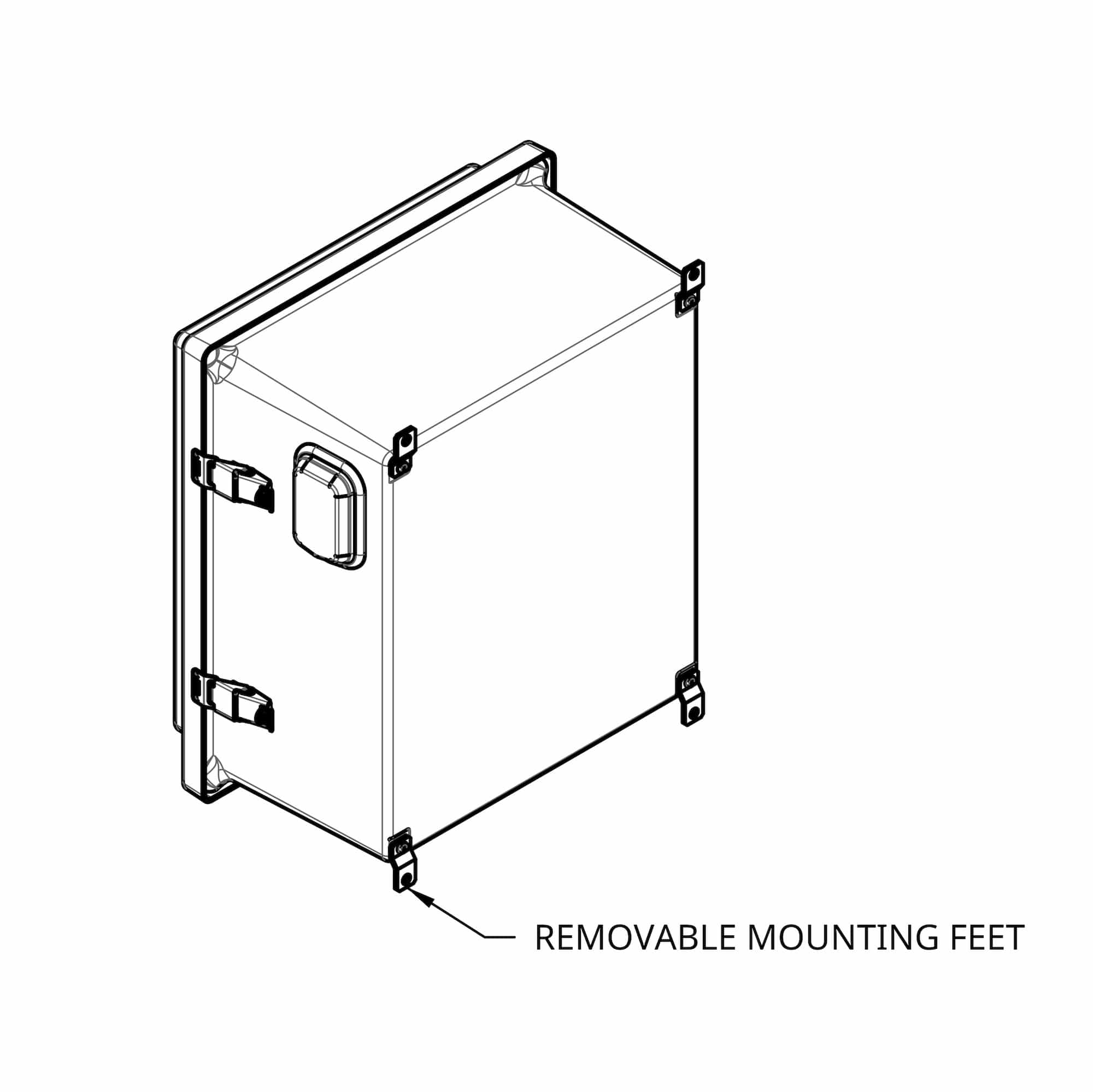

Wall/Strut Mounting via included mounting feet
Accommodates 1/4″ bolt for wall or strut mounting

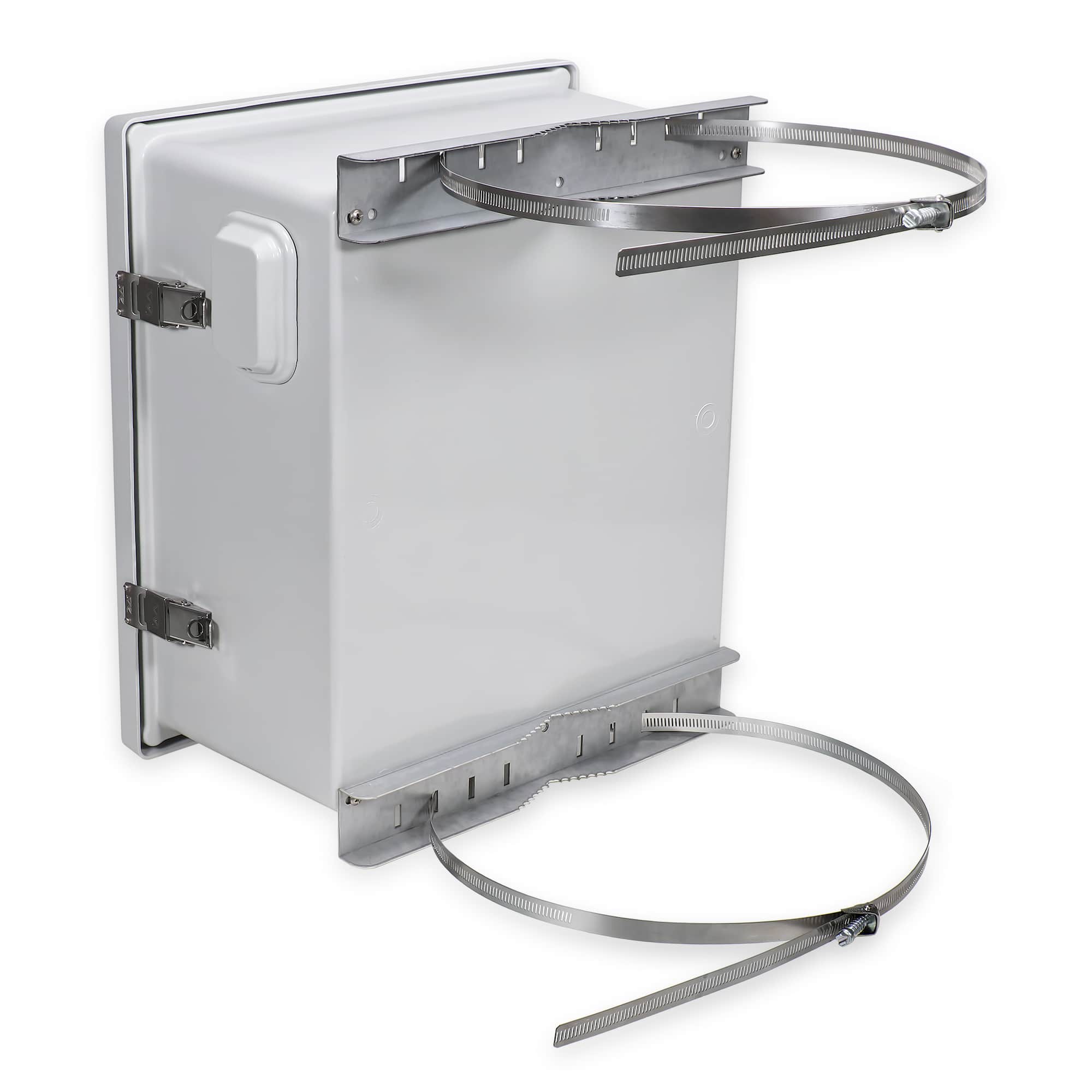

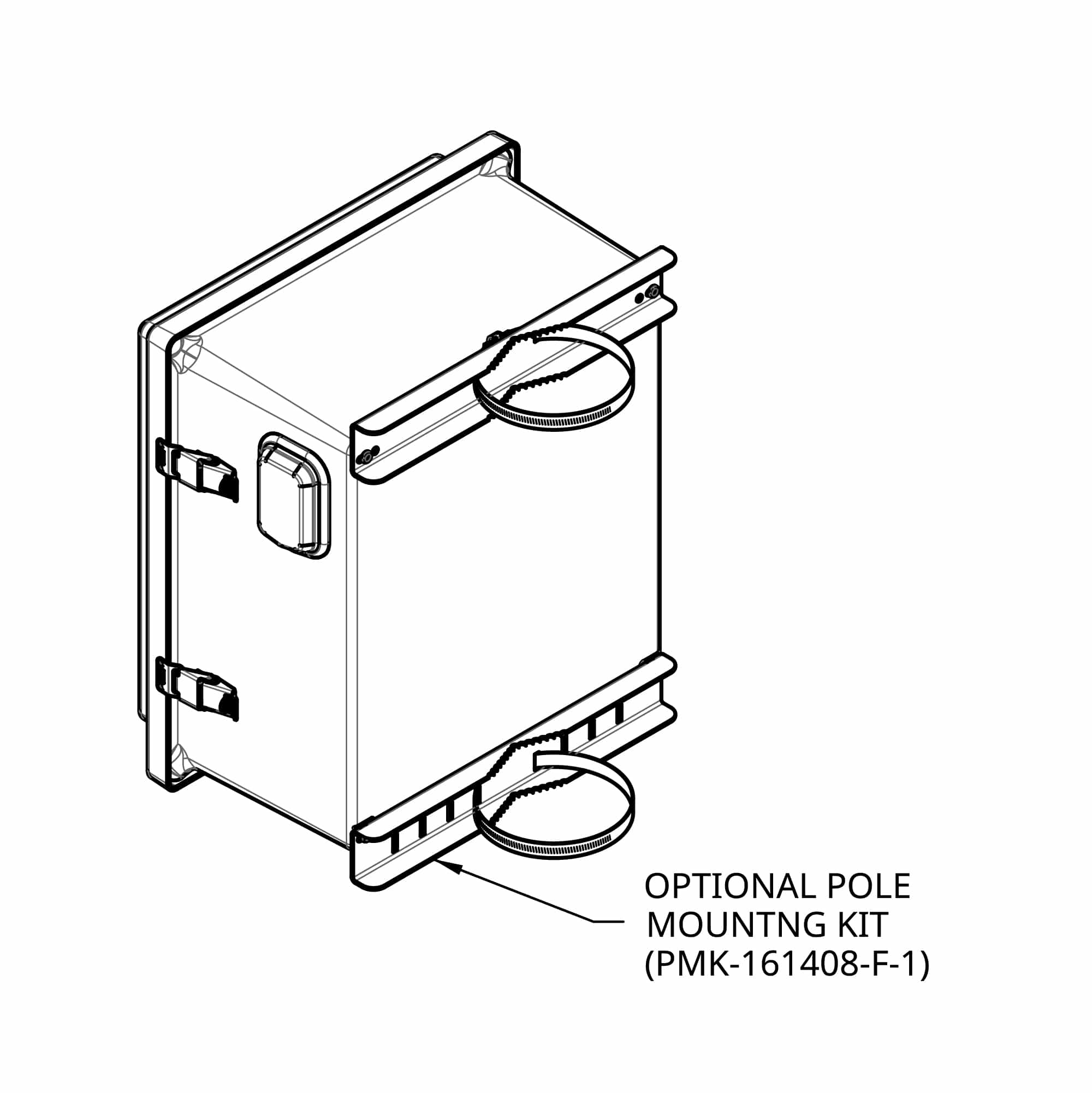

Optional Pole Mount Kit: Strap attachment, fits 4″ to 15″ diameter poles

Access
Hinged door with weatherproof gasket seal
Pad lockable door latches

Interior Details

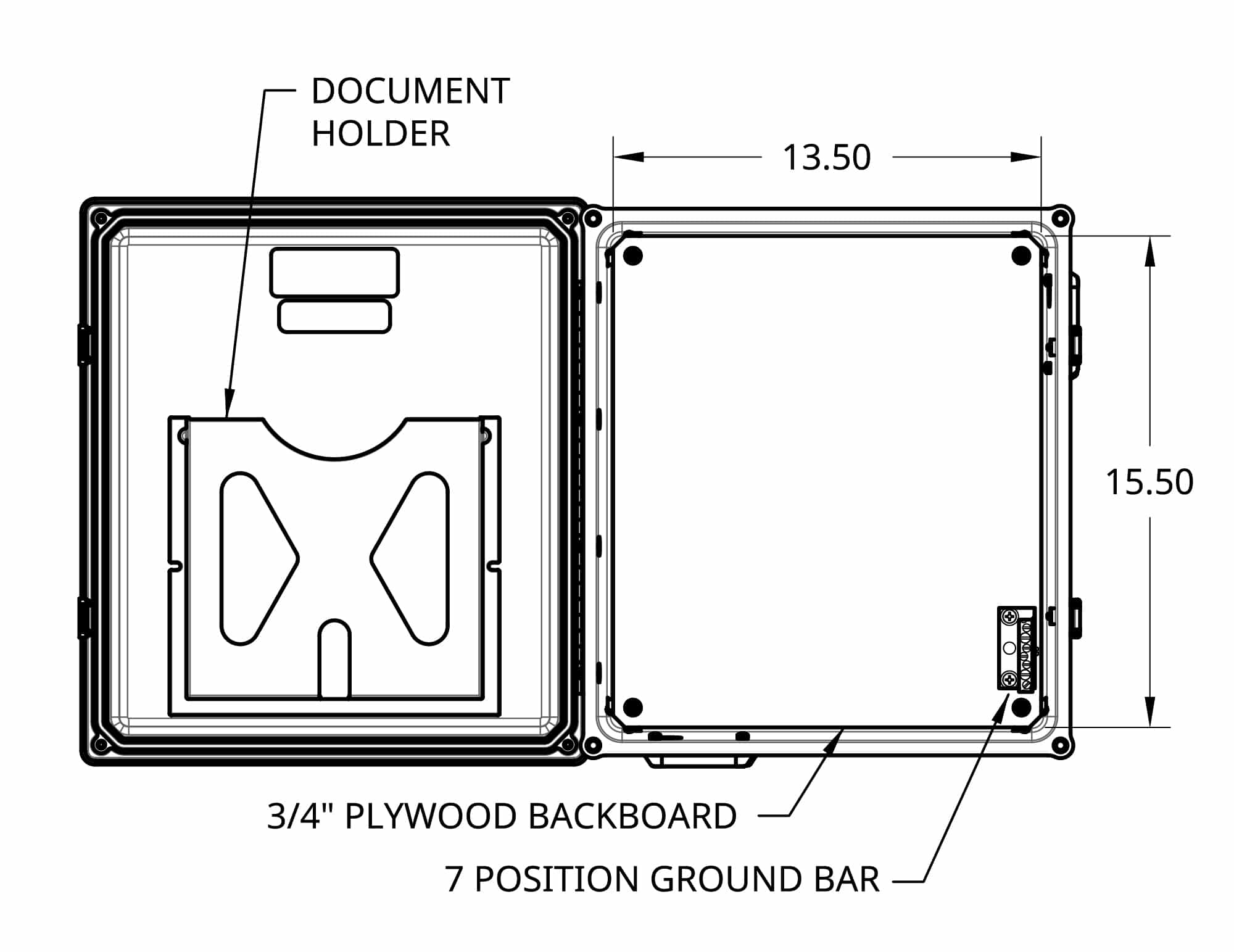

Usable Backboard: 13.5″ (W) x 15.5″ (H)
Backboard Type: 3/4″ thick fire treated, painted plywood

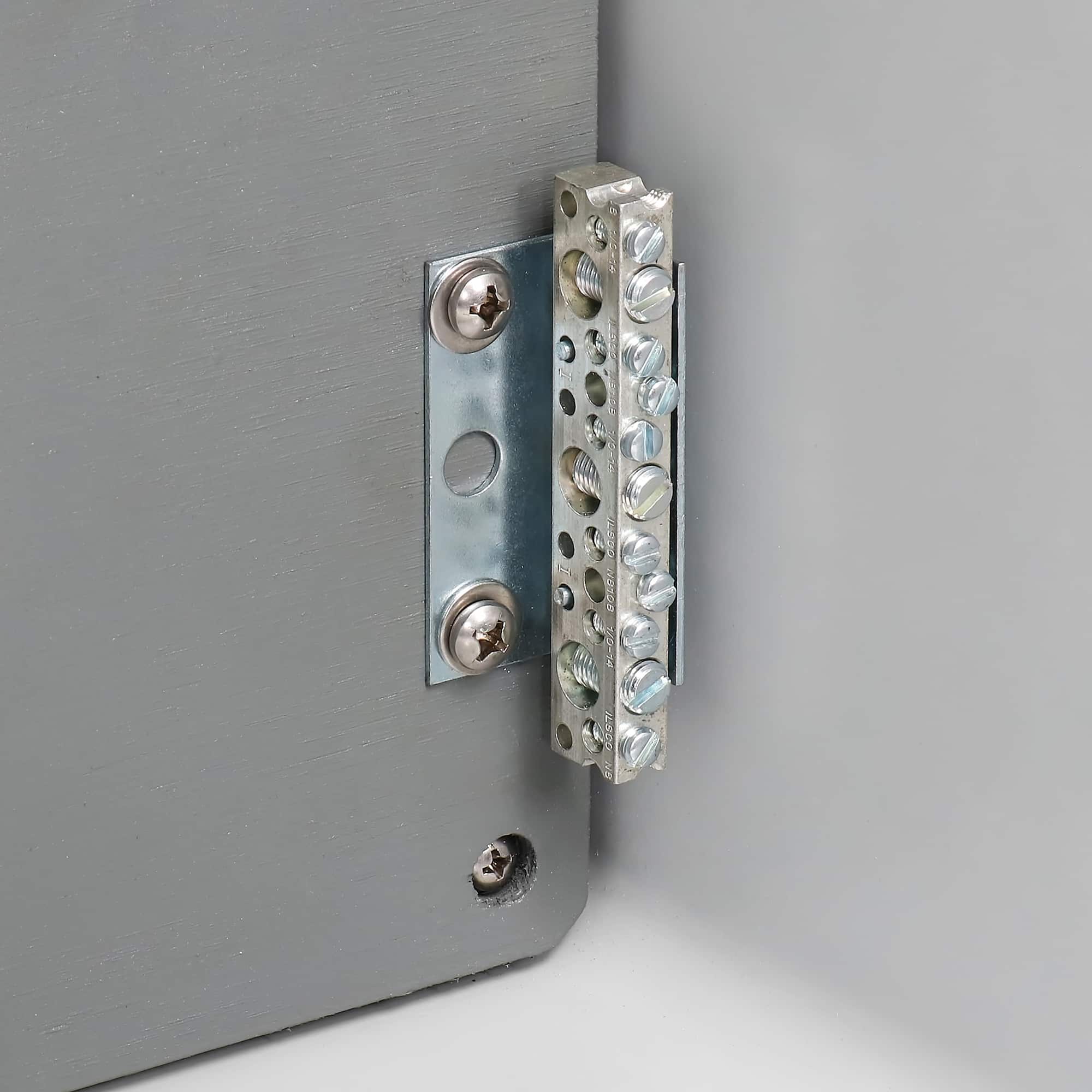

Ground Bus: 7 position ground wire capacity (Qty. 4 – #10 to #6 AWG, Qty. 3 – #10 to #1/0 AWG)
