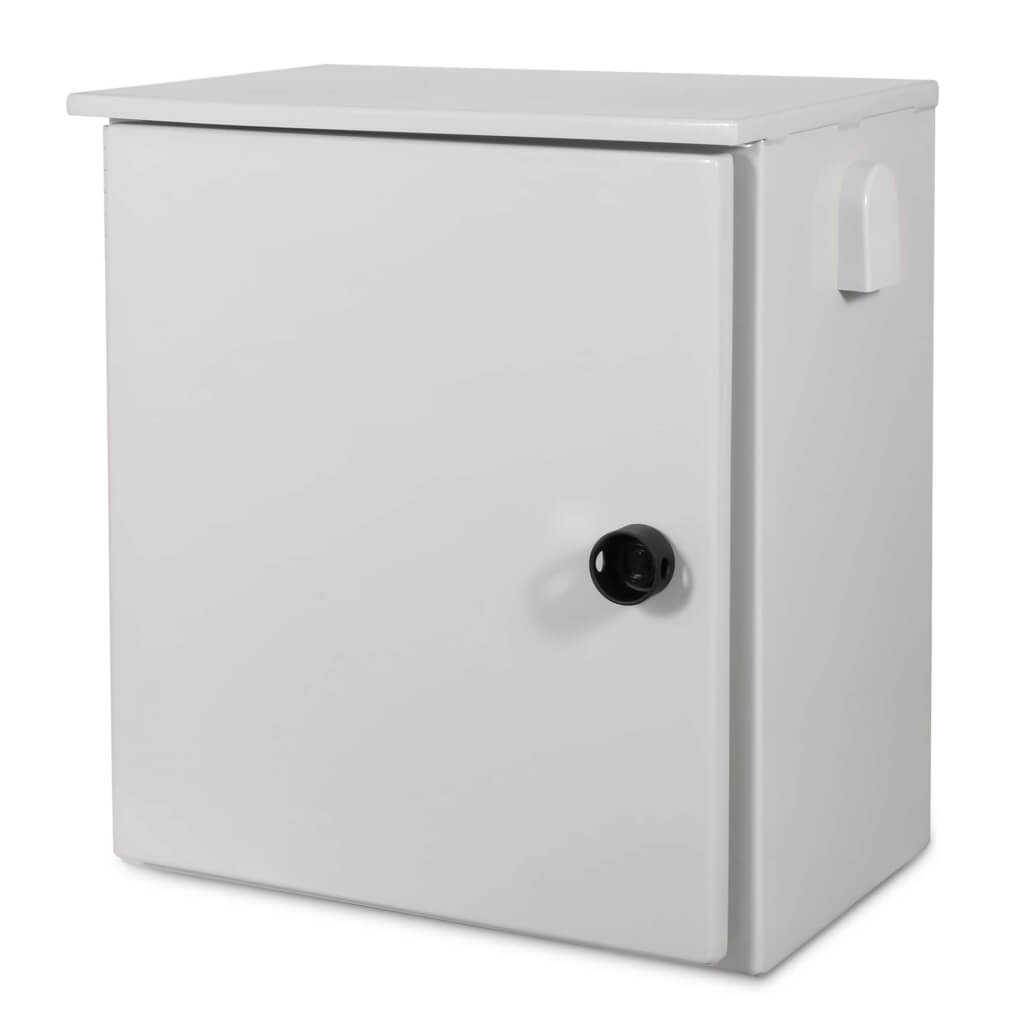

Small Outdoor Weatherproof Equipment Enclosure
These commercial-grade, aluminum enclosures feature plywood backboards for easy field installation of communication devices and equipment in outdoor environments. Water and dust proof vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock, and include mounting feet for wall or strut mounting. A pole mount model is available with the bracket preinstalled and ready for deployment.
Custom fabricated enclosures and turn-key solutions to fit your specific applications needs are available from the RLH design group. Please contact an RLH sales representative for more information on enclosures and equipment.
- Weatherproof design for outdoor use
- Heavy duty, precision welded, powder coated construction
- Fire treated and painted 3/4″ plywood backboard

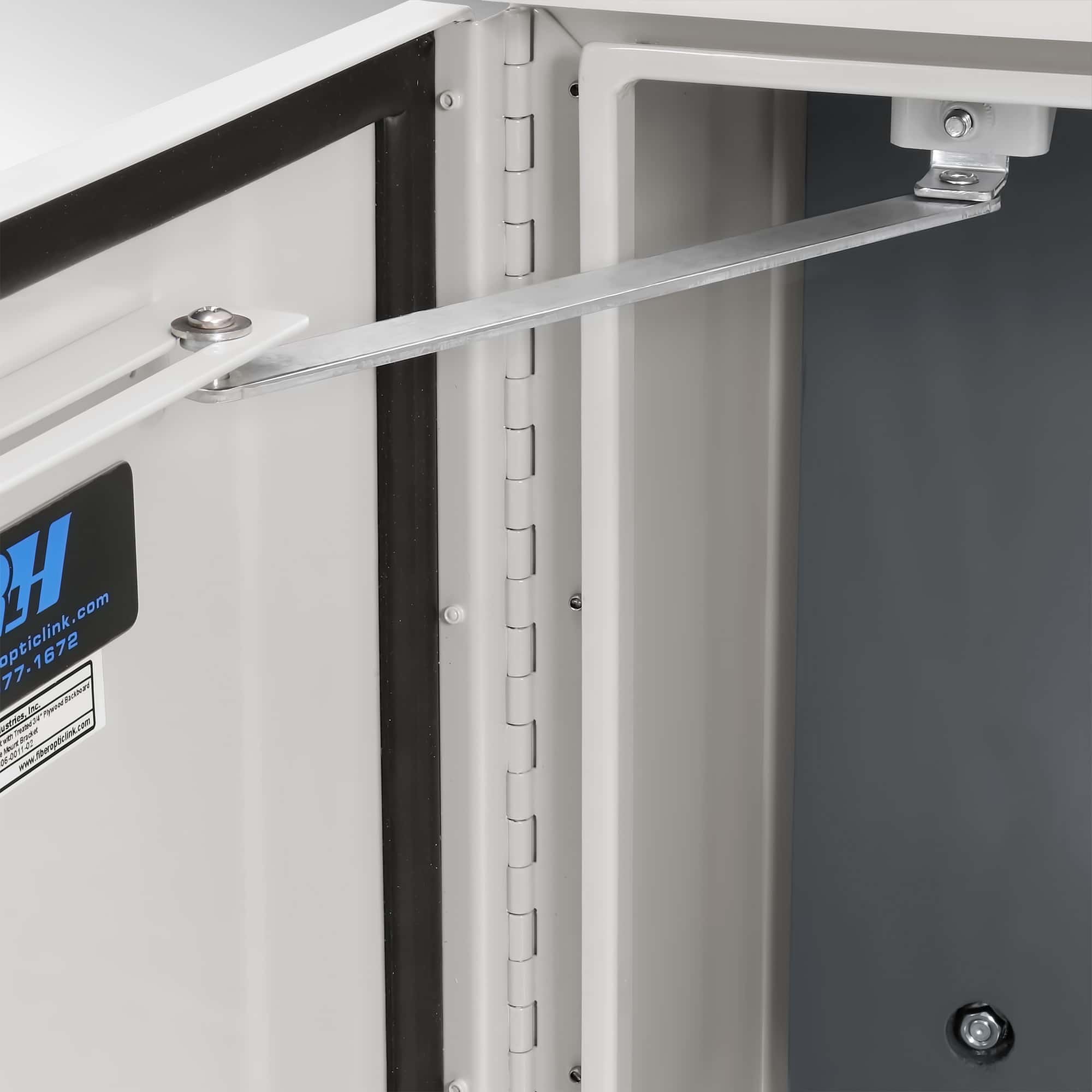

- Hinged door with limit stop
- Neoprene weather-tight door seal
- Literature/document pocket on door interior
- Weatherproof side and bottom vents
- 11 position ground bar, accepts #10 to #1/0 AWG ground wire
- Quarter-turn latch with padlock ring
- Wall/Strut mount Standard, Pole Mount Option available
- Factory available options: include fans, heaters, thermostats, and more
- Made in USA
Construction
Material: Welded .080 Thick 5052-H32 Aluminum Alloy
Weight Wall Mount Model : 18lbs / 8.2kg
Weight Pole Mount Model : 23lbs / 10.4kg
Finish: Powder coat, beige smooth gloss

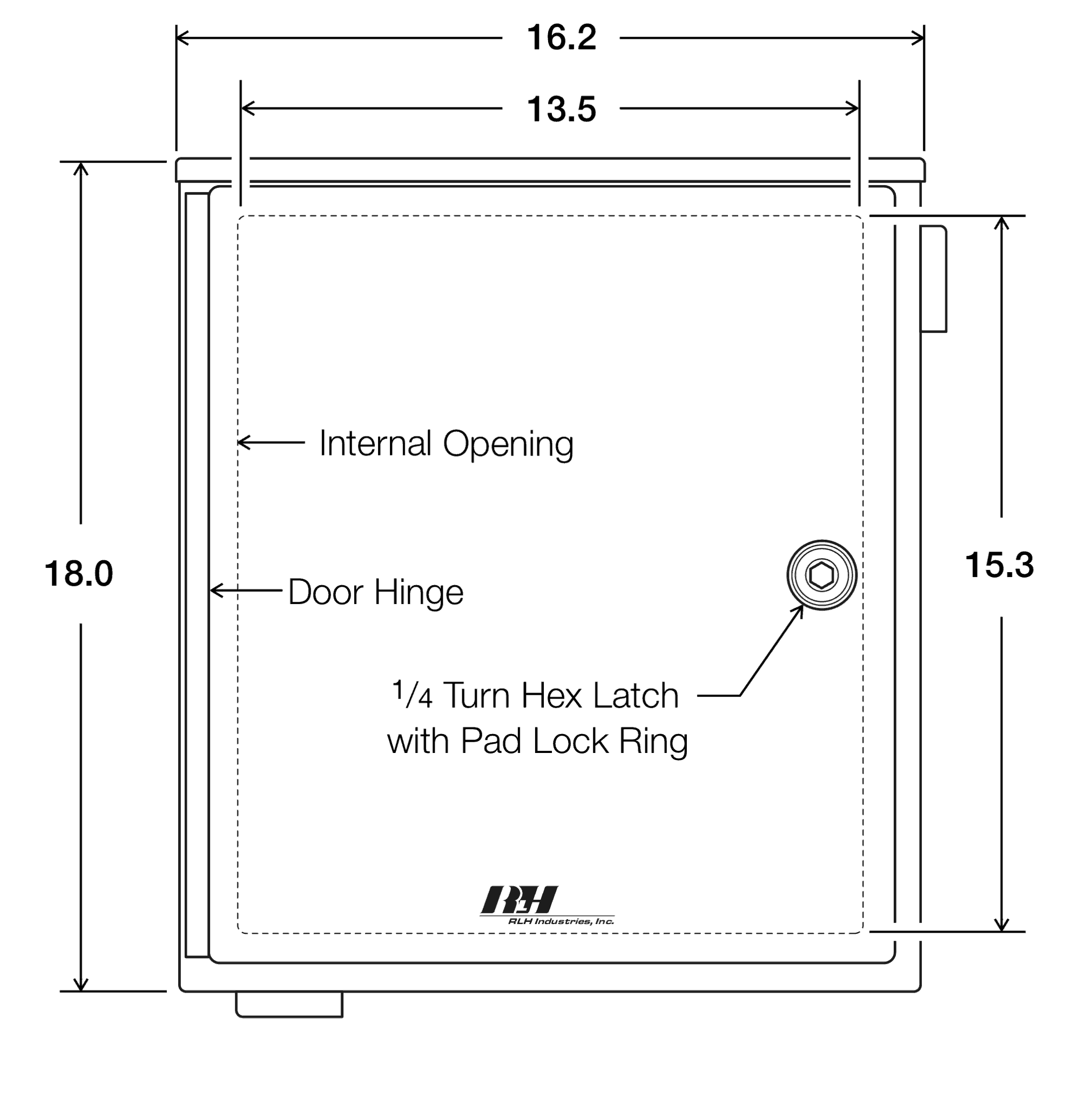

Exterior Dimensions: H 18” x W 16.2” x D 11.6” (not including pole mount bracket)
Door opening: H 15.3” x W 13.5”
Usable interior Depth: 9”

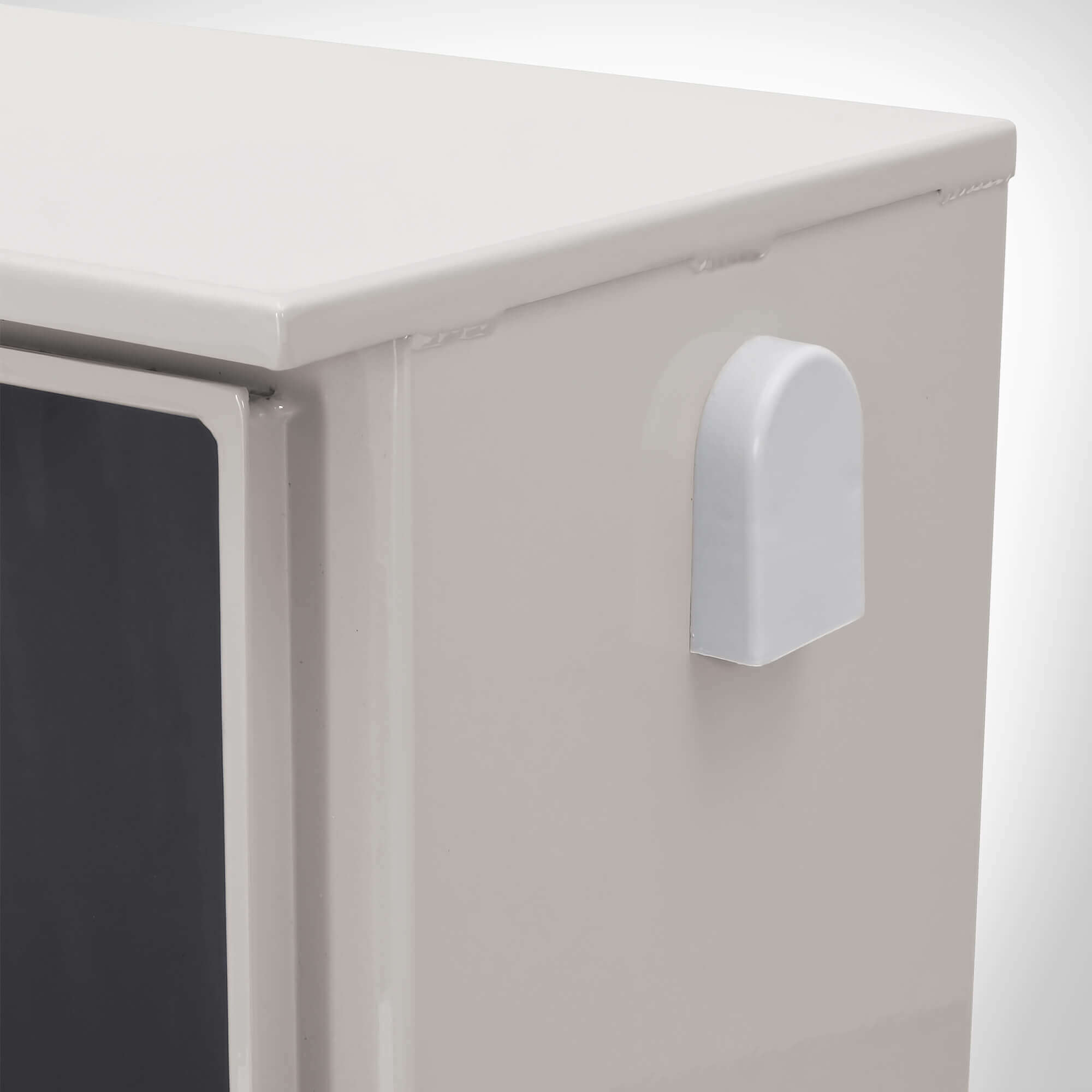

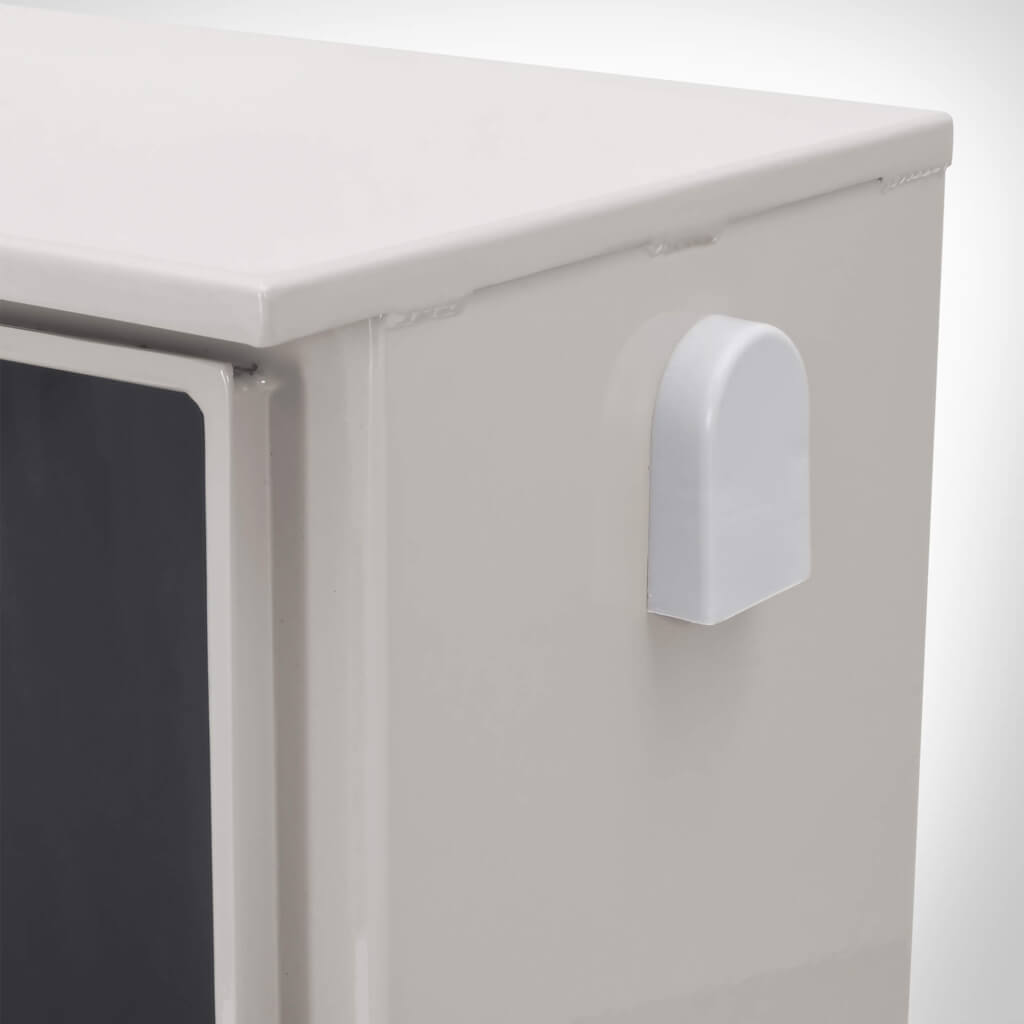

Venting: Weather and dust proof vents to provide air circulation 1 side vent, 1 bottom vent
Mounting – Wall Mount Model (Bolts or other attachment hardware not included)

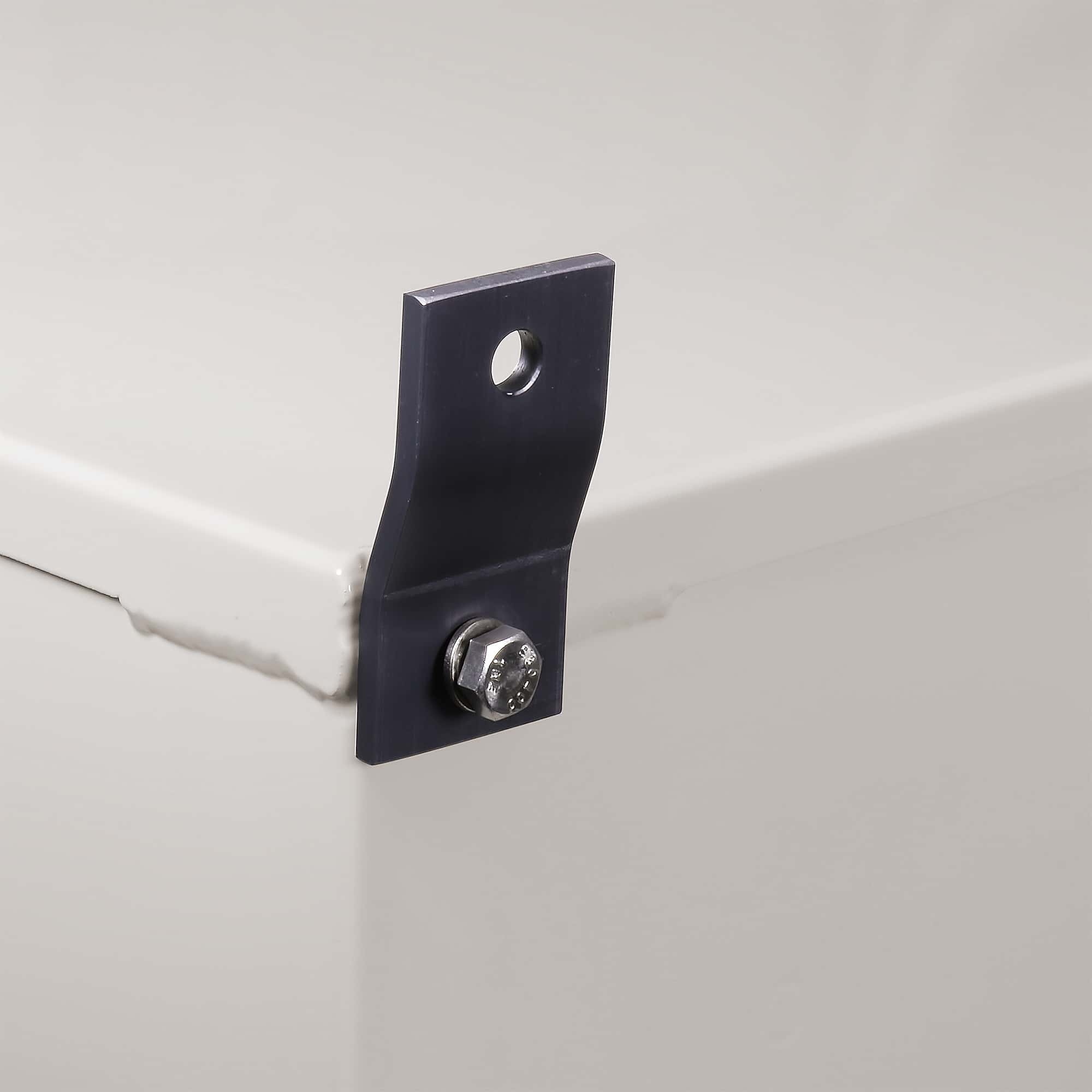

Wall/Strut mounting with included feet
Accommodates 5/16” bolt for wall or strut mounting

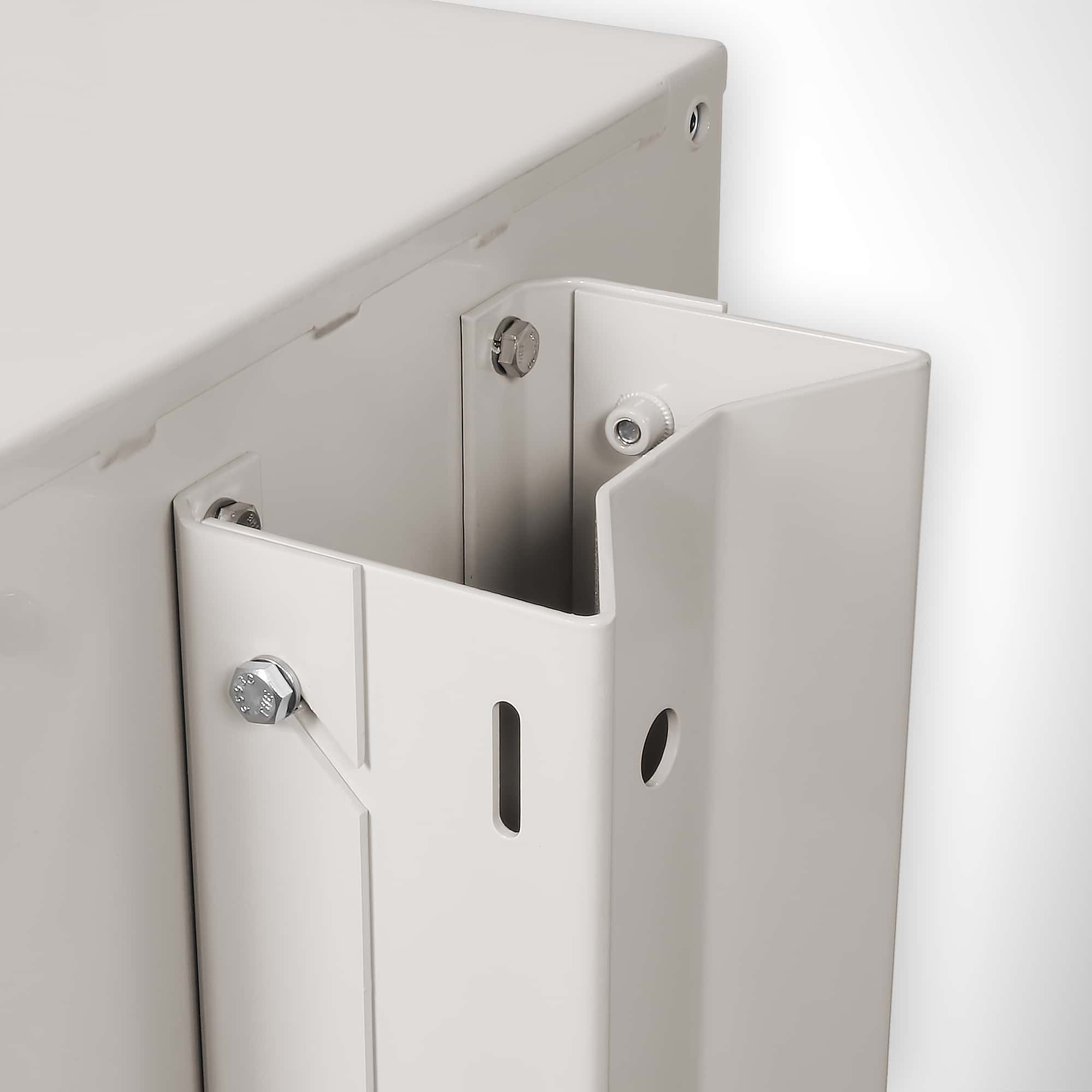

Mounting – Pole Mount Model (Bolts or Straps not included)
Bolt or Strap attachment to 4 in. diameter pole or greater
Qty. 2 – 1” strap slots, Qty. 2 – holes for 5/8” bolt
Access
Hinged door with weatherproof gasket seal

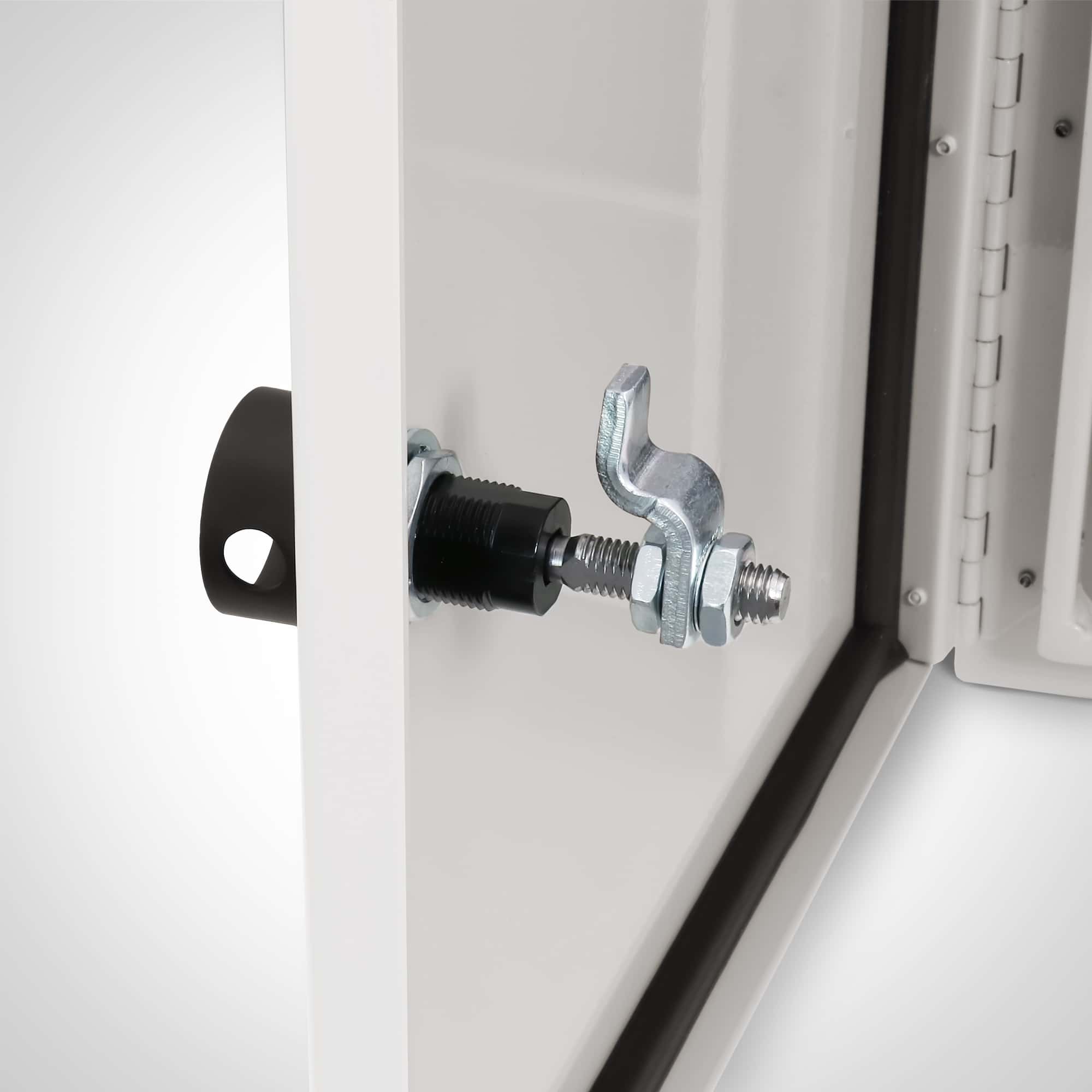

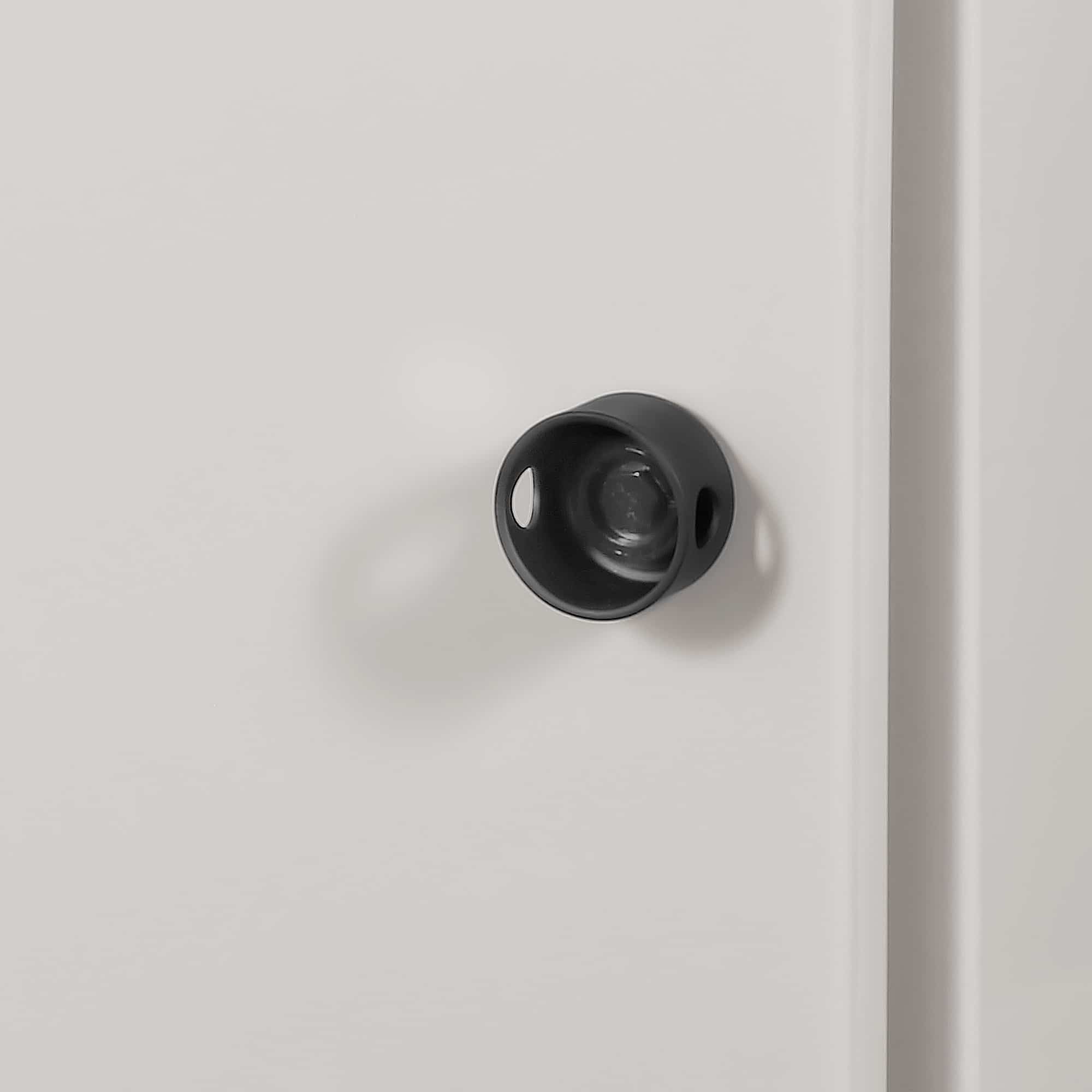

Quarter turn latch, Bellcore 216 style recessed hex key included access with single padlock ring
Interior Details

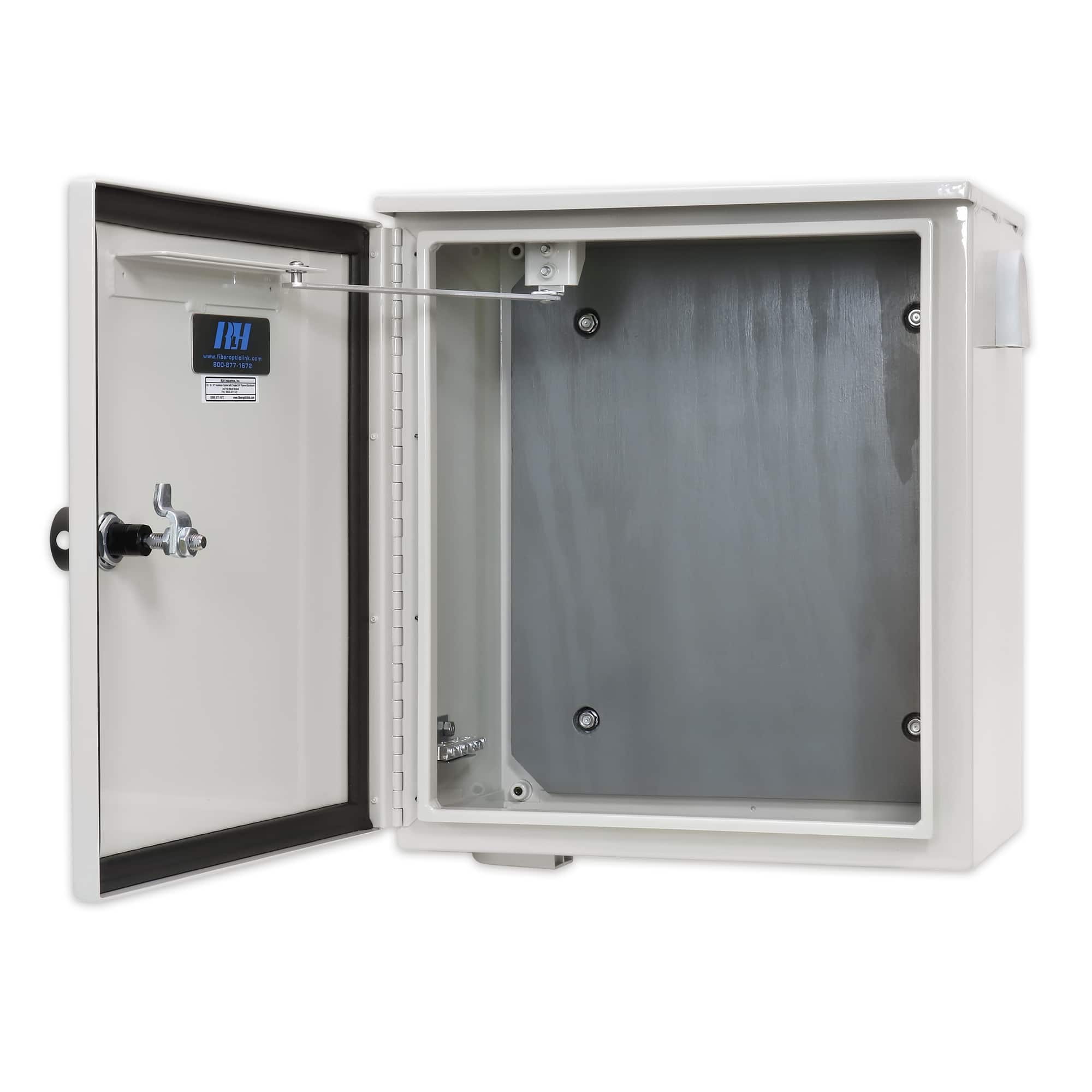

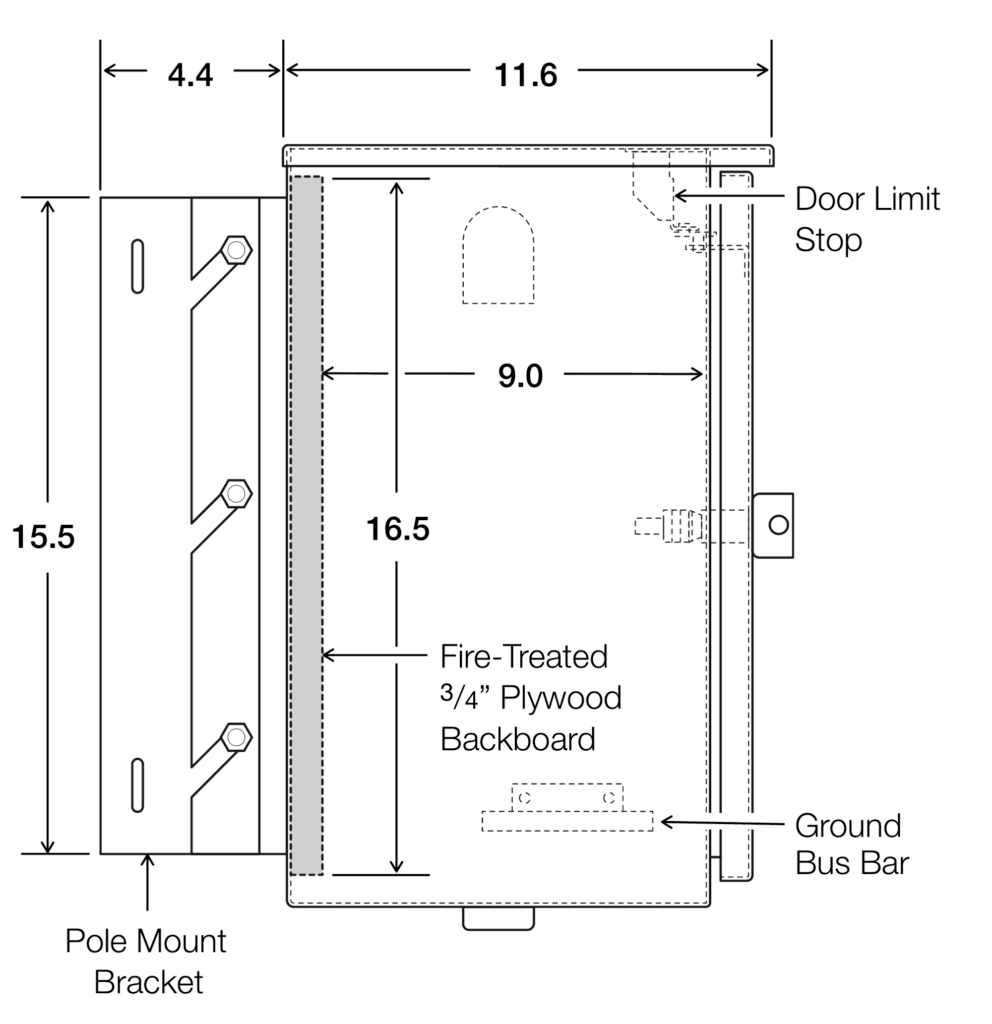

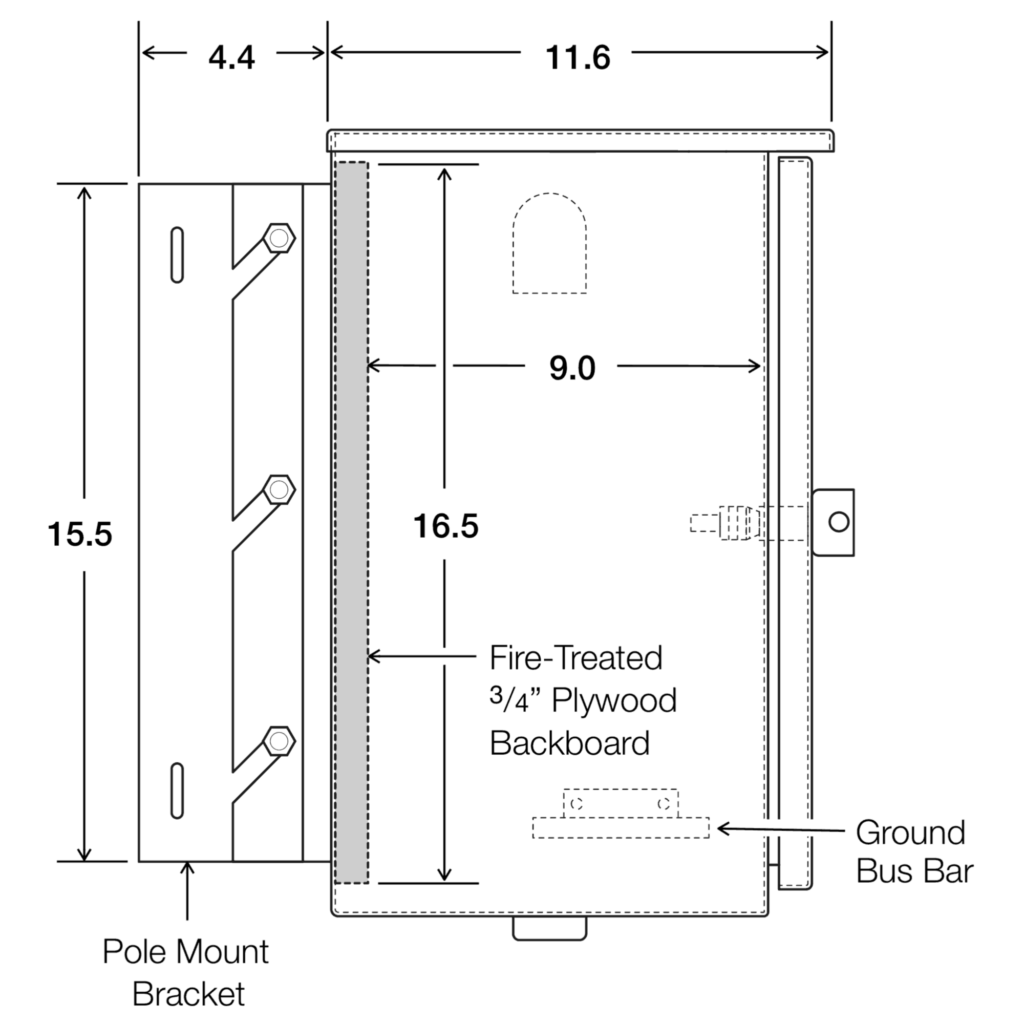

Usable Backboard: H 16.5 in. x W 14.7 in.
Backboard Type: 3/4” thick fire treated, painted plywood

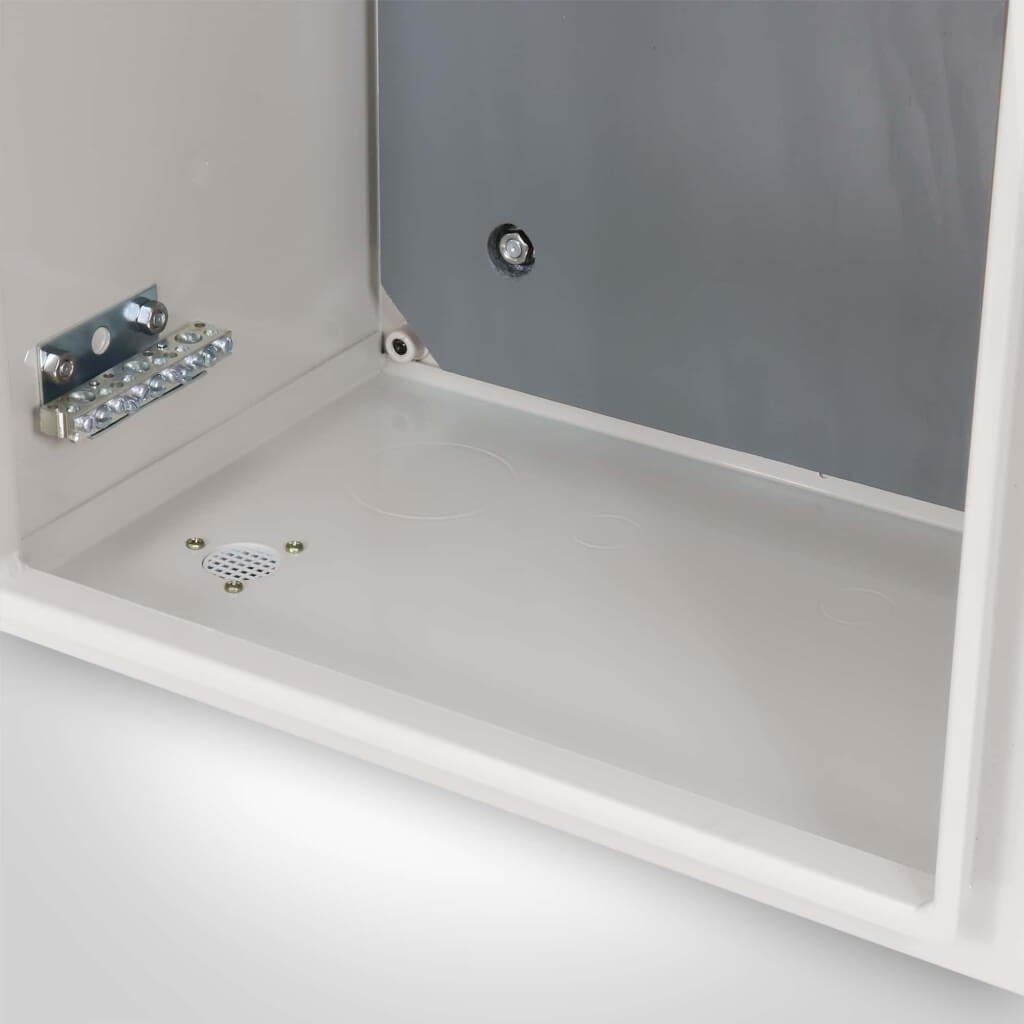

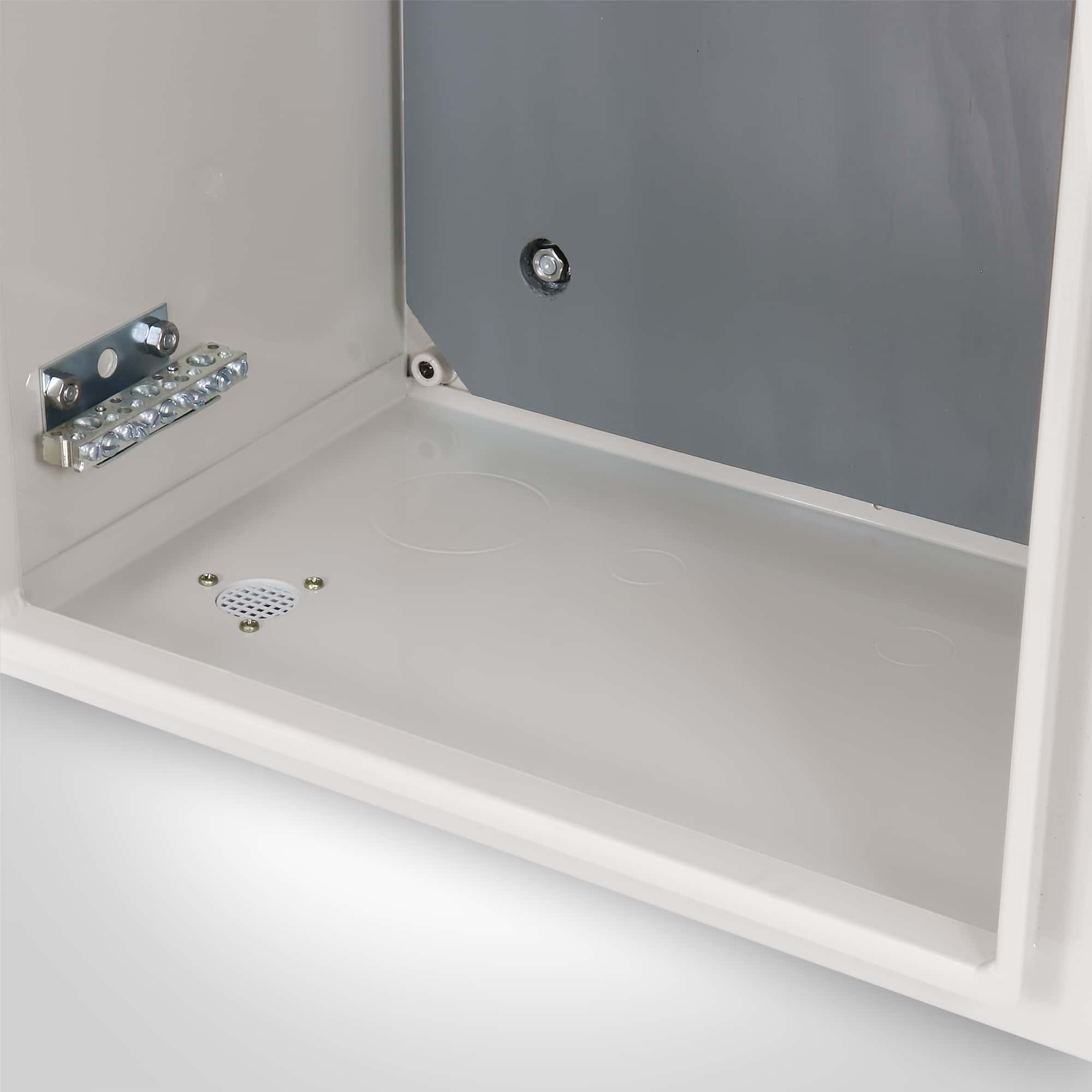

Ground Bus: Side wall bonded, 11 position ground wire capacity

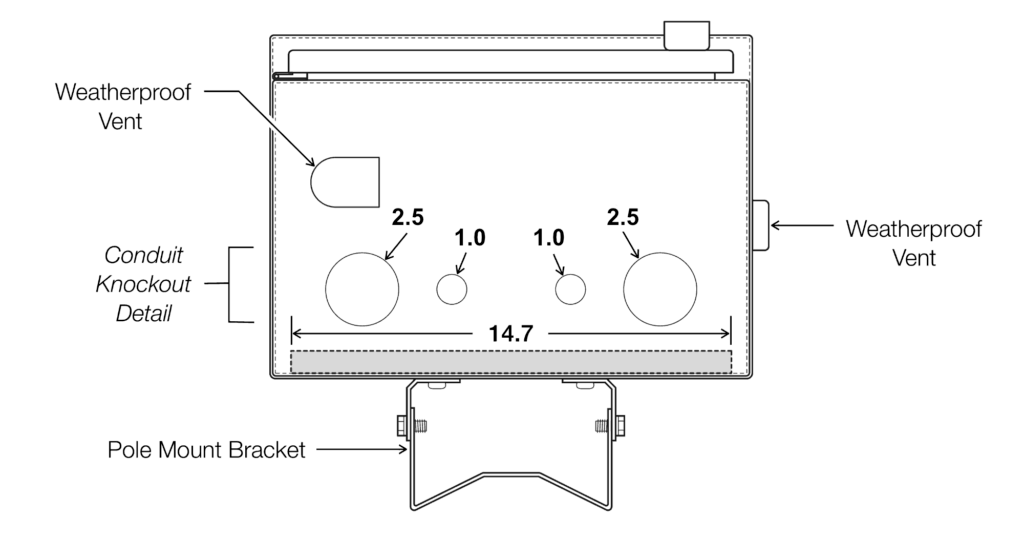

Conduit Knockouts: Qty. 2 – 0.5”, Qty. 2 – 1.25”
General Information
Specialized Drawings
Miscellaneous
RLH-181610-A-1
RLH-181610-A-1-PMK
PMK-2424
$735.00 – $945.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
18” x 16” x 10” – Aluminum Enclosure
Short description | Legacy part number | Part number | Price | |
---|---|---|---|---|
H18” x W16” x D10” with Wall/Strut Mount Feet | 8806-0011-02 | RLH-181610-A-1 | $735.00 | |
H18” x W16” x D10” with Pole Mount Bracket Preinstalled | 8806-0011-02-PMK | RLH-181610-A-1-PMK | $945.00 |
Pole Mount Bracket
Short description | Legacy part number | Part number | Price | |
---|---|---|---|---|
Add-on Pole Mount Bracket Kit | PMK-2016 | PMK-2424 | $210.00 |
