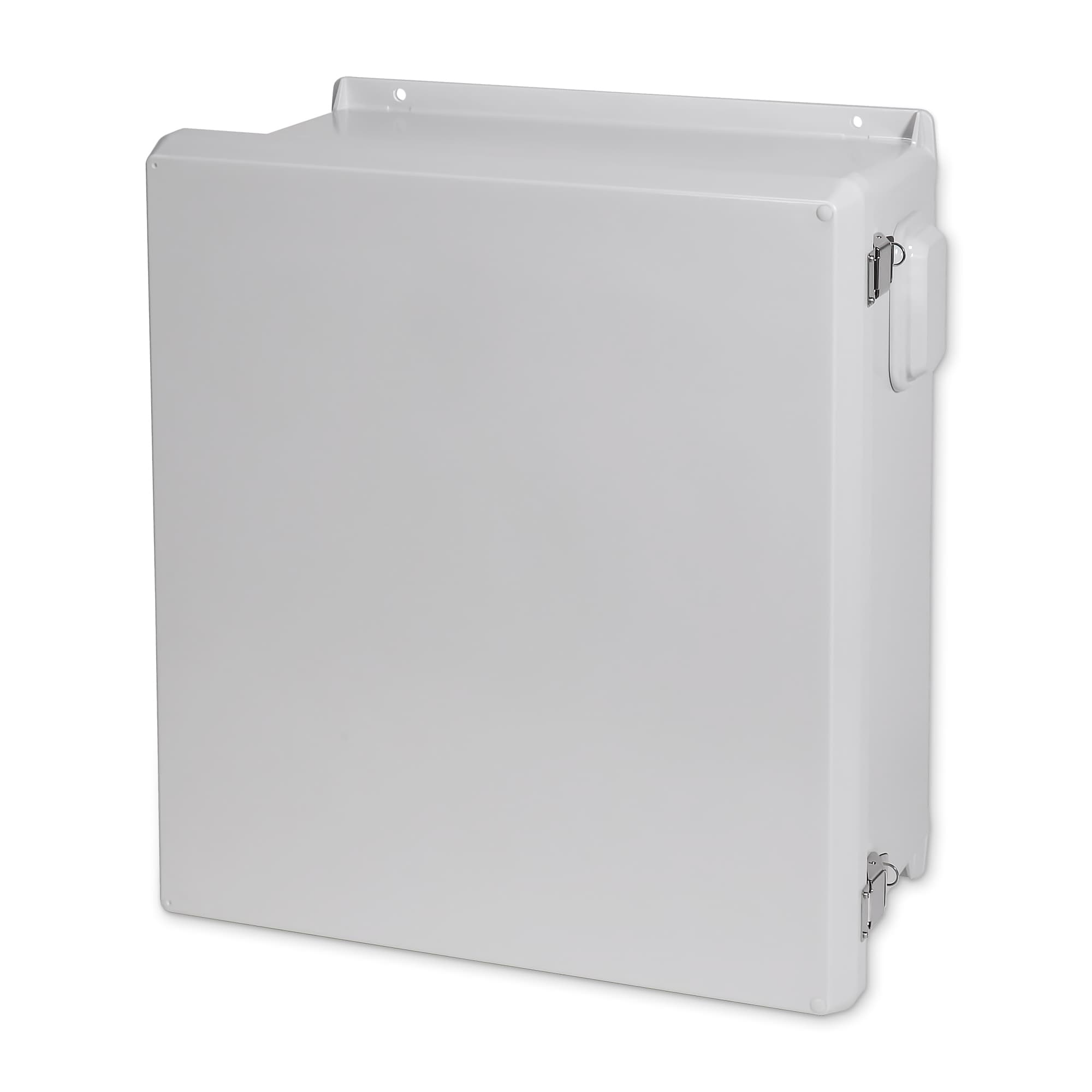

Small Outdoor Weatherproof Equipment Enclosure
This NEMA 4X fiberglass reinforced polyester enclosure features a fire treated and painted plywood backboard for easy field installation of communication devices and equipment in indoor or outdoor environments.
The enclosure is UL Listed, non-corrosive, non-conductive, light weight, and easy to modify. The added water and dust proof NEMA 4X vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock and easily installed onto a wall or strut mounting.
Custom fabricated enclosures and turn-key solutions to fit your specific applications needs are available from the RLH design group. Please contact an RLH sales representative for more information on enclosures and equipment.
Features
- Weatherproof design for outdoor use
- Heavy duty fiberglass enclosure
- Fire treated and painted 3/4″ plywood backboard
- Polyurethane gasket for weathertight door seal
- Weatherproof NEMA 4X side and bottom vents
- 7 position ground bar, accepts #10 to #1/0 AWG ground wire

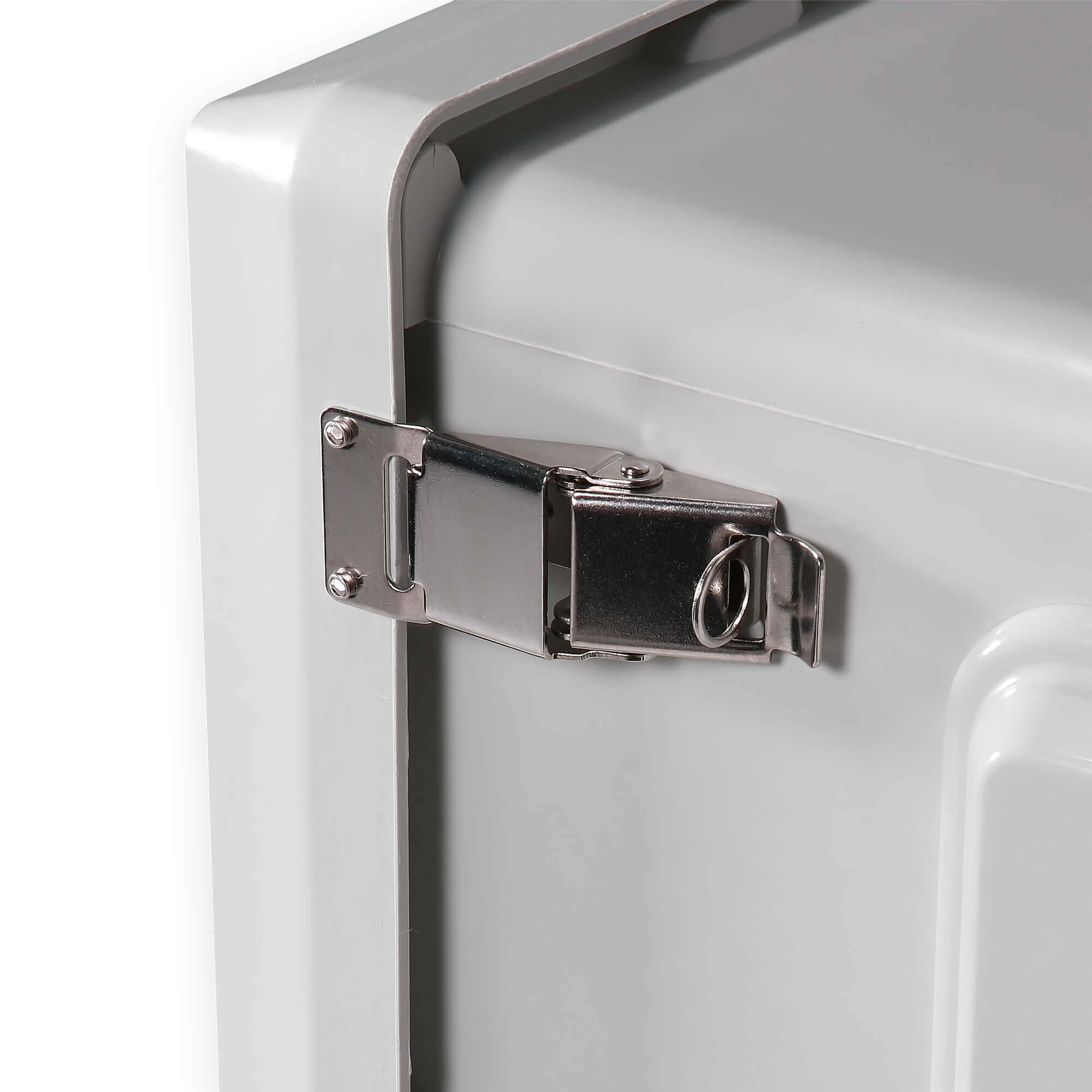

- Two stainless steel pad lockable latches

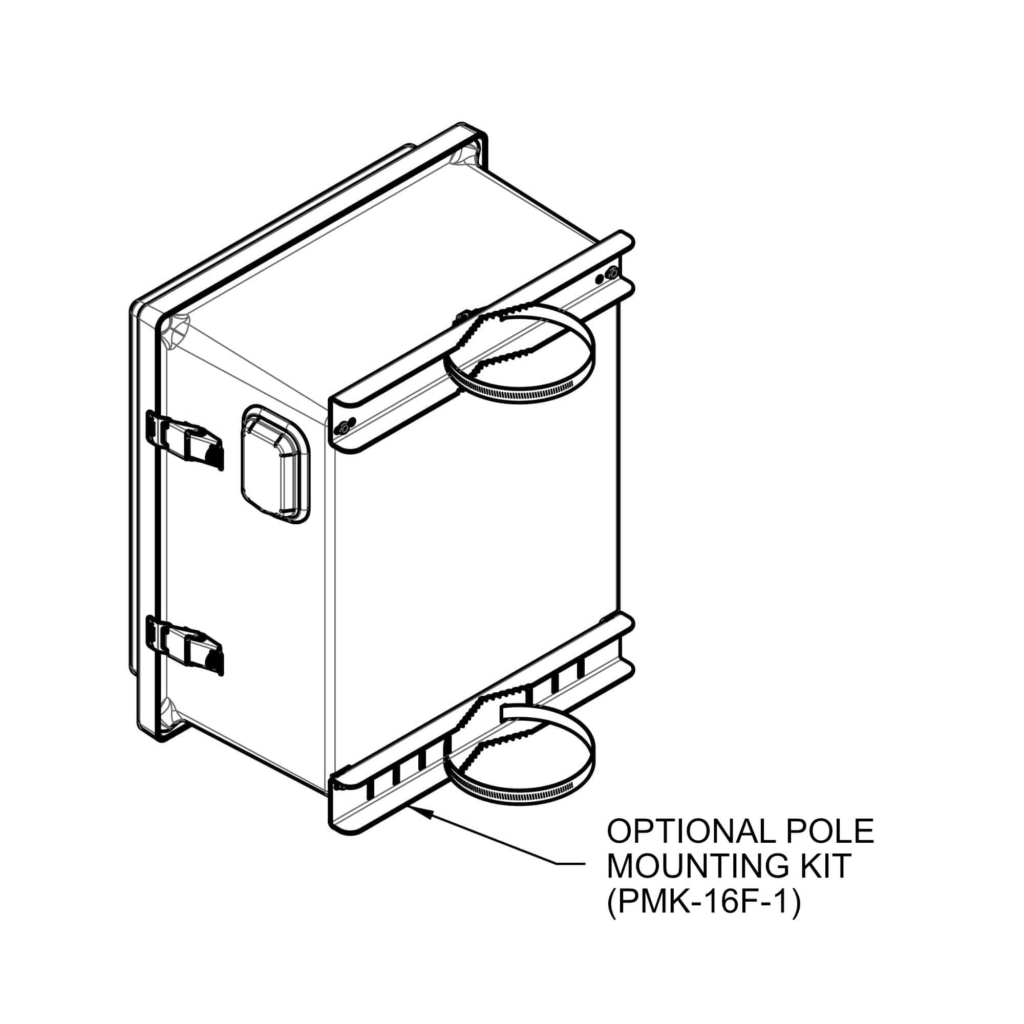

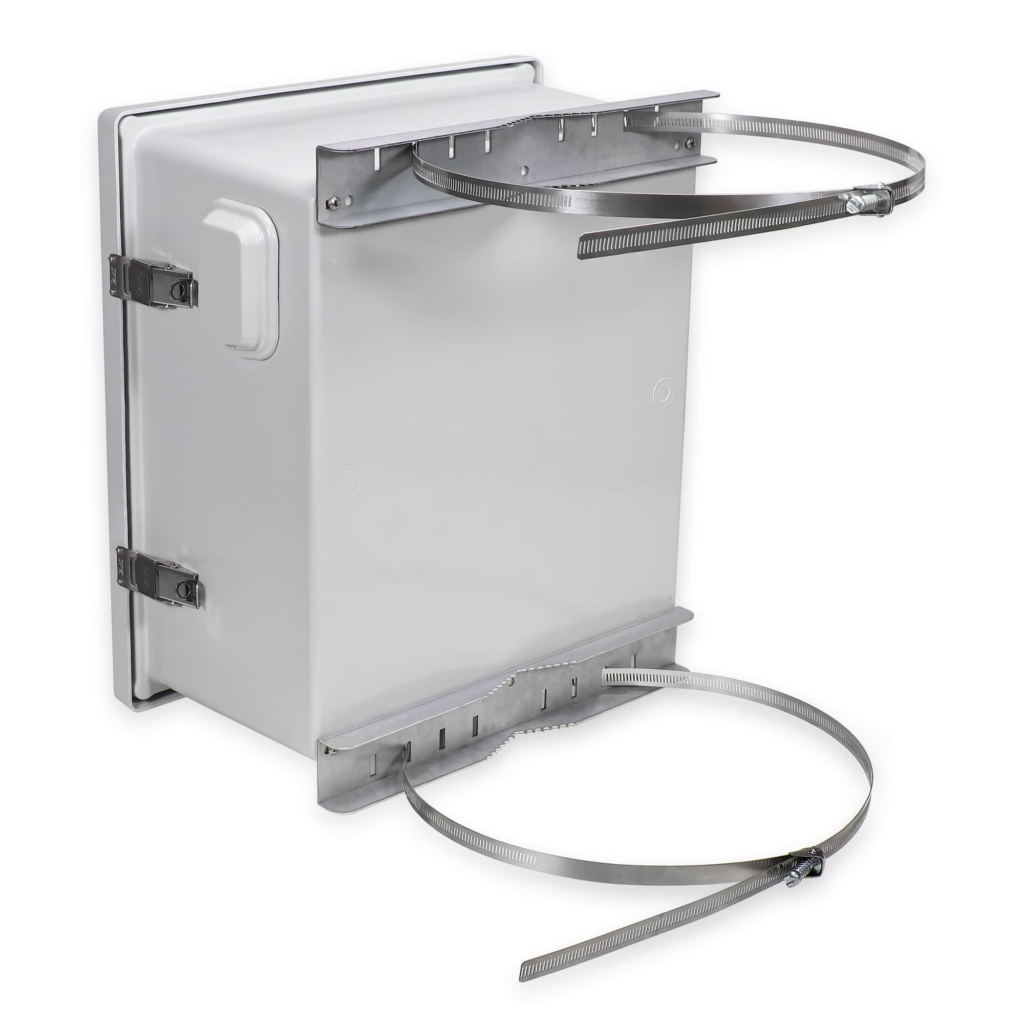

- Wall/Strut mounting flange, optional pole mount kit available
- Factory installed options available: include fans, heaters, thermostats, and more
- Made in USA
Please see the product documentation for the complete list of specifications
Construction
Material: Fiberglass
Weight Enclosure: 18 lbs. / 8.2kg

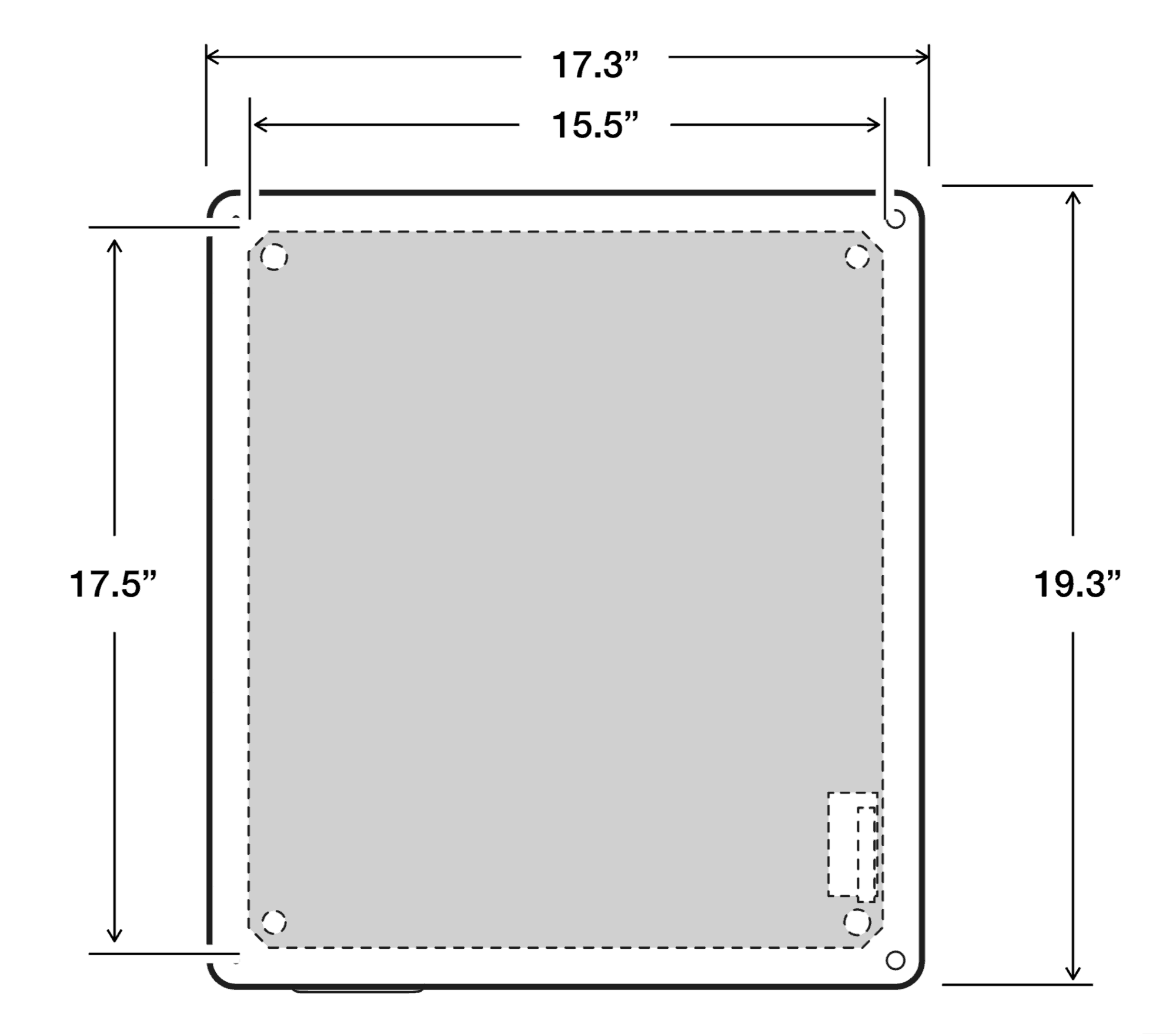

Exterior Dimensions: H 19.3” x W 17.6” x D 9.6”

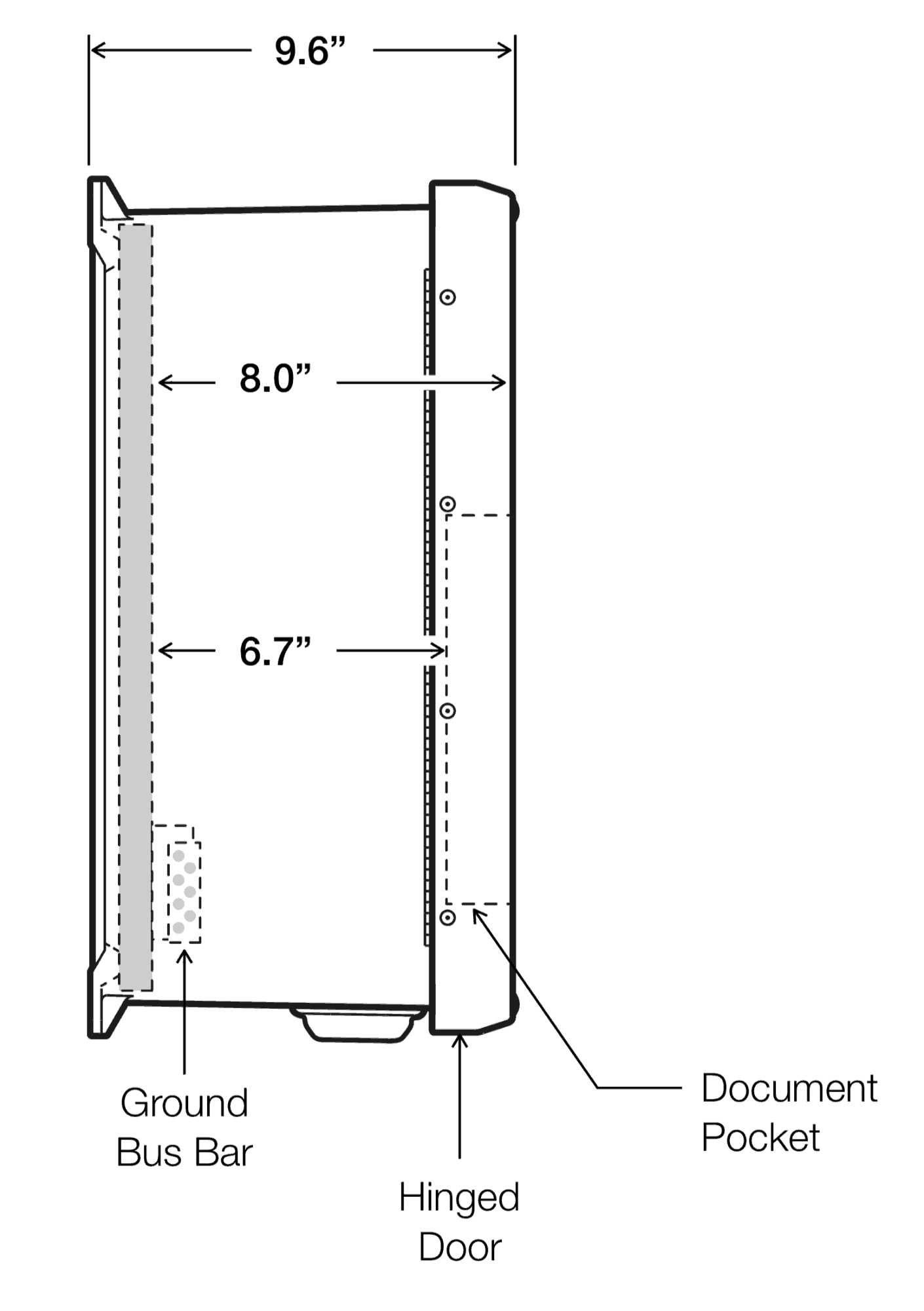

Usable interior Depth: 6.7” to 8.0” (varies with document pocket on door)

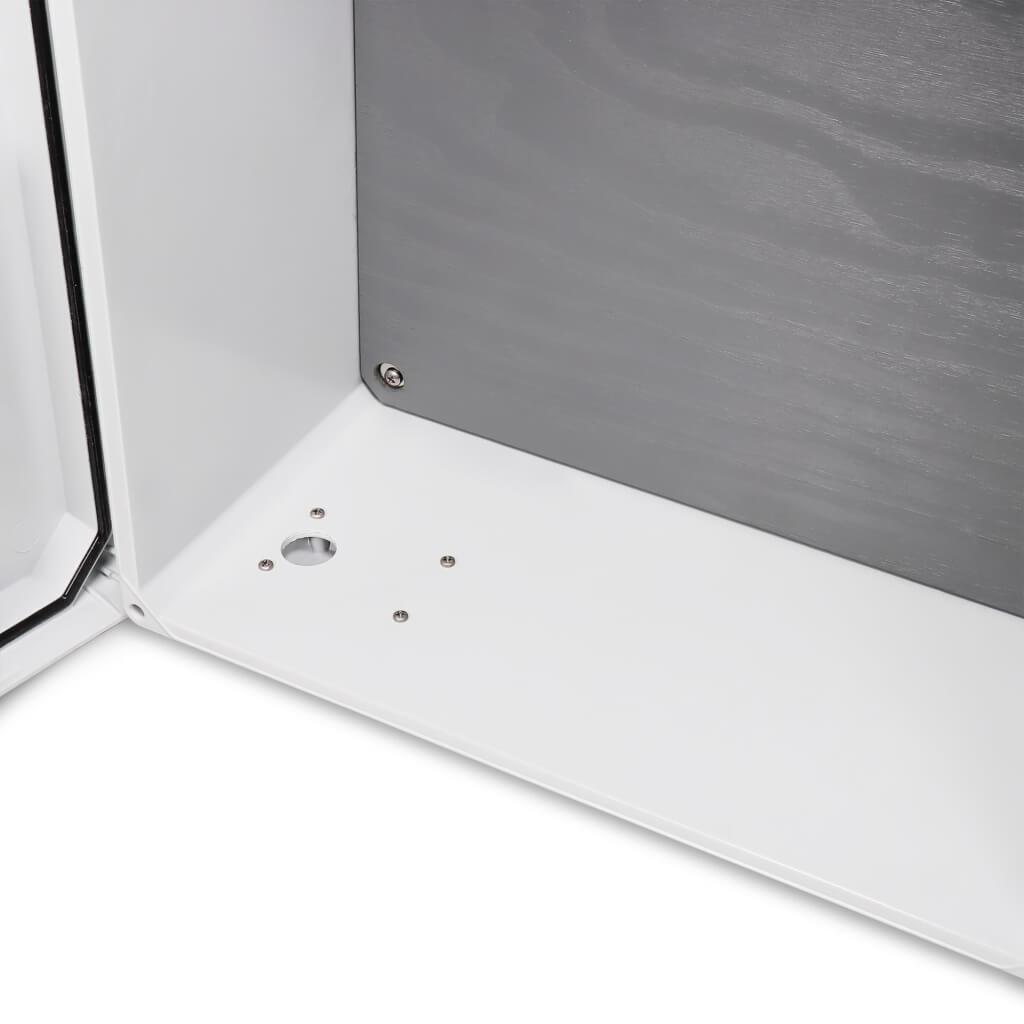

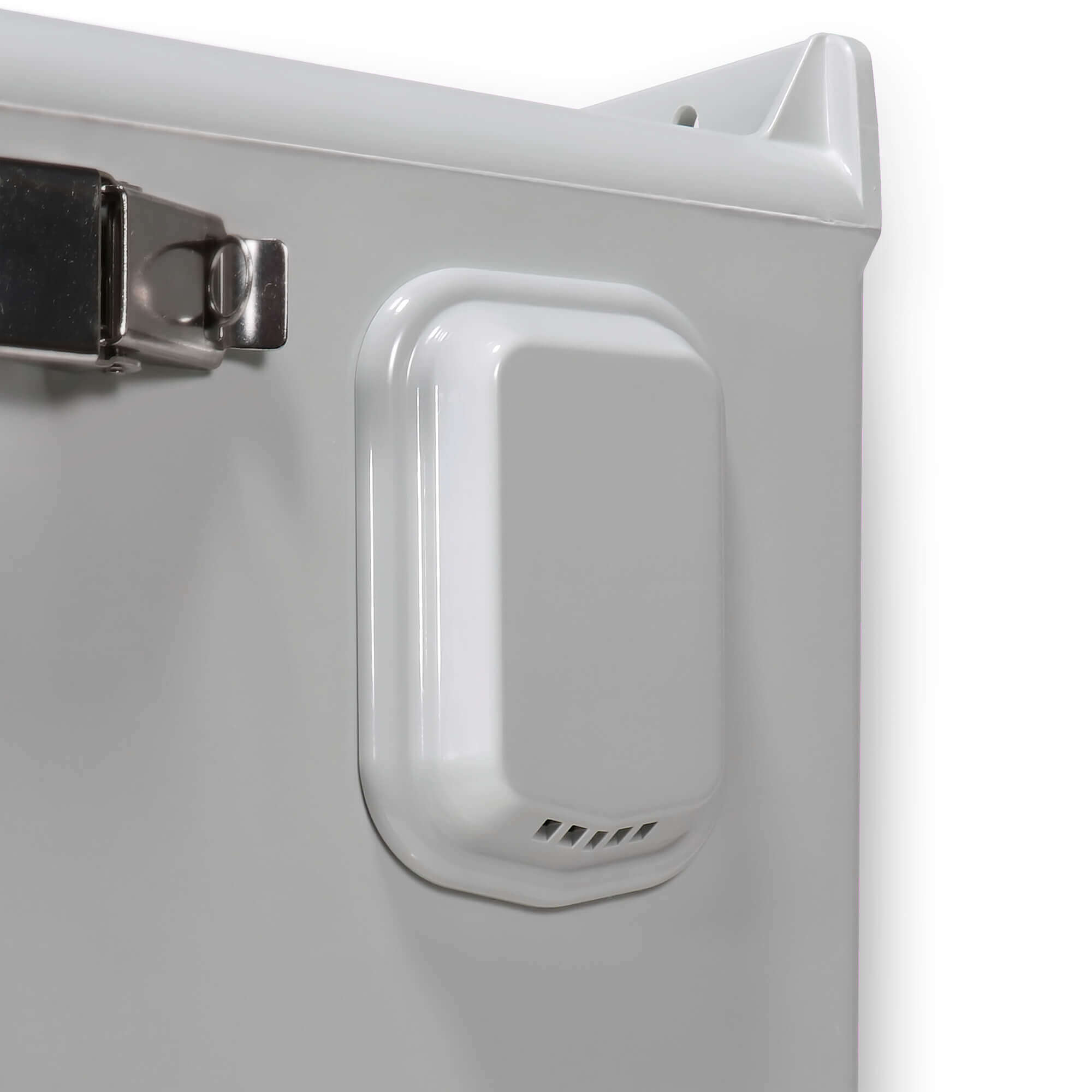

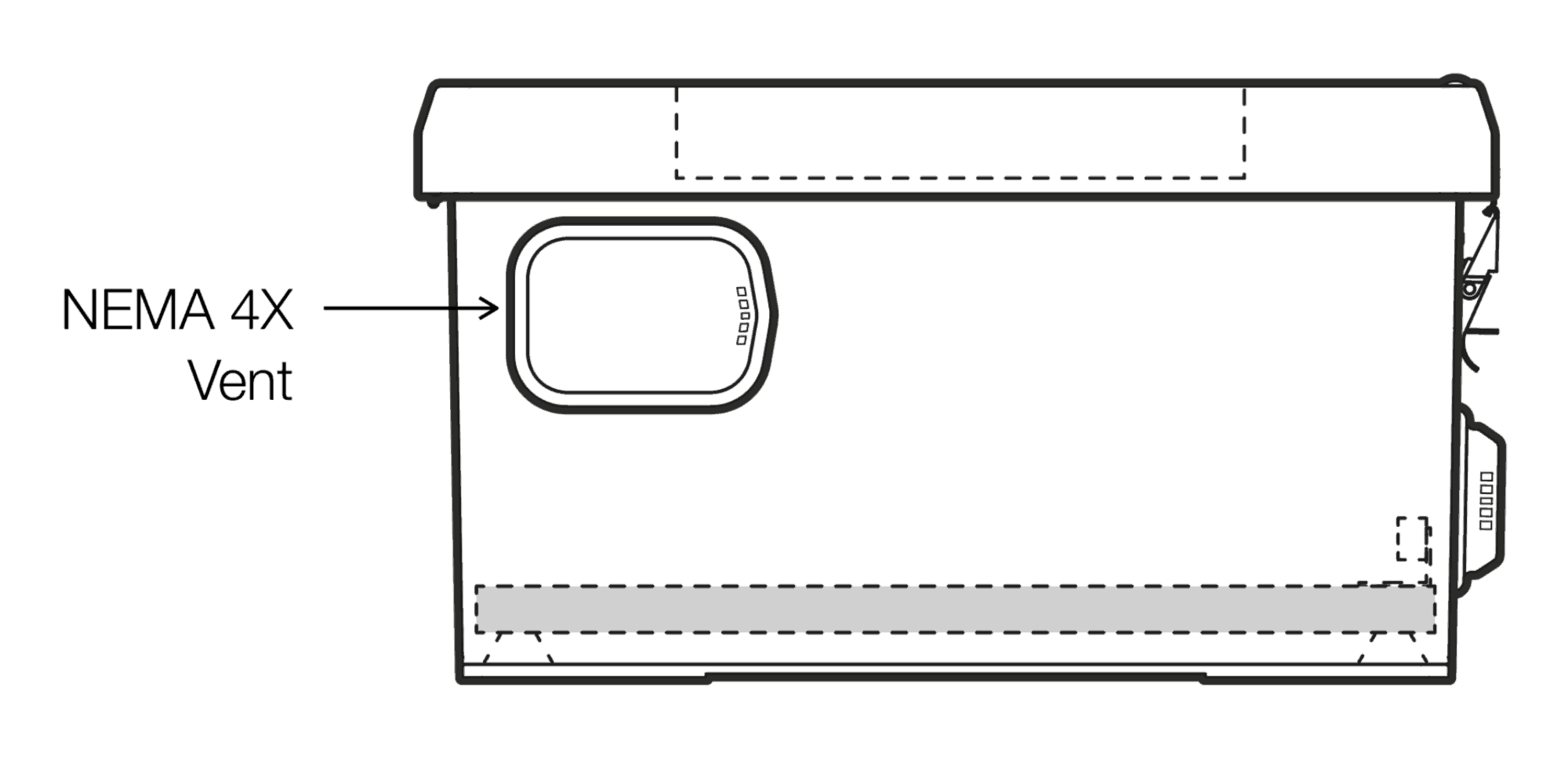

Venting: NEMA 4X Vents to provide air circulation, 1 side vent, 1 bottom vent

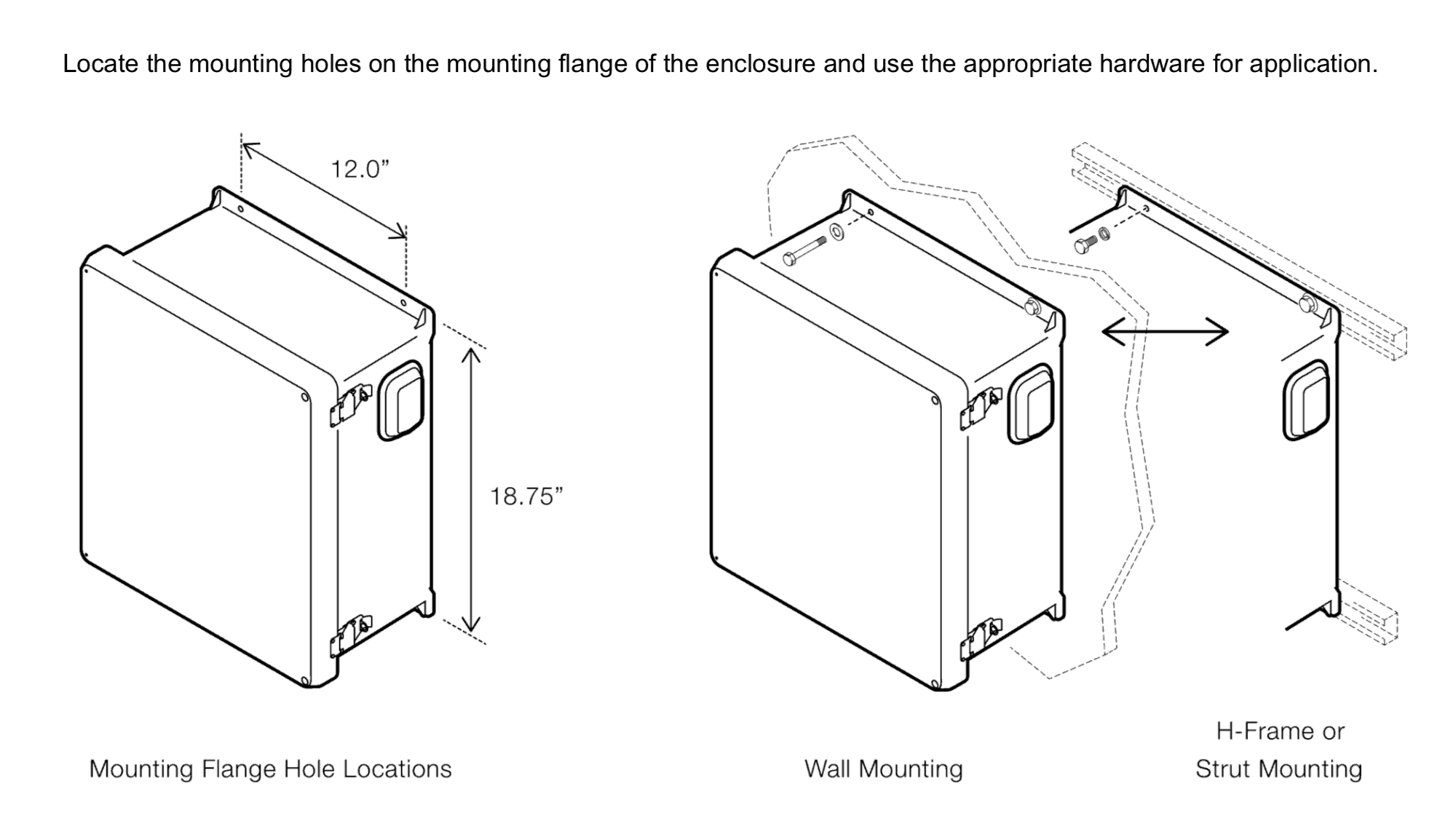

Mounting

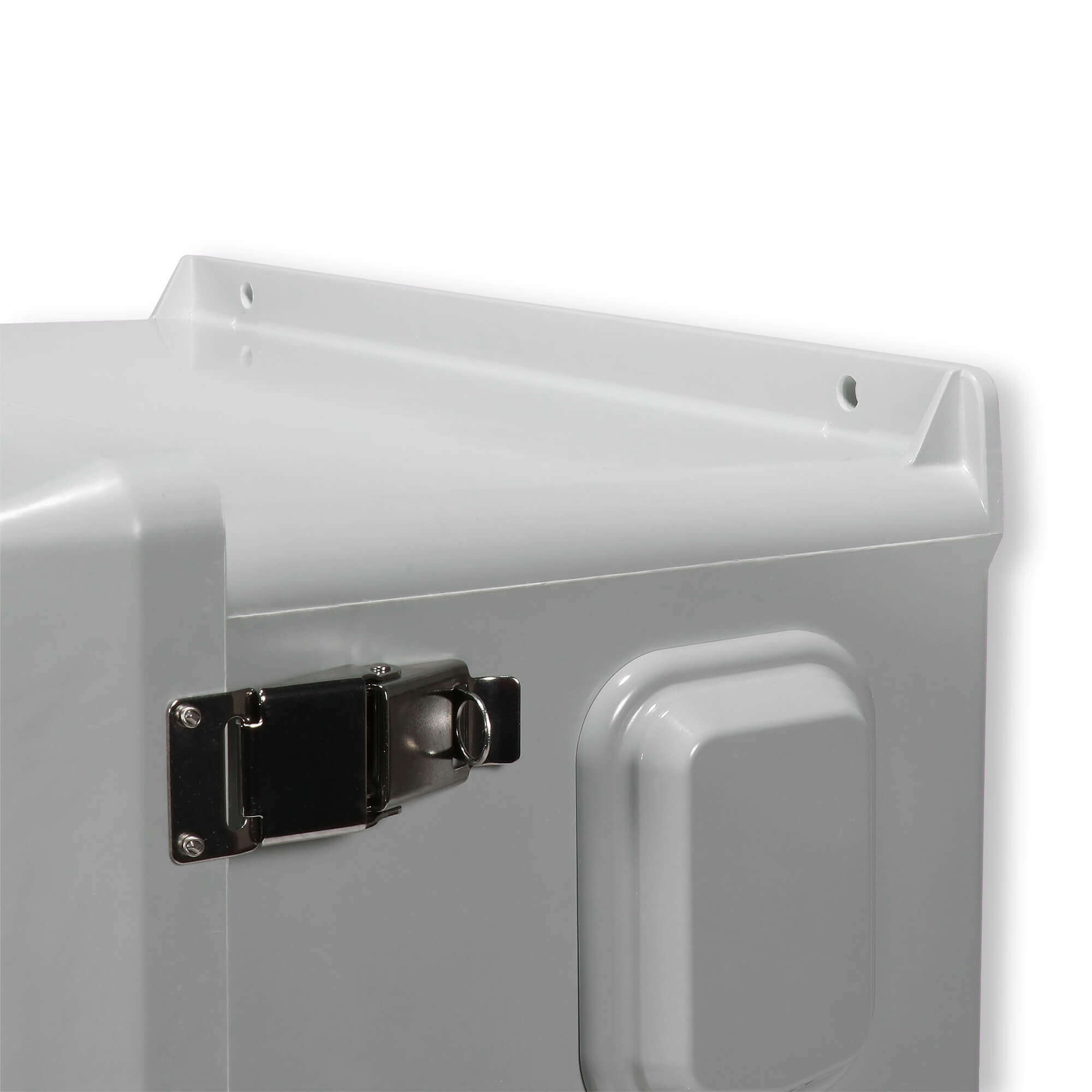

Wall/Strut Mounting via Molded Flange
Accommodates ¼” bolt for wall or strut mounting
Access

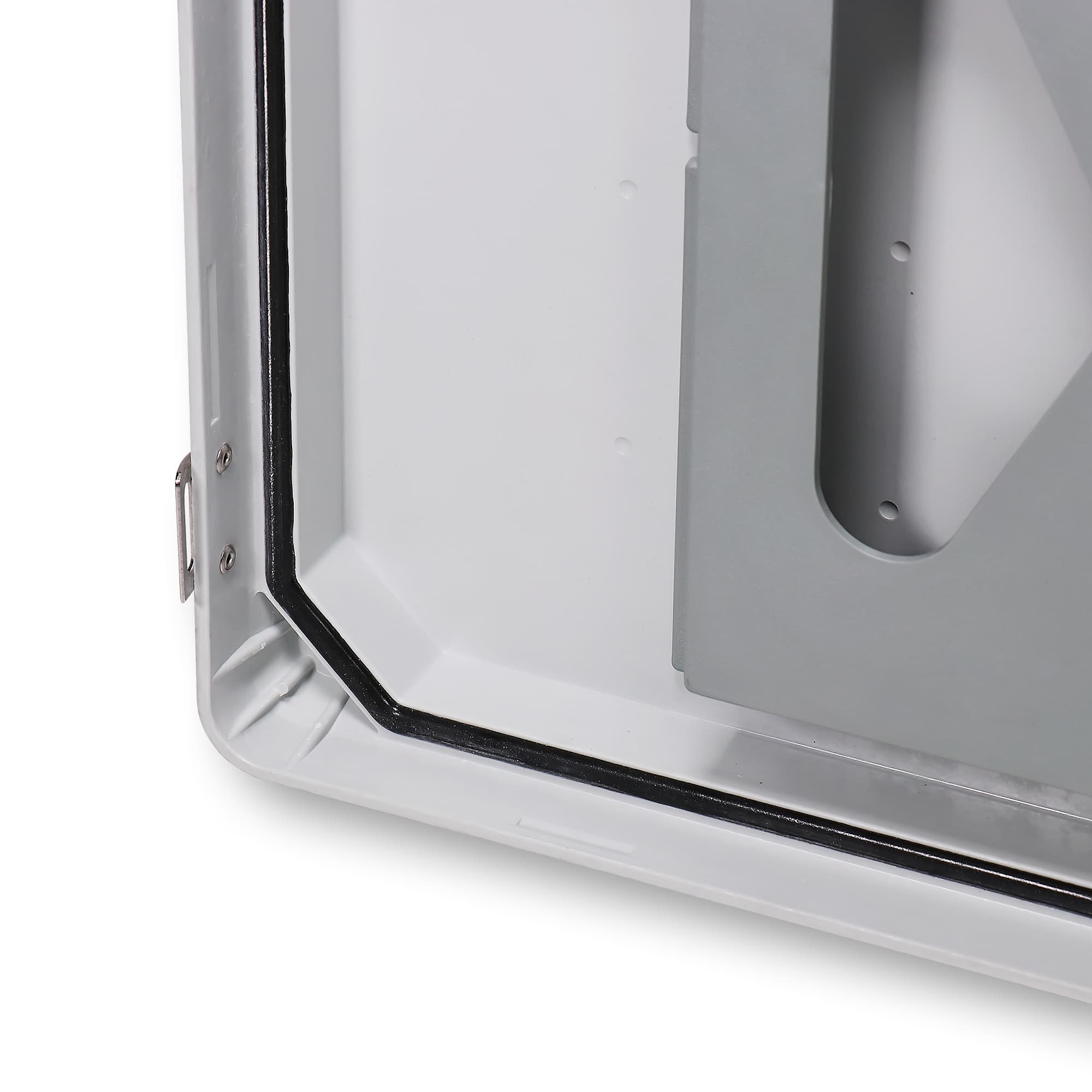

Hinged door with weatherproof gasket seal
Pad lockable latches

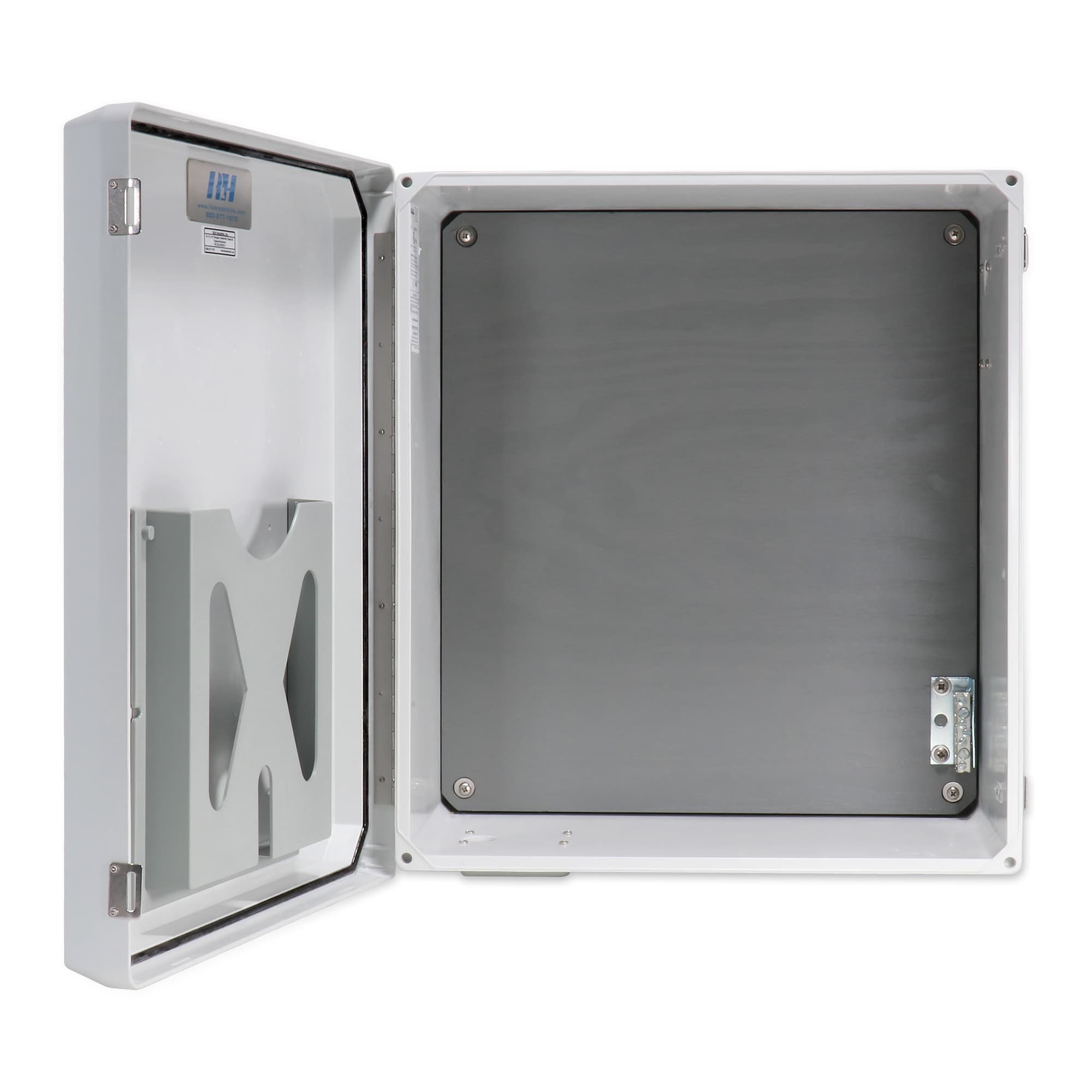

Interior Details
Usable Backboard: H 17.5 in. x W 15.5 in.
Backboard Type: 3/4” thick fire treated, painted plywood

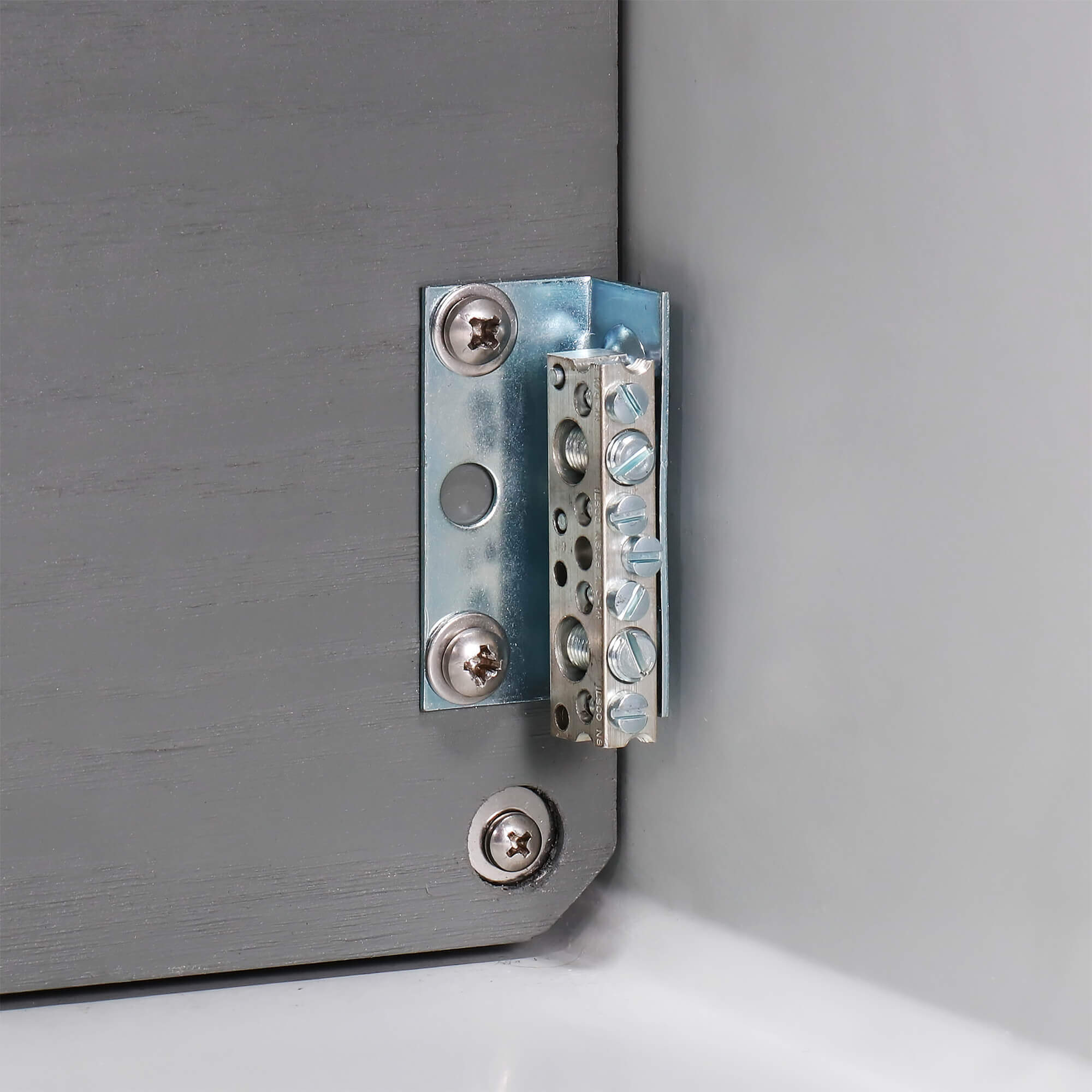

Ground Bus: 7 position ground wire capacity (Qty. 4 – #10 to #6 AWG, Qty. 3 – #10 to #1/0 AWG)
General Information
CAD Files
RLH-181610-F-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
18″ x 16″ x 10″ – Fiberglass Enclosure
| Short description | Part number | Price | |
|---|---|---|---|
| 18” x 16” x 10” Fiberglass Enclosure with Treated ¾” Wood backboard | RLH-181610-F-1 | $450.00 |
