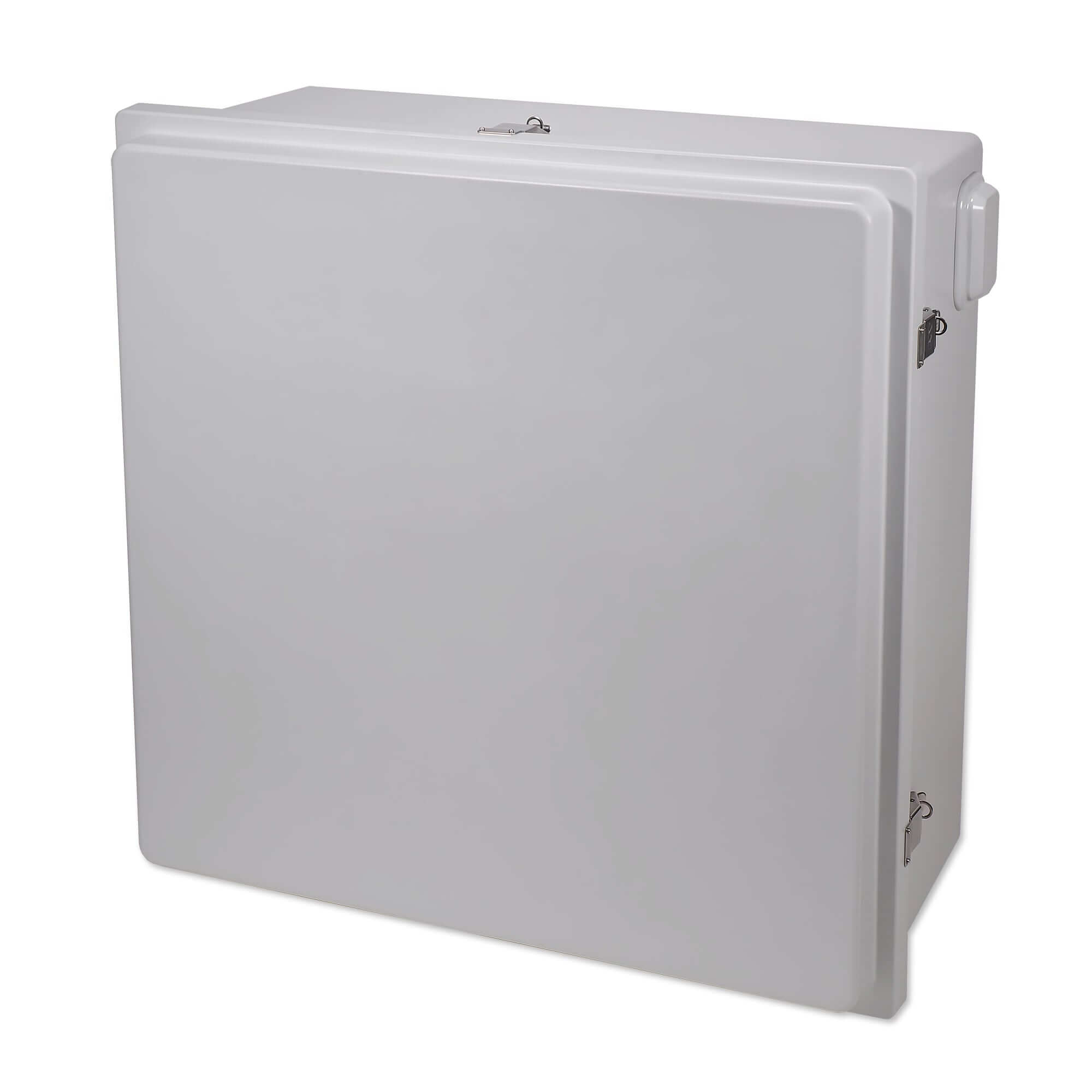

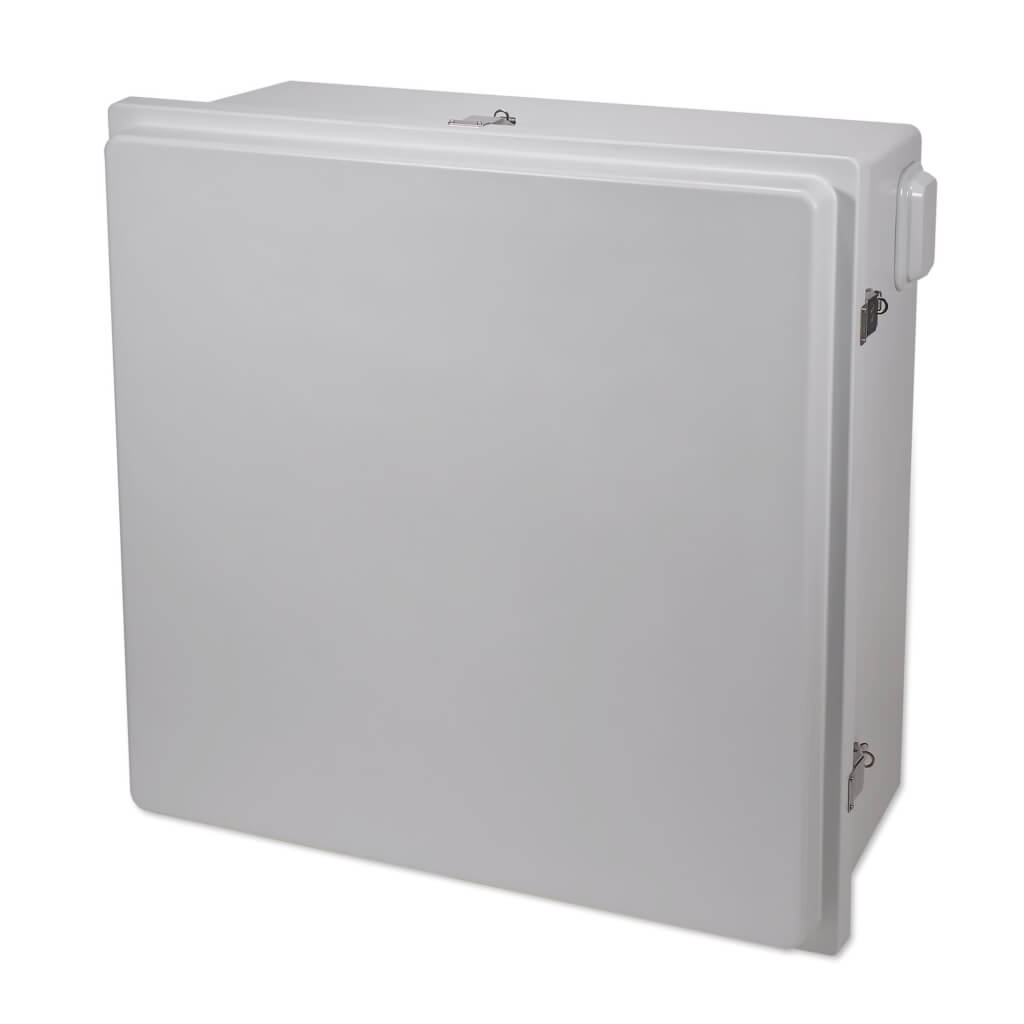

Outdoor Weatherproof Fiberglass Equipment Enclosure
This NEMA 4X fiberglass reinforced polyester enclosure features a fire treated and painted plywood backboard for easy field installation of communication devices and equipment in indoor or outdoor environments.
The enclosure is UL Listed, non-corrosive, non-conductive, light weight, and easy to modify. The added water and dust proof NEMA 4X vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock and the include mounting feet can be used for wall or strut mounting. An optional pole mount kit is available for order separately.
Custom fabricated enclosures and turn-key solutions to fit your specific applications needs are available from the RLH design group. Please contact an RLH sales representative for more information on enclosures and equipment.
Features
- Weatherproof design for outdoor use
- Non-corrosive, non-conductive, light weight, and easy to modify
- Fire treated and painted 3/4″ plywood backboard

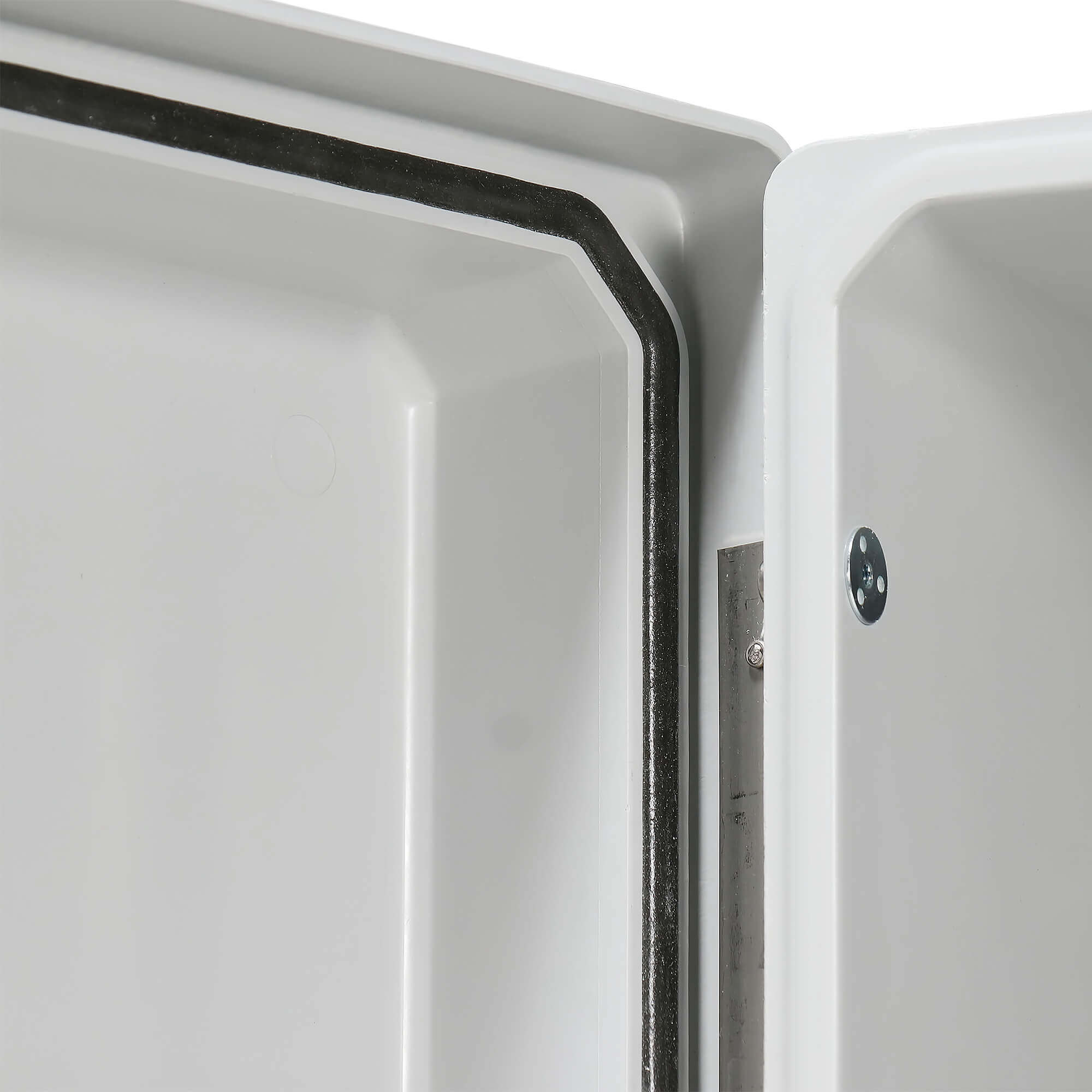

- Polyurethane gasket for weathertight door seal
- Weatherproof NEMA 4X side and bottom vents
- 7 position ground bar, accepts #10 to #1/0 AWG ground wire
- Two stainless steel pad lockable latches
- Wall/Strut mount feet included, optional pole mount kit available
- Factory installed options available: include fans, heaters, thermostats, and more
- Made in USA
Please see the product documentation for the complete list of specifications
Construction
Weight Enclosure: 32 lbs. / 14.5kg
Weight Pole Mount Kit: 4 lbs. / 1.8kg

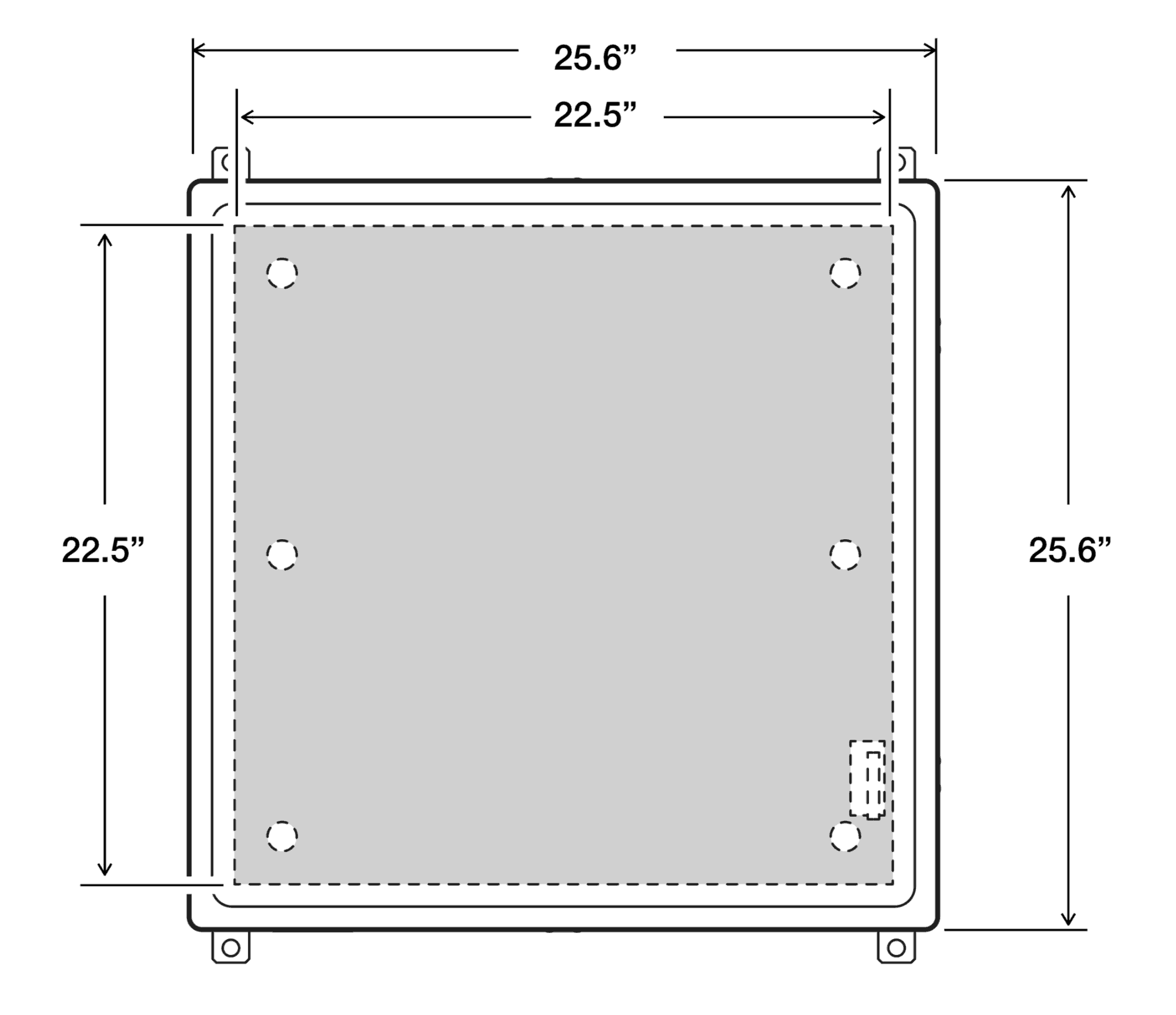

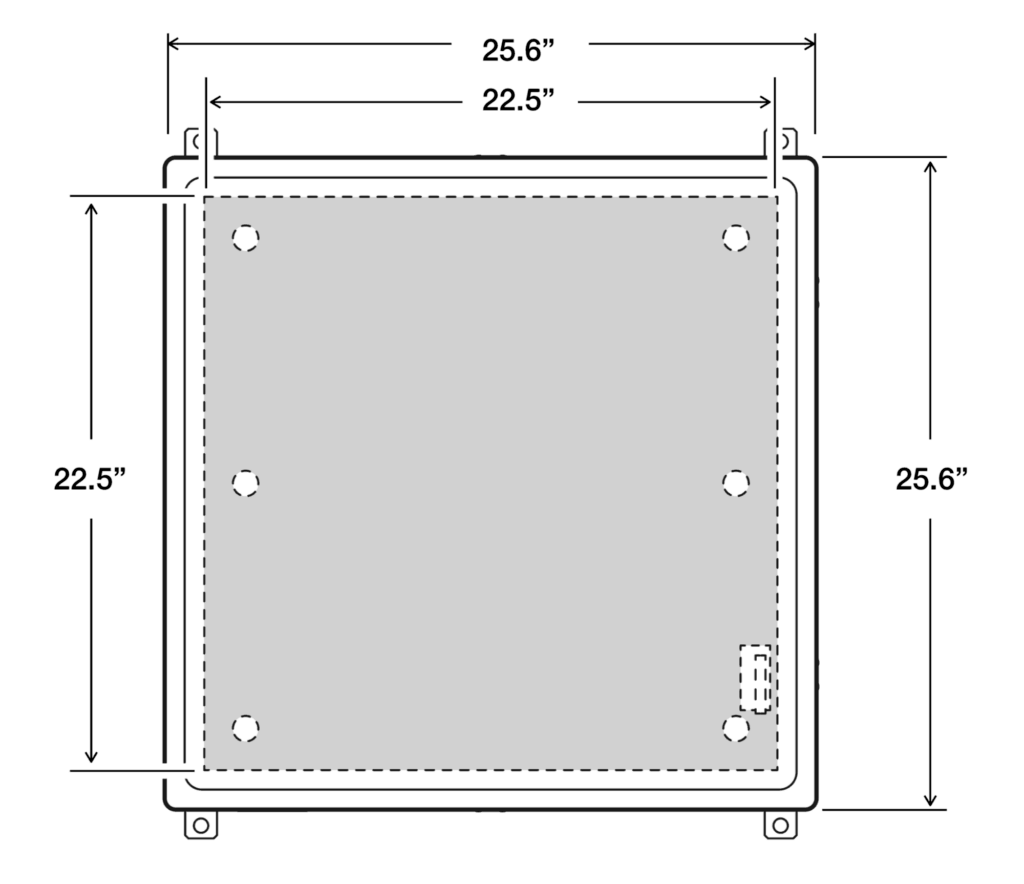

Exterior Dimensions: H 25.6” x W 25.6” x D 12.0” (not including pole mount bracket)

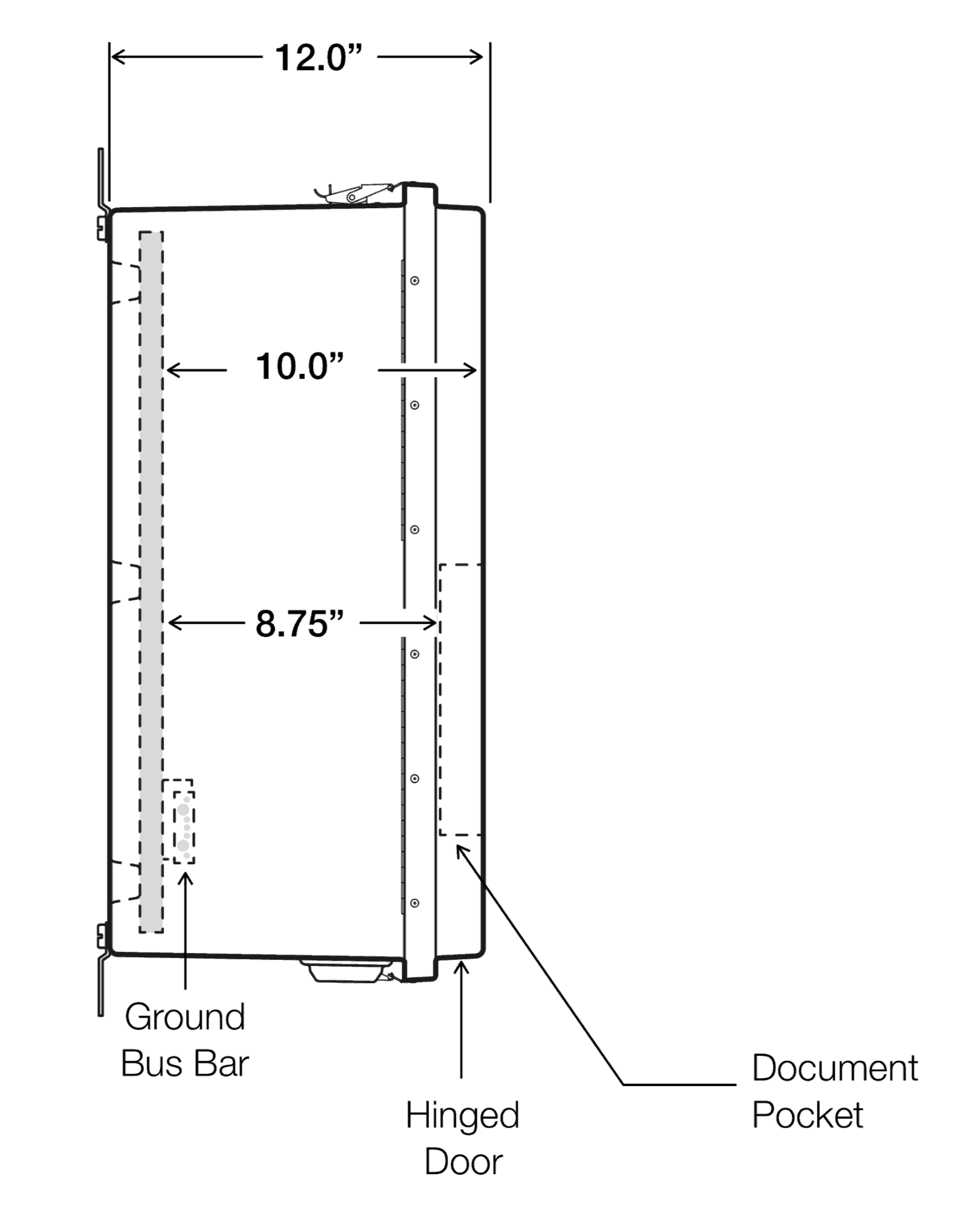

Usable interior Depth: 8.75” to 10.0” (varies with document pocket on door)

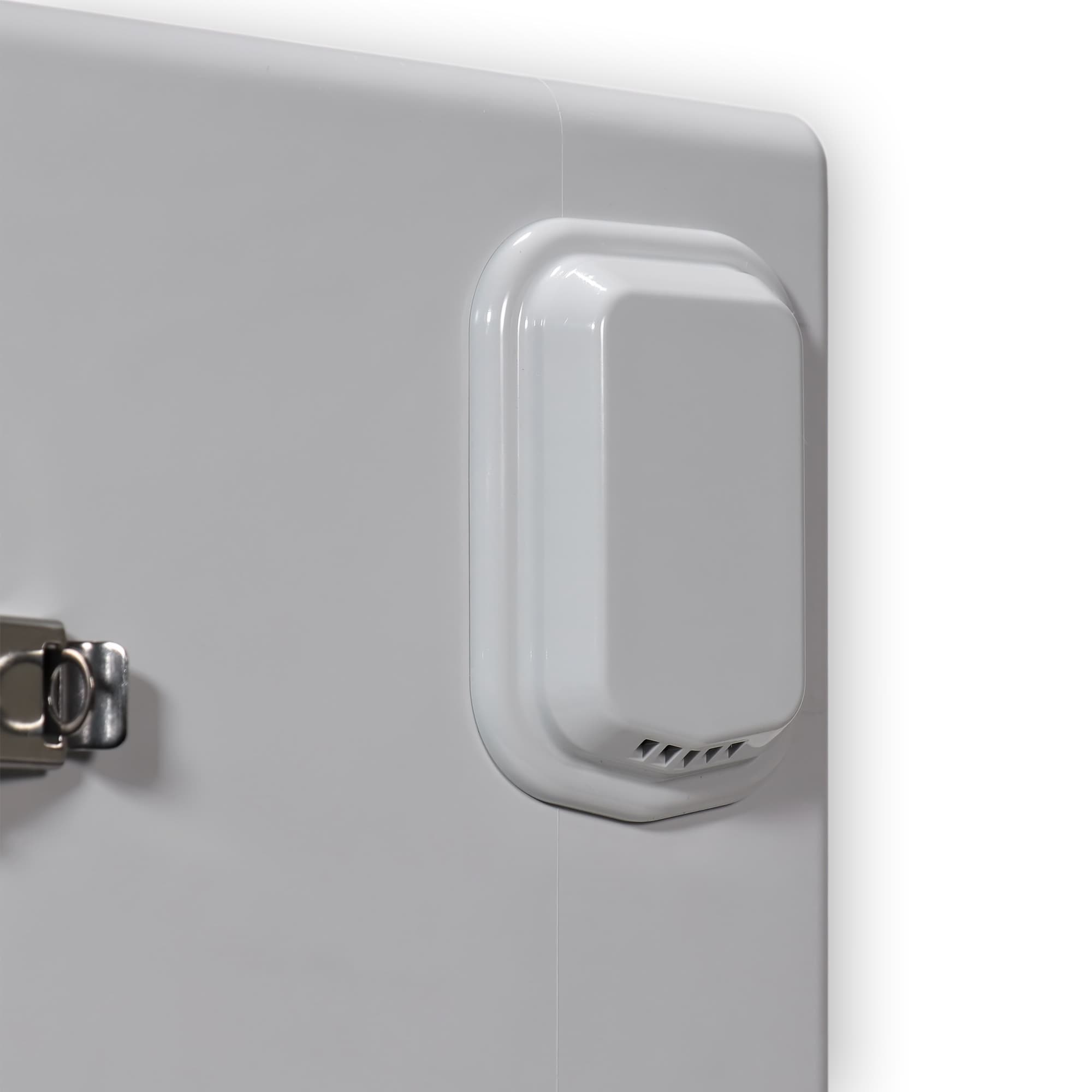

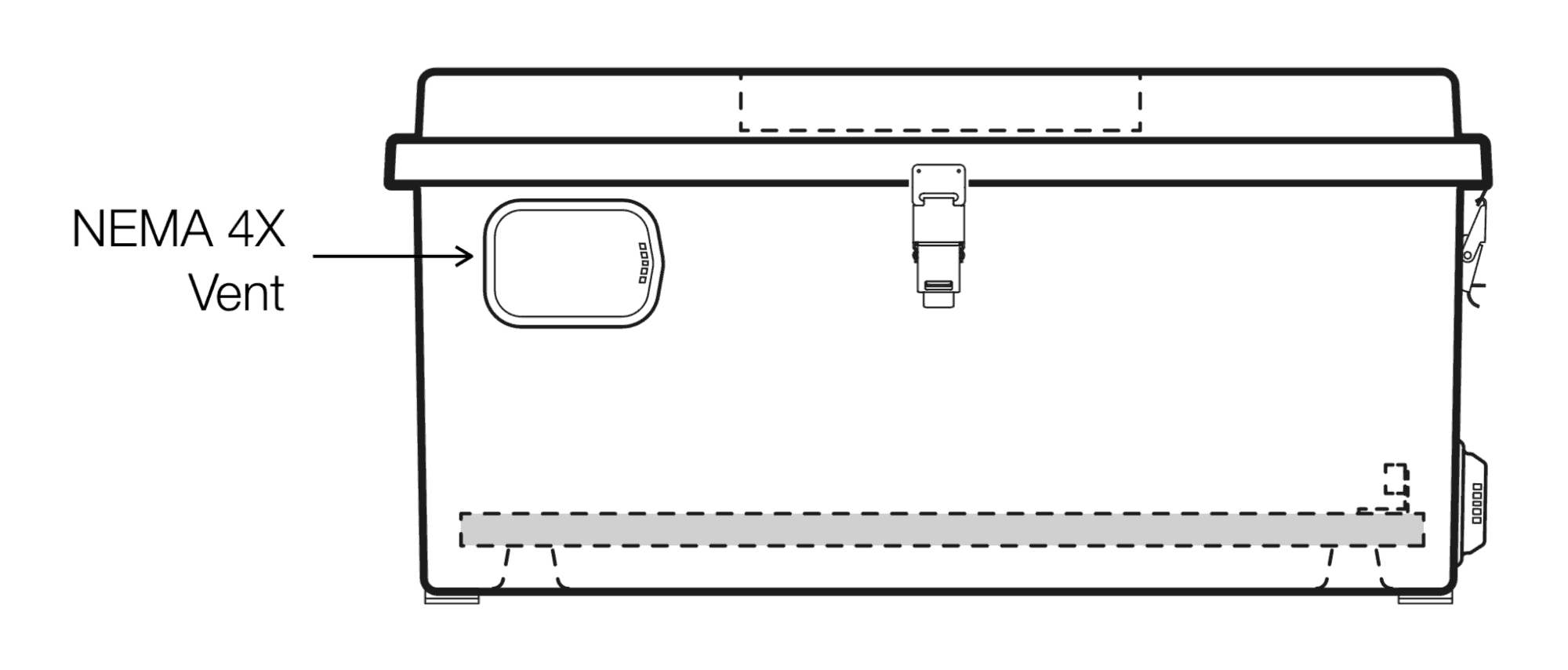

Venting: NEMA 4X Vents to provide air circulation, 1 side vent, 1 bottom vent
Mounting

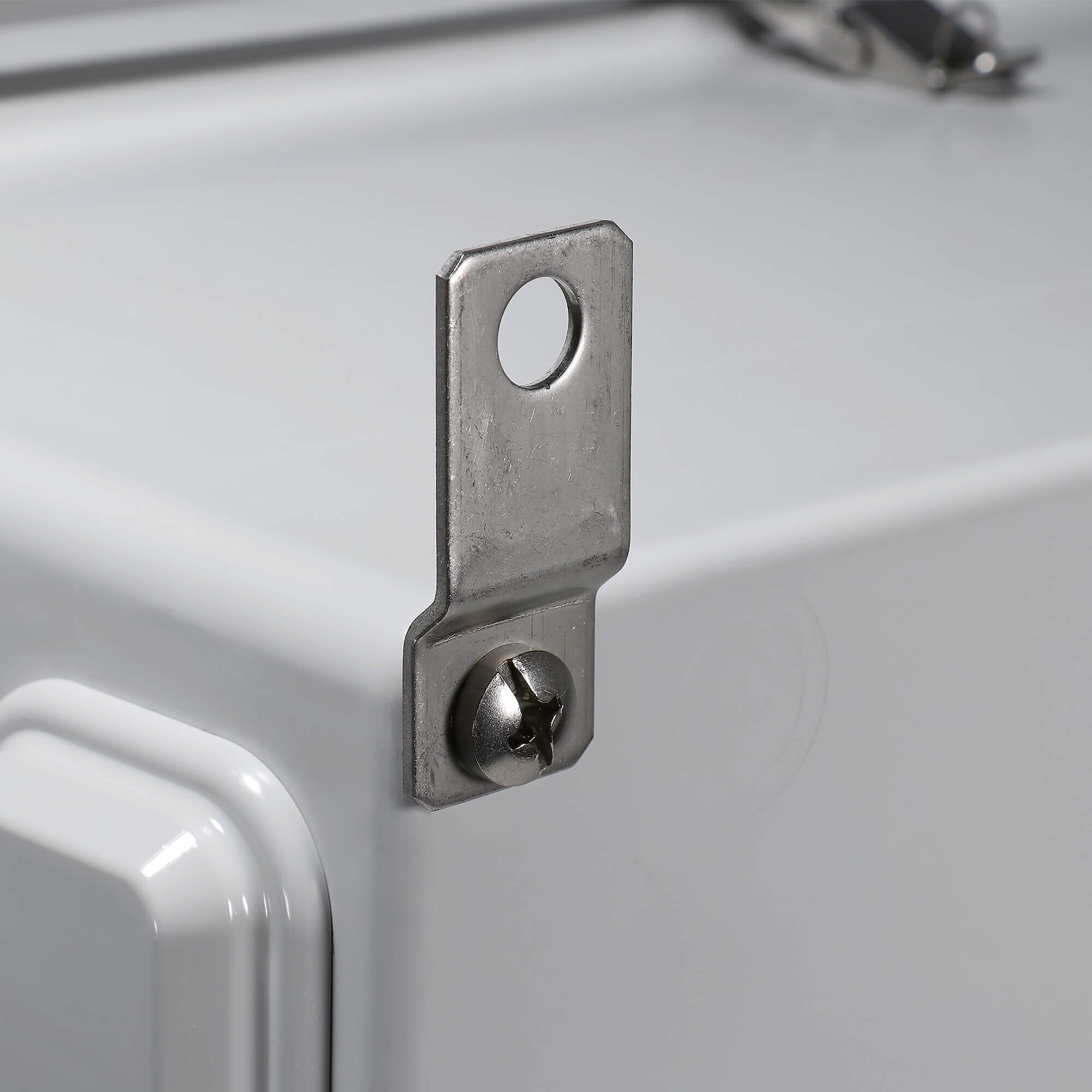

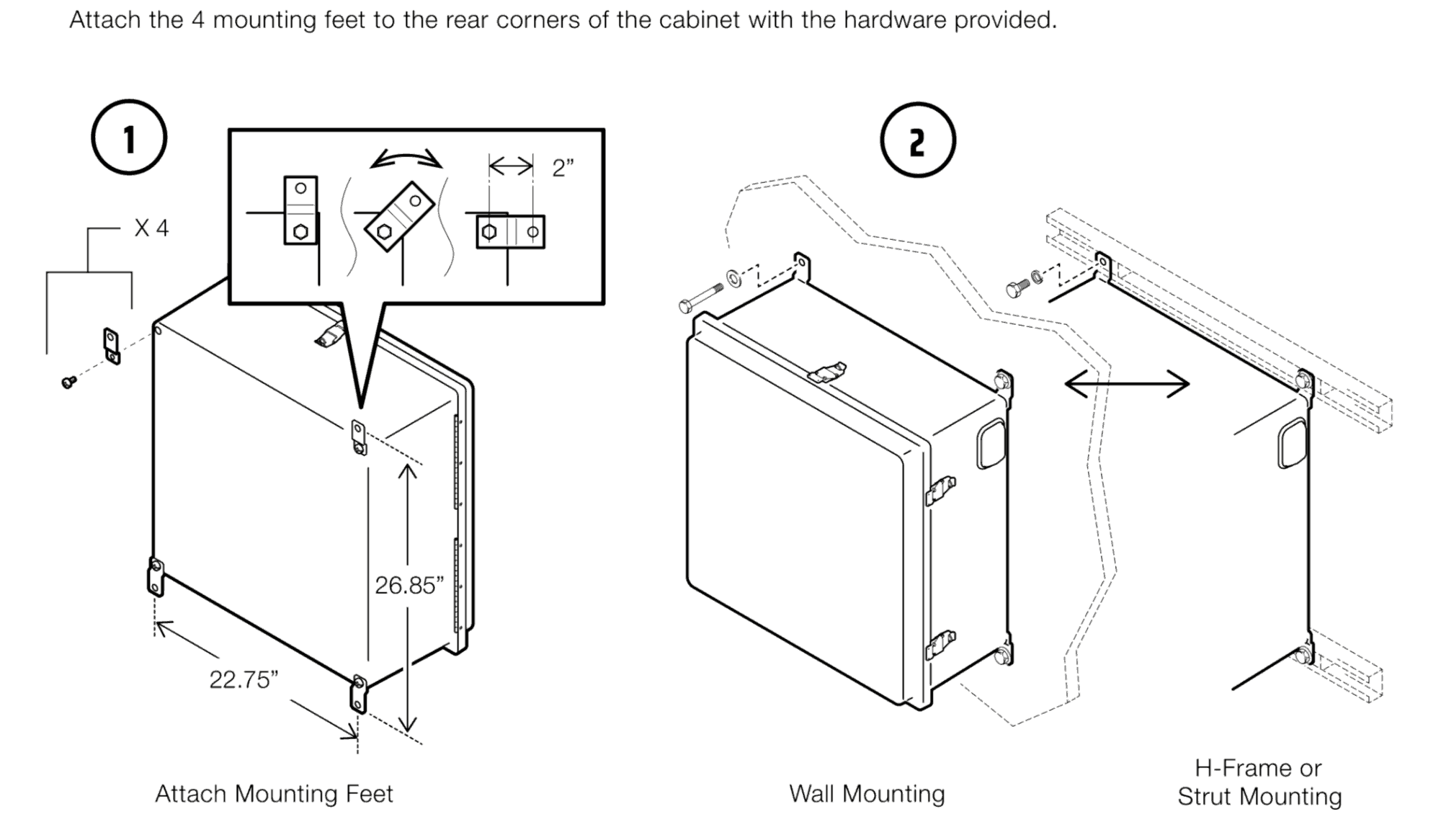

Wall/Strut Mounting with included feet
Accommodates ¼” bolt for wall or strut mounting

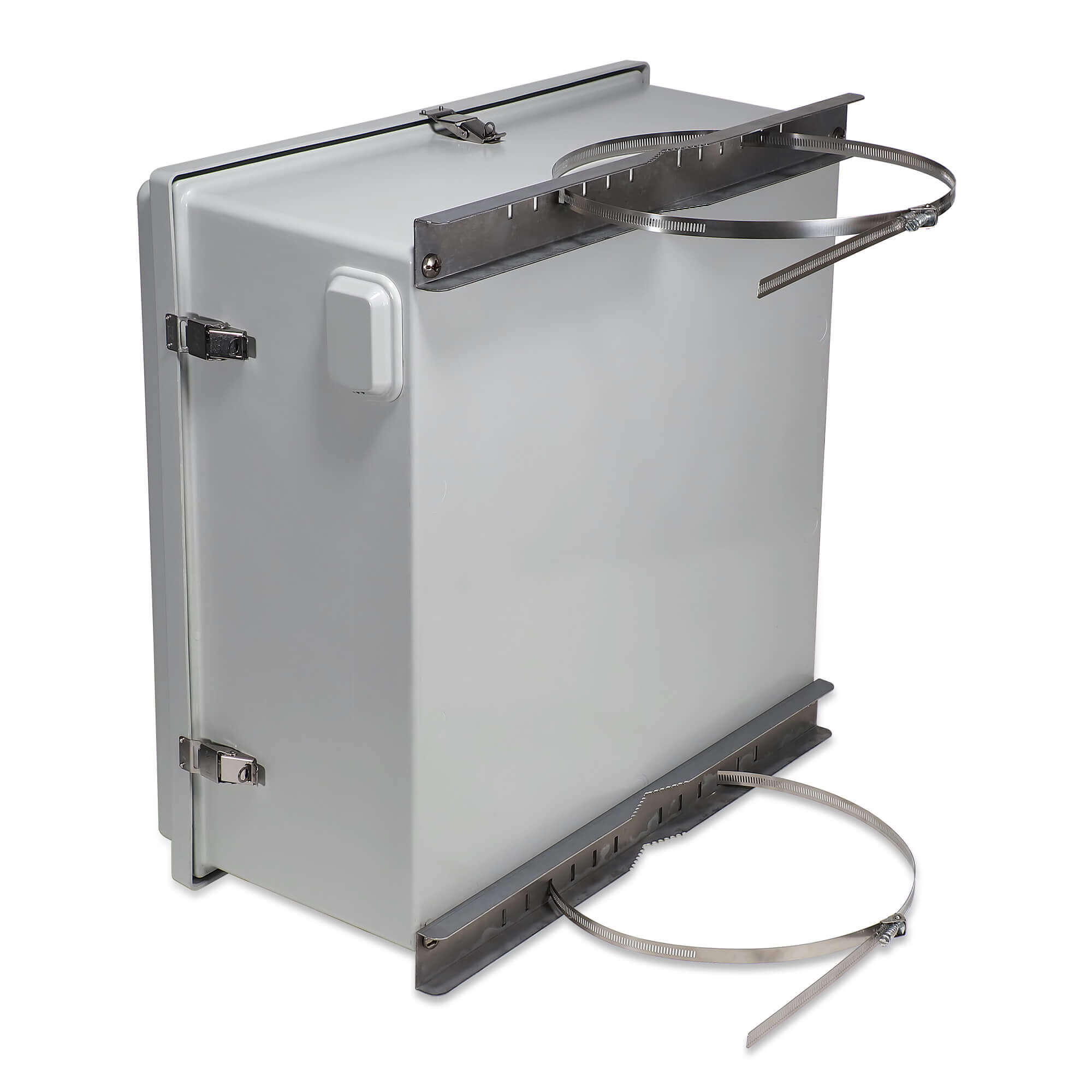

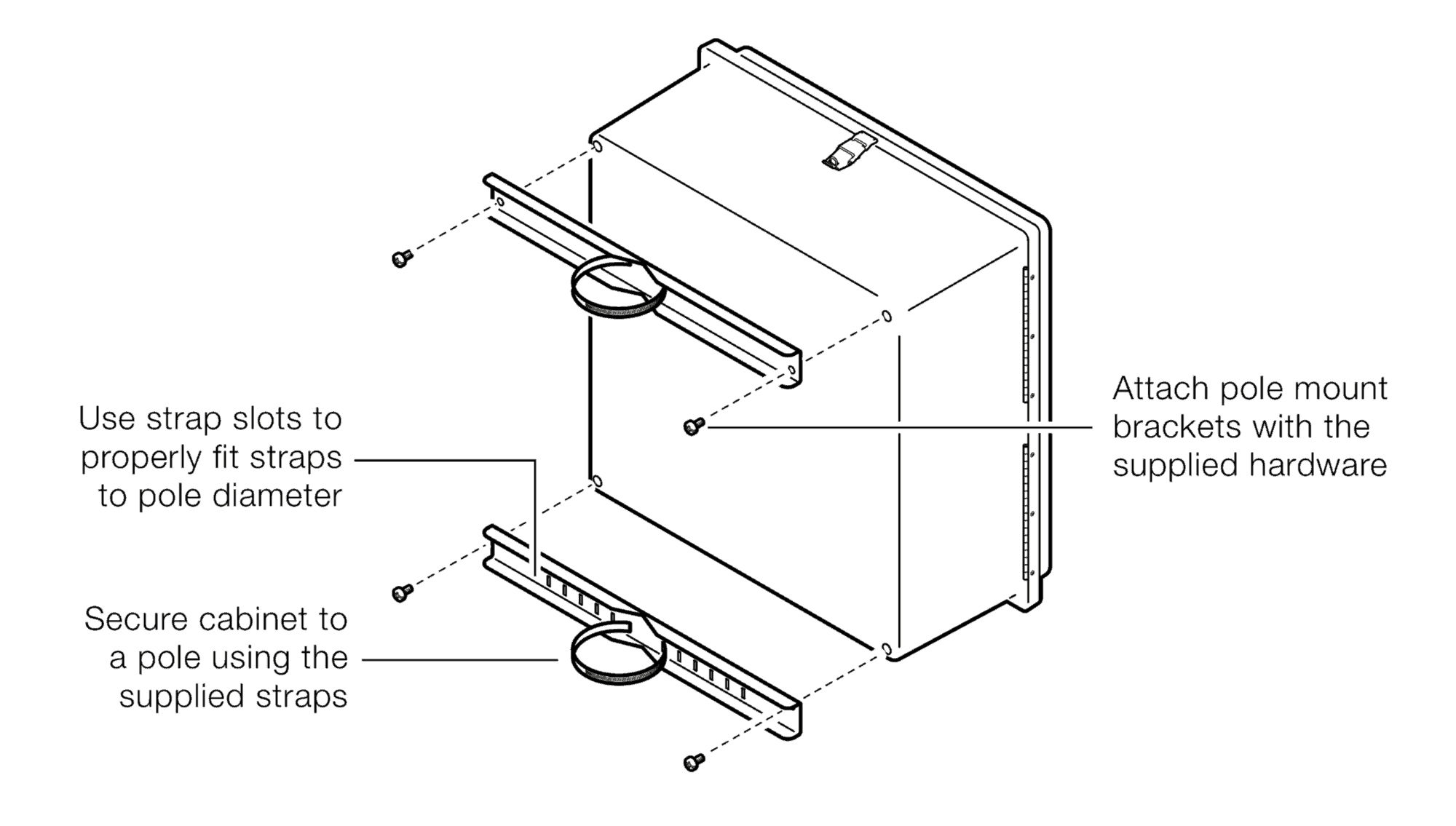

Optional Pole Mount Kit: Strap attachment, fits 4″ to 12″ diameter poles
Access

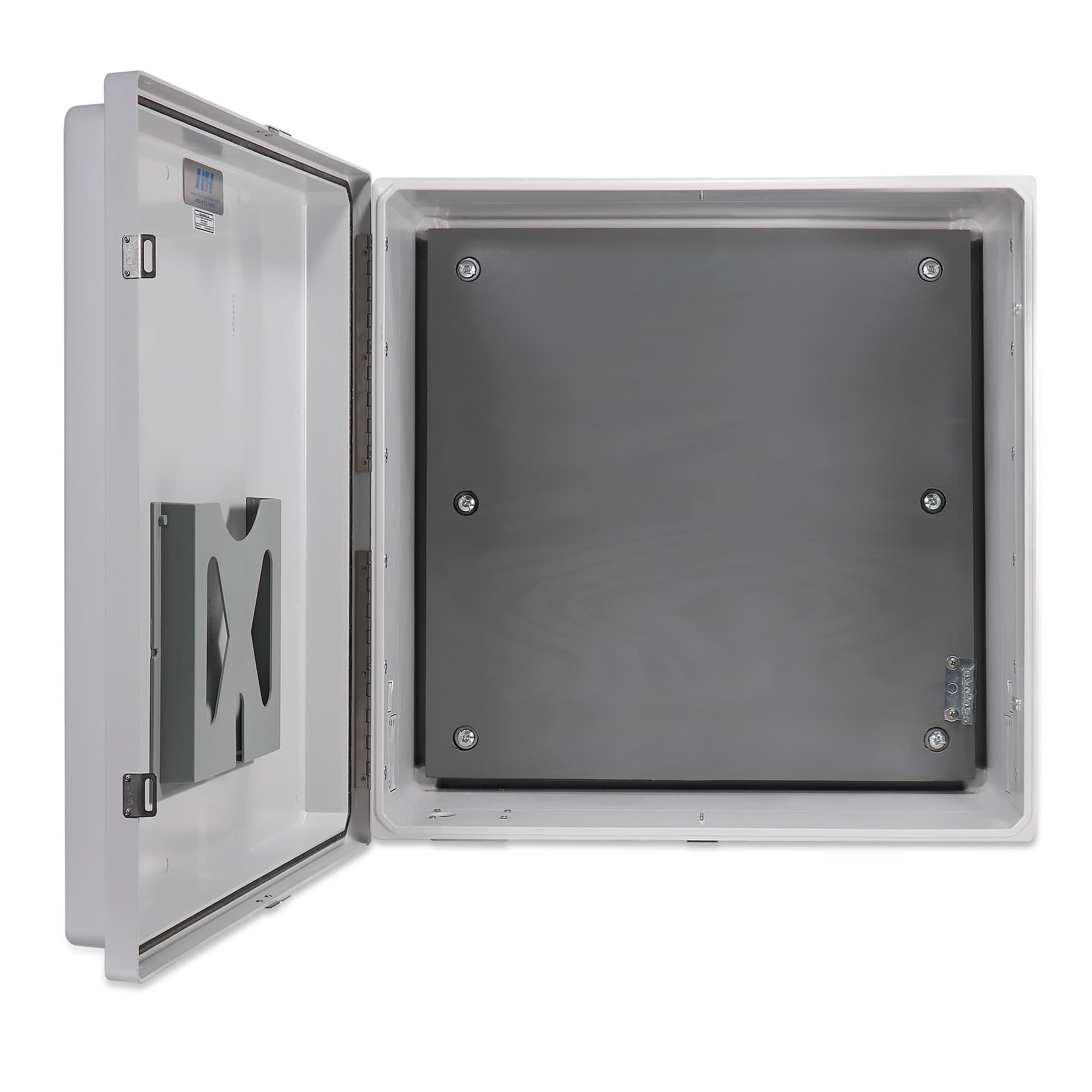

Hinged door with weatherproof gasket seal

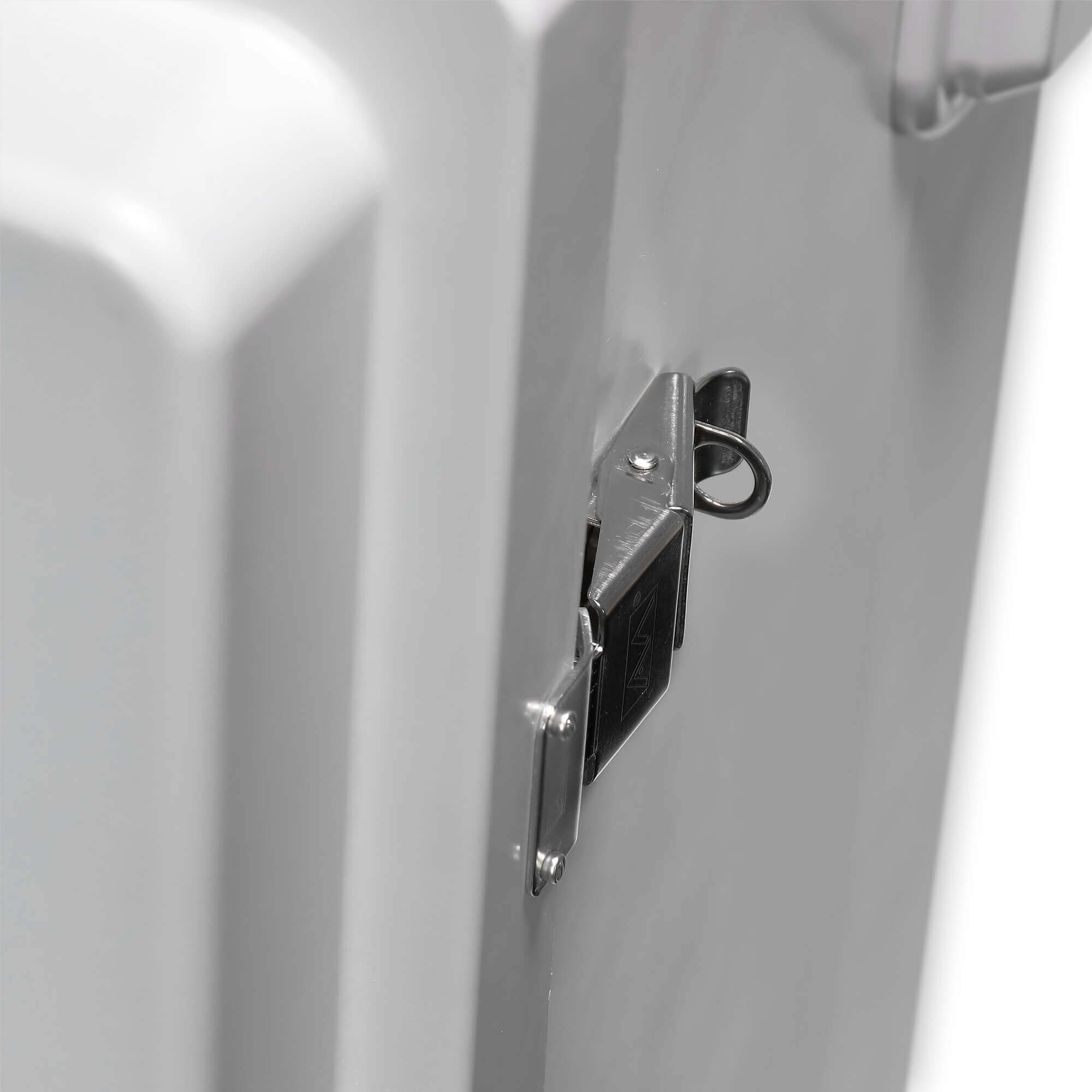

Quarter turn pad lockable latch

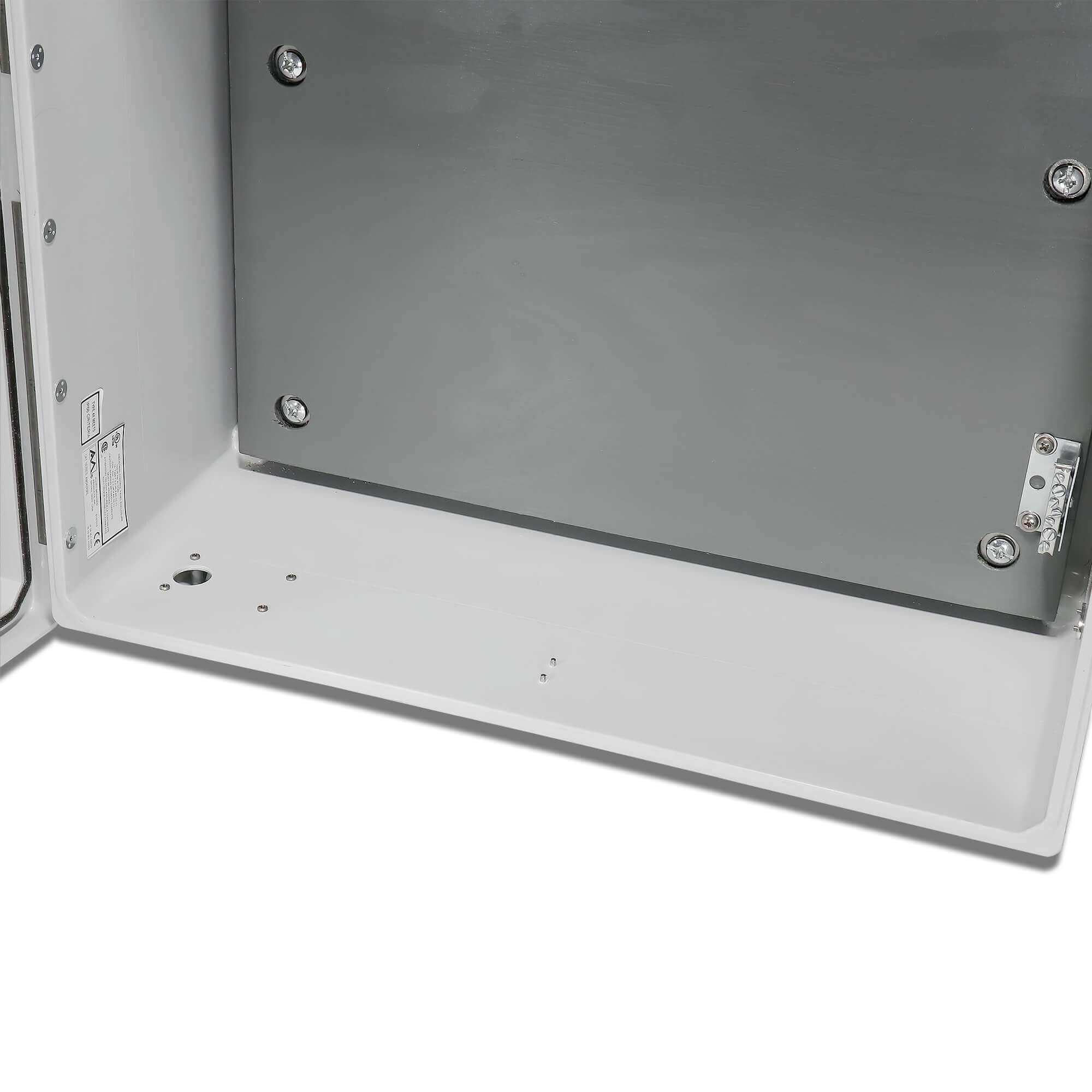

Interior Details
Usable Backboard: H 22.5 in. x W 22.5 in.
Backboard Type: 3/4” thick fire treated, painted plywood

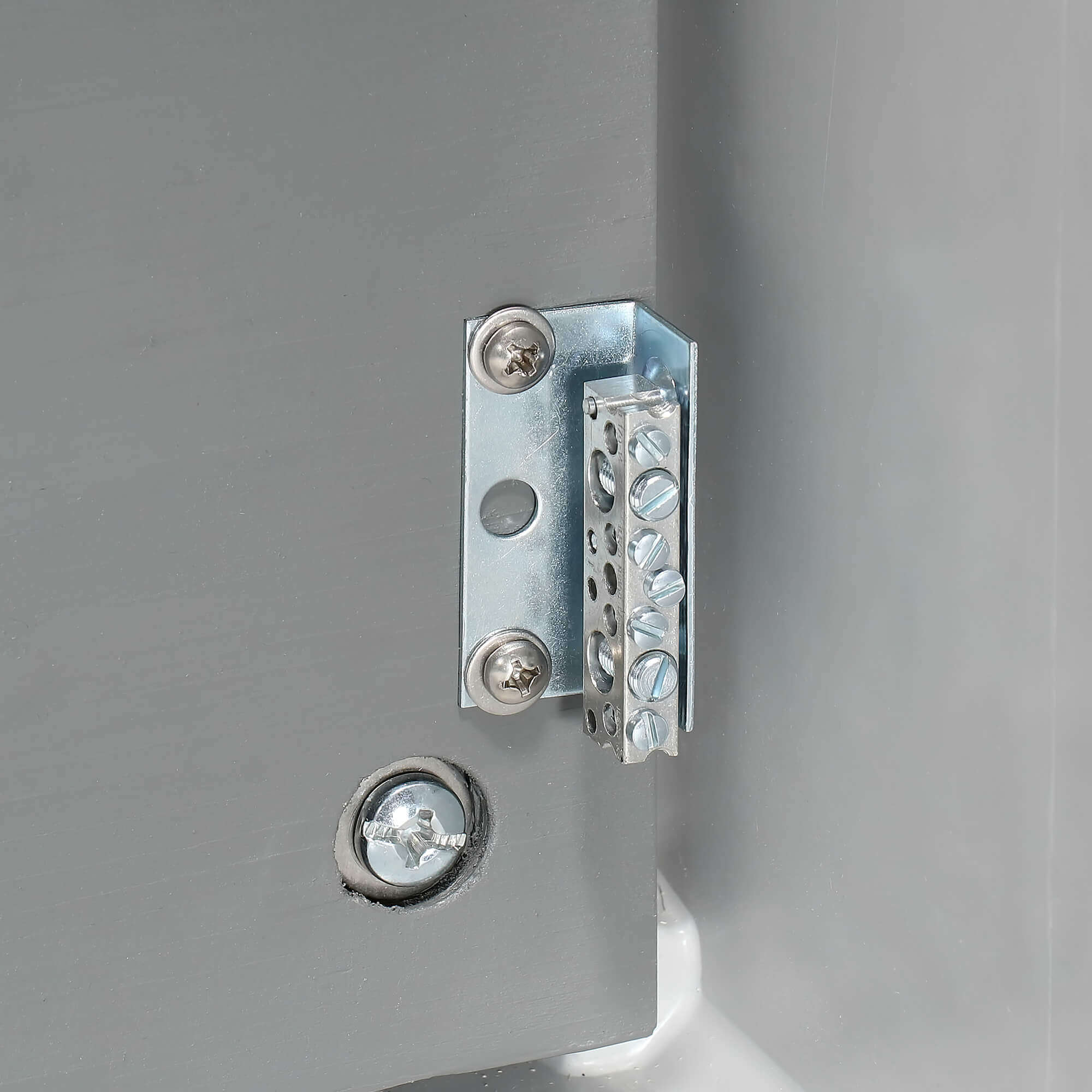

Ground Bus: 7 position ground wire capacity (Qty. 4 – #10 to #6 AWG, Qty. 3 – #10 to #1/0 AWG)
General Information
CAD Files
Guide
RLH-242410-F-1
PMK-242410-F-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
24″ x 24″ x 10″ – Fiberglass Enclosure
| Short description | Part number | Price | |
|---|---|---|---|
| 24” x 24” x 10” Fiberglass Enclosure with Treated ¾” Wood backboard | RLH-242410-F-1 | $995.00 |
24” x 24” x 10” Pole Mount Kit
| Short description | Part number | Price | |
|---|---|---|---|
| Pole Mount Kit for Poles Sized 4”-12” | PMK-242410-F-1 | $180.00 |
