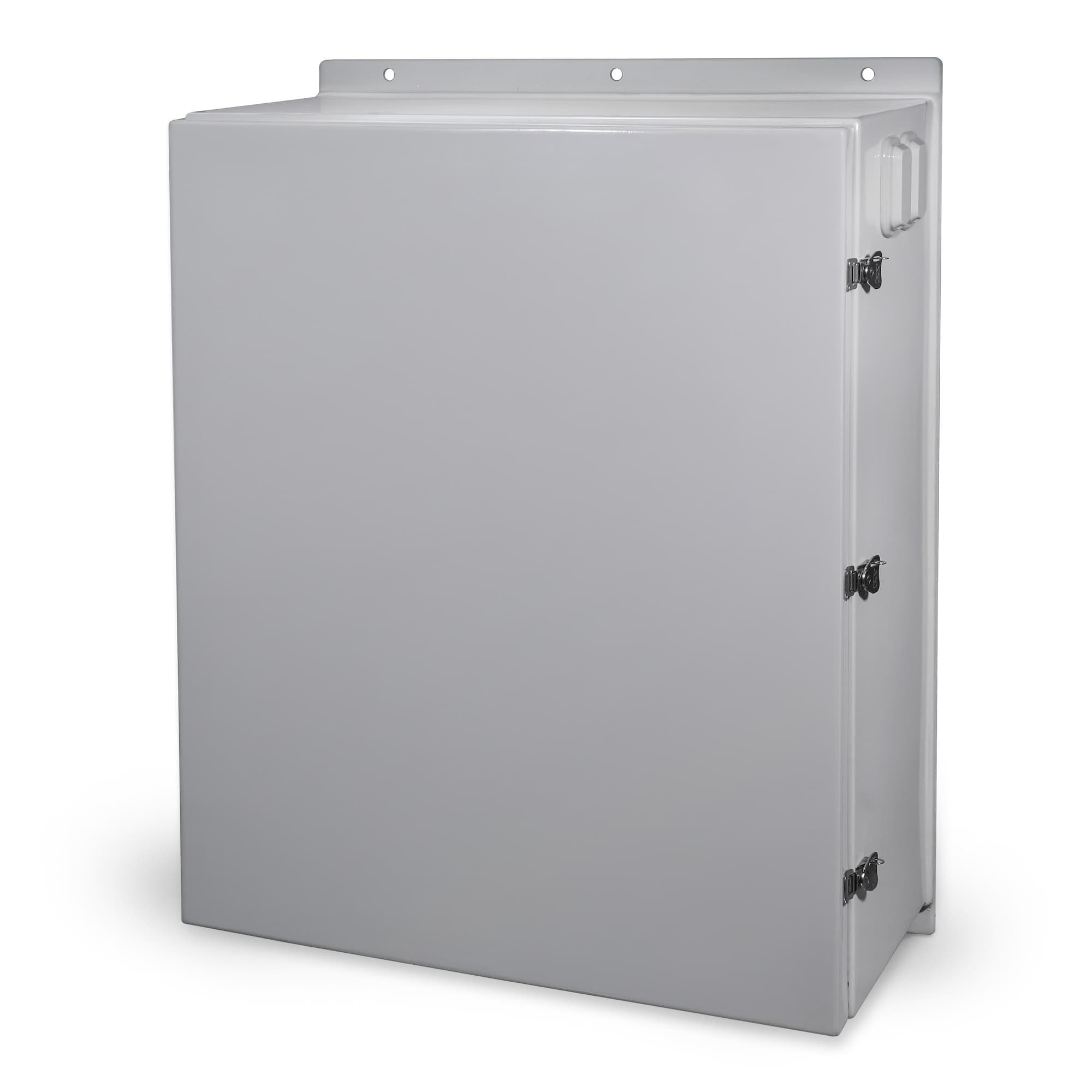

Large Outdoor Weatherproof Fiberglass Equipment Enclosure
This NEMA 4X compression molded fiberglass enclosure features a fire treated and painted plywood backboard for easy field installation of communication devices and equipment in indoor or outdoor environments.
The enclosure is UL Listed, non-corrosive, non-conductive, light weight, and easy to modify. The added water and dust proof NEMA 4X vents provide convection cooling to further protect installed equipment. Enclosures can be secured with a padlock and the include mounting feet can be used for wall or strut mounting. An optional pole mount kit is available for order separately.
Custom fabricated enclosures and turn-key solutions to fit your specific applications needs are available from the RLH design group. Please contact an RLH sales representative for more information on enclosures and equipment.
- Weatherproof design for outdoor use
- Heavy duty fiberglass enclosure
- Fire treated and painted 3/4″ plywood backboard

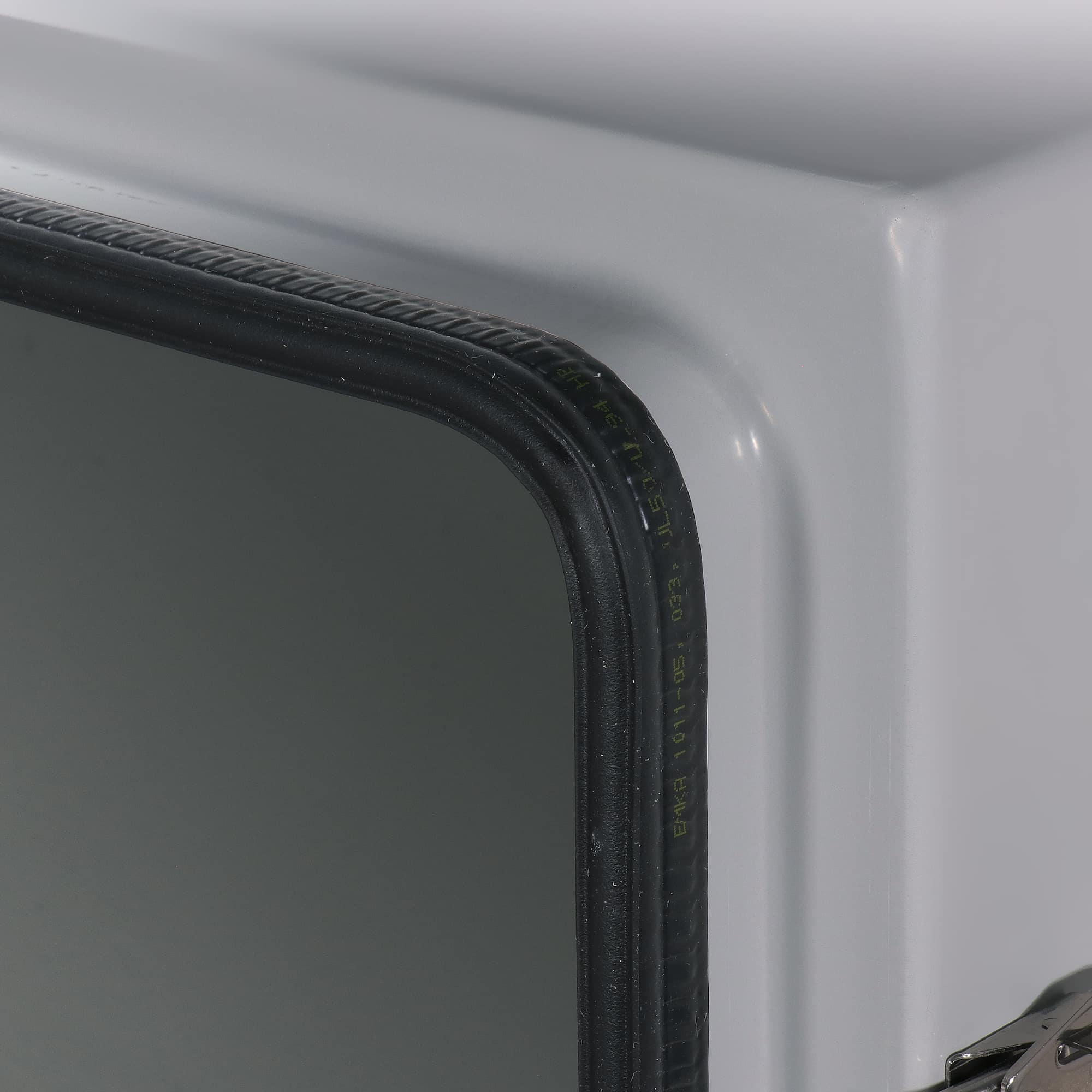

- EPDM Spring loaded gasket for weathertight door seal
- Weatherproof NEMA 4X side and bottom vents
- 11 position ground bar, accepts #10 to #1/0 AWG ground wire

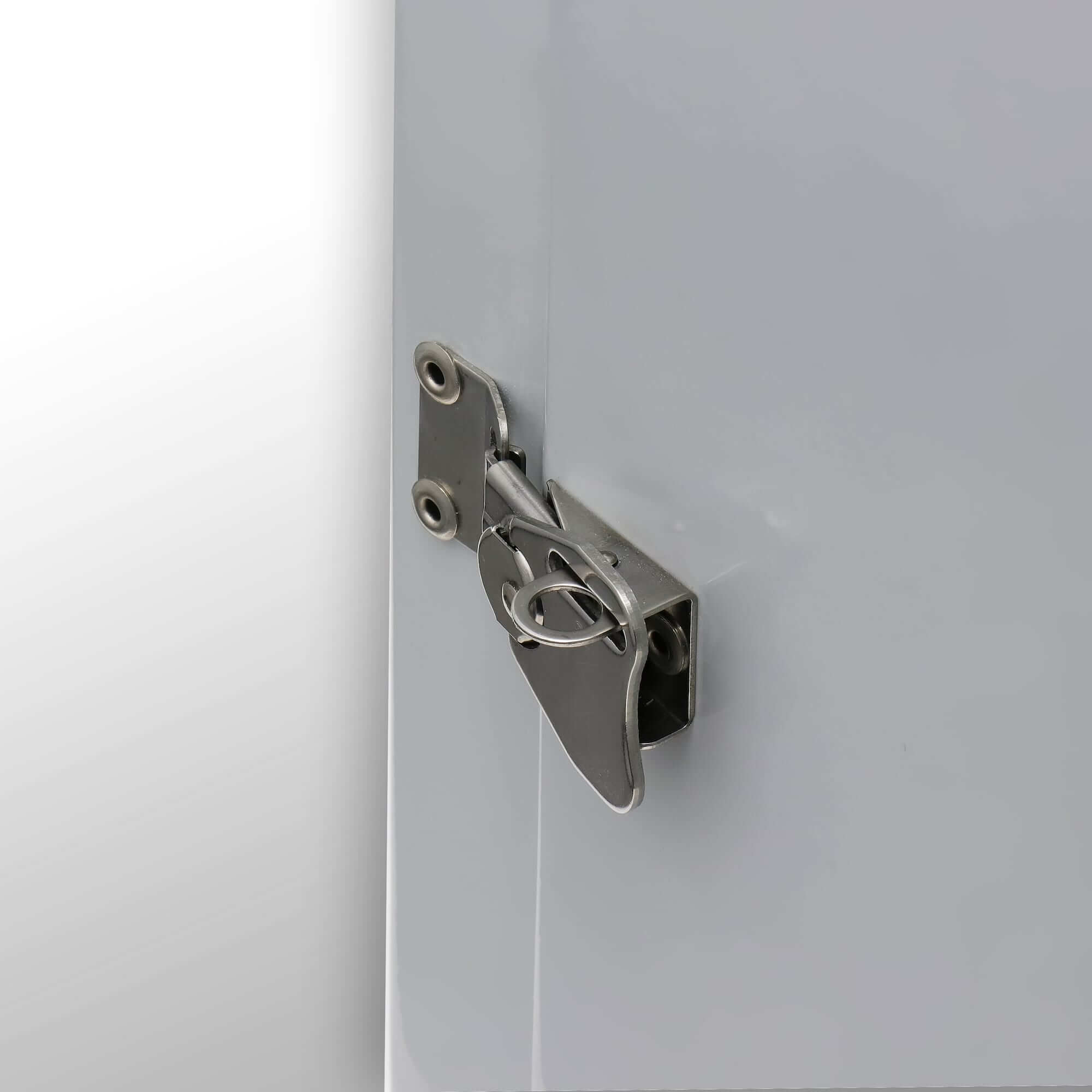

- Stainless steel pad lockable quarter turn latches
- Includes molded flange for wall/strut mounting, optional pole mount kit available
- Factory installed options available: include fans, heaters, thermostats, and more
- Made in USA
Construction
Material: Fiberglass
Weight Enclosure: 77 lbs. / 35kg
Weight Pole Mount Kit: 10 lbs. / 4.6kg

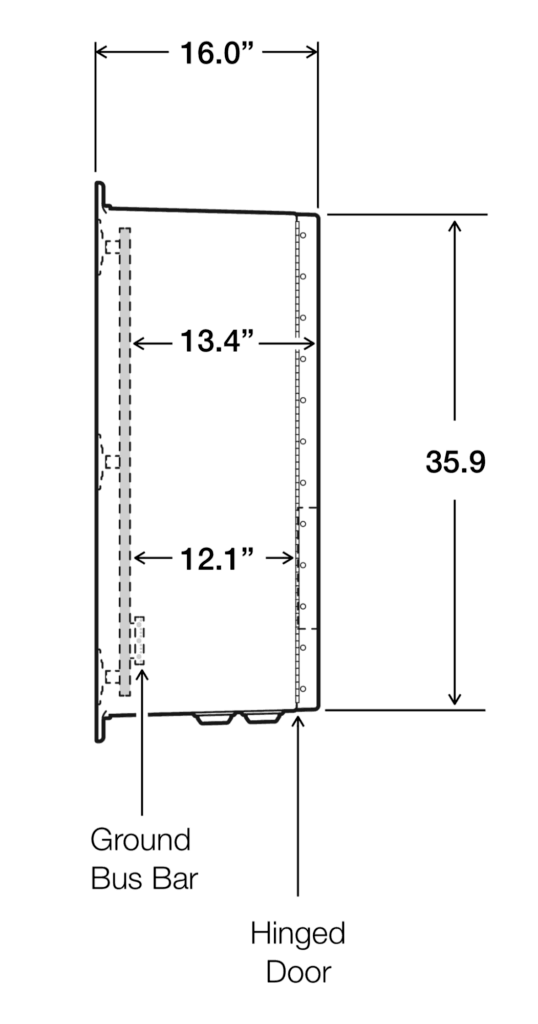

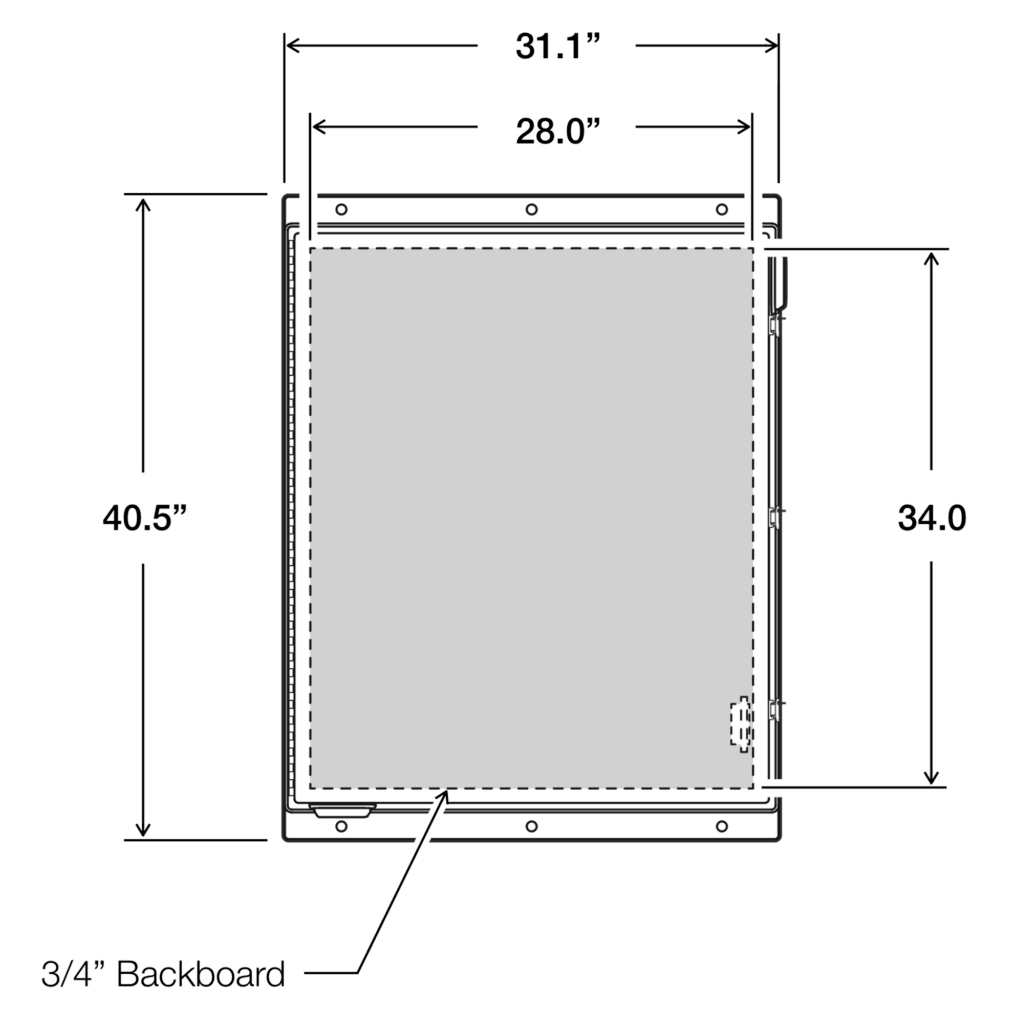

Exterior Dimensions: H 36.0” x W 31.1” x D 16.0” (not including flange height)
Usable interior Depth: 12.1” to 13.4” (varies with document pocket on door)

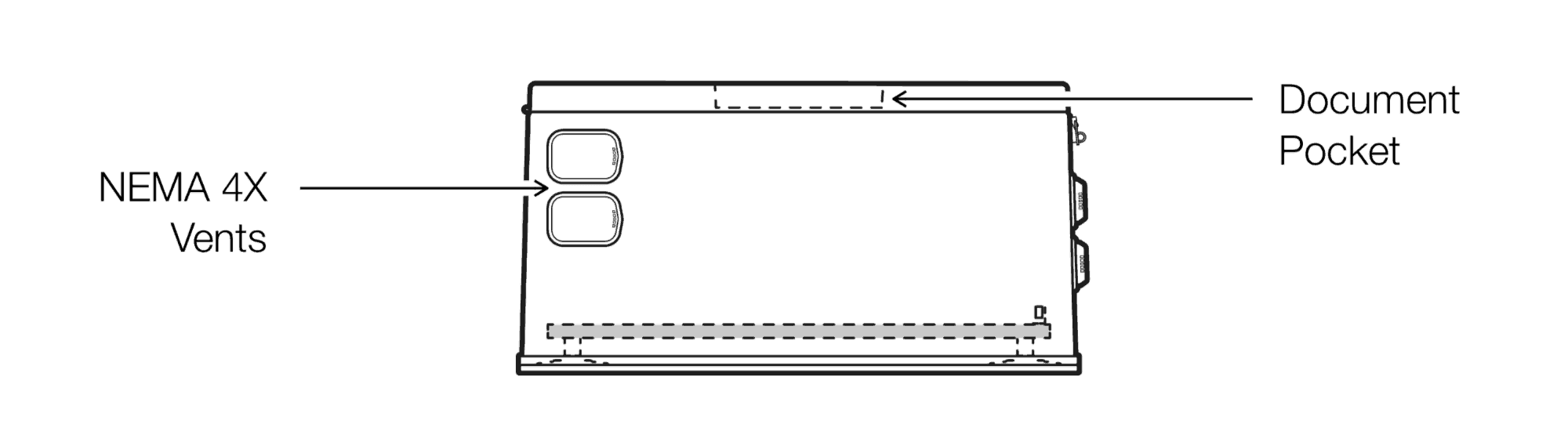

Venting: NEMA 4X Vents to provide air circulation, 2 side vents, 2 bottom vents
Mounting

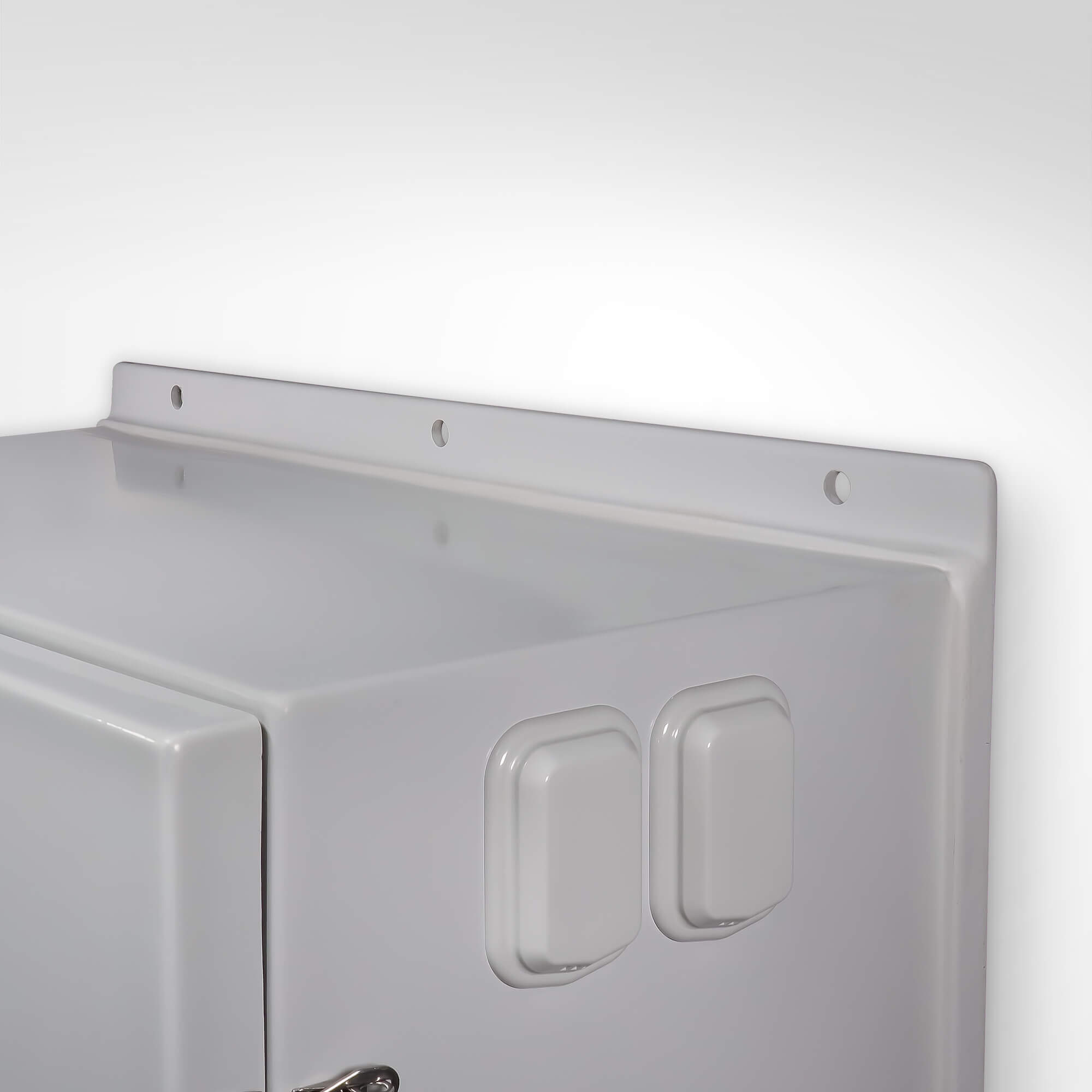

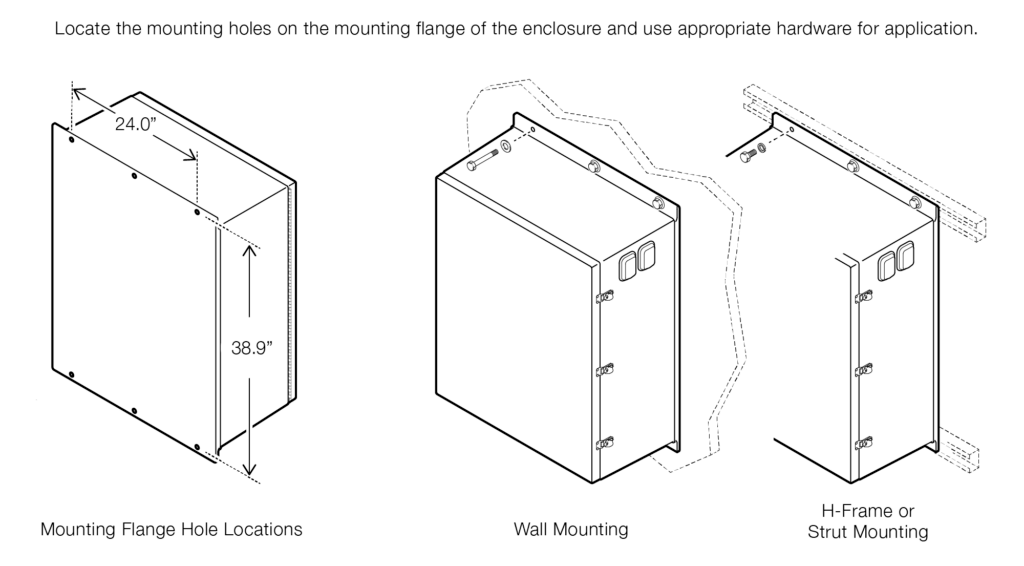

Wall/Strut mounting flange
Accommodates 5/8” bolts for wall or strut mounting

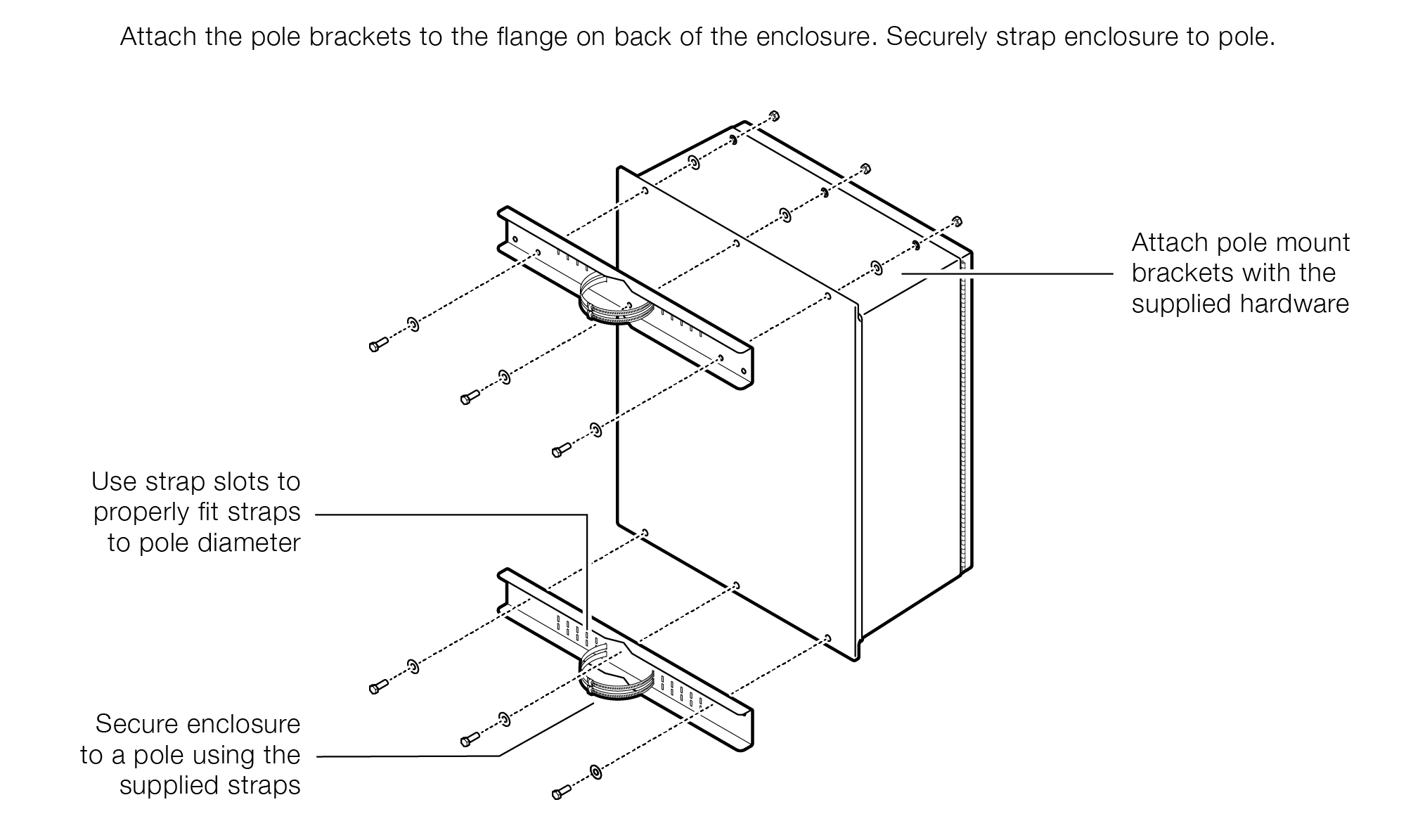

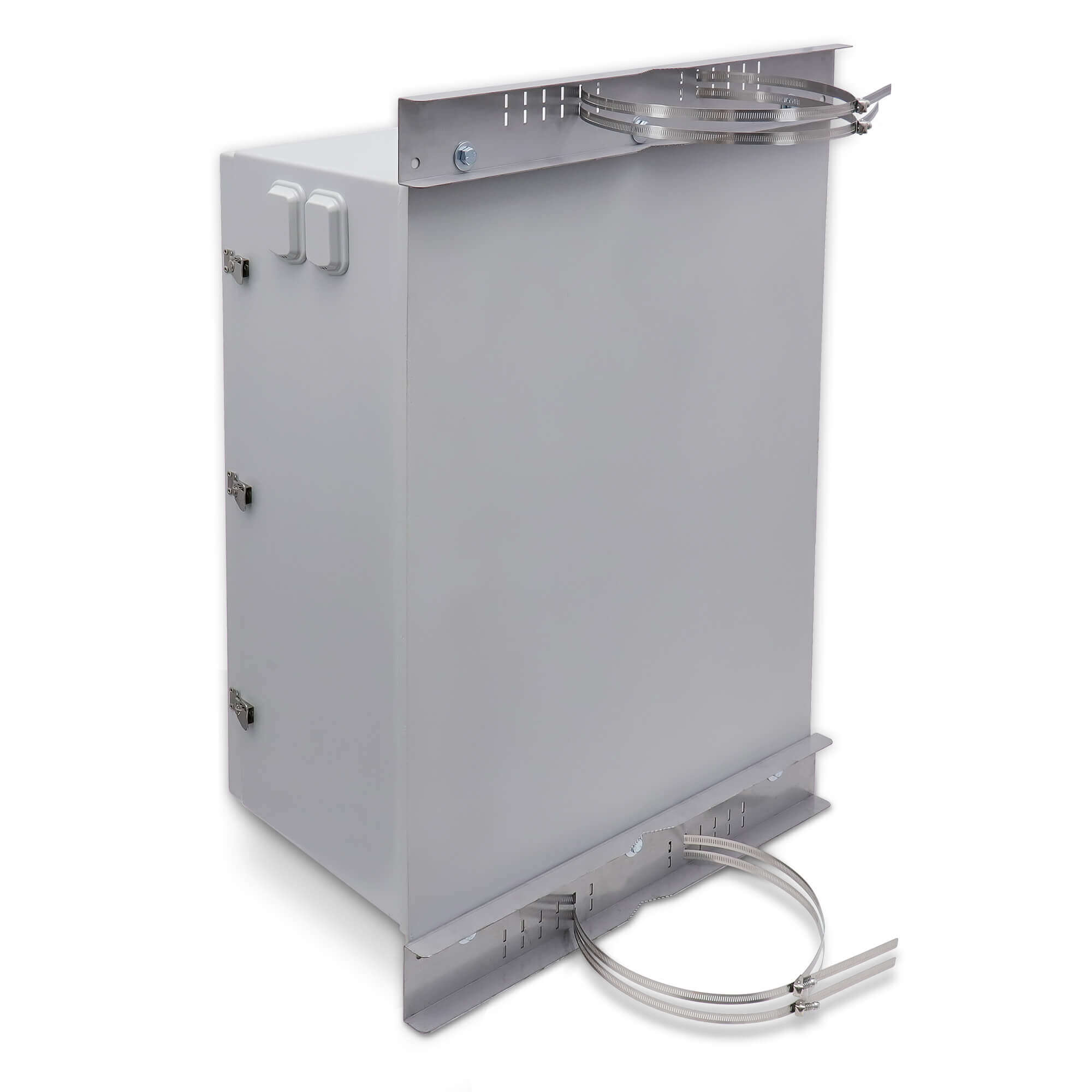

Optional Pole Mount Kit: Strap attachment, fits 4″ to 12″ diameter poles
Access

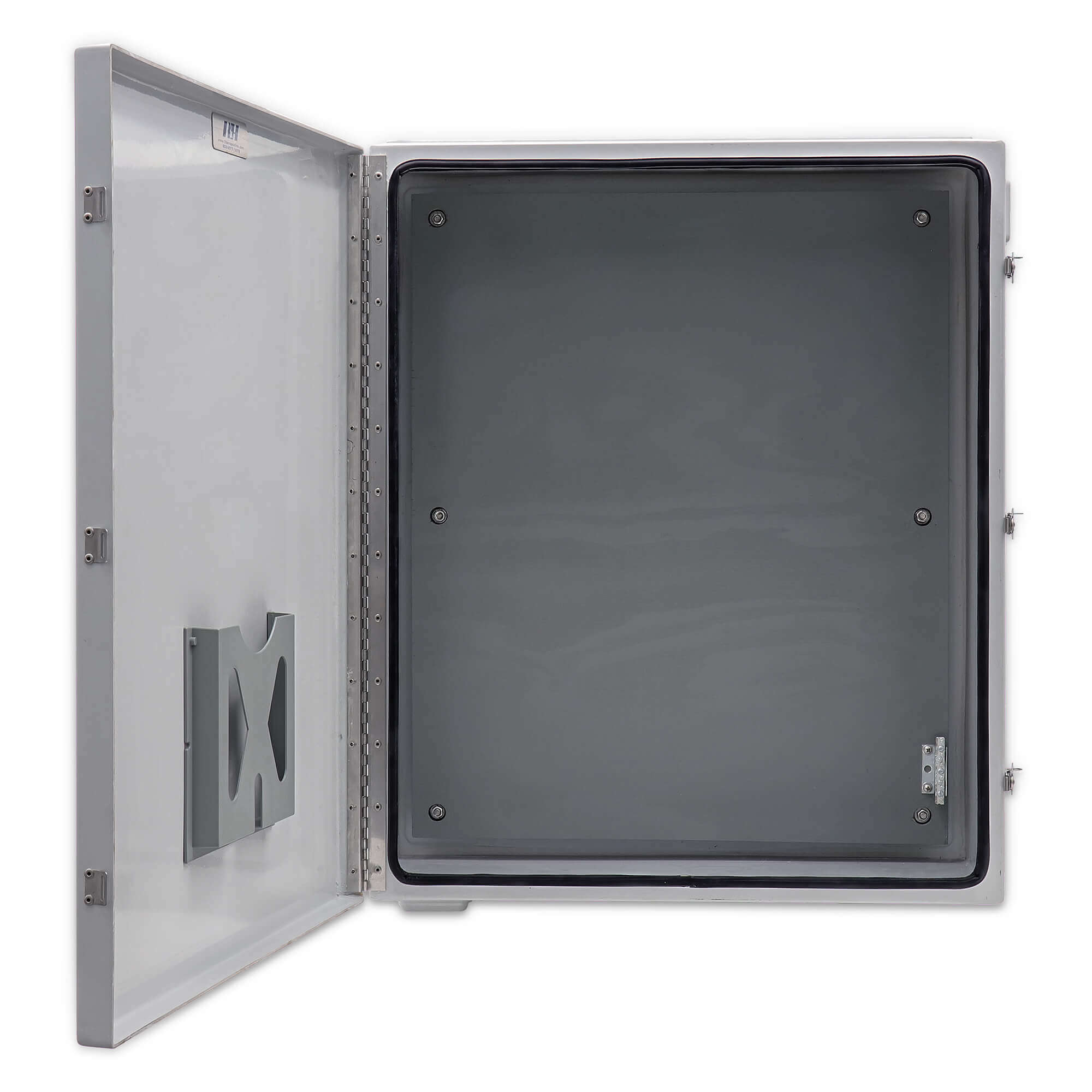

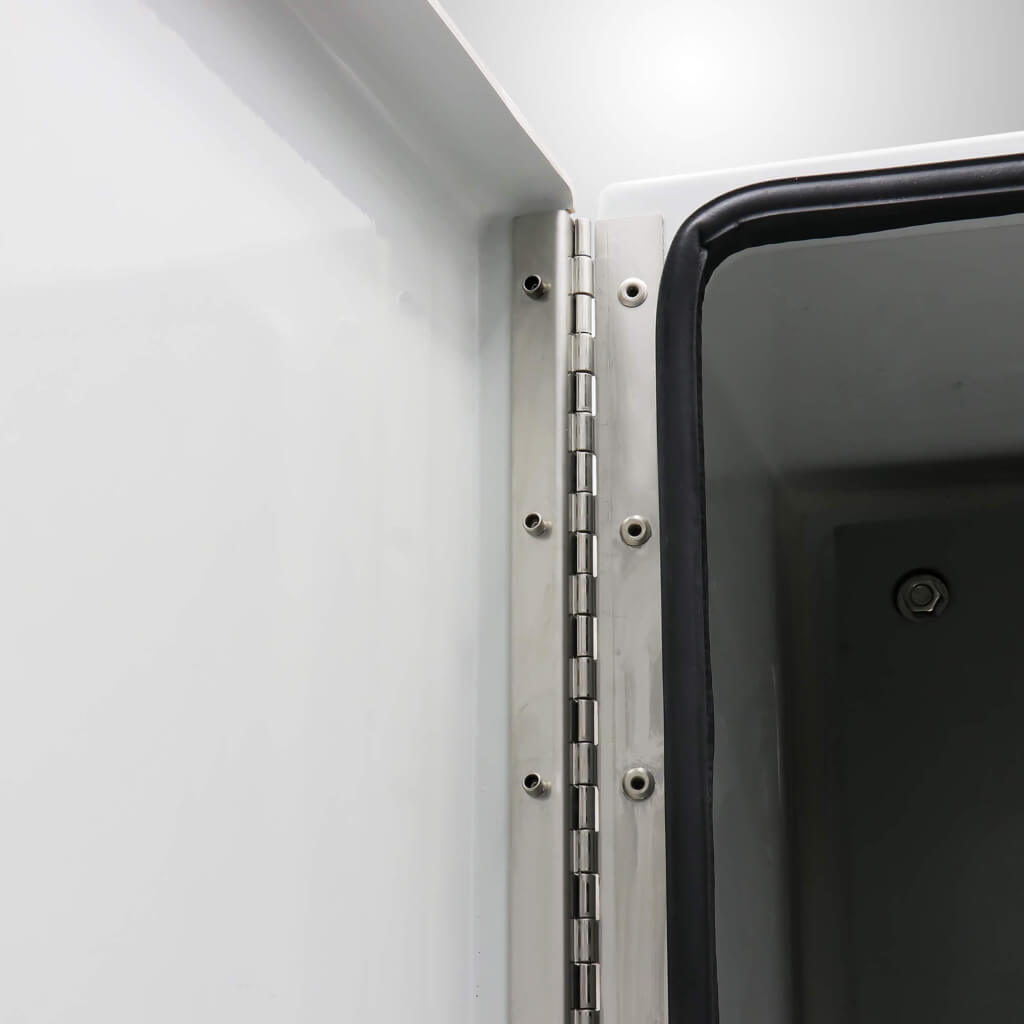

Hinged door with weatherproof gasket seal
Pad lockable latches
Interior Details
Usable Backboard: H 34.0 in. x W 28.0 in.

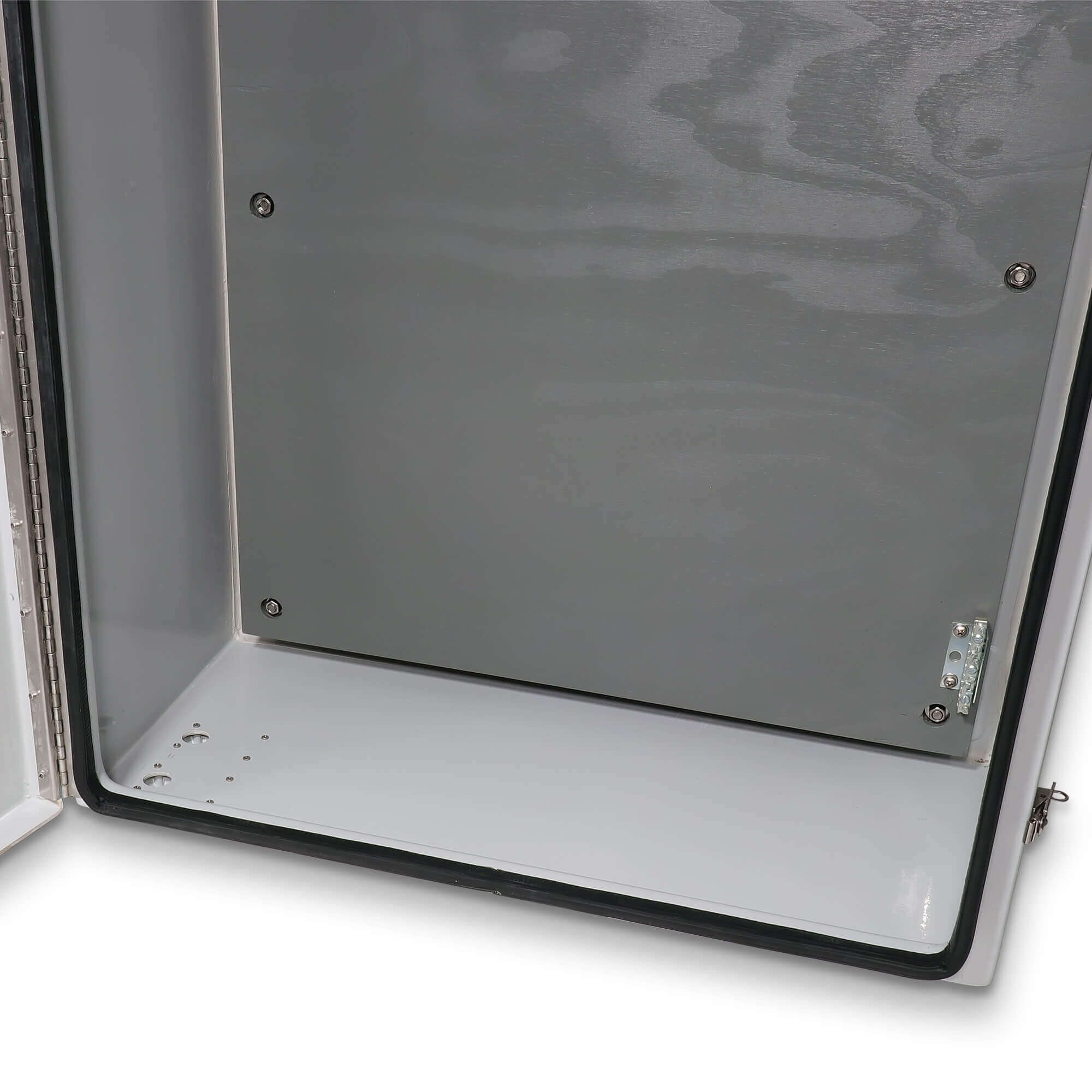

Backboard Type: 3/4” thick fire treated, painted plywood

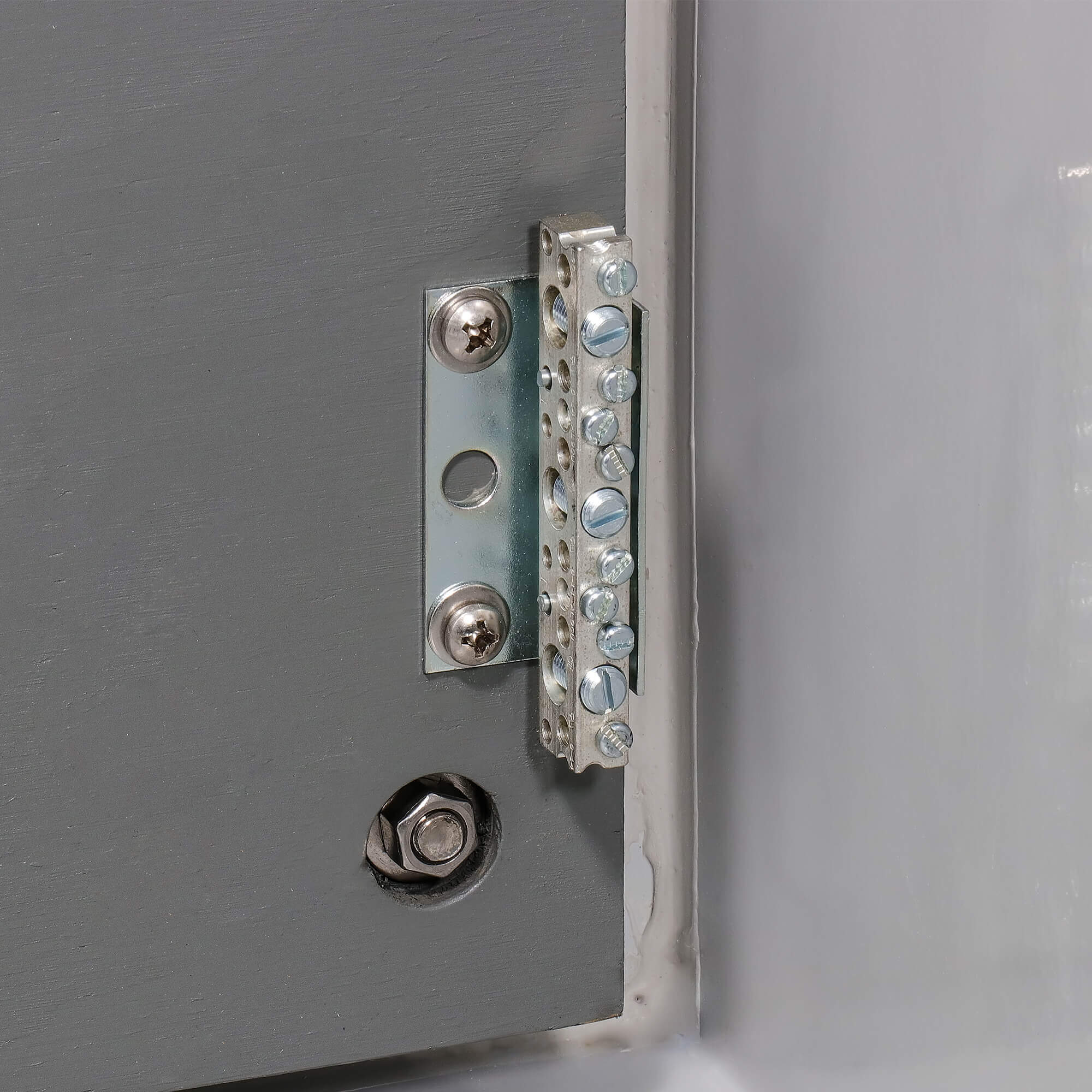

Ground Bus: 11 position ground wire capacity (Qty. 8 – #10 to #6 AWG, Qty. 3 – #10 to #1/0 AWG)
General Information
Specialized Drawings
Miscellaneous
RLH-363016-F-1
PMK-LARGE-F-1
Ordering
36″ x 30″ x 16″ – Fiberglass Enclosure
| Short description | Part number | Price | |
|---|---|---|---|
| 36” x 30” x 16” Fiberglass Enclosure with Treated ¾” Wood backboard | RLH-363016-F-1 | $2,795.00 |
Large Cabinet Pole Mount Kit
| Short description | Part number | Price | |
|---|---|---|---|
| Large Enclosure Pole Mount Kit for Poles Sized 4”-12” | PMK-LARGE-F-1 | $275.00 |
