Temperature Controlled for Sensitive Equipment
The RLH CORE (Communications Outdoor Rack Enclosure) series of cabinets offer NEMA 4 protection of critical equipment located in harsh outdoor environments. They feature an adjustable, swing-open EIA 19 inch equipment rack for communications equipment, a backboard for mounting telco related equipment, and thermal control options like solar shields, air conditioning with load center, or dual vent fans.

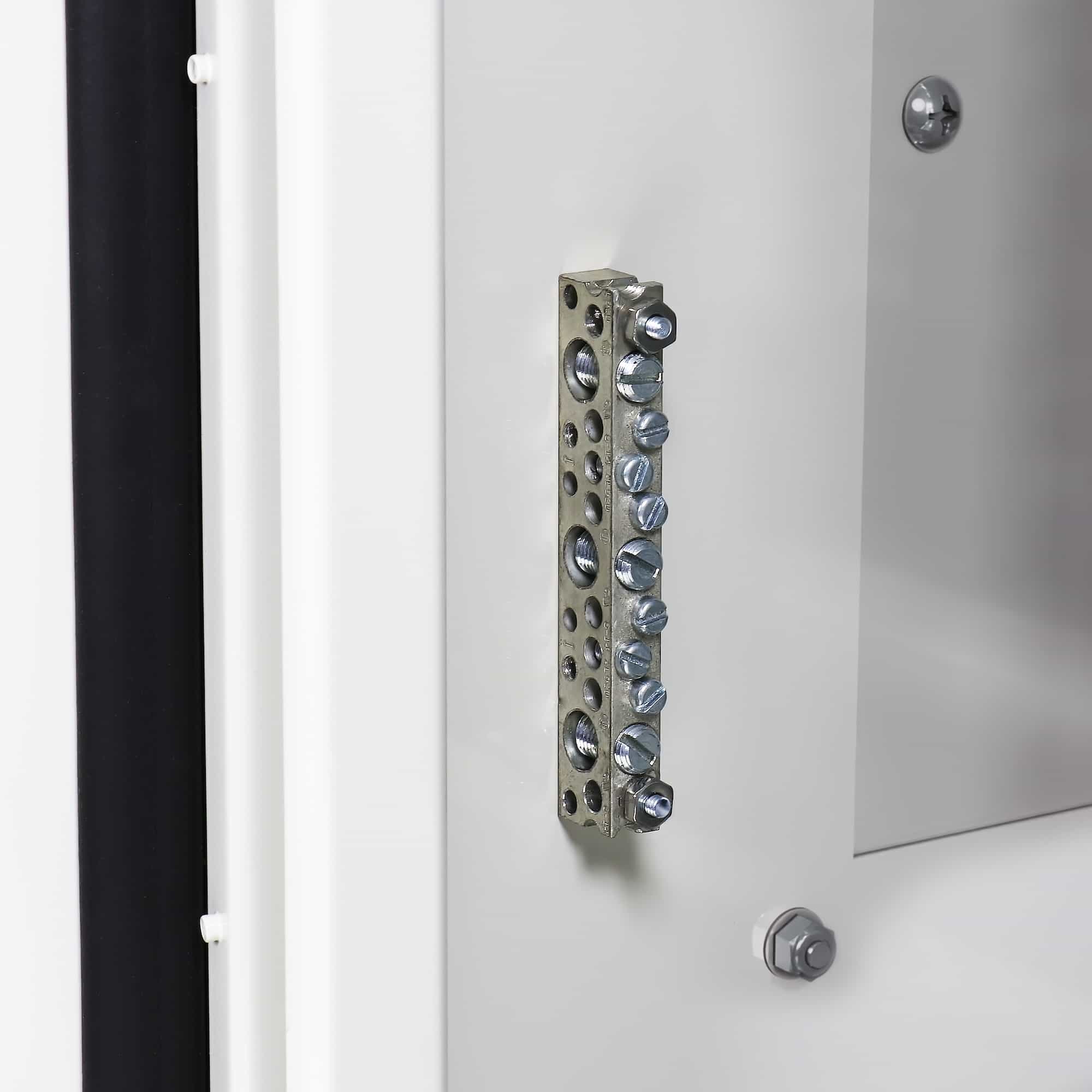

CORE cabinets are made from high grade powder coated aluminum alloy, have fully hinged doors with a limit stop, heavy duty 3 point door latches that can be padlocked, weatherproof door seals, fire treated plywood backboards, a door alarm switch and dual ground bus bars.

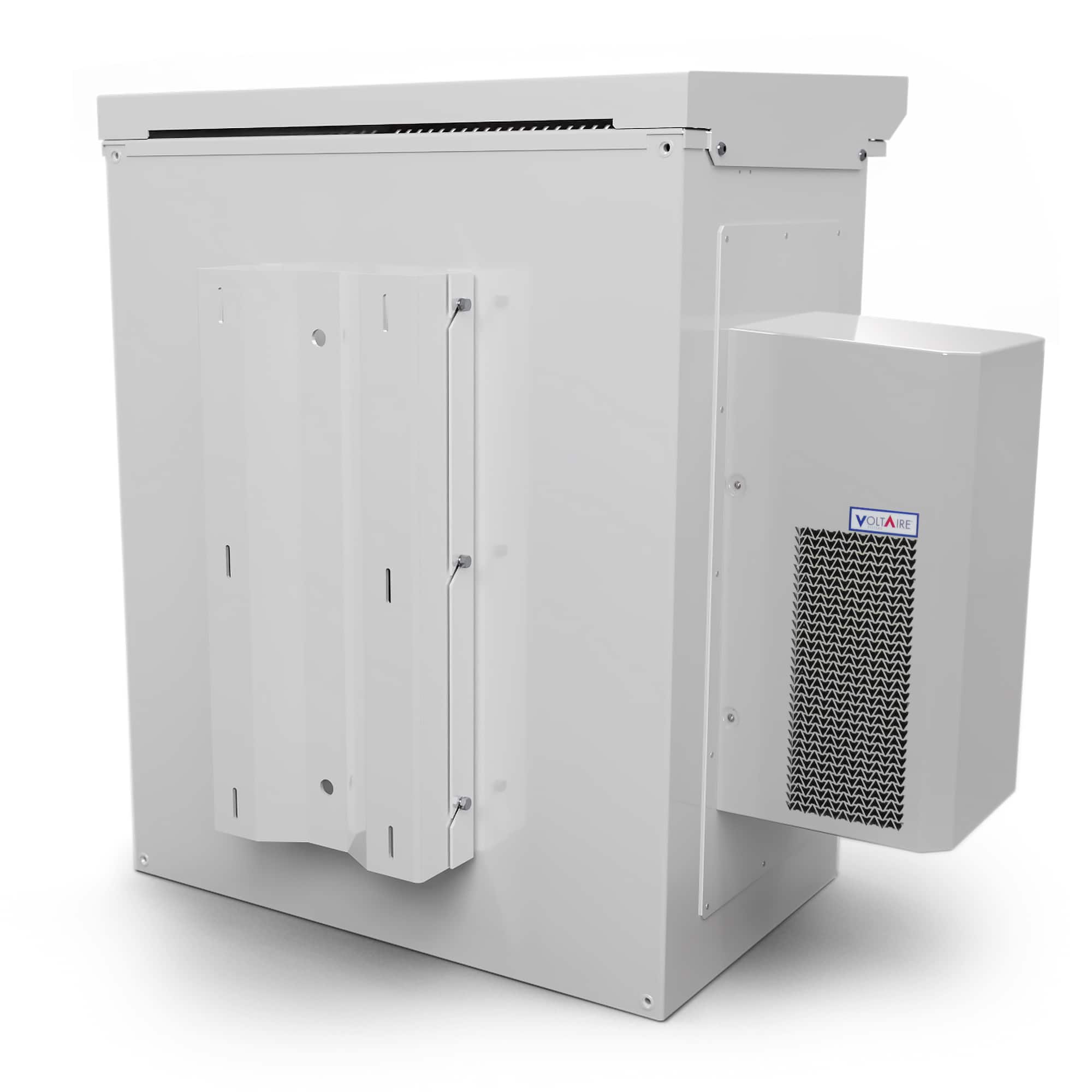

Mounting options include wall, strut or pole mounting with the included Easy Mount pole mount system. They are engineered for durability and can be configured with various factory options to suit the demands of nearly any installation environment.
CORE enclosures are designed and made in USA, and are BABA and BEAD compliant.
- NEMA 4 weatherproof design for outdoor use
- Heavy duty, precision welded, powder coated construction

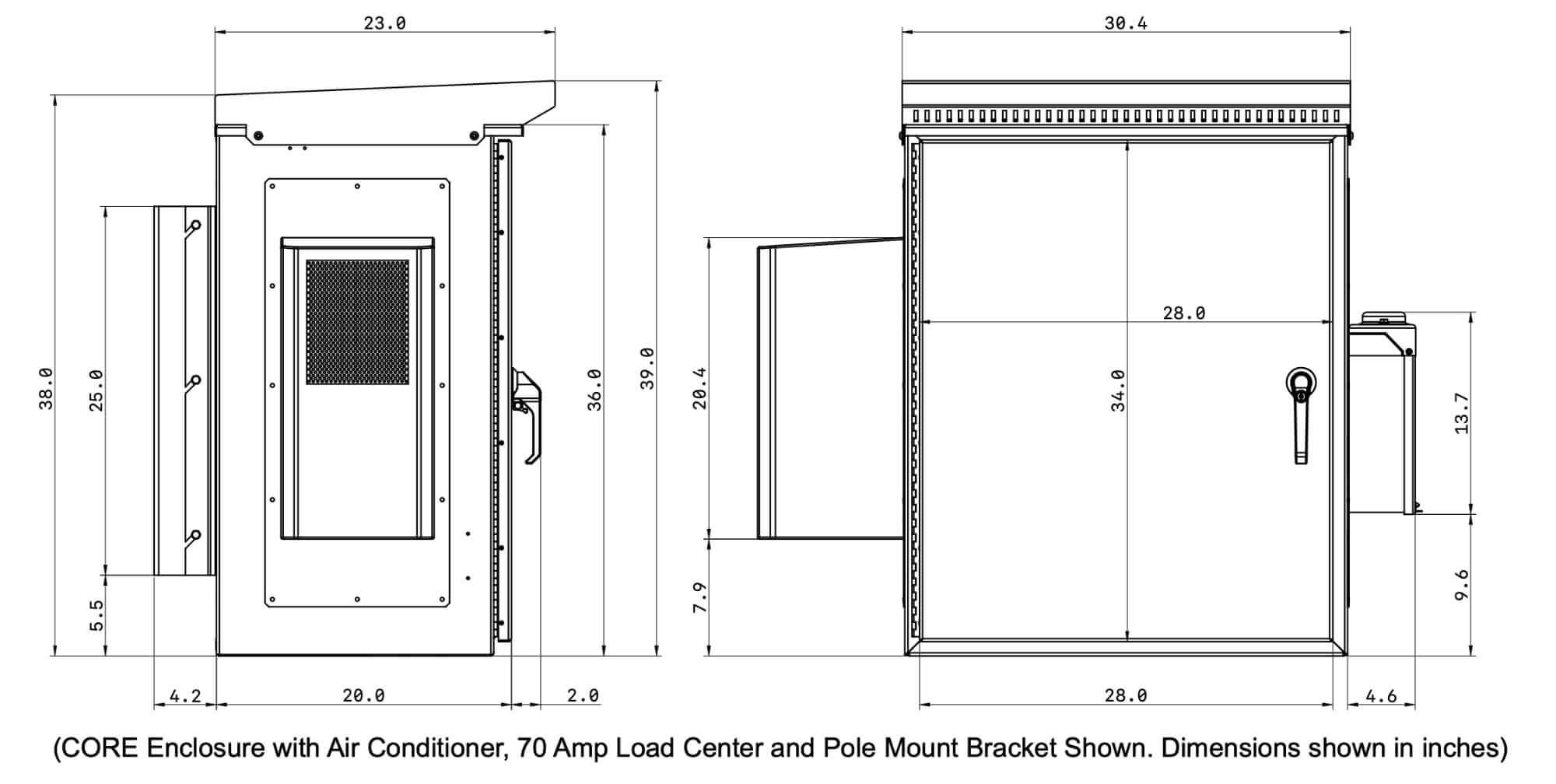

- Dimensions: 36”H x 30”W x 20”D (internal)
- Fire treated 3⁄4” plywood backboard
- Padlockable quarter turn latch

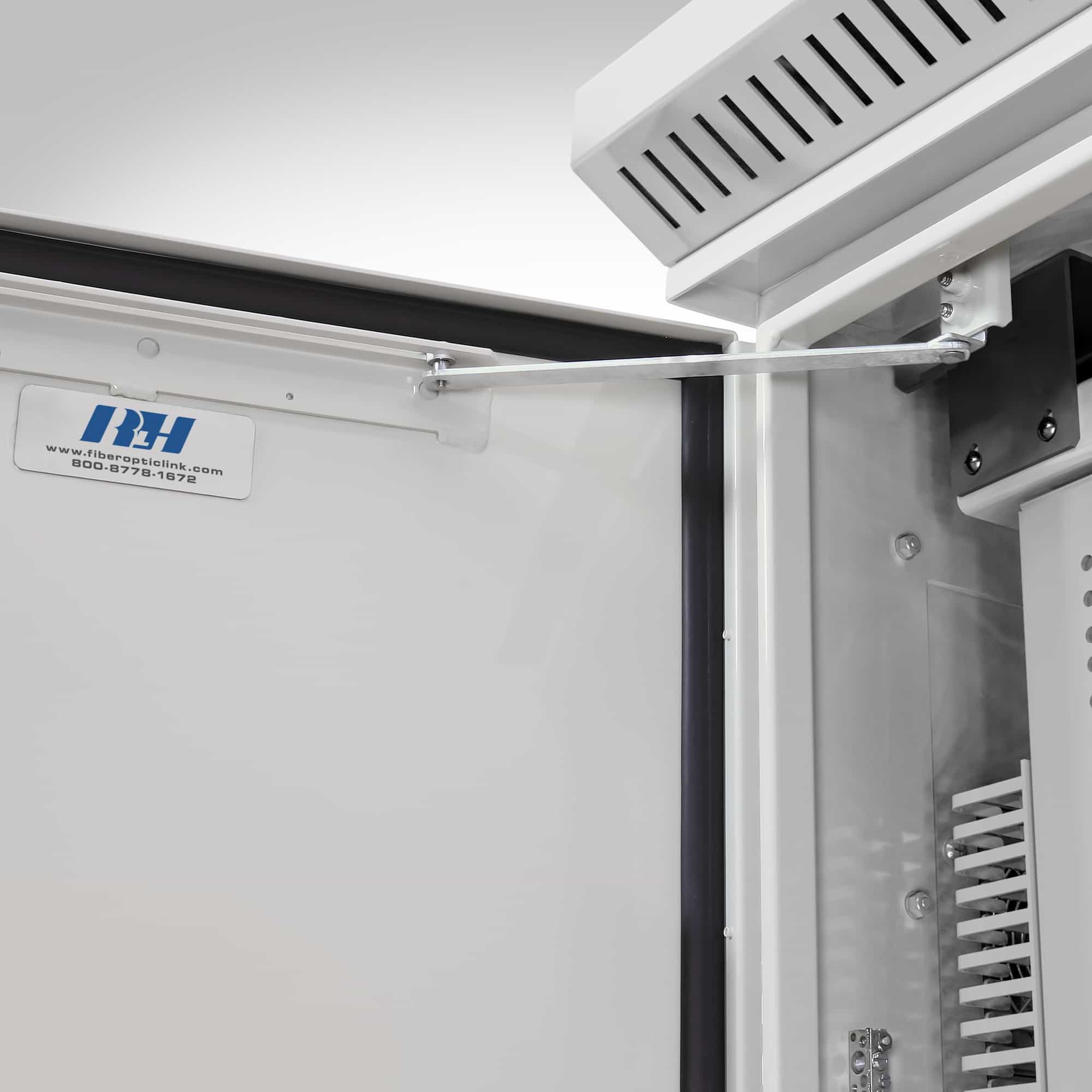

- Hinged door with alarm switch, limit stop and document pocket

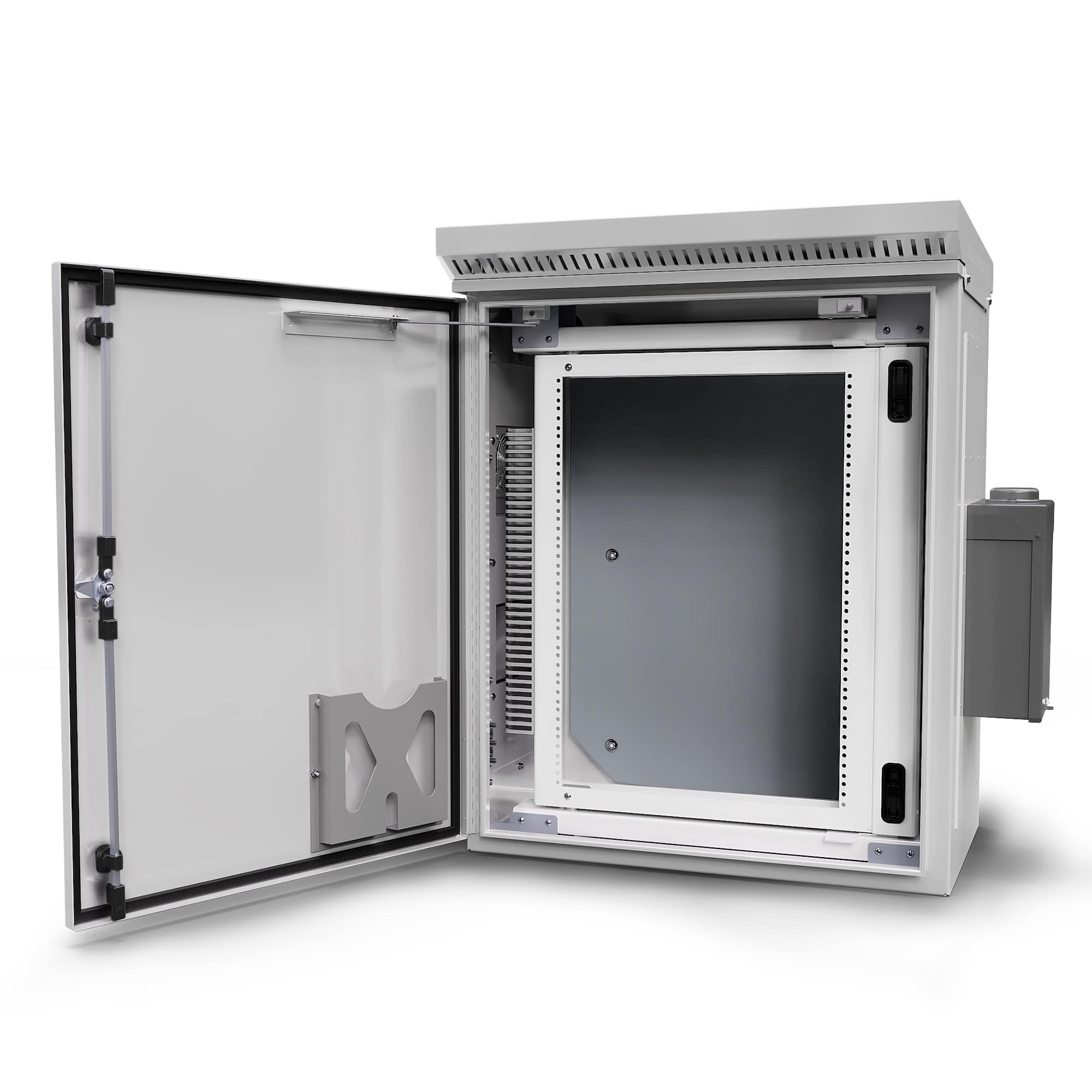

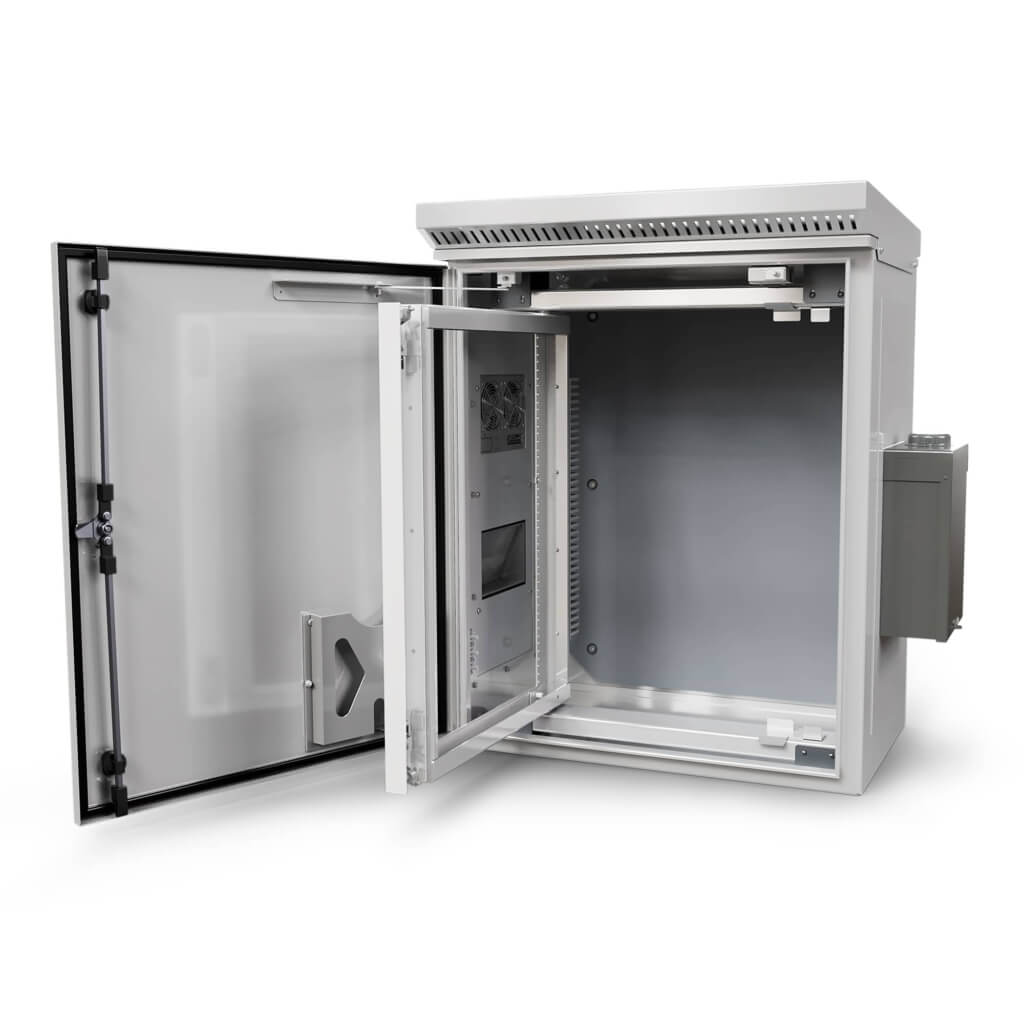

- Swing out 15 RU 19 inch rack
- Neoprene weather-tight door seal

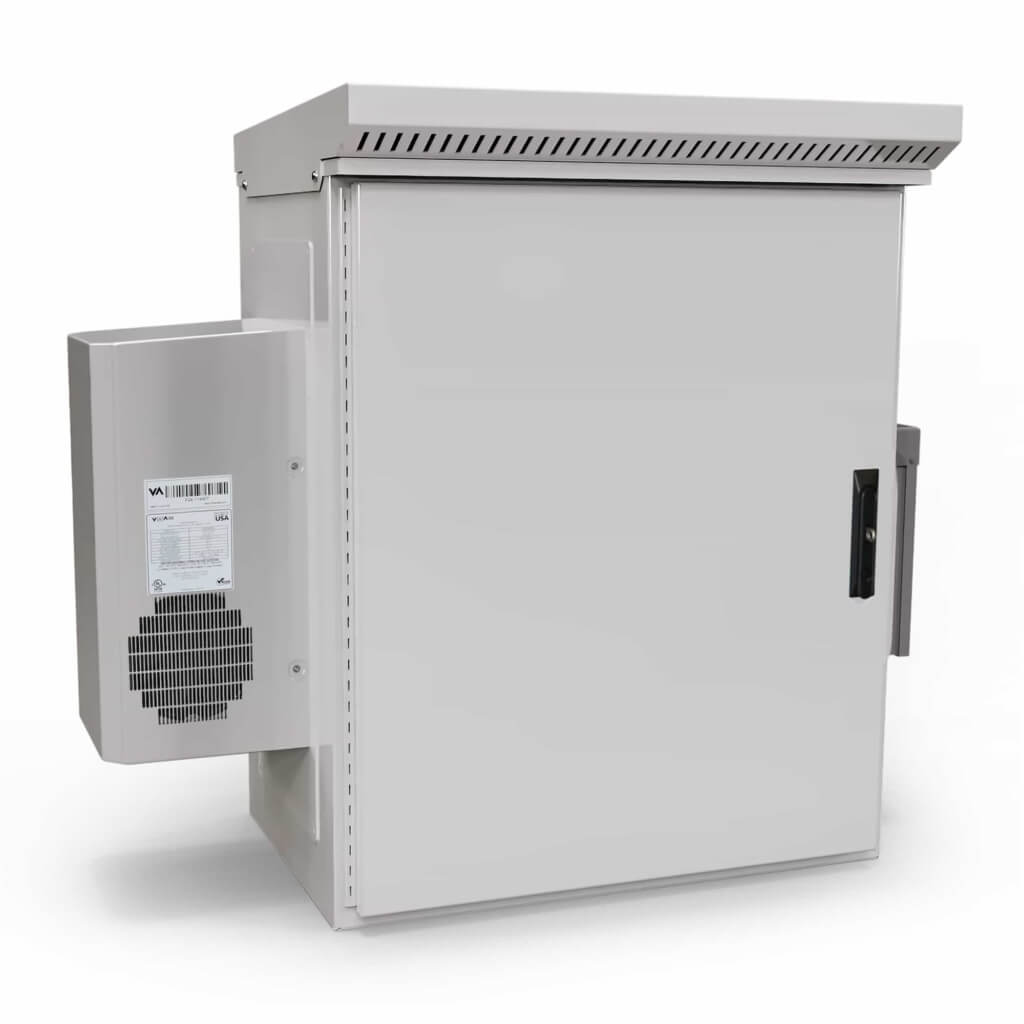

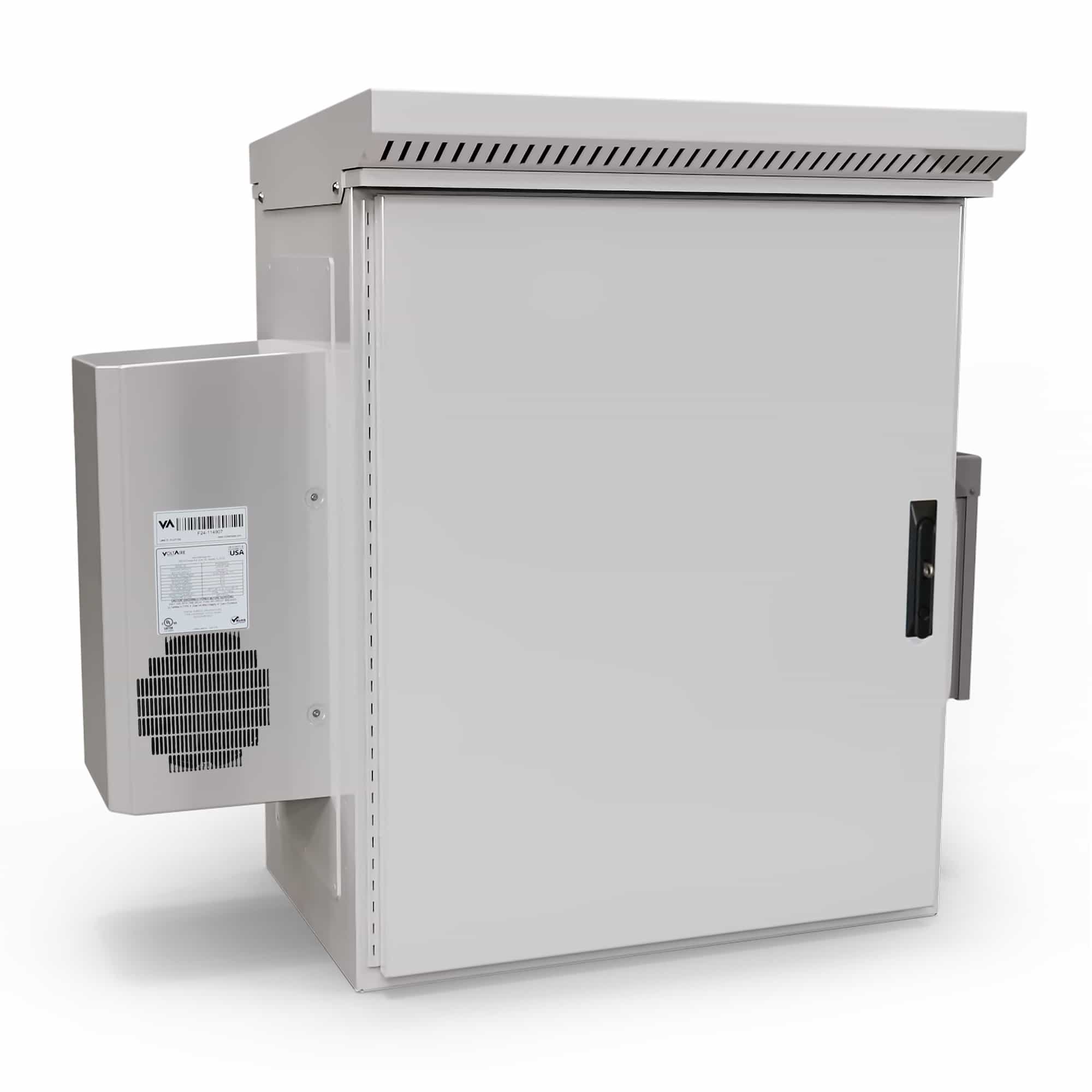

- 2000 BTU Air Conditioner

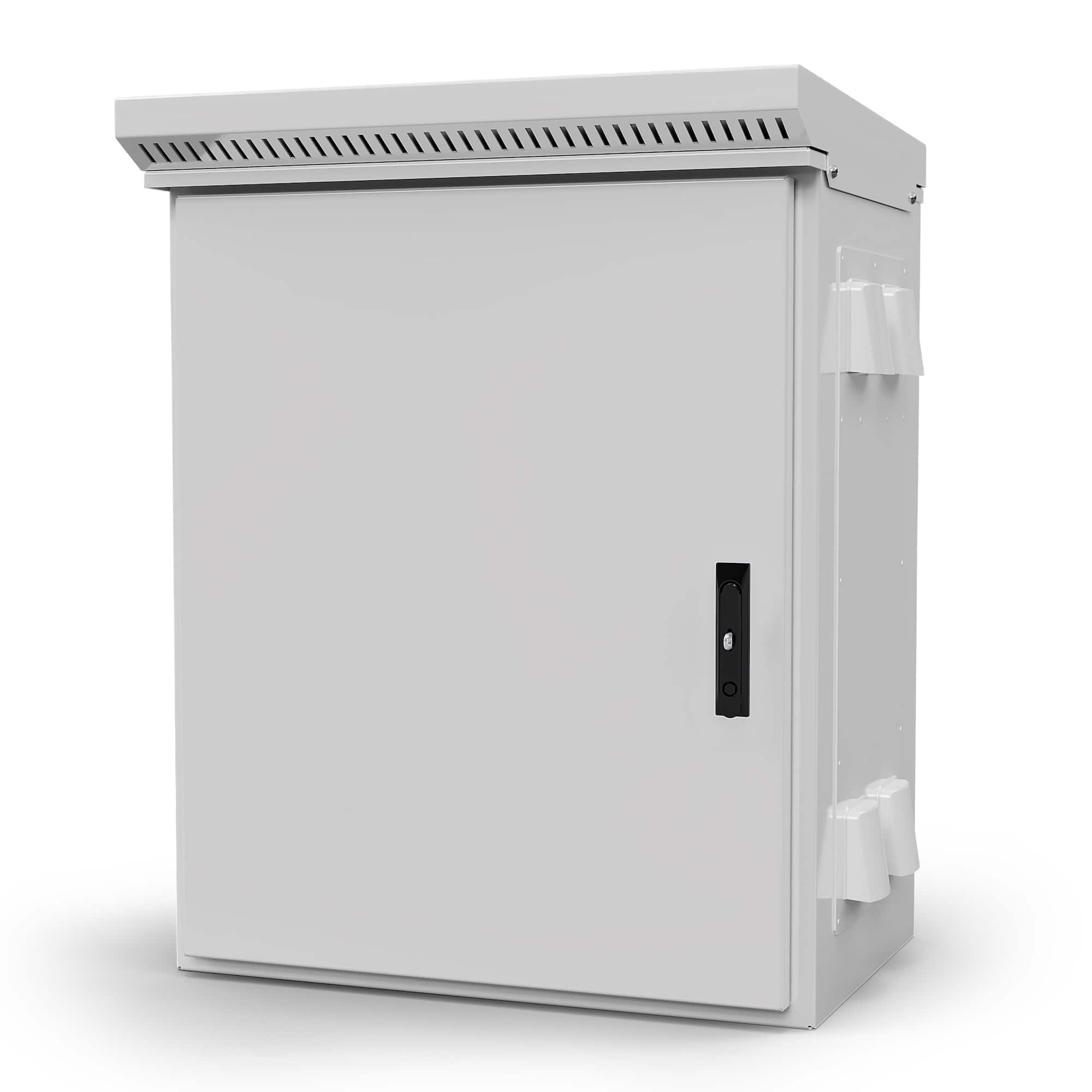

- NEMA 3R Vent Fan option
- 70 Amp Load Center
- Pole, wall or strut mountable

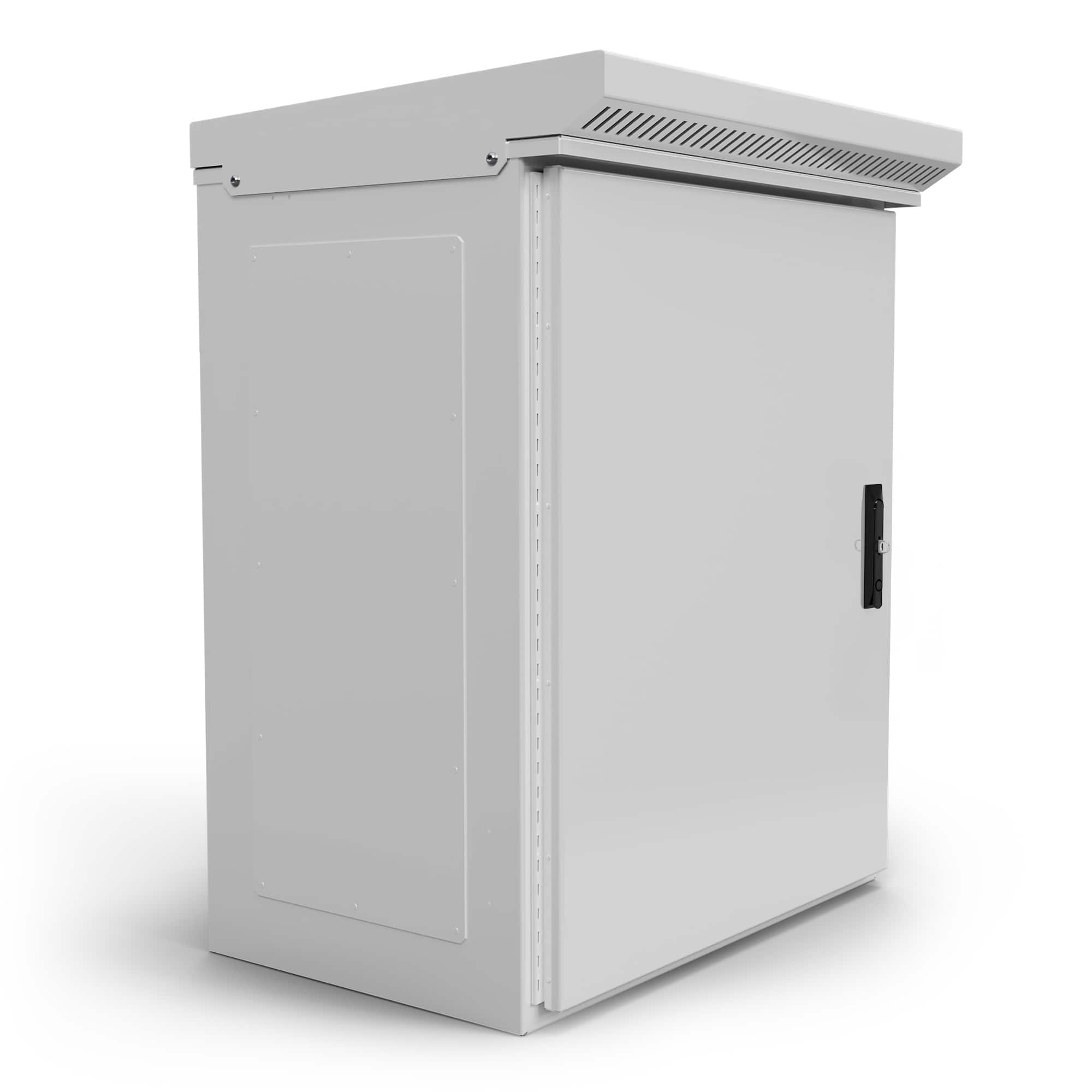

- Top solar shield
- Factory configurable options available
- Made in USA
CORE-363020A-SAB-WSX-1
CORE-363020A-SAB-WBX-1
CORE-363020A-SVA-WSX-1
CORE-363020A-SVA-WBX-1
$2,860.00 – $5,965.00
Lead Time: 2 to 4 Weeks*
Customize Your CORE Cabinet
If your project requires a Custom CORE Cabinet, please contact one of our enclosure experts.

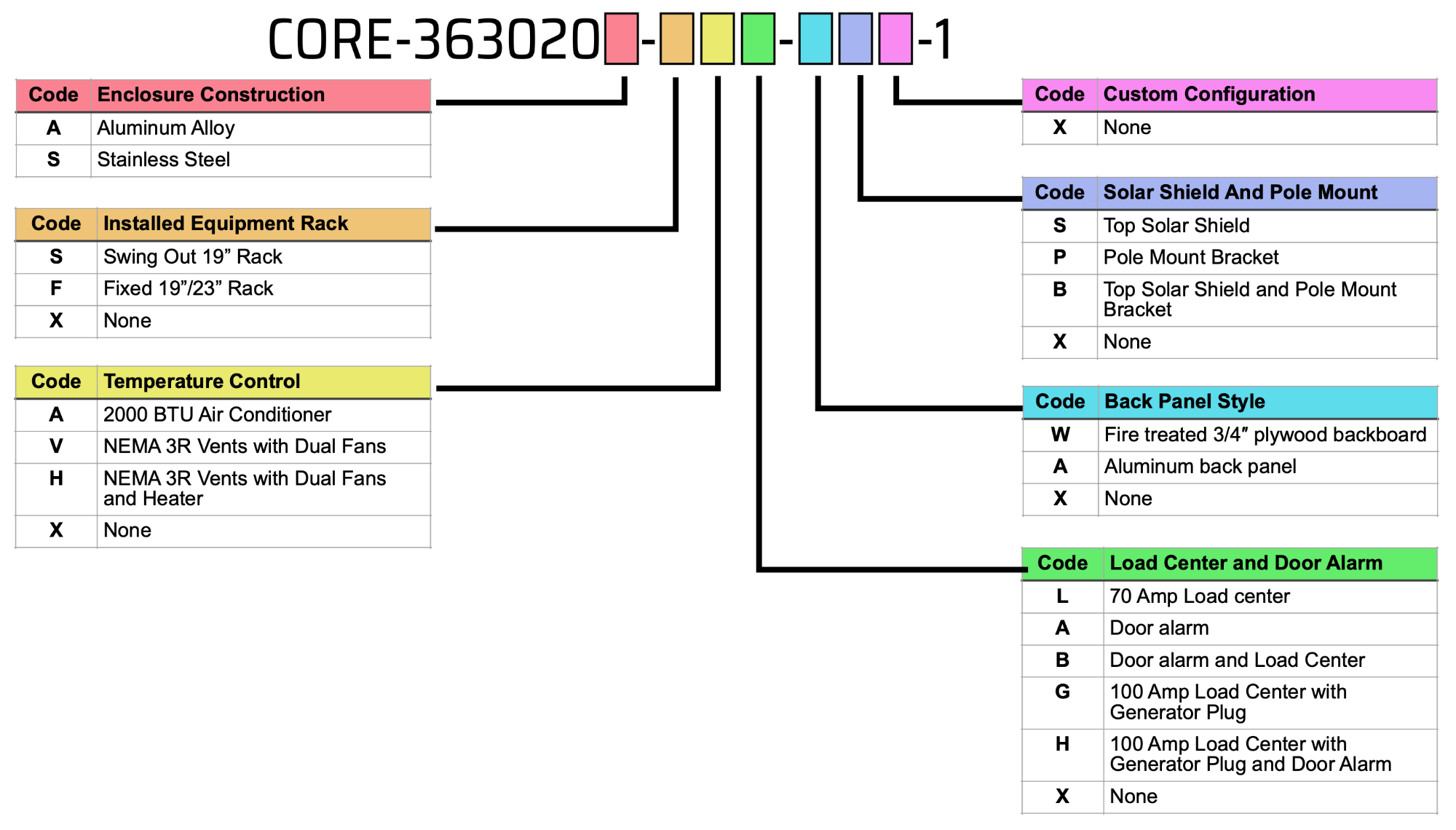

Ordering
CORE 36” x 30” x 20” Cabinet with 19” Equipment Rack
| Short description | Part number | Price | |
|---|---|---|---|
| CORE 15 RU Swing Out Rack Cabinet with Air Conditioner and Load Center | CORE-363020A-SAB-WSX-1 | $5,685.00 | Get a Quote |
| CORE 15 RU Swing Out Rack Cabinet with Air Conditioner, Load Center and Pole Mount Bracket | CORE-363020A-SAB-WBX-1 | $5,965.00 | Get a Quote |
| CORE 15 RU Swing Out Rack Cabinet with NEMA 3R Vents | CORE-363020A-SVA-WSX-1 | $2,860.00 | Get a Quote |
| CORE 15 RU Swing Out Rack Cabinet with NEMA 3R Vents and Pole Mount Bracket | CORE-363020A-SVA-WBX-1 | $3,140.00 | Get a Quote |

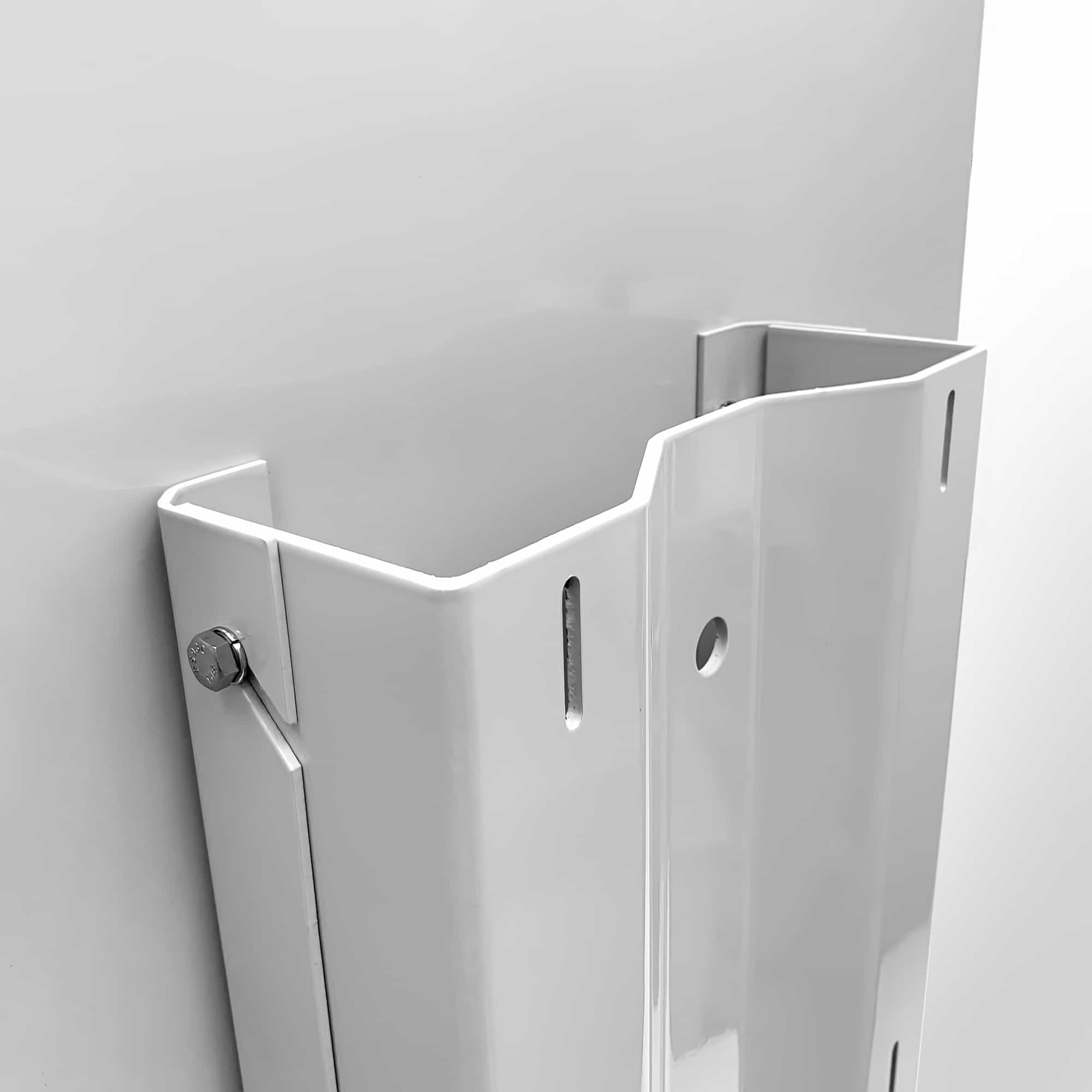

Pole Mount Bracket
| Short description | Part number | Price | |
|---|---|---|---|
| Add-on Pole Mount Bracket Kit | PMK-4032 | $295.00 |
