Securely House DIN Rail Equipment in Rack Mount Environments

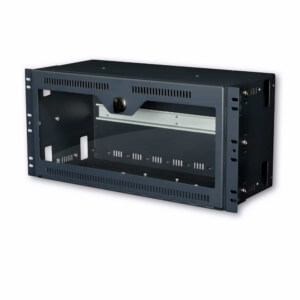

The DIN Rail Housing is designed to safely and securely house DIN rail mounted equipment for wall and rack mount applications. The industrial housing is a steel, powder coated, enclosure with a hinged transparent door for quick assessment of the equipment status and configuration. Access to the inside is easy and secure with a quarter turn latch. An optional key locking latch is also available.
Inside is a 15.8” section of standard 35mm DIN rail for mounting equipment. Multiple cable openings on the sides and bottom allow for flexible cable routing, and plastic cable guides are provided to manage copper and fiber cables into and out of the housing.

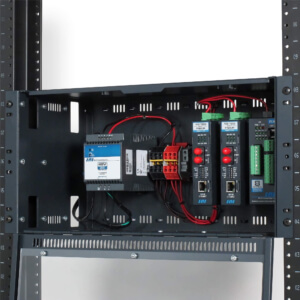

The housing may be ordered pre-configured with a 150 Watt AC/DC Power Supply system for either 24VDC or 48VDC applications. The power supply is pre-mounted on the DIN rail pre-wired with a breaker, terminal blocks, and a six foot AC pigtail power cord. Approximately 9.5 inches of DIN rail space is available after power system is installed.

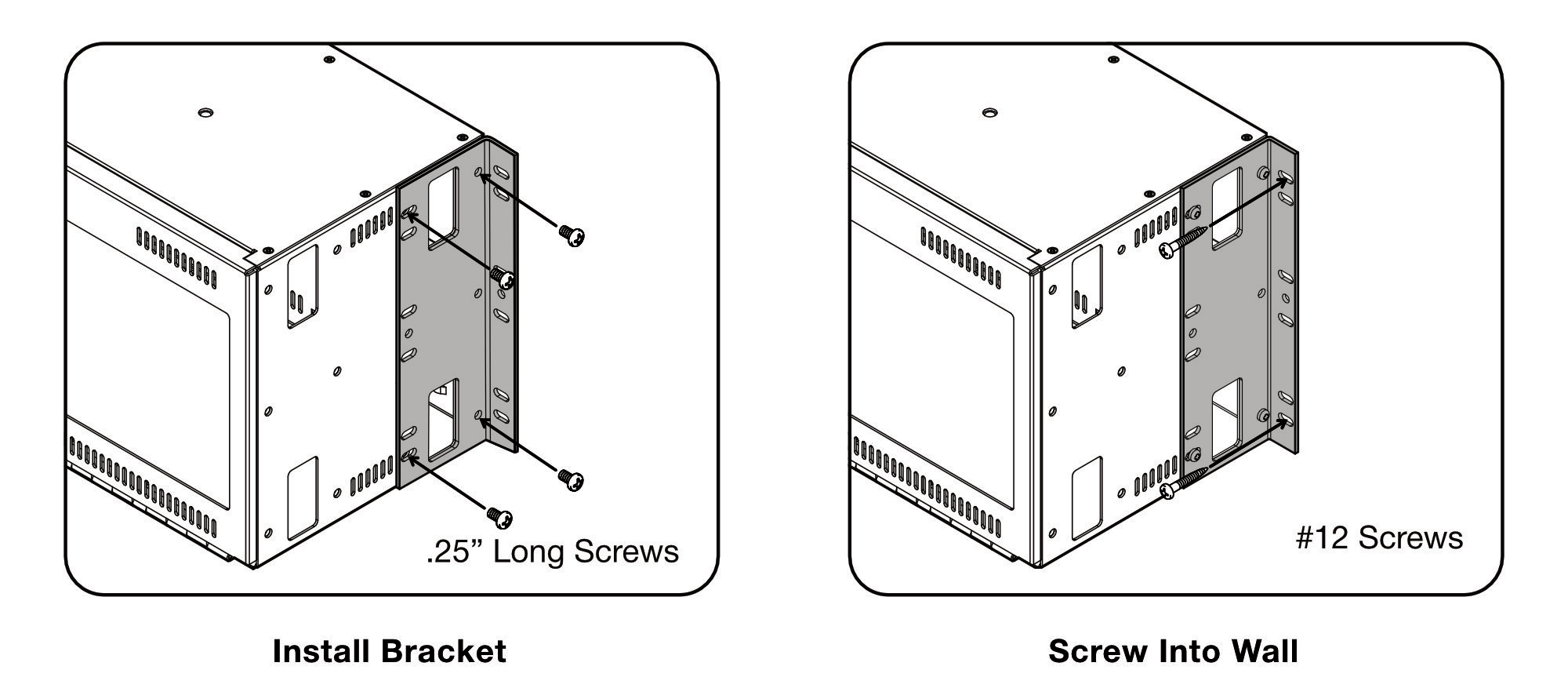

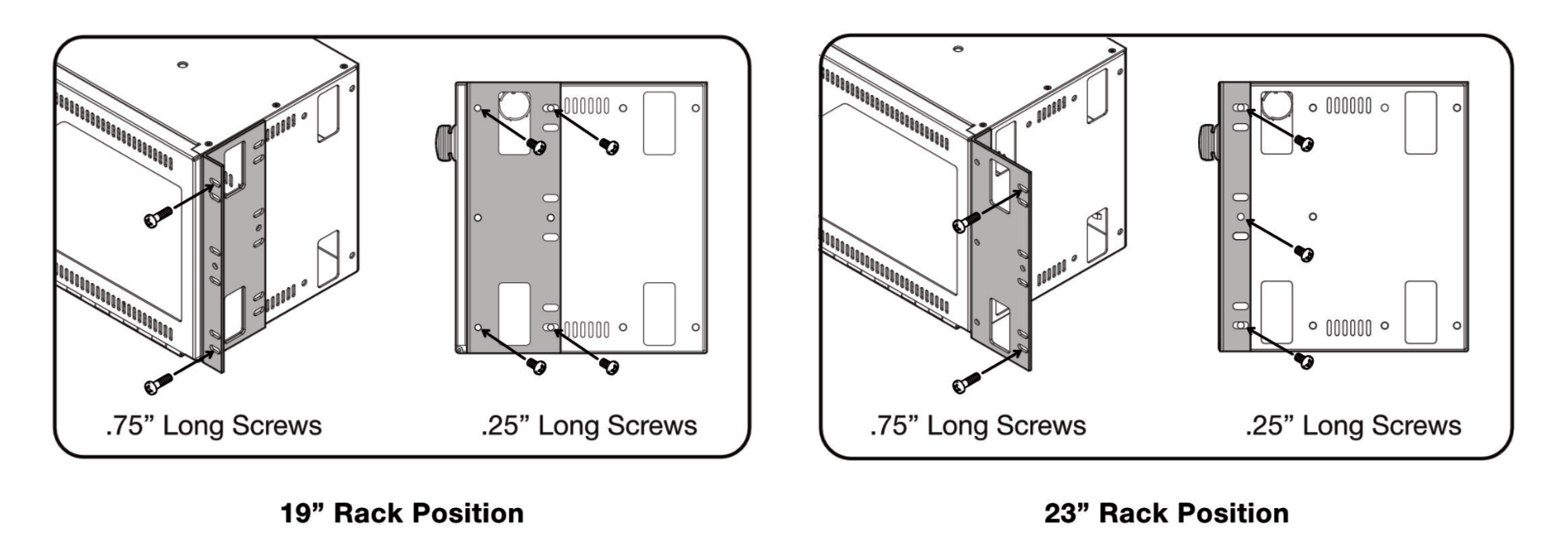

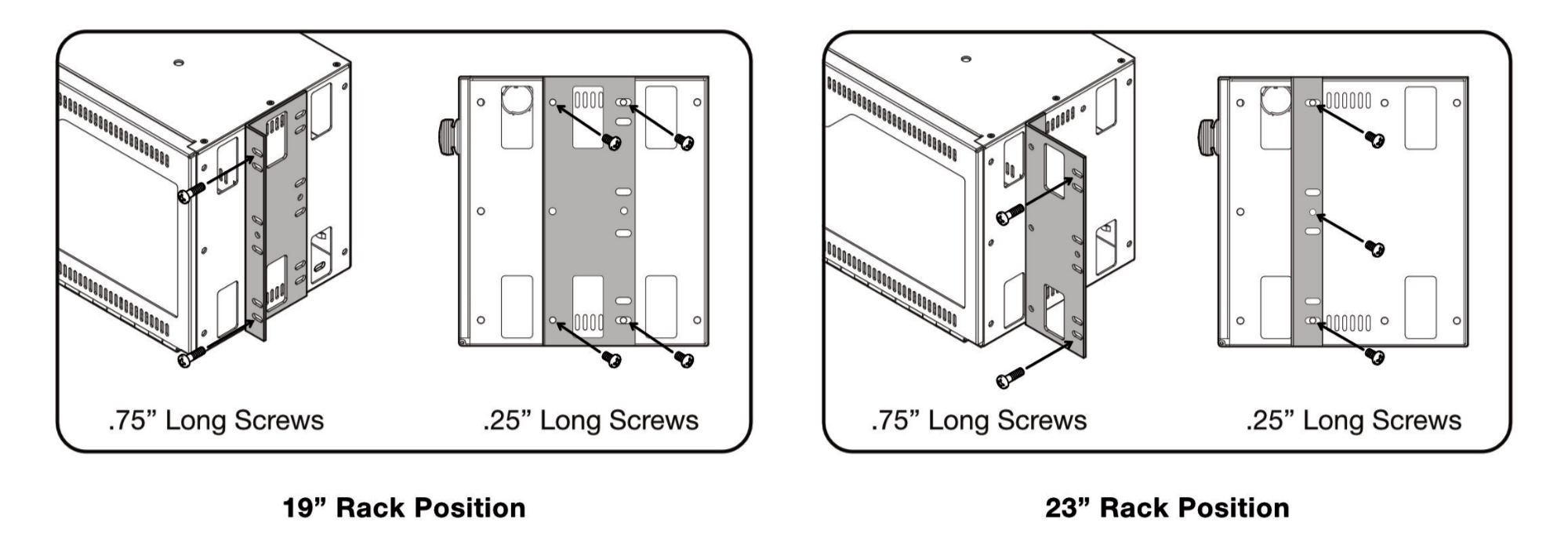

- EIA 19/23” rack or wall mount (hardware included)
- Durable powder coated steel construction

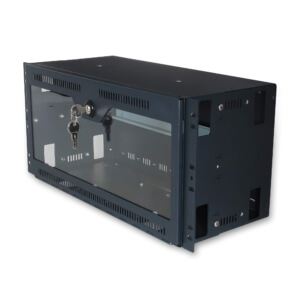

- Quarter turn access latch or key locking latch option
- Multiple cable entry and exit points for flexible routing

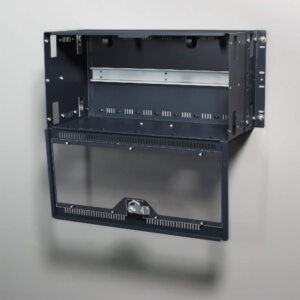

- Hinged door with acrylic window to monitor equipment

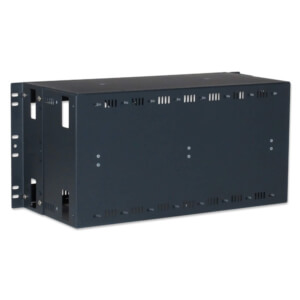

- Front, side and rear vents
- 15.8” of usable DIN rail space inside
- Available with an integrated AC/DC 150 Watt Powering System (24VDC or 48VDC options)
- Made in USA
General Information
Specialized Drawings
Miscellaneous
DRH-N-1
DRH-N-24-1
DRH-N-48-1
DRH-S-1
DRH-S-24-1
DRH-S-48-1
Ordering
DIN Rail Housing
| Short description | Part number | Price | |
|---|---|---|---|
| DIN Rail Housing, Rack and Wall Mountable | DRH-N-1 | $295.00 | |
| DIN Rail Housing, Rack and Wall Mountable, with 150 Watt 24VDC Power Supply Kit | DRH-N-24-1 | $475.00 | |
| DIN Rail Housing, Rack and Wall Mountable, with 150 Watt 48VDC Power Supply Kit | DRH-N-48-1 | $475.00 | |
| DIN Rail Housing, Rack and Wall Mountable, with Key Lock | DRH-S-1 | $310.00 | |
| DIN Rail Housing, Rack and Wall Mountable, with Key Lock and 150 Watt 24VDC Power Supply Kit | DRH-S-24-1 | $490.00 | |
| DIN Rail Housing, Rack and Wall Mountable, with Key Lock and 150 Watt 48VDC Power Supply Kit | DRH-S-48-1 | $490.00 |
