Conveniently Rack Mount DIN Rail Equipment
Overview
Features
Docs
Numbers
Overview

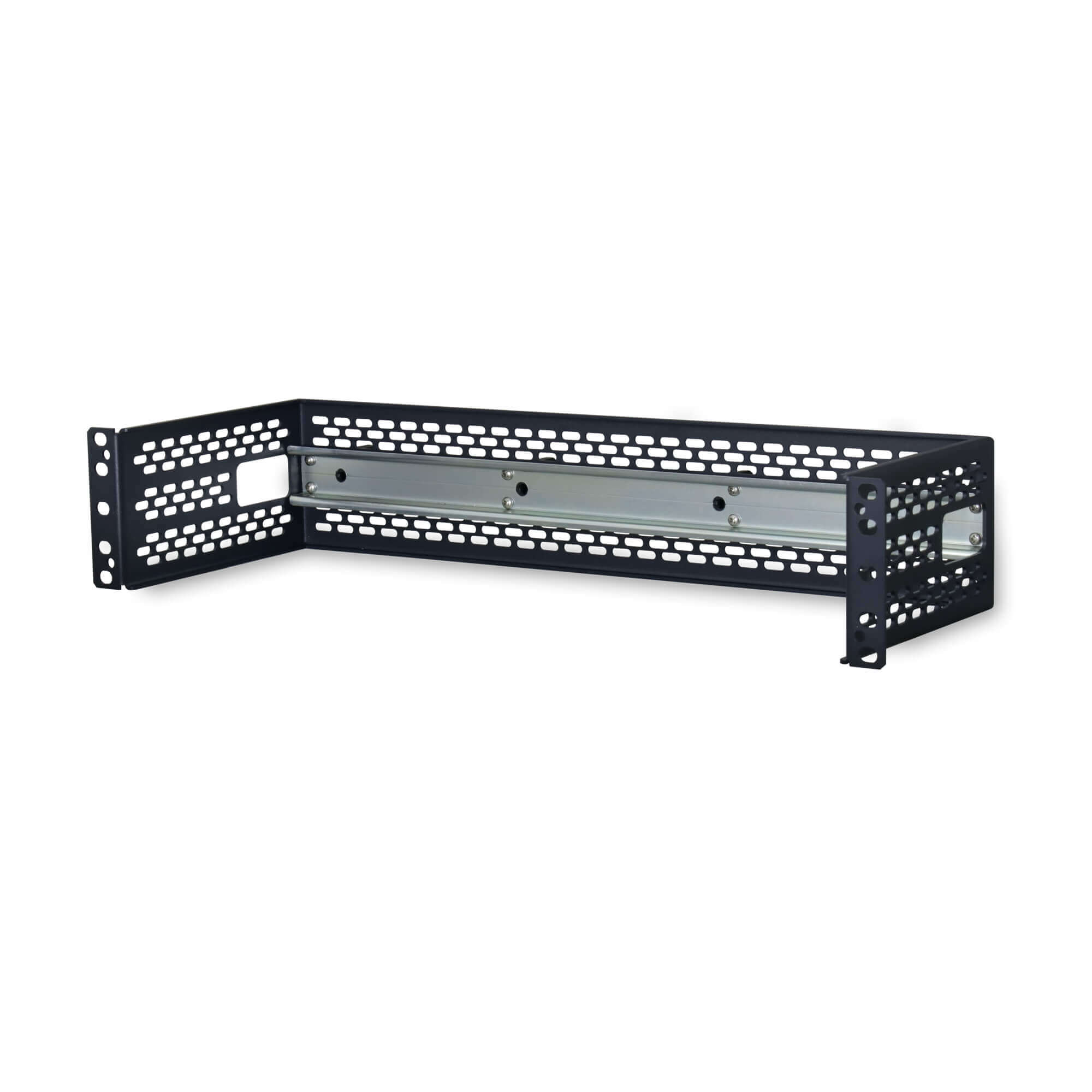

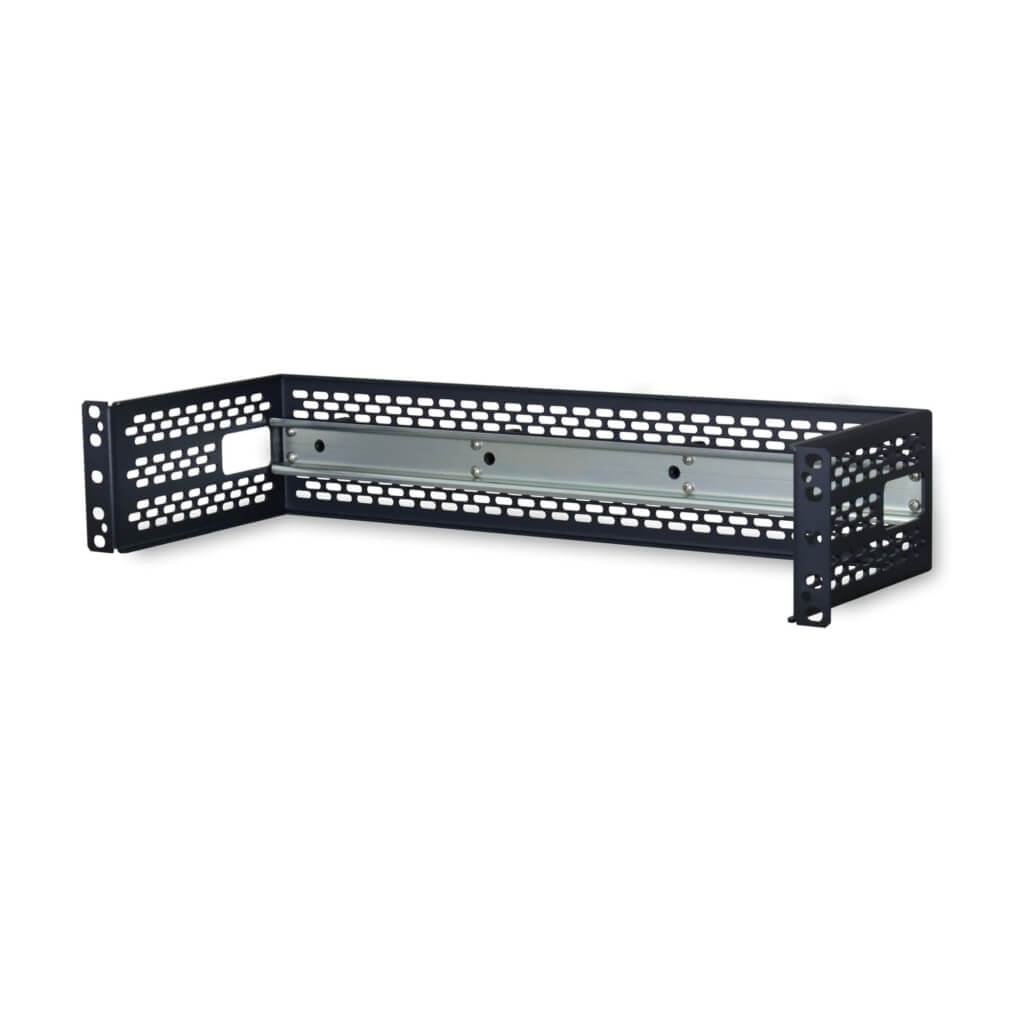

The RLH Rack Mount DIN Rail Bracket provides a sturdy and secure way to attach a T35 (35mm) DIN rail to a standard EIA 19/23 inch equipment rack. The bracket uses 2 rack spaces (2RU), and the DIN rail is recessed so that attached DIN devices are recessed from the front of the rack.

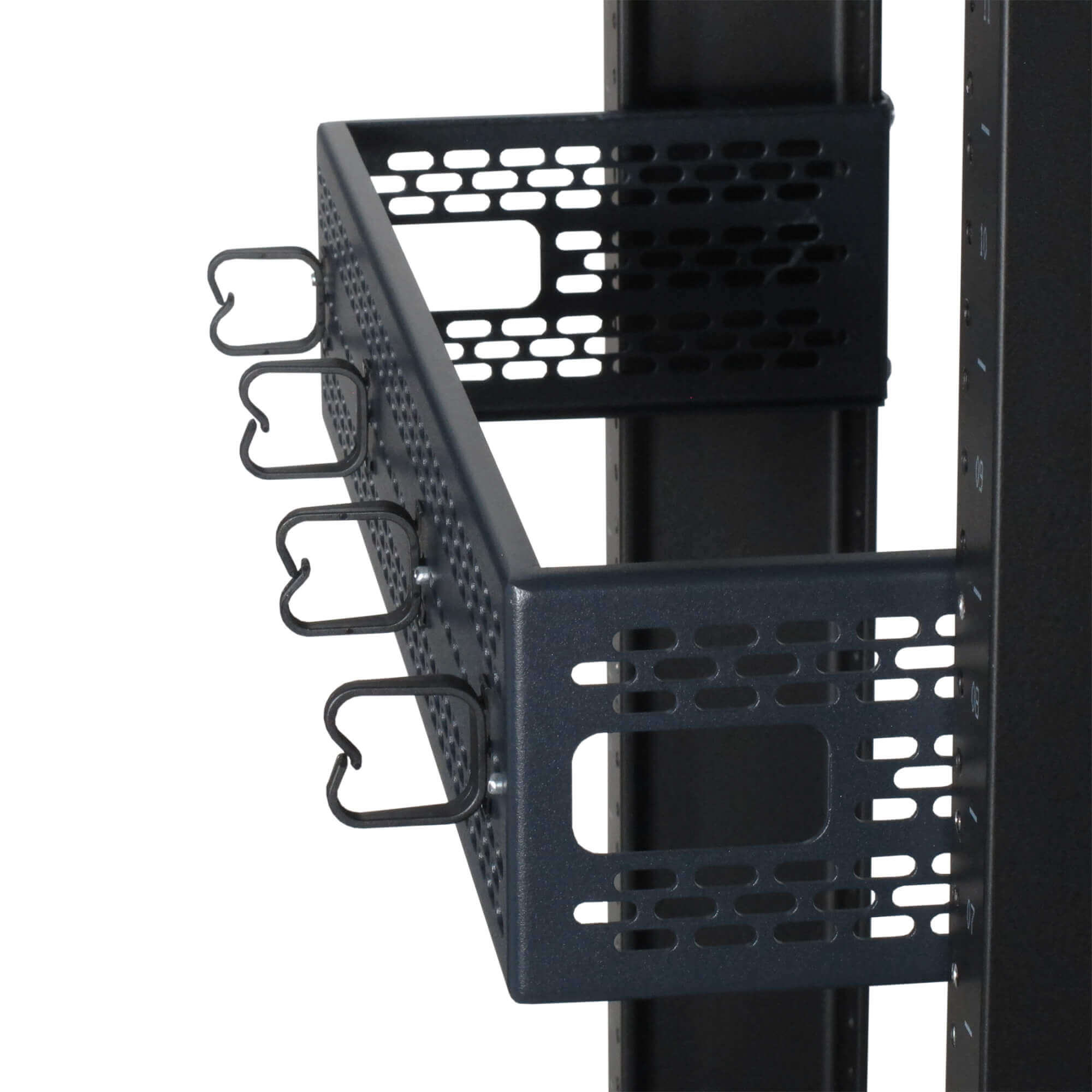

Vented, welded steel construction provides strength to accept a variety of industrial DIN mount equipment. Rack mount hardware and cable management clips are included.
Features
- Standard T-35 DIN Rail
- Removable DIN Rail
- Designed to fit standard EIA 19″ Racks, optional 23″ Rack Extension Kit
- Requires only 2RU rack space
- Heavy duty welded steel construction
- Includes rack mounting hardware and cable management clips
- Recessed design provides added component protection
- Vented back and sides
Docs
General Information
Specialized Drawings
Miscellaneous
Numbers
RLH-DRB-2
DRB-23K-1
Ordering
Rack Mount DIN Rail Bracket
| Short description | Part number | Price | |
|---|---|---|---|
| Rack Mount DIN Rail Bracket, 2RU, 19” Rack Width | RLH-DRB-2 | $120.00 |

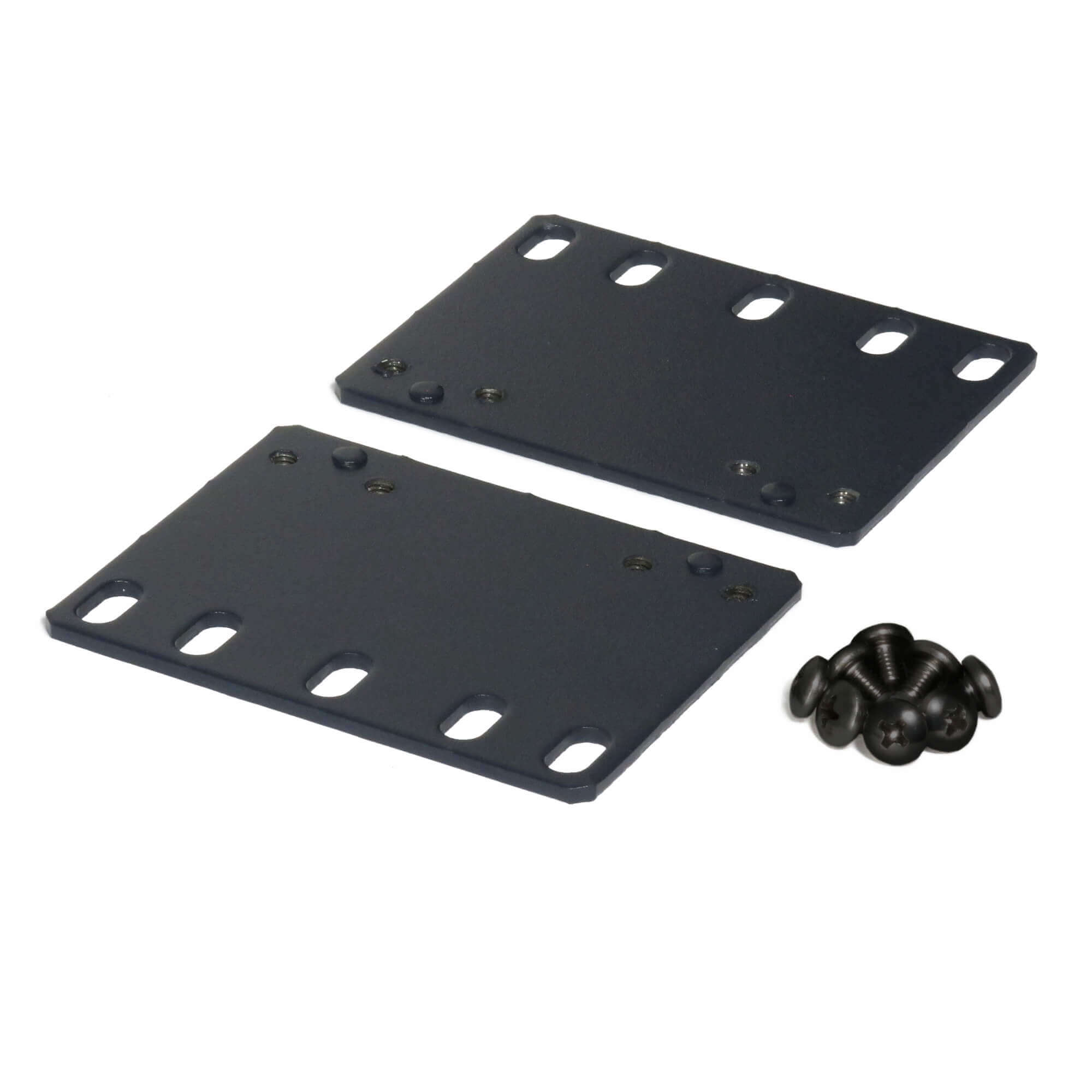

Rack Mount DIN Rail Bracket Extension Kit
| Short description | Part number | Price | |
|---|---|---|---|
| RLH-DRB-2 Extension Kit, Allows support for 23” width Racks | DRB-23K-1 | $25.00 |
