Small, Semi-Buried Pedestal with Plywood Backboard and Hex Head Self-Locking System

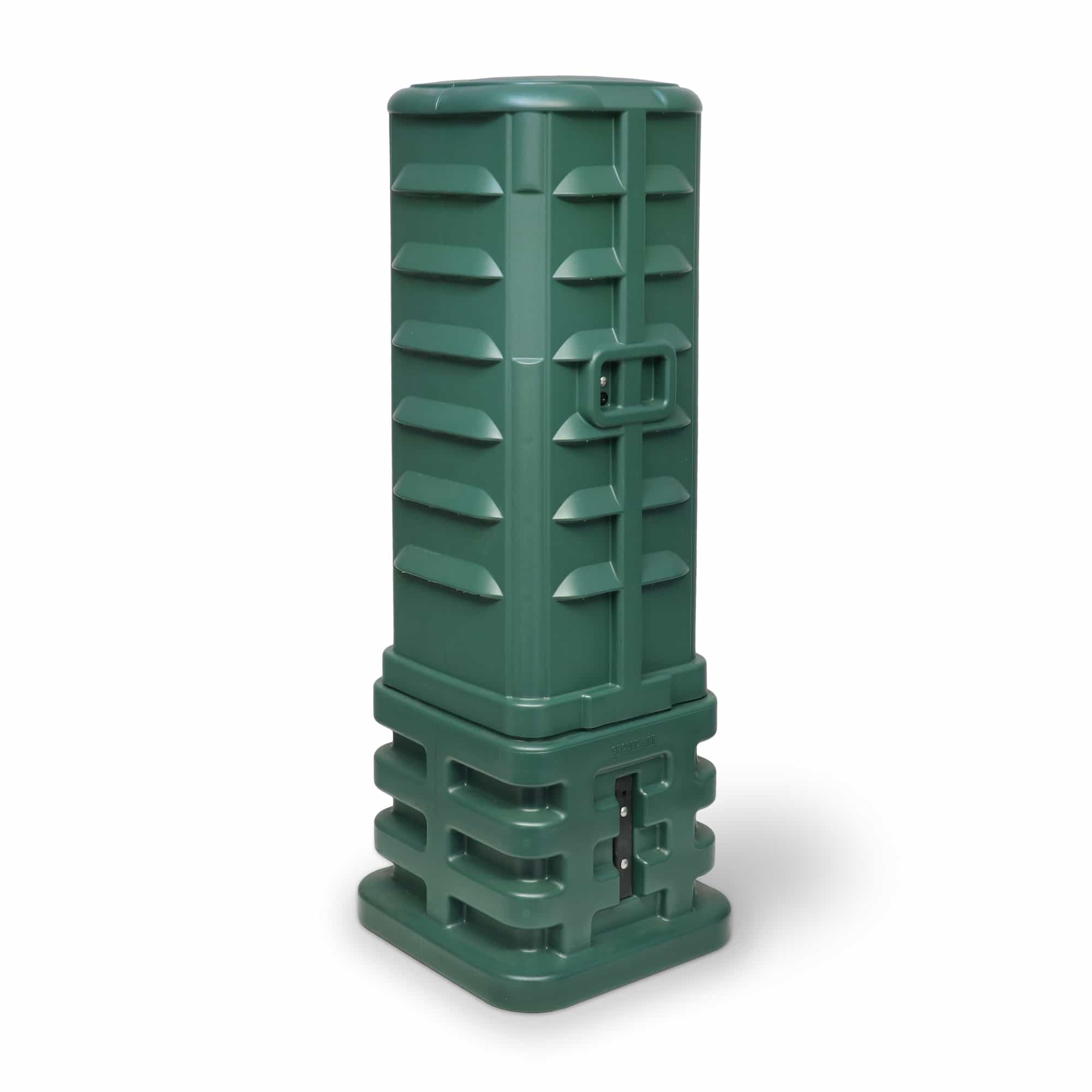

The RLH Type 02 semi-buried pedestal is a compact, all-dielectric enclosure with a small footprint designed for installation of fiber optic cable or other telecommunications equipment which requires a wooden backboard.
It features a vented lift-off cover and corrugated channel base. The lift-off cover allows full access to internal working area, and has a self-latching lock that is accessed using a hex style Can Wrench. A fire treated plywood backboard is preinstalled for mounting equipment or securing splicing and cable management.
The compact base is approximately W17.5″ x D17″, and the pedestal stands approximately 36″ tall when installed. The base provides ample room for entry of multiple large cables, including conduit. The open bottom entry allows technicians to easily slide the base over existing cable applications. No mounting stakes or platforms are required.
Have a special requirement not listed? RLH Pedestal Telco Units may now be customized for your particular application through our factory modification program. There are no minimum orders for this service.
- All-dielectric construction
- Semi-buried base, no mounting stakes required

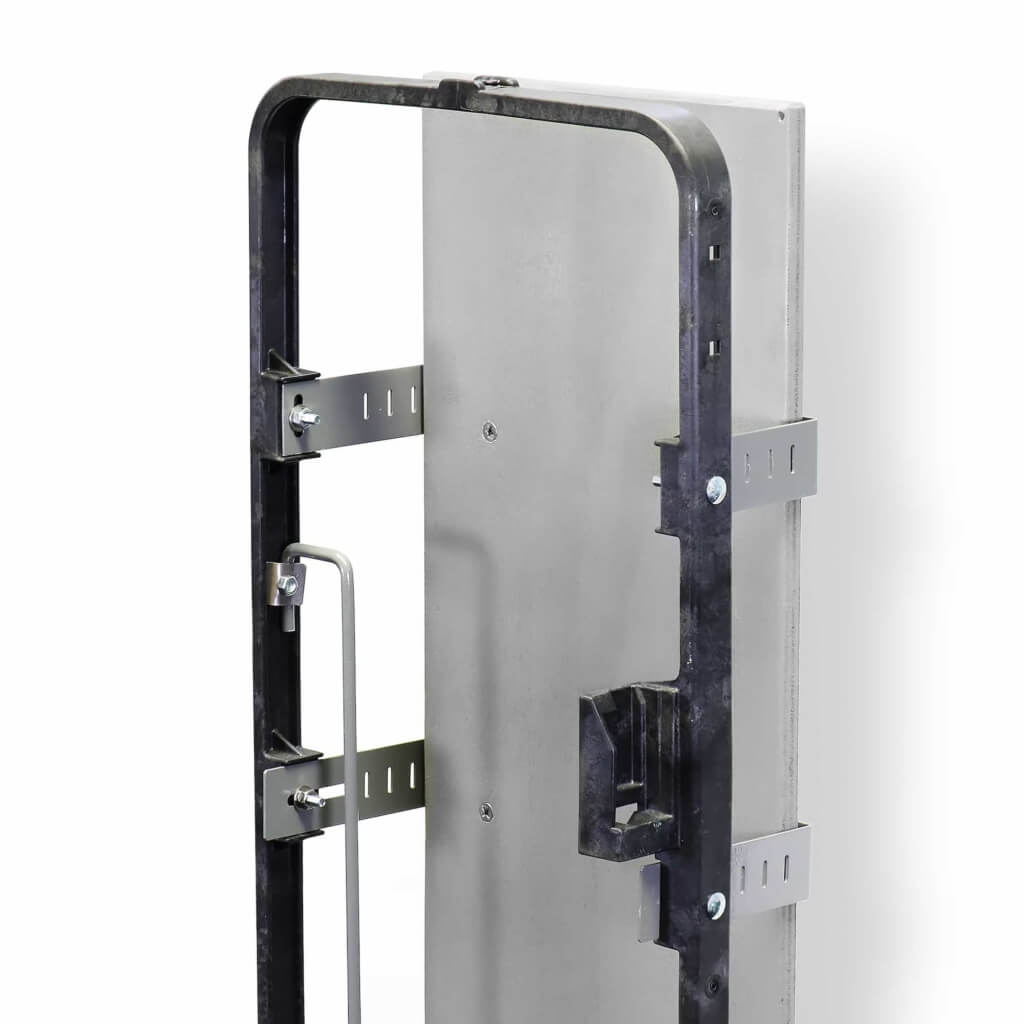

- Fire treated and painted 3⁄4″ plywood backboard

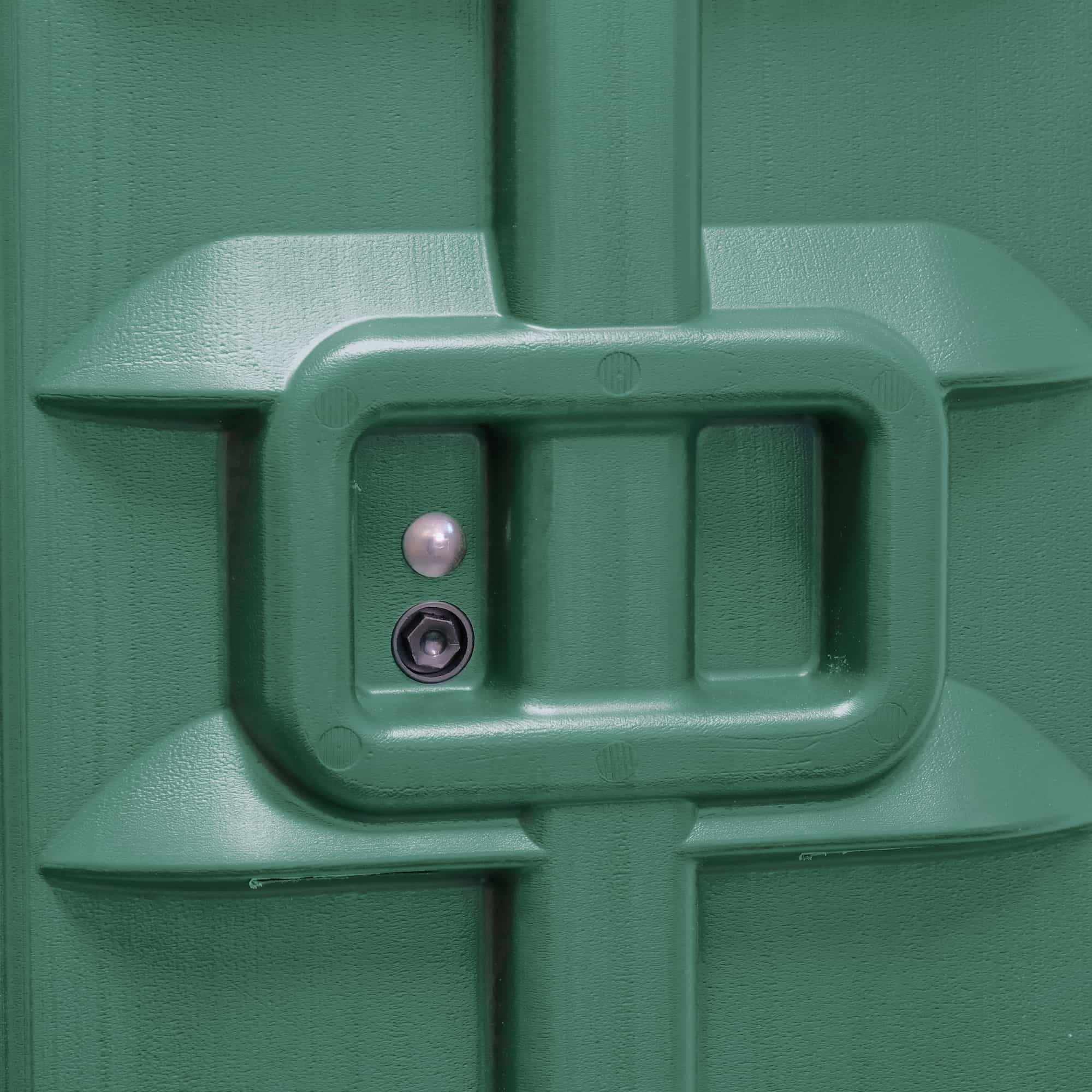

- Self-locking cover with hex head release

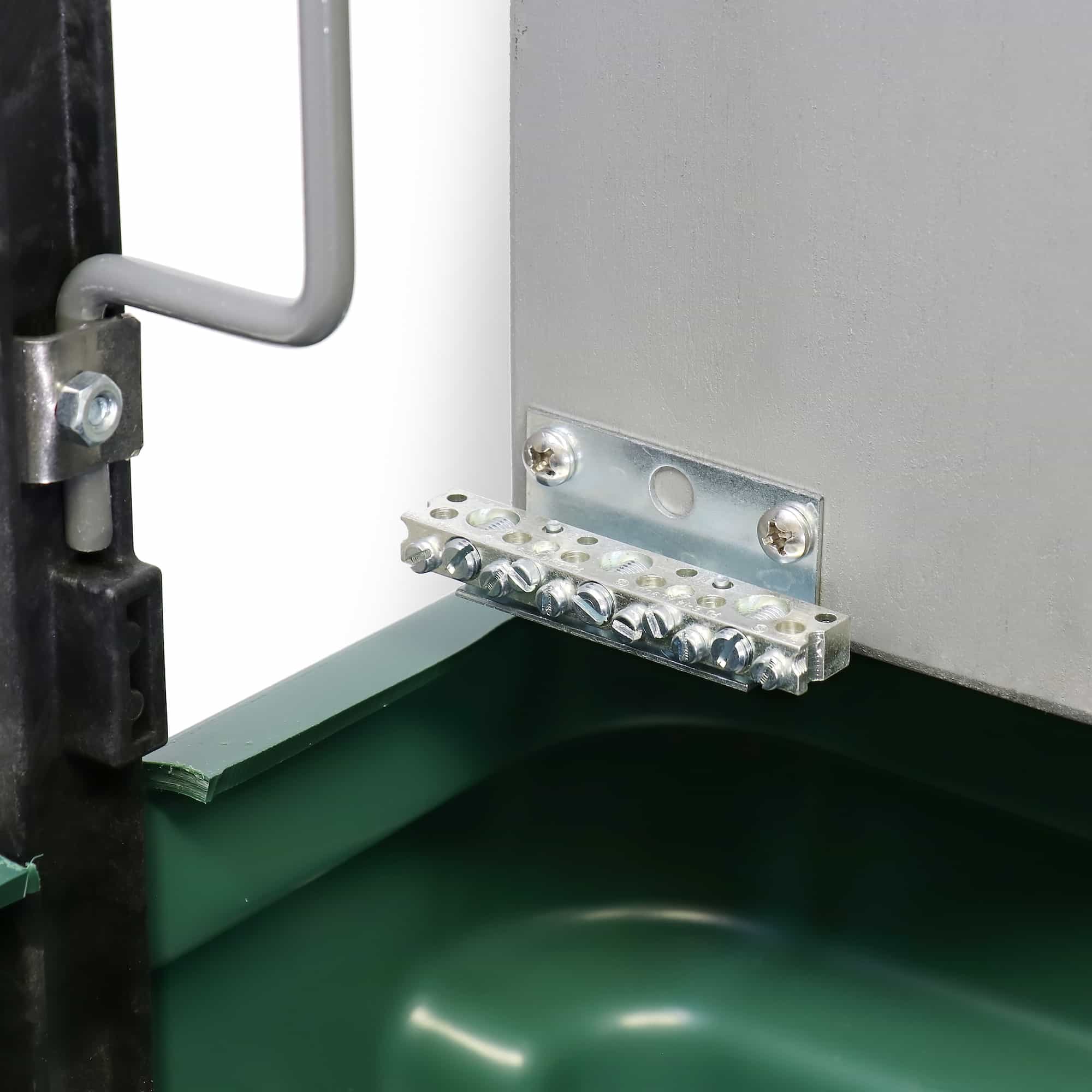

- 11-position ground bar, accepts #14 to #1/0 AWG ground wire
- Removable splice closure bracket bar
- Oversized, interlocking base for solid foundation

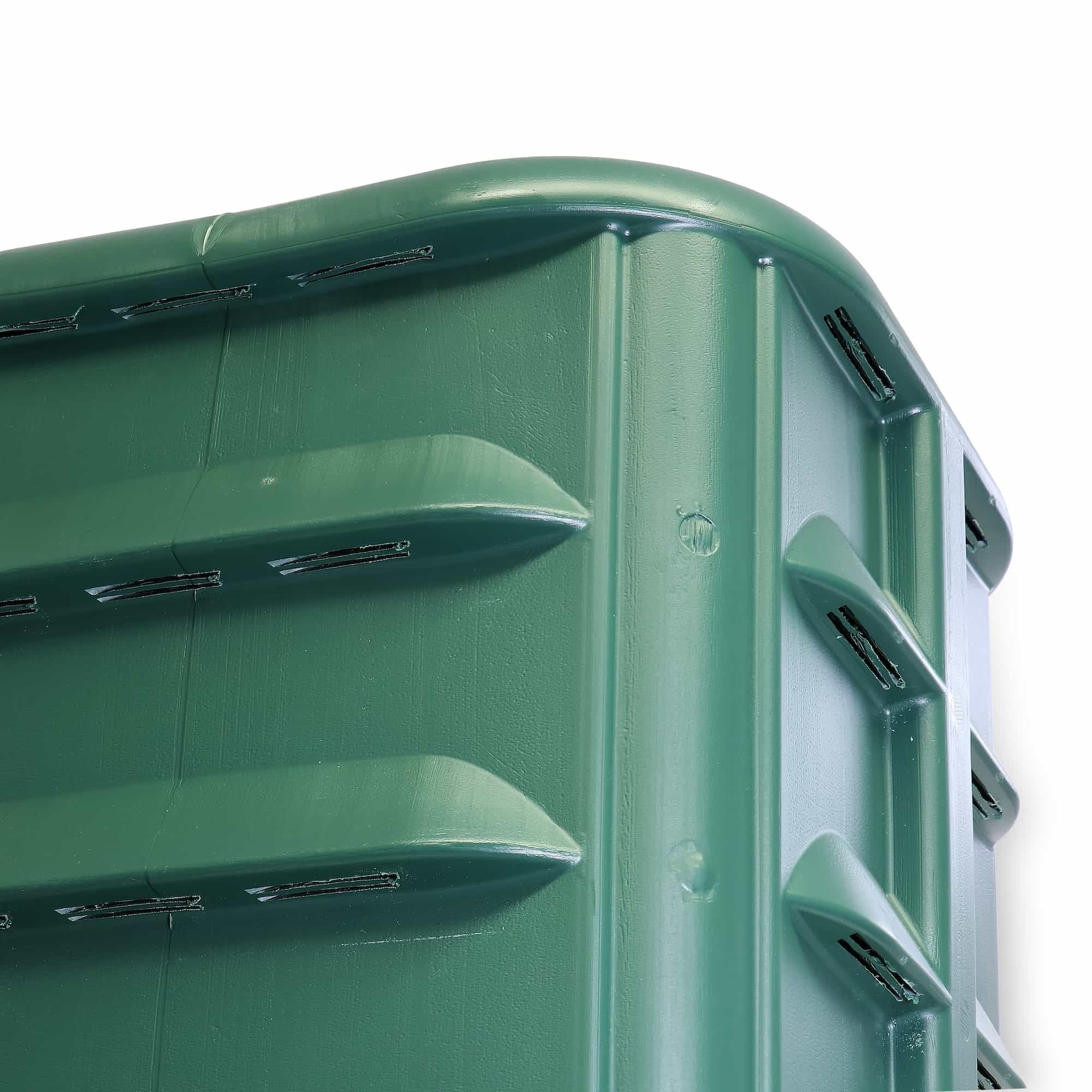

- Heat dissipation vents for sensitive equipment
- Slim, unobtrusive design has minimum visual impact

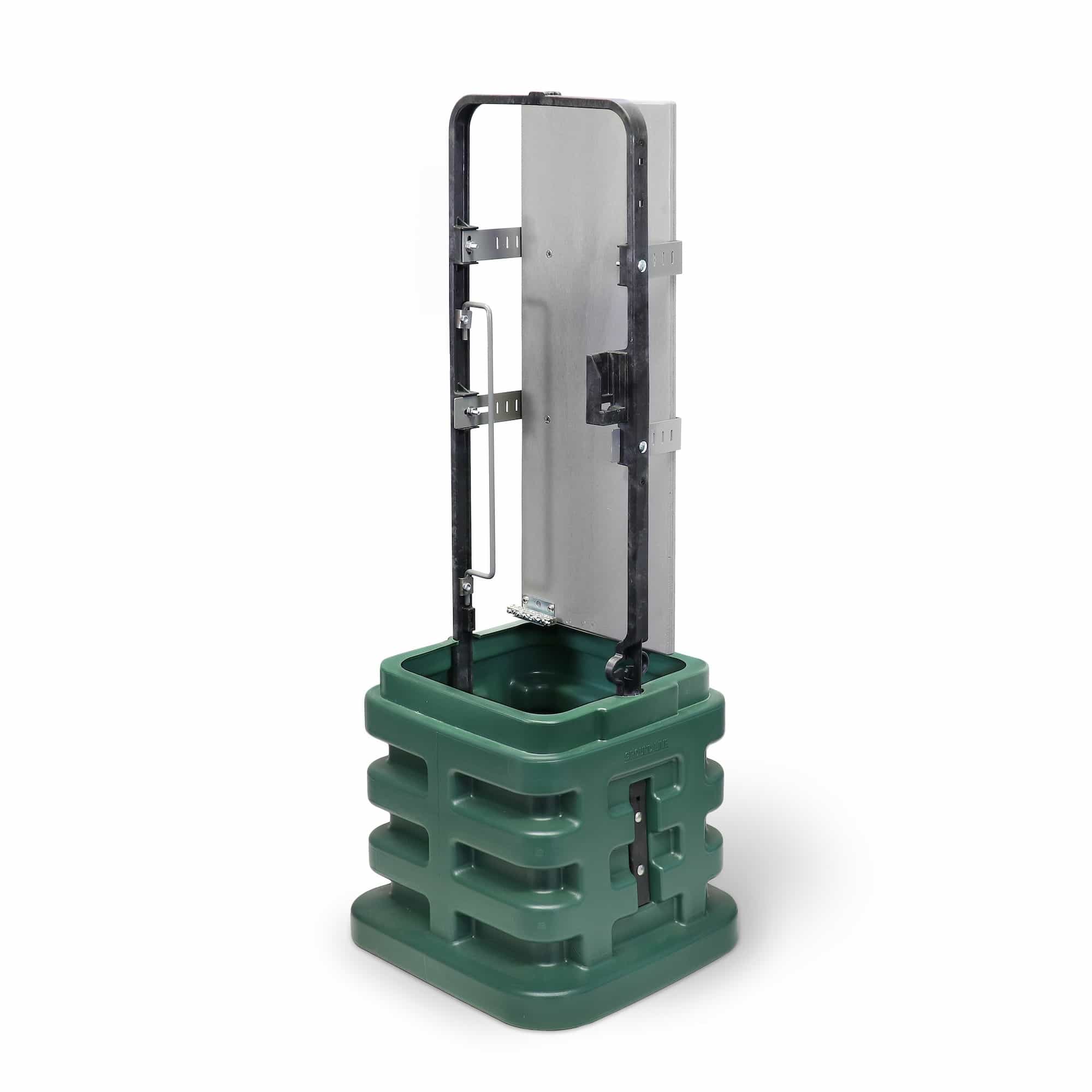

- Removable cover permits 360° access to equipment
- Available with terminal options
- Made in USA
Construction:
All-dielectric high performance molded thermoplastic with backboard and self-locking cover
Mounting Style:
Semi-buried, approximately 36″ above grade; pedestal should be buried approximately 12″ below grade
Included:
11.5″ (W) x 19″ (H) fire treated, painted 3⁄4″ plywood backboard
11-position ground bar, wire capacity (Qty. 8 – #14 to #6 AWG, Qty. 3 – #14 to #1/0 AWG)
Options:
Fiber connectivity and cable accessories
Size:
17.5” (W) x 17” (L) x 48.5” (H), (440mm x 430mm x 1230mm)
*Unburied
General Information
SPB-02-A-1
$595.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Semi-Buried Pedestal (Type-02)
Short description | Housing | Part number | Price | |
---|---|---|---|---|
H48” x W17.5” x D17” with ¾” Fire Retardant Plywood Backboard | Empty Backboard | SPB-02-A-1 | $595.00 | Get a Quote |
