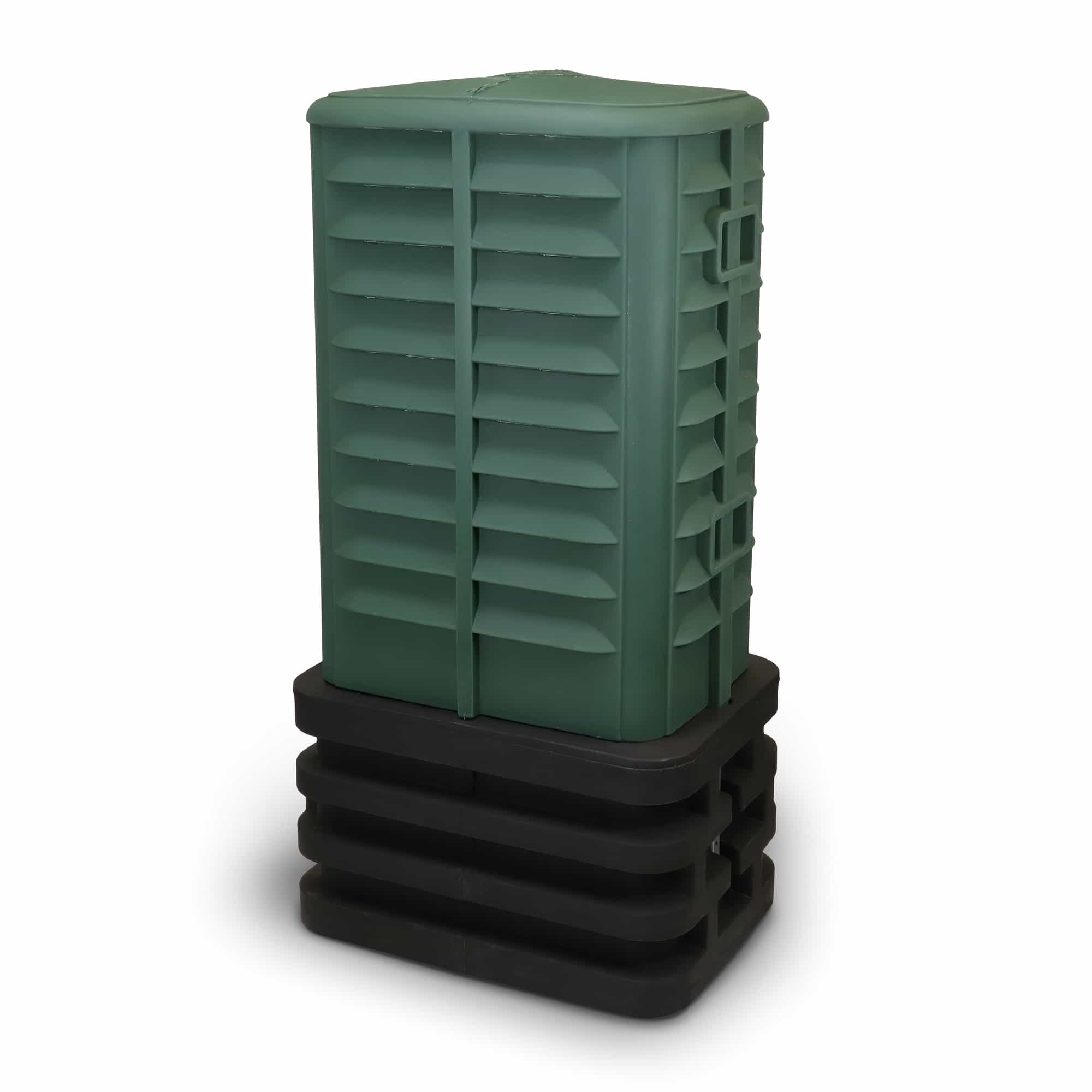

Semi-Buried Pedestal Enclosure

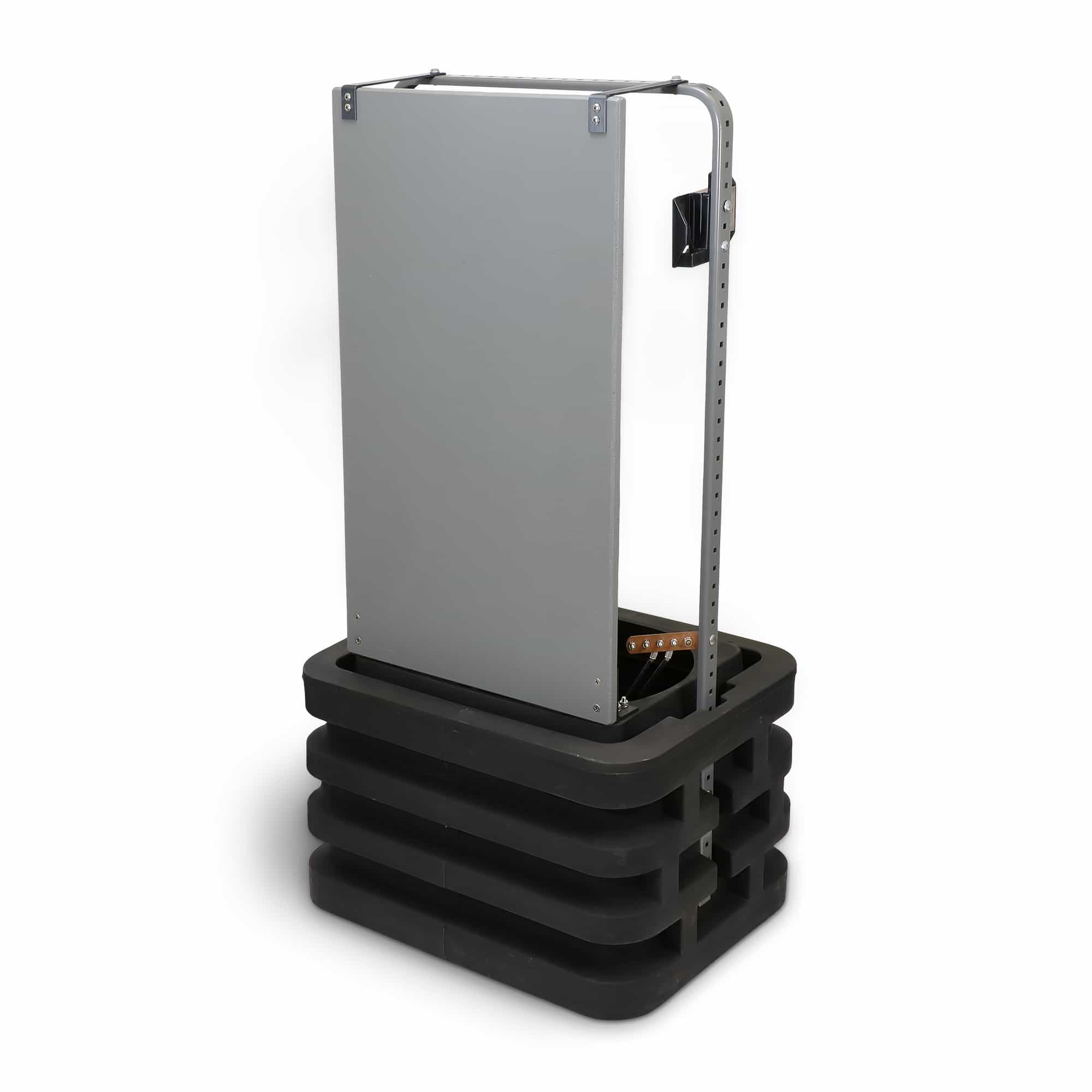

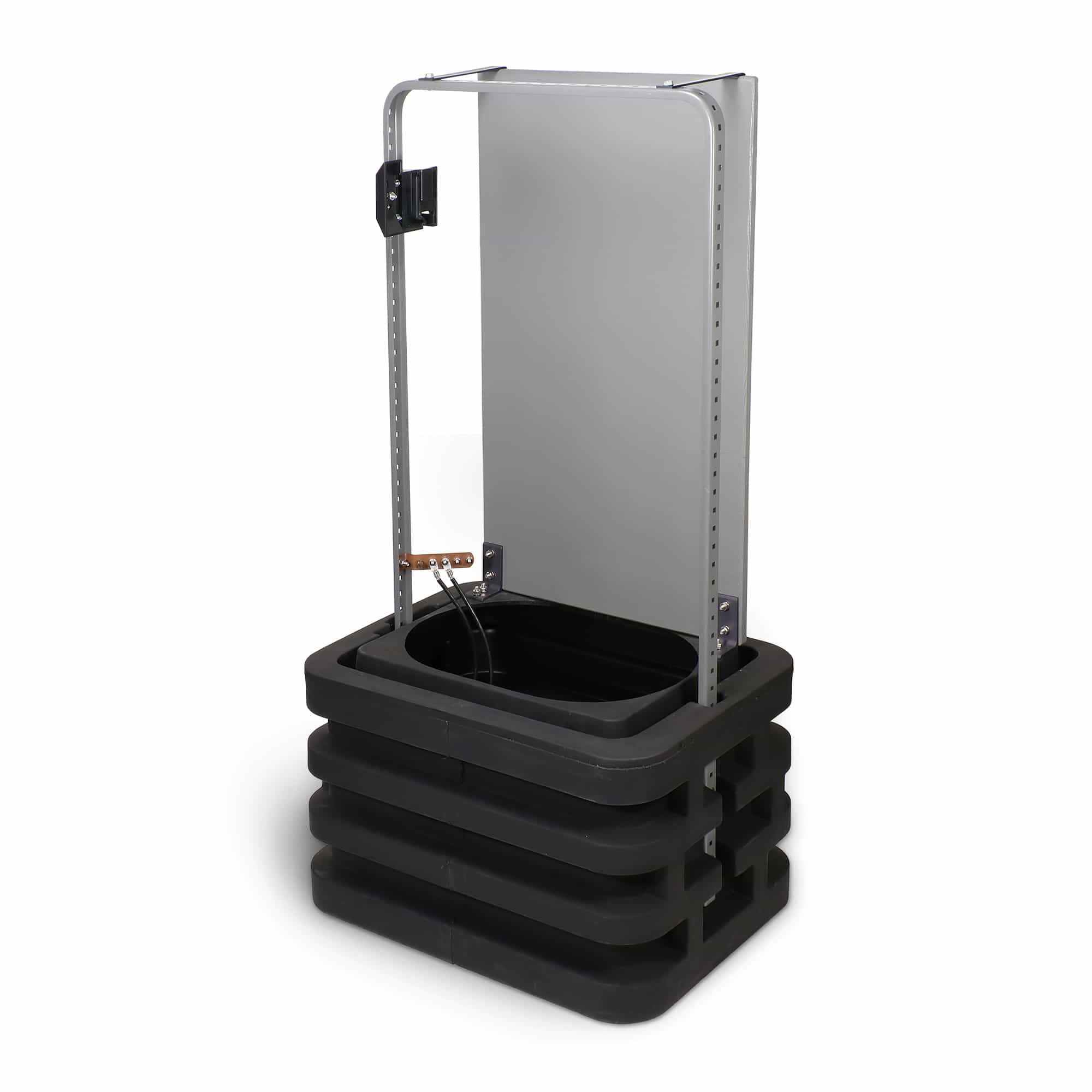

RLH Semi-Buried Pedestal enclosures, include a plywood backboard, lockable covers with hex head self-locking system and padlock hasp. The pedestal stands approx. 36″ tall when the base is buried. No mounting stakes or platforms are required for installation.
These Type-03 pedestals have enough space to install a 12-Card Fiber Optic Link housing. Pedestals are constructed of all-dielectric plastic with a steel support frame.
RLH offers standard Fiber Optic Link configurations pre-installed into enclosures. These Telco Interface Units allow for faster and more uniform field installations (see Ordering section).
- All-dielectric plastic construction
- Internal steel frame
- Fire treated and painted 3⁄4″ plywood backboard
- Self-locking cover with hex head release
- Padlock locking hasp
- Oversize interlocking base for solid foundation
- Heat dissipation vents for sensitive equipment
- Base can accommodate up to ten 4″ conduits
- Removable cover permits 360° access to equipment
- Available in 5-, 8-, or 12-Card configurations
- Available with gas tube terminal protection
- Made in USA
Construction:
All-dielectric molded plastic with metal backboard frame
Mounting Style:
Semi-buried, approx. 36″ above grade

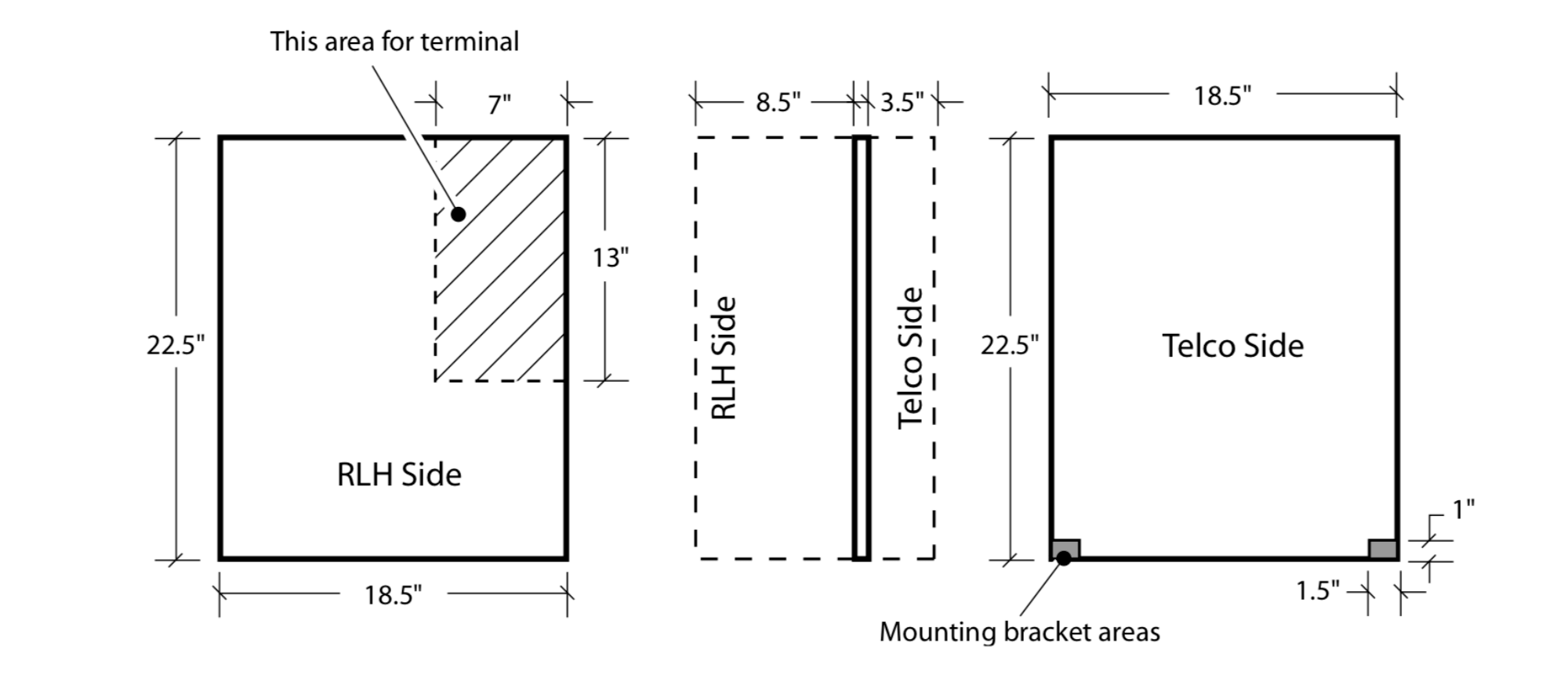

Size:
(Unburied) H48″ x W20″ x L14″
Included:
Integrated ground bar, pre-wired copper terminal on Telco Interface Units
Options:
2-Card Fiber Optic Link housing, 5-, 8-, or 12-Card Fiber Optic Link shelf, Gas Tube Protection
General Information
8806-1285-03
8806-1409-03NT
8806-1406-03NT
8806-1408-03NT
$950.00 – $1,900.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Semi-Buried Pedestal (Type-03)
Short description | Housing | Part number | Price | |
---|---|---|---|---|
H48” x W20” x L14” with ¾” Fire Retardant Plywood Backboard | Empty Backboard | 8806-1285-03 | $950.00 | |
H48” x W20” x L14” with ¾” Fire Retardant Plywood Backboard with 5 Card Housing | 8806-1231-03 | 8806-1409-03NT | $1,600.00 | |
H48” x W20” x L14” with ¾” Fire Retardant Plywood Backboard with 8 Card Housing | 8806-1229-03 | 8806-1406-03NT | $1,750.00 | |
H48” x W20” x L14” with ¾” Fire Retardant Plywood Backboard with 12 Card Housing | 8806-1230-03 | 8806-1408-03NT | $1,900.00 |
