Smart 4 Relay Output

Rugged Ethernet IO Device with 4 Integrated Controllable Relays

Overview
Features
Specs
Docs
Diagrams
PN

Ethernet IO

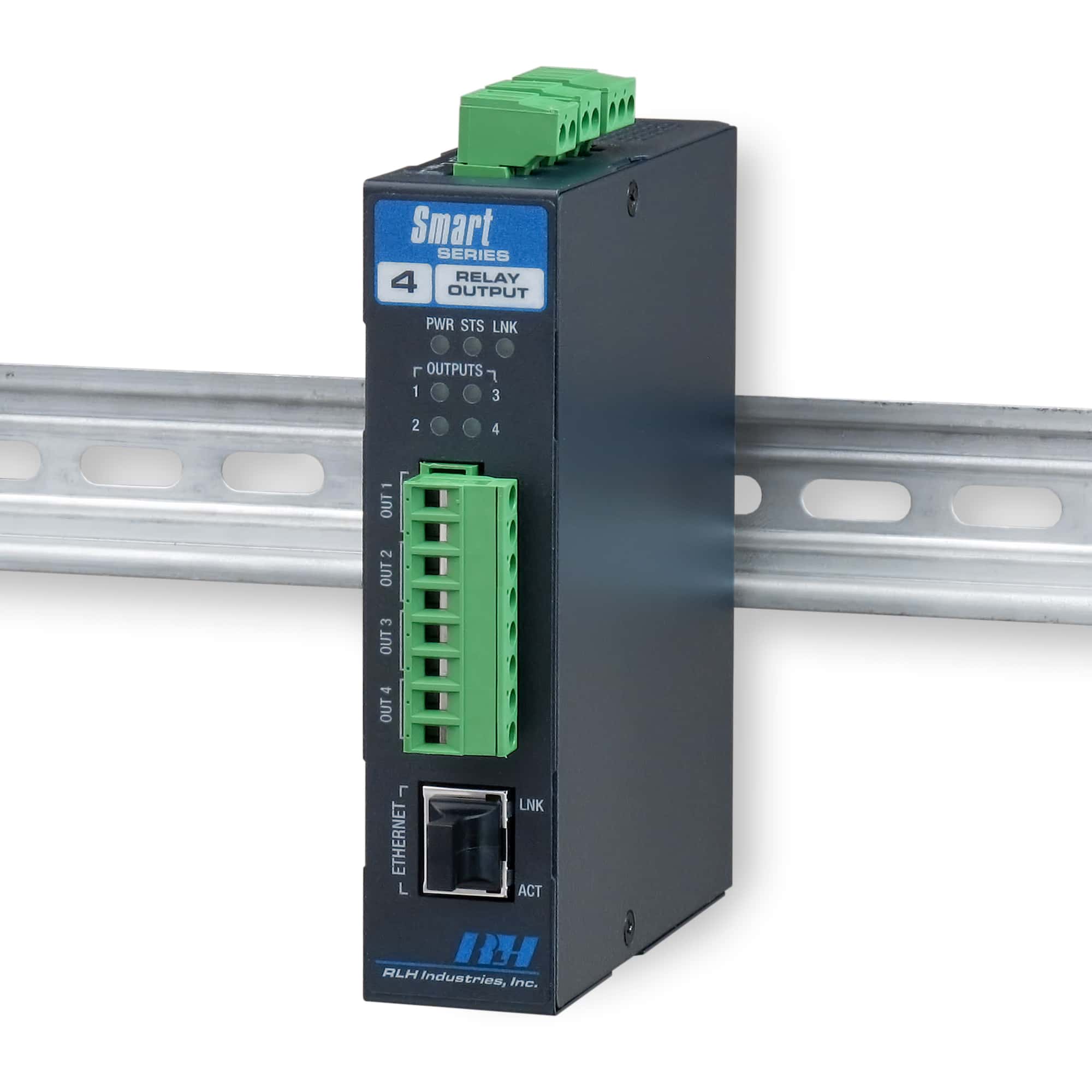

The Smart Relay Output is an Ethernet device with 4 Integrated controllable relays. The device allows for web based control of the relays and may be integrated into distributed control and network management systems to allow those systems to controlled it’s Relays.

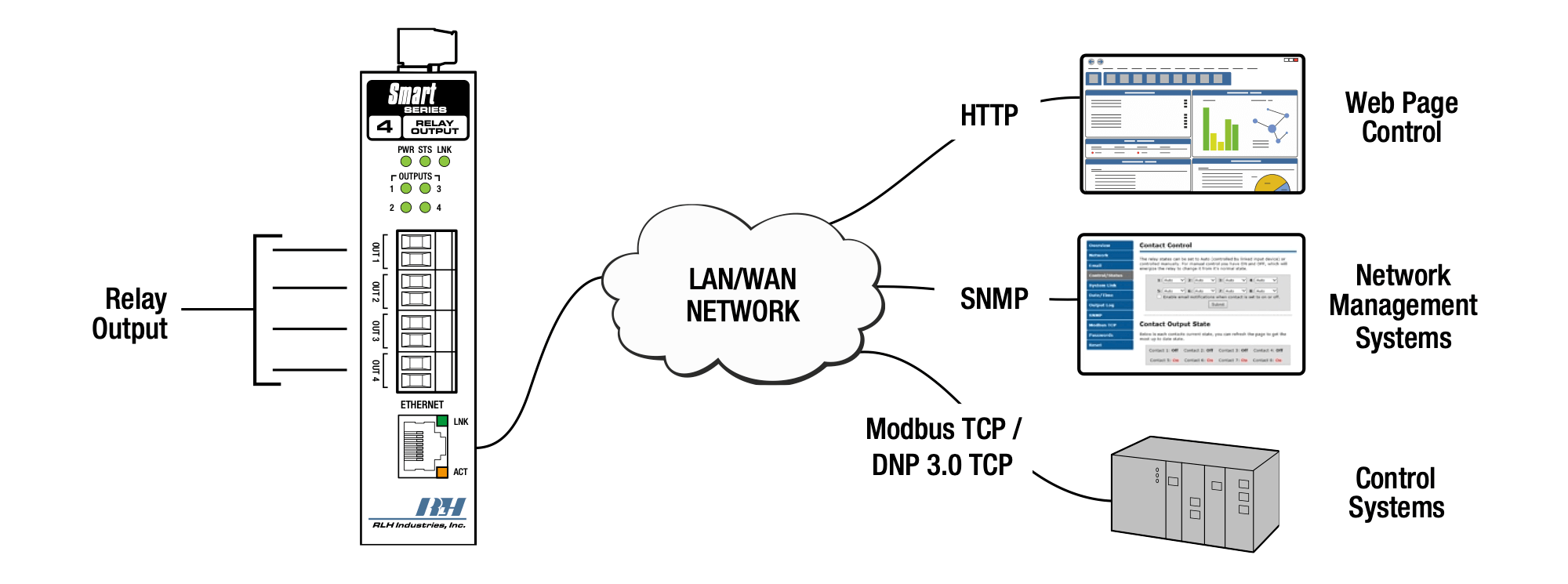

Each of the Relays can be individually configured to send customized emails and notifications when an event is triggered. The device supports a wide variety of protocols it is compatible with over Ethernet. Integration options supported are: SNMP Polling and Traps, Modbus TCP featuring addressable registers, and DNPv3 TCP for integration with utility and other automation control systems.

Contact Closure Over Ethernet

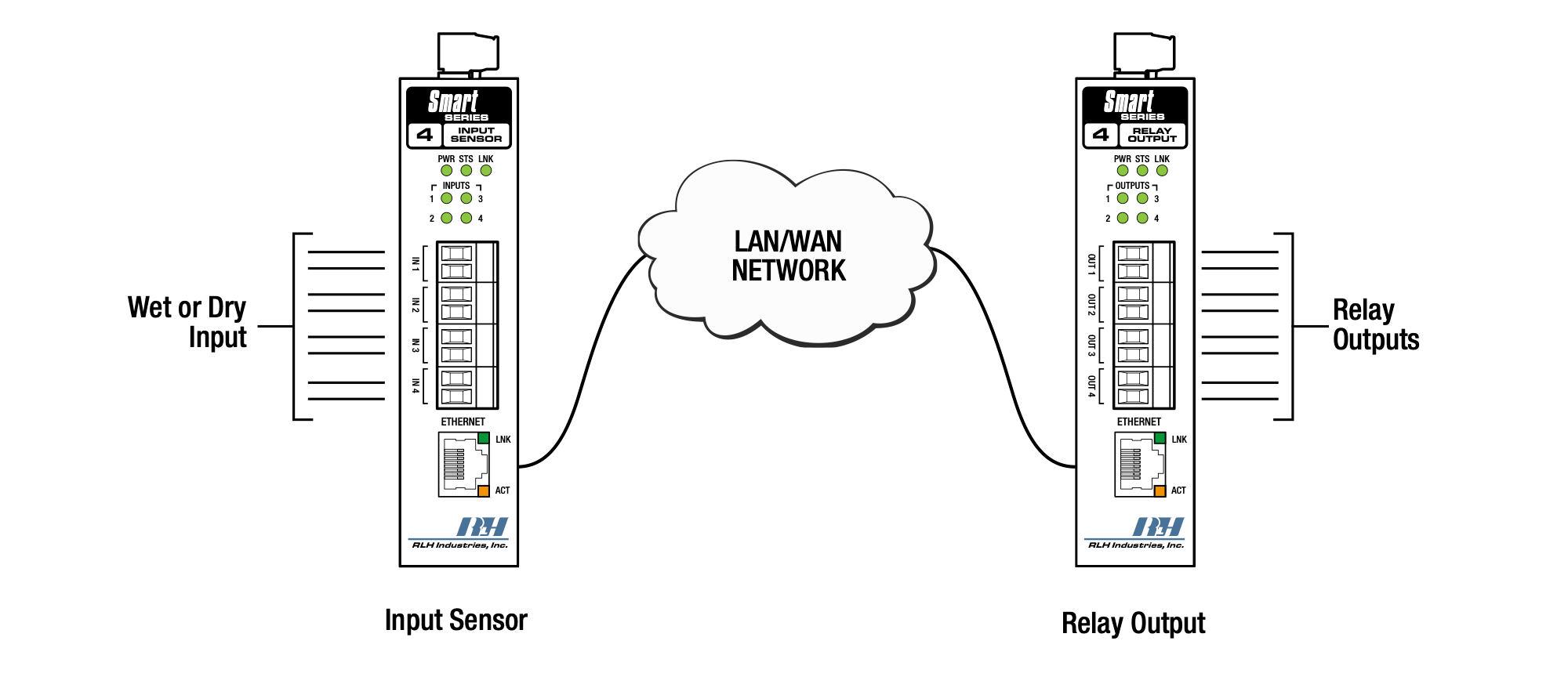

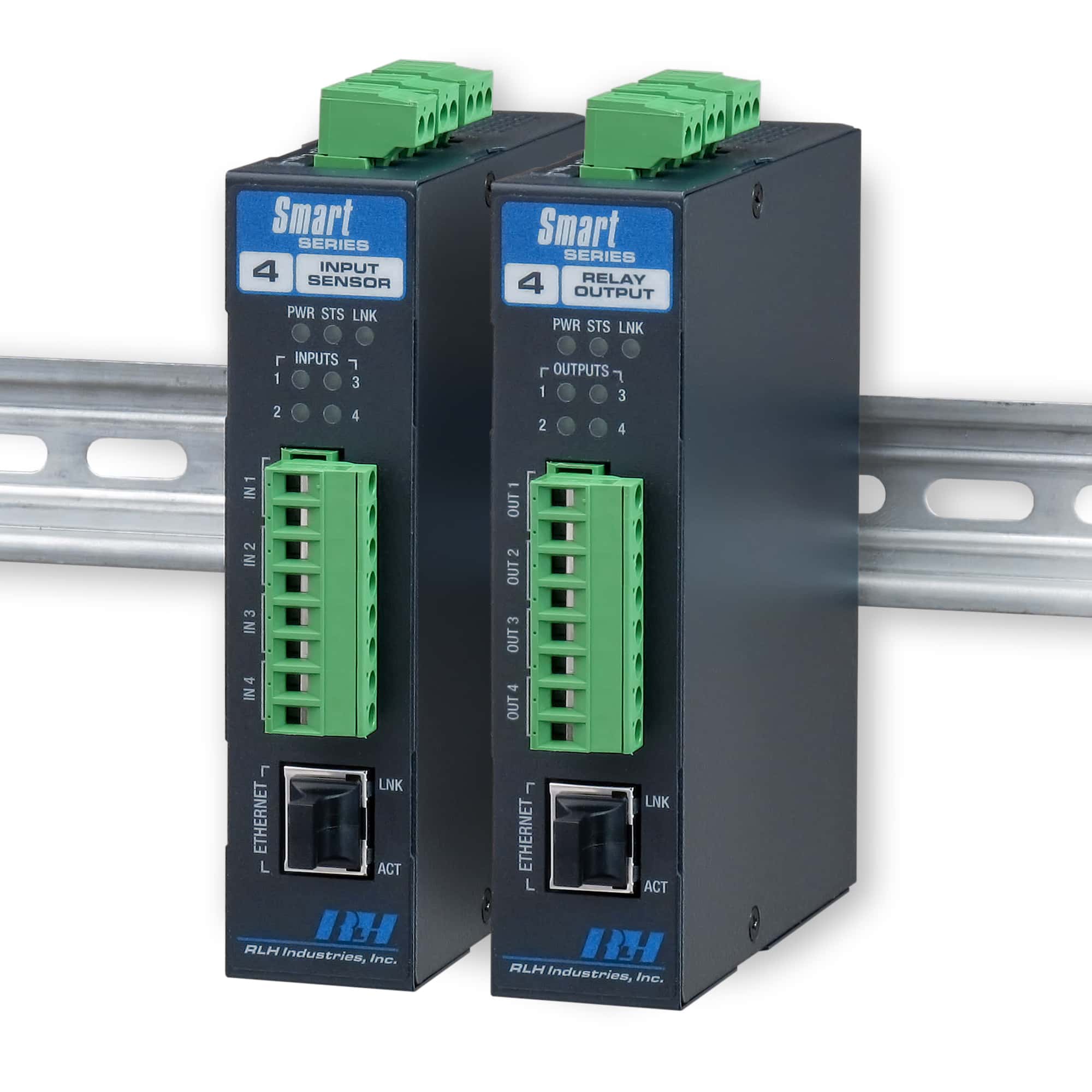

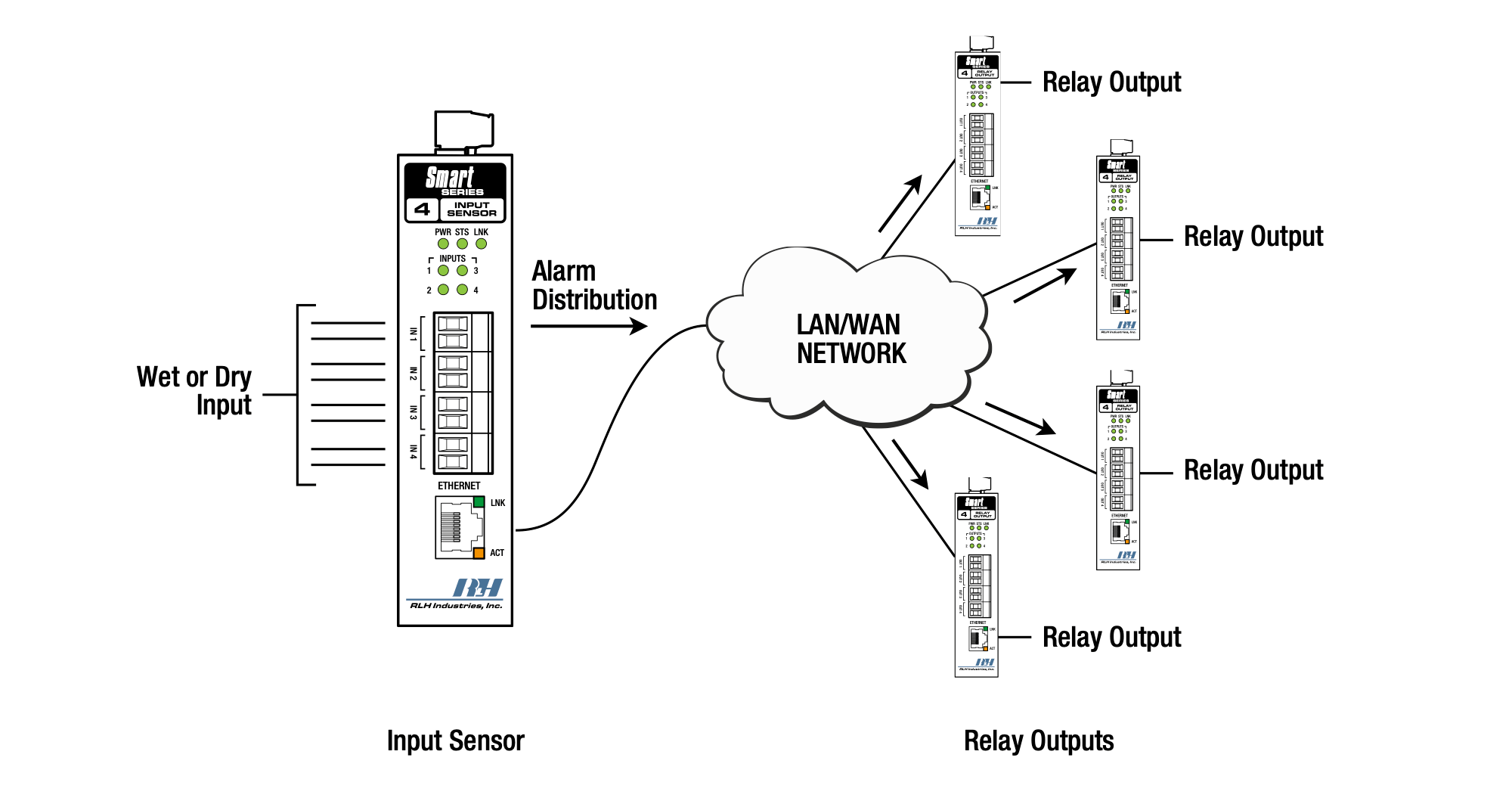

The RLH Smart Relay Output may be paired with an RLH Smart Input Sensor. When using RLH’s System Link feature, the two devices become linked establishing a tunnel over an Ethernet network and will transport a digital outputs being received by the Input Sensor through the Ethernet tunnel to the linked Relay Output device. The System Link feature can be set up via: One to One, Many to One, and One to Many allowing for event distribution and consolidation as needed.

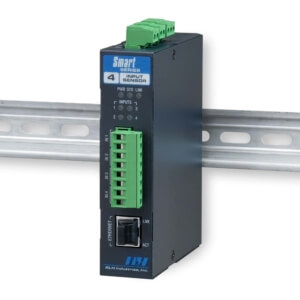

View the matching Smart 4 Input Sensor

Features

Rugged Design – Operating temperature, -40°C ~ 70°C
Intuitive embedded web interface for configuration
4 Relay Outputs for initiating alarms or actions though one of it’s integrated protocols
Supports SNMP 1, 2c, 3, & SNMP Traps 1, 2c
Supports DNP 3.0 over Ethernet
Supports Modbus over Ethernet
Use the System Link feature to Pair this device with an input sensor device for alarm transportation over Ethernet

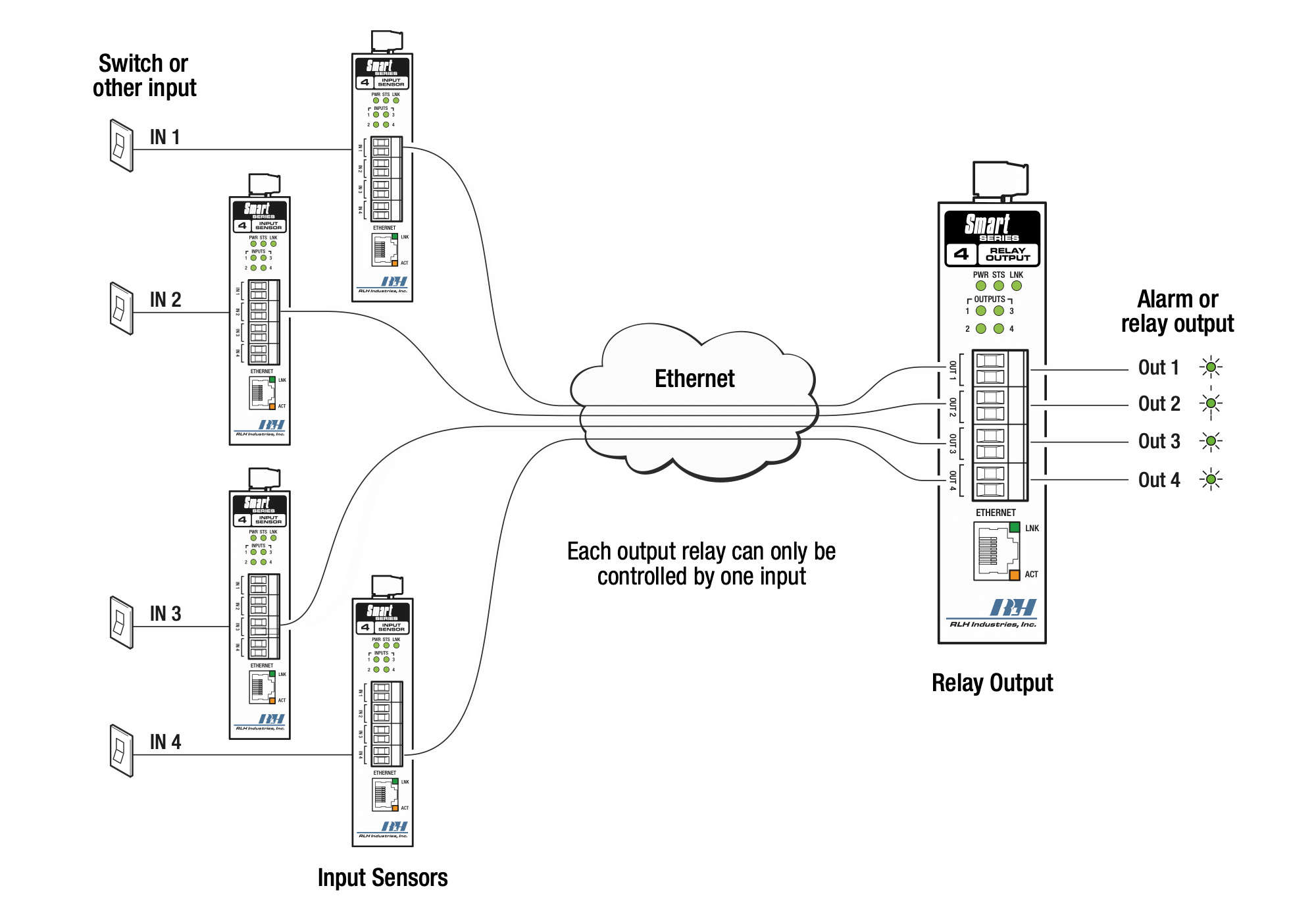

Event Consolidation, Send alarms from up to 4 locations to 1 Relay Output device
Email alarms for the Outputs are customizable to your application
Advanced SMTP integration allowing for SSL and TLS based authentication
Event log with time stamps
Relays can support up to 60 watts for most voltages
System power ranges available: 24-48VDC or 125VDC
PoE Powered device – Can be powered by any IEEE 802.3af compliant PoE source
10/100 Fast Ethernet Port
Limited Lifetime Warranty
Made in USA

Please see the product documentation for the complete list of specifications

Powering Voltage:
Standard Model – 24-48VDC
-A Model – 125VDC
-B Model – 12VDC

PoE Powered Device:
IEEE 802.3af compliant (Compatible with mode A & B PoE sources)

Power Consumption:
6 Watts (Maximum)

Protocols Supported:
DNP 3.0 TCP, Modbus TCP, SNMP Polling 1,2c,3, SNMP Traps 1, 2c, SMTP w/ TLS Authentication

System Link Response Time:
Typical 8ms, Maximum 45ms
One-To-Many (UDP) < 15ms Many-To-One (TCP) < 250ms

*Specifications listed are based on direct connections. Network overhead should be considered when calculating overall system response times.

Data Interface:
Ethernet (RJ-45)

Data Rate:
Fast Ethernet 10/100Mbps

Relay Outputs 1~4:
SM-OUT4-NO-XX-2 – Normally Open Relays (SPST)
SM-OUT4-NC-XX-2 – Normally Closed Relays (SPST)

Relay Maximum Ratings:
115VAC / 1.08A / 125VA
12VDC / 3.00A / 36 Watts
24VDC / 2.50A / 60 Watts
48VDC / 1.25A / 60 Watts
130VDC / 0.46A / 60 Watts
220VDC / 0.27A / 60 Watts

LED:
POWER – DC Power OK
SYS – CPU OK
LNK – System Link ON/OFF Status
Outputs – ON/OFF Status

System Status Alarm:
NO/NC Relay (SPDT)

Surge Protection:
Varistors & Automatic resettable fuses
DC Input Isolation 1.5kV
Voltage Reversal Protection

Construction:
Powder coated steel and aluminum alloy
Physical Dimensions H 4.93” x W 1.20” x D 3.93” (125mm x 31mm x 100mm)

Mounting Style:
Standard DIN rail (T-35)

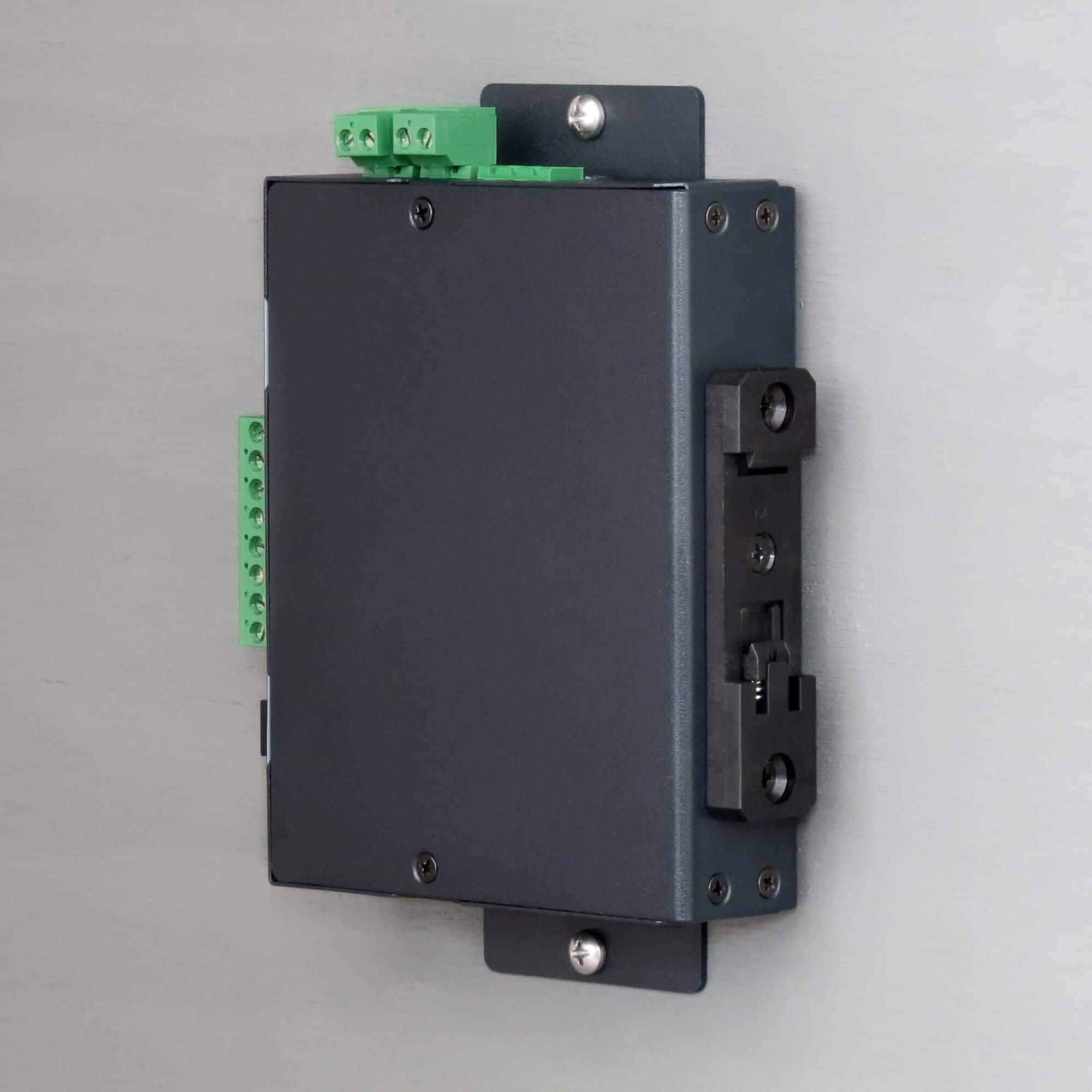

Wall Mount

Operating:
Temperature -40°F to +158°F (-40°C to +70°C)
Humidity 95%
MTBF 175,000 Hrs. (Circuit Board level)

General Information

Miscellaneous

MIB File

SM-OUT4-NO-2
SM-OUT4-NC-2
SM-IN4-48-2
SM-IN4-12-2
SM-IN4-DR-2

$415.00

Lead Time: 1 Week*

Order Now

Contact Sales

For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

Ordering

Product configuration	Outputs	Output Type	Part number	Price
4 Relay Outputs, Normally Open	4 Relay Outputs	Normally Open	SM-OUT4-NO-2	$415.00	Smart 4 Relay Output quantity
4 Relay Outputs, Normally Closed	4 Relay Outputs	Normally Closed	SM-OUT4-NC-2	$415.00	Smart 4 Relay Output quantity

For the 125VDC input power option, please note your part number, add -A to the end, and get your quote here
For the 12VDC input power option, please note your part number, add -B to the end, and get your quote here.
