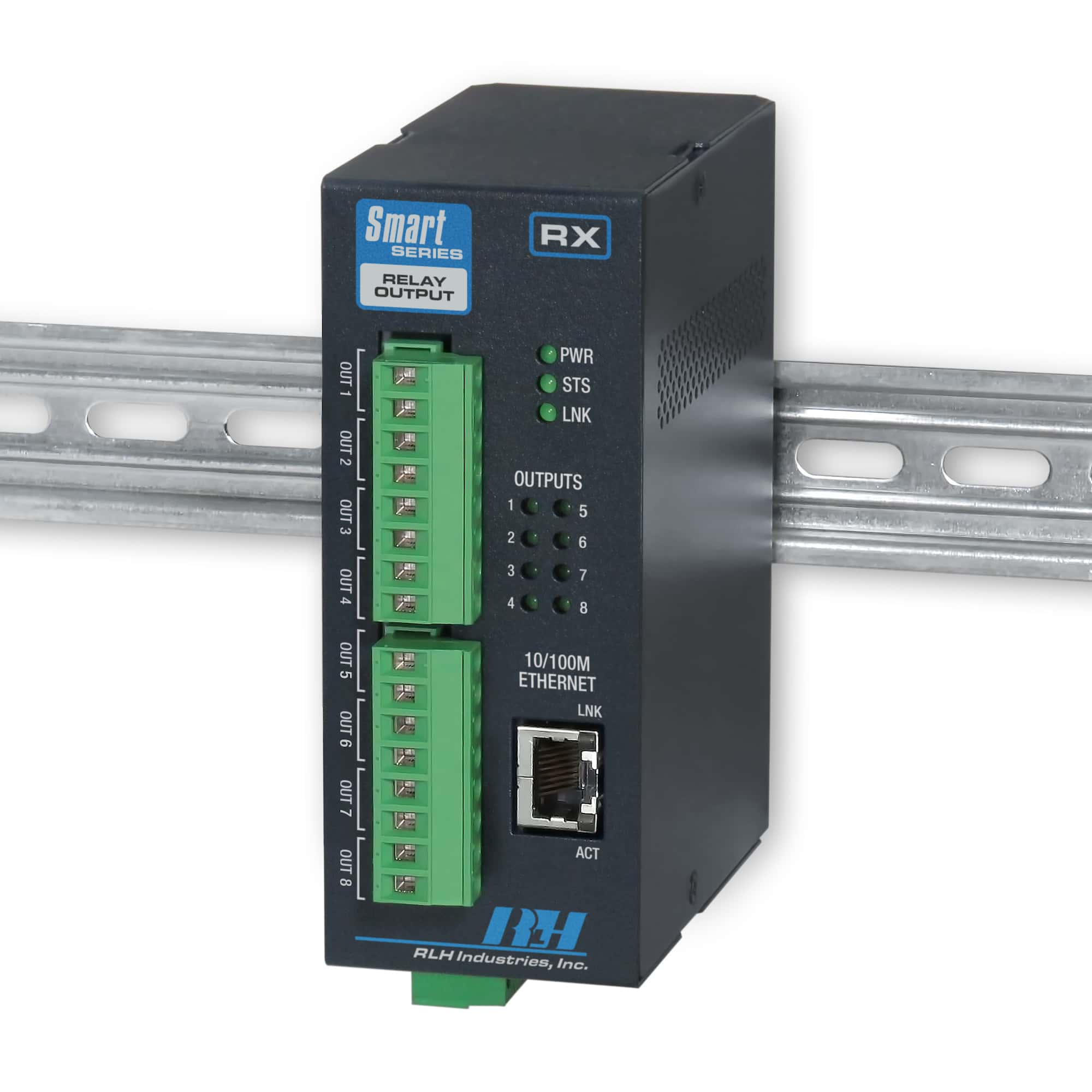

Rugged Ethernet IO Device with 8 Integrated Controllable Relays
Ethernet IO
The Smart Relay Output is an Ethernet device with 8 Integrated controllable relays. The device allows for web based control of the relays and may be integrated into distributed control and network management systems to allow those systems to control its Relays.
Each of the Relays can be individually configured to send customized emails and notifications when an event is triggered. The device supports a wide variety of protocols it is compatible with over Ethernet. Integration options supported are: SNMP Polling and Traps, Modbus TCP featuring addressable registers, and DNPv3 TCP for integration with utility and other automation control systems.
Contact Closure Over Ethernet
The RLH Smart Relay Output may be paired with an RLH Smart Input Sensor. When using RLH’s System Link feature, the two devices become linked establishing a tunnel over an Ethernet network and will transport a digital outputs being received by the Input Sensor through the Ethernet tunnel to the linked Relay Output device. The System Link feature can be set up via: One to One, Many to One, and One to Many allowing for event distribution and consolidation as needed.
View the matching Smart Input Sensor
Features
- Rugged Design – Operating temperature, -40°C ~ 70°C
- Intuitive embedded web interface for configuration
- 8 Relay Outputs for initiating alarms or actions though one of it’s integrated protocols
- Supports SNMP 1, 2c, 3, & SNMP Traps 1, 2c
- Supports DNP 3.0 and Modbus over Ethernet
- Use the System Link feature to Pair this device with a input sensor device for alarm transportation over Ethernet
- Event Consolidation, Send alarms from up to 8 locations to 1 Relay Output device
- Email alarms for the Outputs are customizable to your application
- Advanced SMTP integration allowing for SSL and TLS based authentication
- Event log with time stamps
- Relays can support up to 60 watts for most voltages
- System power ranges available: 24~48VDC or 125VDC
- 10/100 Fast Ethernet Port
- Limited Lifetime Warranty
- Made in USA
Please see the product documentation for the complete list of specifications
Powering Voltage:
Standard Model – 24-48VDC
-A Model – 125VDC
-B Model – 12VDC
Power Consumption:
6 Watts (Maximum)
Protocols Supported:
DNP 3.0 TCP, Modbus TCP, SNMP Polling 1,2c,3, SNMP Traps 1, 2c, SMTP w/ TLS Authentication
System Link Response Time:
Typical 8ms, Maximum 45ms
*Specifications listed are based on direct connections. Network overhead should be considered when calculating overall system response times.
Data Interface:
Ethernet (RJ-45)
Data Rate:
Fast Ethernet 10/100Mbps
Outputs 1~8:
SM-OUTPUT-NO-2 – Normally Open Relays (SPST)
SM-OUTPUT-NC-2 – Normally Closed Relays (SPST)
SM-OUTPUT-OC-2 – Relays 1-4 Normally Open / Relays 5-8 Normally Closed (SPST)
Relay Maximum Ratings:
115VAC / 1.08A / 125VA
12VDC / 3.00A / 36 Watts
24VDC / 2.50A / 60 Watts
48VDC / 1.25A / 60 Watts
130VDC / 0.46A / 60 Watts
220VDC / 0.27A / 60 Watts
LED:
POWER – DC Power OK
SYS – CPU OK
LNK – System Link ON/OFF Status
Outputs – ON/OFF Status
System Status Alarm:
NO/NC Relay (SPDT)
Surge Protection:
Varistors & Automatic resettable fuses
DC Input Isolation 1.5kV
Voltage Reversal Protection
Construction:
Powder coated steel and aluminum alloy

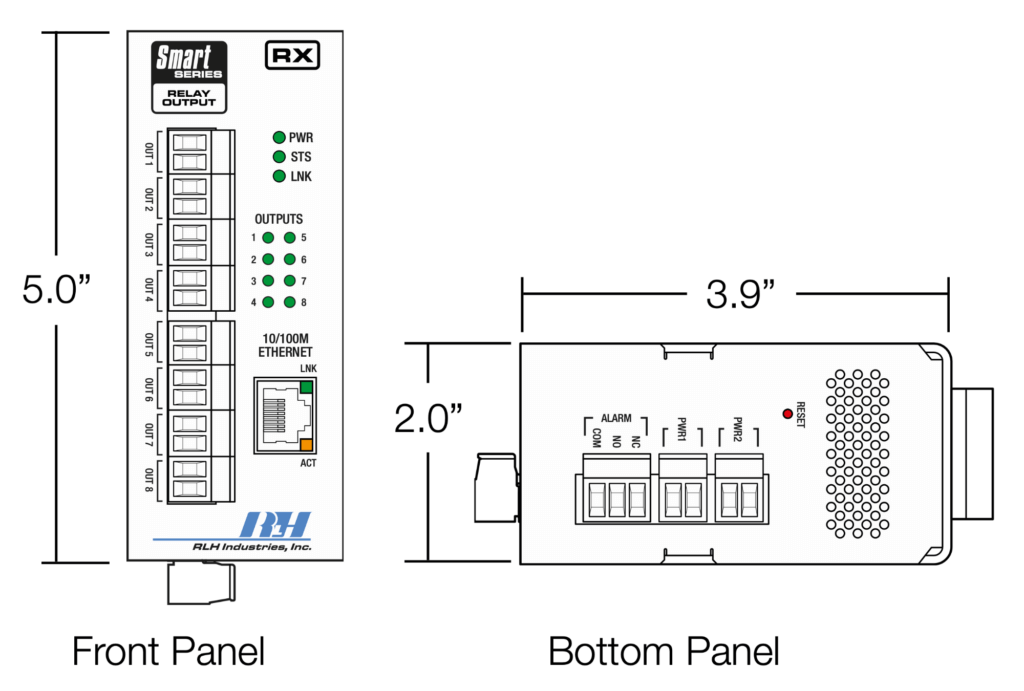

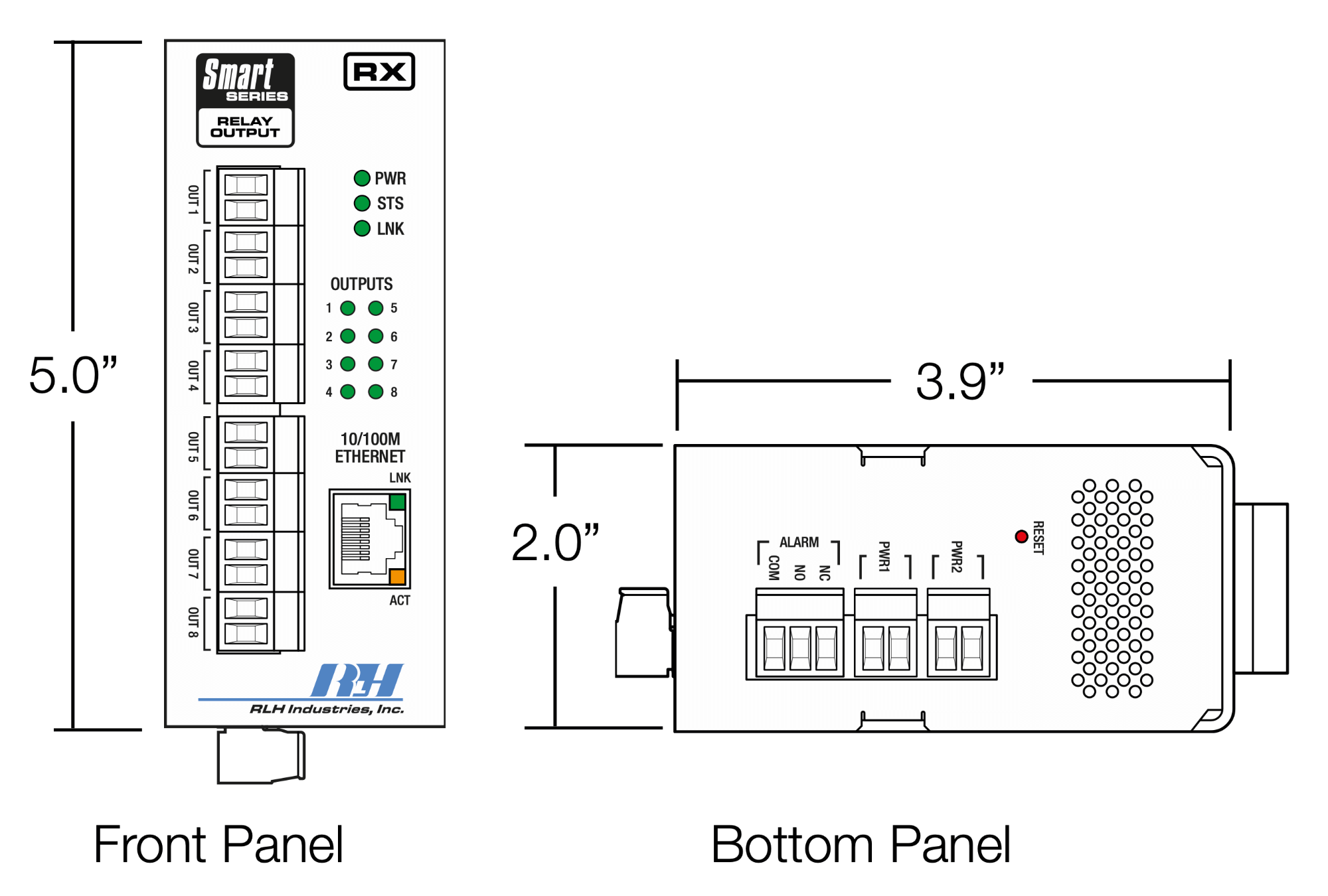

Physical Dimensions H 5.0” x W 2.0” x D 3.9” (127mm x 51mm x 100mm)
Mounting Style:
Standard DIN rail (T-35)
Operating:
Temperature -40°F to +158°F (-40°C to +70°C)
Humidity 95%
MTBF 175,000 Hrs. (Circuit Board level)
General Information
CAD Files
Miscellaneous
SM-OUTPUT-NO-2
SM-OUTPUT-NC-2
SM-OUTPUT-OC-2
SM-INPUT-48-2
SM-INPUT-24-2
SM-INPUT-DR-2
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Smart Relay Output
| Product configuration | Outputs | Output Type | Part number | Price | |
|---|---|---|---|---|---|
| 8 Relay Outputs, Relays Normally Open | 8 Relay Outputs | Normally Open | SM-OUTPUT-NO-2 | $525.00 | |
| 8 Relay Outputs, Relays Normally Closed | 8 Relay Outputs | Normally Closed | SM-OUTPUT-NC-2 | $525.00 | |
| 8 Relay Outputs, Relays 1-4 Normally Open, 5-8 Normally Closed | 8 Relay Outputs | 4 NO / 4 NC | SM-OUTPUT-OC-2 | $525.00 |
- For the 125VDC input power option, please note your part number, add -A to the end, and get your quote here
- For the 12VDC input power option, please note your part number, add -B to the end, and get your quote here.
Smart Input Sensor
| Product configuration | Inputs | Input Type | Part number | Price | |
|---|---|---|---|---|---|
| 8 Digital Inputs, 24-48VDC Digital Inputs | 8 Digital Inputs | 24~48VDC | SM-INPUT-48-2 | $525.00 | |
| 8 Digital Inputs, 12-24VDC Digital Inputs | 8 Digital Inputs | 12~24VDC | SM-INPUT-24-2 | $525.00 | |
| 8 Digital Inputs, Dry Contact Sensing Inputs | 8 Digital Inputs | Dry Contact Sensing | SM-INPUT-DR-2 | $525.00 |
- For the 125VDC input power option, please note your part number, add -A to the end, and get your quote here
- For the 12VDC input power option, please note your part number, add -B to the end, and get your quote here.
You May Also Be Interested In
You may also like…
-
DIN Rail Housing
The DIN Rail industrial housing is a steel, powder coated, enclosure with a hinged door for equipment access.
View ProductAccessories for Ethernet IODIN Rail Housing
$295.00 – $490.00 View Product This product has multiple variants. The options may be chosen on the product page -

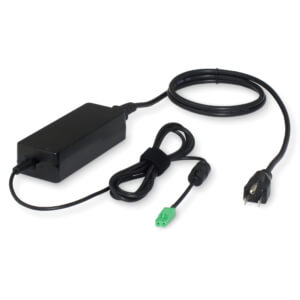

Solo-24 Power Adapter
