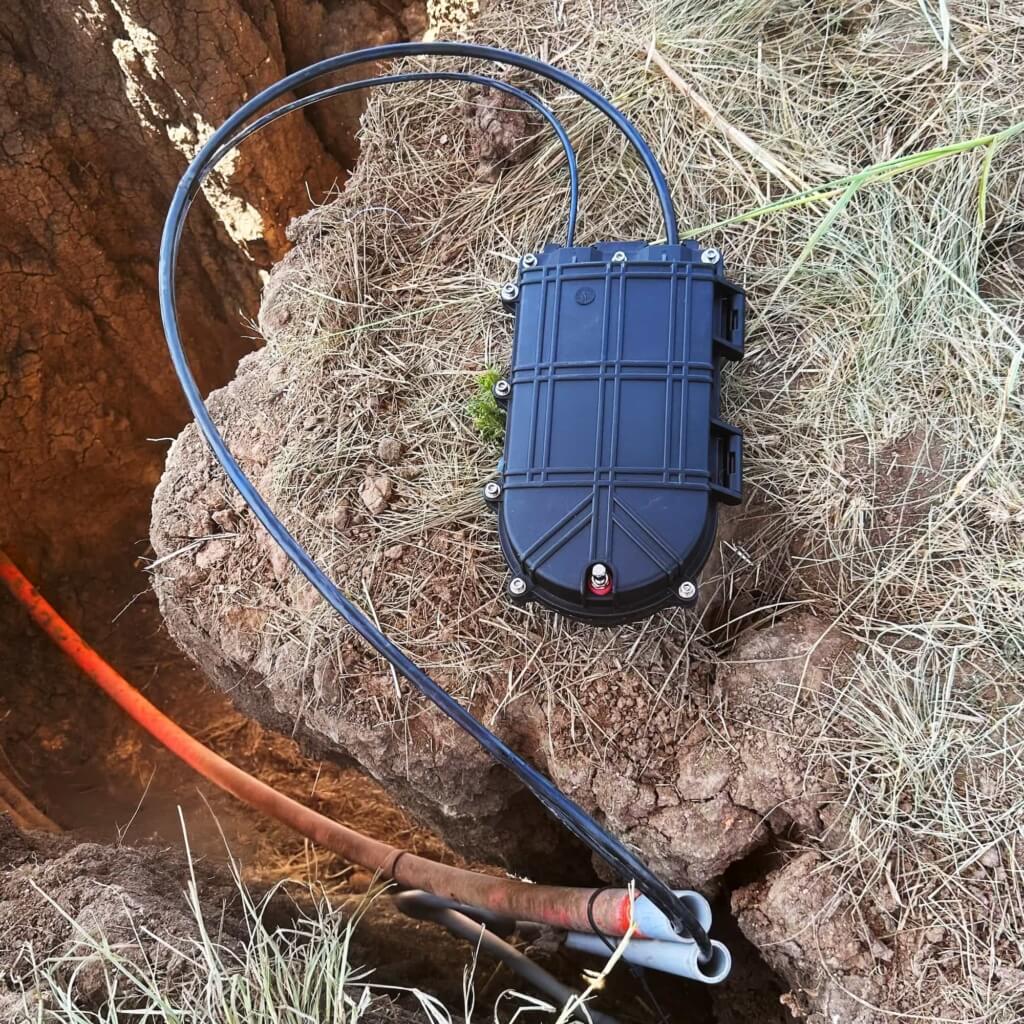

For Installations in Both Underground and Aerial Environments

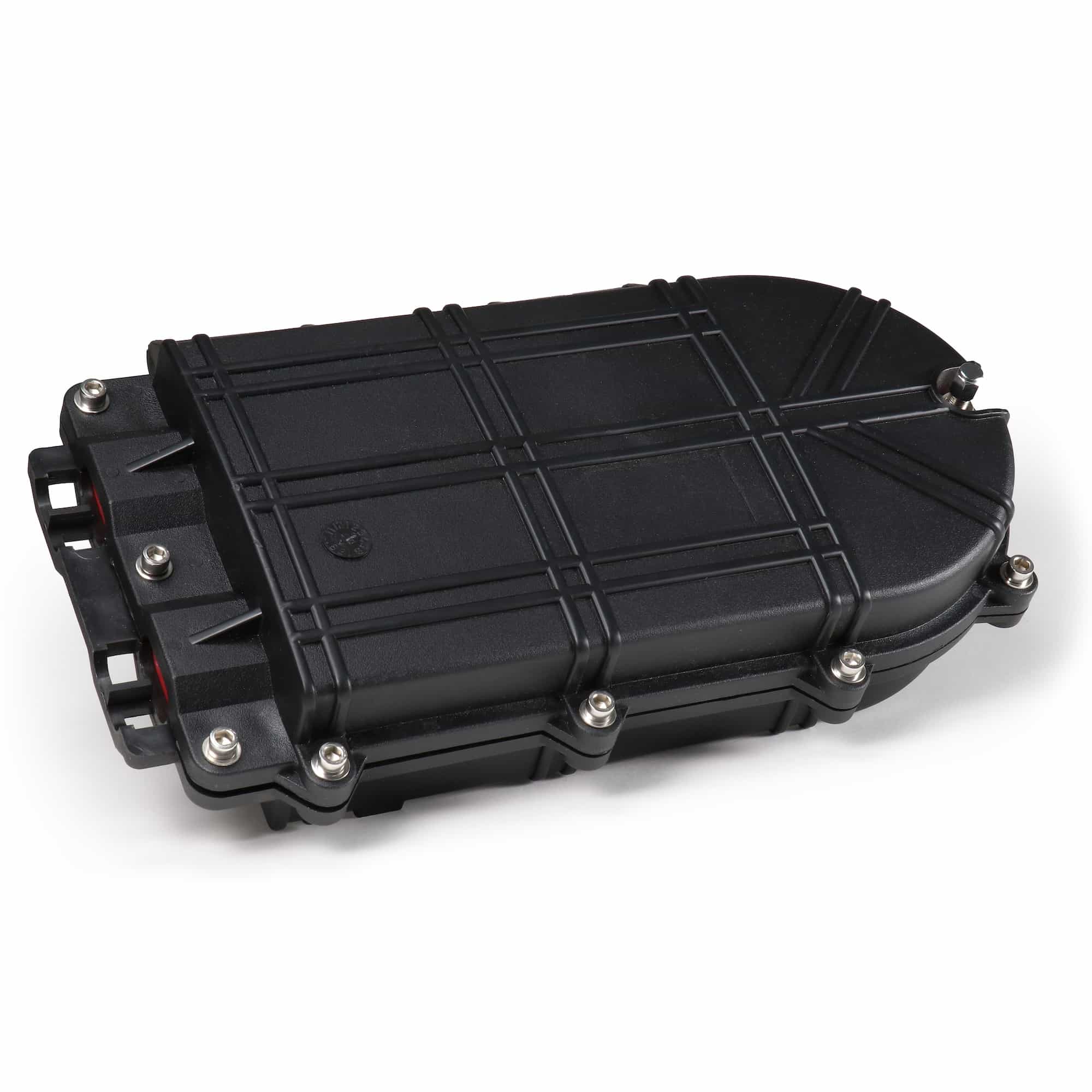

RLH Industries Outside Plant Fiber Splice Closure provides reliable and flexible installation for outdoor applications. The compact size and high quality construction allow for installation in both underground and aerial environments.

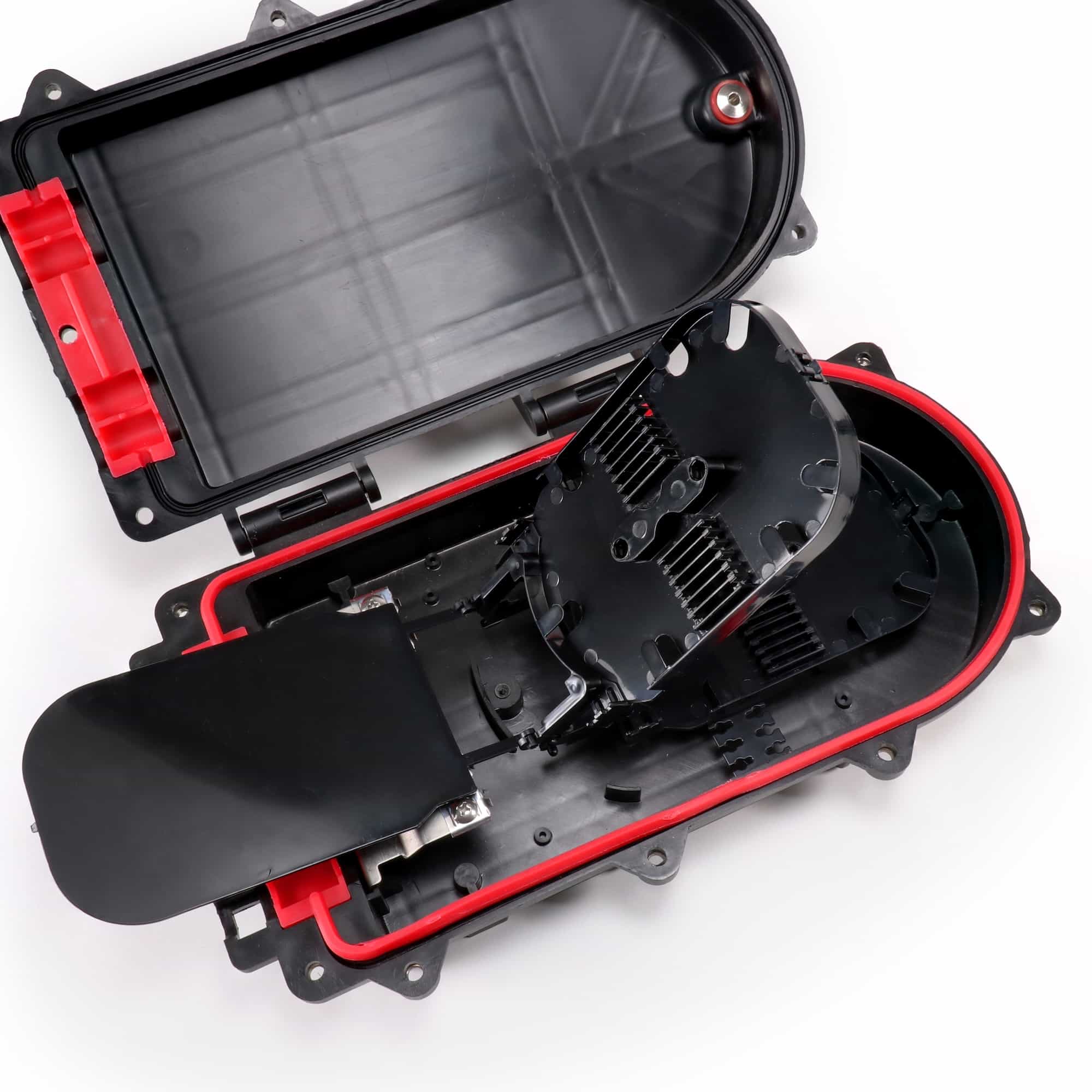

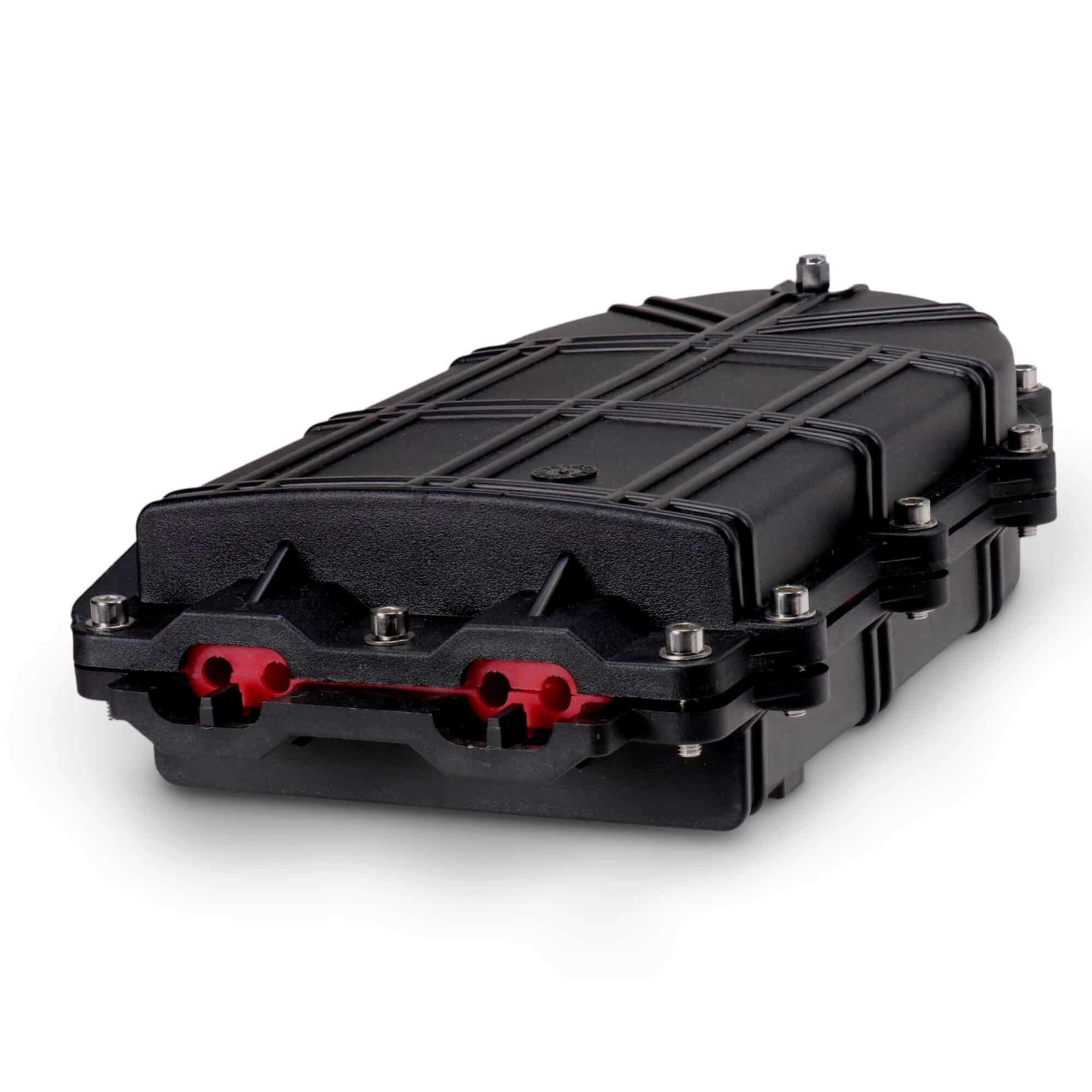

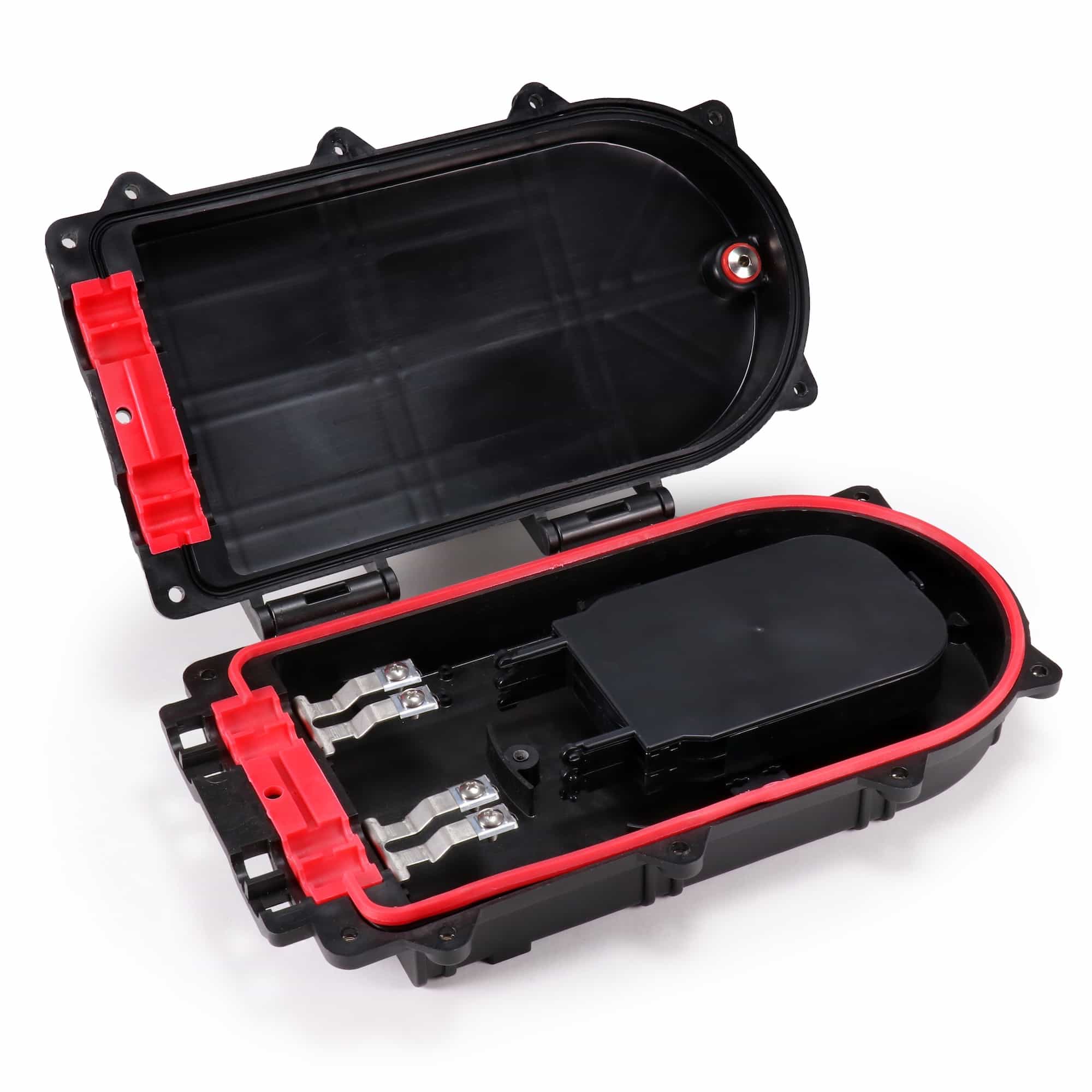

The case lid is hinged for correct alignment and is secured with stainless steel hardware for corrosion resistance. A silicone gasket with cable inlet and exit seals, along with sealing tape and plugs for unused cable entry points, provide a durable and water tight seal for fiber splicing in outdoor environments. Two splice trays with hinged covers hold up to 24 splice sleeves.
- 24 fiber capacity (splice trays included)
- 4 cable entry ports
- Aerial or underground applications
- Waterproof seal (IP 66)
- Temperature and chemical resistant

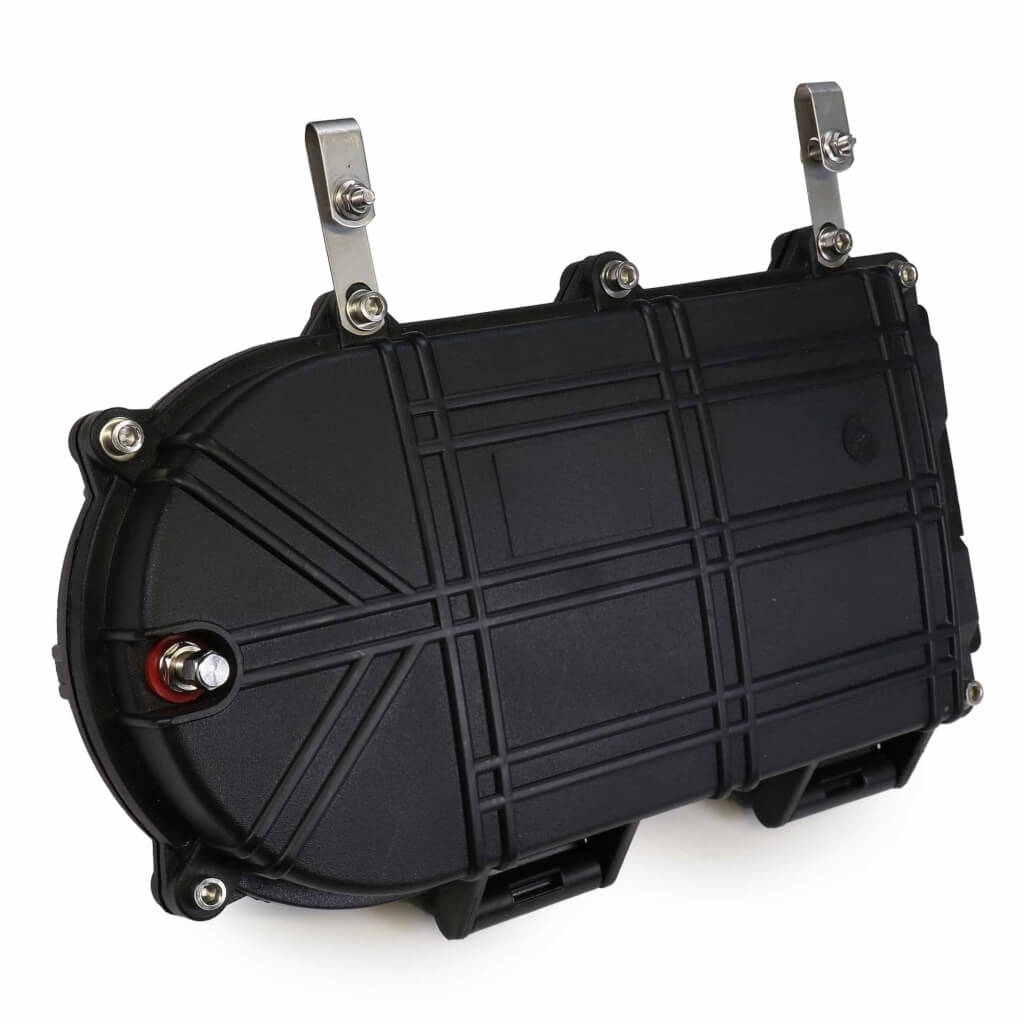

- Includes accessory kit with splice sleeves, cable seals, and aerial mounting brackets
Color:
Black
Material:
PP+GF
Dimensions:

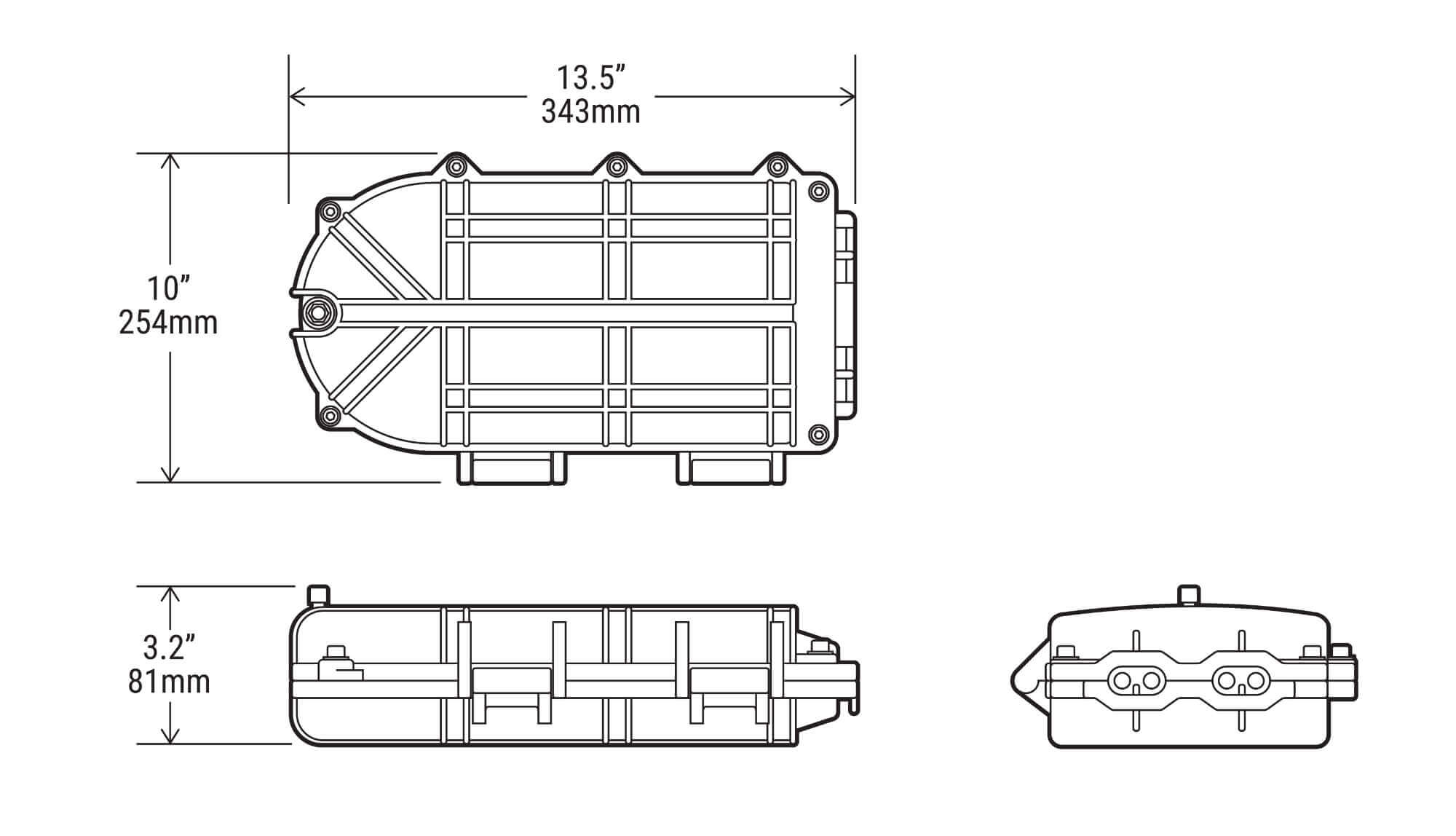

13.5″(L) x 10″(W) x 3.2″(H), (343mm x 254mm x 81mm)
Fiber Splice Capacity:
24 Fiber
Fibers Per Tray:
12
Cable Ports:
4
Cable Diameter (mm):
Ф10-21
Weight (Kg):
2 lbs. (0.9Kg) Approx.
Protection Level:
IP68
Installation Style:
Outdoor underground or aerial, butt end
General Information
RLH-OFSC-24-B-1
Ordering
24 Fiber OSP Splice Closure
| Short description | Part number | Price | |
|---|---|---|---|
| 24 Fiber OSP Splice Closure | RLH-OFSC-24-B-1 | $160.00 |
