For Installation in Both Underground and Aerial Environments
RLH Industries Outside Plant Fiber Splice Closure provides reliable and flexible installation for outdoor in-line and/or butt end applications. The compact size and high quality construction allows for installation in both underground and aerial environments.
- 48 fiber capacity (splice trays included)
- 4 cable entry ports
- Aerial or underground applications
- Waterproof seal (IP 66)
- Temperature and chemical resistant
- 304 stainless steel hardware
Color:
Black
Material:
PP+GF

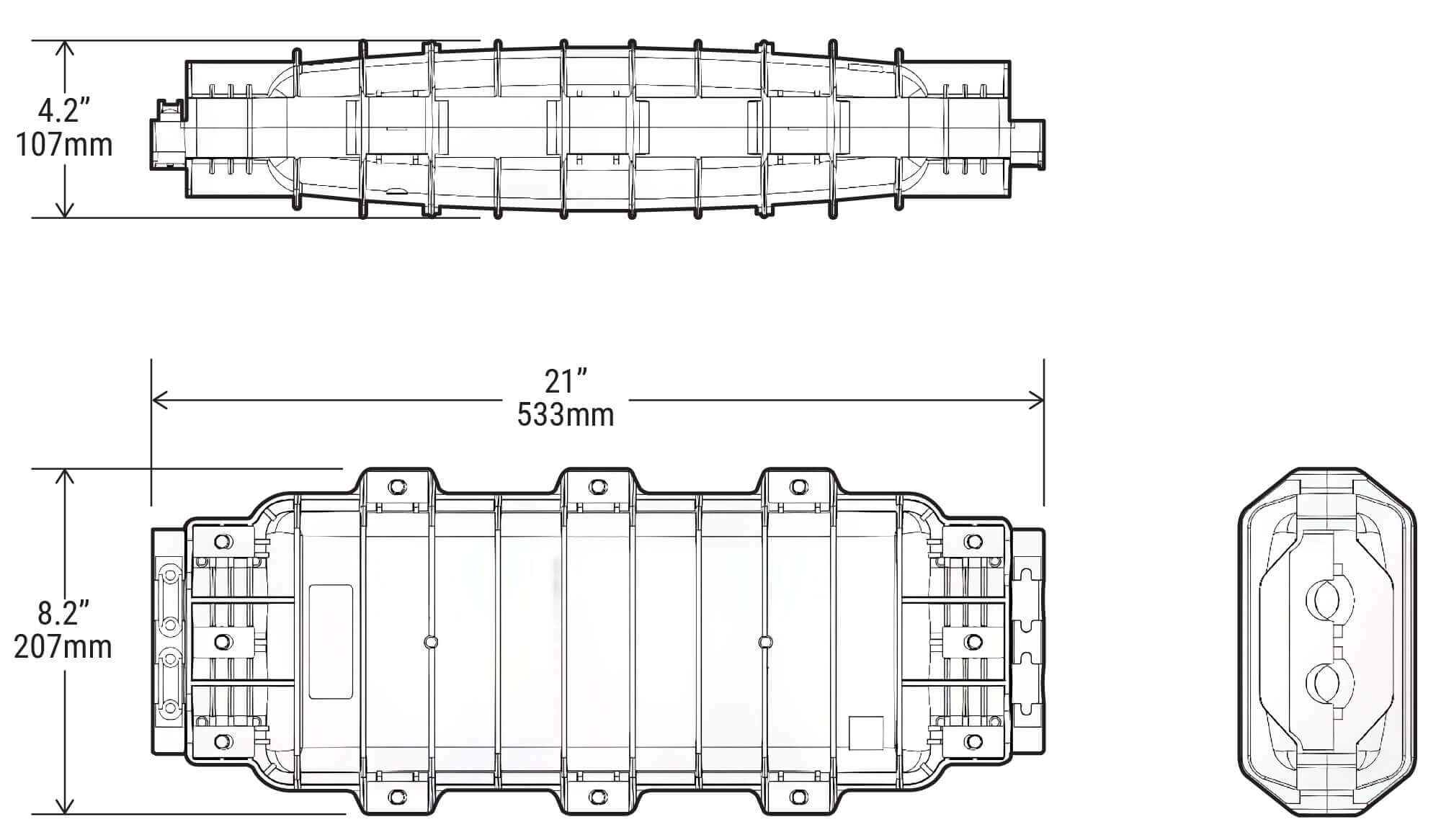

Dimensions (mm):
533(L) × 207(W) × 107(H)
Fiber Splice Capacity:
48 Fiber
Number of Fibers Per Tray:
24
Cable Ports:
4
Cable Diameter (mm):
Ф10-21
Weight (Kg):
3.3 ~ 3.6
Protection Level:
IP68
Installation Style:
Outdoor underground or aerial, inline or butt end
RLH-OFSC-48-1
Ordering
48 Fiber In Line OSP Splice Closure
| Short description | Part number | Price | |
|---|---|---|---|
| 48 Fiber In Line OSP Splice Closure | RLH-OFSC-48-1 | $230.00 |
