6 and 12 Strand Fiber Splice on Pigtail Packs, Low Loss & Color Coded For Convenience​
Overview
Features
Docs
Numbers
Overview

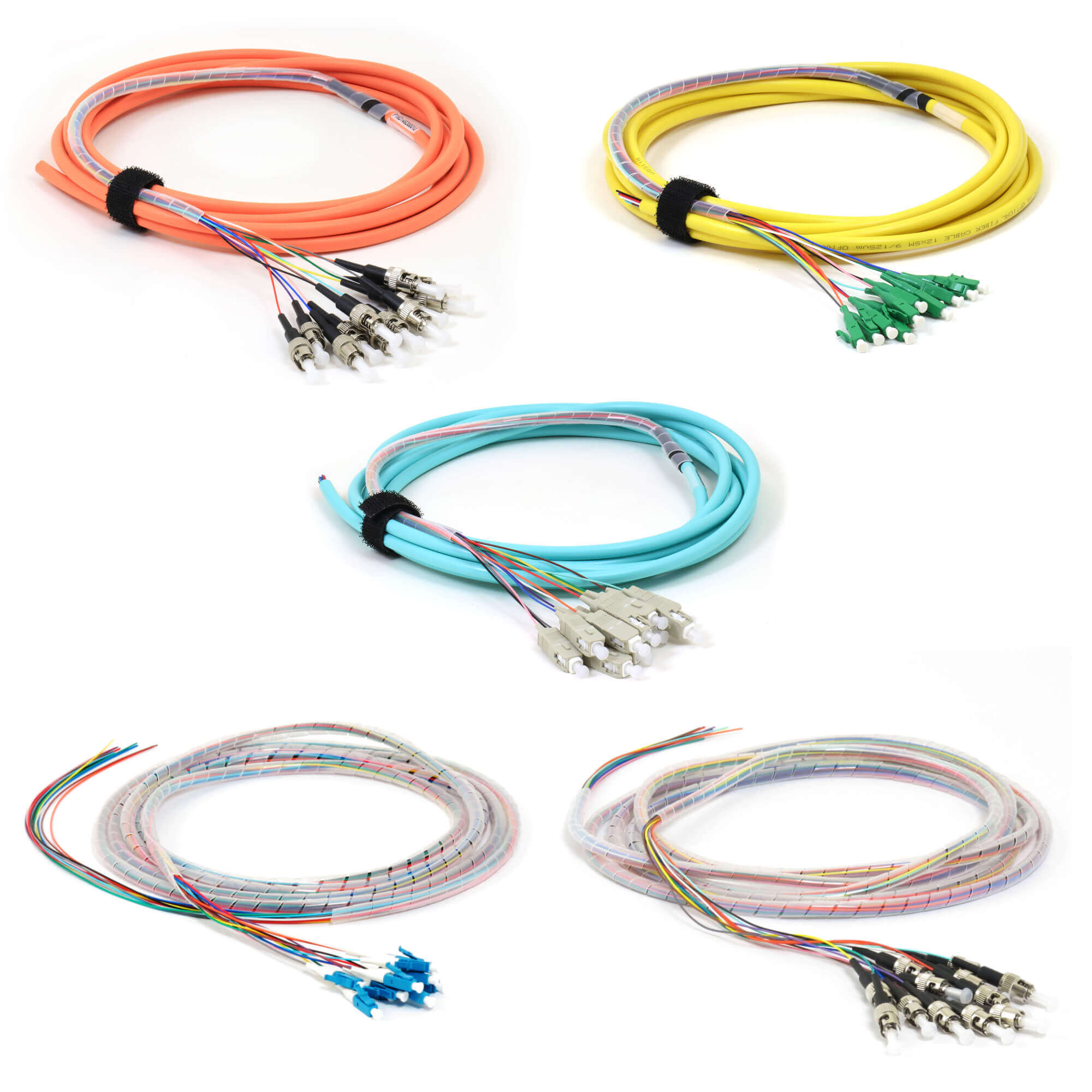

Our ready-to-splice, fiber optic pigtail packs are available in sets of 6 or 12 fibers. Each connector is color coded to TIA standards. Each connector end is factory polished and the typical insertion loss is less than .30 dB. They are available in Singlemode and Multimode (OM1, OM2, OM3, OM4) with ST, SC, LC, or FC connector types.
Our standard pigtail packs are 3 meters long, but can be ordered in any length, each pigtail pack includes a spiral wrap making them easy to manage in the field. We also offer many pigtail pack options not included in our standard ordering table, if you don’t see your specific pigtail pack contact us, we will be glad to work on a solution that meets your needs.
Our Pigtail packs can be preloaded into our Fiber Patch Panels along with our Fiber Splice Trays.
Features
- 6 & 12 strand color coded pigtail packs
- Standard Pigtail Packs are 3 Meters in Length
- Factory polished for low insertion loss
- Available in Singlemode APC and UPC
- Available in Multimode OM1, OM2, OM3, or OM4
- Available with ST, SC, LC, or FC connectors
- Include a Spiral Wrap for easy cable management during installation
- Customizable to fit your projects needs
Docs
General Information
Numbers
RLH-06SMSC-03M
RLH-06SMSA-03M
RLH-06MMSC-03M
RLH-06M5SC-03M
RLH-06MXSC-03M
RLH-06MCSC-03M
RLH-06SMST-03M
RLH-06MMST-03M
RLH-06M5ST-03M
RLH-06MXST-03M
RLH-06MCST-03M
RLH-12SMSC-03M
RLH-12SMSA-03M
RLH-12MMSC-03M
RLH-12M5SC-03M
RLH-12MXSC-03M
RLH-12MCSC-03M
RLH-12SMLC-03M
RLH-12SMLA-03M
RLH-12MMLC-03M
RLH-12M5LC-03M
RLH-12MXLC-03M
RLH-12MCLC-03M
RLH-12SMST-03M
RLH-12MMST-03M
RLH-12M5ST-03M
RLH-12MXST-03M
RLH-12MCST-03M
RLH-12RISMSC-03M
RLH-12RISMSA-03M
RLH-12RIMMSC-03M
RLH-12RIM5SC-03M
RLH-12RIMXSC-03M
RLH-12RIMCSC-03M
RLH-12RISMLC-03M
RLH-12RISMLA-03M
RLH-12RIMMLC-03M
RLH-12RIM5LC-03M
RLH-12RIMXLC-03M
RLH-12RIMCLC-03M
RLH-12RISMST-03M
RLH-12RIMMST-03M
RLH-12RIM5ST-03M
RLH-12RIMXST-03M
RLH-12RIMCST-03M
RLH-06MCLC-03M
RLH-06MXLC-03M
RLH-06MMLC-03M
RLH-06SMLC-03M
Ordering
Splice on Fiber Pigtails
| Product configuration | Fibers | Fiber Type | Jacket | Connector | Polish | Part number | Price | hf:att:pa_fibers | hf:att:pa_fiber-type | hf:att:pa_jacket | hf:att:pa_connector | hf:att:pa_polish | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC/PC MULTIMODE (OM4 50µm), 6 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 6 | Multimode - OM4 | Spiral Wrap | LC | PC | RLH-06MCLC-03M | $27.00 | 6 | multimode-om4 | spiral-wrap | lc | pc | |
| LC/PC MULTIMODE (OM3 50µm), 6 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 6 | Multimode - OM3 | Spiral Wrap | LC | PC | RLH-06MXLC-03M | $25.00 | 6 | multimode-om3 | spiral-wrap | lc | pc | |
| LC/PC MULTIMODE (OM1 62.5µm), 6 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 6 | Multimode - OM1 | Spiral Wrap | LC | PC | RLH-06MMLC-03M | $24.00 | 6 | multimode-om1 | spiral-wrap | lc | pc | |
| LC/UPC SINGLEMODE, 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Singlemode - OS2 | Spiral Wrap | LC | UPC | RLH-06SMLC-03M | $28.00 | 6 | singlemode-os2 | spiral-wrap | lc | upc | |
| SC/UPC SINGLEMODE, 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Singlemode - OS2 | Spiral Wrap | SC | UPC | RLH-06SMSC-03M | $27.00 | 6 | singlemode-os2 | spiral-wrap | sc | upc | |
| SC/APC SINGLEMODE, 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Singlemode - OS2 | Spiral Wrap | SC/APC | APC | RLH-06SMSA-03M | $32.00 | 6 | singlemode-os2 | spiral-wrap | sc-apc | apc | |
| SC/PC MULTIMODE (OM1 62.5µm), 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Multimode - OM1 | Spiral Wrap | SC | PC | RLH-06MMSC-03M | $23.00 | 6 | multimode-om1 | spiral-wrap | sc | pc | |
| SC/PC MULTIMODE (OM3 50µm), 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Multimode - OM3 | Spiral Wrap | SC | PC | RLH-06MXSC-03M | $24.00 | 6 | multimode-om3 | spiral-wrap | sc | pc | |
| SC/PC MULTIMODE (OM4 50µm), 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Multimode - OM4 | Spiral Wrap | SC | PC | RLH-06MCSC-03M | $26.00 | 6 | multimode-om4 | spiral-wrap | sc | pc | |
| ST/UPC SINGLEMODE, 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Singlemode - OS2 | Spiral Wrap | ST | UPC | RLH-06SMST-03M | $27.00 | 6 | singlemode-os2 | spiral-wrap | st | upc | |
| ST/PC MULTIMODE (OM1 62.5µm), 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Multimode - OM1 | Spiral Wrap | ST | PC | RLH-06MMST-03M | $23.00 | 6 | multimode-om1 | spiral-wrap | st | pc | |
| ST/PC MULTIMODE (OM3 50µm), 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Multimode - OM3 | Spiral Wrap | ST | PC | RLH-06MXST-03M | $24.00 | 6 | multimode-om3 | spiral-wrap | st | pc | |
| ST/PC MULTIMODE (OM4 50µm), 6 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 6 | Multimode - OM4 | Spiral Wrap | ST | PC | RLH-06MCST-03M | $26.00 | 6 | multimode-om4 | spiral-wrap | st | pc | |
| SC/UPC SINGLEMODE, 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Singlemode - OS2 | Spiral Wrap | SC | UPC | RLH-12SMSC-03M | $49.00 | 12 | singlemode-os2 | spiral-wrap | sc | upc | |
| SC/APC SINGLEMODE, 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Singlemode - OS2 | Spiral Wrap | SC/APC | APC | RLH-12SMSA-03M | $58.00 | 12 | singlemode-os2 | spiral-wrap | sc-apc | apc | |
| SC/PC MULTIMODE (OM1 62.5µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM1 | Spiral Wrap | SC | PC | RLH-12MMSC-03M | $42.00 | 12 | multimode-om1 | spiral-wrap | sc | pc | |
| SC/PC MULTIMODE (OM3 50µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM3 | Spiral Wrap | SC | PC | RLH-12MXSC-03M | $44.00 | 12 | multimode-om3 | spiral-wrap | sc | pc | |
| SC/PC MULTIMODE (OM4 50µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM4 | Spiral Wrap | SC | PC | RLH-12MCSC-03M | $47.00 | 12 | multimode-om4 | spiral-wrap | sc | pc | |

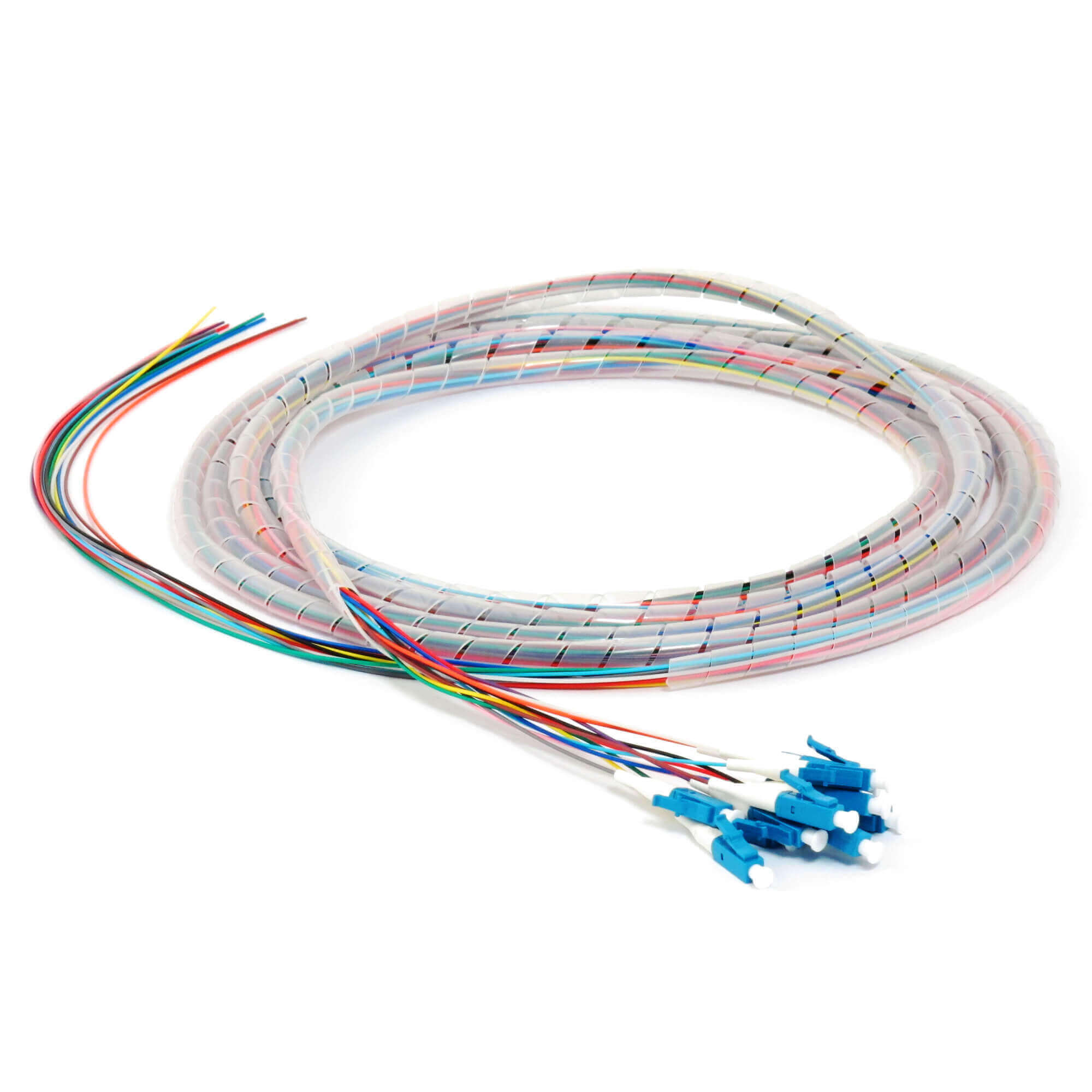

| LC/UPC SINGLEMODE, 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Singlemode - OS2 | Spiral Wrap | LC | UPC | RLH-12SMLC-03M | $52.00 | 12 | singlemode-os2 | spiral-wrap | lc | upc | |
| LC/APC SINGLEMODE, 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Singlemode - OS2 | Spiral Wrap | LC /APC | APC | RLH-12SMLA-03M | $61.00 | 12 | singlemode-os2 | spiral-wrap | lc-apc | apc | |
| LC/PC MULTIMODE (OM1 62.5µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM1 | Spiral Wrap | LC | PC | RLH-12MMLC-03M | $44.00 | 12 | multimode-om1 | spiral-wrap | lc | pc | |
| LC/PC MULTIMODE (OM3 50µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM3 | Spiral Wrap | LC | PC | RLH-12MXLC-03M | $46.00 | 12 | multimode-om3 | spiral-wrap | lc | pc | |
| LC/PC MULTIMODE (OM4 50µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM4 | Spiral Wrap | LC | PC | RLH-12MCLC-03M | $49.00 | 12 | multimode-om4 | spiral-wrap | lc | pc | |

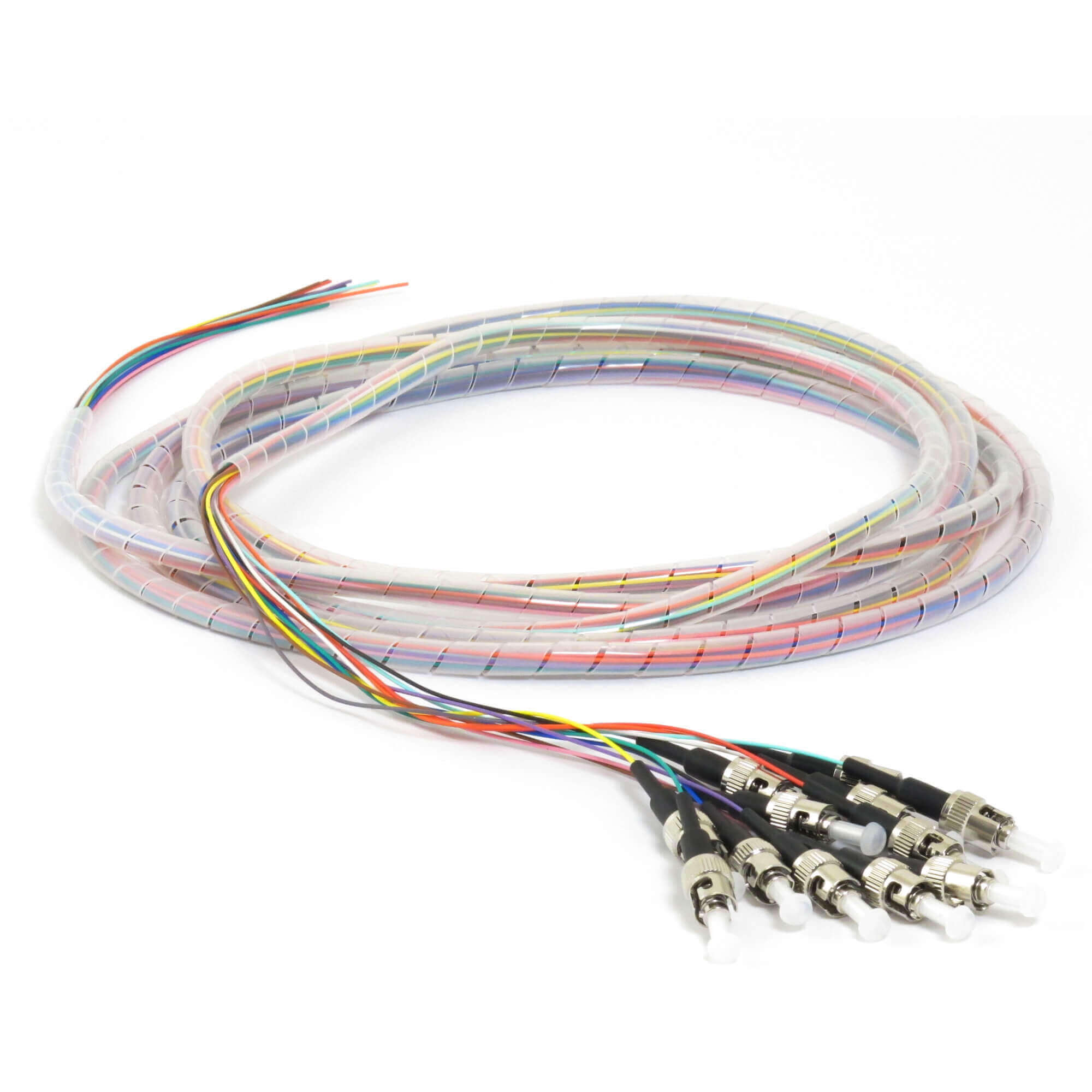

| ST/UPC SINGLEMODE, 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Singlemode - OS2 | Spiral Wrap | ST | UPC | RLH-12SMST-03M | $49.00 | 12 | singlemode-os2 | spiral-wrap | st | upc | |
| ST/PC MULTIMODE (OM1 62.5µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM1 | Spiral Wrap | ST | PC | RLH-12MMST-03M | $42.00 | 12 | multimode-om1 | spiral-wrap | st | pc | |
| ST/PC MULTIMODE (OM3 50µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM3 | Spiral Wrap | ST | PC | RLH-12MXST-03M | $44.00 | 12 | multimode-om3 | spiral-wrap | st | pc | |
| ST/PC MULTIMODE (OM4 50µm), 12 FIBER, 900µm COLOR CODED PIGTAIL PACK, 3 METERS | 12 | Multimode - OM4 | Spiral Wrap | ST | PC | RLH-12MCST-03M | $47.00 | 12 | multimode-om4 | spiral-wrap | st | pc | |
| SC/UPC SINGLEMODE, 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Singlemode - OS2 | Riser - OFNR | SC | UPC | RLH-12RISMSC-03M | $56.00 | 12 | singlemode-os2 | riser-ofnr | sc | upc | |
| SC/APC SINGLEMODE, 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Singlemode - OS2 | Riser - OFNR | SC/APC | APC | RLH-12RISMSA-03M | $65.00 | 12 | singlemode-os2 | riser-ofnr | sc-apc | apc | |
| LC/UPC SINGLEMODE, 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Singlemode - OS2 | Riser - OFNR | LC | UPC | RLH-12RISMLC-03M | $59.00 | 12 | singlemode-os2 | riser-ofnr | lc | upc | |
| ST/UPC SINGLEMODE, 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Singlemode - OS2 | Riser - OFNR | ST | UPC | RLH-12RISMST-03M | $56.00 | 12 | singlemode-os2 | riser-ofnr | st | upc | |

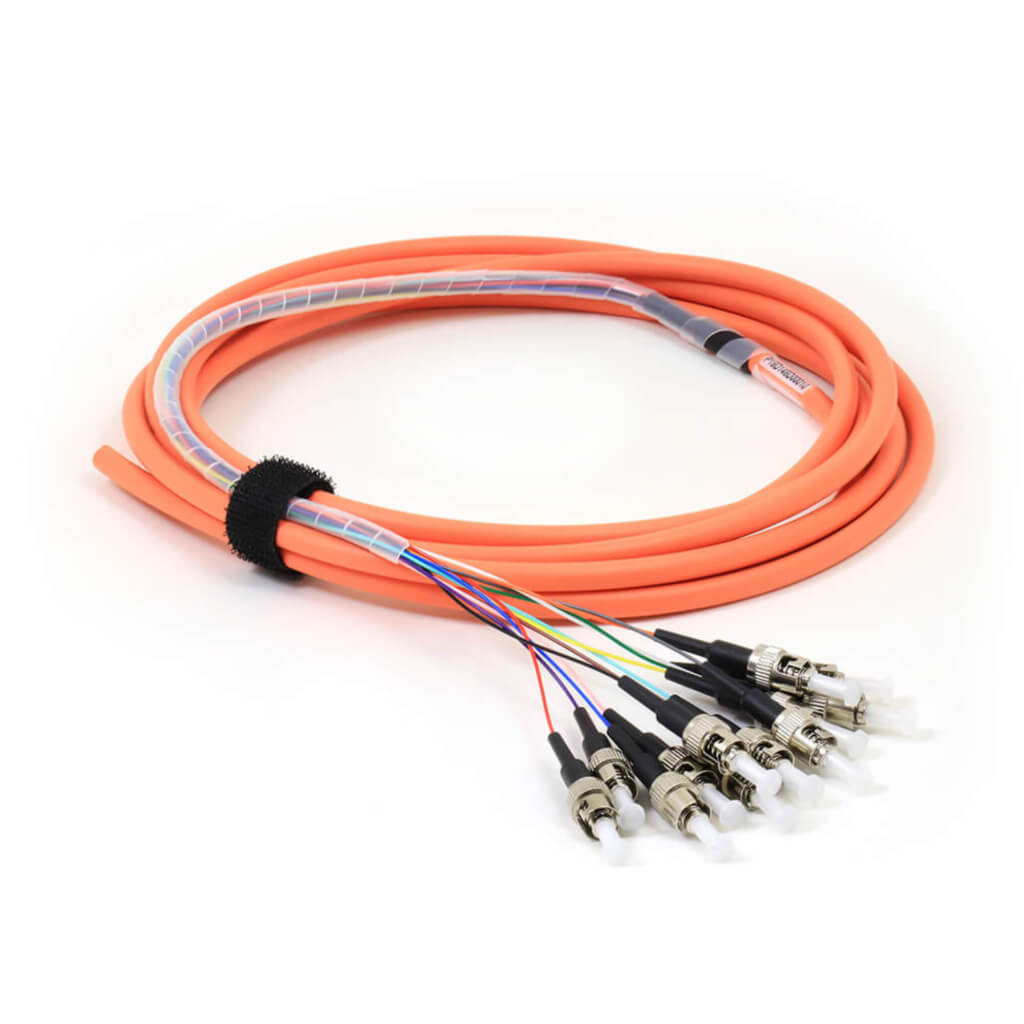

| ST/PC MULTIMODE (OM1 62.5µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM1 | Riser - OFNR | ST | PC | RLH-12RIMMST-03M | $49.00 | 12 | multimode-om1 | riser-ofnr | st | pc | |
| ST/PC MULTIMODE (OM3 50µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM3 | Riser - OFNR | ST | PC | RLH-12RIMXST-03M | $50.00 | 12 | multimode-om3 | riser-ofnr | st | pc | |
| ST/PC MULTIMODE (OM4 50µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM4 | Riser - OFNR | ST | PC | RLH-12RIMCST-03M | $52.00 | 12 | multimode-om4 | riser-ofnr | st | pc | |
| SC/PC MULTIMODE (OM1 62.5µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM1 | Riser - OFNR | SC | PC | RLH-12RIMMSC-03M | $49.00 | 12 | multimode-om1 | riser-ofnr | sc | pc | |

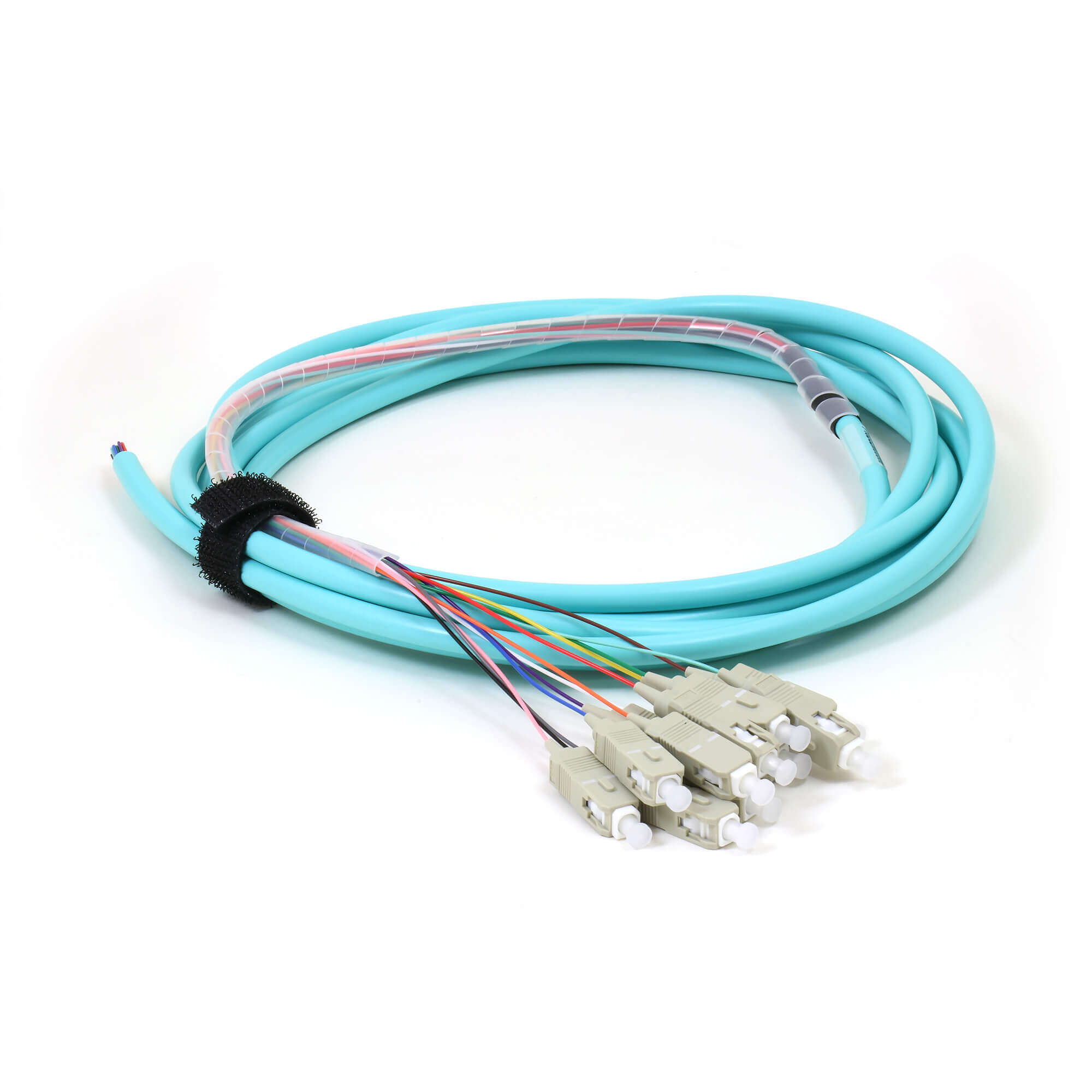

| SC/PC MULTIMODE (OM3 50µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM3 | Riser - OFNR | SC | PC | RLH-12RIMXSC-03M | $50.00 | 12 | multimode-om3 | riser-ofnr | sc | pc | |
| SC/PC MULTIMODE (OM4 50µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM4 | Riser - OFNR | SC | PC | RLH-12RIMCSC-03M | $52.00 | 12 | multimode-om4 | riser-ofnr | sc | pc | |

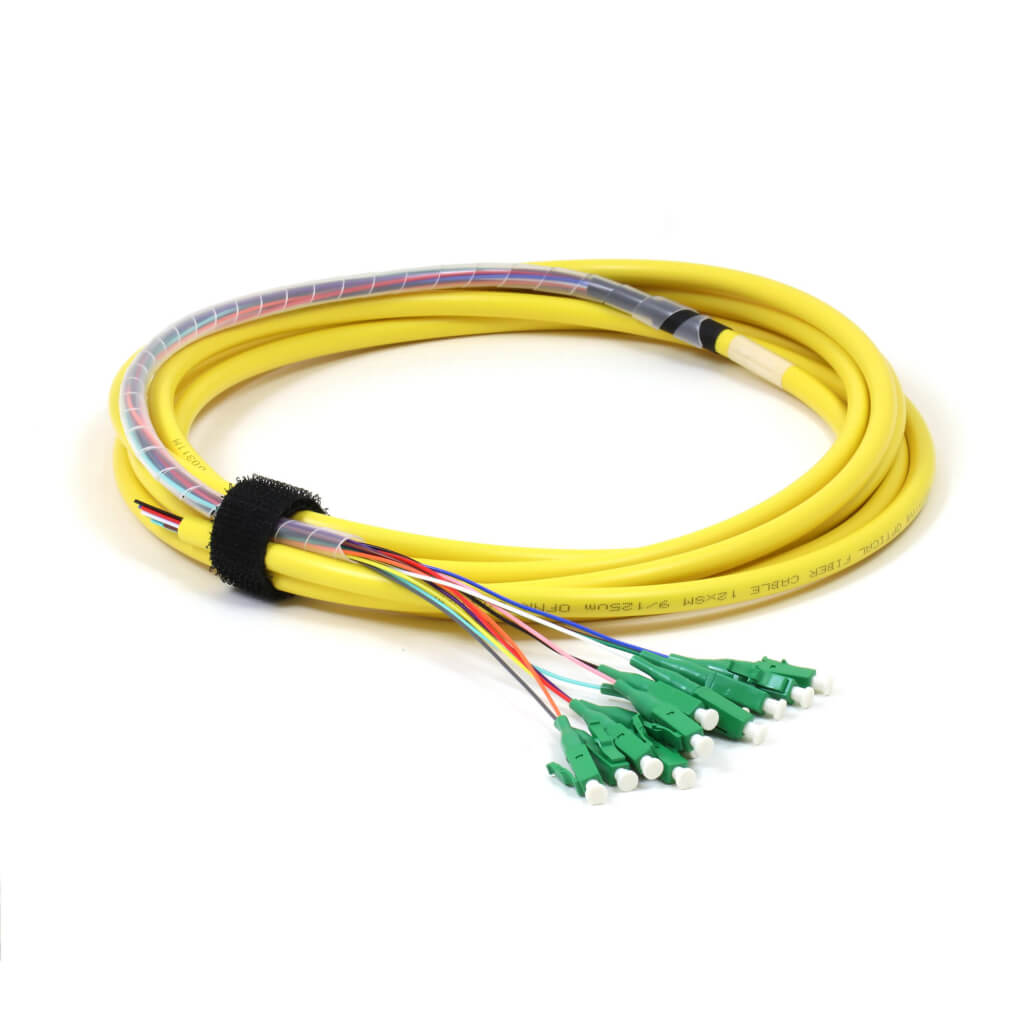

| LC/APC SINGLEMODE, 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Singlemode - OS2 | Riser - OFNR | LC /APC | APC | RLH-12RISMLA-03M | $68.00 | 12 | singlemode-os2 | riser-ofnr | lc-apc | apc | |
| LC/PC MULTIMODE (OM1 62.5µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM1 | Riser - OFNR | LC | PC | RLH-12RIMMLC-03M | $52.00 | 12 | multimode-om1 | riser-ofnr | lc | pc | |
| LC/PC MULTIMODE (OM3 50µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM3 | Riser - OFNR | LC | PC | RLH-12RIMXLC-03M | $53.00 | 12 | multimode-om3 | riser-ofnr | lc | pc | |
| LC/PC MULTIMODE (OM4 50µm), 12 FIBER, JACKETED, 900µm COLOR CODED BREAKOUT PIGTAIL PACK, 3M | 12 | Multimode - OM4 | Riser - OFNR | LC | PC | RLH-12RIMCLC-03M | $55.00 | 12 | multimode-om4 | riser-ofnr | lc | pc |
