Compact Ethernet Over Fiber Solution

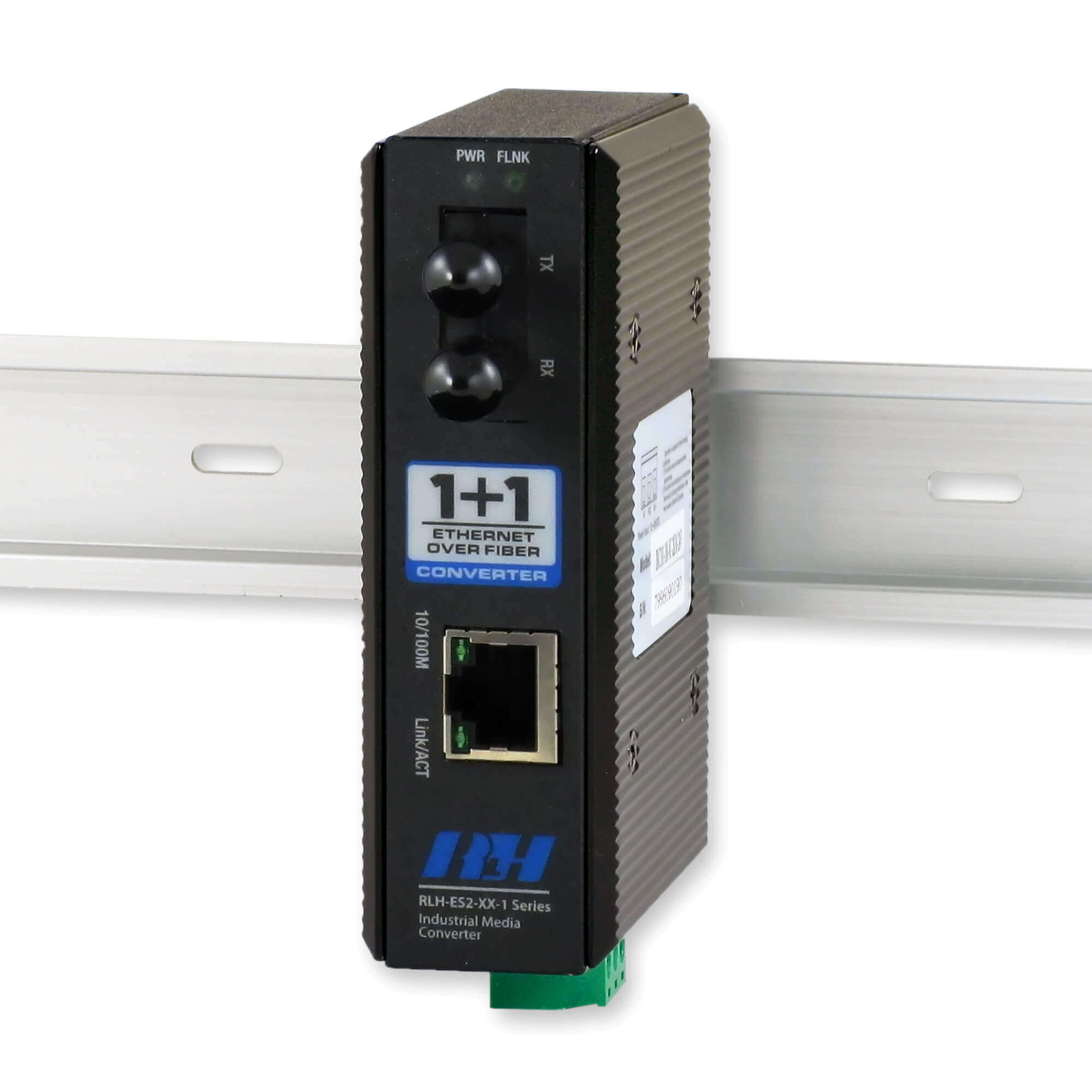

The RLH 10/100 Ethernet DIN Fiber Link system is a rugged, full featured media converter. It converts copper Ethernet to fiber, and may be used to extend a copper Ethernet network up to 74 miles (120km) over fiber optic cable.
The RLH Slimline DIN 10/100M Ethernet Over Fiber system is a multi-function converter that supports Ethernet communications over fiber optic cable. Fiber optics not only provide the long distance Ethernet transmission capability up to 74.5 Miles (120km), but also provide immunity to EMI/RFI and transient surges. They are ideal for data communications near large electrical equipment or where radio interference can be an issue.
The slim DIN housing requires only 32mm of DIN rail space for mounting.
It requires a local 12~36VDC power supply that connects via a power terminal on the bottom. DIN rail power supplies are available to power the Slimline converter from AC or DC mains.
- Compact, Slim, low cost Ethernet data over fiber solution
- Available with ST, SC or FC connectors
- Available in Single or Multimode fiber, up to 74.5mi /120km fiber range
- Auto sensing for 10/100 Mbps speeds on copper Ethernet connections
- IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
- IEEE802.3x compliant for full-duplex, back pressure flow control for half-duplex
- Provides 801.1q pass-thru
- Eliminates EMI, RFI, cross talk or ground loop issues
- Convenient LED Status monitoring
- Powering requires 12~36VDC 2A power supply
- Built-in surge, static and circuit protection
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 1310nm
Singlemode: 1310nm/1550nm
Fiber Type Distance:
Multimode (62.5/125µm & 50/125µm): 1.2 miles/2km
Singlemode (9/125µm): up to 24.8mi /40km, 37mi / 60km, and 74.5mi / 120km
Fiber Connector Type:
ST, SC, or FC
Dimensions:

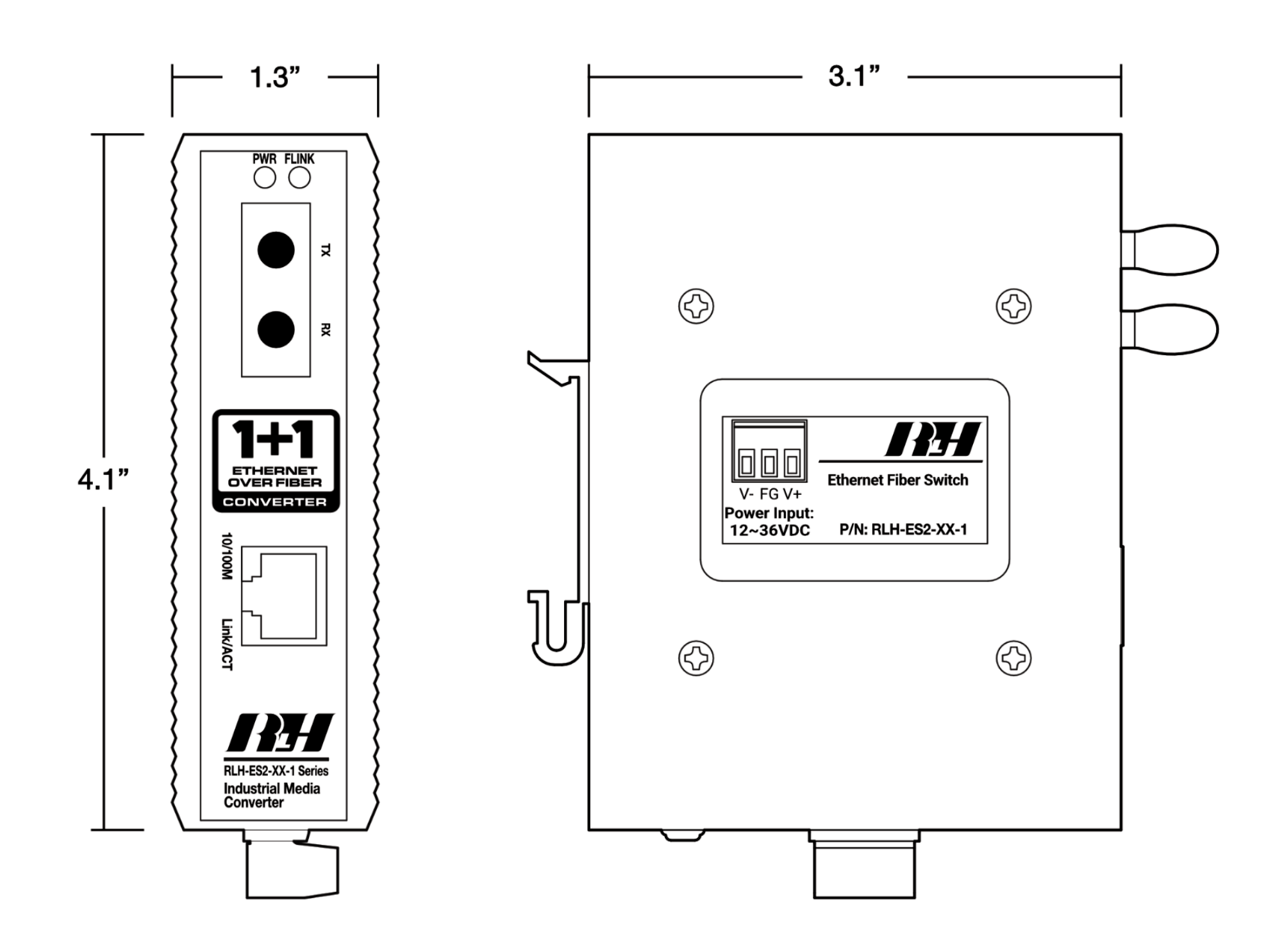

H4.1” x W1.3” x D3.1” (103mm x 32mm x 78mm) not including DIN mount bracket
Power Requirements:
12~36VDC 1A via screw-down connector on bottom
RLH-ES2-04-1
RLH-ES2-03-1
RLH-ES2-50-1
RLH-ES2-51-1
RLH-ES2-55-1
RLH-ES2-40-1
RLH-ES2-41-1
RLH-ES2-45-1
RLH-ES2-10-1
RLH-ES2-11-1
RLH-ES2-14-1
RLH-ES2-15-1
Ordering
10/100 Slimline Ethernet Media Converter
| Product configuration | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Multimode, SC, 2km/1.2 miles, Dual Fiber, 1310nm | Multimode | SC | 2km/1.2 miles | Dual Fiber | 1310nm | RLH-ES2-03-1 | $245.00 | multimode | sc | 2km-1-2-miles | |
| Multimode, ST, 2km/1.2 miles, Dual Fiber, 1310nm | Multimode | ST | 2km/1.2 miles | Dual Fiber | 1310nm | RLH-ES2-04-1 | $245.00 | multimode | st | 2km-1-2-miles | |
| Singlemode, ST, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 1310nm | RLH-ES2-50-1 | $310.00 | singlemode | st | 20km-12-4-miles | |
| Singlemode, ST, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | ST | 60km/37 miles | Dual Fiber | 1310nm | RLH-ES2-51-1 | $465.00 | singlemode | st | 60km-37-miles | |
| Singlemode, ST, 120km/74 miles, Dual Fiber, 1550nm | Singlemode | ST | 120km/74 miles | Dual Fiber | 1550nm | RLH-ES2-55-1 | $685.00 | singlemode | st | 120km-74-miles | |
| Singlemode, SC, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 1310nm | RLH-ES2-40-1 | $310.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | SC | 60km/37 miles | Dual Fiber | 1310nm | RLH-ES2-41-1 | $465.00 | singlemode | sc | 60km-37-miles | |
| Singlemode, SC, 120km/74 miles, Dual Fiber, 1550nm | Singlemode | SC | 120km/74 miles | Dual Fiber | 1550nm | RLH-ES2-45-1 | $685.00 | singlemode | sc | 120km-74-miles | |
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A, T-1310/R-1550 | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | RLH-ES2-10-1 | $350.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B, T-1550/R-1310 | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | RLH-ES2-11-1 | $350.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 60km/37mi, Single Fiber - Side A, T-1310/R-1550 | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | RLH-ES2-14-1 | $525.00 | singlemode | sc | 60km-37-miles | |
| Singlemode, SC, 60km/37mi, Single Fiber - Side B, T-1550/R-1310 | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | RLH-ES2-15-1 | $525.00 | singlemode | sc | 60km-37-miles |
- Bidirectional single fiber models require an A side and B side unit for a complete system
