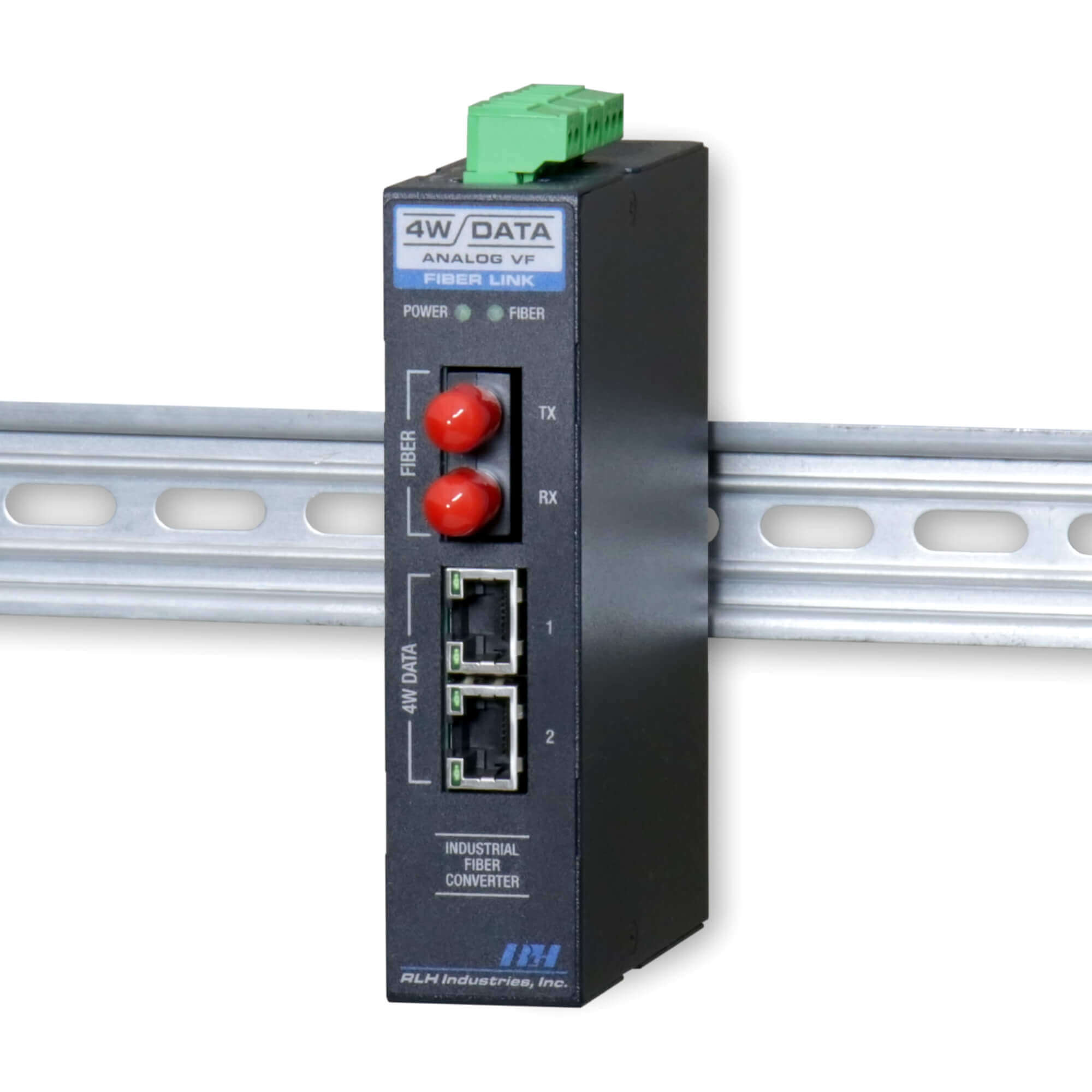

Extend Two 4 Wire Voice Frequency Signals Over Fiber Optic Cable

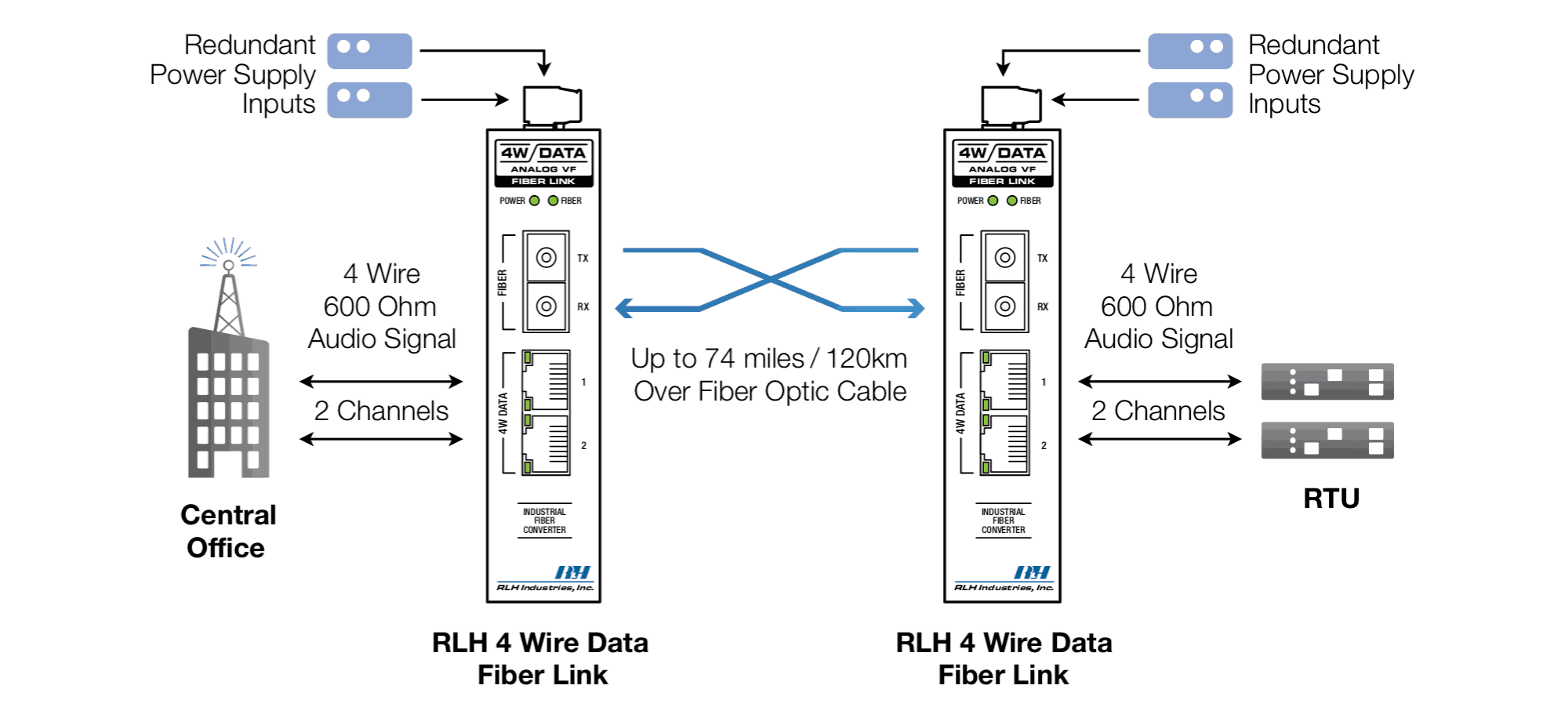

This industrial fiber optic media converter is designed to extend two 4 Wire Voice Frequency Signals over fiber optic cable. By extending 4 Wire signals over fiber cable you gain the advantage of sending the signal long distances, up to 120km, as well as gain noise immunity to RF and Electromagnetic Interference.
This system transports two circuits of 4 Wire Data and supports E&M signaling. The devices can be ordered with dual fiber or single fiber transceivers. The 4 wire data supports constant transmission of voice frequency ranging from 300Hz-3,400Hz which is suitable for a wide range of radio and SCADA applications. This RLH Fiber Link system is designed and made in the USA and covered by our Limited Lifetime Warranty.
- Rugged design, operating temperature range -40°C ~ 70°C
- Transports voice frequency data 300Hz to 3,400Hz
- Multiplexes 2 Independent 4 Wire Data Circuits over fiber
- Supports 600 Ohm audio standard impedance
- Single fiber and dual fiber transceivers available
- Extend the signals long distances, up to 120km over fiber

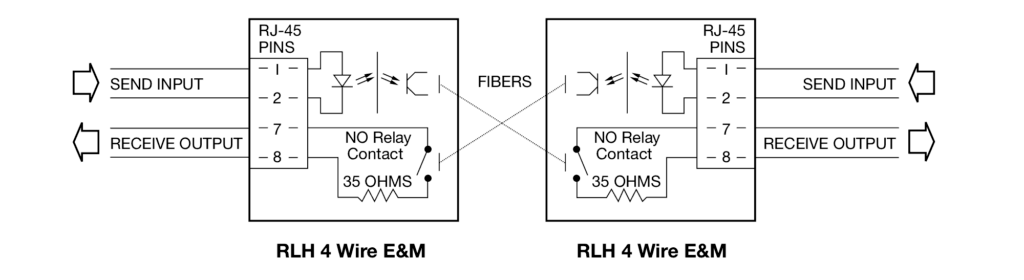

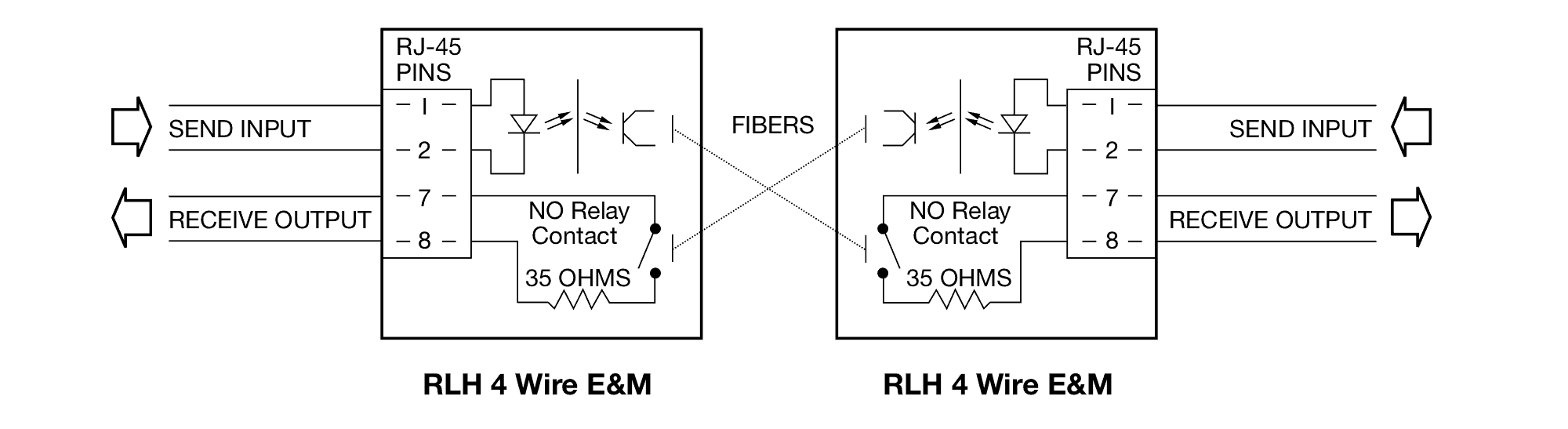

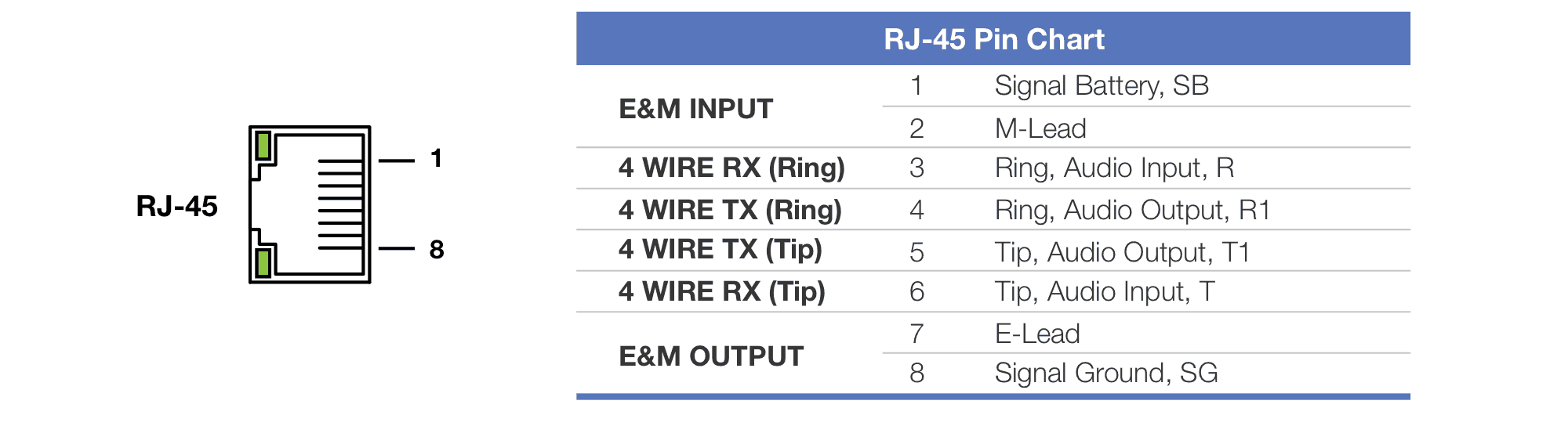

- Supports E&M signaling
- Built-in alarm relay to indicate system health
- Includes both DIN clip and wall mount ears for easy installation
- System power range options: 24~48VDC or 125 VDC
- Limited Lifetime Warranty
- Made in USA
Powering Voltage:
Standard Model – 24-48VDC
-A Model – 125VDC
Power Consumption:
6 Watts (Maximum)
Fiber Connectors:
ST or SC
Fiber Type:
Singlemode up to 120km
Multimode up to 2km, supports 62.5μm and 50μm
Analog Bandwidth (Voice Frequency):
300Hz to 3,400Hz
Channel Noise:
< 20dBrnC (15dBrnC typical)
Nominal Impedance:
600 Ohm input and output
Insertion Loss:
0dB +/- 0.5dB each direction
Signal Input Level:
+8 to -16dBM
E&M Input:
24-48VDC, 3000Vrms optically isolated
E&M Output:
1500VRMS isolation by normally open solid state relay
Closed resistance 35 Ohms (220VAC or 330VDC @ 150mA max.) Open resistance > 1M Ohms
Response Time:
Input to output 15-18ms
System Alarm Output:
Normally Closed / Normally Open (NCNO) Relay
Surge Protection:
Varistors & Automatic resettable fuses
DC Input Isolation 1.5kV
Construction:
Powder coated steel and aluminum alloy
Physical Dimensions H 4.93” x W 1.20” x D 3.93” (125mm x 31mm x 100mm)
Mounting Style:
Standard DIN rail (T-35)
Wall mount (with included ears)
Operating:
Temperature -40°F to +158°F (-40°C to +70°C)
Humidity 95%
MTBF 175,000 Hrs. (Circuit Board level)
General Information
Specialized Drawings
Miscellaneous
4D-2EM-03-1
4D-2EM-04-1
4D-2EM-40-1
4D-2EM-41-1
4D-2EM-45-1
4D-2EM-50-1
4D-2EM-51-1
4D-2EM-55-1
4D-2EM-10-1
4D-2EM-11-1
4D-2EM-14-1
4D-2EM-15-1
$975.00 – $1,415.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
2 Channel 4 Wire Data with E&M System
Product configuration | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
---|---|---|---|---|---|---|---|---|---|---|
Multimode, SC, 2km/1.2 miles, Dual Fiber | Multimode | SC | 2km/1.2 miles | Dual Fiber | 4D-2EM-03-1 | $975.00 | multimode | sc | 2km-1-2-miles | |
Multimode, ST, 2km/1.25 miles, Dual Fiber | Multimode | ST | 2km/1.2 miles | Dual Fiber | 4D-2EM-04-1 | $975.00 | multimode | st | 2km-1-2-miles | |
Singlemode, SC, 20km/12.4 miles, Dual Fiber | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 4D-2EM-40-1 | $1,085.00 | singlemode | sc | 20km-12-4-miles | |
Singlemode, SC, 60km/37 miles, Dual Fiber | Singlemode | SC | 60km/37 miles | Dual Fiber | 4D-2EM-41-1 | $1,195.00 | singlemode | sc | 60km-37-miles | |
Singlemode, SC, 120km/74 miles, Dual Fiber | Singlemode | SC | 120km/74 miles | Dual Fiber | 4D-2EM-45-1 | $1,415.00 | singlemode | sc | 120km-74-miles | |
Singlemode, ST, 20km/12.4 miles, Dual Fiber | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 4D-2EM-50-1 | $1,085.00 | singlemode | st | 20km-12-4-miles | |
Singlemode, ST, 60km/37 miles, Dual Fiber | Singlemode | ST | 60km/37 miles | Dual Fiber | 4D-2EM-51-1 | $1,195.00 | singlemode | st | 60km-37-miles | |
Singlemode, ST, 120km/74 miles, Dual Fiber | Singlemode | ST | 120km/74 miles | Dual Fiber | 4D-2EM-55-1 | $1,415.00 | singlemode | st | 120km-74-miles | |
Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | 4D-2EM-10-1 | $1,115.00 | singlemode | sc | 20km-12-4-miles | |
Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | 4D-2EM-11-1 | $1,115.00 | singlemode | sc | 20km-12-4-miles | |
Singlemode, SC, 60km/37 miles, Single Fiber - Side A | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | 4D-2EM-14-1 | $1,255.00 | singlemode | sc | 60km-37-miles | |
Singlemode, SC, 60km/37 miles, Single Fiber - Side B | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | 4D-2EM-15-1 | $1,255.00 | singlemode | sc | 60km-37-miles |
- For the 125VDC input power option, please note your part number, add -A to the end, and get your quote here
- A complete system requires 2 units
- Bi-Directional single fiber models require an A side and B side unit for a complete system
