Transmit four 4~20mA Analog Signals over Fiber with High Speed and Accuracy
This Fiber Optic Media converter transmits 4 Analog signals over fiber cable. Offers high end specifications: 78,000 samples a second, 16 bit signal resolution, and less than 0.1% source signal variance.

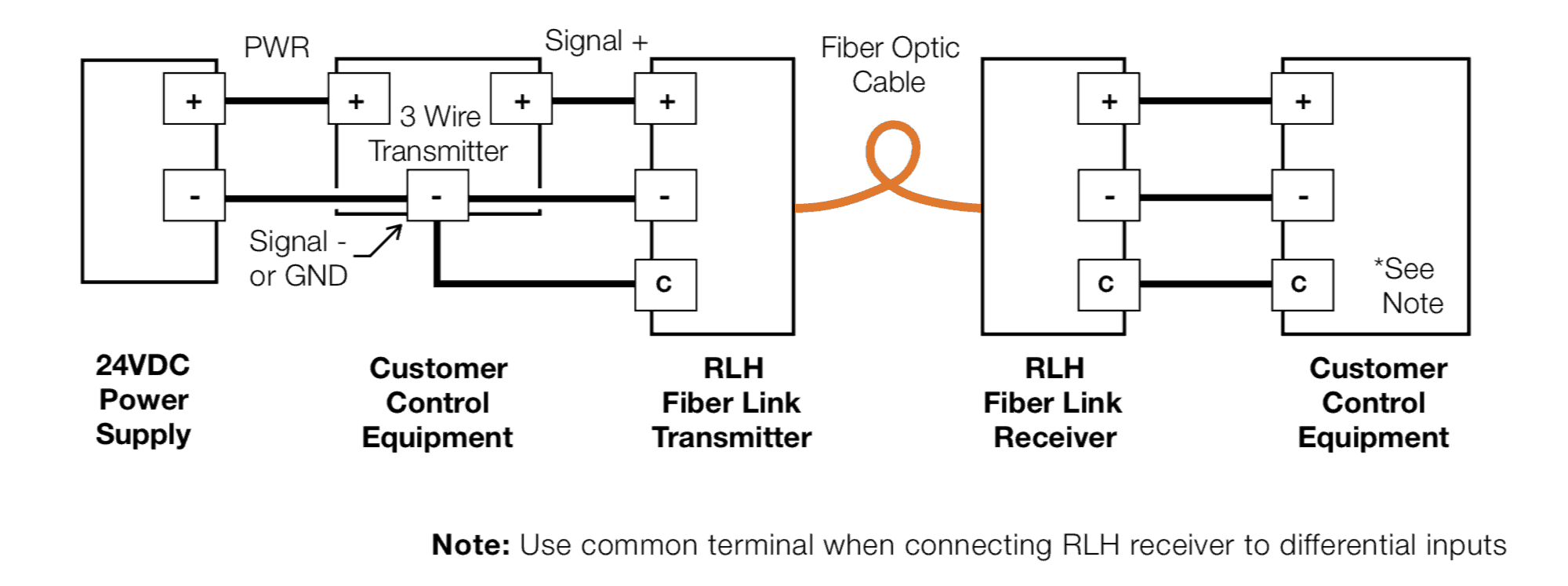

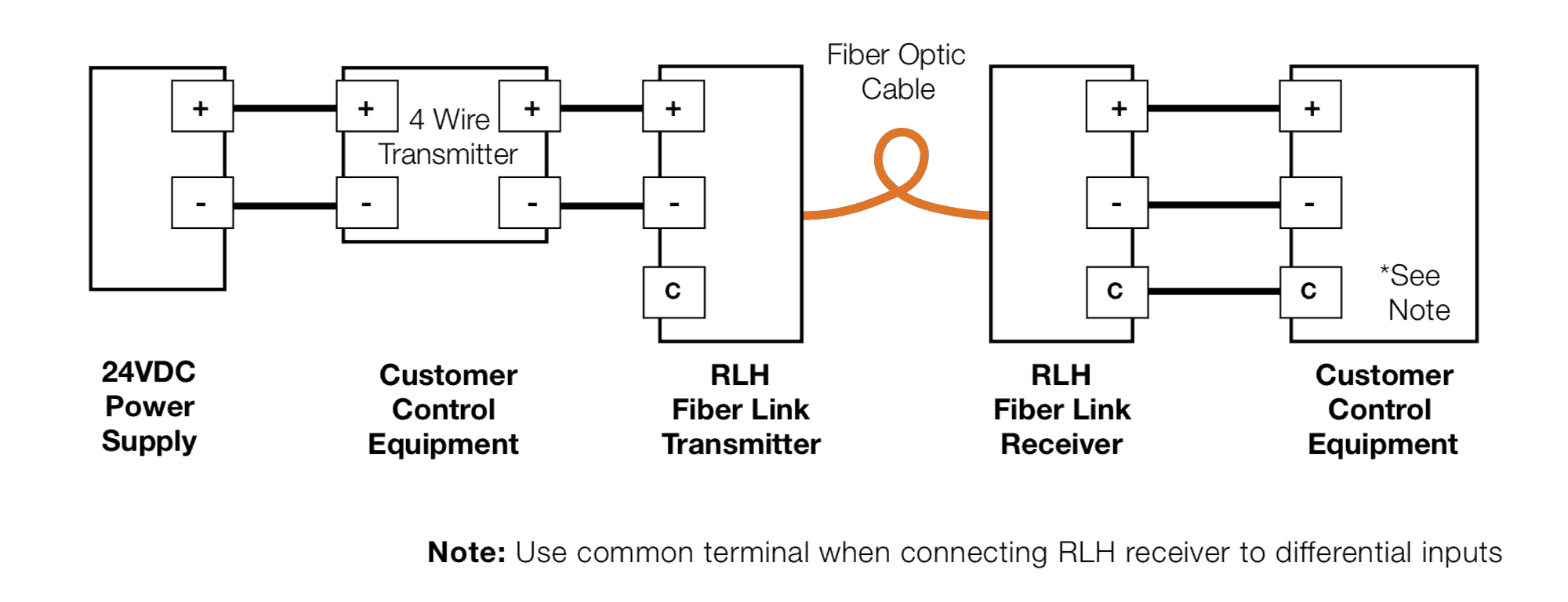

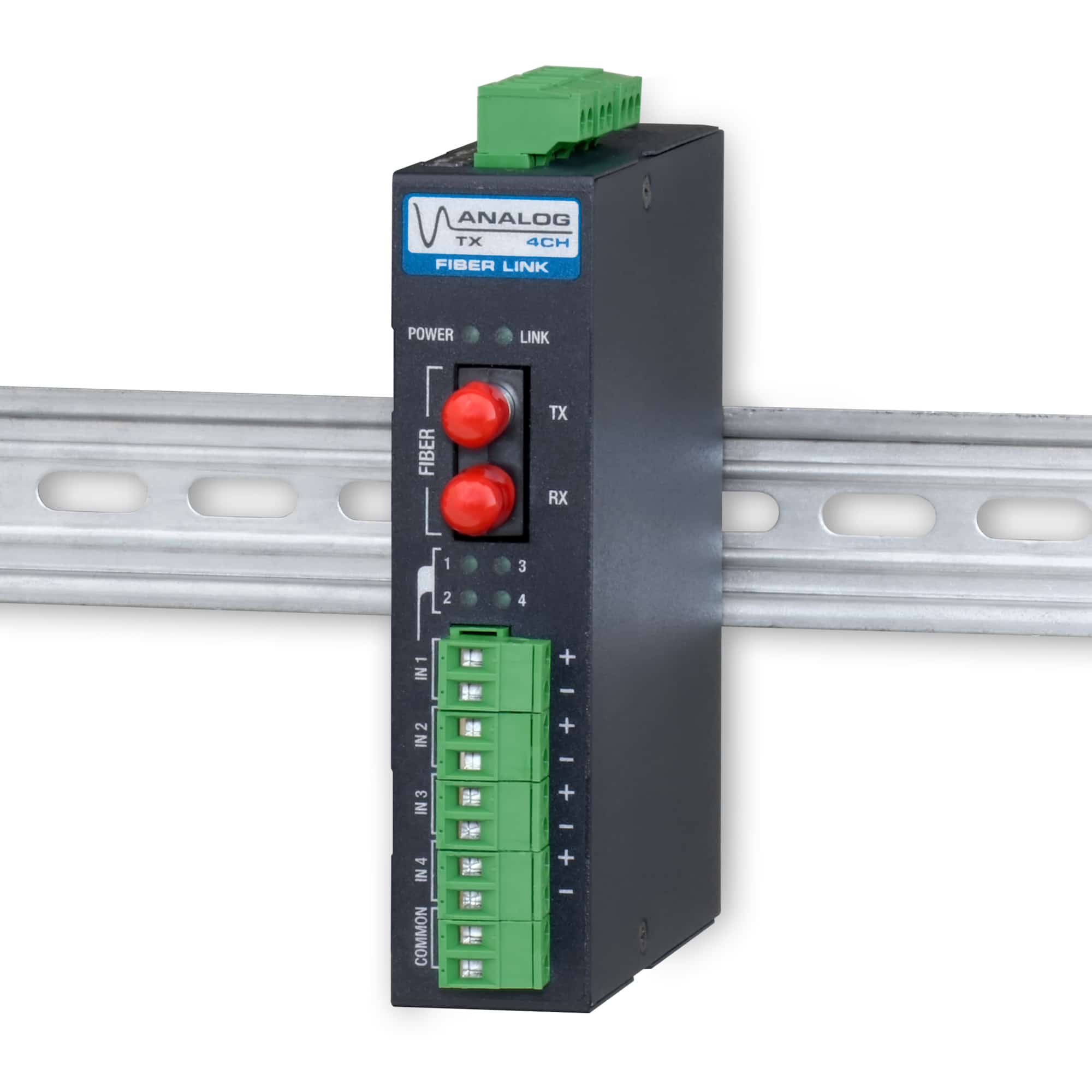

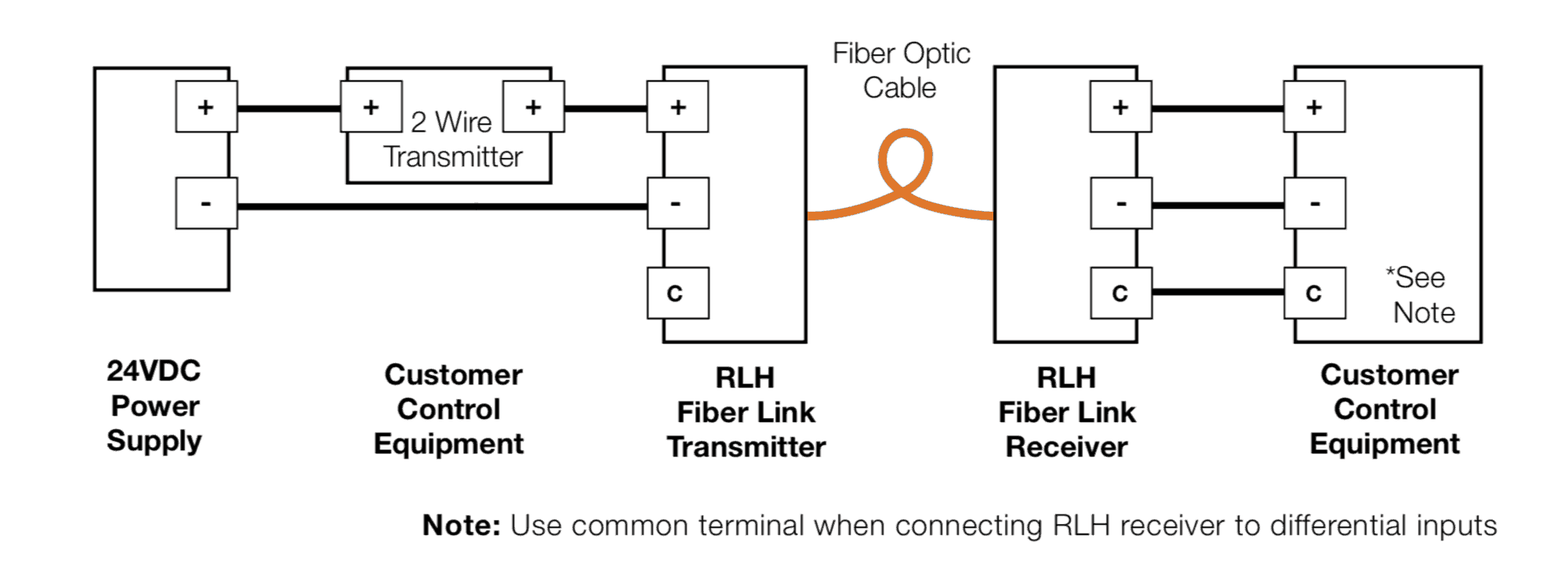

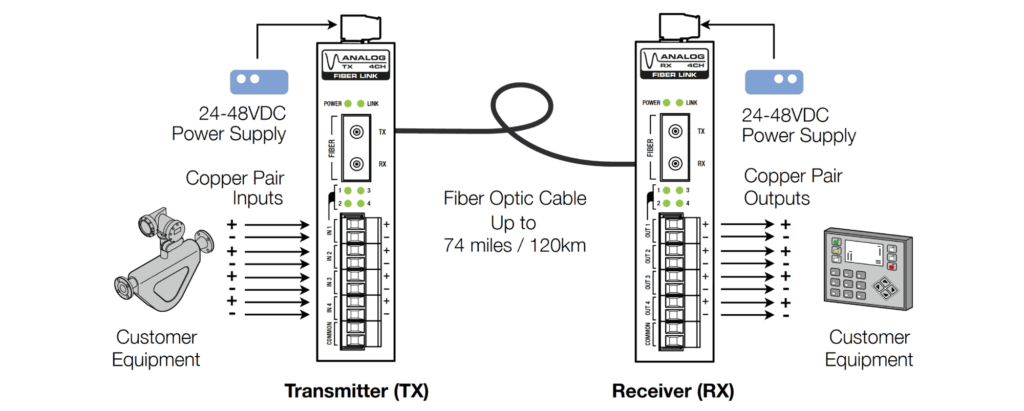

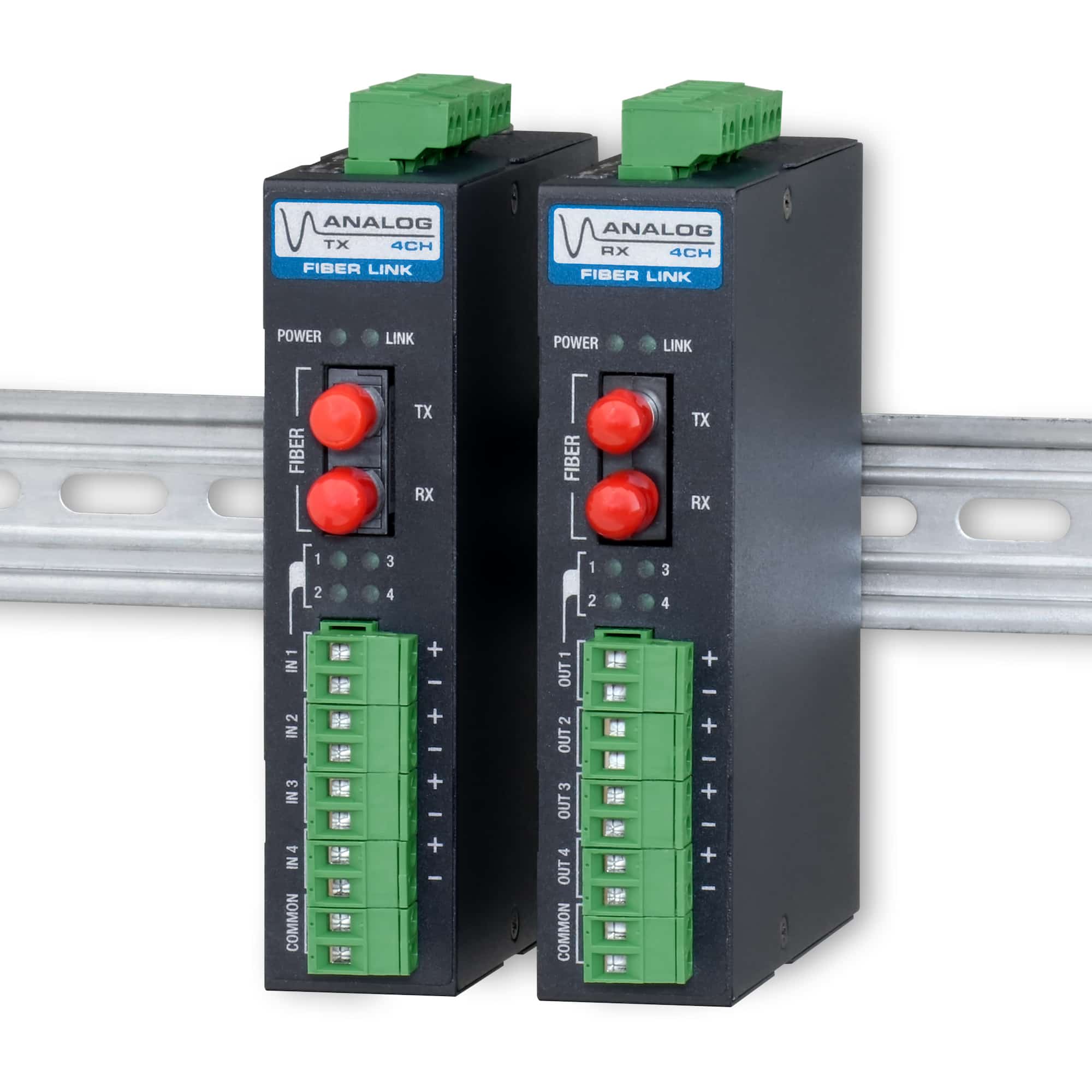

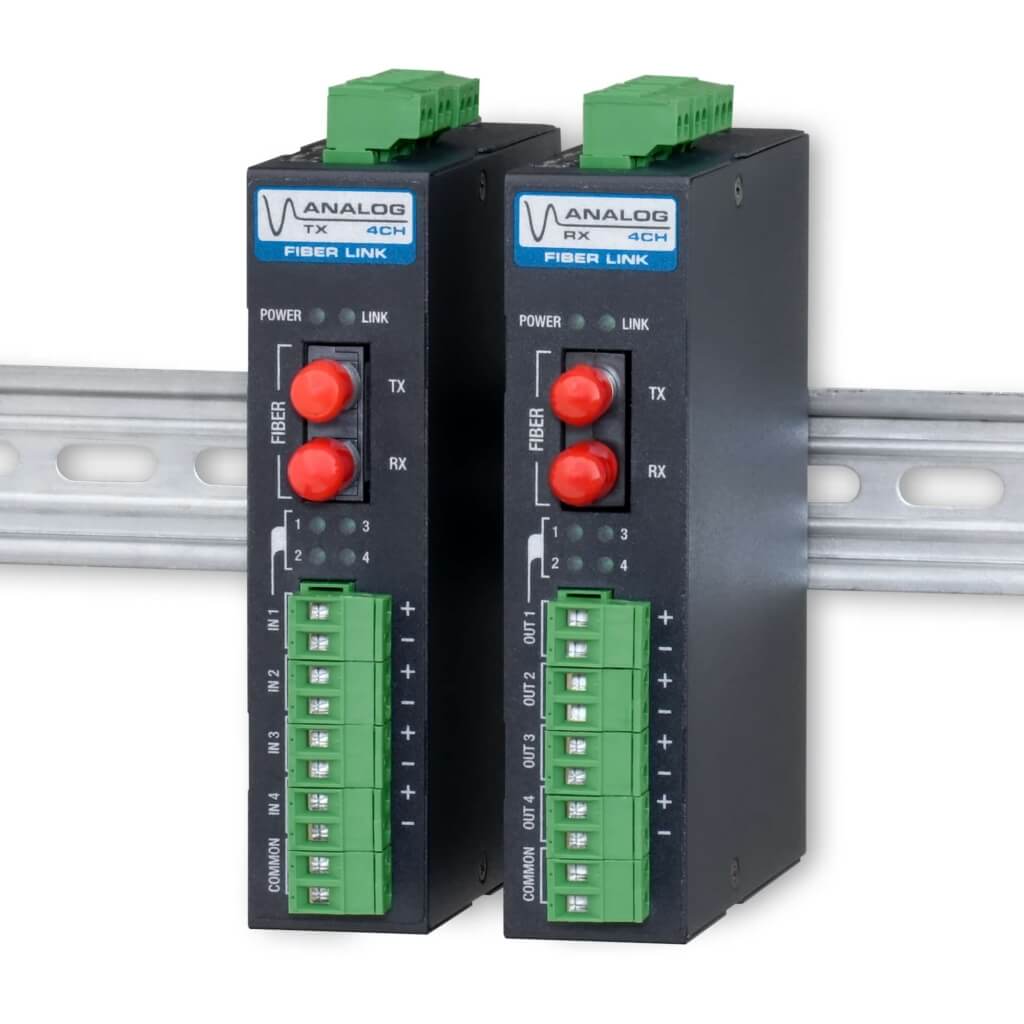

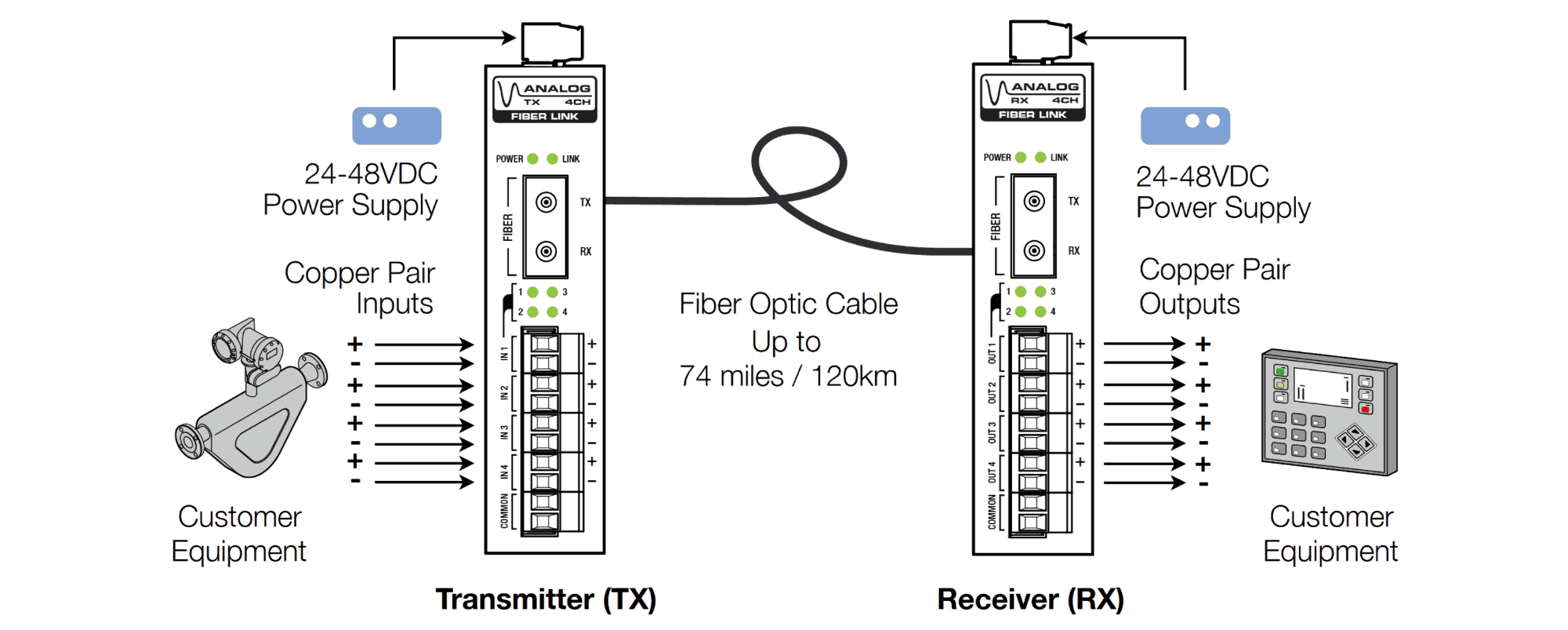

Compatible with most PLC’s, Sensors (2, 3, or 4 wire), and other types of equipment where a precise current or voltage measurement must be taken and transmitted over fiber. The system comprises of a transmitter (Analog Input) and a receiver (Analog Output), each device is enclosed in a compact DIN and wall mountable housing.
This compact and rugged system provides convenient and easy to read LEDs, supports both single-mode and multimode fiber applications, and includes an alarm on either side monitoring system power and fiber health. Designed to operate over an extreme temperature range, providing reliability in harsh environments. Designed and Made in the USA and covered by our Limited Lifetime Warranty.
- Rugged design – Extreme operating temperature rating
- Convenient LEDs for power, fiber, and analog signals
- Single and dual fiber models available
- Available with ST or SC connectors & single or multimode fiber
- Update rate: 78,000 samples a second
- 16 Bit Signal Resolution
- 99.9% Accuracy or Better
- Alarm contact for status monitoring
- Redundant Power Inputs
- Built-in surge, over current, and polarity reversal protection
- DIN rail or wall mount (Includes wall mount ears)
- Limited Lifetime Warranty
- Made in USA
Powering Voltage
Standard Model – 24VDC
Maximum Power Consumption
Transmitter – 8 Watts (Maximum)
Receiver – 10 Watts (Maximum)
Fiber Connectors
ST or SC
Fiber Type
Dual and Single Fiber available
Singlemode up to 120km
Multimode up to 2km, supports 62.5μm and 50μm
System Accuracy
Signal Accuracy: 99.9%
Ambient Temp Effect: Approximately 0.2% over range -40°F to +158°F
Update Rate: 12.8μs (78,000 updates per second)
Signal Resolution: 16 Bits
Sensitivity: 2^16 (65,536) Steps
Range: 0mA – 20mA (DC)
Maximum Signal Output: 24mA (DC)
*Additional Input/Output specifications available in data sheet
LED
POWER – DC Power OK
FIBER – Fiber Receiving
Input – Analog Input Status
Output – Analog Output Status
Surge Protection
Varistors & Automatic resettable fuses
DC Input Isolation 1.5kV
Voltage Reversal Protection
Construction
Powder coated steel and aluminum alloy
Physical Dimensions H 4.93” x W 1.20” x D 3.93” (125mm x 31mm x 100mm)
Mounting Style
Standard DIN rail (T-35)
Wall mount (with included ears)
Operating
Temperature -40°F to +158°F (-40°C to +70°C)
Humidity 95%
General Information
Specialized Drawings
Miscellaneous
ADH-420TX-03-1
ADH-420RX-03-1
ADH-420TX-04-1
ADH-420RX-04-1
ADH-420TX-40-1
ADH-420RX-40-1
ADH-420TX-41-1
ADH-420RX-41-1
ADH-420TX-45-1
ADH-420RX-45-1
ADH-420TX-50-1
ADH-420RX-50-1
ADH-420TX-51-1
ADH-420RX-51-1
ADH-420TX-55-1
ADH-420RX-55-1
ADH-420TX-10-1
ADH-420RX-11-1
ADH-420TX-14-1
ADH-420RX-15-1
ADH-010TX-14-1
ADH-010RX-15-1
$785.00 – $1,225.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4 Channel 4~20mA Fiber Converter
Product configuration | Transmitter/Receiver | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_transmitter-receiver | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Transmitter, Multimode, SC, 2km/1.2 miles, Dual Fiber | Transmitter | Multimode | SC | 2km/1.2 miles | Dual Fiber | ADH-420TX-03-1 | $785.00 | transmitter | multimode | sc | 2km-1-2-miles | |
Receiver, Multimode, SC, 2km/1.2 miles, Dual Fiber | Receiver | Multimode | SC | 2km/1.2 miles | Dual Fiber | ADH-420RX-03-1 | $785.00 | receiver | multimode | sc | 2km-1-2-miles | |
Transmitter, Multimode, ST, 2km/1.2 miles, Dual Fiber | Transmitter | Multimode | ST | 2km/1.2 miles | Dual Fiber | ADH-420TX-04-1 | $785.00 | transmitter | multimode | st | 2km-1-2-miles | |
Receiver, Multimode, ST, 2km/1.2 miles, Dual Fiber | Receiver | Multimode | ST | 2km/1.2 miles | Dual Fiber | ADH-420RX-04-1 | $785.00 | receiver | multimode | st | 2km-1-2-miles | |
Transmitter, Singlemode, SC, 20km/12.4 miles, Dual Fiber | Transmitter | Singlemode | SC | 20km/12.4 miles | Dual Fiber | ADH-420TX-40-1 | $895.00 | transmitter | singlemode | sc | 20km-12-4-miles | |
Receiver, Singlemode, SC, 20km/12.4 miles, Dual Fiber | Receiver | Singlemode | SC | 20km/12.4 miles | Dual Fiber | ADH-420RX-40-1 | $895.00 | receiver | singlemode | sc | 20km-12-4-miles | |
Transmitter, Singlemode, SC, 60km/37 miles, Dual Fiber | Transmitter | Singlemode | SC | 60km/37 miles | Dual Fiber | ADH-420TX-41-1 | $1,005.00 | transmitter | singlemode | sc | 60km-37-miles | |
Receiver, Singlemode, SC, 60km/37 miles, Dual Fiber | Receiver | Singlemode | SC | 60km/37 miles | Dual Fiber | ADH-420RX-41-1 | $1,005.00 | receiver | singlemode | sc | 60km-37-miles | |
Transmitter, Singlemode, SC, 120km/74 miles, Dual Fiber | Transmitter | Singlemode | SC | 120km/74 miles | Dual Fiber | ADH-420TX-45-1 | $1,225.00 | transmitter | singlemode | sc | 120km-74-miles | |
Receiver, Singlemode, SC, 120km/74 miles, Dual Fiber | Receiver | Singlemode | SC | 120km/74 miles | Dual Fiber | ADH-420RX-45-1 | $1,225.00 | receiver | singlemode | sc | 120km-74-miles | |
Transmitter, Singlemode, ST, 20km/12.4 miles, Dual Fiber | Transmitter | Singlemode | ST | 20km/12.4 miles | Dual Fiber | ADH-420TX-50-1 | $895.00 | transmitter | singlemode | st | 20km-12-4-miles | |
Receiver, Singlemode, ST, 20km/12.4 miles, Dual Fiber | Receiver | Singlemode | ST | 20km/12.4 miles | Dual Fiber | ADH-420RX-50-1 | $895.00 | receiver | singlemode | st | 20km-12-4-miles | |
Transmitter, Singlemode, ST, 60km/37 miles, Dual Fiber | Transmitter | Singlemode | ST | 60km/37 miles | Dual Fiber | ADH-420TX-51-1 | $1,005.00 | transmitter | singlemode | st | 60km-37-miles | |
Receiver, Singlemode, ST, 60km/37 miles, Dual Fiber | Receiver | Singlemode | ST | 60km/37 miles | Dual Fiber | ADH-420RX-51-1 | $1,005.00 | receiver | singlemode | st | 60km-37-miles | |
Transmitter, Singlemode, ST, 120km/74 miles, Dual Fiber | Transmitter | Singlemode | ST | 120km/74 miles | Dual Fiber | ADH-420TX-55-1 | $1,225.00 | transmitter | singlemode | st | 120km-74-miles | |
Receiver, Singlemode, ST, 120km/74 miles, Dual Fiber | Receiver | Singlemode | ST | 120km/74 miles | Dual Fiber | ADH-420RX-55-1 | $1,225.00 | receiver | singlemode | st | 120km-74-miles | |
Transmitter, Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A | Transmitter | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | ADH-420TX-10-1 | $925.00 | transmitter | singlemode | sc | 20km-12-4-miles | |
Receiver, Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B | Receiver | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | ADH-420RX-11-1 | $925.00 | receiver | singlemode | sc | 20km-12-4-miles | |
Transmitter, Singlemode, SC, 60km/37 miles, Single Fiber - Side A | Transmitter | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | ADH-420TX-14-1 | $1,065.00 | transmitter | singlemode | sc | 60km-37-miles | |
Receiver, Singlemode, SC, 60km/37 miles, Single Fiber - Side B | Receiver | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | ADH-420RX-15-1 | $1,065.00 | receiver | singlemode | sc | 60km-37-miles |
- A complete system requires a transmitter unit and a receiver unit
