Transmit 4 Digital Inputs Bi-Directionally Over Fiber

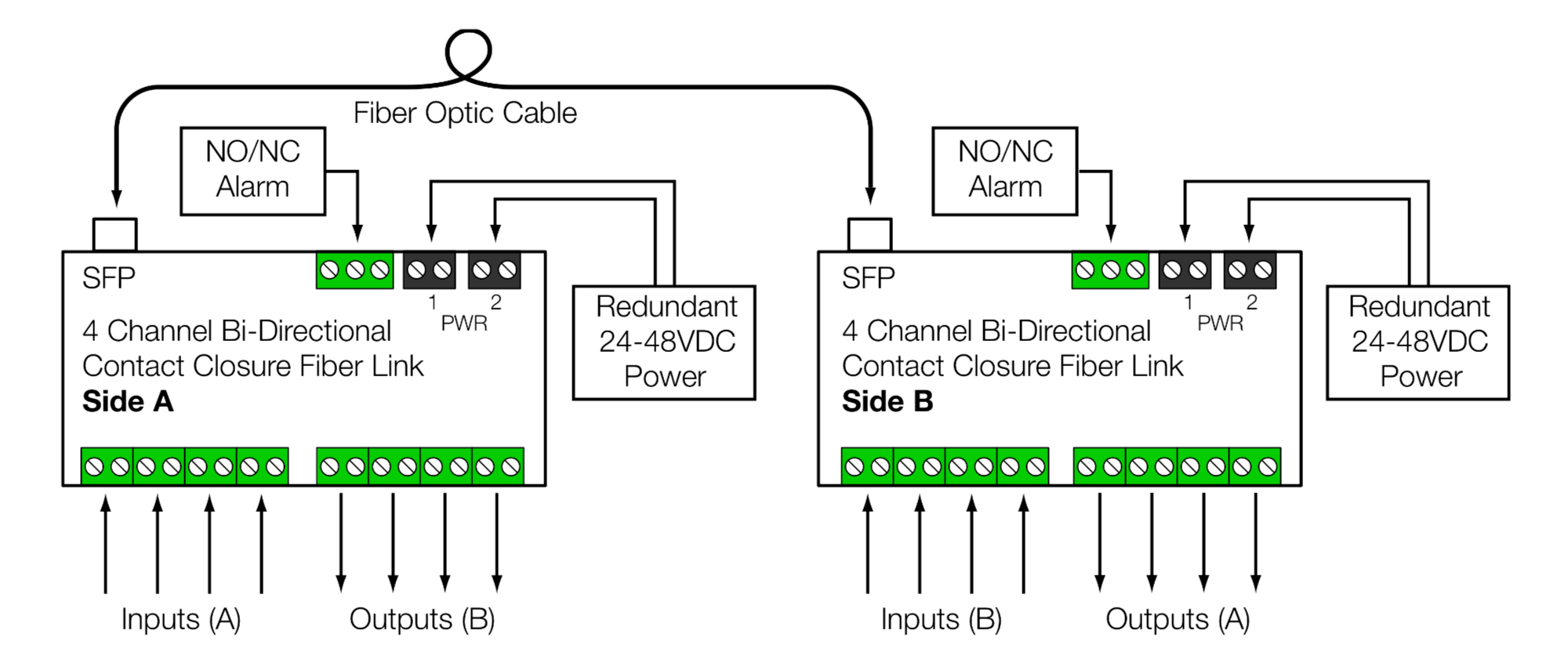

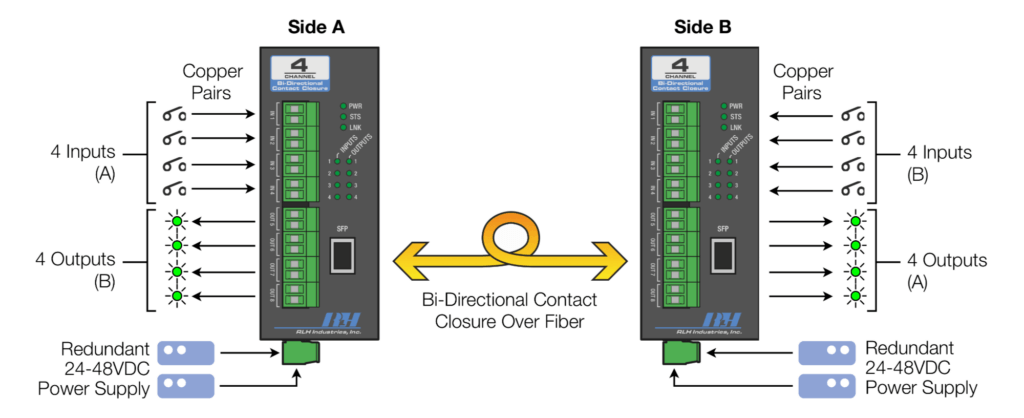

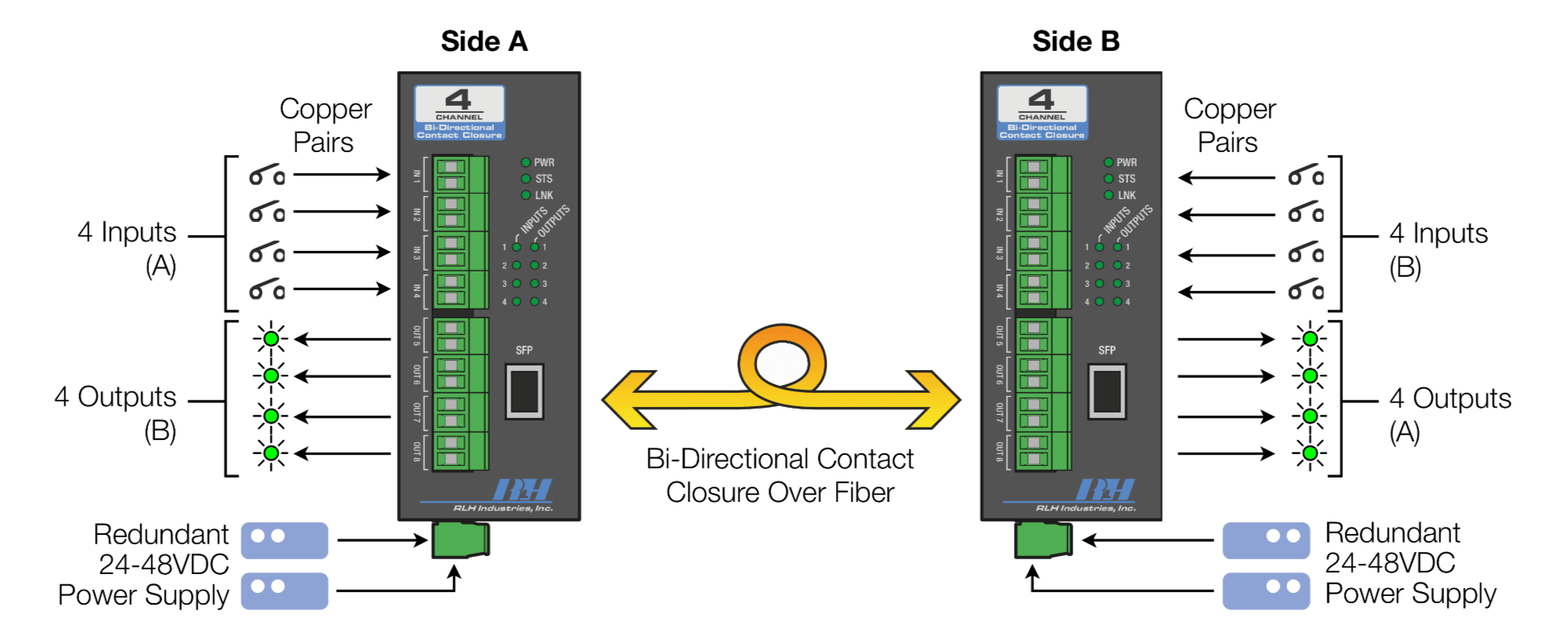

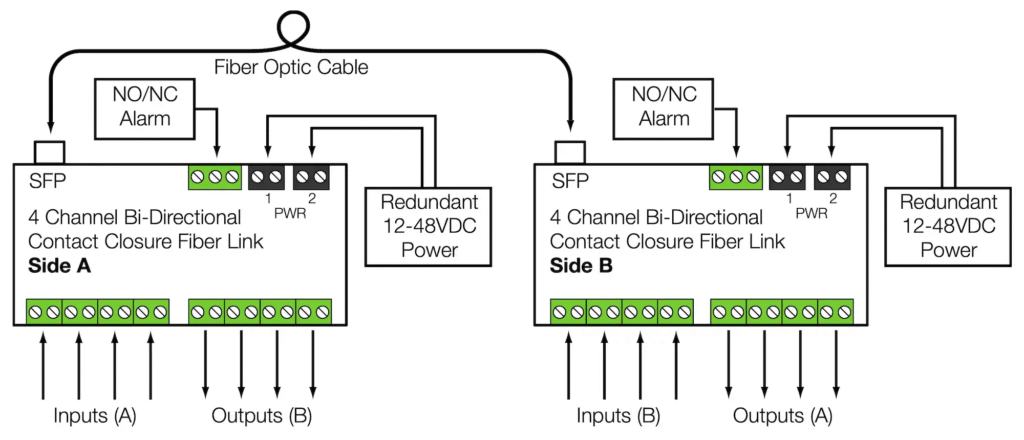

The system provides transmission of four (4) independent input signals on each end over fiber optic cable in both directions. Applications include alarm event triggering, building automation, environmental control systems, fire & alarm systems, gate control, traffic signal control equipment, and more. A complete system requires two (2) units, a 24-48VDC power source on each end, and two (2) matching SFP Transceivers.

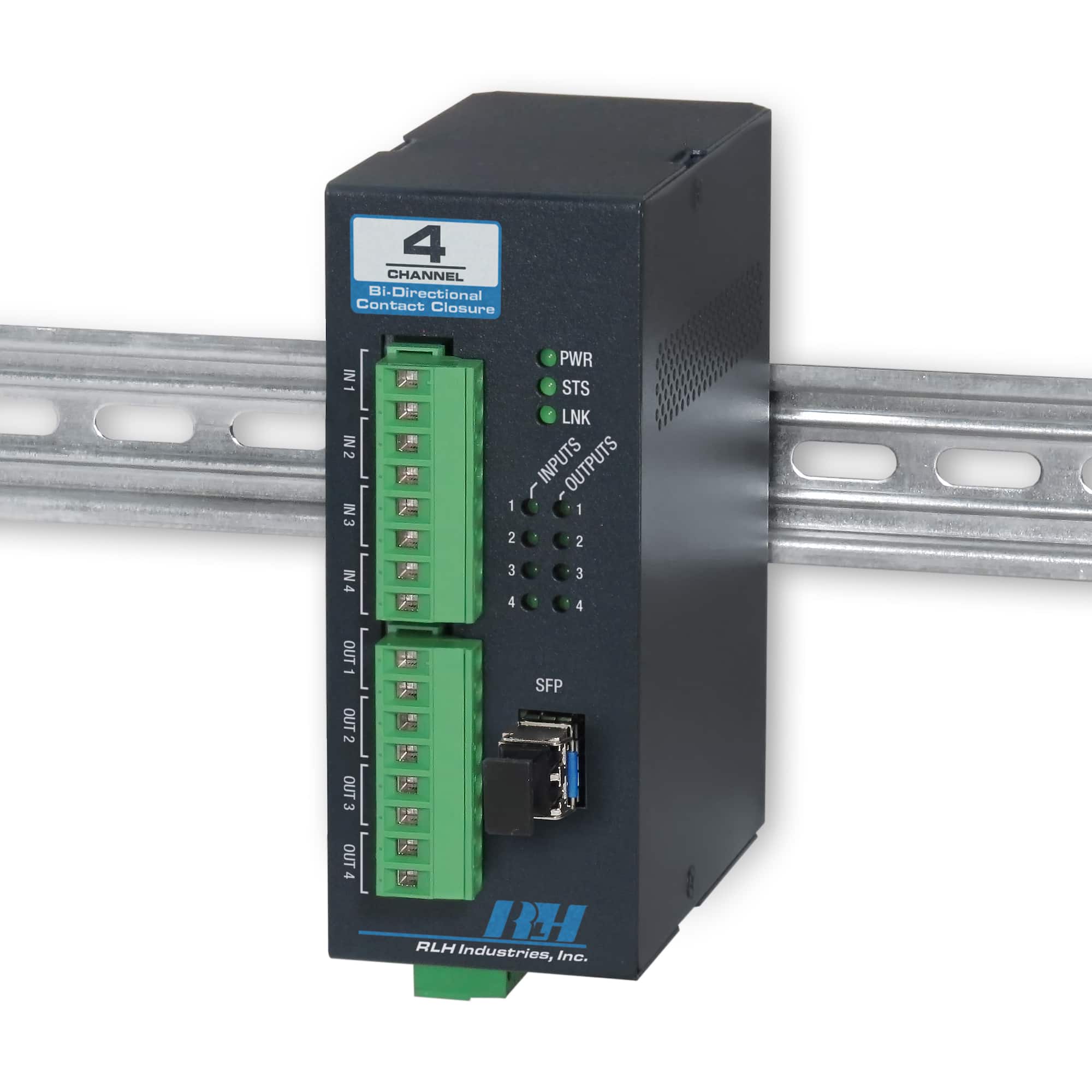

Each unit features four (4) input terminals, four (4) output relays, a NC/NO alarm contact for system monitoring, and convenient LED indicators to view system status.
- Hardened to operate in -40°F to +158°F (-40°C to +70°C)
- Compact DIN (T35) rail mount enclosure
- Can be powered by 24-48VDC
- Redundant power inputs with polarity reversal protection, 1.5kV isolation
- SFP transceiver interface
- Each output relay is rated for 60 Watts. (Available with NO or NC relays)
- Inputs can sense a Dry Contact closure
- Inputs can accept a DC voltage signal from 12 – 48 Volts (Custom voltage ranges available)
- Each Input is optically isolated, 3.5kV
- Convenient LED status indicators
- Pluggable terminal blocks
- Critical, high voltage, remote or un-manned locations operating 24/7/365
- Limited Lifetime Warranty
- Made in USA
Fiber Connector Type:
SFP Transceiver
Compatibility:
155Mbps SFP Modules
LED:
PWR, STS, LNK, and Inputs 1~4, and (TX) or Outputs 1~4 (RX)
Power Input:
24-48VDC (Polarity Insensitive)
Dual redundant power inputs
Power Consumption:
6 Watts Max
Wire Connectors:
Screw down terminal block, 16-26AWG
Inputs 1-4:
Dry Contact Sensing
Wet: 12-24VDC
Wet: 24-48VDC
Outputs 1-4:
Relay Contacts
Either Normally Open or Normally Closed Relay Contacts
Output Relay Contacts Maximum Rating:
115AC 1.087A 125VA
12VDC 3.000A 36 Watts
24VDC 2.500A 60 Watts
48VDC 1.250A 60 Watts
130VDC 0.462A 60 Watts
250VDC 0.240A 60 Watts
System Alarm Output:
Normally Open / Closed Relay
Relay Response Time:
5ms typical, 10ms maximum
Surge Protection:
Varistors, Automatic resettable fuses
DC Input Isolation:
1.5kV
Construction:
Powder coated steel and aluminum alloy
Mounting Style:
Standard DIN rail (TS-35) mount
Temperature:
-40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity:
95%
MTBF:
175,000 Hours
Dimensions/Mounting:
H 4.93” x W 2.0” x D 3.93” (not including DIN clip or pluggable connectors)
Standard T-35 DIN rail mounting
BIO-DR-NO-2
BIO-24-NO-2
BIO-48-NO-2
BIO-DR-NC-2
BIO-24-NC-2
BIO-48-NC-2
SFP-155-04-2
SFP-155-30-2
SFP-155-31-2
SFP-155-34-2
SFP-155-20-2
SFP-155-21-2
SFP-155-24-2
SFP-155-25-2
$565.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4 Channel Bi-Di Contact Closure SFP
Product configuration | Inputs | Input Type | Outputs | Output Type | Part number | Price | |
---|---|---|---|---|---|---|---|
1 SFP Slot, 4 Digital Inputs - Dry Contact Sensing, 4 Relay Outputs - Normally Open, Powering Voltage 24-48 DC | 4 Digital Inputs | Dry Contact Sensing | 4 Relay Outputs | Normally Open | BIO-DR-NO-2 | $565.00 | |
1 SFP Slot, 4 Digital Inputs - 12-24VDC, 4 Relay Outputs - Normally Open, Powering Voltage 24-48 DC | 4 Digital Inputs | 12~24VDC | 4 Relay Outputs | Normally Open | BIO-24-NO-2 | $565.00 | |
1 SFP Slot, 4 Digital Inputs - 24-48VDC, 4 Relay Outputs - Normally Open, Powering Voltage 24-48 DC | 4 Digital Inputs | 24~48VDC | 4 Relay Outputs | Normally Open | BIO-48-NO-2 | $565.00 | |
1 SFP Slot, 4 Digital Inputs - Dry Contact Sensing, 4 Relay Outputs - Normally Closed, Powering Voltage 24-48 DC | 4 Digital Inputs | Dry Contact Sensing | 4 Relay Outputs | Normally Closed | BIO-DR-NC-2 | $565.00 | |
1 SFP Slot, 4 Digital Inputs - 12-24VDC, 4 Relay Outputs - Normally Closed, Powering Voltage 24-48 DC | 4 Digital Inputs | 12~24VDC | 4 Relay Outputs | Normally Closed | BIO-24-NC-2 | $565.00 | |
1 SFP Slot, 4 Digital Inputs - 24-48VDC, 4 Relay Outputs - Normally Closed, Powering Voltage 24-48 DC | 4 Digital Inputs | 24~48VDC | 4 Relay Outputs | Normally Closed | BIO-48-NC-2 | $565.00 |
- A complete system requires a pair Fiber Link units
- SFP Transceivers are sold separately (see list below)
155M SFP Transceiver
Short description | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | hf:att:pa_distance | hf:att:pa_fibers | |
---|---|---|---|---|---|---|---|---|---|---|
Multimode, LC, 2km/1.2 miles, Dual Fiber, 1310nm | Multimode | LC | 2km/1.2 miles | Dual Fiber | 1310nm | SFP-155-04-2 | $65.00 | 2km-1-2-miles | dual-fiber | |
Singlemode, LC, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | LC | 20km/12.4 miles | Dual Fiber | 1310nm | SFP-155-30-2 | $85.00 | 20km-12-4-miles | dual-fiber | |
Singlemode, LC, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | LC | 60km/37 miles | Dual Fiber | 1310nm | SFP-155-31-2 | $120.00 | 60km-37-miles | dual-fiber | |
Singlemode, LC, 100km/62 miles, Dual Fiber, 1550nm, with Digital Diagnostic Monitoring | Singlemode | LC | 100km/62 miles | Dual Fiber | 1550nm | SFPD-155-34-2 | $280.00 | 100km-62-miles | dual-fiber | |
Singlemode, LC, 20km/12.4 miles, Single Fiber – Side A, Tx1310/Rx1550 | Singlemode | LC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | SFP-155-20-2 | $105.00 | 20km-12-4-miles | single-fiber-side-a | |
Singlemode, LC, 20km/12.4 miles, Single Fiber – Side B, Rx1310/Tx1550 | Singlemode | LC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | SFP-155-21-2 | $105.00 | 20km-12-4-miles | single-fiber-side-b | |
Singlemode, LC, 60km/37 miles, Single Fiber – Side A, Tx1310/Rx1550, with Digital Diagnostic Monitoring | Singlemode | LC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | SFPD-155-24-2 | $140.00 | 60km-37-miles | single-fiber-side-a | |
Singlemode, LC, 60km/37 miles, Single Fiber – Side B, Rx1310/Tx1550, with Digital Diagnostic Monitoring | Singlemode | LC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | SFPD-155-25-2 | $170.00 | 60km-37-miles | single-fiber-side-b |
- Single fiber (bi-directional) SFP transceivers must always be paired, side A and side B
