Transmit 8 Contact Closures Over a Single Fiber

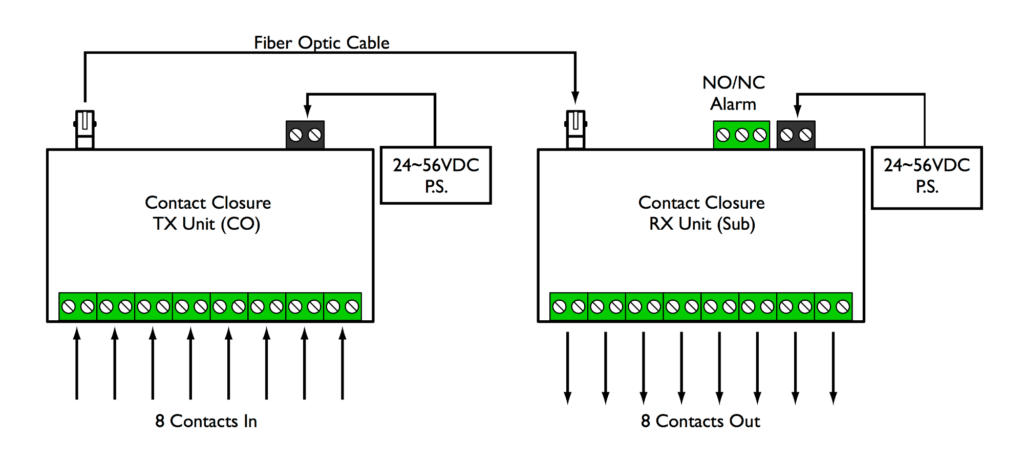

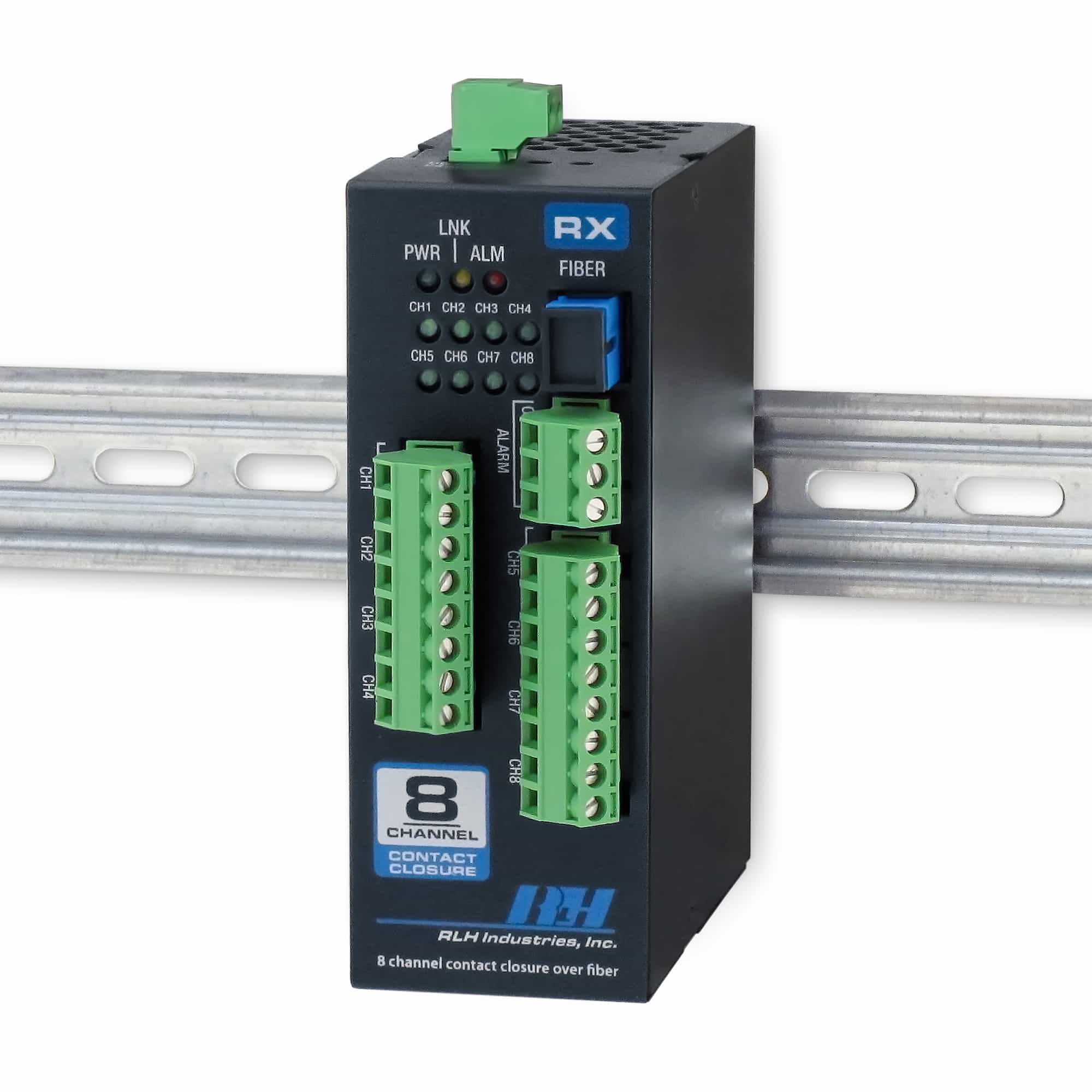

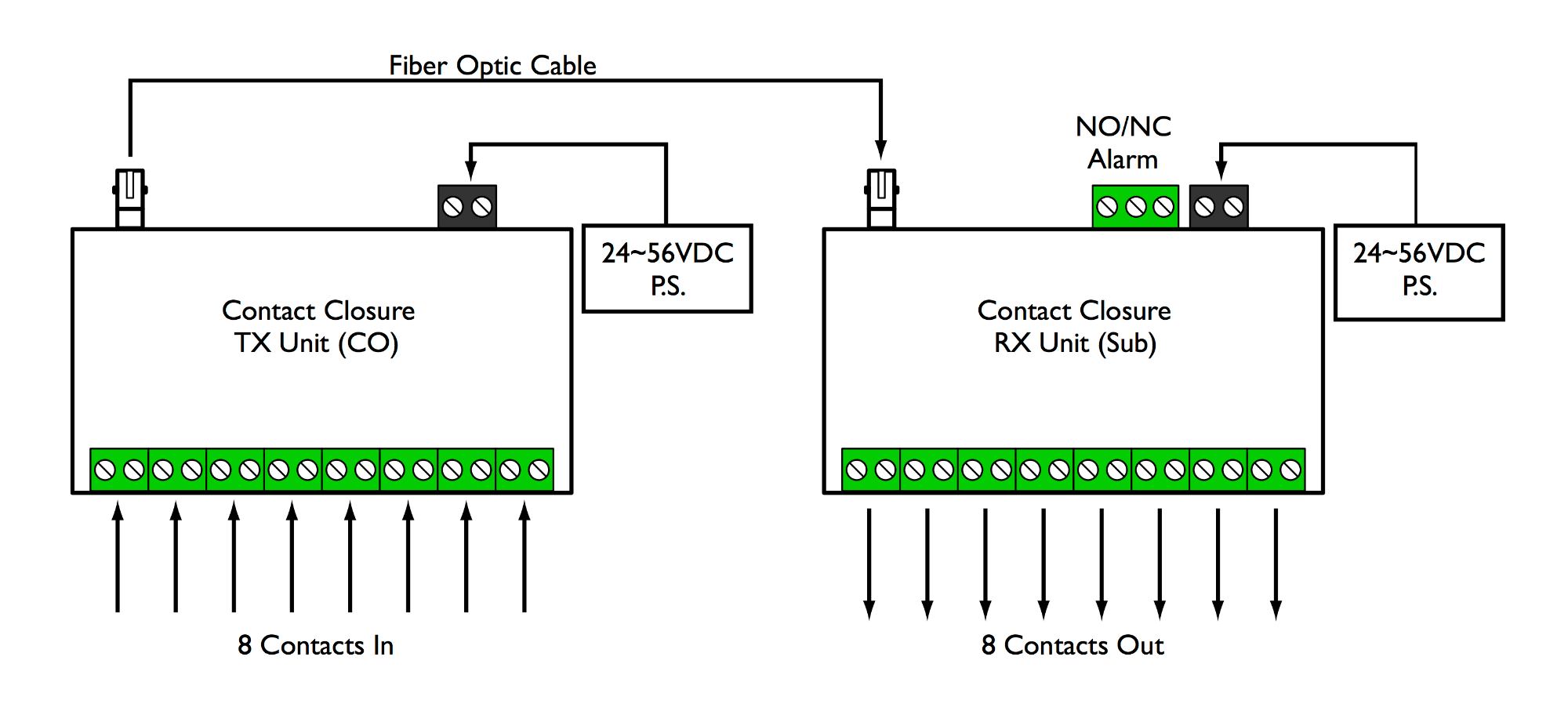

The RLH 8 Channel Contact Closure DIN Fiber Link system provides a transmission of up to eight independent contact closure signals over one optical fiber. The system comprises a transmitter module and a receiver module, each in a compact DIN mount housing.
The system requires a 24~56VDC local power source at each end to provide power. The RX module includes a NC/NO alarm contact for system monitoring. Fiber optic cable is immune to RF noise, high voltages, and provides a transmission range of up to 15km/ 9 miles.
The DIN mount is designed to be installed onto a standard T35 (35mm) DIN rail.
Features
- Hardened to operate in -40°C to +70°C (-40°F to +158°F)
- Can be powered by 24~56VDC
- Convenient LED status indicators
- Receiver includes alarm contacts for status monitoring
- Input power is not polarity sensitive
- Available in Single or Multimode
- Convenient DIN Rail or Wall Mount
- Limited Lifetme Warranty
- Made in the USA
Please see the product documentation for the complete list of specifications
Construction:
Steel and Aluminum Alloy, powder coated
Mounting Style:
Standard DIN rail (TS-35)
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
SM Long Haul: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm, 50/125µm): 6dB / 1.2 miles (2km)
Singlemode (9/125µm): 8dB / 9 miles (15km)
Singlemode Long Haul: 24dB* / 29 mi. (48 km), min. required loss *-8dB
*Note: Distances equated using industry standard fiber and connector attenuation of 3dB/Km. Fiber condition, splices and connectors may affect actual range.
Powering:
24~56VDC
Dimensions:
H5.0” x W1.9” x D3.5” (127mm x 48mm x 89mm) – Not including connectors
Not including DIN bracket
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
General Information
CAD Files
Guide
8CD-03-2
8CD-04-2
8CD-20-2
8CD-22-2
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
8 Channel Contact Closure
| Product configuration | Transmitter/Receiver | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_mode | |
|---|---|---|---|---|---|---|---|---|---|
| Transmitter, Multimode, ST, 2km/1.2 mi , Single Fiber | Transmitter | Multimode | ST | 2km/1.2 miles | Single Fiber | 8CD-03-2 | $640.00 | multimode | |
| Receiver, Multimode, ST, 2km/1.2 mi , Single Fiber | Receiver | Multimode | ST | 2km/1.2 miles | Single Fiber | 8CD-04-2 | $640.00 | multimode | |
| Transmitter, Singlemode, ST, 15km/9mi, Single Fiber | Transmitter | Singlemode | ST | 15km/9 miles | Single Fiber | 8CD-20-2 | $980.00 | singlemode | |
| Receiver, Singlemode, ST, 48km & 15km, Single Fiber | Receiver | Singlemode | ST | 15km/9 miles | Single Fiber | 8CD-22-2 | $770.00 | singlemode |
- A complete system requires one Transmitter and one Receiver
- When a fiber splitter is used, multiple receivers can be paired with one transmitter
