Transmit 8 Contact Closures Over Fiber

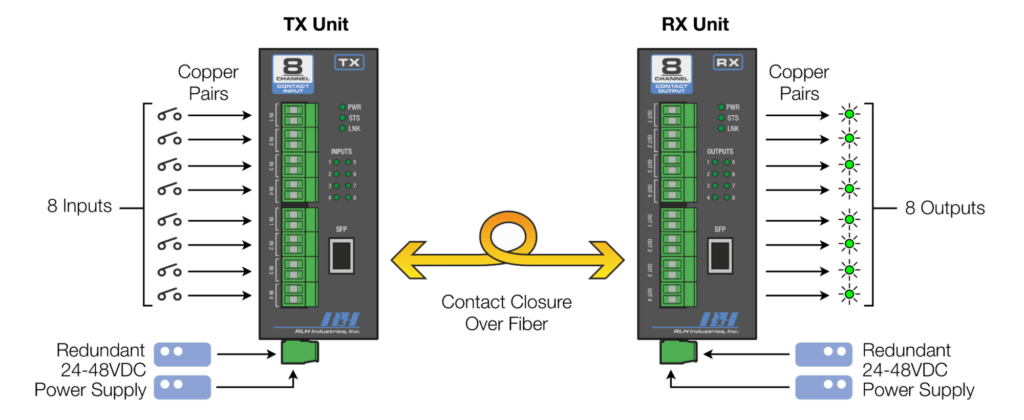

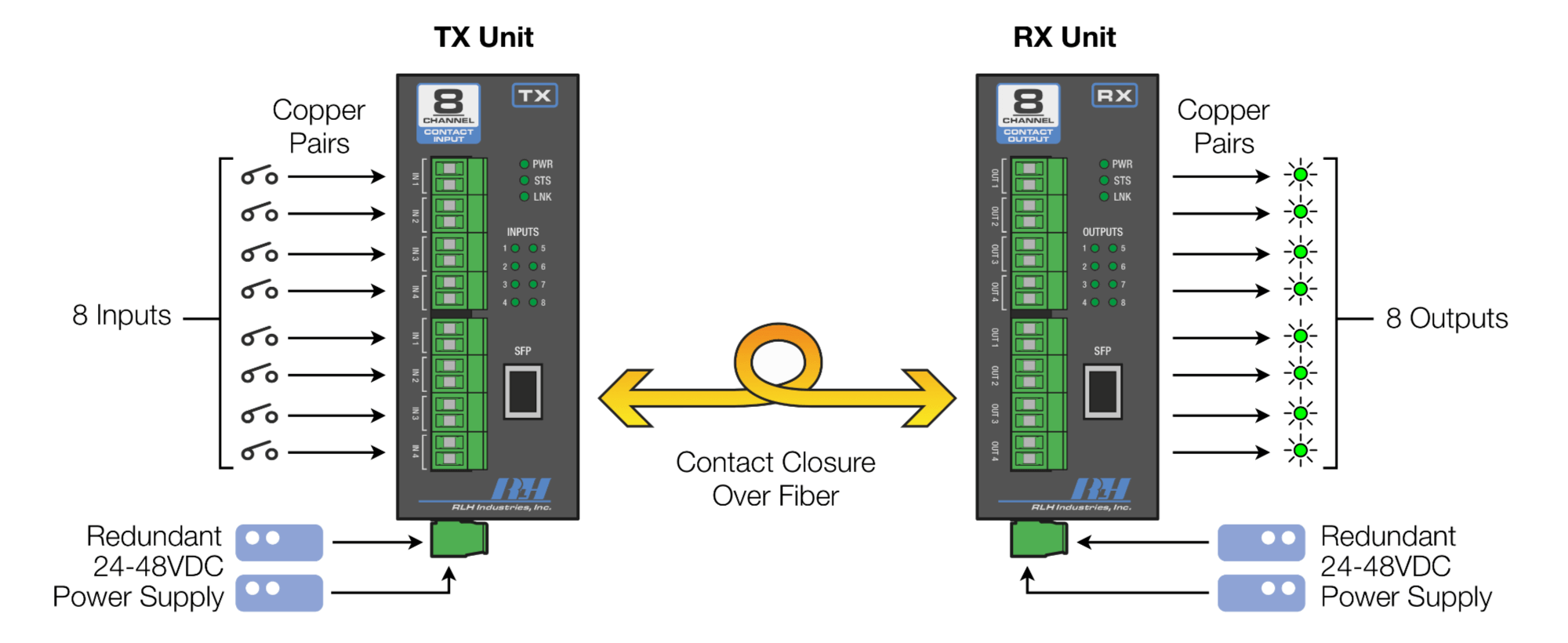

The system provides transmission of eight (8) independent input signals over fiber optic cable. Applications include alarm event triggering, building automation, environmental control systems, fire & alarm systems, gate control, traffic signal control equipment, and more.

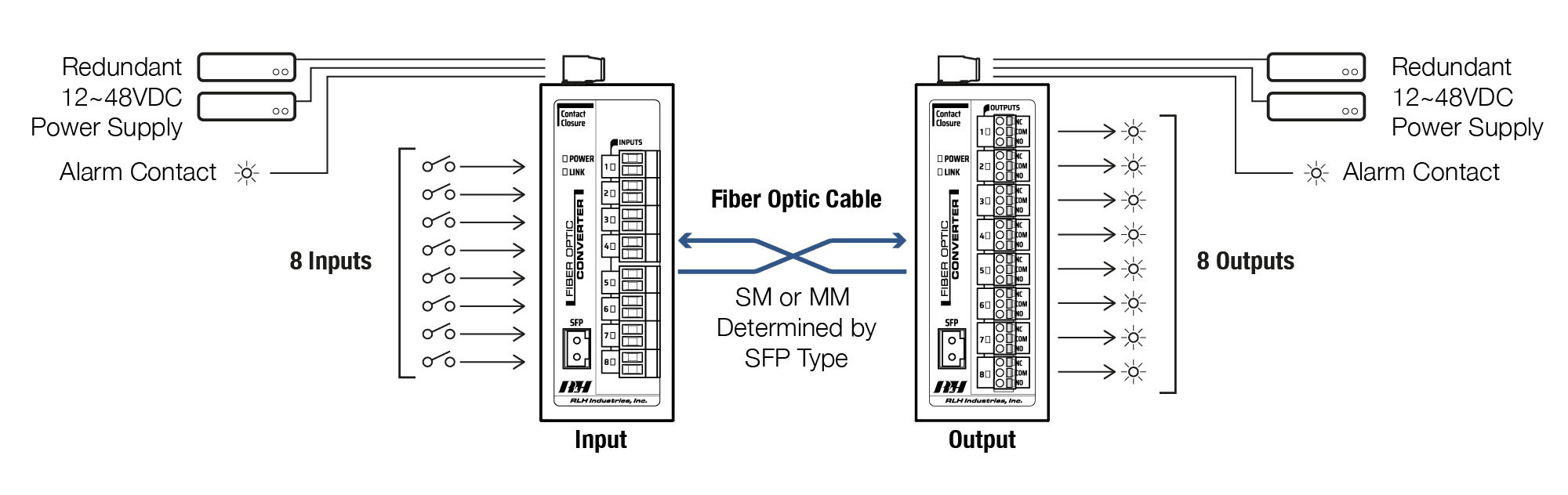

Fiber optic cable is immune to RF noise, high voltages, and extends the signal transmission range up to 100km. A complete system requires two (2) units a 24-48VDC power source on each end, and two (2) matching SFP transceivers.

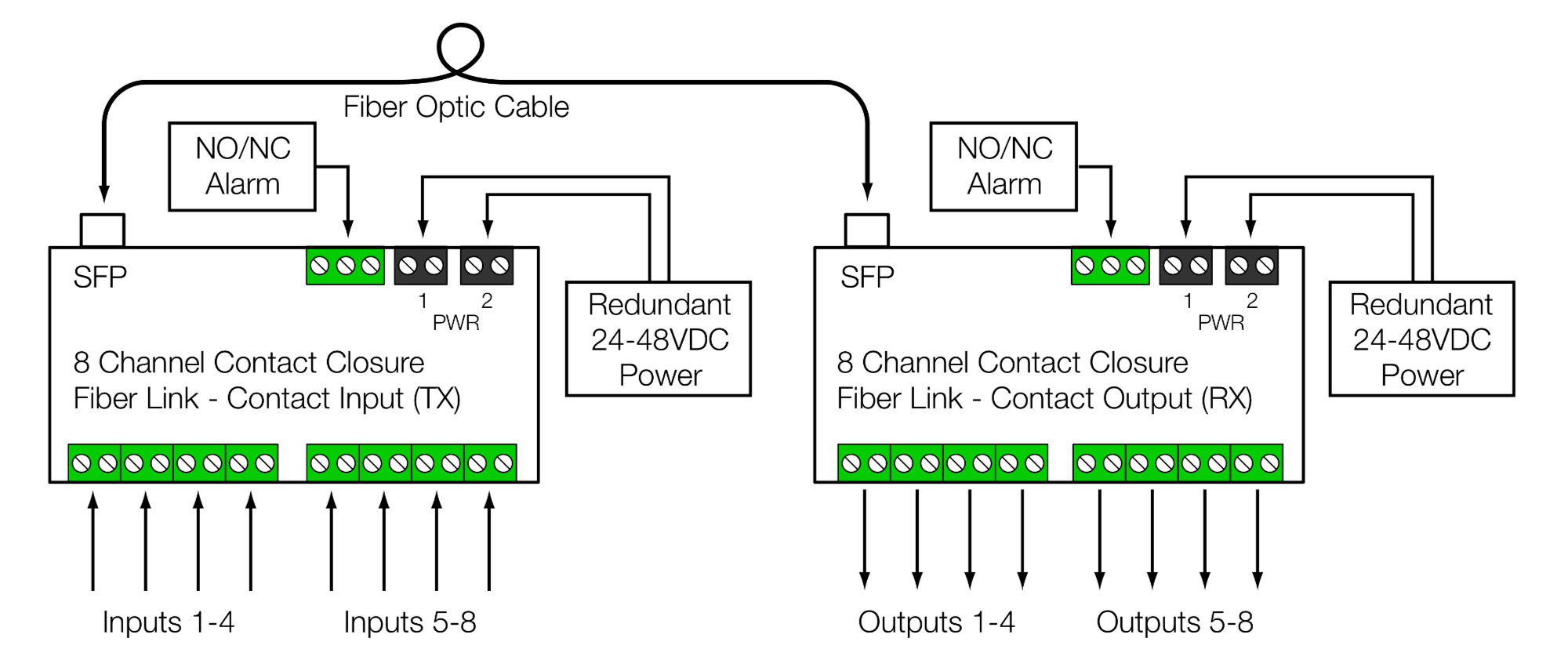

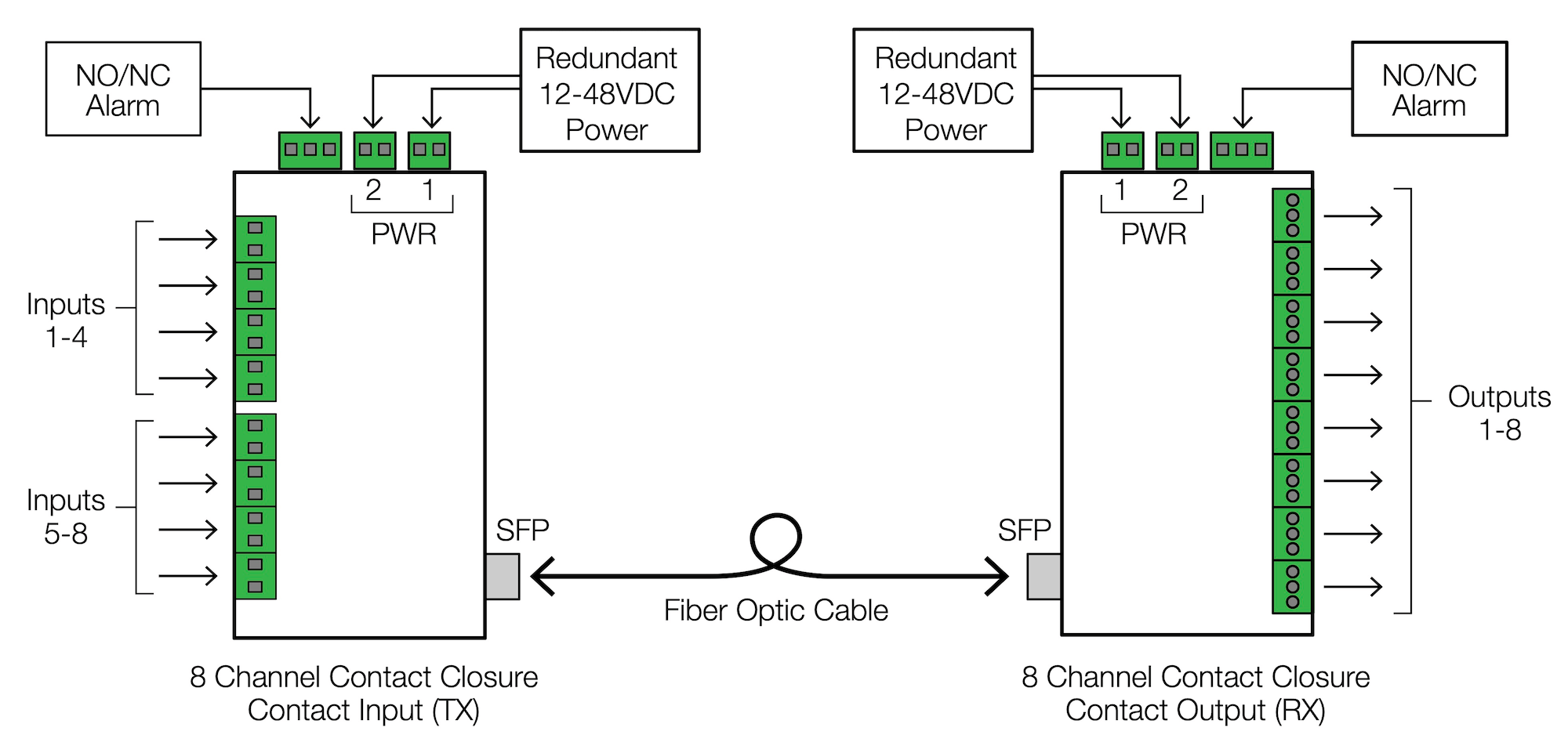

The Contact Input (TX) is configured with input terminals and the Contact Output (RX) has output relays. Each unit features a NC/NO alarm contact for system monitoring and convenient LED indicators to view system status.
- Hardened to operate in -40°F to +158°F (-40°C to +70°C)
- Compact DIN (T35) rail mount enclosure
- Can be powered by 24-56VDC
- Redundant power inputs with polarity reversal protection, 1.5kV isolation
- SFP transceiver interface
- Each output relay is rated for 60 Watts. (Available with NO or NC relays)
- Inputs can sense a Dry Contact closure
- Inputs can accept a DC voltage signal from 12 – 48 Volts (Custom voltage ranges available)
- Each Input is optically isolated, 3.5kV
- Both sides include alarm contacts for status monitoring
- Convenient LED status indicators
- Pluggable terminal blocks
- Critical, high voltage, remote or un-manned locations operating 24/7/365
- Limited Lifetime Warranty
- Made in USA
Fiber Connector Type:
SFP Transceiver
Compatibility:
155Mbps SFP Modules
LED:
PWR, STS, LNK, and Inputs 1~8 (TX) or Outputs 1~8 (RX)
Power Input:
24-48VDC (Polarity Insensitive)
Dual redundant power inputs
Power Consumption:
6 Watts Max
Wire Connectors:
Screw down terminal block, 16-26AWG
Inputs 1-8:
Dry
Wet: 12-24VDC
Wet: 24-48VDC
Outputs 1-8:
Either Normally Open or Normally Closed Relay Contacts
Output Relay Contacts Maximum Rating:
15AC 1.087A 125VA
12VDC 3.000A 36 Watts
24VDC 2.500A 60 Watts
48VDC 1.250A 60 Watts
130VDC 0.462A 60 Watts
250VDC 0.240A 60 Watts
System Alarm Output:
Normally Open / Closed Relay
Relay Response Time:
5ms typical, 10ms maximum
Surge Protection:
Varistors, Automatic resettable fuses
DC Input Isolation:
1.5kV
Construction:
Powder coated steel and aluminum alloy
Mounting Style:
Standard DIN rail (TS-35) mount
Temperature:
-40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity:
95%
MTBF:
175,000 Hours
Dimensions/Mounting:
H 4.93” x W 2.0” x D 3.93” (not including DIN clip or pluggable connectors)
Standard T-35 DIN rail mounting
8CD-TX-DR-2
8CD-TX-24-2
8CD-TX-48-2
8CD-RX-NO-2
8CD-RX-NC-2
SFP-155-04-2
SFP-155-30-2
SFP-155-31-2
SFP-155-34-2
SFP-155-20-2
SFP-155-21-2
SFP-155-24-2
SFP-155-25-2
Ordering

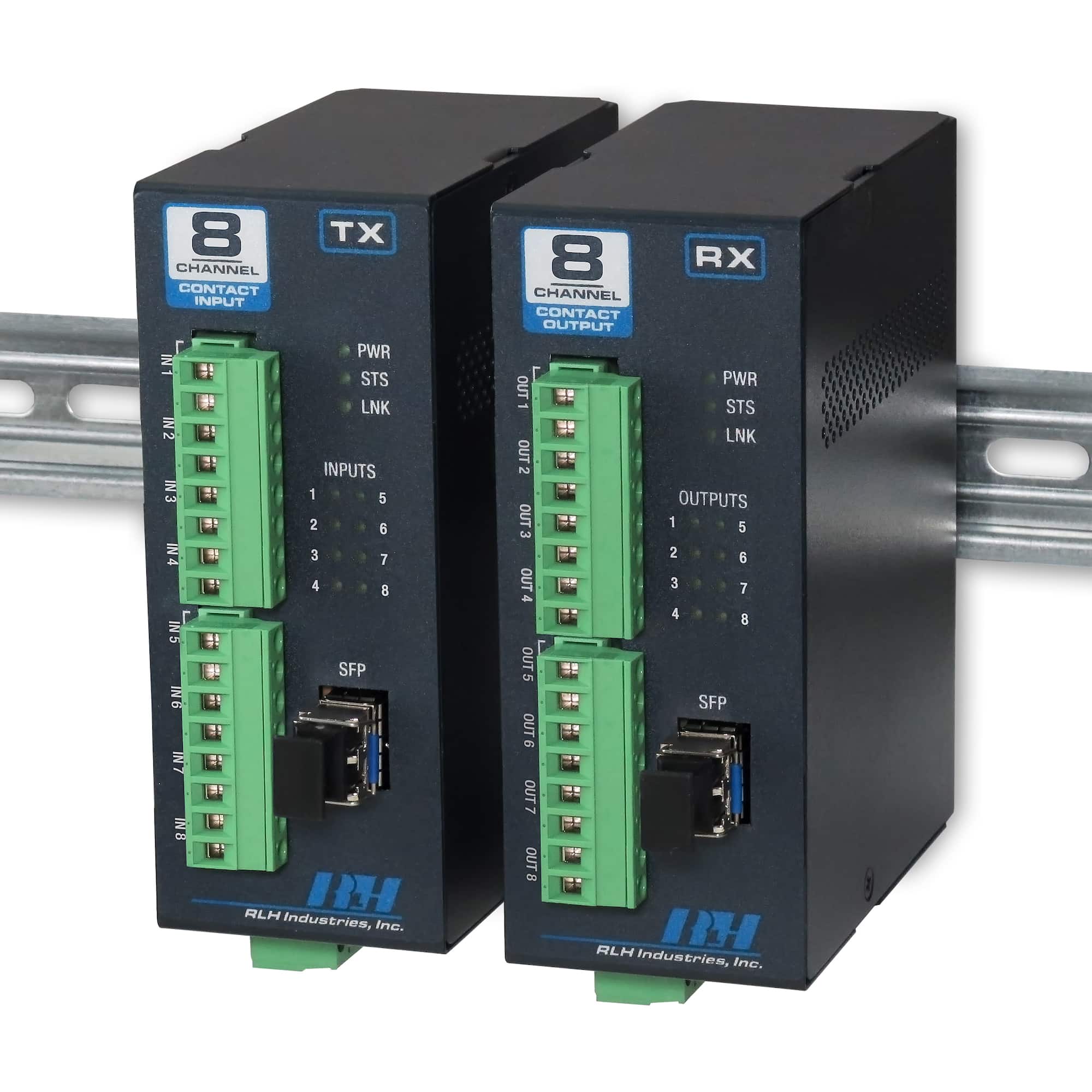

8 Channel Contact Closure SFP
| Product configuration | Transmitter/Receiver | Inputs | Input Type | Outputs | Output Type | Part number | Price | |
|---|---|---|---|---|---|---|---|---|

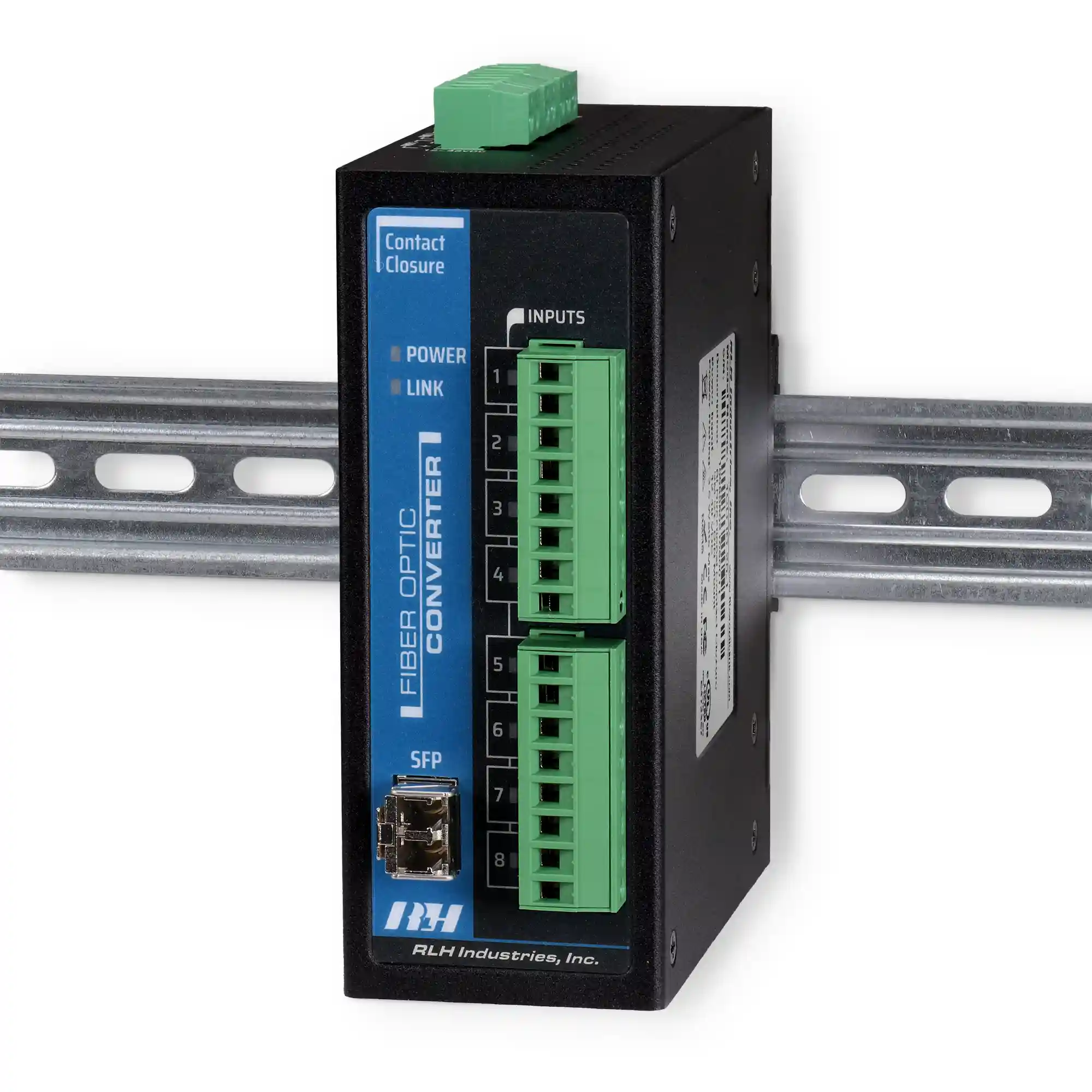

| 1 SFP Slot, 8 Digital Inputs - Dry Contact Sensing, Powering Voltage 24-48 DC | Transmitter | 8 Digital Inputs | Dry Contact Sensing | N/A | N/A | 8CD-TX-DR-2 | $565.00 | |
| 1 SFP Slot, 8 Digital Inputs - 12-24VDC Sinking, Powering Voltage 24-48 DC | Transmitter | 8 Digital Inputs | 12~24VDC | N/A | N/A | 8CD-TX-24-2 | $565.00 | |
| 1 SFP Slot, 8 Digital Inputs - 24-48VDC Sinking, Powering Voltage 24-48 DC | Transmitter | 8 Digital Inputs | 24~48VDC | N/A | N/A | 8CD-TX-48-2 | $565.00 | |

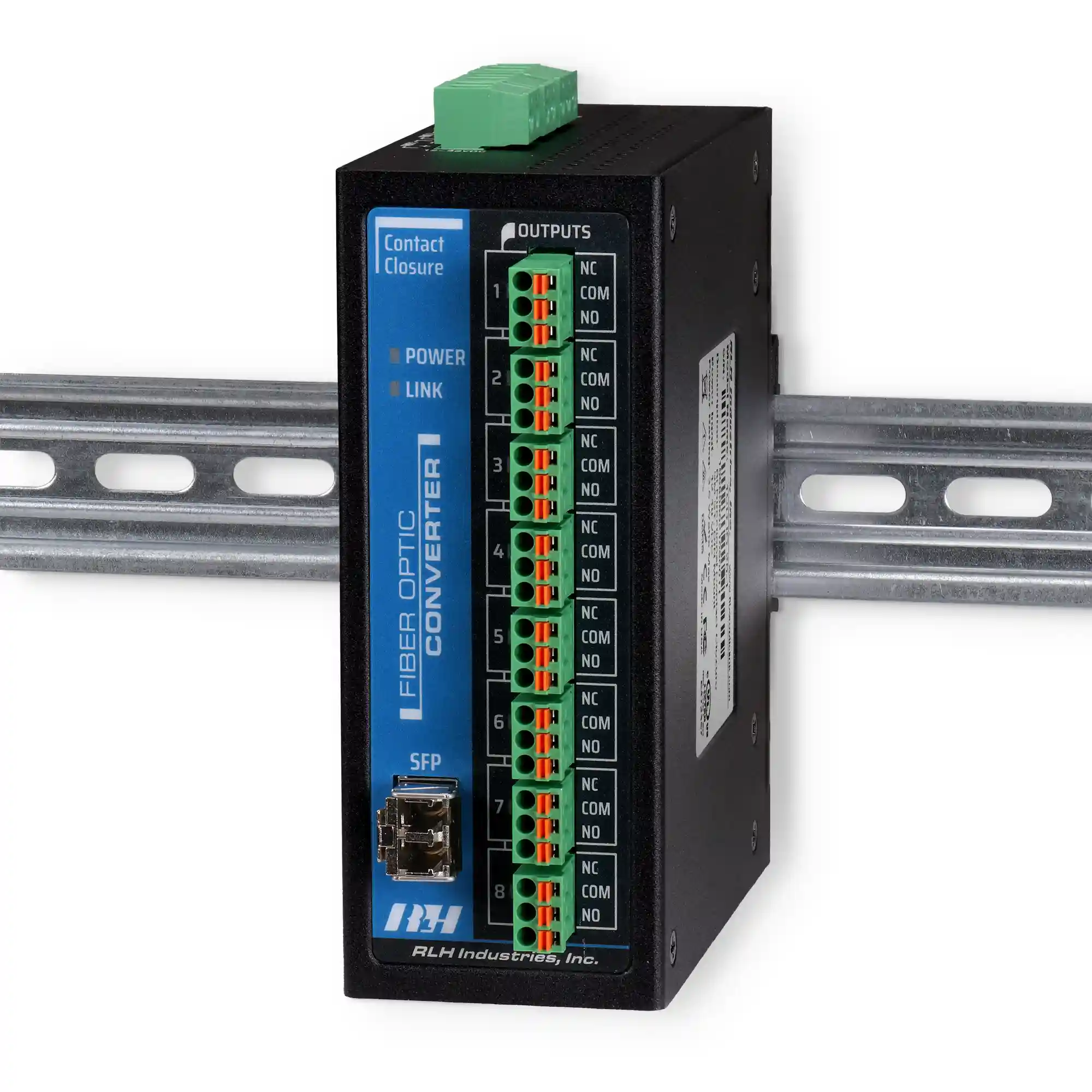

| 1 SFP Slot, 8 Relay Outputs - Normally Open, Powering Voltage 24-48 DC | Receiver | N/A | N/A | 8 Relay Outputs | Normally Open | 8CD-RX-NO-2 | $565.00 | |
| 1 SFP Slot, 8 Relay Outputs - Normally Closed, Powering Voltage 24-48 DC | Receiver | N/A | N/A | 8 Relay Outputs | Normally Closed | 8CD-RX-NC-2 | $565.00 |
- A complete system requires one Transmitter and one Receiver
- SFP Transceivers are sold separately (see list below)
155M SFP Transceiver
| Short description | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | hf:att:pa_distance | hf:att:pa_fibers | |
|---|---|---|---|---|---|---|---|---|---|---|
| Multimode, LC, 2km/1.2 miles, Dual Fiber, 1310nm | Multimode | LC | 2km/1.2 miles | Dual Fiber | 1310nm | SFP-155-04-2 | $65.00 | 2km-1-2-miles | dual-fiber | |
| Singlemode, LC, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | LC | 20km/12.4 miles | Dual Fiber | 1310nm | SFP-155-30-2 | $85.00 | 20km-12-4-miles | dual-fiber | |
| Singlemode, LC, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | LC | 60km/37 miles | Dual Fiber | 1310nm | SFP-155-31-2 | $120.00 | 60km-37-miles | dual-fiber | |
| Singlemode, LC, 100km/62 miles, Dual Fiber, 1550nm | Singlemode | LC | 100km/62 miles | Dual Fiber | 1550nm | SFP-155-34-2 | $280.00 | 100km-62-miles | dual-fiber | |
| Singlemode, LC, 20km/12.4 miles, Single Fiber – Side A, Tx1310/Rx1550 | Singlemode | LC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | SFP-155-20-2 | $105.00 | 20km-12-4-miles | single-fiber-side-a | |
| Singlemode, LC, 20km/12.4 miles, Single Fiber – Side B, Rx1310/Tx1550 | Singlemode | LC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | SFP-155-21-2 | $105.00 | 20km-12-4-miles | single-fiber-side-b | |
| Singlemode, LC, 60km/37 miles, Single Fiber – Side A, Tx1310/Rx1550 | Singlemode | LC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | SFP-155-24-2 | $140.00 | 60km-37-miles | single-fiber-side-a | |
| Singlemode, LC, 60km/37 miles, Single Fiber – Side B, Rx1310/Tx1550 | Singlemode | LC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | SFP-155-25-2 | $170.00 | 60km-37-miles | single-fiber-side-b |
- Single fiber (bi-directional) SFP transceivers must always be paired, side A and side B
