Industrial Small Form Factor Pluggable

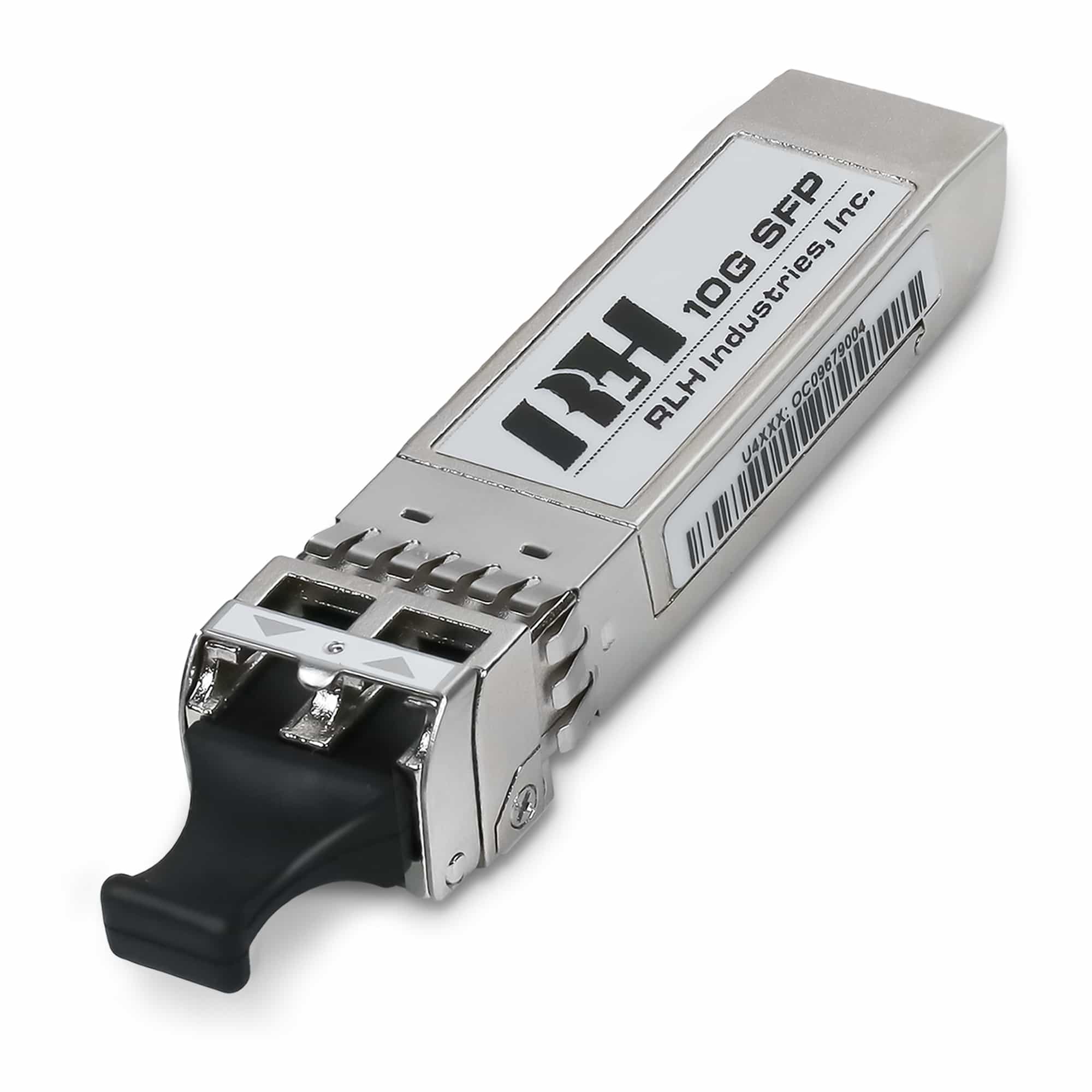

RLH Industries 10G SFP+ Optical Transceivers provide a versatile range of 10 Gigabit Ethernet connectivity solutions in a compact, hot-swappable design, enabling seamless Ethernet extension over fiber. Engineered for durability, our modules are built to withstand the demands of harsh industrial environments. Featuring rugged all-metal housings for superior electromagnetic interference shielding and extreme operating temperature ranges, RLH’s SFP modules deliver exceptional performance anywhere in the network.
Also Available:
Features
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant
- Duplex LC Connector Fiber Interface
- Maximum Fiber Distance 80km
- Hardened to Operate in -40°F to +185°F (-40°C to +85°C)
- Digital Diagnostic Function (DMI) SFF-8472
Applications
- Industrial Ethernet
- LAN, WAN and Metro Networks
- CATV / MSOs
- 10G Fiber Channel
Standards Compliance
- IEEE802.3ae 10Gb/s Ethernet
- 10GBase-SR/SW
- 10GBase-LR/LW10GBase-ER/EW
- 10GBase-ZR/ZW
- SONET OC-192 IR-2
- SFP+ MSA SFF-8431
- DMI SFF-8472
- Class 1 Laser Product EN 60825-1
- TAA, NDAA, RoHS Compliant
Please see the product documentation for the complete list of specifications
Operating Supply Voltage
3.3V Typical (3.1V~3.5V)
Operating Temperature
-40ËšF to +185ËšF (-40ËšC to +85ËšC)
Data Rates
10Gbps
General Information
SFP-10G-03-1
SFP-10G-10-1
SFP-10G-40-1
SFP-10G-80-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
10G SFP+ Optical Transceiver
| Short description | Fibers | Mode | Distance | Wavelength | Part number | Price | |
|---|---|---|---|---|---|---|---|
| SFP+ Optical Transceiver, 10 Gig, Dual Fiber LC, Multimode, 300m (OM3), 850nm | Dual Fiber | Multimode | 300m/984ft (OM3)* | 850nm | SFP-10G-03-1 | $95.00 | |
| SFP+ Optical Transceiver, 10 Gig, Dual Fiber LC, Singlemode, 10km, 1310nm | Dual Fiber | Singlemode | 10km/6.2 miles | 1310nm | SFP-10G-10-1 | $125.00 | |
| SFP+ Optical Transceiver, 10 Gig, Dual Fiber LC, Singlemode, 40km, 1550nm | Dual Fiber | Singlemode | 40km/24.8 miles | 1550nm | SFP-10G-40-1 | $420.00 | |
| SFP+ Optical Transceiver, 10 Gig, Dual Fiber LC, Singlemode, 80km, 1550nm | Dual Fiber | Singlemode | 80km/49.7 miles | 1550nm | SFP-10G-80-1 | $880.00 |
*Multimode 850nm Transmit distance: 33m (OM1 Fiber), 82m (OM2 Fiber), 300m (OM3 Fiber), 400m(OM4 Fiber)
