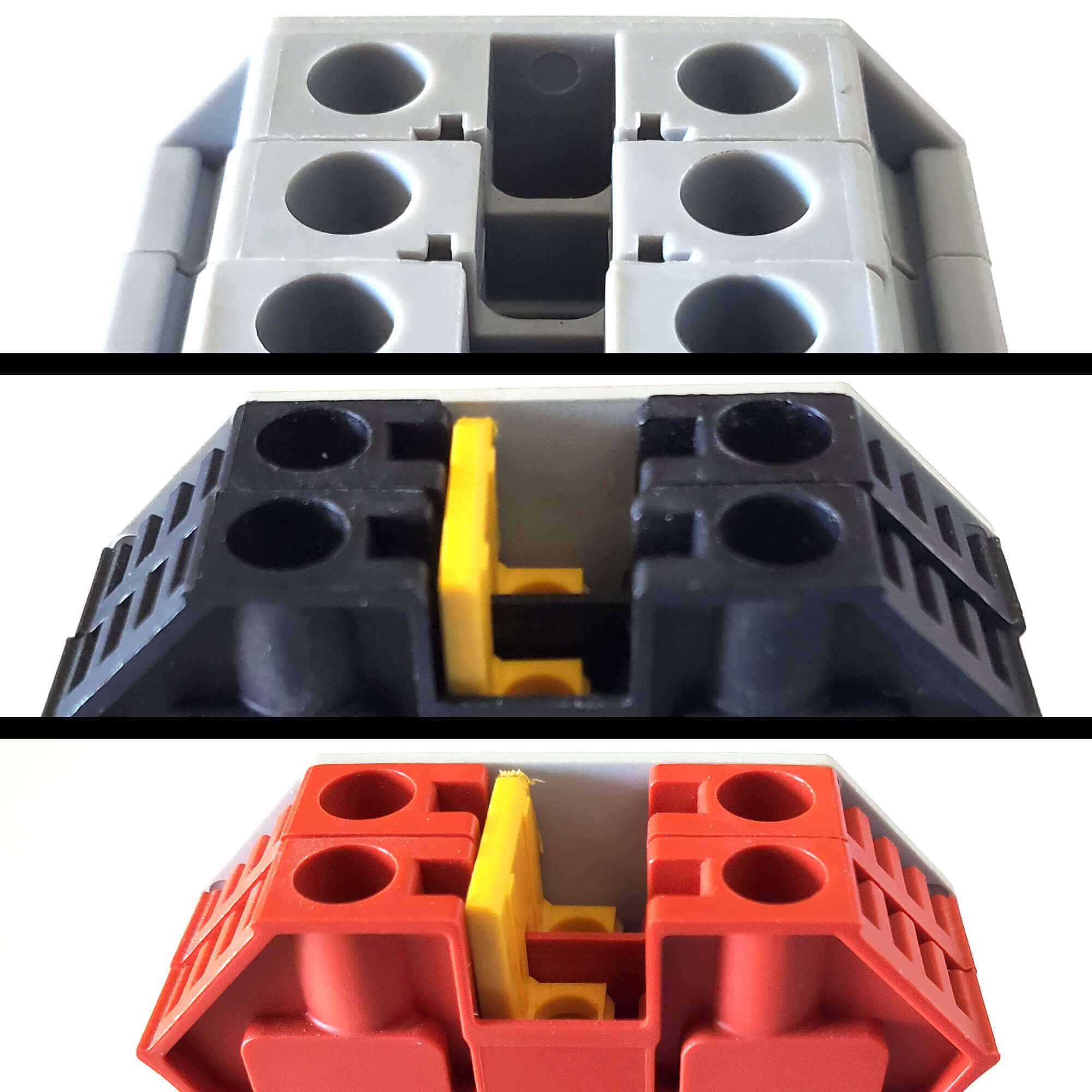

Red, Gray, Black Prebuilt and Available in 4, 8, & 20 Position Sizes​
Features
Docs
Numbers
Features
- Comes pre-assembled with jumpers and end caps
- # 22 AWG – # 10 AWG
- Each block has a top and bottom position, 2 blocks will have 4 positions
- Each position accommodates 1 wire at the maximum gauge
- 600V/30A Rating
- Each assembly has all positions electrically connected
Docs
General Information
Numbers
RLH-MPT-2R
RLH-MPT-2B
RLH-MPT-2G
RLH-MPT-4R
RLH-MPT-4B
RLH-MPT-4G
RLH-MPT-10R
RLH-MPT-10B
RLH-MPT-10G
Ordering
DIN Terminal Blocks
| Short description | Part number | Price | |
|---|---|---|---|
| 4 Position DIN Terminal Block, Red | RLH-MPT-2R | $10.00 | |
| 4 Position DIN Terminal Block, Black | RLH-MPT-2B | $10.00 | |
| 4 Position DIN Terminal Block, Grey | RLH-MPT-2G | $10.00 | |
| 8 Position DIN Terminal Block, Red | RLH-MPT-4R | $15.00 | |
| 8 Position DIN Terminal Block, Black | RLH-MPT-4B | $15.00 | |
| 8 Position DIN Terminal Block, Grey | RLH-MPT-4G | $15.00 | |
| 20 Position DIN Terminal Block, Red | RLH-MPT-10R | $30.00 | |
| 20 Position DIN Terminal Block, Black | RLH-MPT-10B | $30.00 | |
| 20 Position DIN Terminal Block, Grey | RLH-MPT-10G | $30.00 |
