Overview

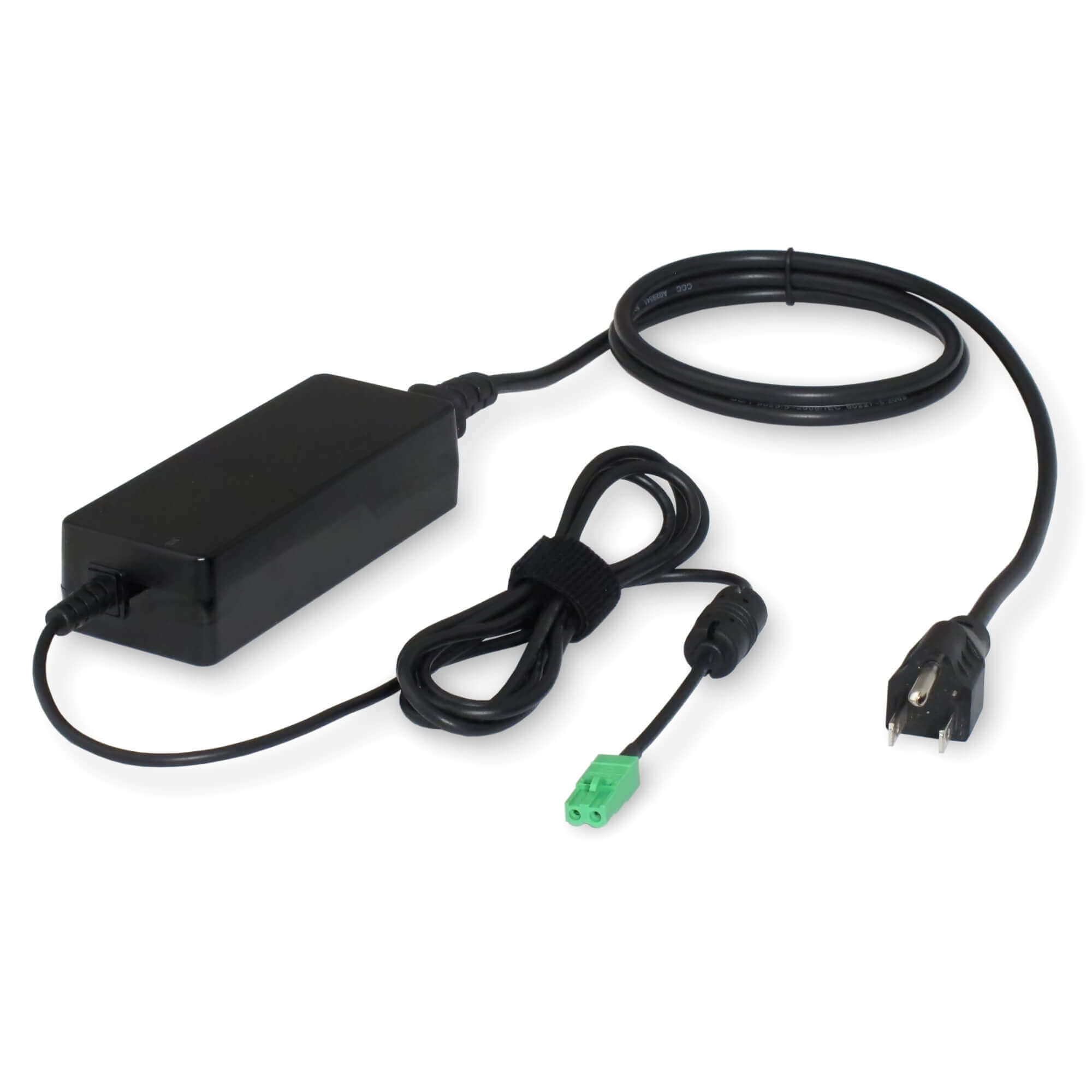

The Solo-24 Power Adapter is a compact, plug-and-play, wall mountable power supply that connects directly to a single RLH Fiber Link module without the need for any additional wiring. It has a standard 3 prong AC power input plug to connect to a mains outlet, and a DC power output connector that plugs into the module, resulting in a simple, user friendly power solution.
The power adapter features a universal AC input of 85-264VAC 50/60Hz, regulated 24VDC output, and is designed for class I operation in industrial and residential environments. It comes complete with a 4 foot AC power cord and a Velcro® strap to manage excess cable.
The Solo-24 is the perfect power solution for a single unit equipment room or office installations where an AC mains outlet is nearby, or for equipment testing and maintenance.
Features
- Wide operating temperature, -30°C – +70°C (-22°F ~ +140°F)
- Fully enclosed plastic case
- DC output power connector attaches directly to equipment

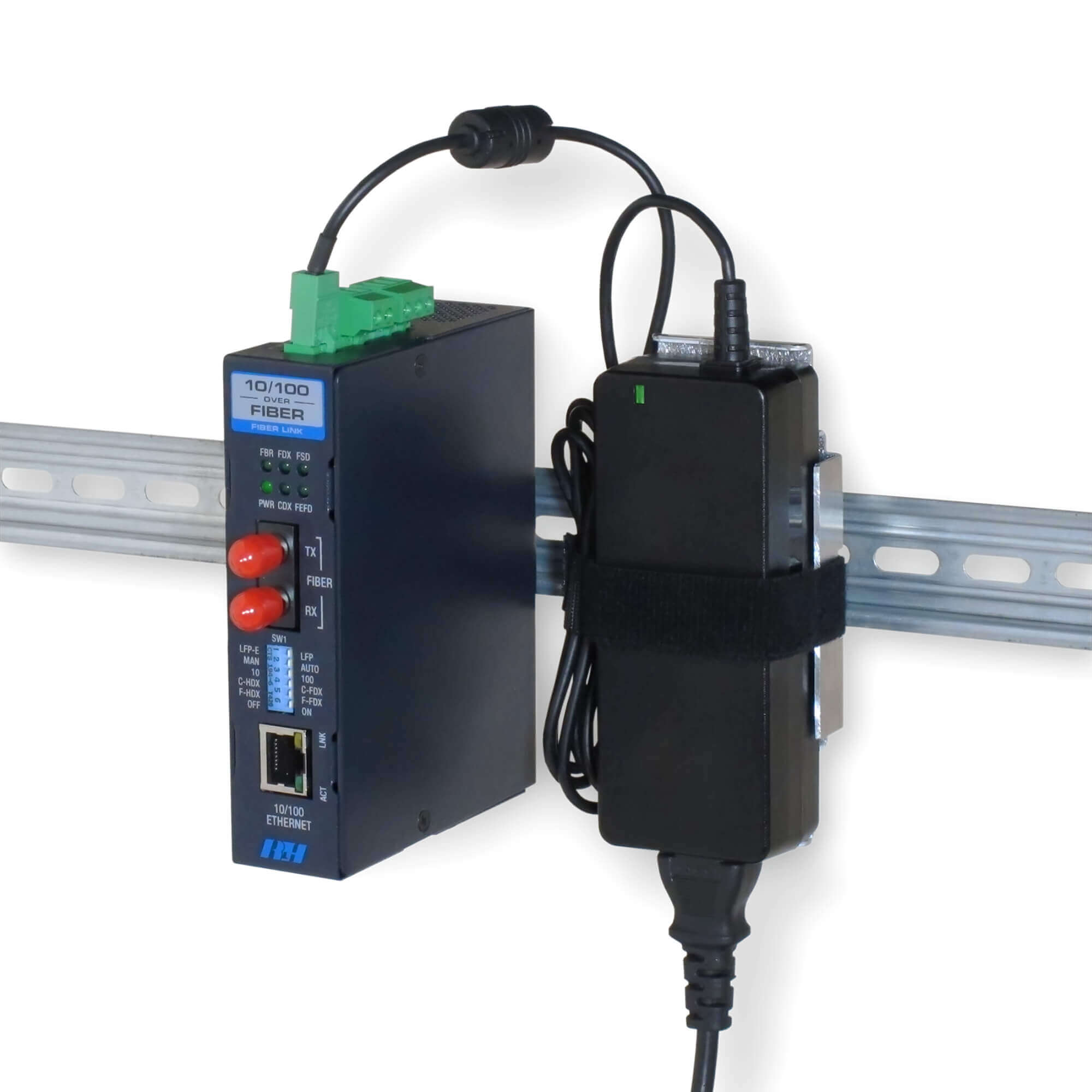

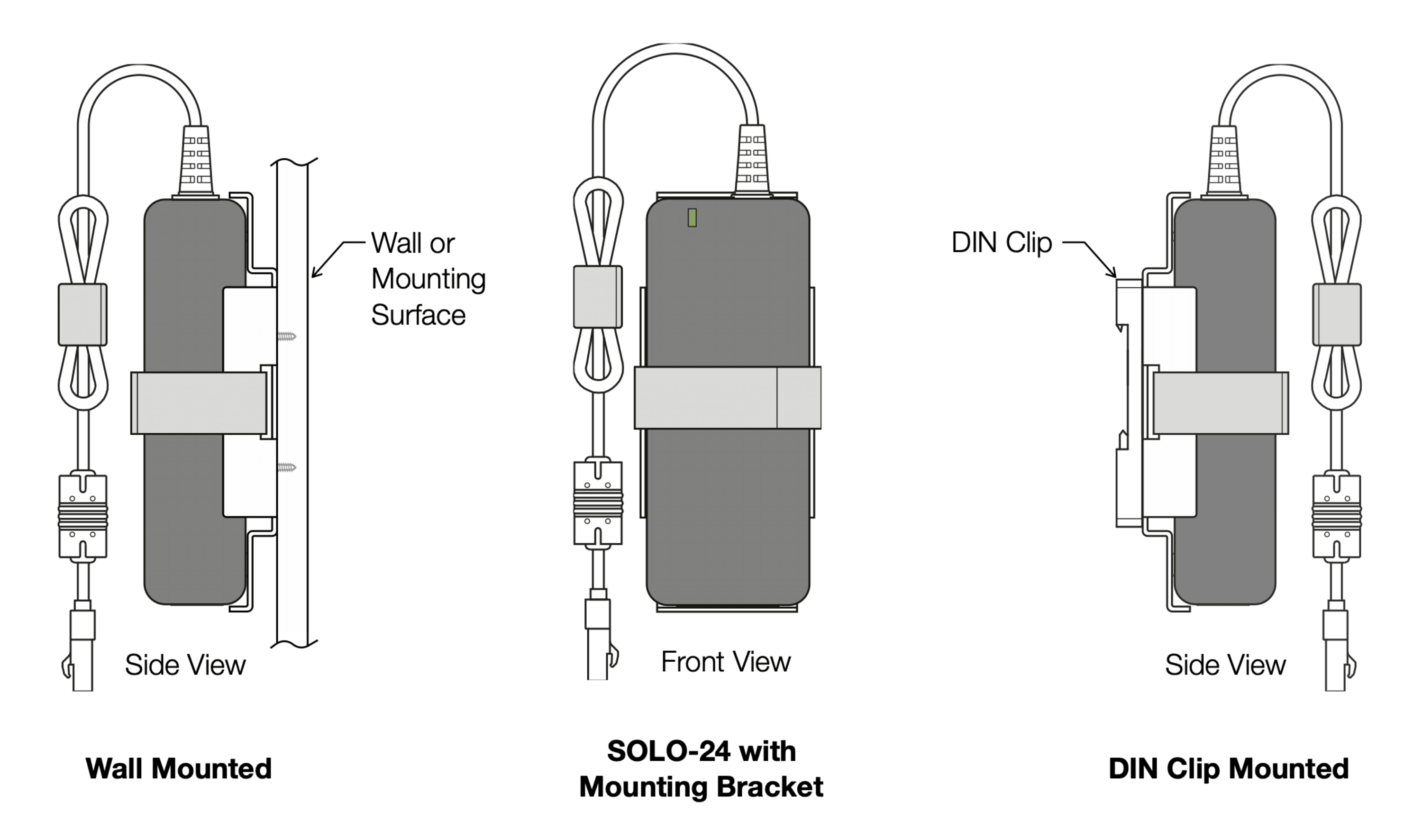

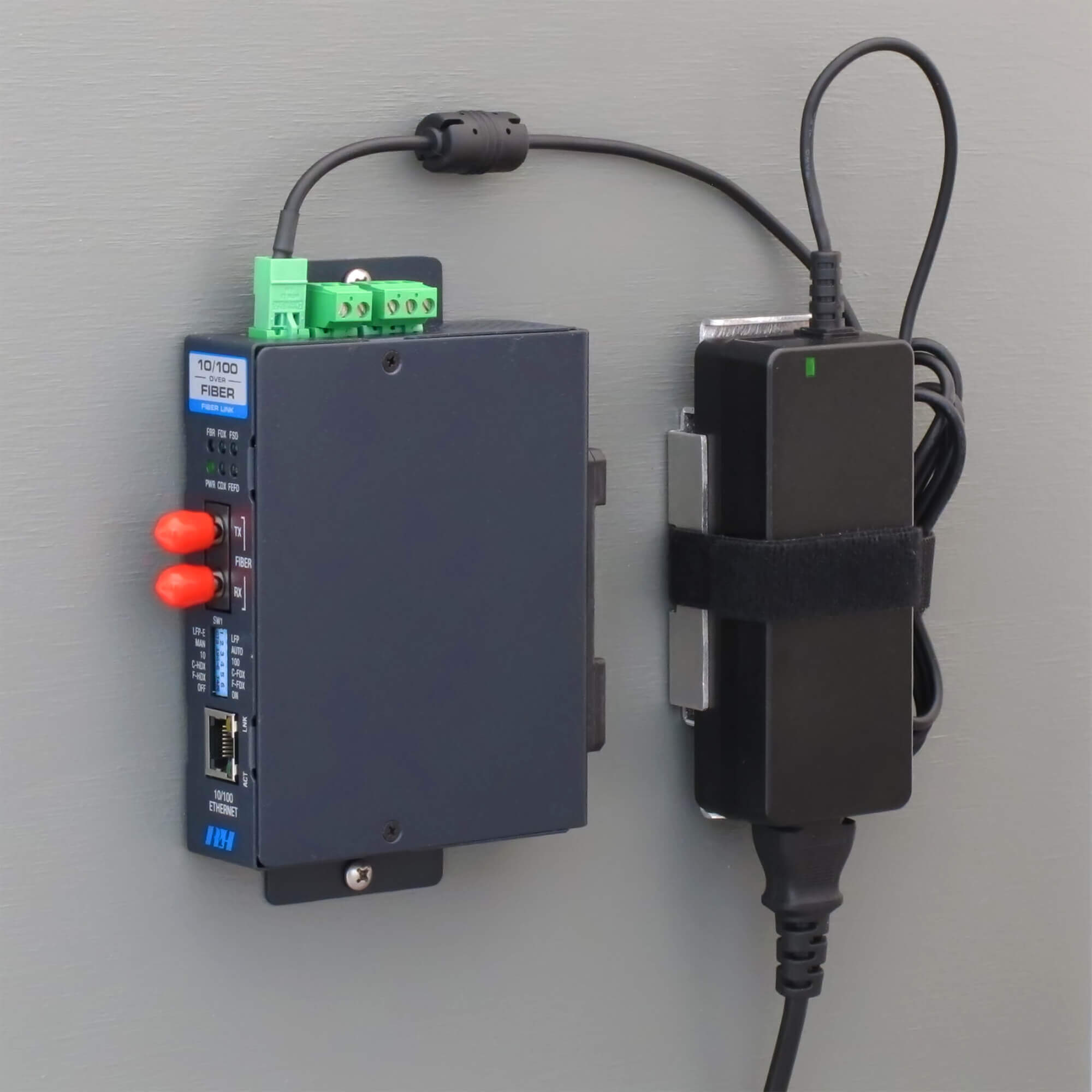

- Optional mounting bracket for wall and DIN rail applications
- Universal AC input, full range
- LED Indicator for power ON status
- No load power consumption <0.3W
- High efficiency across full load range
- Overload, over voltage, and short-circuit protection
- 24VDC output for use with a variety of RLH DIN mount equipment
- Low ripple and noise
Specs
Construction:
Fully enclosed plastic case with detachable AC power cord

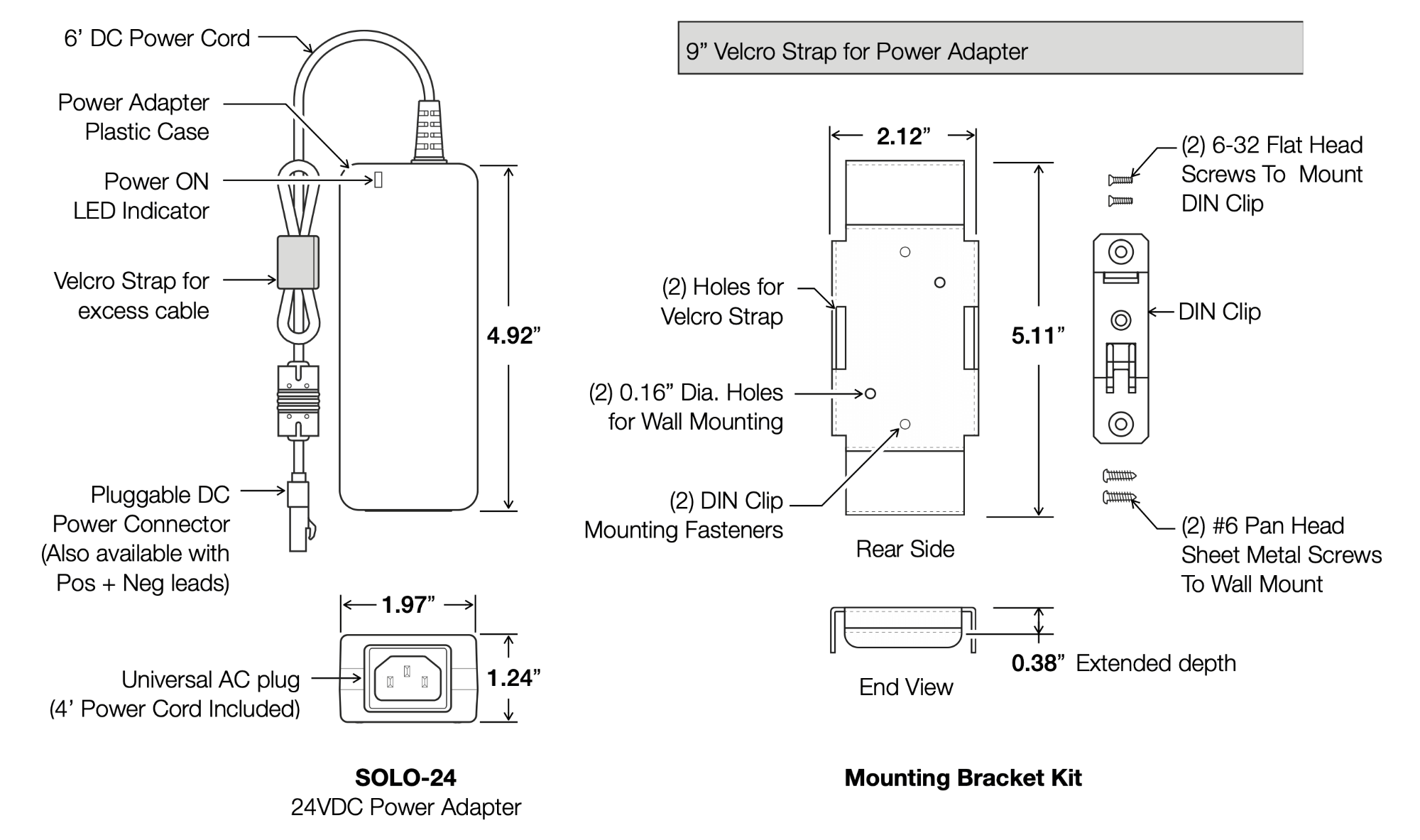

Dimensions:
1.97” (W) x 1.24” (D) x 4.92” (H), (50 mm x 32 mm x 125 mm)
Mounting Style:
Desktop style
Working Temperature:

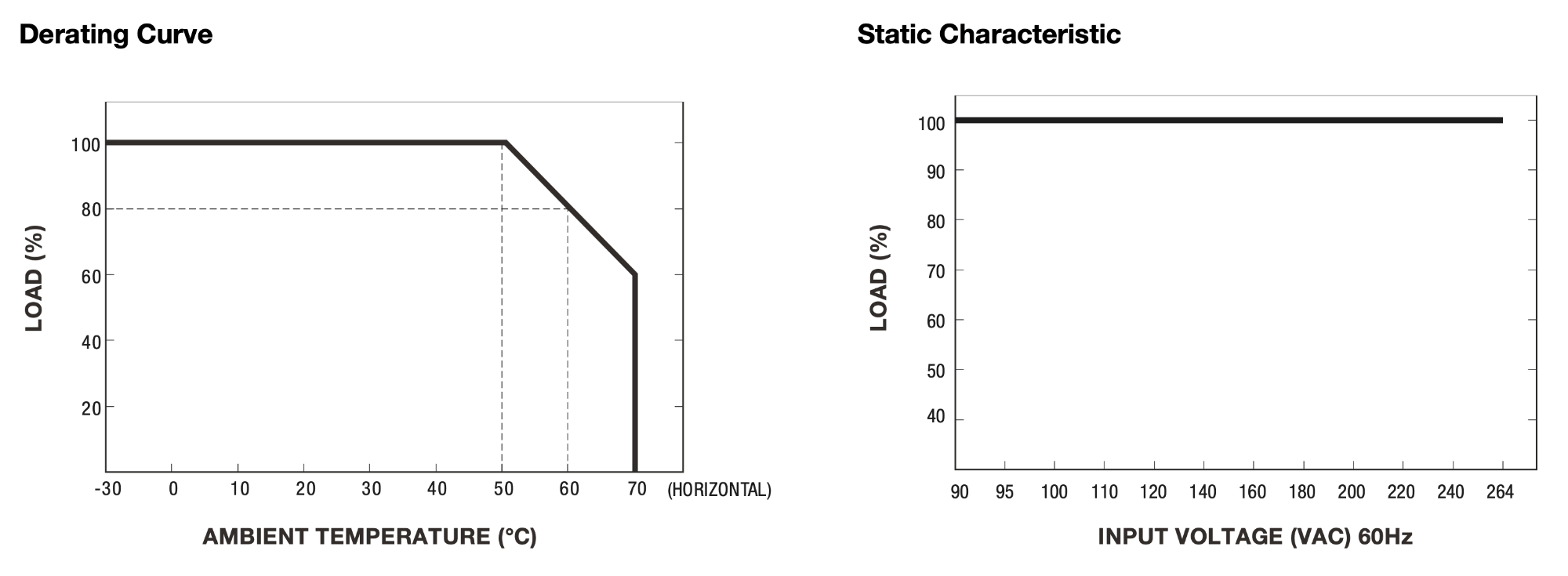

-30°C to +70°C (refer to output load derating curve)
Power Input:
90~264VAC, 127~370VDC
Power Output:
24VDC@1.67A
Docs
General Information
Diagrams
Numbers
SOLO-24-1
SOLO-24-1-MBK
SOLO-24N-1
SOLO-24N-1-MBK
Ordering
Solo-24 Power Adapter
| Short description | Part number | Price | |
|---|---|---|---|
| 40 Watt Solo AC/DC Power Adapter, 24 Volt DC Output with Pluggable Output Connector | SOLO-24-1 | $50.00 | |
| 40 Watt Solo AC/DC Power Adapter, 24 Volt DC Output with Pluggable Output Connector, includes DIN/Wall mounting bracket | SOLO-24-1-MBK | $75.00 | |
| 40 Watt Solo AC/DC Power Adapter, 24 Volt DC Output with Positive and Negative Leads | SOLO-24N-1 | $50.00 | |
| 40 Watt Solo AC/DC Power Adapter, 24 Volt DC Output with Positive and Negative Leads, includes DIN/Wall mounting bracket | SOLO-24N-1-MBK | $75.00 |
