Overview

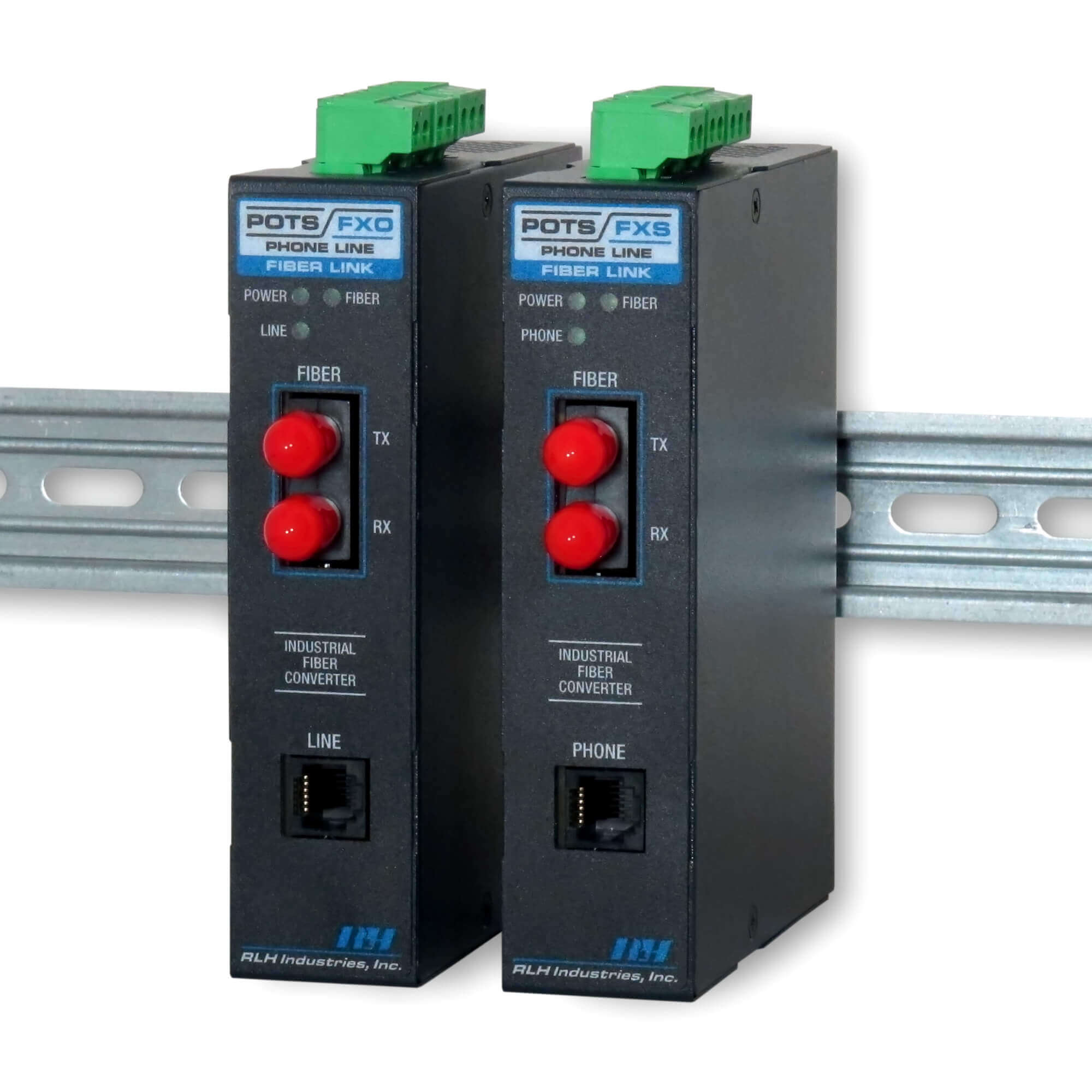

The RLH Plain Old Telephone Service (POTS) DIN Fiber Link system transports the analog phone line over fiber optic cable. The system will operate over a wide temperature range and has been designed to provide reliability in harsh environments.
Common applications include extending analog phone (POTS) over fiber for the benefit of electrical isolation, to achieve long distances, or through noisy environments to reduce EMI. The system is compatible with all traditional analog phone services, dial-up modems, meters, and fax machines.
A comprehensive set of LED’s on the front panel indicate the status of the power, fiber, and phone line. The standard system powering requirement is 24-48VDC, with an optional 125VDC available. This rugged system also features dual redundant power inputs with a system alarm contact relay, and comes standard with DIN clip and wall mount ears.
Features
- Hardened to operate in -40°C to +70°C environment
- Redundant power capable, 24~56VDC or 125VDC depending on model
- Available with ST or SC connectors for singlemode or multimode fiber
- Supports Caller ID
- Supports Call-Forward Disconnect (Hook Flash)
- Supports Ringdown Function (FXS to FXS Hotline Phone)
- Standard 2 wire analog phone lines, dial-up modems, and fax machines
- Limited Lifetime Warranty
- Made in USA
Specs
Wavelength:
Multimode: 1310nm
Singlemode: 1310nm/1550nm
Maximum Fiber Attenuation/Distance:
Dual Fiber Multimode (50/125μm & 62.5/125μm): 1.25mi./2km range
Dual Fiber Singlemode (9/125µm): 12.4 mi./20km range, 37 mi./60km range, 74 mi./120km range
Single Fiber, Bi-Directional Singlemode (9/125μm): 12.4 mi./20km range, 37 mi./60km range
Fiber Connector Type:
ST or SC
Physical Dimensions:
H 4.93” x W 1.20” x D 3.93” (measurement not including DIN clip)

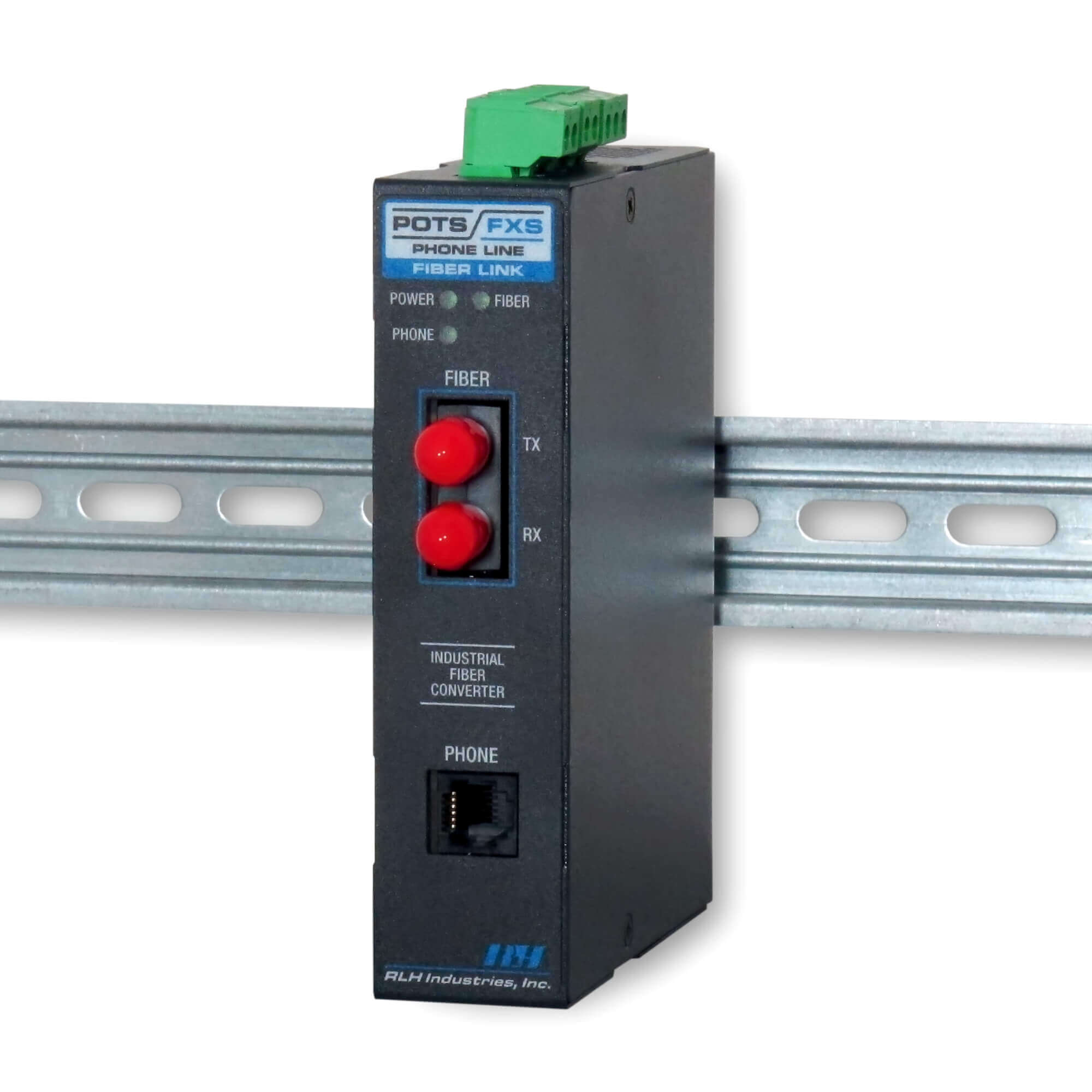

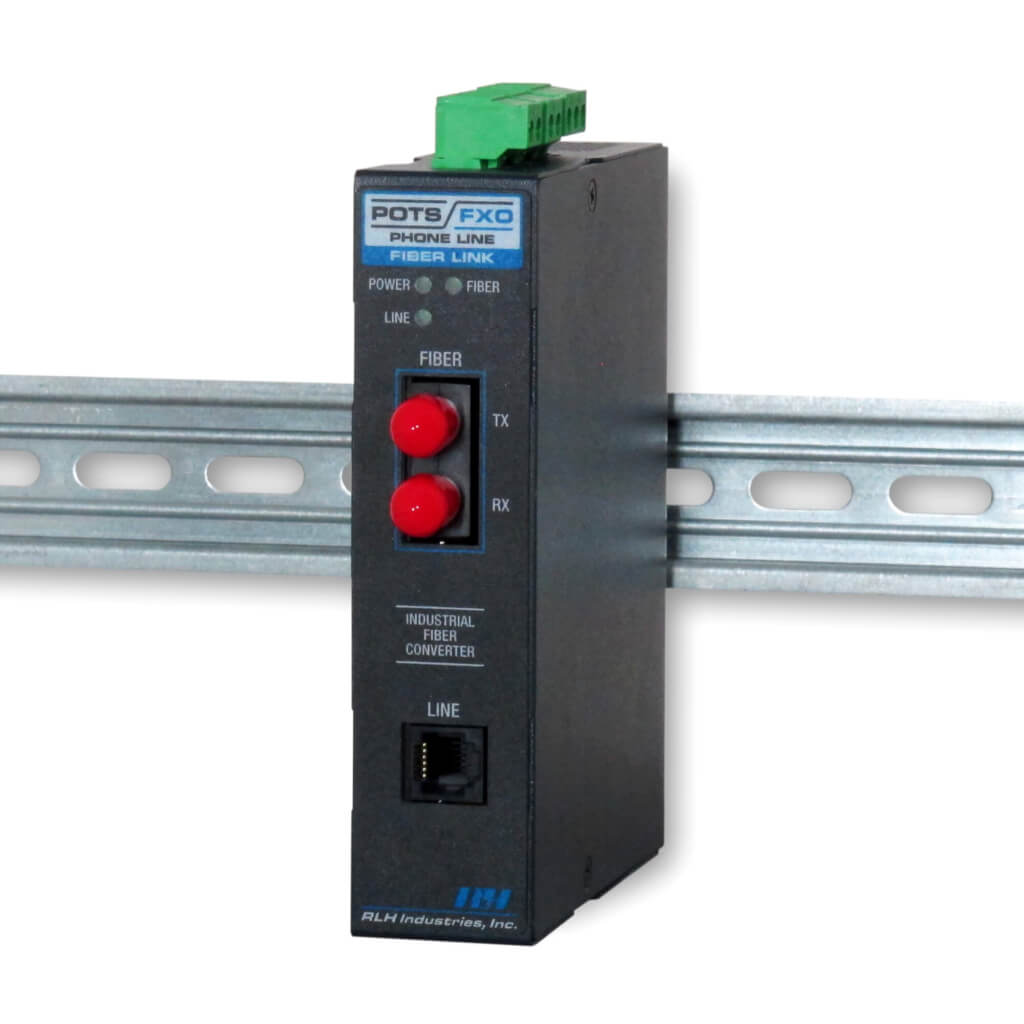

Includes standard T-35 DIN rail clip and wall mount ears
Operating Temperature:
-40 ̊C to +70 ̊C
Operating Humidity:
95% non-condensing
Docs
General Information
Diagrams
Numbers
PD-1FXO-03-1
PD-1FXS-03-1
PD-1FXO-04-1
PD-1FXS-04-1
PD-1FXO-40-1
PD-1FXS-40-1
PD-1FXO-41-1
PD-1FXS-41-1
PD-1FXO-45-1
PD-1FXS-45-1
PD-1FXO-50-1
PD-1FXS-50-1
PD-1FXO-51-1
PD-1FXS-51-1
PD-1FXO-55-1
PD-1FXS-55-1
PD-1FXO-10-1
PD-1FXS-11-1
PD-1FXO-14-1
PD-1FXS-15-1
Ordering
Analog Phone (POTS) System
| Product configuration | Side | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_side | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FXO, Multimode, SC, 2km/1.2 miles, Dual Fiber | FXO | Multimode | SC | 2km/1.2 miles | Dual Fiber | PD-1FXO-03-1 | $595.00 | fxo | multimode | sc | 2km-1-2-miles | |
| FXS, Multimode, SC, 2km/1.2 miles, Dual Fiber | FXS | Multimode | SC | 2km/1.2 miles | Dual Fiber | PD-1FXS-03-1 | $595.00 | fxs | multimode | sc | 2km-1-2-miles | |
| FXO, Multimode, ST, 2km/1.2 miles, Dual Fiber | FXO | Multimode | ST | 2km/1.2 miles | Dual Fiber | PD-1FXO-04-1 | $595.00 | fxo | multimode | st | 2km-1-2-miles | |
| FXS, Multimode, ST, 2km/1.2 miles, Dual Fiber | FXS | Multimode | ST | 2km/1.2 miles | Dual Fiber | PD-1FXS-04-1 | $595.00 | fxs | multimode | st | 2km-1-2-miles | |
| FXO, Singlemode, SC, 20km/12.4 miles, Dual Fiber | FXO | Singlemode | SC | 20km/12.4 miles | Dual Fiber | PD-1FXO-40-1 | $705.00 | fxo | singlemode | sc | 20km-12-4-miles | |
| FXS, Singlemode, SC, 20km/12.4 miles, Dual Fiber | FXS | Singlemode | SC | 20km/12.4 miles | Dual Fiber | PD-1FXS-40-1 | $705.00 | fxs | singlemode | sc | 20km-12-4-miles | |
| FXO, Singlemode, SC, 60km/37 miles, Dual Fiber | FXO | Singlemode | SC | 60km/37 miles | Dual Fiber | PD-1FXO-41-1 | $815.00 | fxo | singlemode | sc | 60km-37-miles | |
| FXS, Singlemode, SC, 60km/37 miles, Dual Fiber | FXS | Singlemode | SC | 60km/37 miles | Dual Fiber | PD-1FXS-41-1 | $815.00 | fxs | singlemode | sc | 60km-37-miles | |
| FXO, Singlemode, SC, 120km/74 miles, Dual Fiber | FXO | Singlemode | SC | 120km/74 miles | Dual Fiber | PD-1FXO-45-1 | $1,035.00 | fxo | singlemode | sc | 120km-74-miles | |
| FXS, Singlemode, SC, 120km/74 miles, Dual Fiber | FXS | Singlemode | SC | 120km/74 miles | Dual Fiber | PD-1FXS-45-1 | $1,035.00 | fxs | singlemode | sc | 120km-74-miles | |
| FXO, Singlemode, ST, 20km/12.4 miles, Dual Fiber | FXO | Singlemode | ST | 20km/12.4 miles | Dual Fiber | PD-1FXO-50-1 | $705.00 | fxo | singlemode | st | 20km-12-4-miles | |
| FXS, Singlemode, ST, 20km/12.4 miles, Dual Fiber | FXS | Singlemode | ST | 20km/12.4 miles | Dual Fiber | PD-1FXS-50-1 | $705.00 | fxs | singlemode | st | 20km-12-4-miles | |
| FXO, Singlemode, ST, 60km/37 miles, Dual Fiber | FXO | Singlemode | ST | 60km/37 miles | Dual Fiber | PD-1FXO-51-1 | $815.00 | fxo | singlemode | st | 60km-37-miles | |
| FXS, Singlemode, ST, 60km/37 miles, Dual Fiber | FXS | Singlemode | ST | 60km/37 miles | Dual Fiber | PD-1FXS-51-1 | $815.00 | fxs | singlemode | st | 60km-37-miles | |
| FXO, Singlemode, ST, 120km/74 miles, Dual Fiber | FXO | Singlemode | ST | 120km/74 miles | Dual Fiber | PD-1FXO-55-1 | $1,035.00 | fxo | singlemode | st | 120km-74-miles | |
| FXS, Singlemode, ST, 120km/74 miles, Dual Fiber | FXS | Singlemode | ST | 120km/74 miles | Dual Fiber | PD-1FXS-55-1 | $1,035.00 | fxs | singlemode | st | 120km-74-miles | |
| FXO, Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A | FXO | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | PD-1FXO-10-1 | $735.00 | fxo | singlemode | sc | 20km-12-4-miles | |
| FXS, Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B | FXS | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | PD-1FXS-11-1 | $735.00 | fxs | singlemode | sc | 20km-12-4-miles | |
| FXO, Singlemode, SC, 60km/37 miles, Single Fiber - Side A | FXO | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | PD-1FXO-14-1 | $875.00 | fxo | singlemode | sc | 60km-37-miles | |
| FXS, Singlemode, SC, 60km/37 miles, Single Fiber - Side B | FXS | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | PD-1FXS-15-1 | $875.00 | fxs | singlemode | sc | 60km-37-miles |
- A complete system requires 2 devices of either configuration:

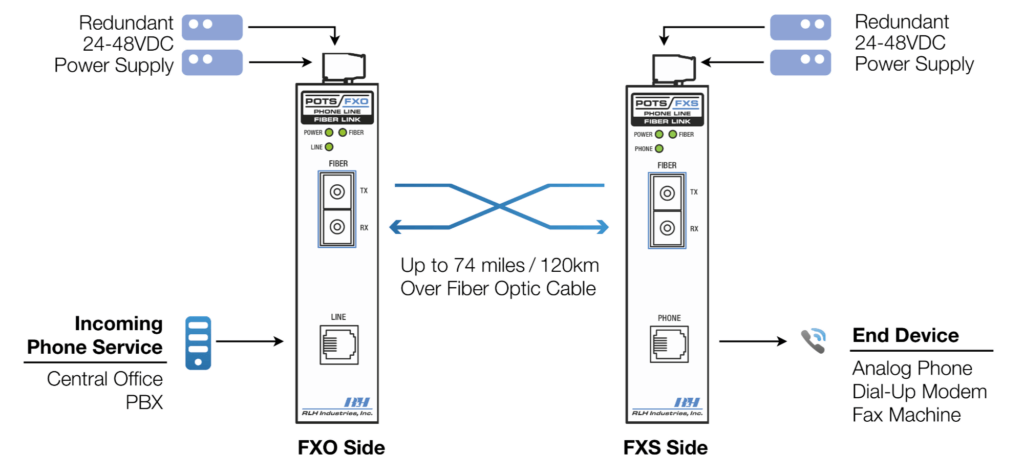

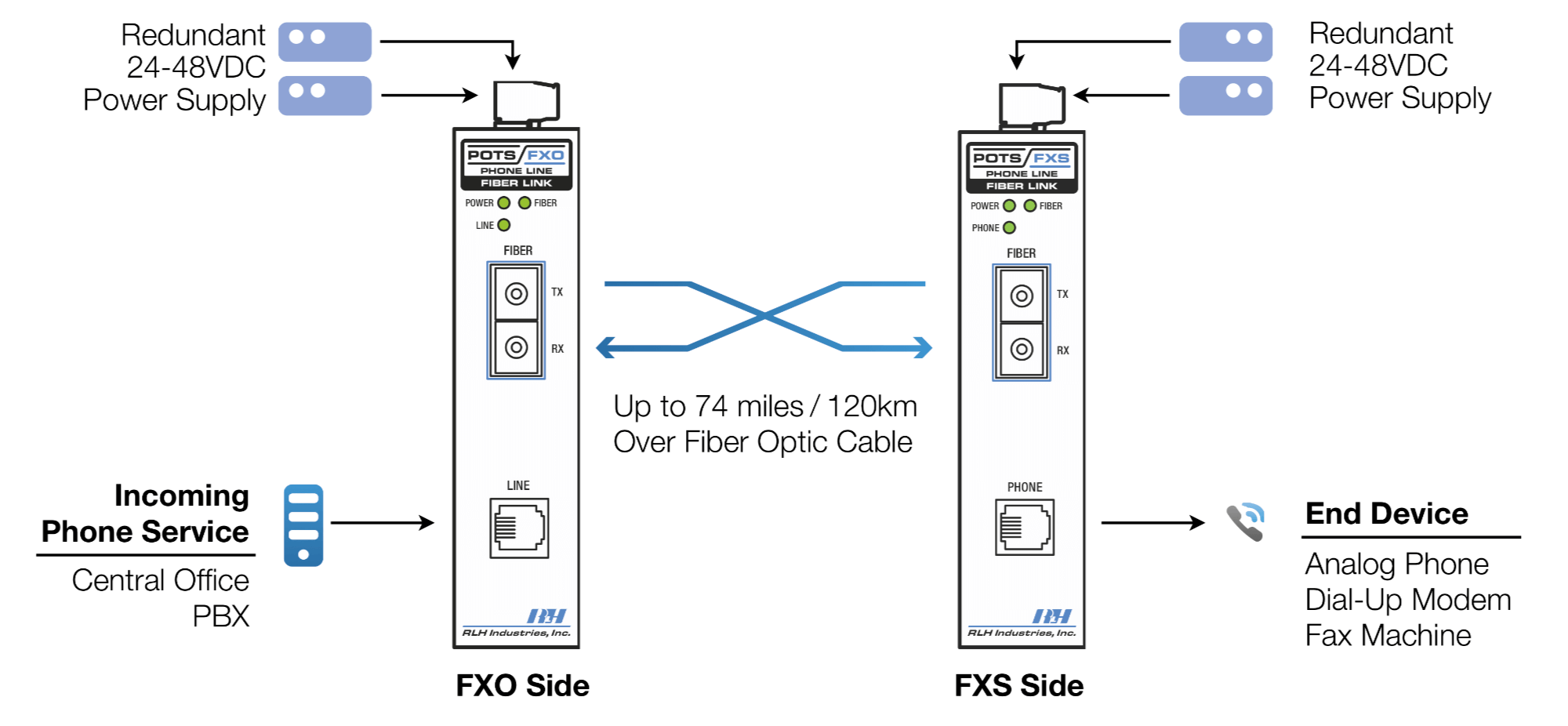

- One FXO device paired with one FXS device for a typical phone line extension
- Two (2) FXS device paired for a ringdown hotline
- Bi-Directional single fiber models require an A side and B side unit for a complete system
- For the 125VDC input power option, please note your part number, add -A to the end, and get your quote here.
