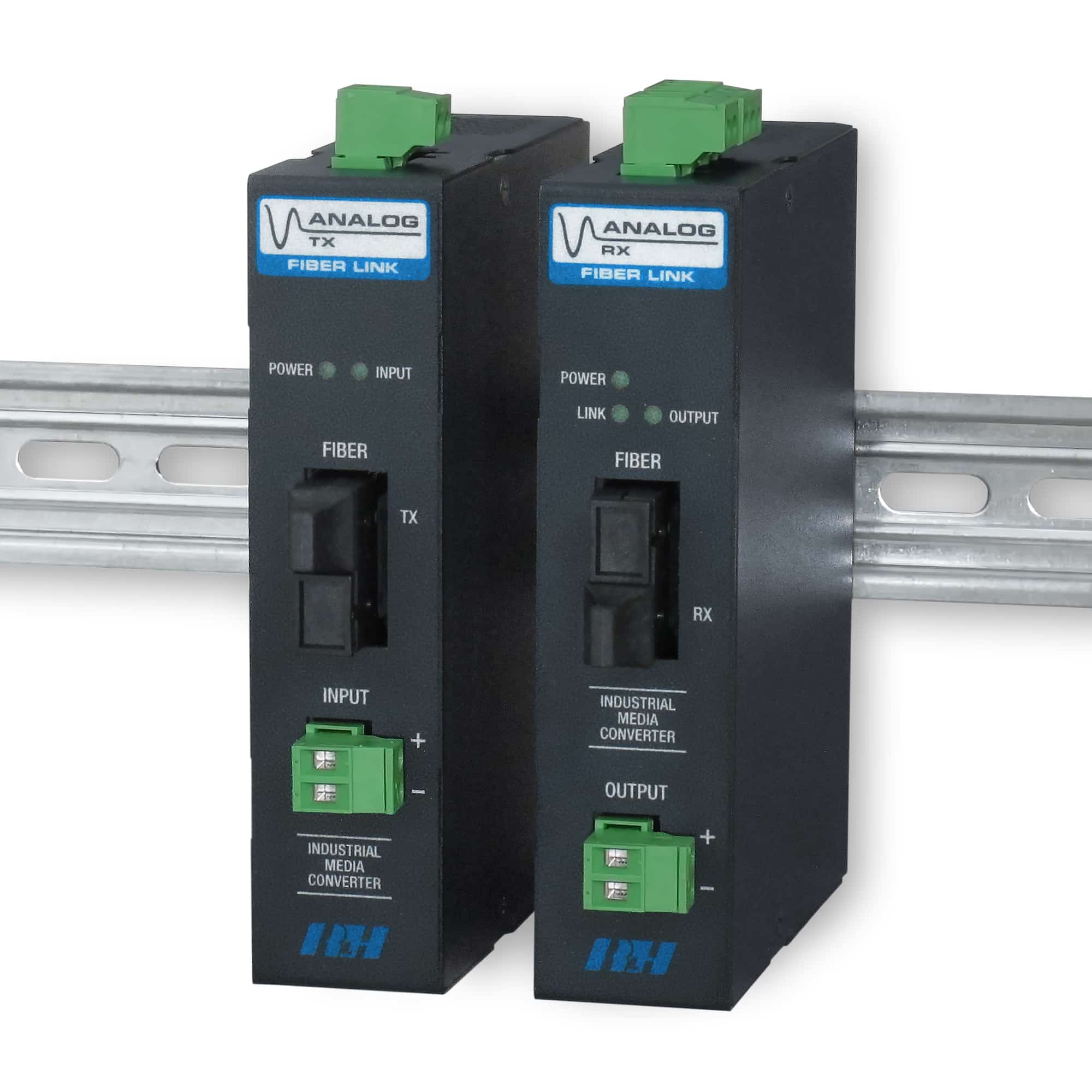

Transmits a 4~20mA Analog Signal over Fiber

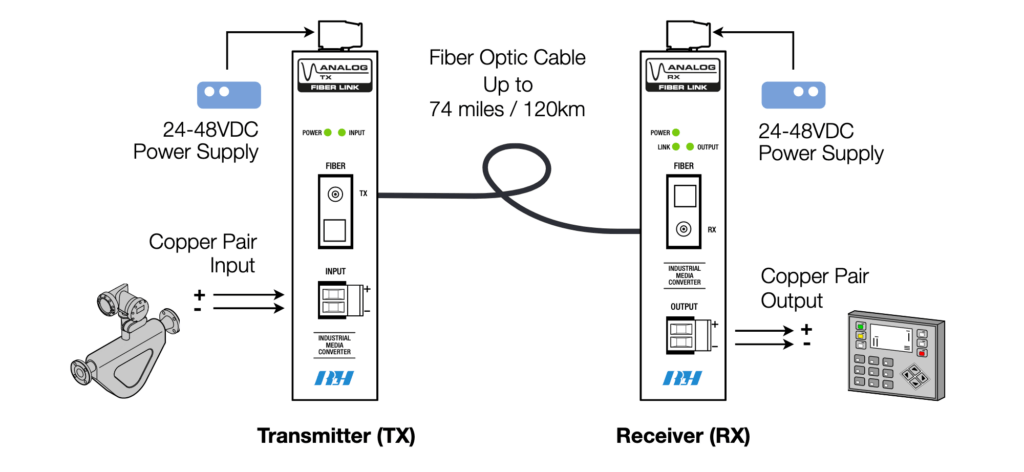

The Analog Signal DIN Fiber Link system transmits a 4~20mA analog signal over one optical fiber. It also offers a 12 bit signal resolution and less than 0.2% source signal variance.

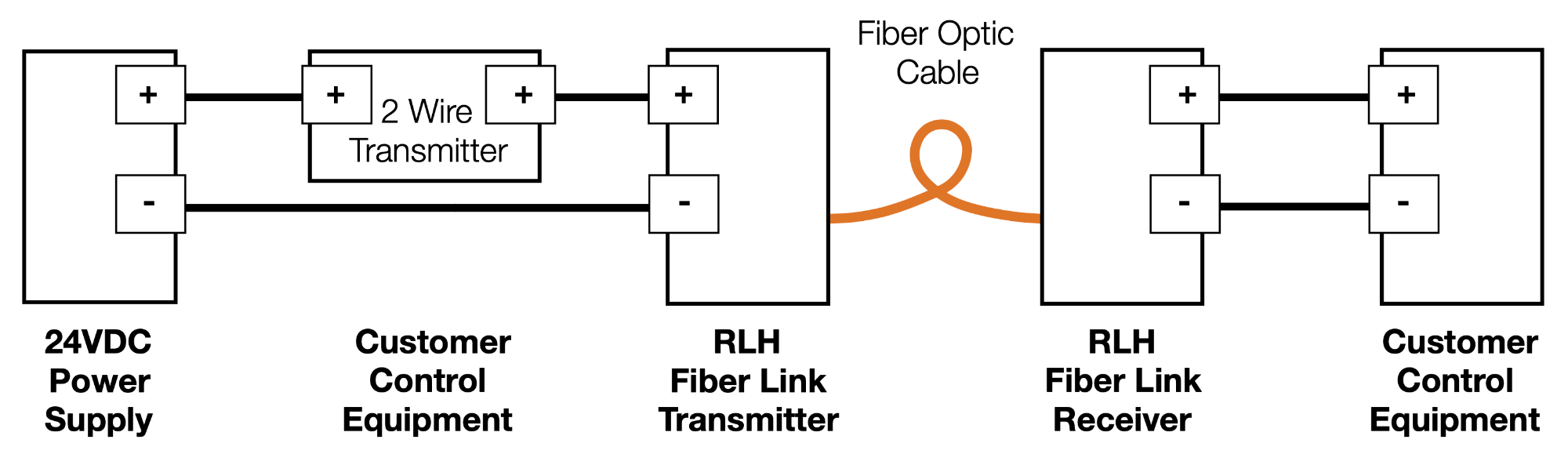

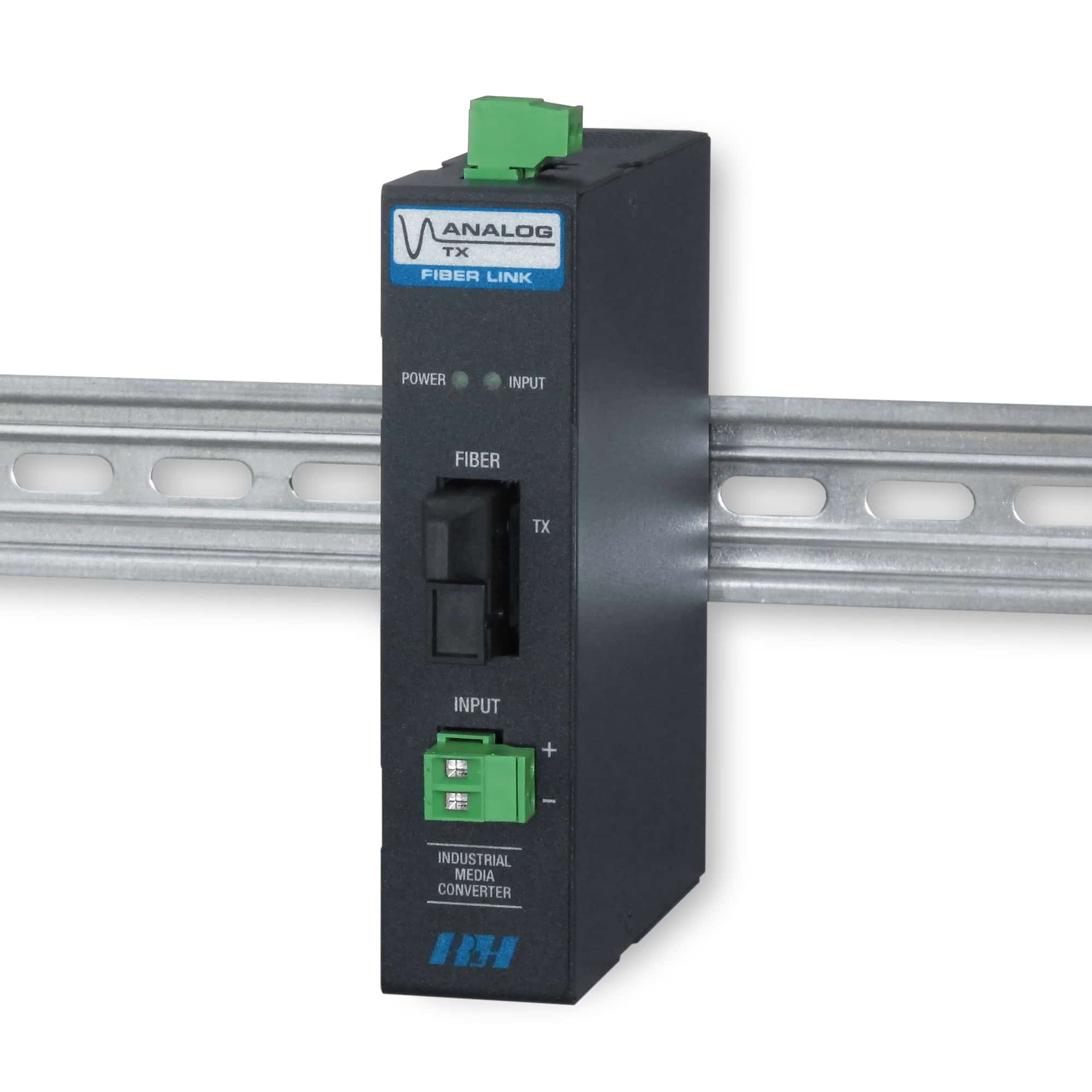

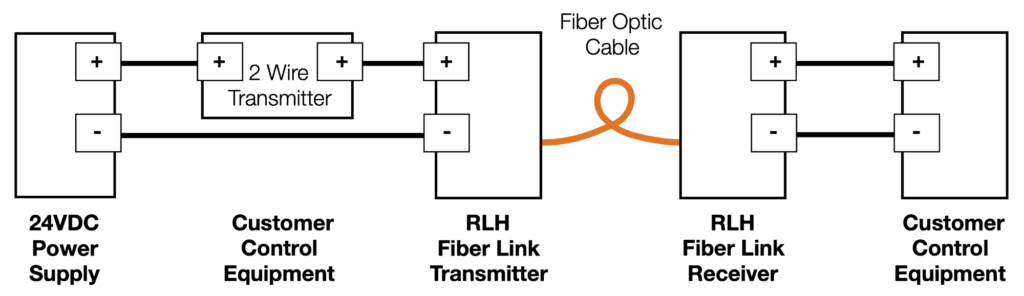

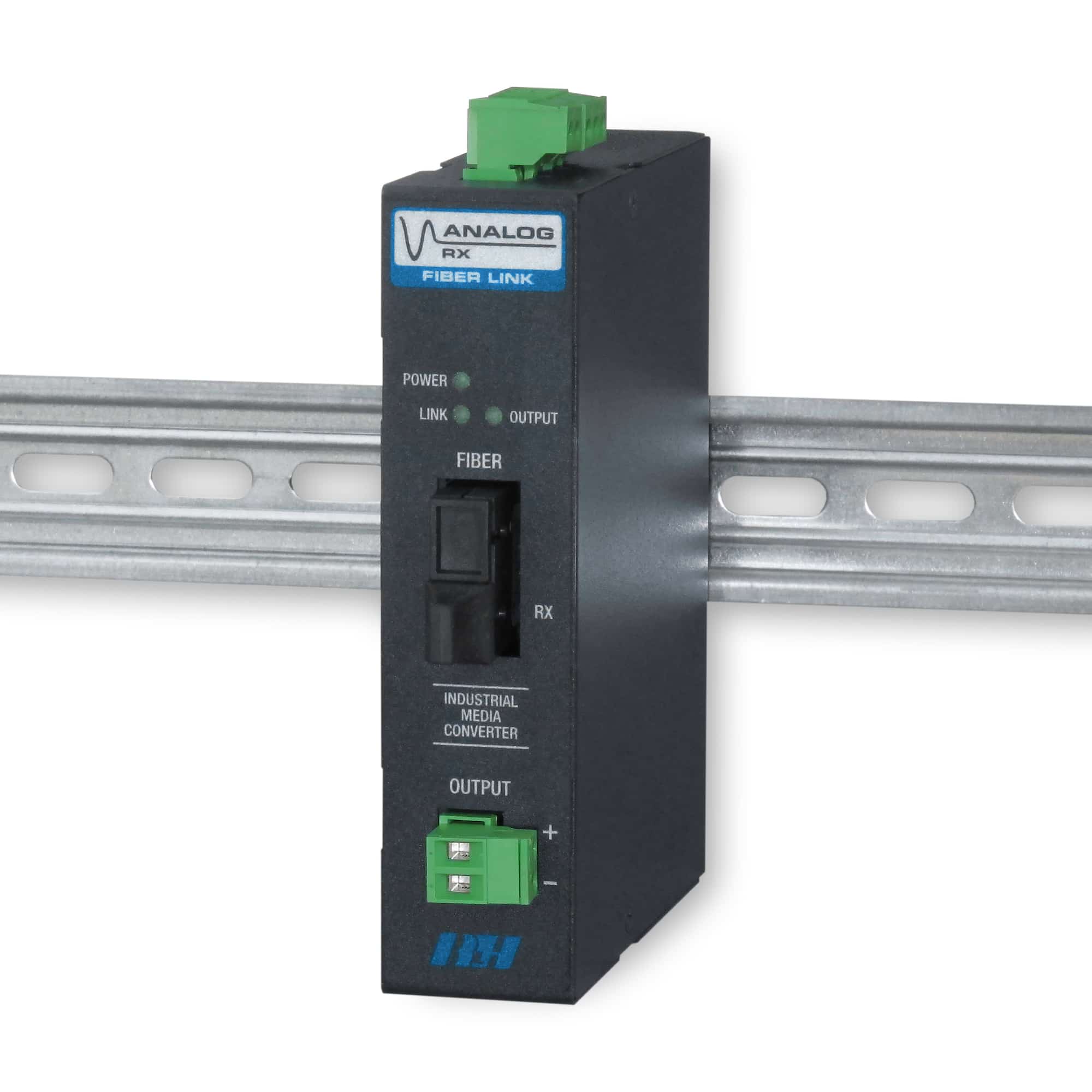

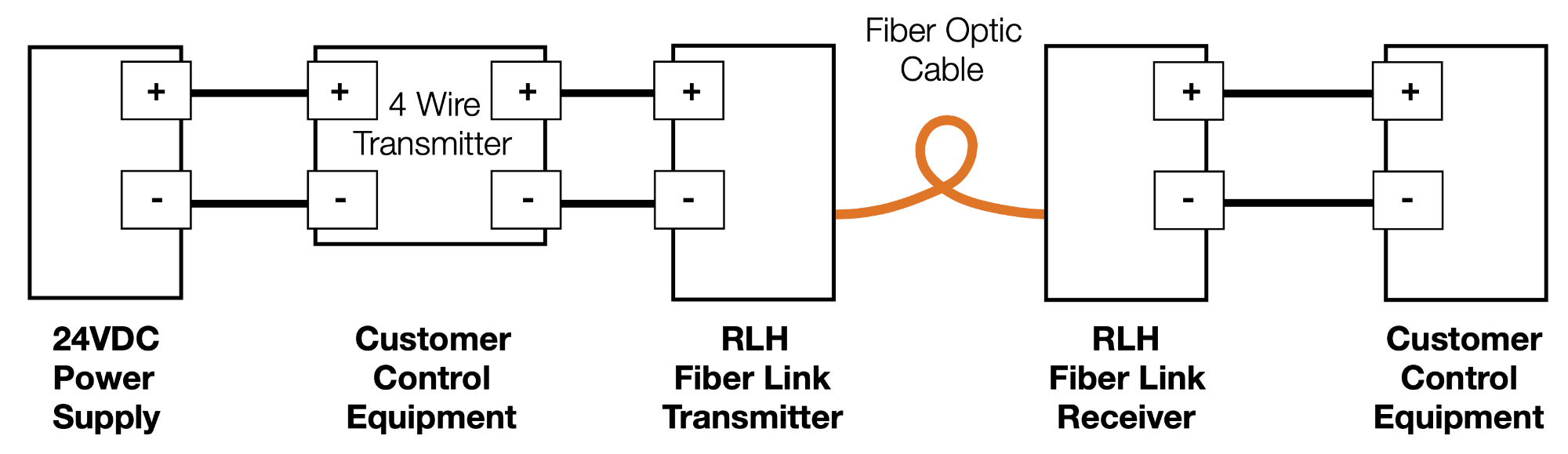

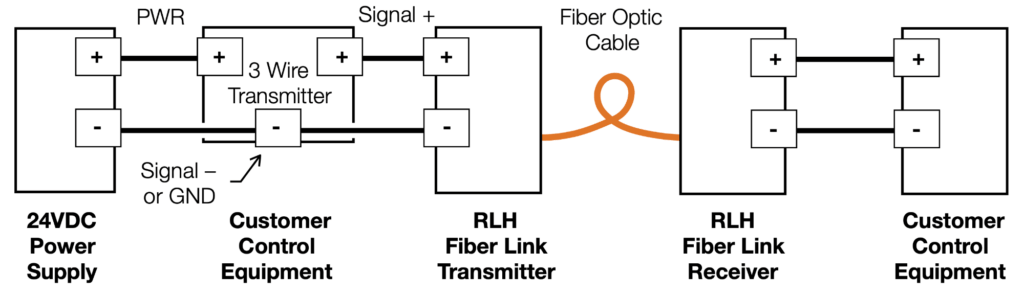

Compatible with most PLC’s, Sensors (2, 3, or 4 wire), and other types of equipment where a precise current measurement must be taken and transmitted over fiber. The system comprises of a transmitter (Analog Input) and a receiver (Analog Output), each device has a compact DIN and wall mountable housing.
This compact and rugged system provides convenient and easy to read LEDs, supports both single-mode and multimode fiber applications, and includes an alarm the receiver side for monitoring system power and fiber health. Designed to operate over an extreme temperature range, providing reliability in harsh environments. Designed and Made in the USA and covered by our Limited Lifetime Warranty.
- Rugged design – Extreme operating temperature rating
- Convenient LEDs for power, fiber, and 4~20mA signal
- Single and dual fiber models available
- Available with ST or SC connectors & single or multimode fiber
- Transmit a 4~20mA signal over fiber
- Update rate: 1,300 samples a second
- 12 Bit signal resolution
- 99.8% accuracy or better
- Alarm contact for status monitoring
- Built-in surge, over current, and polarity reversal protection
- DIN rail or wall mount (Includes wall mount ears)
- Limited Lifetime Warranty
- Made in USA
Transmission Method:
Frequency modulated light via one optical fibers
Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1.24 mi./2km, (50/125µm): 1.24mi./2km
Single-Mode (9/125µm): up to 74.5mi/120km
Fiber Connector Types:
ST or SC
System Accuracy (Includes combined TX & RX)
99.8% @ 25C°
Update Rate:
1.3 Khz
Signal Resolution:
12 Bits
Analog Input & Output:
Refer to datasheet for complete specification list
Powering:
24VDC
Dimensions:
H 4.93” x W 1.20” x D 3.91” (not including DIN clip)
Standard T-35 DIN rail mounting or wall mount with included brackets
Operating Temperature:
-40˚C ~ 70˚C (-40˚F ~ 158˚F)
General Information
Specialized Drawings
- Dimensions – Transmitter
- Dimensions – Transmitter (wall)
- Dimensions – Receiver
- Dimensions – Receiver (wall)
Miscellaneous
AD-420TX-03-1
AD-420RX-03-1
AD-420TX-04-1
AD-420RX-04-1
AD-420TX-40-1
AD-420RX-40-1
AD-420TX-41-1
AD-420RX-41-1
AD-420TX-45-1
AD-420RX-45-1
AD-420TX-50-1
AD-420RX-50-1
AD-420TX-51-1
AD-420RX-51-1
AD-420TX-55-1
AD-420RX-55-1
$530.00 – $970.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Analog Signal 4~20mA Fiber Link System
Product configuration | Transmitter/Receiver | Mode | Connector | Distance | Part number | Price | hf:att:pa_transmitter-receiver | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
---|---|---|---|---|---|---|---|---|---|---|---|
High Precision 4~20mA Analog Fiber Transmitter, Multimode, SC, 2km/1.2 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Multimode | SC | 2km/1.2 miles | AD-420TX-03-1 | $530.00 | transmitter | multimode | sc | 2km-1-2-miles | |
High Precision 4~20mA Analog Fiber Receiver, Multimode, SC, 2km/1.2 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Multimode | SC | 2km/1.2 miles | AD-420RX-03-1 | $530.00 | receiver | multimode | sc | 2km-1-2-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Multimode, ST, 2km/1.2 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Multimode | ST | 2km/1.2 miles | AD-420TX-04-1 | $530.00 | transmitter | multimode | st | 2km-1-2-miles | |
High Precision 4~20mA Analog Fiber Receiver, Multimode, ST, 2km/1.2 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Multimode | ST | 2km/1.2 miles | AD-420RX-04-1 | $530.00 | receiver | multimode | st | 2km-1-2-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Singlemode, SC, 20km/12.4 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Singlemode | SC | 20km/12.4 miles | AD-420TX-40-1 | $640.00 | transmitter | singlemode | sc | 20km-12-4-miles | |
High Precision 4~20mA Analog Fiber Receiver, Singlemode, SC, 20km/12.4 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Singlemode | SC | 20km/12.4 miles | AD-420RX-40-1 | $640.00 | receiver | singlemode | sc | 20km-12-4-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Singlemode, ST, 20km/12.4 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Singlemode | ST | 20km/12.4 miles | AD-420TX-50-1 | $640.00 | transmitter | singlemode | st | 20km-12-4-miles | |
High Precision 4~20mA Analog Fiber Receiver, Singlemode, ST, 20km/12.4 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Singlemode | ST | 20km/12.4 miles | AD-420RX-50-1 | $640.00 | receiver | singlemode | st | 20km-12-4-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Singlemode, SC, 60km/37 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Singlemode | SC | 60km/37 miles | AD-420TX-41-1 | $750.00 | transmitter | singlemode | sc | 60km-37-miles | |
High Precision 4~20mA Analog Fiber Receiver, Singlemode, SC, 60km/37 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Singlemode | SC | 60km/37 miles | AD-420RX-41-1 | $750.00 | receiver | singlemode | sc | 60km-37-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Singlemode, ST, 60km/37 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Singlemode | ST | 60km/37 miles | AD-420TX-51-1 | $750.00 | transmitter | singlemode | st | 60km-37-miles | |
High Precision 4~20mA Analog Fiber Receiver, Singlemode, ST, 60km/37 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Singlemode | ST | 60km/37 miles | AD-420RX-51-1 | $750.00 | receiver | singlemode | st | 60km-37-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Singlemode, SC, 120km/74 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Singlemode | SC | 120km/74 miles | AD-420TX-45-1 | $970.00 | transmitter | singlemode | sc | 120km-74-miles | |
High Precision 4~20mA Analog Fiber Receiver, Singlemode, SC, 120km/74 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Singlemode | SC | 120km/74 miles | AD-420RX-45-1 | $970.00 | receiver | singlemode | sc | 120km-74-miles | |
High Precision 4~20mA Analog Fiber Transmitter, Singlemode, ST, 120km/74 miles, Single Fiber, Powering Voltage 24-48 DC | Transmitter | Singlemode | ST | 120km/74 miles | AD-420TX-55-1 | $970.00 | transmitter | singlemode | st | 120km-74-miles | |
High Precision 4~20mA Analog Fiber Receiver, Singlemode, ST, 120km/74 miles, Single Fiber, Powering Voltage 24-48 DC | Receiver | Singlemode | ST | 120km/74 miles | AD-420RX-55-1 | $970.00 | receiver | singlemode | st | 120km-74-miles |
- A complete system requires a transmitter unit and a receiver unit
