Two-Way Signaling of a Contact Closure Over Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

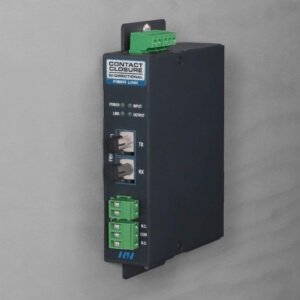

This Bi-Directional Contact Closure Fiber Link system provides two-way transmission of a contact closure signal over optical fiber. Applications include alarm event triggering, building automation, environmental control systems, fire & alarm systems, gate control, traffic signal control equipment, and more.
This contact closure system is designed to operate over an extreme temperature range, providing reliability in non-temperature controlled environments. Accepts a wide power input rage of 12 through 48 volts DC allowing for flexibility in installation.
Features
- Convenient LED status indicators
- Available with ST connectors for single or multimode fiber
- Input will sense a dry contact closure
- Output relay is rated to support to 60 Watts
- Can be powered by 12-48VDC
- Pluggable terminal blocks
- Alarm contact for status monitoring
- Wide operating temp -40°F to +158°F (-40°C to +70°C)
- Standard T35 DIN rail or wall mountable
- Limited Lifetime Warranty
- Made in USA
Specs
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm, 50/125µm): 1.2 miles (2km)
Singlemode (9/125µm): 9 miles (15km)
Singlemode Long Haul: 29 mi. (48 km)
*Note: Distances equated using industry standard fiber and connector attenuation of 3dB/Km. Fiber condition, splices and connectors may affect actual range.
Fiber Connector Type:
ST
Construction:
Steel and Aluminum Alloy, Powder coated
Mounting Style:
Standard DIN rail (TS-35) or wall mount
Dimensions:
H4.93” x W1.2” x D3.5” (100mm x 31mm x 89mm)
Not including connectors, Din Clip, or Wall Mount Ears
Powering:
12~48VDC
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Safety:
FCC Class B, CE, RoHS
UL Listed, CB Scheme
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
1CD-IO-03-1
1CD-IO-20-1
1CD-IO-21-1
Ordering
Bi-Directional Contact Closure
| Product configuration | Mode | Distance | Connector | Fibers | Part number | Price | |
|---|---|---|---|---|---|---|---|
| Multimode, ST, 2km/1.2 miles, Dual Fiber | Multimode | 2km/1.2 miles | ST | Dual Fiber | 1CD-IO-03-1 | $395.00 | |
| Singlemode, ST, 15km/9 miles, Dual Fiber | Singlemode | 15km/9 miles | ST | Dual Fiber | 1CD-IO-20-1 | $655.00 | |
| Singlemode, ST, 48km/29 miles, Dual Fiber | Singlemode | 48km/29 miles | ST | Dual Fiber | 1CD-IO-21-1 | $865.00 |
- A complete system requires two devices with the same part number
