Transport POTS, 4W DATA, RS-232, T1, & Gigabit Ethernet Over Fiber

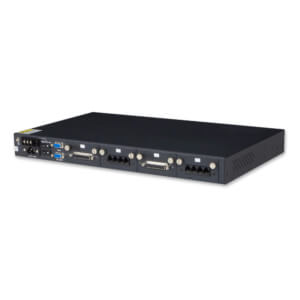

The iMux is a powerful fiber optic modular multiplexer capable of transmitting over fiber up to 16 channels of T1, RS232, 4 Wire Data, and POTS. Additional to the 16 channels every system includes a built-in 4 Port Gigabit Managed Ethernet switch.
Each of these services are supplied by our communication modules, each module will transport up to 4 channels of the specified service and may be installed in any combination. Spares or add-on modules may be ordered separately and are field installable.
Gigabit SFPs are used for the back-haul fiber transport of the communication services. Each iMux will take up to 2 SFPs for redundancy. The SFPs are hot swappable and automatically fail over in case of a failure in the primary fiber path.
The iMux may be managed through SNMP, web Interface, craft port or menu keys on the front panel. It also has an external alarm port for alarm monitoring, as well as 4 programmable alarm contacts. The system provides local/remote loopback functions that are ideal for network testing and maintenance.
The iMux takes up 1RU and comes complete with EIA19” and 23” rack ears, or it may be used on a desktop or shelf.
- Multiplexes up to 16 voice and data channels plus Gigabit Ethernet over a single fiber
- Up to 4 modules (each with 4 channels) may be used in any combination to mix and match services
- Convenient front LED status indicators
- T1, RS232, POTS, & 4 Wire Data service modules
- 4 built-in Gigabit Ethernet ports
- Aggregated Ethernet throughput up to 800 Mbps
- Supports VLAN, QoS, and Port Rate control
- SFPs are hot swappable & provide 1+1 redundancy
- Ethernet Ports can be configured to be Isolated Channels or Shared
- Supports SNMP , HTTP / FTP / TFTP remote software upgradeable
- HTTP and SNMP Monitoring and Configuration
- The POTS modules support phone extensions as well as ring down
- Redundant DC and dual AC and DC powering options
Construction:
Powder coated Metallic housing
Ethernet Ports:
(4) 10/100/1000 Mbps
Service Port Modules:
Analog Phone (POTS), T1, 4W AUDIO DATA 600 OHMS, & RS-232
*Supports up to four modules in any combination
Web Interface:
Intuitive Web Interface for Configuration & Management
Mounting Style:
Rack Mount 1RU
Operating Temperature:
-32°F to 122°F (0°C to 50°C)
Powering Options:
Redundant power inputs DC + DC or AC + DC
Warranty:
3 Years
General Information
RLH-IMUX-V-S1
RLH-IMUX-A-S1
RLH-MM-T1
RLH-MM-D1
RLH-MM-AO
RLH-MM-AS
RLH-MM-D2
SFP-1G-03-2
SFP-1G-04-2
SFP-1G-30-2
SFP-1G-31-2
SFP-1G-34-2
SFP-1G-20-2
SFP-1G-21-2
SFP-1G-24-2
SFP-1G-25-2
Ordering

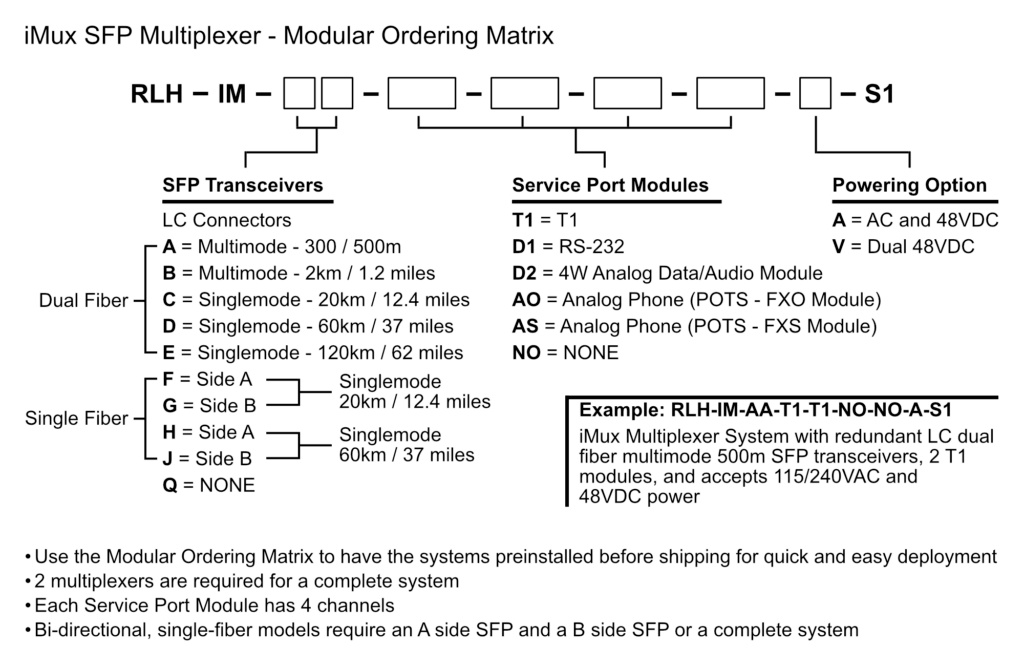

iMux Modular Multiplexer System
| Short description | Part number | Price | |
|---|---|---|---|
| iMux Gigabit Multiplexer System, Redundant 48VDC Powering, 4 Service Module Capacity, 1RU | RLH-IMUX-V-S1 | $2,450.00 | |
| iMux Gigabit Multiplexer System, AC & 48VDC Powering, 4 Service Module Capacity, 1RU | RLH-IMUX-A-S1 | $2,450.00 |
iMux Modular Multiplexer System Service Modules
| Short description | Part number | Price | |
|---|---|---|---|
| iMux 4 Channel T1 Service Module | RLH-MM-T1 | $680.00 | |
| iMux 4 Channel RS-232 Service Module | RLH-MM-D1 | $640.00 | |
| iMux 4 Channel POTS FXO Service Module | RLH-MM-AO | $640.00 | |
| iMux 4 Channel POTS FXS Service Module | RLH-MM-AS | $640.00 | |
| iMux 4 Channel 4 Wire Analog Data Service Module | RLH-MM-D2 | $680.00 |
1.25Gbit SFP Transceiver
| Short description | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | hf:att:pa_distance | hf:att:pa_fibers | |
|---|---|---|---|---|---|---|---|---|---|---|
| Multimode, LC, 550m/1804 feet, Dual Fiber, 850nm | Multimode | LC | 550m/1804 feet | Dual Fiber | 850nm | SFP-1G-03-2 | $70.00 | 550m-1804-feet | dual-fiber | |
| Multimode, LC, 2km/1.2 miles, Dual Fiber, 1310nm | Multimode | LC | 2km/1.2 miles | Dual Fiber | 1310nm | SFP-1G-04-2 | $80.00 | 2km-1-2-miles | dual-fiber | |
| Singlemode, LC, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | LC | 20km/12.4 miles | Dual Fiber | 1310nm | SFP-1G-30-2 | $110.00 | 20km-12-4-miles | dual-fiber | |
| Singlemode, LC, 60km/37 miles, Dual Fiber, 1550nm | Singlemode | LC | 60km/37 miles | Dual Fiber | 1550nm | SFP-1G-31-2 | $170.00 | 60km-37-miles | dual-fiber | |
| Singlemode, LC, 120km/74 miles, Dual Fiber, 1550nm, with Digital Diagnostic Monitoring | Singlemode | LC | 120km/74 miles | Dual Fiber | 1550nm | SFPD-1G-34-2 | $360.00 | 120km-74-miles | dual-fiber | |
| Singlemode, LC, 20km/12.4 miles, Single Fiber – Side A, Tx1310/Rx1550 | Singlemode | LC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | SFP-1G-20-2 | $120.00 | 20km-12-4-miles | single-fiber-side-a | |
| Singlemode, LC, 20km/12.4 miles, Single Fiber – Side B, Rx1310/Tx1550 | Singlemode | LC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | SFP-1G-21-2 | $140.00 | 20km-12-4-miles | single-fiber-side-b | |
| Singlemode, LC, 60km/37 miles, Single Fiber – Side A, Tx1310/Rx1550, with Digital Diagnostic Monitoring | Singlemode | LC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | SFPD-1G-24-2 | $190.00 | 60km-37-miles | single-fiber-side-a | |
| Singlemode, LC, 60km/37 miles, Single Fiber – Side B, Rx1310/Tx1550, with Digital Diagnostic Monitoring | Singlemode | LC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | SFPD-1G-25-2 | $220.00 | 60km-37-miles | single-fiber-side-b | |
| RJ-45, Cat5/6/7, Gigabit Ethernet, 100m/328 feet | Cat5/6/7 | RJ-45 | 100m/328 feet | N/A | N/A | SFP-1G-RJ-2 | $90.00 | 100m-328-feet | n-a | |
| SFP Optical Transceiver, Gigabit, Single Fiber - Side A, Tx-1310nm/Rx-1550nm | Multimode | LC | 550m/1804 feet | Single Fiber - Side A | T-1310/R-1550 | SFP-1G-01-2 | $110.00 | 550m-1804-feet | single-fiber-side-a | |
| SFP Optical Transceiver, Gigabit, Single Fiber - Side A, Tx-1310nm/Rx-1550nm | Multimode | LC | 550m/1804 feet | Single Fiber - Side B | R-1310/T-1550 | SFP-1G-02-2 | $130.00 | 550m-1804-feet | single-fiber-side-b | |
| SFP Optical Transceiver, Gigabit, Single Fiber - Side A, Tx-1310nm/Rx-1550nm | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | SFP-1G-12-2 | $140.00 | 20km-12-4-miles | single-fiber-side-a | |
| SFP Optical Transceiver, Gigabit, Single Fiber - Side A, Tx-1310nm/Rx-1550nm | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | SFP-1G-13-2 | $160.00 | 20km-12-4-miles | single-fiber-side-b | |
| SFP Optical Transceiver, Gigabit, Single Fiber - Side A, Tx-1310nm/Rx-1550nm | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | SFP-1G-14-2 | $225.00 | 60km-37-miles | single-fiber-side-a | |
| SFP Optical Transceiver, Gigabit, Single Fiber - Side A, Tx-1310nm/Rx-1550nm | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | SFP-1G-15-2 | $245.00 | 60km-37-miles | single-fiber-side-b |
- Single fiber (bi-directional) SFP transceivers must always be paired, side A and side B
Please contact us if your project requires customized iMux equipment.
