Transmit RS-232/422/485 Serial Data Over Fiber with Maximum Reliability

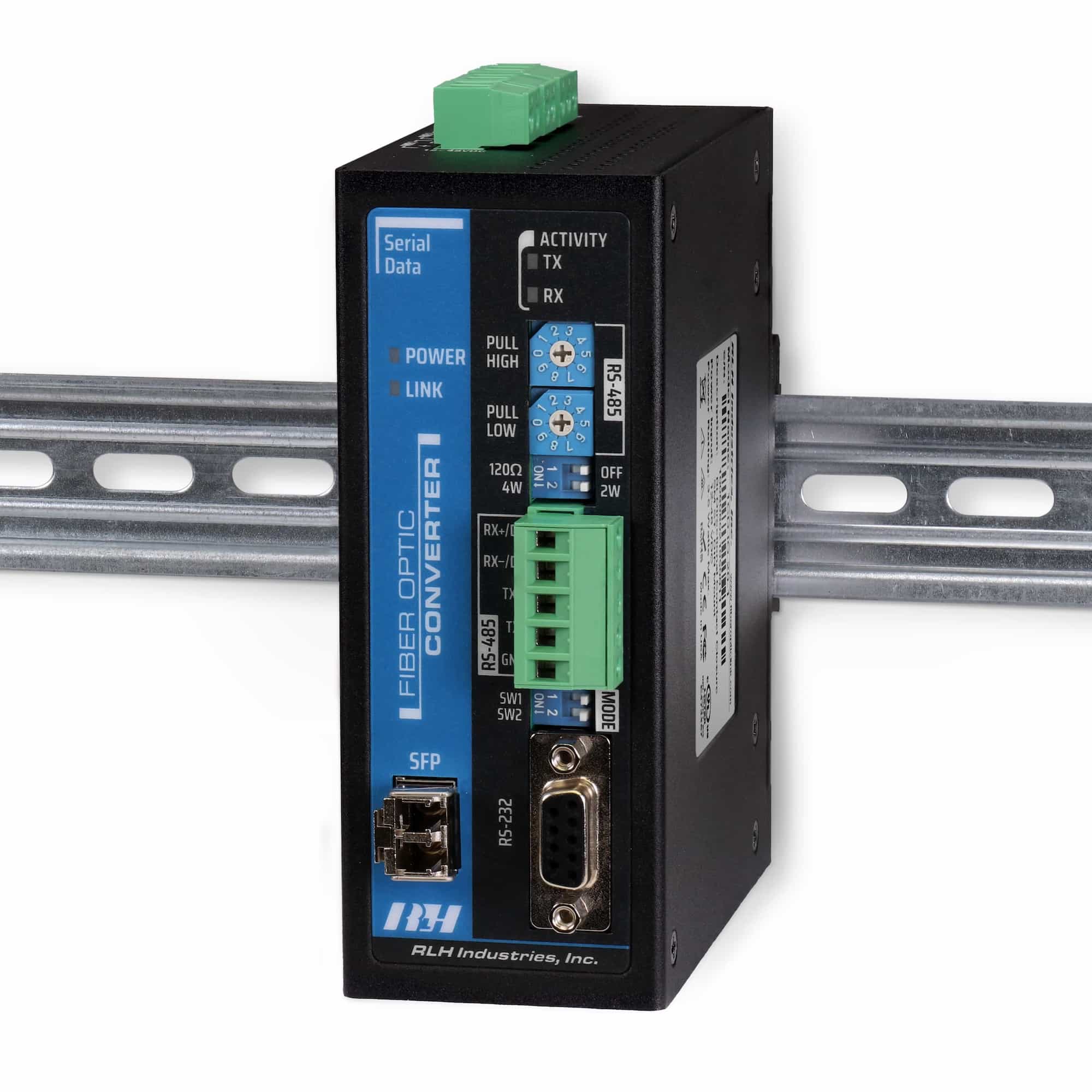

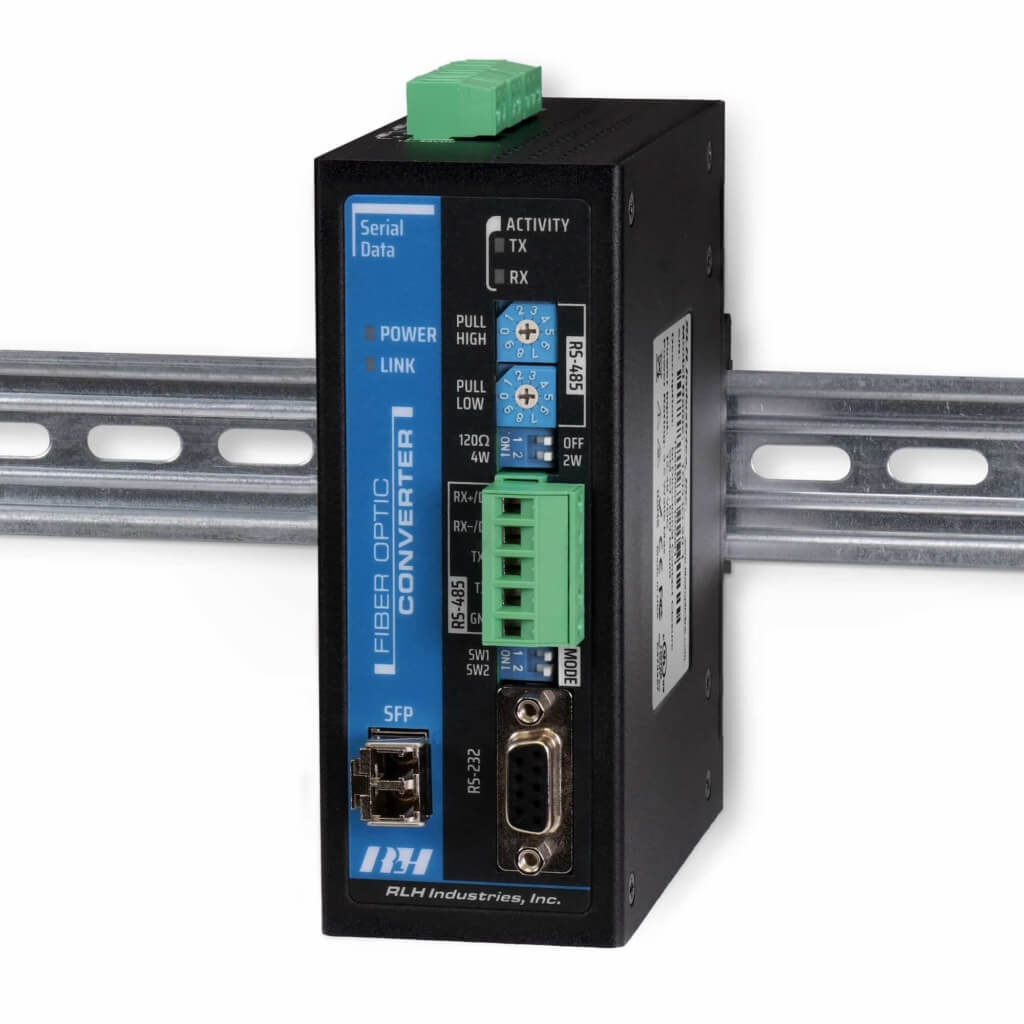

The RLH Serial Data Fiber Optic Converter transmits RS-232/422/485 serial data over fiber optic cable. It transmits simultaneously to each serial port, providing the option to interface between one of three different serial data communication standards.
Designed for operation in harsh environments, this fiber converter allows for long distance communication while providing immunity to EM/RFI and transient surges along the fiber path. This rugged, industrial grade converter is ideal for applications where reliability is critical, and is suitable for use in non-temperature controlled environments.
A comprehensive set of LEDs on the front panel indicate power status, fiber status, and RS-232/422/485 activity. Features include redundant power inputs with a system alarm contact for remote monitoring, and it includes both a DIN rail clip and wall mount ears for ease of installation. This system is made in the U.S.A. and covered by our Lifetime Warranty.
Features
- ransparent RS-232/422/485 extension over fiber
- Compatible with all MSA Compliant Gigabit SFPs
- Supports RS-232 baud rates of 50 bps to 128 kbps
- Supports RS-422/485 baud rates of 50 bps to 2.5 Mbps
- Rotary Switch for RS-422/485 pull high/low resistor value
- Compatible Protocols: DNP, Modbus, DF1, Profibus, BACnet MS/TP, asynchronous HDLC
- Supports Fiber Ring Configuration
- Hardened to operate in -40°F to +158°F (-40°C to +70°C)
- DIN rail or Wall Mount (Wall mount ears included)
- Redundant Power Inputs (12~48VDC)
- Lifetime Warranty
- Made in the USA
Please see the product documentation for the complete list of specifications
Fiber Port:
1 Gigabit SFP Slot, Accepts MSA compliant 1.25Gbps SFPs (Sold separately)
LED Indicators:
Power, Fiber Link, Serial Data Activity (232/485)
Power Input:
Standard model 12~48VDC (11~53V)
-A powering option 125VDC (42~160V)
Dual redundant power options – Polarity insensitive
Power Consumption:
8 Watts Maximum
DC Input Isolation (In/Out):
1.5KV
Overcurrent Protection:
1.0A Automatic Recovery
Latency:
400ns
System Status Alarm:
Normally Open / Closed Relay (SPDT)
Temperature:
Storage: -40˚C to +85˚C (-40˚F to +185˚F)
Operating: -40˚C to +70˚C (-40˚F to +158˚F)
Dimensions:
H 5.2” x W 2.2” x D 4”, (131mm x 56mm x 102mm) – not including DIN clip
Mounting:
Standard T-35 DIN rail clip and wall mount ears (Included)
Humidity:
95% non-condensing
Safety:
FCC Class B, CE, RoHS, UL Listed, CB Scheme
Warranty:
Lifetime
General Information
CAD Files
Guide
FBX-SERIAL-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Serial Data Fiber Optic Converter
| Short description | Part number | Price | |
|---|---|---|---|
| Serial Data Fiber Optic Converter, RS-232/422/485, 1 SFP Slot, Powered by 12-48VDC | FBX-SERIAL-1 | $580.00 |

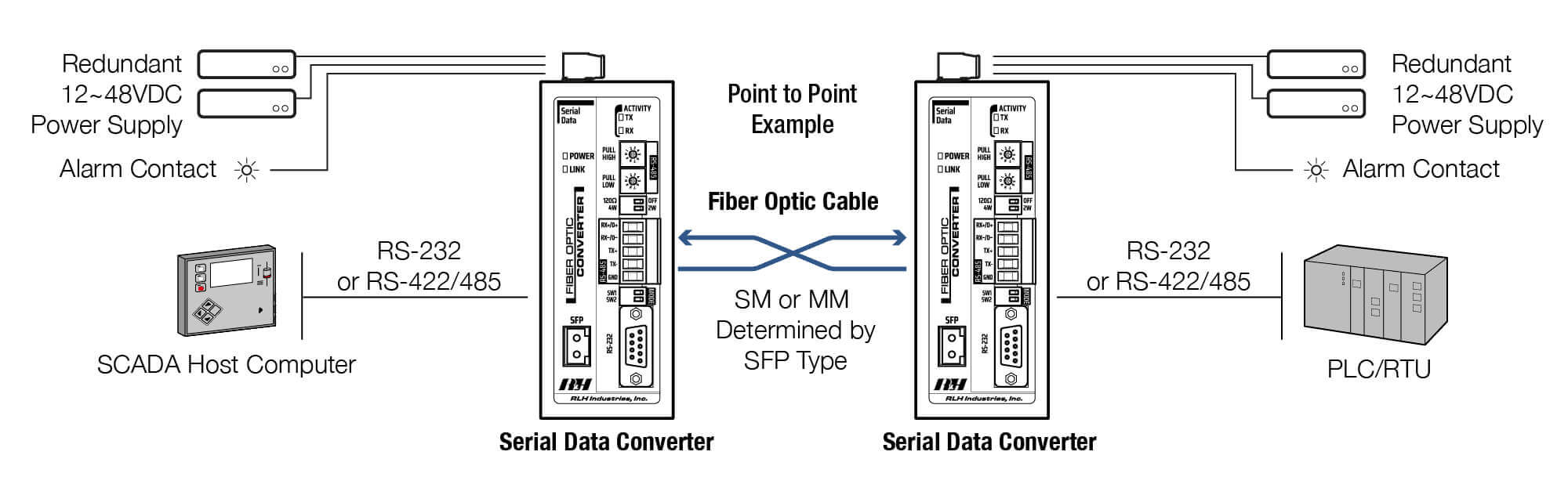

- A complete system requires two (2) units
- Add -A to the end of the part number for 125VDC input power option (additional $120.00)
DB-9 Serial Cables
| Short description | Side 1 | Side 2 | Part number | Price | |
|---|---|---|---|---|---|
| Straight Through 6’ RS-232 Male to Male Cable | DB-9 Male | DB-9 Male | DB9-S-MM-06FT | $10.00 | |
| Straight Through 6’ RS-232 Male to Female Cable | DB-9 Male | DB-9 Female | DB9-S-MF-06FT | $10.00 | |
| Straight Through 6’ RS-232 Female to Female Cable | DB-9 Female | DB-9 Female | DB9-S-FF-06FT | $10.00 | |
| Null/Crossover 6’ RS-232 Male to Female Cable | DB-9 Male | DB-9 Female | DB9-X-MF-06FT | $10.00 | |
| Null/Crossover 6’ RS-232 Female to Female Cable | DB-9 Female | DB-9 Female | DB9-X-FF-06FT | $10.00 | |
| RS-232 6’ Breakout Cable | DB-9 Male | DB-9 Female - QTY 3 | DB9-BREAKOUT-MF-04FT | $45.00 | |
| DB-9 Female to Male Gender Converter | DB-9 Male | DB-9 Male | DB9-GENDER-MM | $5.00 |
