Rugged, Compact, and Reliable 9-PIN RS-232 over Fiber Solution

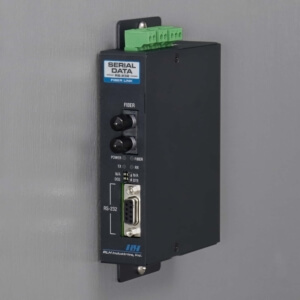

This Industrial Serial Data DIN Fiber Link system transports a full 9-PIN RS-232 copper signal over fiber optic cable. This is an ideal solution for extending serial data communications over long distances or near large electrical equipment. Fiber optics provide long distance communication up to 74 mi. (120km) and immunity to EMI/RFI and potential transient surges which can cause noise or damage equipment.
The system supports asynchronous serial data rates from 50 bps to 1Mbit/s and has an auto-sensing feature that eliminates the need to manually set serial data rates. A comprehensive set of LEDs on the front panel indicate power status, fiber status, and serial data activity. Powering options include standard 24-48VDC or high range DC powering of 125VDC. This rugged system is designed to operate over a wide operating temperature -40 to +70°C and features are dual redundant power inputs, and a system alarm relay for maximum uptime and reliability. Included is a DIN clip and wall mount ears for easy installation into to a wide range of environments.
- Rugged design – Extreme operating temperature rating
- 9-PIN RS-232 Signal – DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
- Selectable DTE/DCE switch
- Each PIN is optically isolated
- Optional Breakout Cable for 3 channels of RS-232 serial data
- Convenient LEDs for power, fiber, and serial signals
- Non-removable transceiver for ease of ordering and maximum operating reliability
- Available with ST or SC connectors
- Available in Single or Multimode fiber, supports fiber distances up to 74mi /120km
- Dual and single (Bi-directional) fiber models available
- LED’s for power, fiber, and serial signal activity
- System power range options: 24-48VDC or 125 VDC
- Redundant Power Inputs
- Built-in surge, over current, and polarity reversal protection
- DIN rail or wall mount (Includes wall mount ears)
- Limited Lifetime Warranty
- Made in USA
Powering Voltage:
Standard Model – 24-48VDC
-A Model – 125VDC
Power Consumption:
3.6 Watts (Maximum)
Fiber Connectors:
ST or SC
Fiber Type:
Singlemode up to 120km
Multimode up to 2km, supports 62.5μm and 50μm
Protocols:
RS-232
Latency:
100ns
DB-9 Port:
Female
Active PIN’s: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
RS-232 Signal Isolation:
Optical Isolation 3000 Vrms
DIP Switches:
DCE / DTE – Specifies the DB-9 Ports Operational Mode
LED:
POWER – DC Power OK
FIBER – Fiber Connection OK
TX – RS-232 Copper Transmit
RX – RS-232 Copper Receive
Surge Protection:
Varistors & Automatic resettable fuses
DC Input Isolation 1.5kV
Voltage Reversal Protection
Construction:
Powder coated steel and aluminum alloy
Physical Dimensions H 4.93” x W 1.20” x D 3.93” (125mm x 31mm x 100mm)
Mounting Style:
Standard DIN rail (T-35)
Wall mount (with included ears)
Operating:
Temperature -40°F to +158°F (-40°C to +70°C)
Humidity 95%
General Information
Specialized Drawings
Miscellaneous
SED-03-2
SED-04-2
SED-40-2
SED-41-2
SED-45-2
SED-50-2
SED-51-2
SED-55-2
SED-10-2
SED-11-2
SED-14-2
SED-15-2
Ordering
Industrial RS-232 Serial Data Fiber Converter
| Product configuration | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
|---|---|---|---|---|---|---|---|---|---|---|
| Multimode, SC, 2km/1.2 miles, Dual Fiber | Multimode | SC | 2km/1.2 miles | Dual Fiber | SED-03-2 | $490.00 | multimode | sc | 2km-1-2-miles | |
| Multimode, ST, 2km/1.25 miles, Dual Fiber | Multimode | ST | 2km/1.2 miles | Dual Fiber | SED-04-2 | $490.00 | multimode | st | 2km-1-2-miles | |
| Singlemode, SC, 20km/12.4 miles, Dual Fiber | Singlemode | SC | 20km/12.4 miles | Dual Fiber | SED-40-2 | $600.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 60km/37 miles, Dual Fiber | Singlemode | SC | 60km/37 miles | Dual Fiber | SED-41-2 | $710.00 | singlemode | sc | 60km-37-miles | |
| Singlemode, SC, 120km/74 miles, Dual Fiber | Singlemode | SC | 120km/74 miles | Dual Fiber | SED-45-2 | $930.00 | singlemode | sc | 120km-74-miles | |
| Singlemode, ST, 20km/12.4 miles, Dual Fiber | Singlemode | ST | 20km/12.4 miles | Dual Fiber | SED-50-2 | $600.00 | singlemode | st | 20km-12-4-miles | |
| Singlemode, ST, 60km/37 miles, Dual Fiber | Singlemode | ST | 60km/37 miles | Dual Fiber | SED-51-2 | $710.00 | singlemode | st | 60km-37-miles | |
| Singlemode, ST, 120km/74 miles, Dual Fiber | Singlemode | ST | 120km/74 miles | Dual Fiber | SED-55-2 | $930.00 | singlemode | st | 120km-74-miles | |
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | SED-10-2 | $630.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | SED-11-2 | $630.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 60km/37 miles, Single Fiber - Side A | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | SED-14-2 | $770.00 | singlemode | sc | 60km-37-miles | |
| Singlemode, SC, 60km/37 miles, Single Fiber - Side B | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | SED-15-2 | $770.00 | singlemode | sc | 60km-37-miles |
- For the 125VDC input power option, please note your part number, add -A to the end, and get your quote here
- Bidirectional single fiber models require an A Side and B Side unit for a complete system
