Transport Gigabit Ethernet Over Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

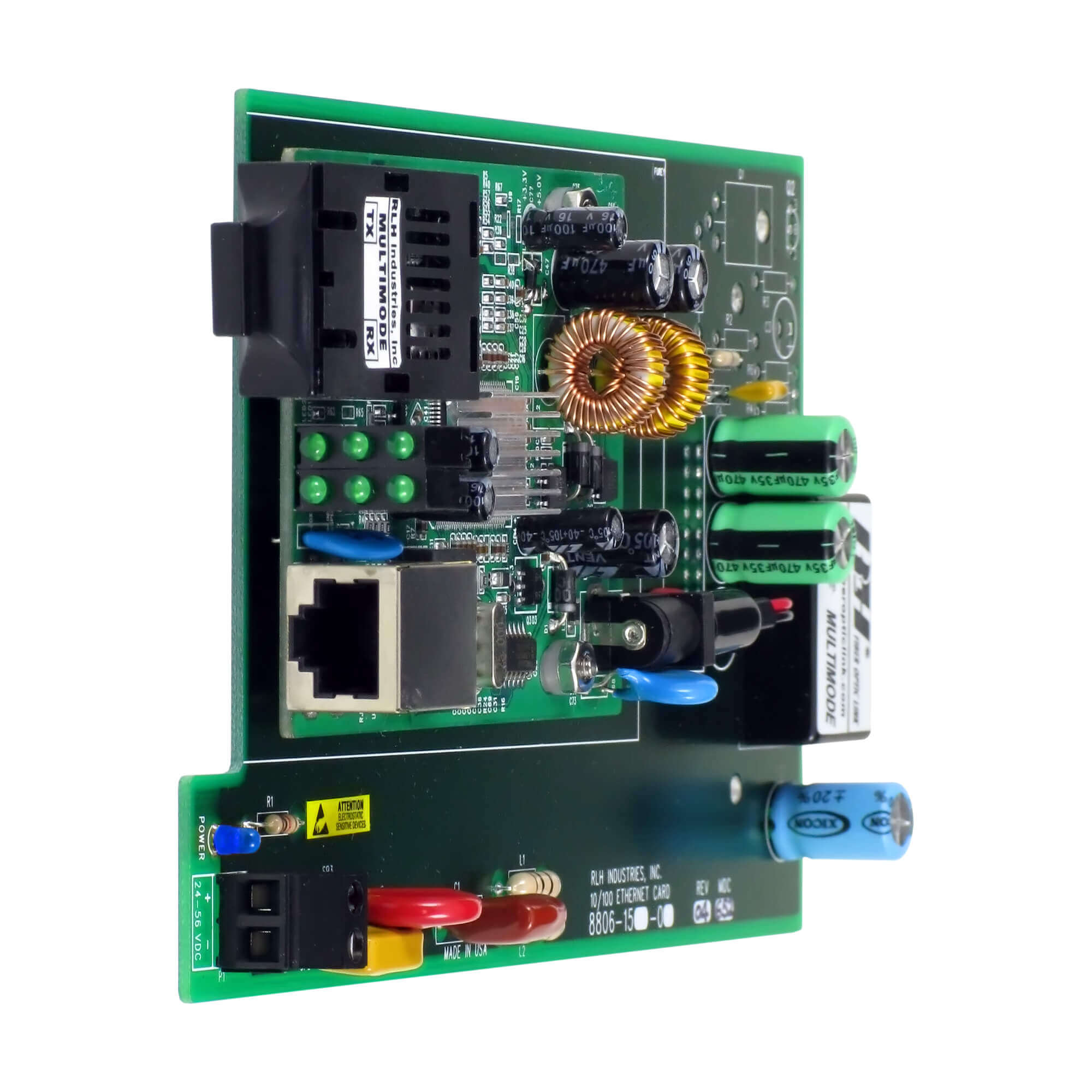

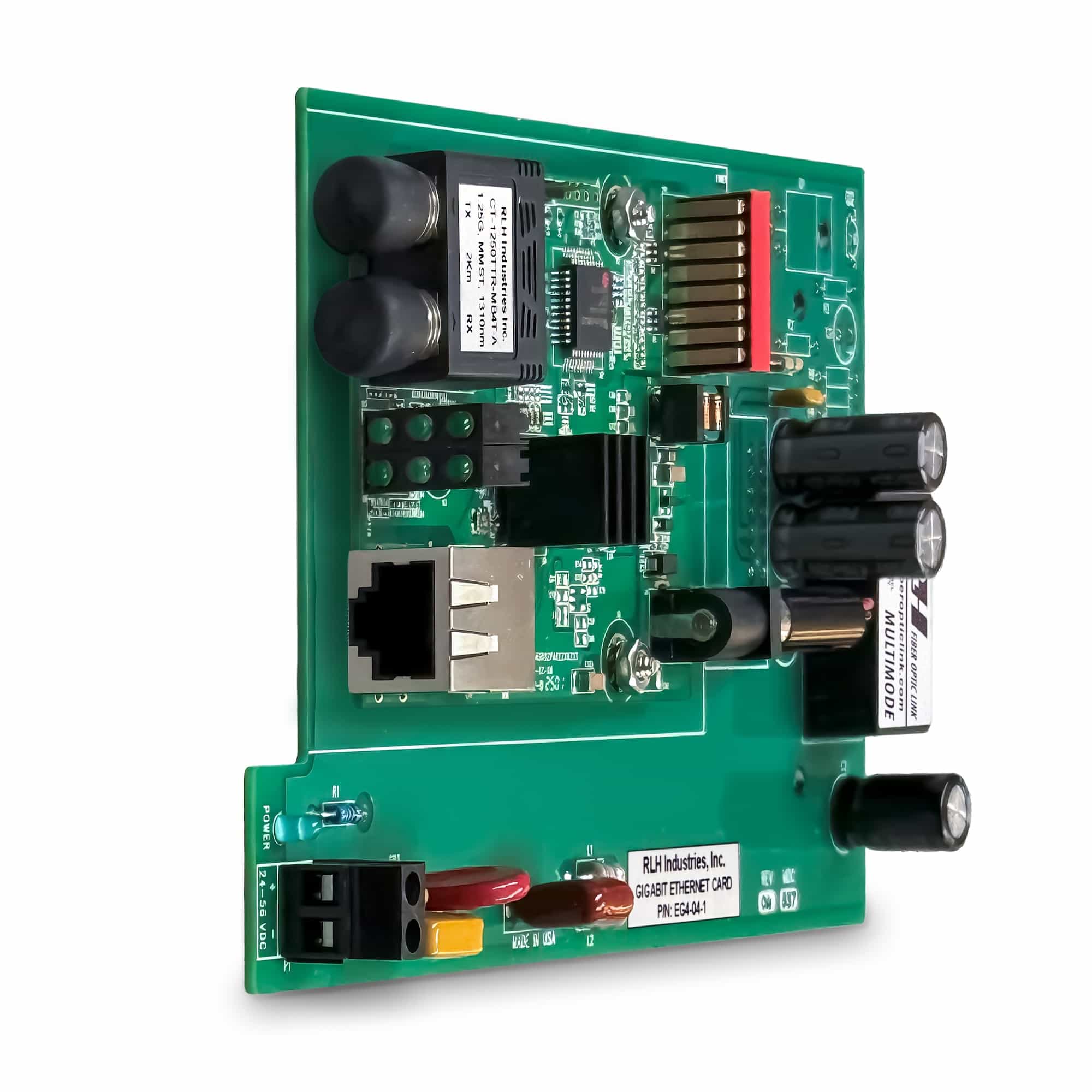

The RLH 10/100/1000 Ethernet fiber link card converts a copper 10Base-T or 100/1000Base-TX to a 1000Base-SX/LX fiber optical signal for transmission over either multimode or singlemode fiber optic cable.
The cards transmit the data signals over fiber optic cable which allow for network extension over long distances, and provide electrical isolation between both ends of the network.
The Gigabit Ethernet over fiber card may be used as a system, with a card at each end, or the fiber optic cable may be connected directly to any 1000Base-SX/LX compatible device.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- Provides Gigabit Ethernet over fiber
- Connects directly to RJ45 connector
- IEEE 10/100/1000BASE-T standards compliant
- Features Auto MDI-X crossover switching
- Extends network span up to 100km/62mi (singlemode)
- Bidirectional communication over a single fiber is available
- Environmentally rugged with wide operating temperature range
- Utilizes ultra-reliable 1×9 fiber optic modules
- On-board LED status display
- Utilizes 24-56VDC power source
- Available in Single and Multimode
- Available with ST or SC Connectors
- Compatible with a wide variety of RLH Card Housings
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 1310nm
Singlemode: 1310nm, 1550nm
Fiber Type/Distance:
Multimode: (62.5/50µm) 1,804 feet (550m)
Singlemode: (8~9µm) 12.4 miles/20km; 37 miles/60km; 62 miles/100km
Fiber Connector Type:
ST or SC
Power:
24VDC – 56VDC @ 5W
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
32˚F to +122˚F (-0˚C to +50˚C)
Operating Humidity:
95% non-condensing
Docs

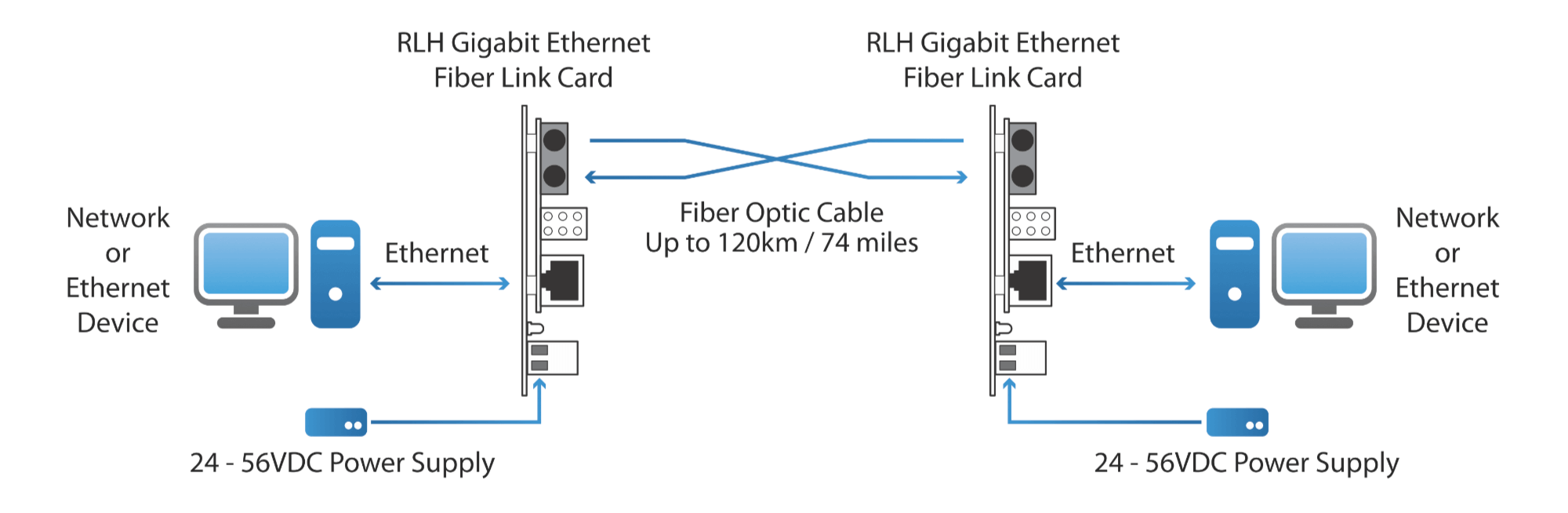

Diagrams
Numbers
EG4-04-1
EG4-03-1
EG4-40-1
EG4-41-1
EG4-45-1
EG4-50-1
EG4-51-1
EG4-55-1
EG4-10-1
EG4-11-1
EG4-14-1
EG4-15-1
Ordering
10/100/1000 Ethernet
| Product configuration | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | hf:att:pa_card-type | hf:att:pa_mode | hf:att:pa_connector | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Multimode, ST, 550m/1804 feet, Dual Fiber, 1310nm | Multimode | ST | 550m/1804 feet | Dual Fiber | 1310nm | EG4-04-1 | $990.00 | multimode | st | ||
| Singlemode, SC, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 1310nm | EG4-40-1 | $1,100.00 | singlemode | sc | ||
| Singlemode, SC, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | SC | 60km/37 miles | Dual Fiber | 1310nm | EG4-41-1 | $1,210.00 | singlemode | sc | ||
| Singlemode, SC, 100km/62 miles, Dual Fiber, 1550nm | Singlemode | SC | 100km/62 miles | Dual Fiber | 1550nm | EG4-45-1 | $1,430.00 | singlemode | sc | ||
| Singlemode, ST, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 1310nm | EG4-50-1 | $1,100.00 | singlemode | st | ||
| Singlemode, ST, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | ST | 60km/37 miles | Dual Fiber | 1310nm | EG4-51-1 | $1,210.00 | singlemode | st | ||
| Singlemode, ST, 100km/62 miles, Dual Fiber, 1550nm | Singlemode | ST | 100km/62 miles | Dual Fiber | 1550nm | EG4-55-1 | $1,430.00 | singlemode | st | ||
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A, T-1310/R-1550 | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | EG4-10-1 | $1,130.00 | singlemode | sc | ||
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B, T-1550/R-1310 | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | EG4-11-1 | $1,130.00 | singlemode | sc | ||
| Singlemode, SC, 60km/37 miles, Single Fiber - Side A, T-1310/R-1550 | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | EG4-14-1 | $1,270.00 | singlemode | sc | ||
| Singlemode, SC, 60km/37 miles, Single Fiber - Side B, T-1550/R-1310 | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | EG4-15-1 | $1,270.00 | singlemode | sc |
- Optics are dual fiber unless identified as Bi-Di
- Bidirectional single fiber models require both an A Side and B Side unit for a complete system
- This card is designed to be installed into a Card Housing
You May Also Be Interested In
You may also like…
-
Accessories for Ethernet IO
CAT6 Ethernet Cables
$4.00 – $8.00 See Details This product has multiple variants. The options may be chosen on the product page -

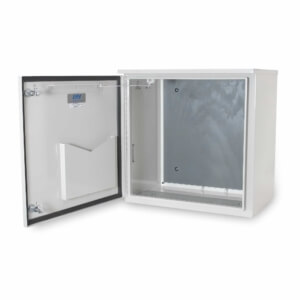

24” x 24” x 16” – Aluminum Enclosure
24″ x 24″ x 16″ equipment enclosure for installation of communication devices outdoors.
See DetailsOutdoor Cabinets24” x 24” x 16” – Aluminum Enclosure
$1,050.00 – $1,260.00 See Details This product has multiple variants. The options may be chosen on the product page -

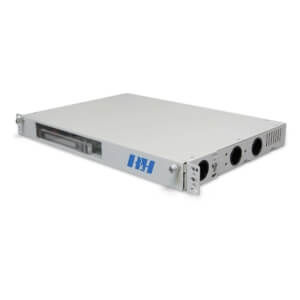

1RU Slimline Rack Mount Housing
The 1RU Slimline Rack Mount Housing is rack mountable and holds up to (2) Fiber Optic Link Cards.
See DetailsFiber Optic Isolation Systems1RU Slimline Rack Mount Housing
$410.00 – $535.00 See Details This product has multiple variants. The options may be chosen on the product page -

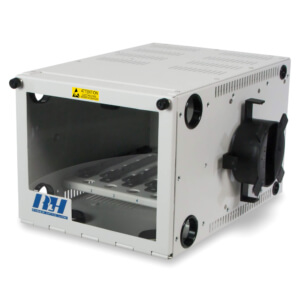

Fiber Link Card Housings – NEBS Level 3
5, 8, or 12 Card Housings can be rack or wall mounted are available with optional integrated power supply.
See DetailsFiber Optic Isolation SystemsFiber Link Card Housings – NEBS Level 3
$680.00 – $1,455.00 See Details This product has multiple variants. The options may be chosen on the product page -
10/100 Ethernet

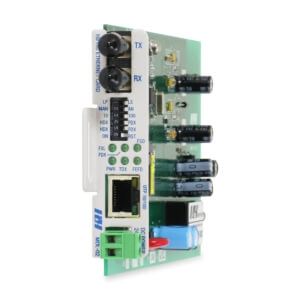

The 10/100 Fiber Link Card transmits a copper Fast Ethernet signal over Fiber.
