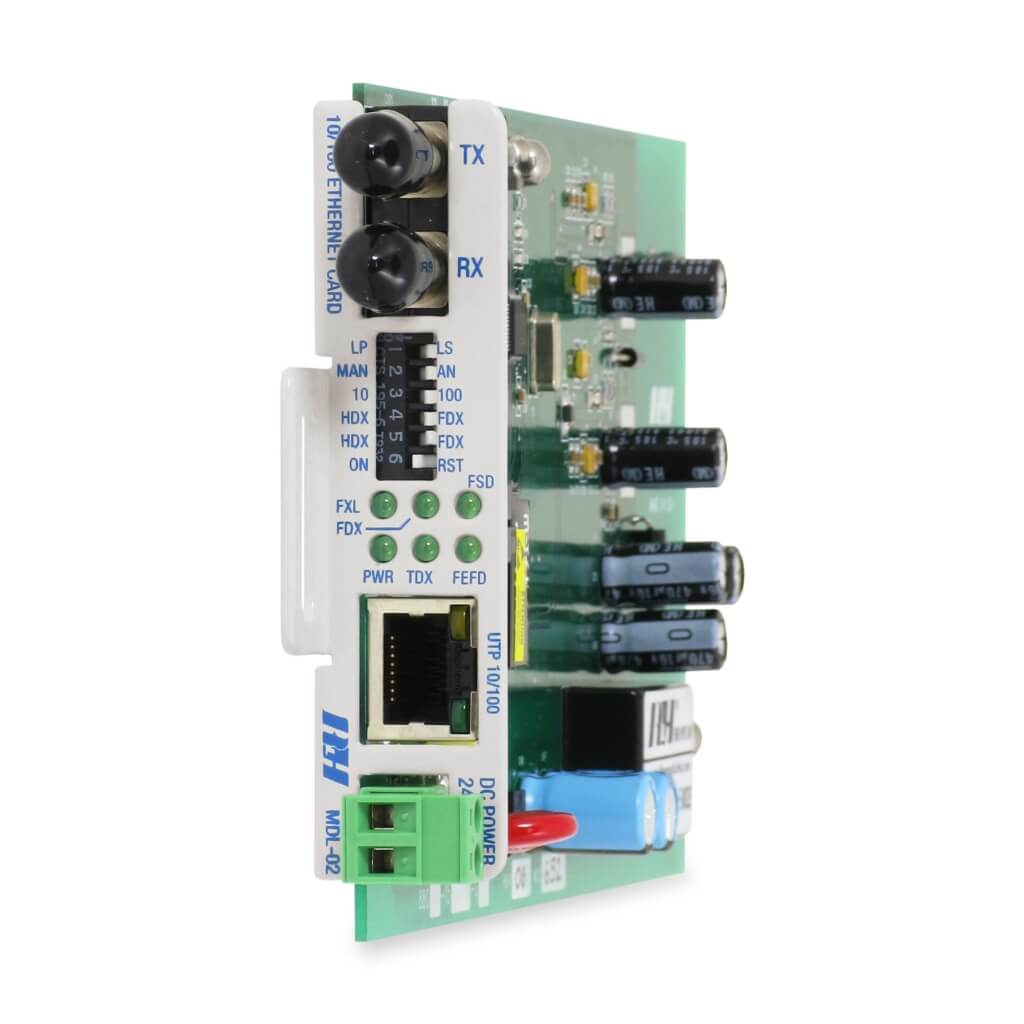

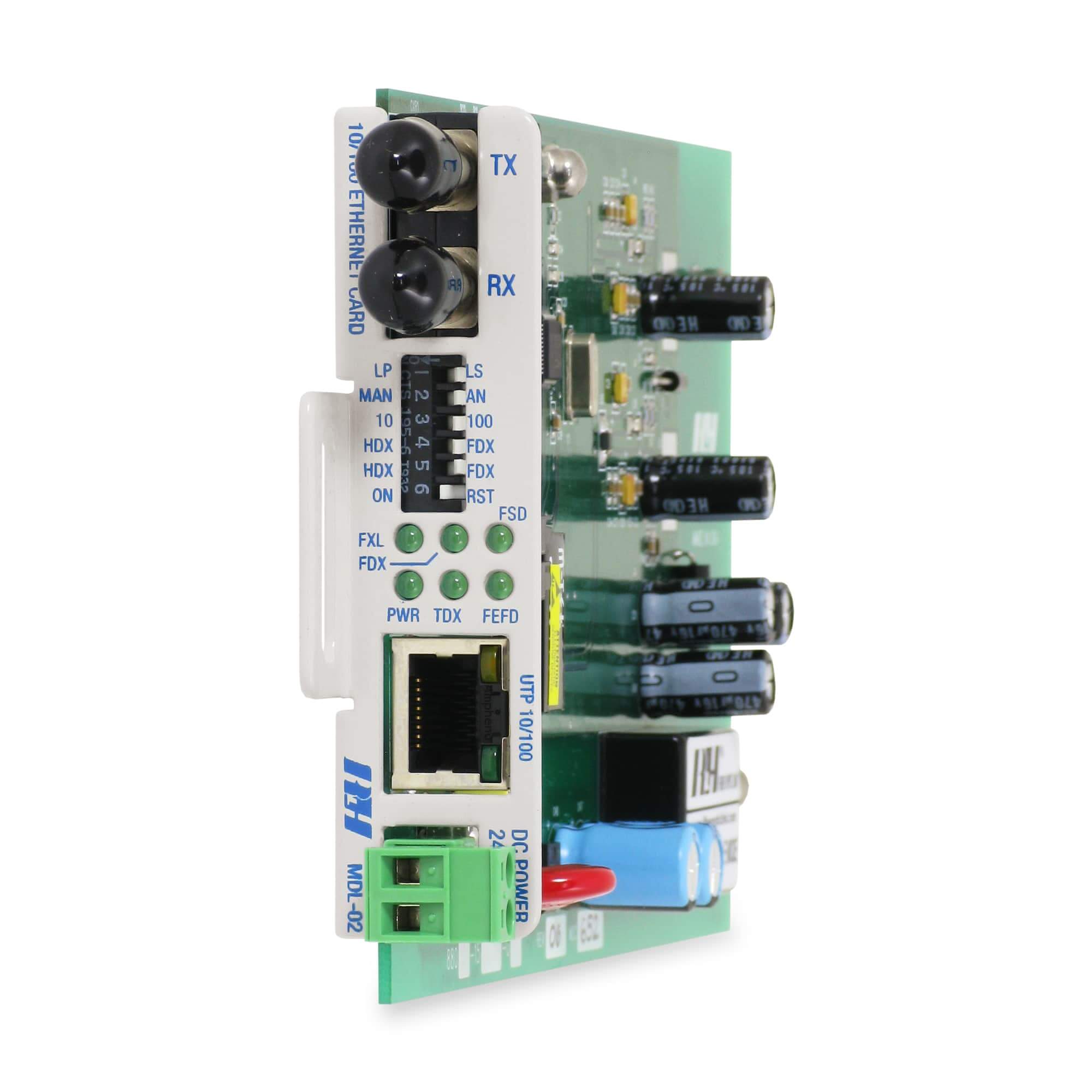

Ethernet to Fiber Isolation Card

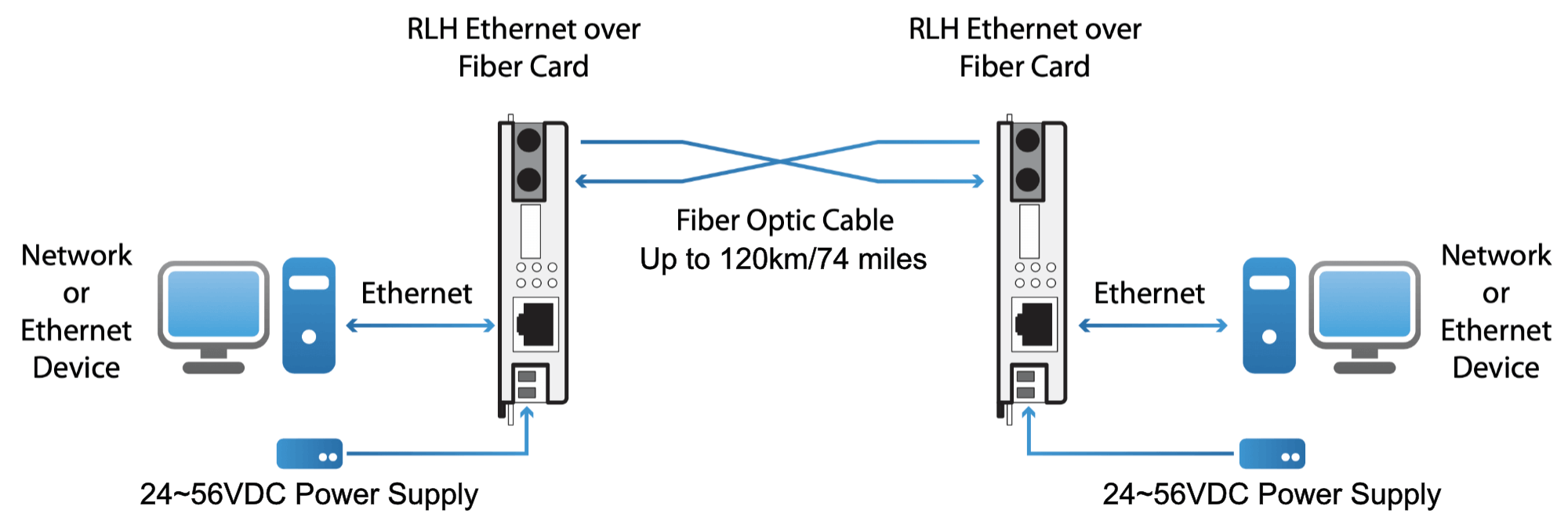

The RLH 10/100 Ethernet fiber link card converts a 10/100BaseT RJ45 port to an optical signal for transmission over either multimode or singlemode fiber optic cable.
With half or full duplex operation, it also features Auto MDI/MDI-X so a straight through or crossover cable can be used regardless of end device. The card provides Link Loss Pass-through (LFP), and has an informative LED display for status monitoring. Refer to the user guide for additional information.
This product is IEEE 802.3 10Base-T, 100Base-Tx and 100Base-Fx compliant, and is interoperable with other 10/100 BaseT and Base-FX devices. Both dual fiber (single direction) and single fiber (bidirectional) models are available. Please refer to the optics configuration table below.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
- Provides 10/100 Ethernet over fiber
- Connects directly to RJ45 connector
- IEEE 10/100 standards compliant
- Auto MDI/MDI-X
- Half or full duplex operation
- User selectable link fault detection mode (Link Fault Pass-through) allows quick fault isolation
- Extends network span up to 120km/74 miles (singlemode)
- Bidirectional communication over a single fiber is available
- Environmentally rugged with wide operating temperature range
- Utilizes ultra-reliable 1×9 fiber optic modules
- On board LED status display
- Utilizes 24~56VDC power source
- Available in singlemode and multimode
- Available with ST, SC or FC connectors
- Compatible with a wide variety of RLH Card Housings
- Limited Lifetime Warranty
- Made in USA
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 1310nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1.2 miles/2km
Singlemode (9/125µm): 9 miles/15km; Long Haul 31 miles/50km
Fiber Connector Type:
ST or SC
Power:
24VDC – 56VDC @ 3W
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
EF4-04-2
EF4-03-2
EF4-40-2
EF4-41-2
EF4-45-2
EF4-50-2
EF4-51-2
EF4-55-2
EF4-10-2
EF4-11-2
EF4-14-2
EF4-15-2
Ordering
10/100 Ethernet
| Product configuration | Mode | Connector | Distance | Fibers | Wavelength | Part number | Price | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Multimode, ST, 2km/1.2 miles, Dual Fiber, 1310nm | Multimode | ST | 2km/1.2 miles | Dual Fiber | 1310nm | EF4-04-2 | $910.00 | multimode | st | 2km-1-2-miles | |
| Singlemode, SC, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 1310nm | EF4-40-2 | $1,020.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | SC | 60km/37 miles | Dual Fiber | 1310nm | EF4-41-2 | $1,130.00 | singlemode | sc | 60km-37-miles | |
| Singlemode, SC, 120km/74 miles, Dual Fiber, 1550nm | Singlemode | SC | 120km/74 miles | Dual Fiber | 1550nm | EF4-45-2 | $1,350.00 | singlemode | sc | 120km-74-miles | |
| Singlemode, ST, 20km/12.4 miles, Dual Fiber, 1310nm | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 1310nm | EF4-50-2 | $1,020.00 | singlemode | st | 20km-12-4-miles | |
| Singlemode, ST, 60km/37 miles, Dual Fiber, 1310nm | Singlemode | ST | 60km/37 miles | Dual Fiber | 1310nm | EF4-51-2 | $1,130.00 | singlemode | st | 60km-37-miles | |
| Singlemode, ST, 120km/74 miles, Dual Fiber, 1550nm | Singlemode | ST | 120km/74 miles | Dual Fiber | 1550nm | EF4-55-2 | $1,350.00 | singlemode | st | 120km-74-miles | |
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A, T-1310/R-1550 | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | T-1310/R-1550 | EF4-10-2 | $1,050.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B, T-1550/R-1310 | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | R-1310/T-1550 | EF4-11-2 | $1,050.00 | singlemode | sc | 20km-12-4-miles | |
| Singlemode, SC, 60km/37 miles, Single Fiber - Side A, T-1310/R-1550 | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | T-1310/R-1550 | EF4-14-2 | $1,190.00 | singlemode | sc | 60km-37-miles | |
| Singlemode, SC, 60km/37 miles, Single Fiber - Side B, T-1550/R-1310 | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | R-1310/T-1550 | EF4-15-2 | $1,190.00 | singlemode | sc | 60km-37-miles |
- Optics are dual fiber unless identified as Bi-Di
- Bi-directional single fiber models require both an A Side and B Side unit for a complete system
- This card is designed to be installed into a Card Housing
You May Also Be Interested In
You may also like…
-
Accessories for Ethernet IO
CAT6 Ethernet Cables
$4.00 – $8.00 See Details This product has multiple variants. The options may be chosen on the product page -
24” x 24” x 16” – Aluminum Enclosure
24″ x 24″ x 16″ equipment enclosure for installation of communication devices outdoors.
See DetailsOutdoor Cabinets24” x 24” x 16” – Aluminum Enclosure
$1,050.00 – $1,260.00 See Details This product has multiple variants. The options may be chosen on the product page -
1RU Slimline Rack Mount Housing
The 1RU Slimline Rack Mount Housing is rack mountable and holds up to (2) Fiber Optic Link Cards.
See DetailsFiber Optic Isolation Systems1RU Slimline Rack Mount Housing
$410.00 – $535.00 See Details This product has multiple variants. The options may be chosen on the product page -
Fiber Link Card Housings – NEBS Level 3
5, 8, or 12 Card Housings can be rack or wall mounted are available with optional integrated power supply.
See DetailsFiber Optic Isolation SystemsFiber Link Card Housings – NEBS Level 3
$680.00 – $1,455.00 See Details This product has multiple variants. The options may be chosen on the product page -

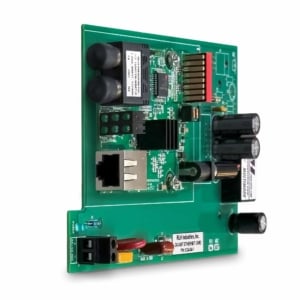

10/100/1000 Ethernet
