Will House Up to 4 Cards, Available with Built-in Power Supply

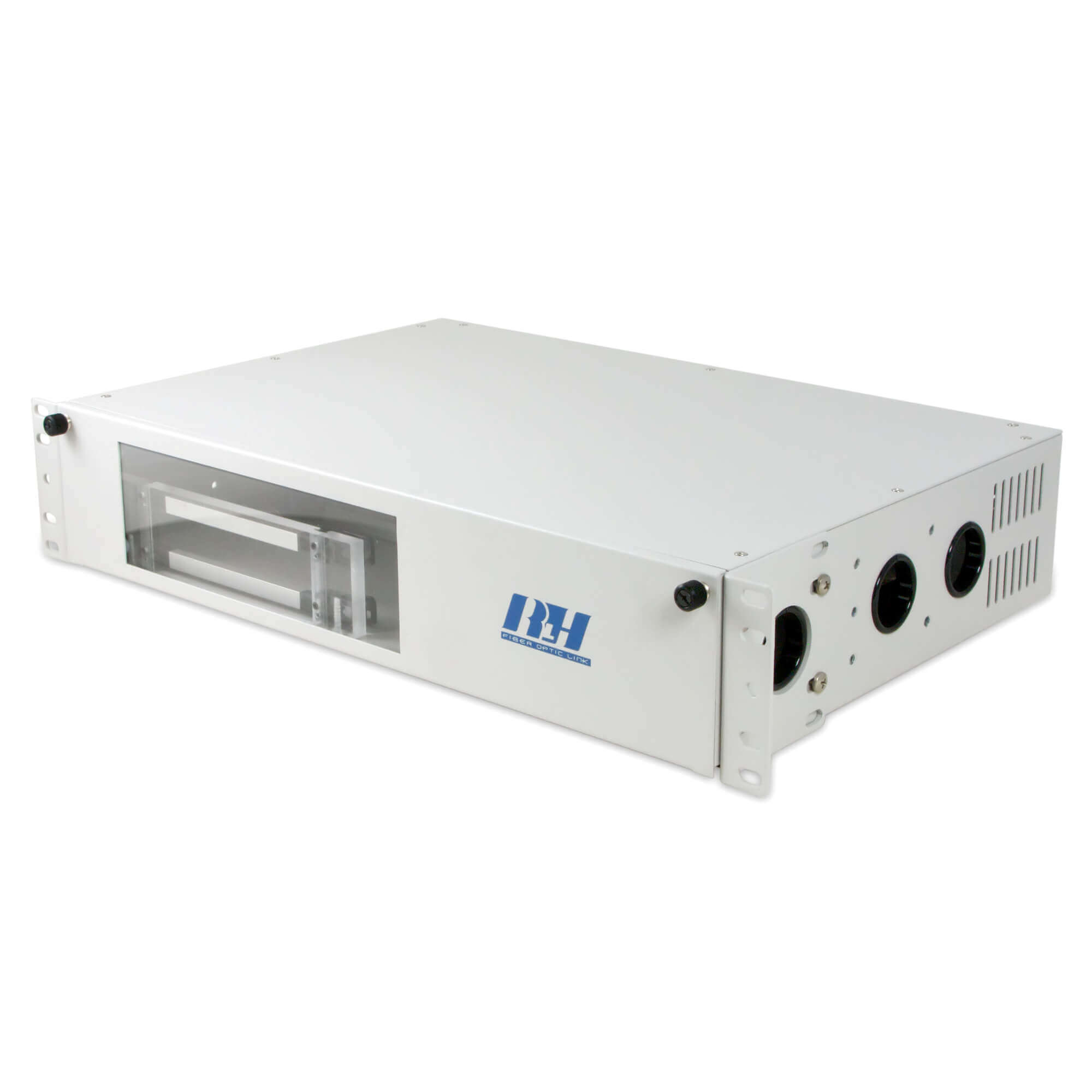

The RLH 2/4 Card Standard Rack Mount Housing is a two space (2RU) rack mount unit for use in telco, 2-post relay racks, or standard front rail EIA 19 or 23 inch equipment racks. The standard version without a power supply holds up to 4 Fiber Optic Link cards stacked in retainer rails.
The housing may also be configured with a 48VDC power supply that can accept either AC or DC power. This option limits the capacity to 2 Fiber Optic Link cards.

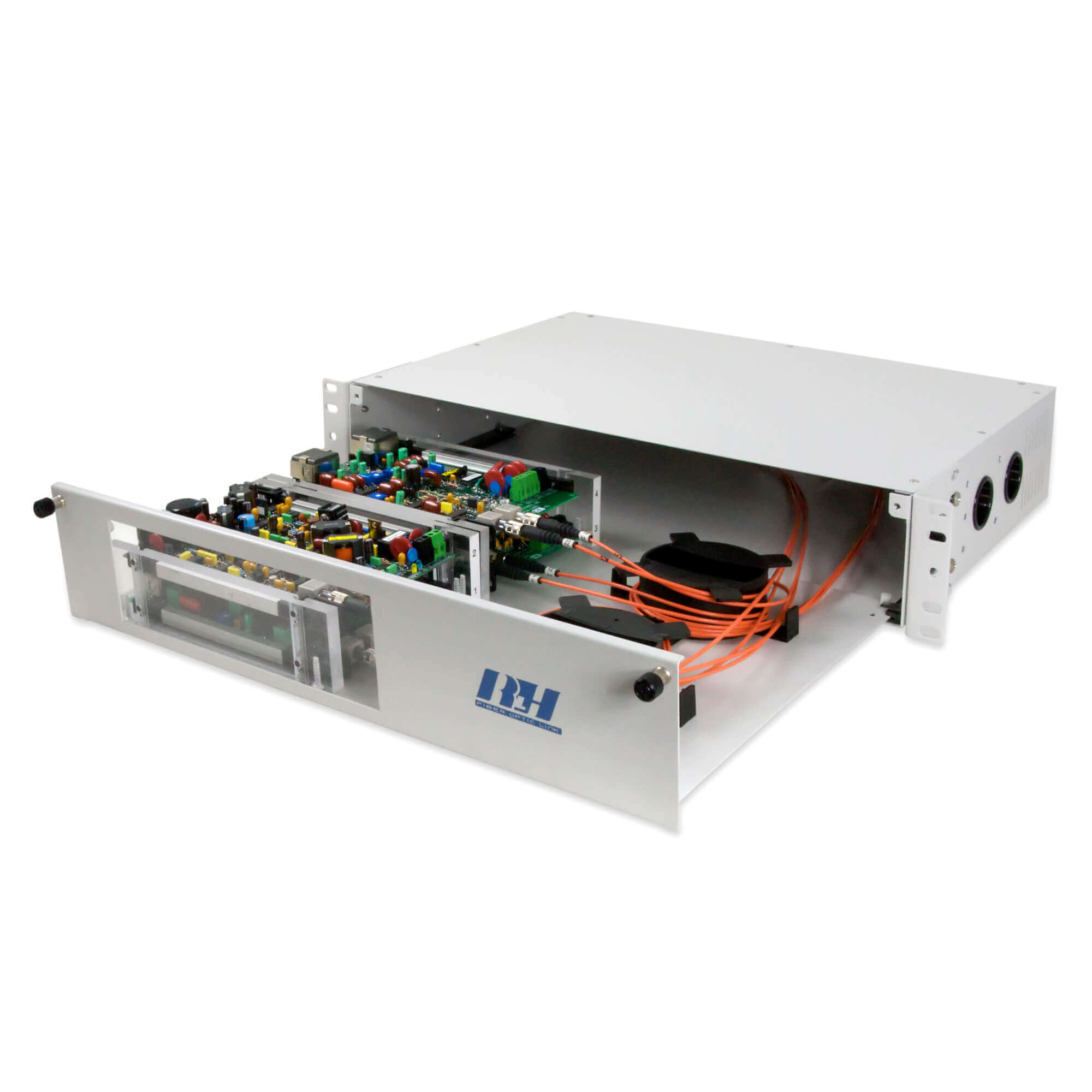

Constructed of 16-gauge steel with a convenient slide-out tray for easy access to equipment from the front or the unit, the enclosure locks with a spring-loaded knob screws, has a viewing window for cards with status LEDs, and multi-position rack ears for flexible mounting. Cable management accessories are included.
Features
- Compatible with all RLH Fiber Optic Cards
- Steel construction with plastic viewing window
- Sliding tray access to cards and fiber
- Cable management hardware included
- Available with a built-in 48VDC power supply
- Two rack space (2RU) 19 inch rack profile
- Adjustable EIA 19″ or 23″ mounting ears included
- Limited Lifetime Warranty
- Made in USA
Please see the product documentation for the complete list of specifications
Construction:
16-gauge steel with plastic front window
Physical Dimensions:
H3.5in. xW17in. xD9.75in. (2RU) (89mm x 432mm x 248mm)
(not including rack ears)
Mounting Style:
Standard EIA 19 or 23 inch rack mount, 2RU
Included:
Mounting hardware and cable management accessories
General Information
CAD Files
8806-1297-01
8806-1291-02PA48
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
2RU Rack Mount Housing
| Short description | Part number | Price | |
|---|---|---|---|
| 4 Card 2RU Rack Mount Housing | 8806-1297-01 | $490.00 | |
| 2 Card 2RU Rack Mount Housing with Integrated 48VDC Power Supply | 8806-1291-02PA48 | $625.00 |
