Transmit 4 Contact Closures Over a Single Fiber
Overview
Features
Specs
Docs
Diagrams
Numbers
Overview

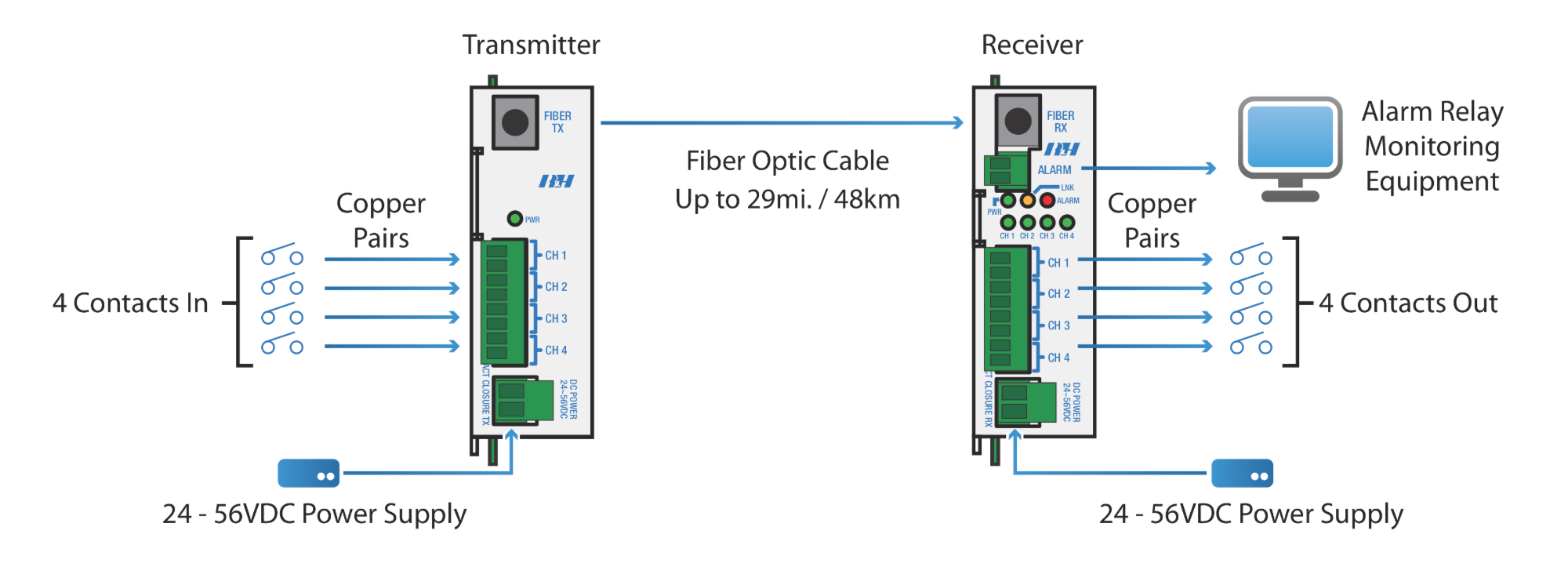

The RLH 4 Channel Contact Closure fiber link system provides a transmission of up to four independent contact closure signals over one optical fiber. The system comprises two 4 channel cards, a transmitter card and a receiver card.

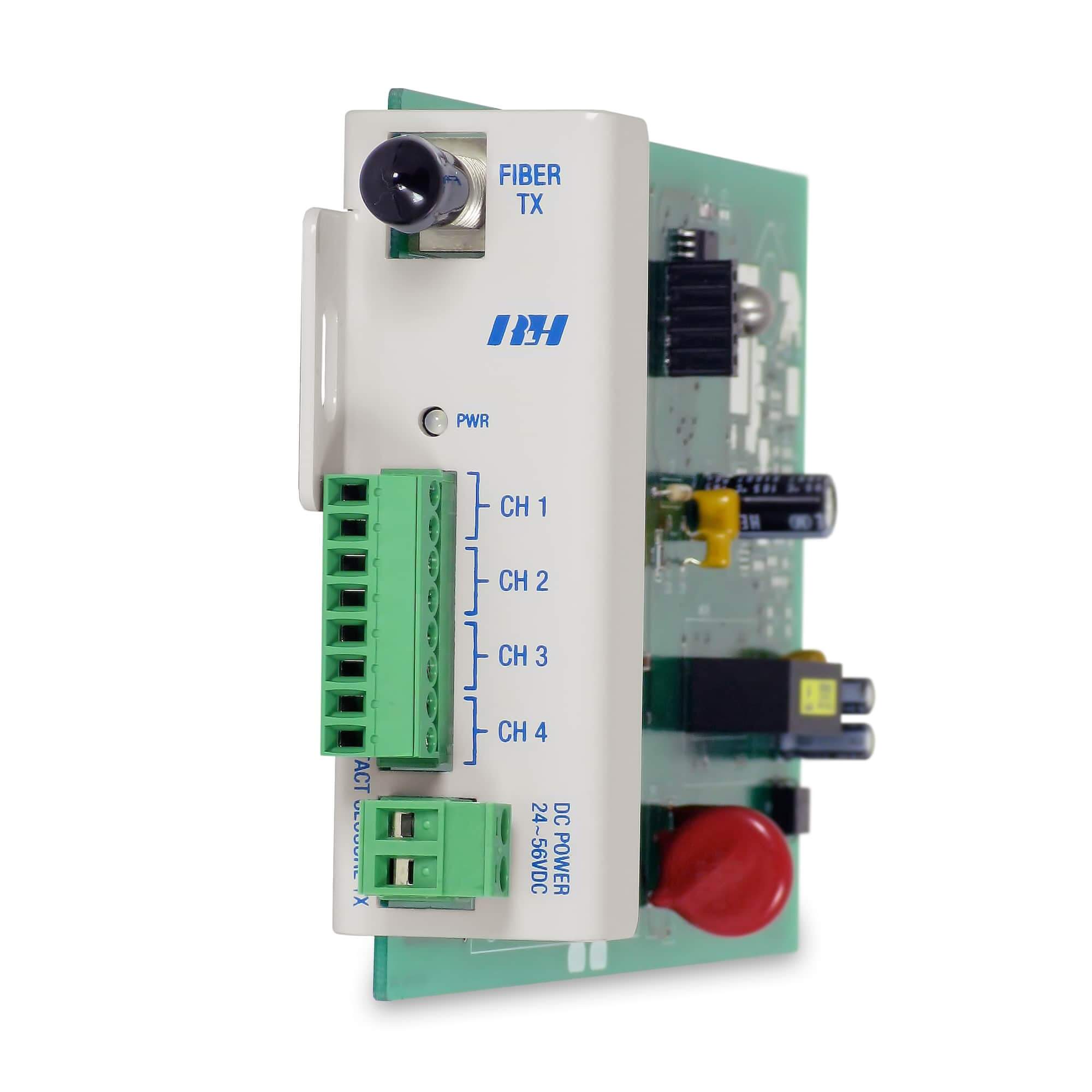

The transmitter card provides the electrical-to-optical interface between dry contact closure relay input and a fiber strand.

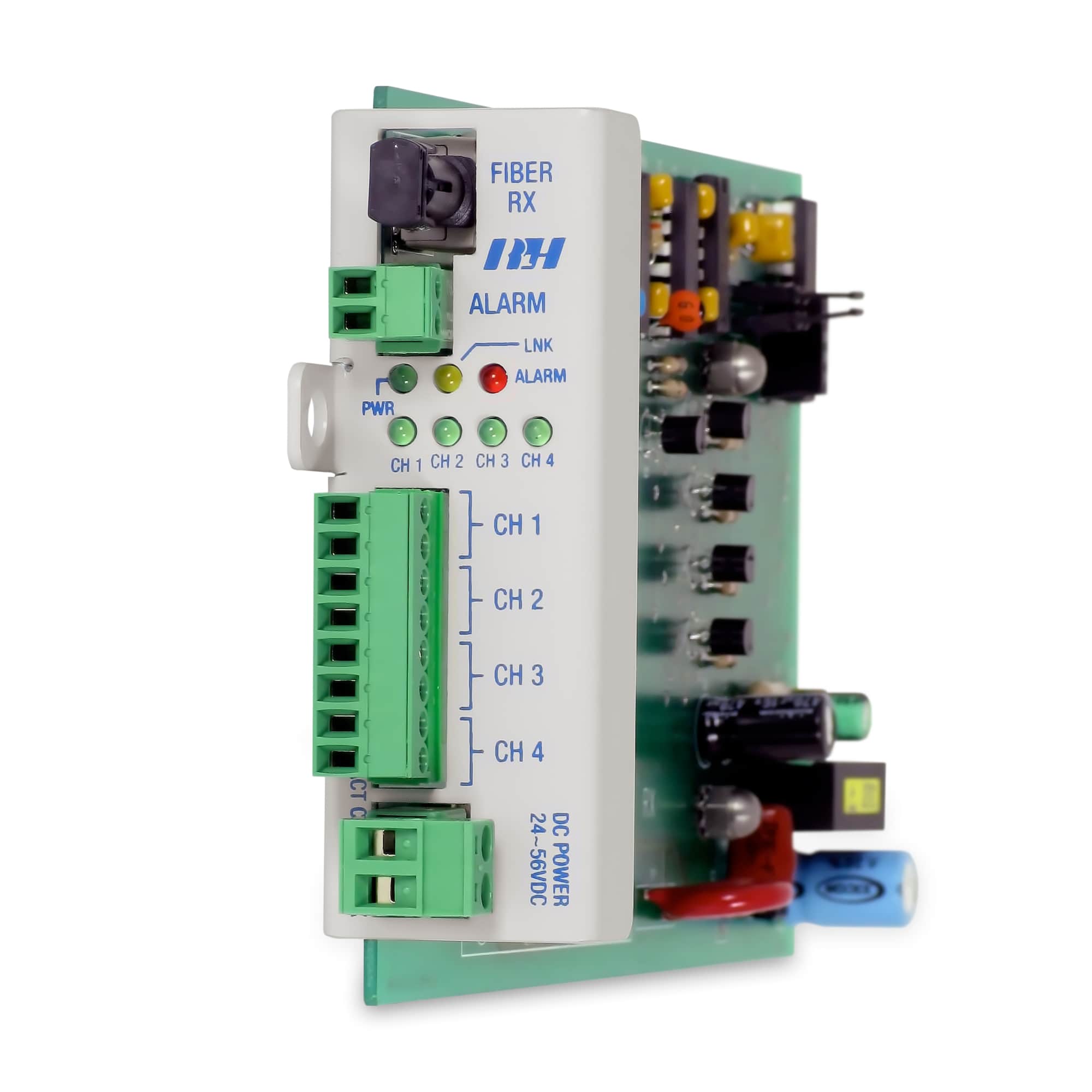

The receiver card is locally powered by a 24-56VDC source and provides LED indicators to display relay conditions, power, and fiber carrier receive.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- Available with ST Connectors
- Convenient LED status indicators
- Single and Multimode fiber models available
- RX side includes alarm contact for status monitoring
- Alarm contact may be set to Normally Open or Normally Closed
- DC power is not polarity sensitive, simplifying wiring duties
- Environmentally rugged with wide operating range: -40˚F to +158˚F (-40˚C to +70˚C)
- Single slot RLH Fiber Link Card form factor allows up to 12 cards in a 12 card housing, or multiple housings for larger installations
- Limited Lifetime Warranty
- Made in USA
Specs
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm, 50/125µm): 6dB / 1.2 miles (2km)
Singlemode (9/125µm): 8dB / 9 miles (15km)
*Note: Distances equated using industry standard fiber and connector attenuation of 3dB/km. Fiber condition, splices and connectors may affect actual range.
Fiber Connector Type:
ST
Dimensions:
7in. x 4in. x 1.24in. (177.8mm x 101.6mm x 31.5mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
Docs
General Information
Specialized Drawings
Miscellaneous
Diagrams
Numbers
4C4-M2STT-02
4C4-M2STR-02
4C4-M2SCT-02
4C4-M2SCR-02
4C4-S3STT-02
4C4-S4STT-02
4C4-S3STR-02
4C4-S3SCT-02
4C4-S4SCT-02
4C4-S3SCR-02
Ordering
4 Channel Contact Closure
| Product configuration | Card Type | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_card-type | hf:att:pa_mode | hf:att:pa_connector | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmitter Card, Multimode, ST, 2km/1.2 miles, Single Fiber | Transmitter Card | Multimode | ST | 2km/1.2 miles | Single Fiber | 4C4-M2STT-02 | $920.00 | transmitter-card | multimode | st | |
| Receiver Card, Multimode, ST, 2km/1.2 miles, Single Fiber | Receiver Card | Multimode | ST | 2km/1.2 miles | Single Fiber | 4C4-M2STR-02 | $920.00 | receiver-card | multimode | st | |
| Transmitter Card, Singlemode, ST, 15km/9 miles, Single Fiber | Transmitter Card | Singlemode | ST | 15km/9 miles | Single Fiber | 4C4-S3STT-02 | $1,050.00 | transmitter-card | singlemode | st | |
| Receiver Card, Singlemode, ST, 15km/9 miles & 48km/29 miles, Single Fiber | Receiver Card | Singlemode | ST | 15km/9 miles | Single Fiber | 4C4-S3STR-02 | $1,050.00 | receiver-card | singlemode | st |
- A complete system requires one Transmitter and one Receiver
