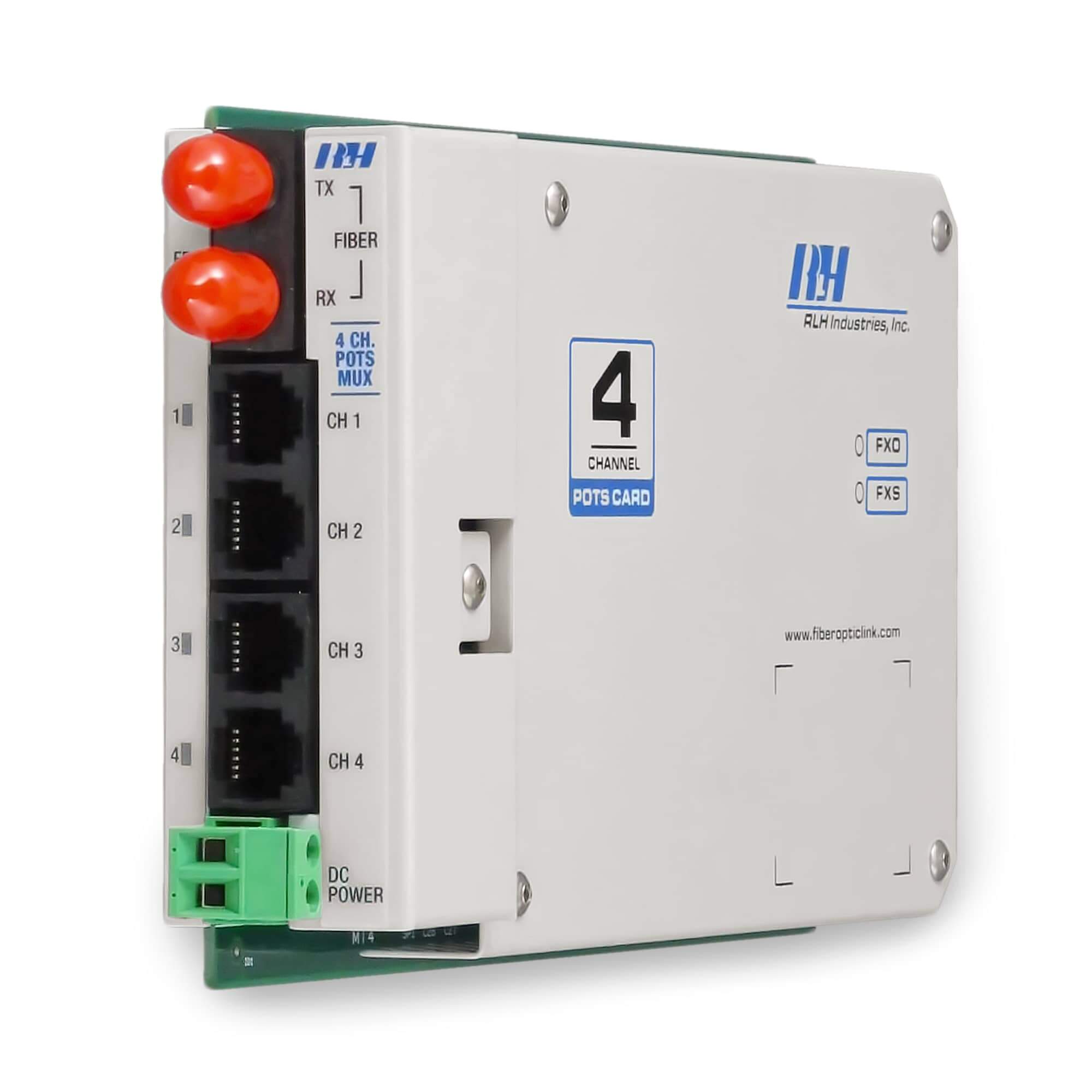

Extend Voice (POTS) Over Fiber
The 4 Channel POTS (Plain Old Telephone Service) Fiber Link Cards are fully featured and hardened for substation and critical applications. These cards operate over a wide temperature range and have been designed to provide reliability in harsh environments.
Common applications include extending analog lines over fiber for the benefit of electrical isolation, to achieve long distances, or through noisy environments to reduce EMI. These cards are fully compatible with all traditional POTS services, dial-up modems, meters, & fax machines. Fiber Link Cards are designed and Made in the USA, and are covered by our Lifetime warranty.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
- 4 Channels of POTS over one fiber pair
- Extend telephone up to 120km over fiber
- Single or dual fiber models available
- Supports Caller ID
- Supports Call-Forward Disconnect
- Ringdown Function (FXS to FXS Hotline Phone)

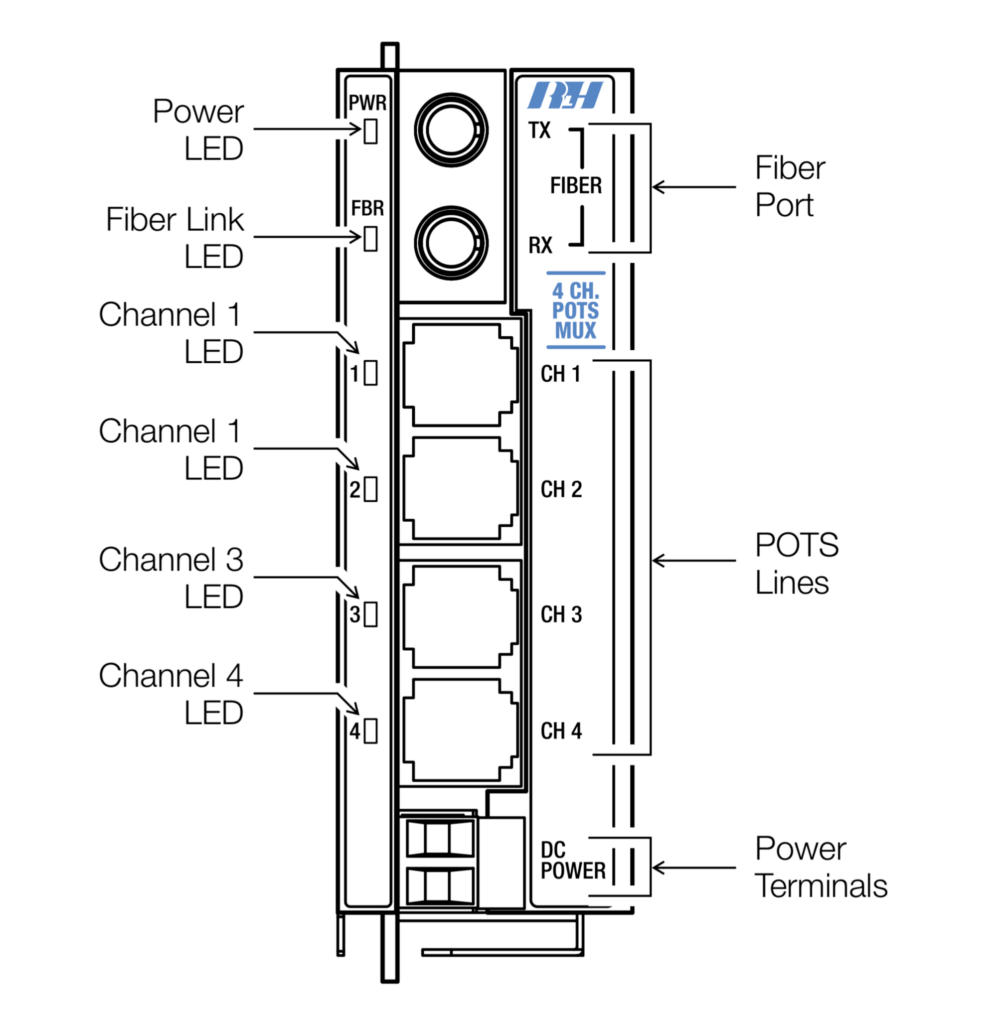

- Convenient LED status indicators
- Available in Single or Multimode
- Available with ST or SC Connectors
- Uses 24~48VDC local power
- Operating temperature range is -40°F to +158°F (-40°C to +70°C)
- Compatible with a wide variety of RLH Card Housings
- Limited Lifetime Warranty
- Made in USA
Transmission Method:
Amplitude modulated light via two optical fibers
Wavelength:
Multimode: 1310nm
Singlemode: 1310/1550nm
Fiber Type/Distance:
Multimode (50 or 62.5µm/125µm): 2.4km / 1.5 mi.
Singlemode (8~9µm/125µm): 20km / 12.4 miles, 60km / 37 miles, 120km / 74 mi.
Fiber Connector Type:
ST or SC Fiber Female Connectors
Dimensions:
L 7in. x H 4in. x W 1in. (177.8mm x 101.6mm x 25.4mm)
Compatible with RLH Fiber Link card housings
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
General Information
Specialized Drawings
Miscellaneous
4PC-FXO-04-2
4PC-FXS-04-2
4PC-FXO-40-2
4PC-FXS-40-2
4PC-FXO-41-2
4PC-FXS-41-2
4PC-FXO-45-2
4PC-FXS-45-2
4PC-FXO-50-2
4PC-FXS-50-2
4PC-FXO-51-2
4PC-FXS-51-2
4PC-FXO-55-2
4PC-FXS-55-2
4PC-FXO-10-2
4PC-FXS-11-2
4PC-FXO-14-2
4PC-FXS-15-2
$1,620.00 – $2,060.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4 Channel POTS
Product configuration | Card Type | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_card-type | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
FXO Card, Multimode, ST, 2km/1.2 miles, Dual Fiber | FXO Card | Multimode | ST | 2km/1.2 miles | Dual Fiber | 4PC-FXO-04-2 | $1,620.00 | fxo-card | multimode | st | 2km-1-2-miles | |
FXS Card, Multimode, ST, 2km/1.2 miles, Dual Fiber | FXS Card | Multimode | ST | 2km/1.2 miles | Dual Fiber | 4PC-FXS-04-2 | $1,620.00 | fxs-card | multimode | st | 2km-1-2-miles | |
FXO Card, Singlemode, SC, 20km/12.4 miles, Dual Fiber | FXO Card | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 4PC-FXO-40-2 | $1,730.00 | fxo-card | singlemode | sc | 20km-12-4-miles | |
FXS Card, Singlemode, SC, 20km/12.4 miles, Dual Fiber | FXS Card | Singlemode | SC | 20km/12.4 miles | Dual Fiber | 4PC-FXS-40-2 | $1,730.00 | fxs-card | singlemode | sc | 20km-12-4-miles | |
FXO Card, Singlemode, SC, 60km/37 miles, Dual Fiber | FXO Card | Singlemode | SC | 60km/37 miles | Dual Fiber | 4PC-FXO-41-2 | $1,840.00 | fxo-card | singlemode | sc | 60km-37-miles | |
FXS Card, Singlemode, SC, 60km/37 miles, Dual Fiber | FXS Card | Singlemode | SC | 60km/37 miles | Dual Fiber | 4PC-FXS-41-2 | $1,840.00 | fxs-card | singlemode | sc | 60km-37-miles | |
FXO Card, Singlemode, SC, 120km/74 miles, Dual Fiber | FXO Card | Singlemode | SC | 120km/74 miles | Dual Fiber | 4PC-FXO-45-2 | $2,060.00 | fxo-card | singlemode | sc | 120km-74-miles | |
FXS Card, Singlemode, SC, 120km/74 miles, Dual Fiber | FXS Card | Singlemode | SC | 120km/74 miles | Dual Fiber | 4PC-FXS-45-2 | $2,060.00 | fxs-card | singlemode | sc | 120km-74-miles | |
FXO Card, Singlemode, ST, 20km/12.4 miles, Dual Fiber | FXO Card | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 4PC-FXO-50-2 | $1,730.00 | fxo-card | singlemode | st | 20km-12-4-miles | |
FXS Card, Singlemode, ST, 20km/12.4 miles, Dual Fiber | FXS Card | Singlemode | ST | 20km/12.4 miles | Dual Fiber | 4PC-FXS-50-2 | $1,730.00 | fxs-card | singlemode | st | 20km-12-4-miles | |
FXO Card, Singlemode, ST, 60km/37 miles, Dual Fiber | FXO Card | Singlemode | ST | 60km/37 miles | Dual Fiber | 4PC-FXO-51-2 | $1,840.00 | fxo-card | singlemode | st | 60km-37-miles | |
FXS Card, Singlemode, ST, 60km/37 miles, Dual Fiber | FXS Card | Singlemode | ST | 60km/37 miles | Dual Fiber | 4PC-FXS-51-2 | $1,840.00 | fxs-card | singlemode | st | 60km-37-miles | |
FXO Card, Singlemode, ST, 120km/74 miles, Dual Fiber | FXO Card | Singlemode | ST | 120km/74 miles | Dual Fiber | 4PC-FXO-55-2 | $2,060.00 | fxo-card | singlemode | st | 120km-74-miles | |
FXS Card, Singlemode, ST, 120km/74 miles, Dual Fiber | FXS Card | Singlemode | ST | 120km/74 miles | Dual Fiber | 4PC-FXS-55-2 | $2,060.00 | fxs-card | singlemode | st | 120km-74-miles | |
FXO Card, Singlemode, SC, 20km/12.4 miles, Single Fiber - Side A | FXO Card | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side A | 4PC-FXO-10-2 | $1,760.00 | fxo-card | singlemode | sc | 20km-12-4-miles | |
FXS Card, Singlemode, SC, 20km/12.4 miles, Single Fiber - Side B | FXS Card | Singlemode | SC | 20km/12.4 miles | Single Fiber - Side B | 4PC-FXS-11-2 | $1,760.00 | fxs-card | singlemode | sc | 20km-12-4-miles | |
FXO Card, Singlemode, SC, 60km/37 miles, Single Fiber - Side A | FXO Card | Singlemode | SC | 60km/37 miles | Single Fiber - Side A | 4PC-FXO-14-2 | $1,900.00 | fxo-card | singlemode | sc | 60km-37-miles | |
FXS Card, Singlemode, SC, 60km/37 miles, Single Fiber - Side B | FXS Card | Singlemode | SC | 60km/37 miles | Single Fiber - Side B | 4PC-FXS-15-2 | $1,900.00 | fxs-card | singlemode | sc | 60km-37-miles |
- A complete system requires cards:

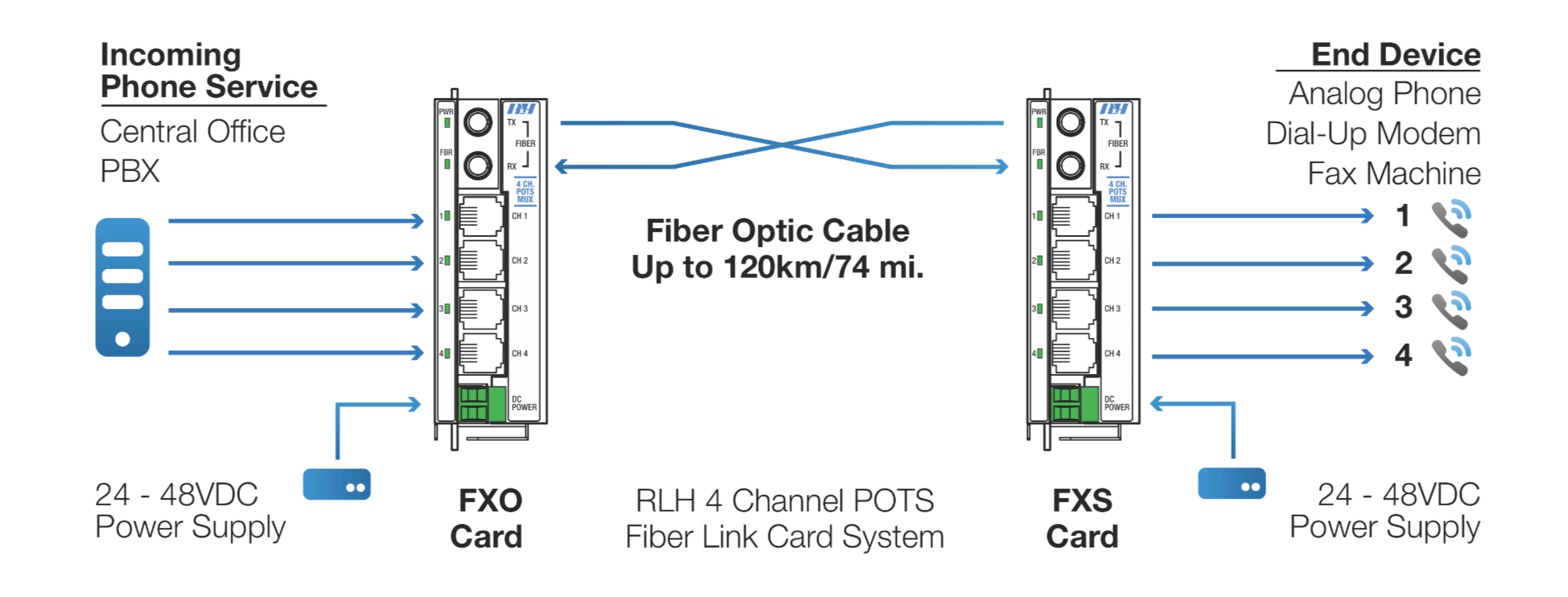

- One FXO paired with one FXS card for a typical phone line extension, or

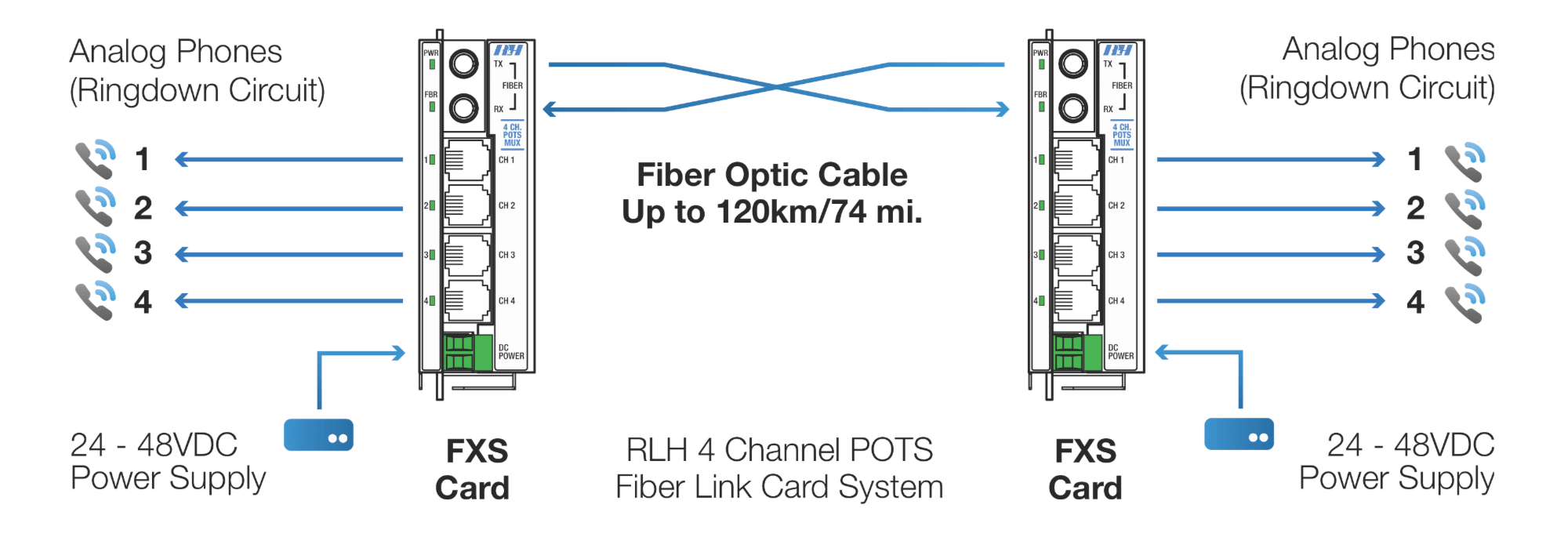

- Two FXS cards paired for a ringdown hotline
- Bi-Directional single fiber models require an A side and B side unit for a complete system
- This card is designed to be installed into a Card Housing
