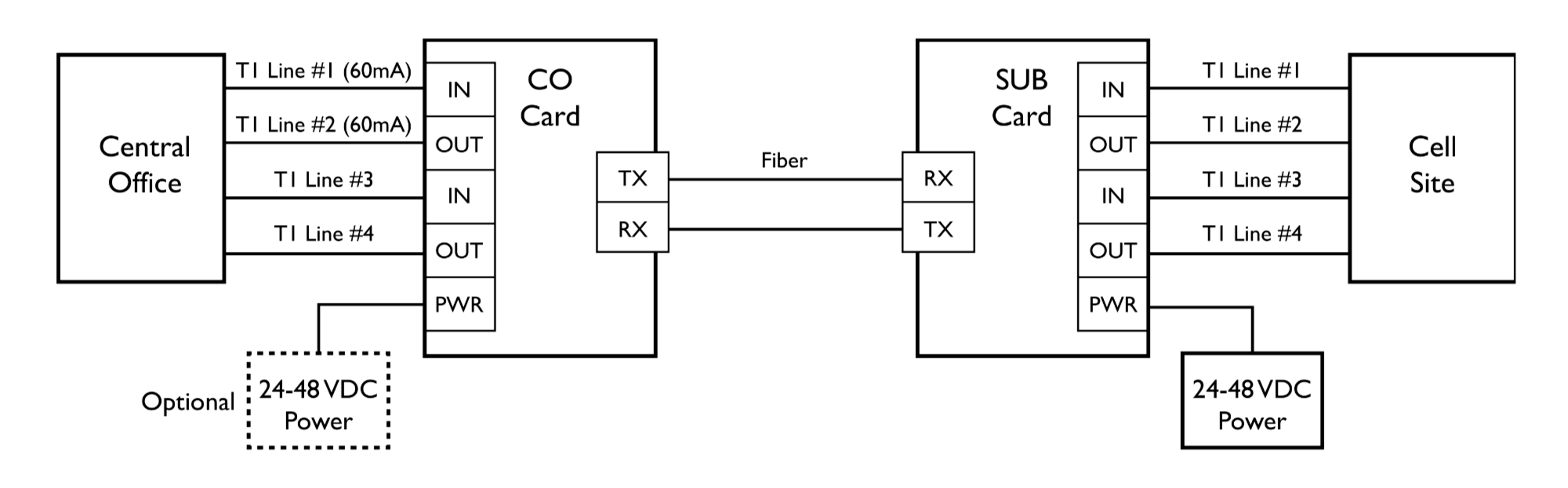

Extend 4 MPLS, PRI, or DATA T1 Circuits Over Fiber – Line Powered

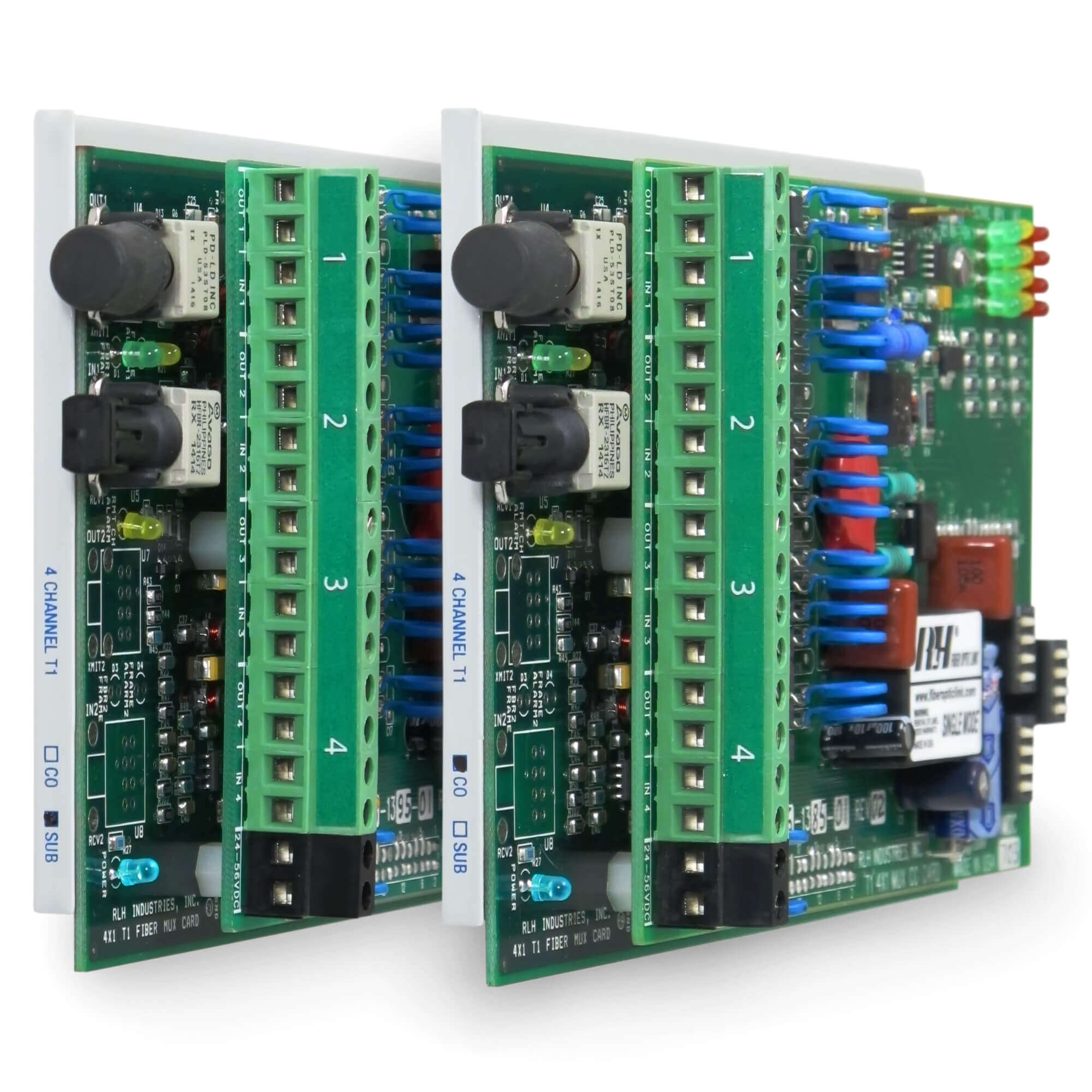

The 4 Channel T1 Mux fiber link card transports up to four T1 lines over two strands of fiber. Features include B8ZS and AMI compatibility, NEBS Level III approved, LED status indicators for convenient system monitoring, and the ability to power the CO side card from two T1 lines carrying span power.
This 4 Channel Mux card is a cost effective solution for high capacity applications, and is available with optics to match your requirements.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
Features
- High density, cost effective solution
- Four T1 lines over two strands of fiber
- 100 kHz to 10 MHz T1
- 1.544 Mbps or CCIT 2.084 Mbps
- Convenient LED Status monitoring
- Dual power capable, line or 24-48VDC
- Available in Single or Multimode
- Available with ST or SC Connectors
- Available with RJ-48C Jacks
- Compatible with a wide variety of housings (Not compatible with single card indoor housing)
- Available pre-installed in housings
- NEBS Level III approved
- Limited Lifetime Warranty
- Made in USA
Please see the product documentation for the complete list of specifications
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm): 1.5 miles/2.5km
Singlemode (9/125µm): 9 miles/15km; Long Haul 37 miles/60km
Fiber Connector Type:
ST or SC
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
General Information
CAD Files
8806-1345-01
8806-1355-01
8805-1345-01
8805-1355-01
8806-1385-01
8806-1395-01
8805-1385-01
8805-1395-01
8806-1385-01-LH
8806-1395-01-LH
8805-1385-01-LH
8805-1395-01-LH
RLH-RJ4X1-CO
RLH-RJ4X1-SUB
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
4 Channel T1 Mux
| Product configuration | Card Type | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_card-type | hf:att:pa_mode | hf:att:pa_connector | hf:att:pa_distance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CO Card, Multimode, ST, 2.4km/1.5 miles, Dual Fiber | CO Card | Multimode | ST | 2km/1.2 miles | Dual Fiber | 8806-1345-01 | $2,380.00 | co-card | multimode | st | 2km-1-2-miles | |
| Sub Card, Multimode, ST, 2.4km/1.5 miles, Dual Fiber | SUB Card | Multimode | ST | 2km/1.2 miles | Dual Fiber | 8806-1355-01 | $2,380.00 | sub-card | multimode | st | 2km-1-2-miles | |
| CO Card, Singlemode, ST, 15km/9 miles, Dual Fiber | CO Card | Singlemode | ST | 15km/9 miles | Dual Fiber | 8806-1385-01 | $2,640.00 | co-card | singlemode | st | 15km-9-miles | |
| Sub Card, Singlemode, ST, 15km/9 miles, Dual Fiber | SUB Card | Singlemode | ST | 15km/9 miles | Dual Fiber | 8806-1395-01 | $2,640.00 | sub-card | singlemode | st | 15km-9-miles | |
| CO Card, Singlemode, SC, 15km/9 miles, Dual Fiber | CO Card | Singlemode | SC | 15km/9 miles | Dual Fiber | 8805-1385-01 | $2,790.00 | co-card | singlemode | sc | 15km-9-miles | |
| CO Card, Singlemode, ST, 60km/37 miles, Dual Fiber | CO Card | Singlemode | ST | 60km/37 miles | Dual Fiber | 8806-1385-01-LH | $2,850.00 | co-card | singlemode | st | 60km-37-miles | |
| Sub Card, Singlemode, SC, 15km/9 miles, Dual Fiber | SUB Card | Singlemode | SC | 15km/9 miles | Dual Fiber | 8805-1395-01 | $2,790.00 | sub-card | singlemode | sc | 15km-9-miles | |
| Sub Card, Singlemode, ST, 60km/37 miles, Dual Fiber | SUB Card | Singlemode | ST | 60km/37 miles | Dual Fiber | 8806-1395-01-LH | $2,850.00 | sub-card | singlemode | st | 60km-37-miles | |
| CO Card, Singlemode, SC, 60km/37 miles, Dual Fiber | CO Card | Singlemode | SC | 60km/37 miles | Dual Fiber | 8805-1385-01-LH | $3,000.00 | co-card | singlemode | sc | 60km-37-miles | |
| Sub Card, Singlemode, SC, 60km/37 miles, Dual Fiber | SUB Card | Singlemode | SC | 60km/37 miles | Dual Fiber | 8805-1395-01-LH | $3,000.00 | sub-card | singlemode | sc | 60km-37-miles |
- A complete system requires a CO card and a SUB card
- This card is designed to be installed into a Card Housing
