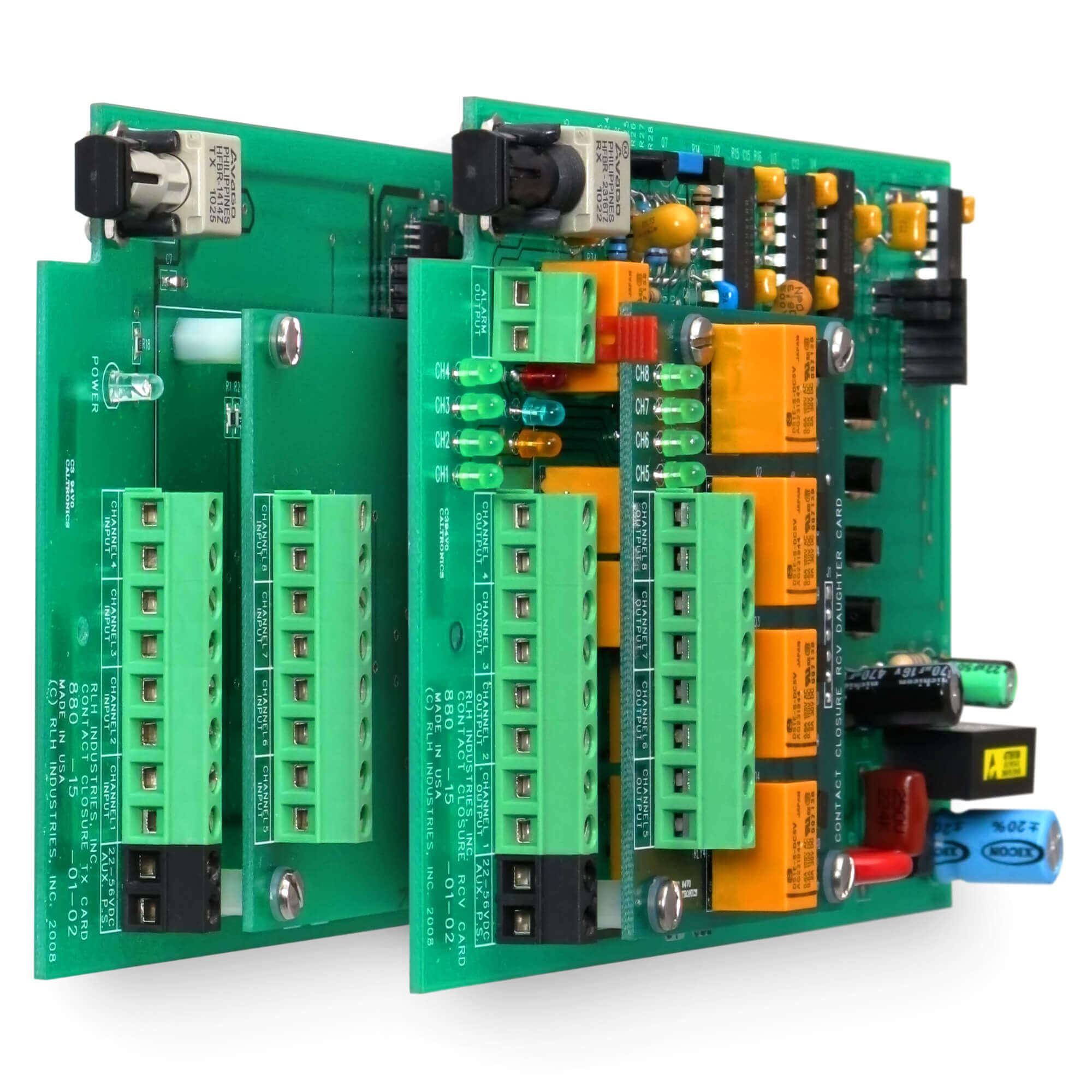

Transmit 8 Contact Closures Over a Single Fiber

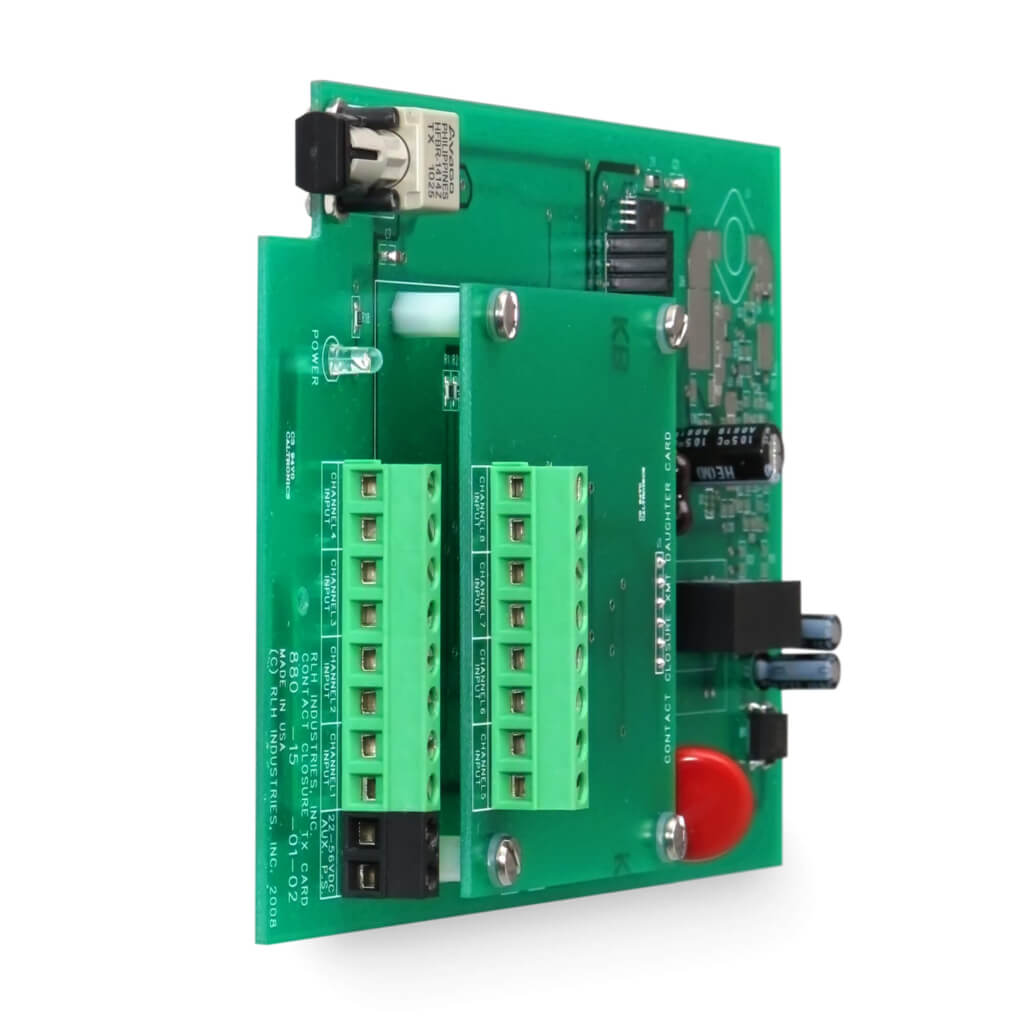

The RLH 8 Channel Contact Closure fiber link card provides a transmission of up to eight independent contact closure signals over one optical fiber. The transmitter card provides the electrical-to-optical interface between dry contact closure relay input and a fiber strand.

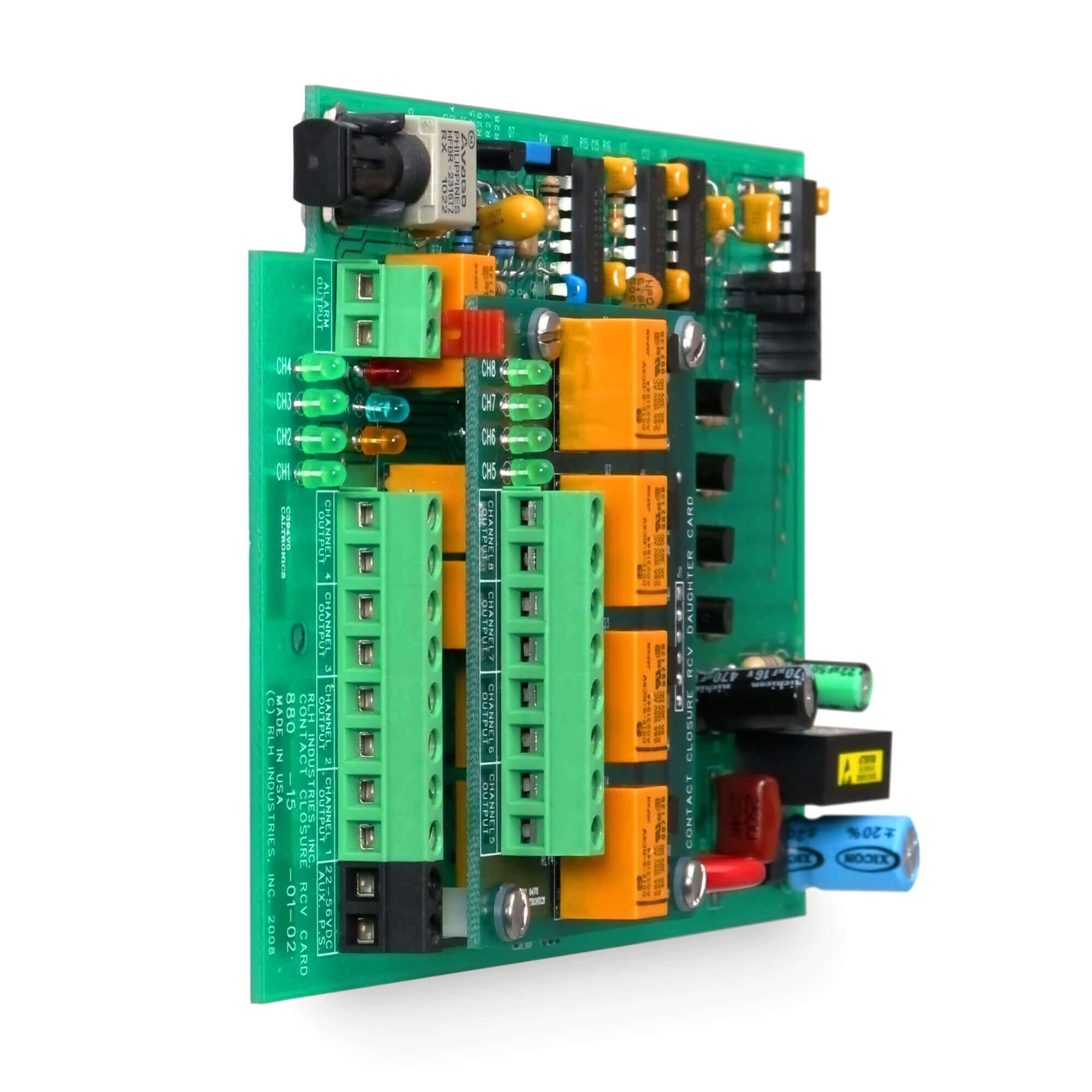

The receiver card provides the optical-to-electrical interface between a fiber strand and normally-open relay contact output. Both cards are powered by a 24-56VDC source and the receiver card provides LED indicators to display relay conditions, power, and fiber carrier receive.
This fiber link card is designed to be installed into any of the RLH Fiber Link Card Housings, and occupies a single card slot.
- Available with ST Connectors
- Convenient LED status indicators
- Single and Multimode fiber models available
- RX side includes alarm contact for status monitoring
- Alarm contact may be set to Normally Open or Normally Closed
- DC power is not polarity sensitive, simplifying wiring duties
- Environmentally rugged with wide operating range: -40˚F to +158˚F (-40˚C to +70˚C)
- Single slot RLH Fiber Link Card form factor allows up to 12 cards in a 12 card housing, or multiple housings for larger installations
- Limited Lifetime Warranty
- Made in USA
Transmission Method:
Frequency modulated light via two optical fibers
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm): 6dB / 1.2 miles (2km)
Singlemode (9/125µm): 8dB / 9 miles (15km)
Note: Distances equated using industry standard fiber and connector attenuation of 3dB/Km. Fiber condition, splices and connectors may affect actual range.
Fiber Connector Type:
ST
Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Link Card Form Factor)
Operating Temperature:
-40˚F to +158˚F (-40˚C to +70˚C)
Operating Humidity:
95% non-condensing
General Information
Specialized Drawings
Miscellaneous
8C4-M2STT-01
8C4-M2STR-01
8C4-M2SCT-01
8C4-M2SCR-01
8C4-S3STT-01
8C4-S4STT-01
8C4-S3STR-01
8C4-S3SCT-01
8C4-S4SCT-01
8C4-S3SCR-01
$1,050.00 – $1,180.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
8 Channel Contact Closure
Product configuration | Card Type | Mode | Connector | Distance | Fibers | Part number | Price | hf:att:pa_card-type | hf:att:pa_mode | hf:att:pa_connector | |
---|---|---|---|---|---|---|---|---|---|---|---|
Transmitter Card, Multimode, ST, 2km/1.2 miles, Single Fiber | Transmitter Card | Multimode | ST | 2km/1.2 miles | Single Fiber | 8C4-M2STT-01 | $1,050.00 | transmitter-card | multimode | st | |
Receiver Card, Multimode, ST, 2km/1.2 miles, Single Fiber | Receiver Card | Multimode | ST | 2km/1.2 miles | Single Fiber | 8C4-M2STR-01 | $1,050.00 | receiver-card | multimode | st | |
Transmitter Card, Singlemode, ST, 15km/9 miles, Single Fiber | Transmitter Card | Singlemode | ST | 15km/9 miles | Single Fiber | 8C4-S3STT-01 | $1,180.00 | transmitter-card | singlemode | st | |
Receiver Card, Singlemode, ST, 15km/9 miles & 48km/29 miles, Single Fiber | Receiver Card | Singlemode | ST | 15km/9 miles | Single Fiber | 8C4-S3STR-01 | $1,180.00 | receiver-card | singlemode | st |
- A complete system requires one Transmitter and one Receiver
You May Also Be Interested In
You may also like…
-
Semi-Buried Pedestal (Type-03)
The Type 03, semi-buried pedestal enclosure includes plywood backboard covers with hex head self-locking system with padlock hasp.
See DetailsPedestalsSemi-Buried Pedestal (Type-03)
$950.00 – $1,900.00 See Details This product has multiple variants. The options may be chosen on the product page -
24” x 24” x 16” – Aluminum Enclosure
24″ x 24″ x 16″ equipment enclosure for installation of communication devices outdoors.
See DetailsOutdoor Cabinets24” x 24” x 16” – Aluminum Enclosure
$1,050.00 – $1,260.00 See Details This product has multiple variants. The options may be chosen on the product page -
1RU Slimline Rack Mount Housing
The 1RU Slimline Rack Mount Housing is rack mountable and holds up to (2) Fiber Optic Link Cards.
See DetailsFiber Optic Isolation Systems1RU Slimline Rack Mount Housing
$410.00 – $535.00 See Details This product has multiple variants. The options may be chosen on the product page -
Fiber Link Card Housings – NEBS Level 3
5, 8, or 12 Card Housings can be rack or wall mounted are available with optional integrated power supply.
See DetailsFiber Optic Isolation SystemsFiber Link Card Housings – NEBS Level 3
$680.00 – $1,455.00 See Details This product has multiple variants. The options may be chosen on the product page -

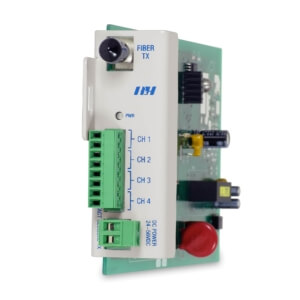

4 Channel Contact Closure
