Durable Rack or Wall Mount Housings, NEBS L3 Certified
RLH Fiber Link Card Housings feature a powder coated steel housing with card guides designed for housing Fiber Optic Link cards of any combination, which are secured by quick release retainer clips. A steel framed door with acrylic window allows you to view the cards at a glance without having to open it.
The housings occupy rack spaces (4RU) in an equipment rack, and come complete with mounting brackets and hardware suitable for EIA 19″ or 23″ rack mounting, or for cabinet or wall mounting. Fiber cable accessories and fiber management spools are included.
Fiber Link Card Housings are also available with an integrated power supply. The power supply module occupies the last card position. AC/DC power supply modules may be used with an optional external UPS battery pack to supply temporary power in case of an outage.
- See Battery Packs
Features
- NEBS Level III certified
- Optional plug-in switching power supply and DC power terminal available
- Power terminals accept one or two 24~56VDC inputs, and includes up to 12 outputs
- Alarm contacts for power supply failure
- Backup battery packs available for uninterruptible power operation
- EIA 19/23” Rack or wall mount
- Available in 5, 8, or 12 card capacities
- Durable powder coated welded steel construction
- Includes fiber management spools for fiber storage
- Holds up to 12 Fiber Link Cards in any configuration
- Fiber management clamps and hardware included
- 19/23” Rack and wall mount hardware included
- Limited Lifetime Warranty
- Made in USA
Please see the product documentation for the complete list of specifications
Construction:
Powder coated steel with card rails and latches
Physical Dimensions:
5-Card H7.0in. x W8.0in. x D11.5in. (178mm x 203mm x 292mm)

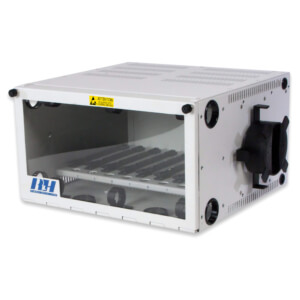

8-Card H7.0in. x W12.0in. x D11.5in. (178mm x 305mm x 292mm)

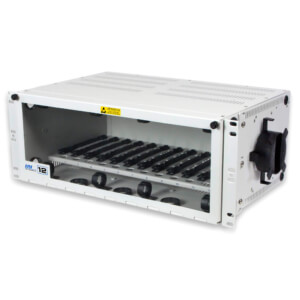

12-Card H7.0in. x W17.0in. x D11.5in. (178mm x 432mm x 292mm)
Mounting Style:
Wall or rack mount
Included:
Wall and Rack Mounting brackets & Fiber Cable Management spools
Options:
Terminals, ports, integrated power supplies, battery packs
Optional Pre-Installed Accessories:
DC Power Distribution Strip, Integrated AC/DC, or DC/DC power Supply
General Information
CAD Files
8806-1231-03
8806-1231-03DC
8806-1231-03A48
8806-1229-03
8806-1229-03DC
8806-1229-03A48
8806-1230-03
8806-1230-03DC
8806-1230-03A48
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Fiber Link Card Housings – NEBS Level 3
| Short description | Part number | Price | |
|---|---|---|---|
| 5 Card Wall or Rack Housing | 8806-1231-03 | $680.00 | |
| 5 Card Wall or Rack Housing with Integrated 8 Position DC Power Terminal | 8806-1231-03DC | $830.00 | |
| 4 Card Wall or Rack Housing with Integrated 8 Position DC Power Terminal & 48VDC Power supply | 8806-1231-03A48 | $1,155.00 | |
| 8 Card Wall or Rack Housing | 8806-1229-03 | $850.00 | |
| 8 Card Wall or Rack Housing with Integrated 8 Position DC Power Terminal | 8806-1229-03DC | $1,040.00 | |
| 7 Card Wall or Rack Housing with Integrated 8 Position DC Power Terminal & 48VDC Power supply | 8806-1229-03A48 | $1,365.00 | |
| 12 Card Wall or Rack Shelf Housing | 8806-1230-03 | $980.00 | |
| 12 Card Wall or Rack Housing with Integrated 12 Position DC Power Terminal | 8806-1230-03DC | $1,150.00 | |
| 11 Card Wall or Rack Housing with Integrated 12 Position DC Power Terminal & 48VDC Power supply | 8806-1230-03A48 | $1,455.00 |
- For the pre-installed DC power terminal, please note your part number, add -DC to the end, and get your quote here
- For the 48V AC/DC power supply with DC power terminal, please note your part number, add -A48 to the end, and get your quote here (requires 1 card slot)
You May Also Be Interested In
You may also like…
-
2RU Rack Mount Housing
The 2RU Slimline Rack Mount Housing is rack mountable and holds up to (4) Fiber Optic Link Cards.
View ProductCard Housings2RU Rack Mount Housing
$490.00 – $625.00 View Product This product has multiple variants. The options may be chosen on the product page -
Semi-Buried Pedestal (Type-03)
The Type 03, semi-buried pedestal enclosure includes plywood backboard covers with hex head self-locking system with padlock hasp.
View ProductPedestalsSemi-Buried Pedestal (Type-03)
$950.00 – $1,900.00 View Product This product has multiple variants. The options may be chosen on the product page -
Single Fiber Link Card Housing
The Fiber Link Card Housing is DIN rail or wall mountable and holds (1) Fiber Optic Link Card.
View ProductCard HousingsSingle Fiber Link Card Housing
$140.00 View Product This product has multiple variants. The options may be chosen on the product page -

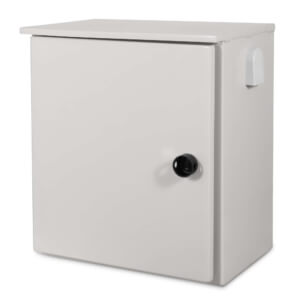

18” x 16” x 10” – Aluminum Enclosure
