Economical Wall Mount Housing Available with Built-in Power Supply

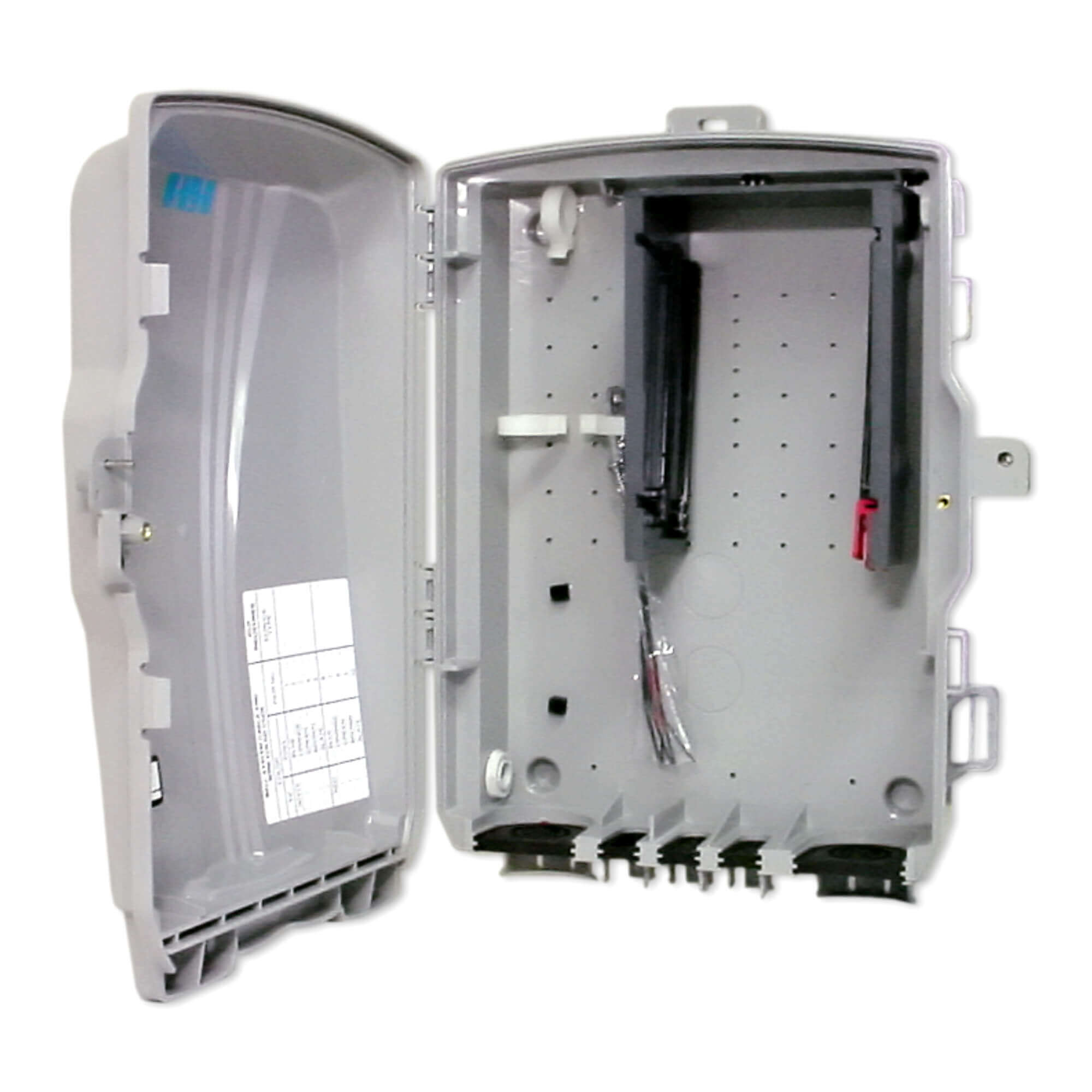

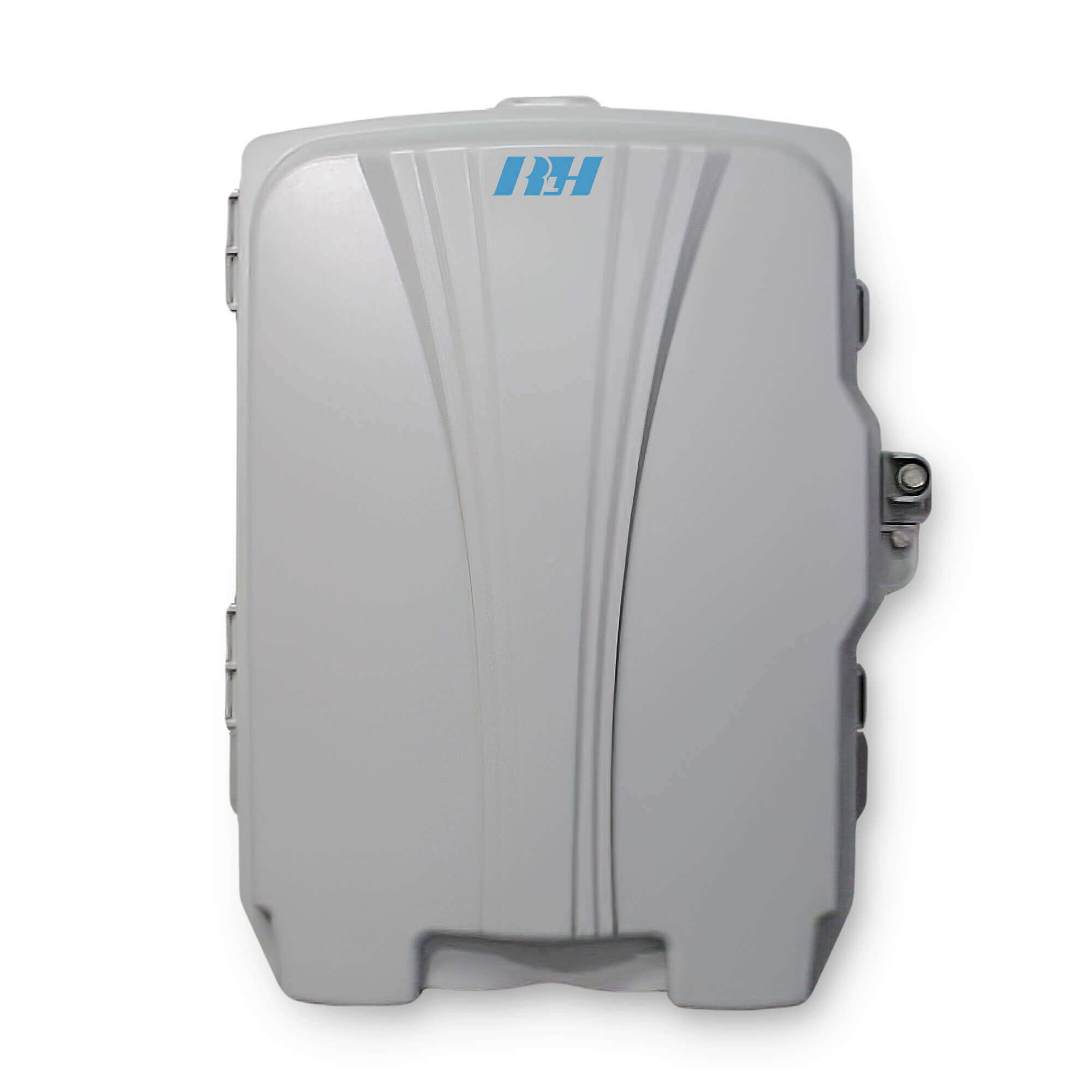

The RLH Dual Card Indoor/Outdoor Housing provides a mounting for two Fiber Optic Link cards. The dual card housing is a durable plastic enclosure that may be mounted to a wall or pole. The fiber cards are installed into guide rails and retainer clips.

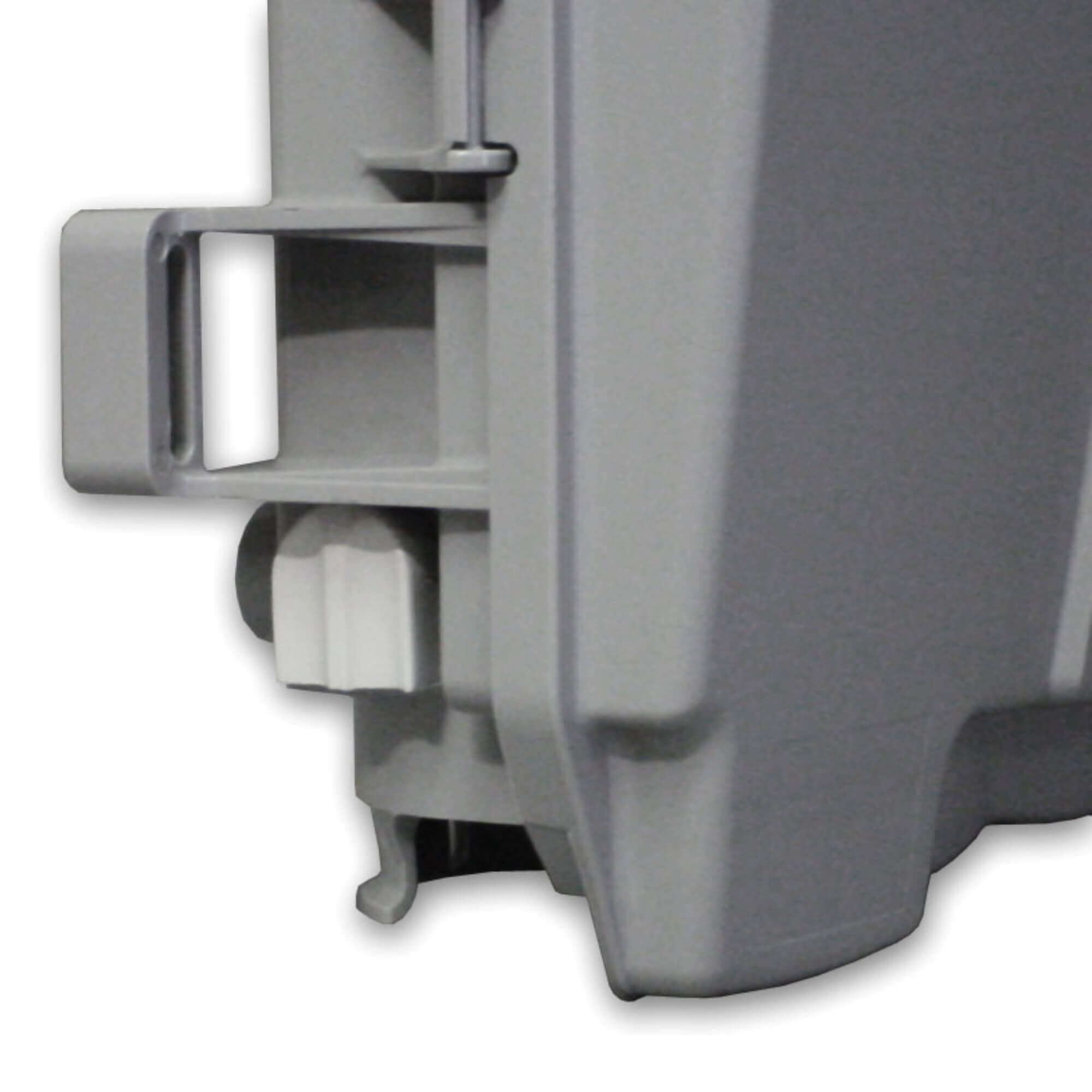

The standard housing is vented and allows for storage of fiber slack. The hinged door closes securely with 2 snap latches, and may be secured with the 3/8″ hex bolt.
The RLH dual card housing can be ordered with an internal power adapter that accepts AC or DC input with a 48VDC output to the Fiber Optic Link Cards.
- Compatible with all RLH Fiber Optic Cards
- Vented weatherproof plastic construction
- Available with built-in 48VDC power supply
- 2 Locking Card Slots
- Sturdy door hinge
- Wall or pole mount design
- Fiber Optic Link card attaching hardware provided
- Available with power supply
- Limited Lifetime Warranty
- Made in USA
Construction:
Modified OPE-9200 plastic molded
Dimensions:
With door closed – H16.7in. x W11.7in. x D4.7in.
(424mm x 297mm x 119mm)
Mounting Style:
Wall mount
Included:
Hardware for mounting two RLH Fiber Optic Link card
General Information
Specialized Drawings
Miscellaneous
8806-1200-05
8806-1200-05PA48
Ordering
Dual Card Indoor/Outdoor Housing
| Short description | Part number | Price | |
|---|---|---|---|
| 2 Card Wall Mount Indoor & Outdoor Housing | 8806-1200-05 | $280.00 | |
| 2 Card Wall Mount Indoor & Outdoor Housing with Integrated 48VDC Power Supply | 8806-1200-05PA48 | $440.00 |
