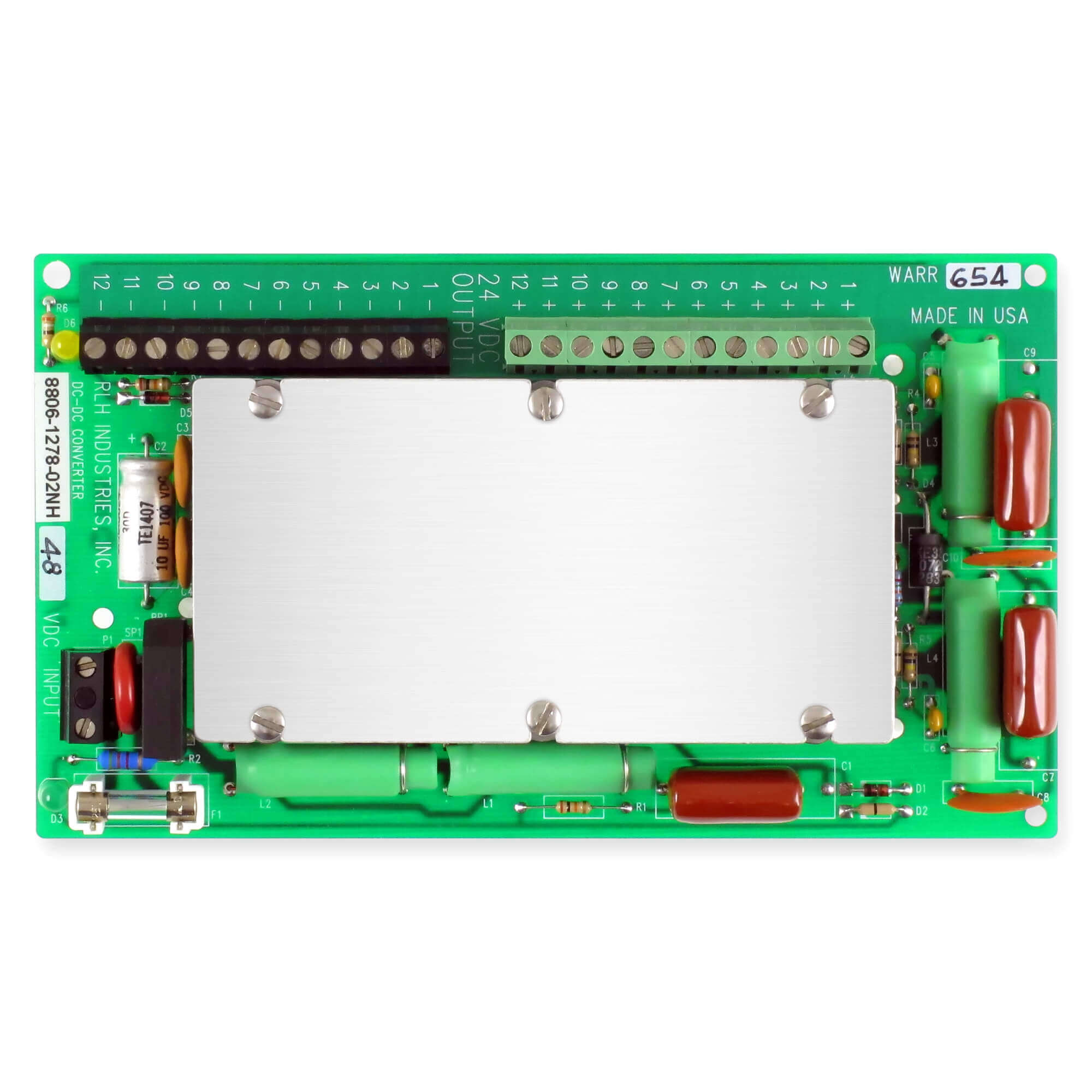

Compact RLH DC/DC Converter Card
The RLH DC/DC Converter card provides an isolated 48VDC output designed to power up to 12 Fiber Optic Link cards. Engineered for industrial telecom applications, this converter provides an isolated and regulated DC output from station batteries or other widely fluctuating DC sources. The RLH DC/DC Converter card is designed to fit into any RLH Fiber Optic Link card housing or shelf, and can be combined with additional converters for a high-density DC power solution.
The RLH DC/DC rack mount converters are fuse protected and have status indicators mounted on the card.
Features
- High Quality DC/DC converter with isolated and regulated output
- Fits all RLH 4RU card housings
- Convenient status LEDs
- Power up to 12 RLH Fiber Link Cards
- Combine for Redundancy
- Wide Operating Temperature -20°C to +70°C (-4°F to +158°F) Rating
- Made in USA
Please see the product documentation for the complete list of specifications
Mounting Style:
Single Card Slot
Physical Dimensions:
7in. x 4in. x 1in. (177.8mm x 101.6mm x 25.4mm)
(Standard RLH Fiber Card Form Factor)
Maximum Output:
50W
General Information
CAD Files
8806-1276-02NH
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
DC/DC Converter Card
| Short description | Part number | Price | |
|---|---|---|---|
| 130/48V DC/DC Converter Card | 8806-1276-02NH | $720.00 |
You May Also Be Interested In
You may also like…
-
4 Wire Analog Data
The 4 Wire Analog Data fiber link card transmits a 600 Ohm voice frequency signal over fiber.
View ProductFiber Cards4 Wire Analog Data
$1,090.00 – $1,710.00 View Product This product has multiple variants. The options may be chosen on the product page -

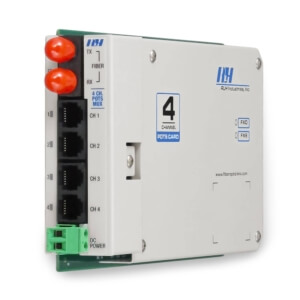

4 Channel POTS
