A Complete OFF-GRID Solar Power System for Remote Device Powering
The RLH 60W 24V solar power system is a fully integrated solution that provides powering for remotely located equipment. This system comes complete with a solar panel, solar mounting bracket, battery enclosure, batteries, and interconnect cable ready for installation. It’s designed to offer quick installation and reliable off-grid powering.

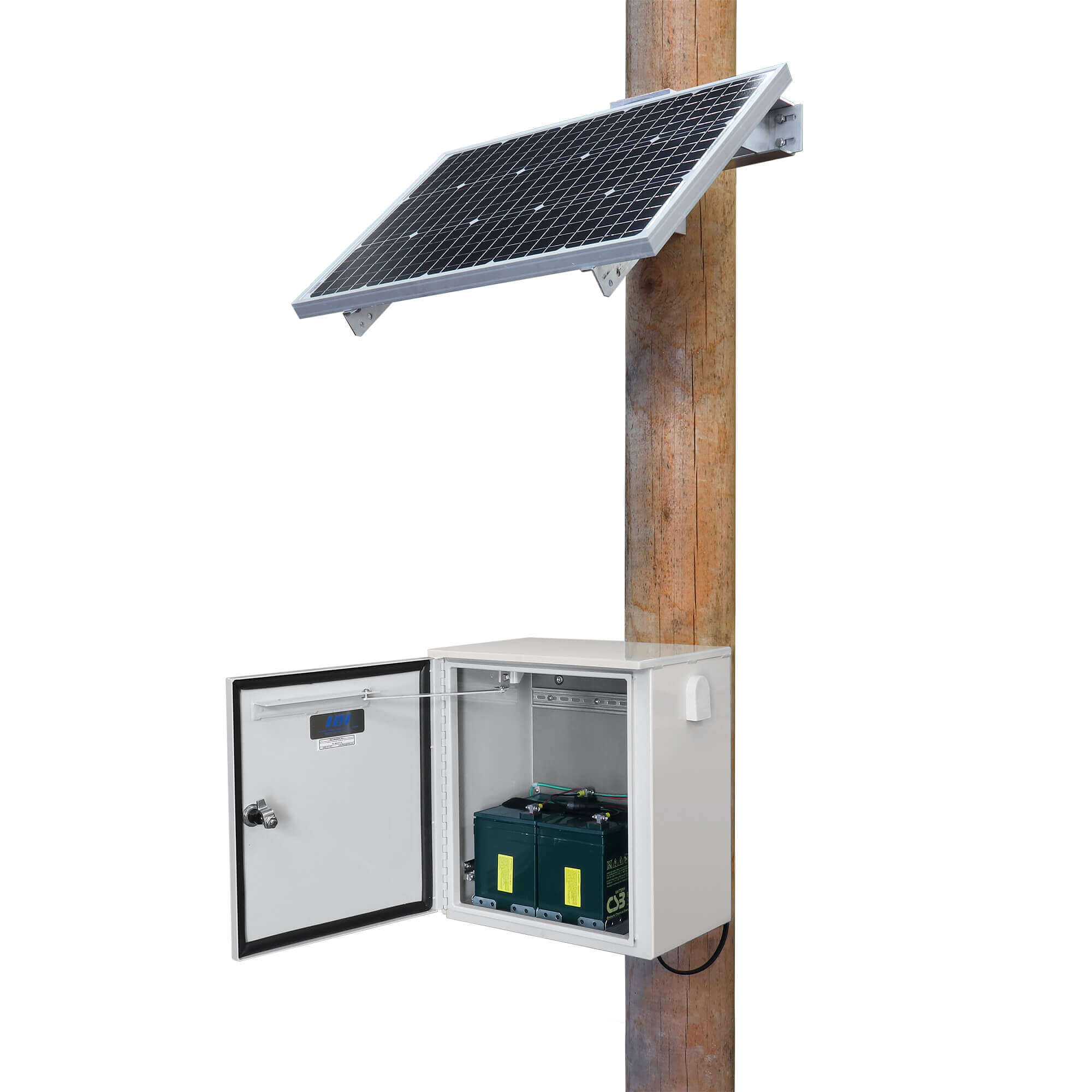

This system allows for both the battery enclosure and solar panel to be either pole or wall mounted*:

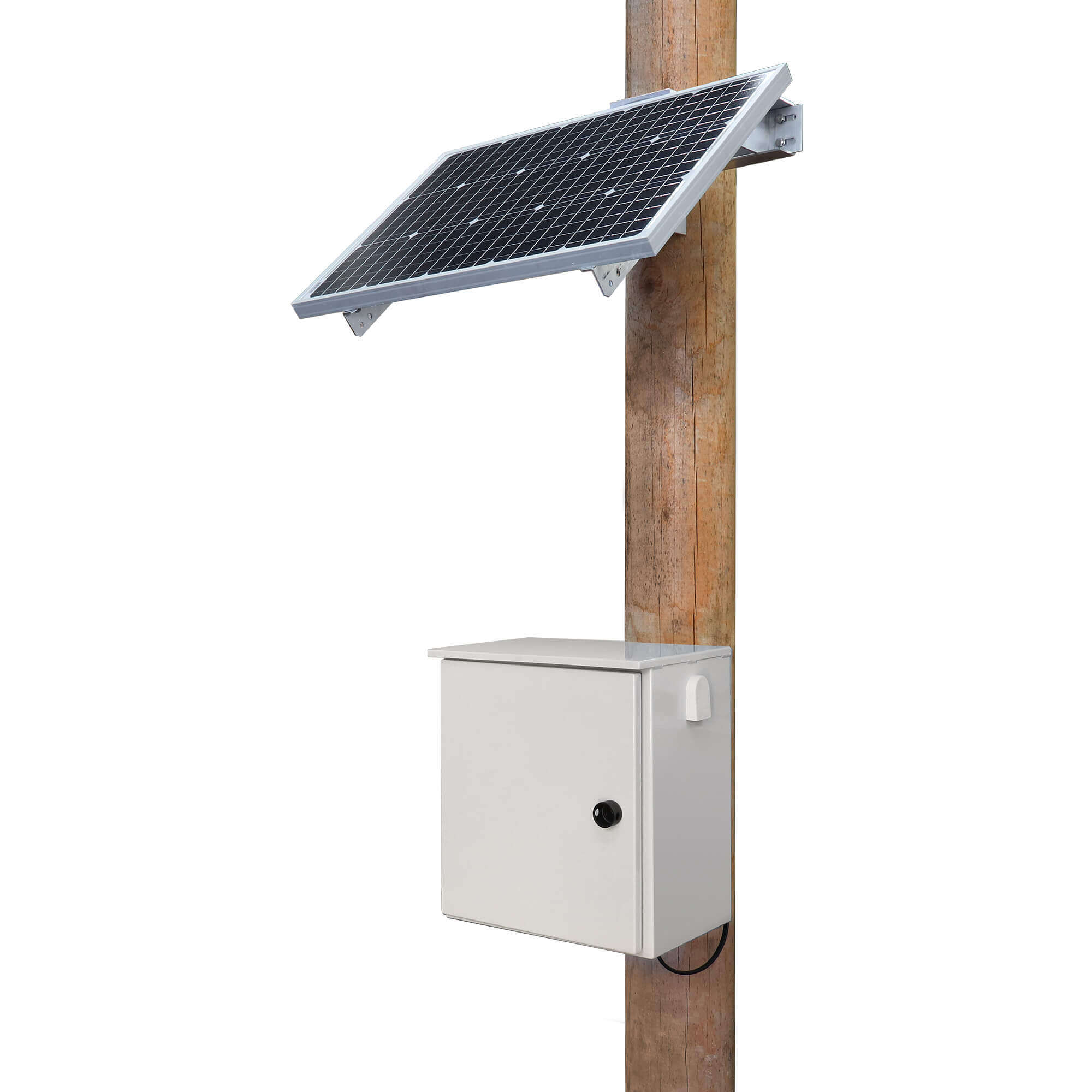

Pole Mount:
- Both the solar panel and battery enclosure are mounted to a pole
- Compatible with pole sizes from 2” to 16”
- Typical Installations: 2” or 4” metal pole, 6” to 16” diameter wooden pole
Wall Mount:
- Both the solar panel and battery enclosure are mounted to a flat surface
- Typical installations: H-Frame, Unistrut, side of wall
*Straps and through bolts not included, as they vary between different installations
The battery enclosure was designed with additional space to fit additional electronics for which the system will power. The system also includes additional NEMA fittings for running power from the battery pack to other enclosures or locations.
These systems are designed and assembled in the USA and are readily customizable to specialized applications.
- Complete 24VDC OFF-GRID Solar Power System with additional space for electronics
- 24VDC 60 watt solar panel
- 24VDC 39Ah battery pack
- Integrated solar charge controller with low voltage disconnect
- Pole or wall mountable
- Prewired for rapid installation
- Designed and assembled in USA

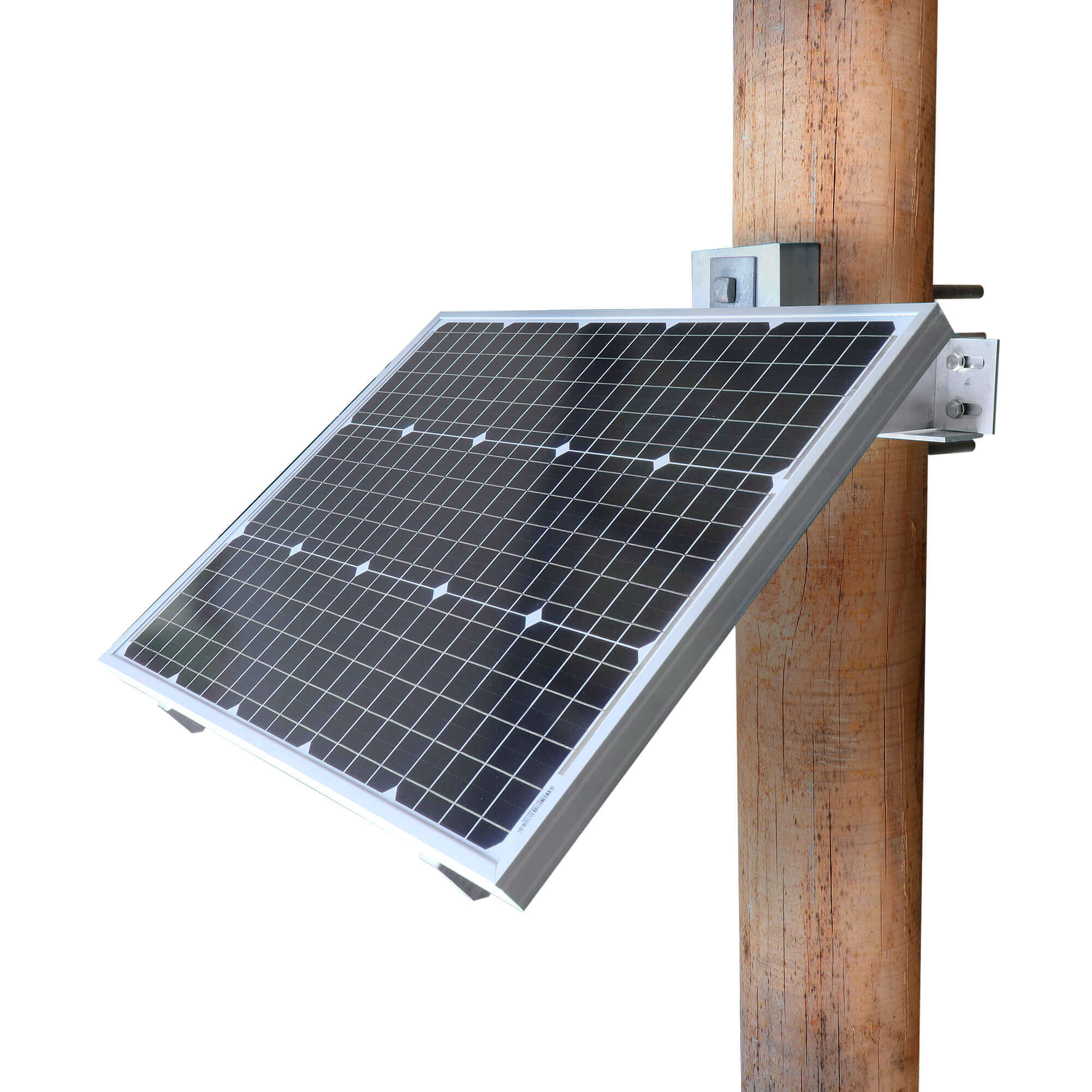

Solar Module:
Power Output: 60 watts
Voltage MPP Vmpp(V): 34v
Cell: Monocrystalline Silicon

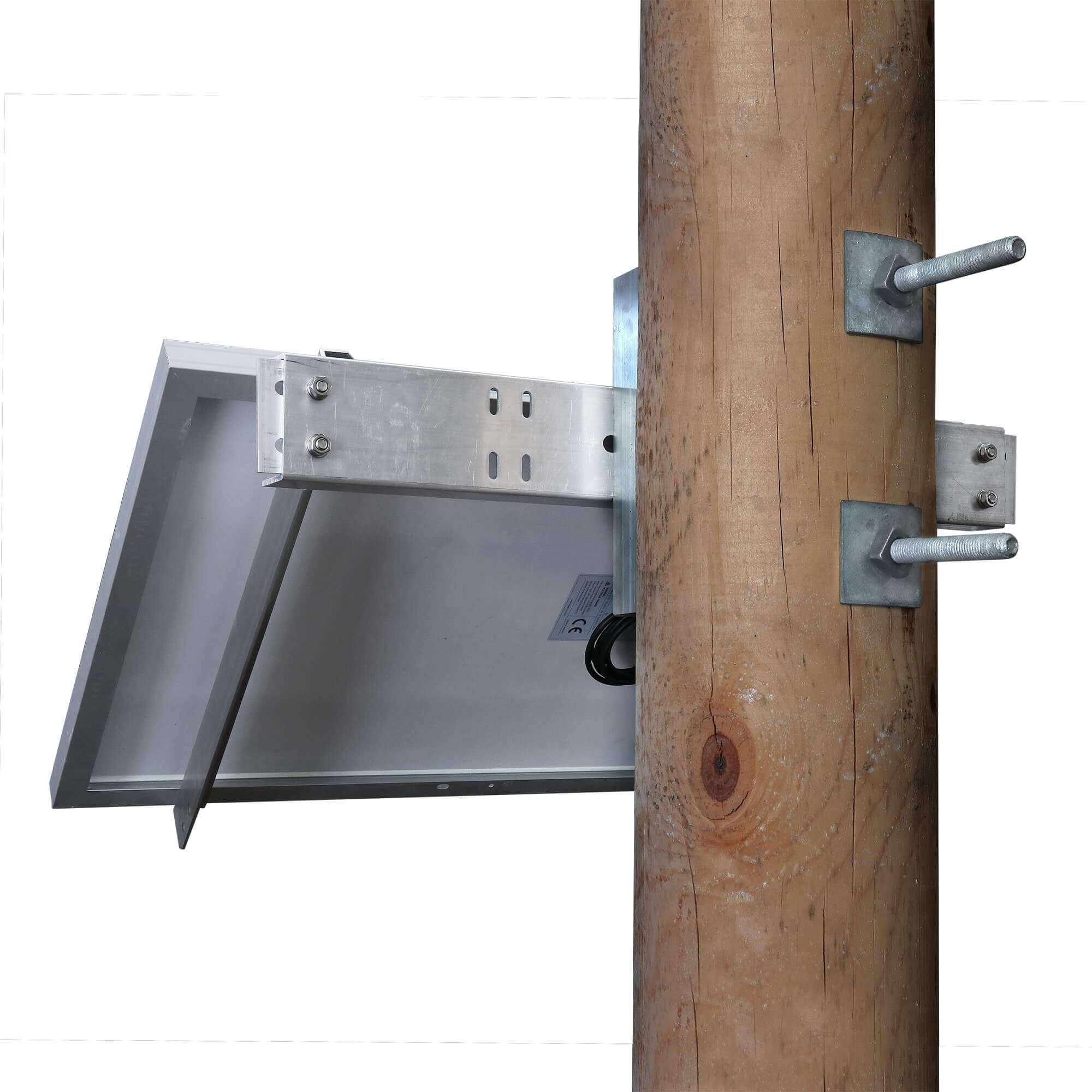

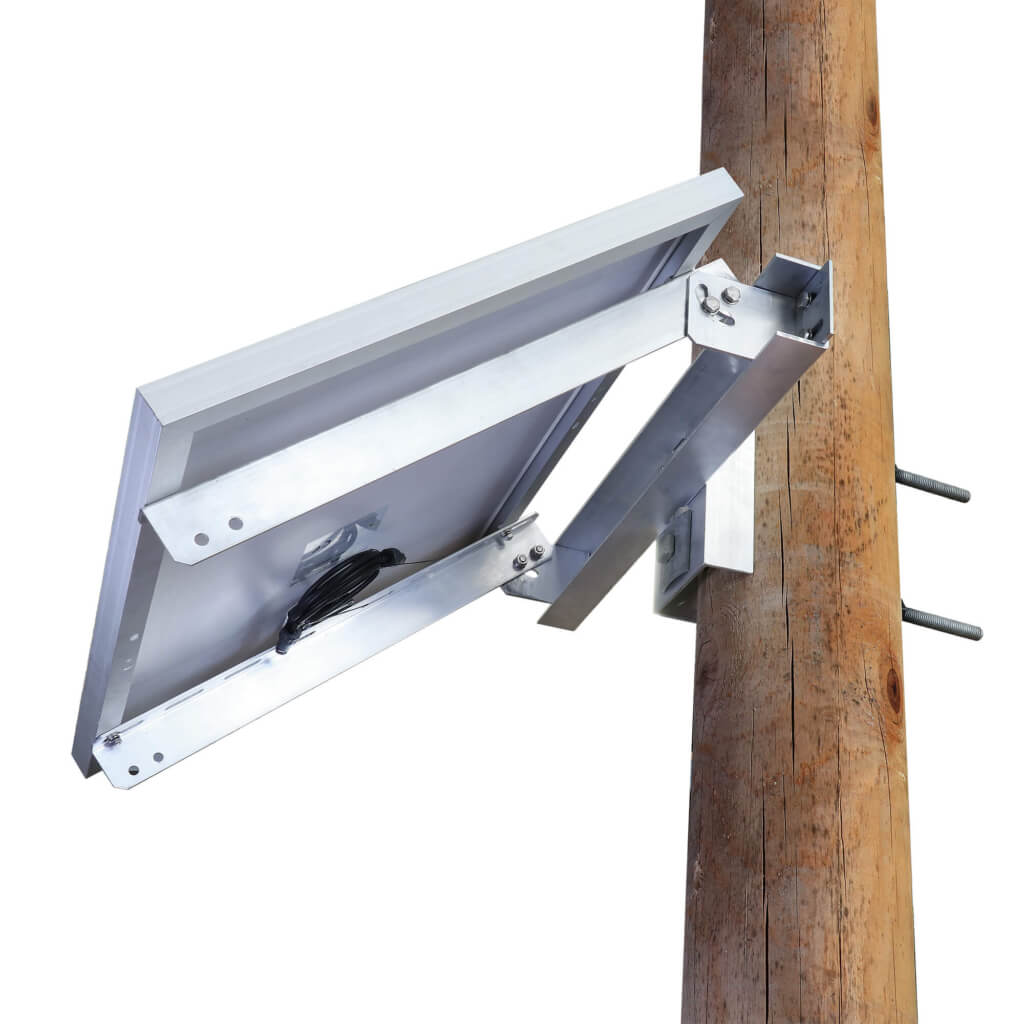

Solar Bracket:
Double arm for side of pole or wall mount
0-90° setting angle
Designed to withstand wind speeds of 90mph
Snow loading 1.1kN/m2

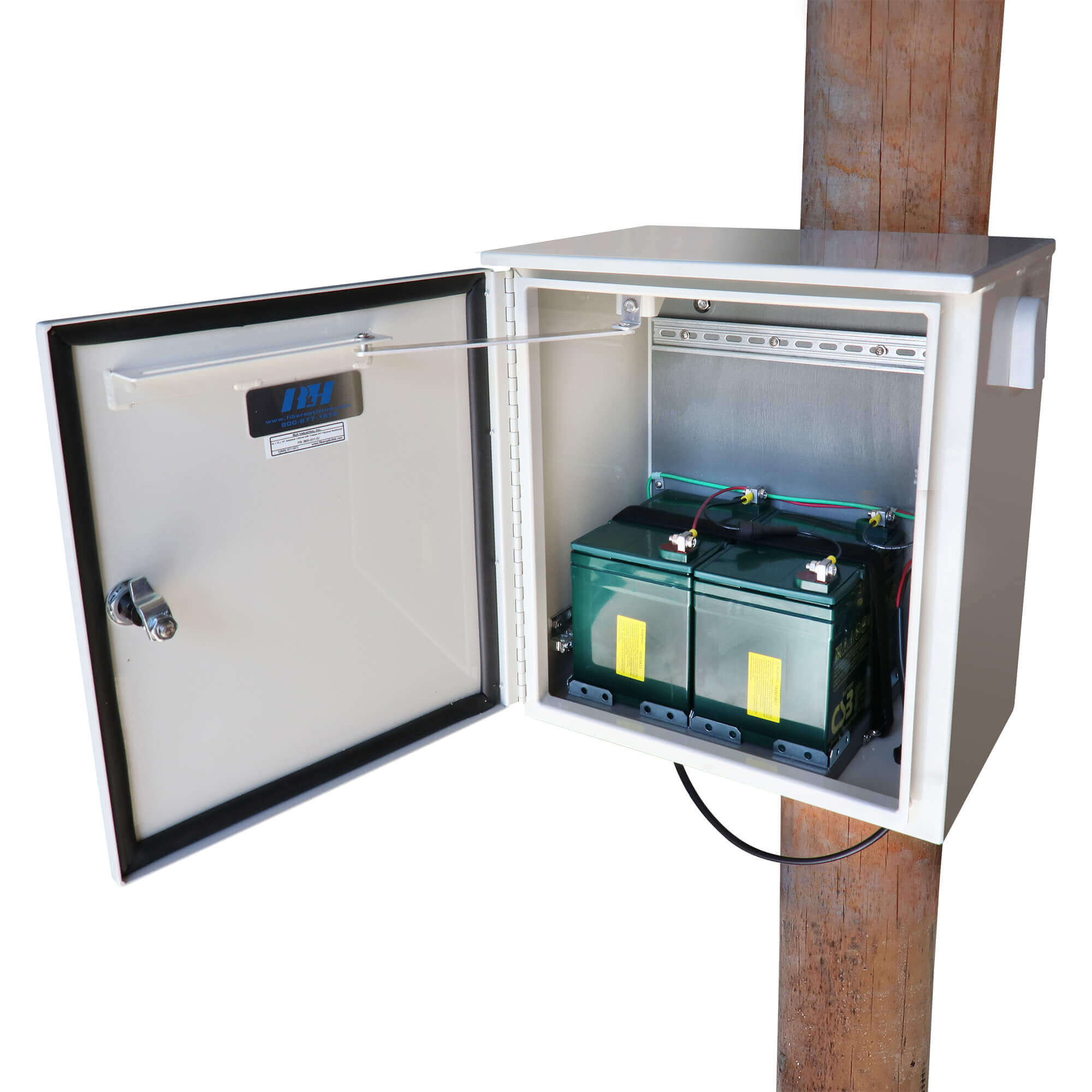

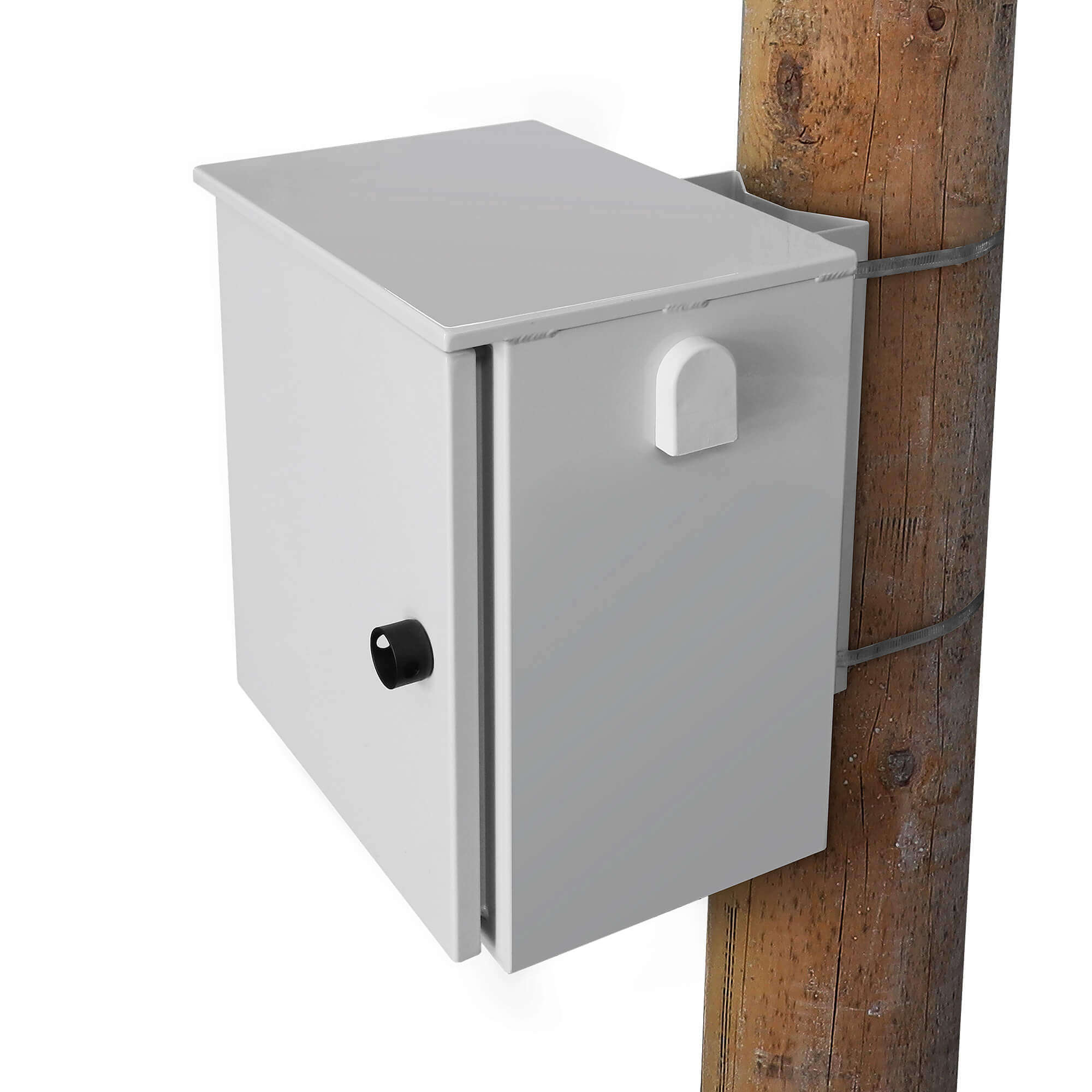

Battery Enclosure:
Construction: Powder-coated aluminum 5052-H32
Exterior Dimensions: H 18″ x W 16″ x D 10″
Venting: Weather and dustproof vents
Door: Hinged door with weatherproof gasket seal
Security: Quarter-turn latches with 1 padlock ring
Battery:
Type: Maintenance free AGM sealed lead acid battery
Amp Hours: 39Ah
Volts DC: 12VDC
Weight: 25.35 lbs (each)

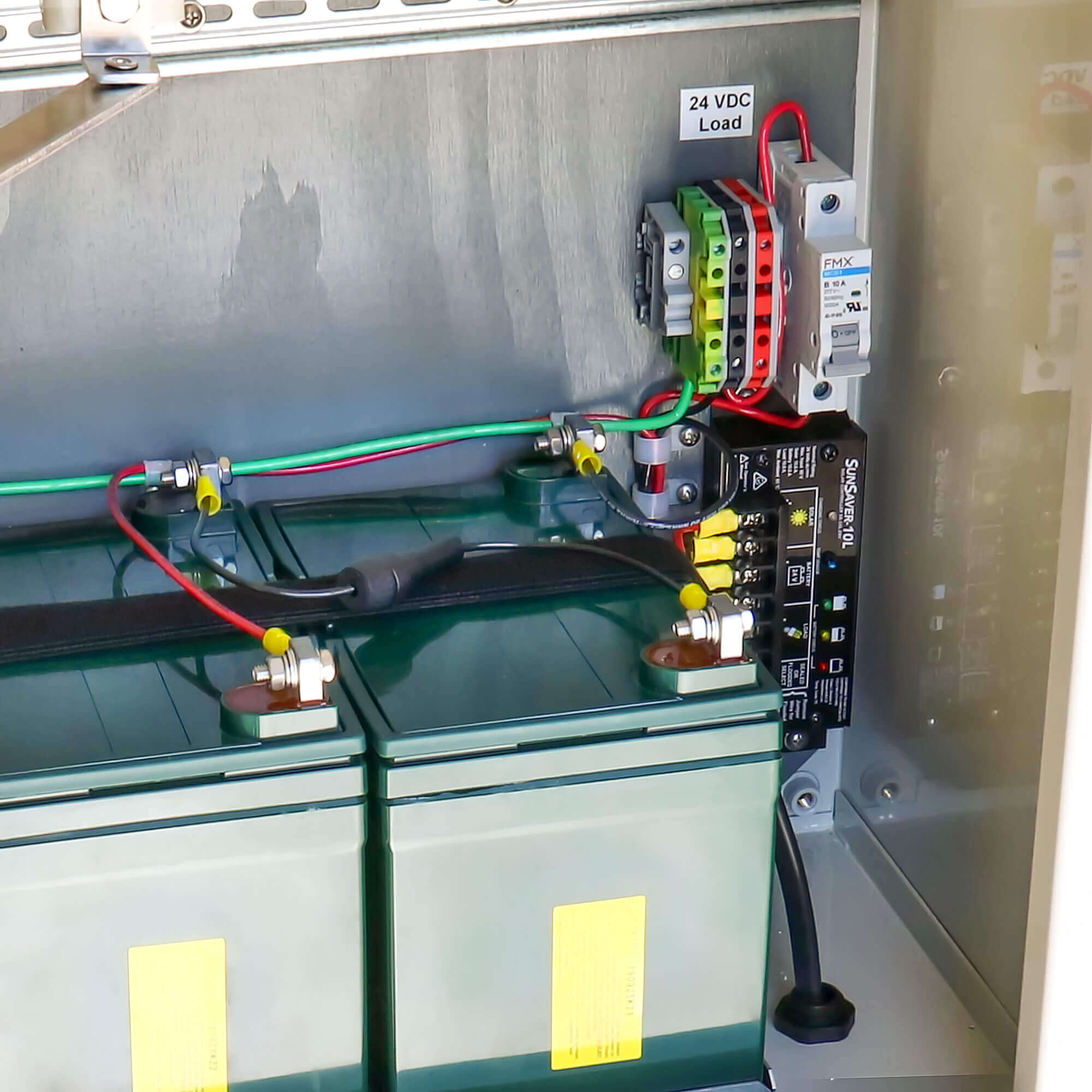

Solar Charge Controller:
Charging Method: 4 stage series PWM
Charging Stages: Bulk, absorption, float, equalize
Charging Method: 4 stage series PWM
Low Voltage Disconect: @23Volts(Reconnectat25.2V)
Tropicalization: Hardened for field use with anodized aluminum enclosure, epoxy encapsulation, marine-rated terminals
General Information
RLH-SK60-2439-1
$1,525.00
Lead Time: 3 to 4 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
OFF-GRID 60 Watt 24V Solar Power System
Short description | Part number | Price | |
---|---|---|---|
OFF-GRID Solar Power Supply System, 24 Volts, 60 Wall Panel, 39Ah Battery Pack, Wall/Pole Mount Battery Enclosure with Wall/Pole Mount Solar Panel | RLH-SK60-2439-1 | $1,525.00 | Get a Quote |
