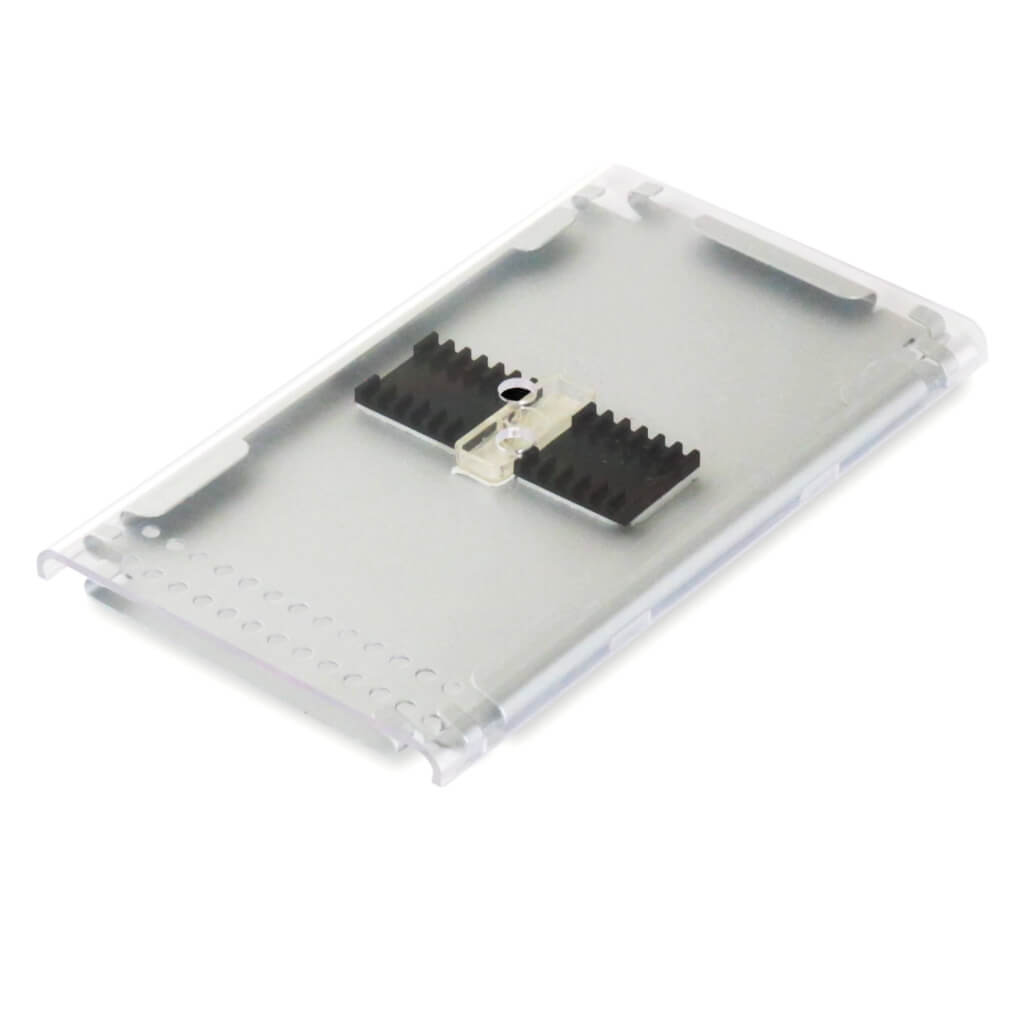

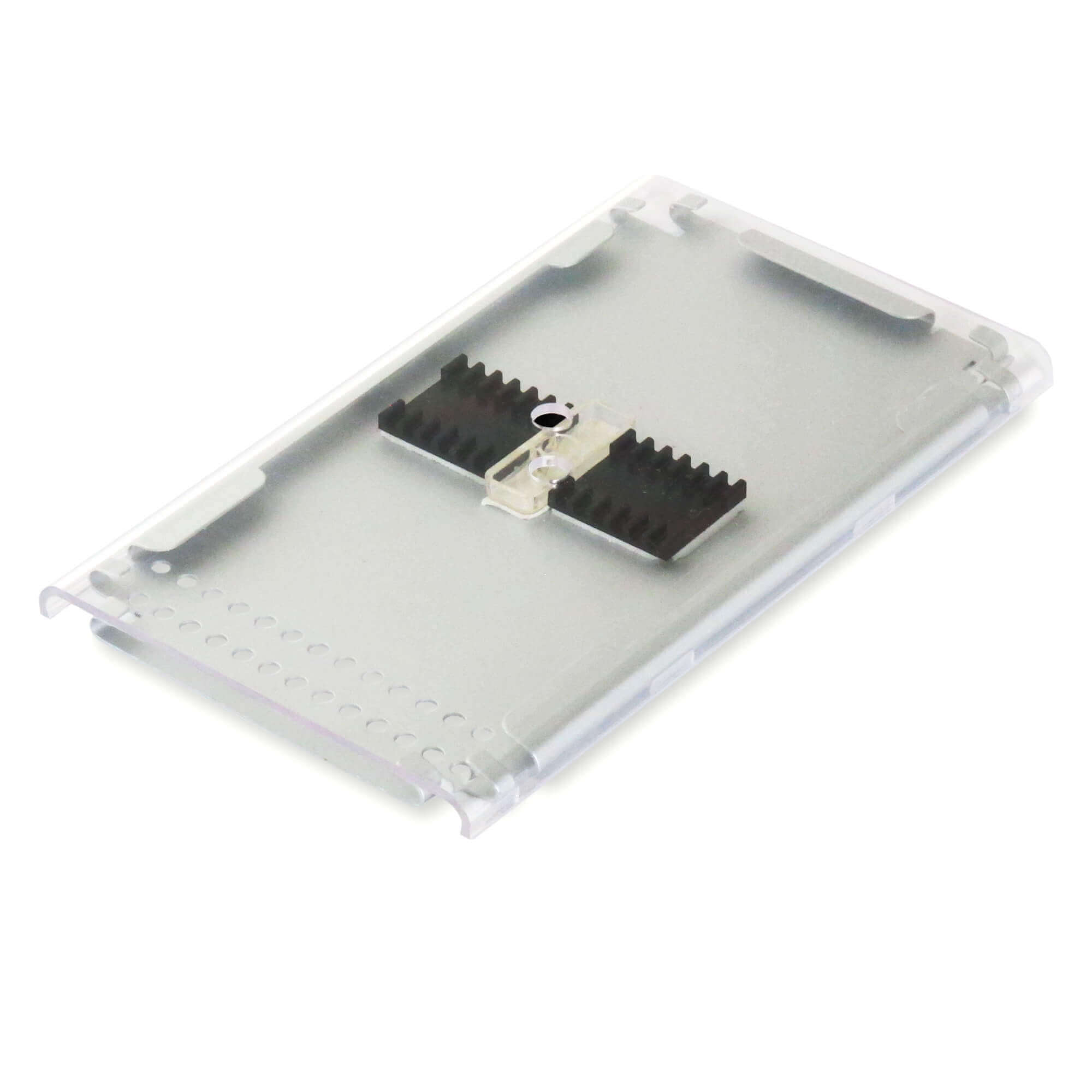

12-Position, Aluminum Fiber Splice Tray
Splice trays provide protection and organization of fiber splices and are typically used in fiber patch panels. Fiber splice chips are included with each tray where necessary.
All RLH Splice Trays accept 2.6mm diameter fusion splice protection sleeves. They vary in material and size for various patch panels. These trays are compatible with most RLH Fiber Patch Panels.
Compatibility:
- SCORP4-1 – Scorpion 4 Plate Wall Mount Fiber Patch Panel
- HIPPO12-1 – HIPPO 12 Outdoor Fiber Patch Panel
- MANTA2-1 – 1RU Rack Mount Fiber Patch Panel
- MANTA4-1 – 2RU Rack Mount Fiber Patch Panel
- All RLH: FUSIONSS-60MM-XXX Splice sleeves
- Lightweight aluminum base
- Compact size
- Clear plastic press-on cover
- For use with 60mm splice sleeves
- Tie-down holes for cable management
- Splice chips included
Dimensions:
7.13”L x 4.13”W x .38”H
Weight:
0.21 lbs
Material:
Aluminum Base with Clear Polycarbonate Cover
General Information
RLH-FST-01
RLH-FST-01-FSPS
$18.00 – $23.00
Lead Time: 1 to 3 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Fiber Splice Tray 12-Position Aluminum
Short description | Part number | Price | |
---|---|---|---|
12-Position Aluminum Fiber Splice Tray | RLH-FST-01 | $18.00 | |
12-Position Aluminum Fiber Splice Tray with 15 Splice Sleeves | RLH-FST-01-FSPS | $23.00 |
- All spice trays are compatible with 2.6mm diameter splice protection sleeves (after shrink)
You May Also Be Interested In
You may also like…
-
Fusion Splice Protection Sleeves
RLH Fusion Splice Protection Sleeves offer durable and long lasting protection for single fiber splices.
Splice TraysFusion Splice Protection Sleeves
$5.00 – $25.00 See Details This product has multiple variants. The options may be chosen on the product page -
Fiber Adapter Plates (grey)
Our line of grey Fiber Adapter Plates can be ordered individually or preinstalled into select RLH fiber optic patch panels.
See DetailsFiber Patch PanelsFiber Adapter Plates (grey)
$5.00 – $75.00 See Details This product has multiple variants. The options may be chosen on the product page -
Manta 2RU Fiber Patch Panel
Rack Mount, 2RU, for splicing and patching up to 96 fibers. Features a slide out tray for easy access.
See DetailsRack MountManta 2RU Fiber Patch Panel
$95.00 See Details This product has multiple variants. The options may be chosen on the product page -
HIPPO 12 Plate Fiber Patch Panel
HIPPO 12 Plate Outdoor Fiber Patch Panel supports up to 12 Fiber Adapter plates and offers a hardened outdoor splicing and patching solution.
See DetailsWall MountHIPPO 12 Plate Fiber Patch Panel
$1,195.00 See Details This product has multiple variants. The options may be chosen on the product page -

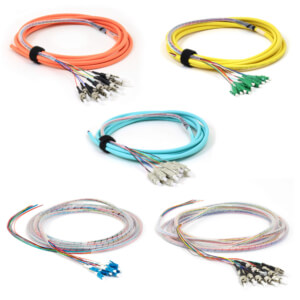

Splice on Fiber Pigtails
