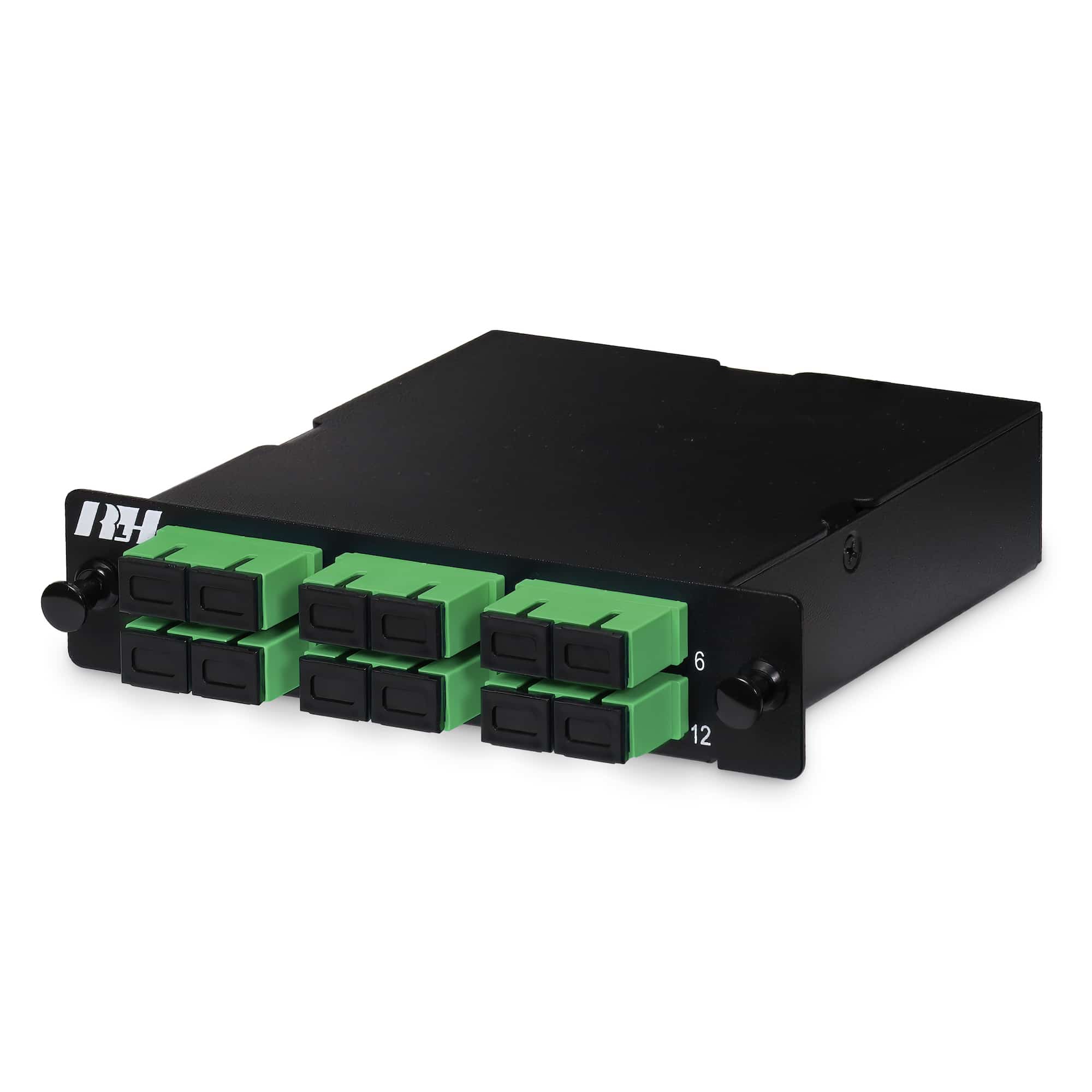

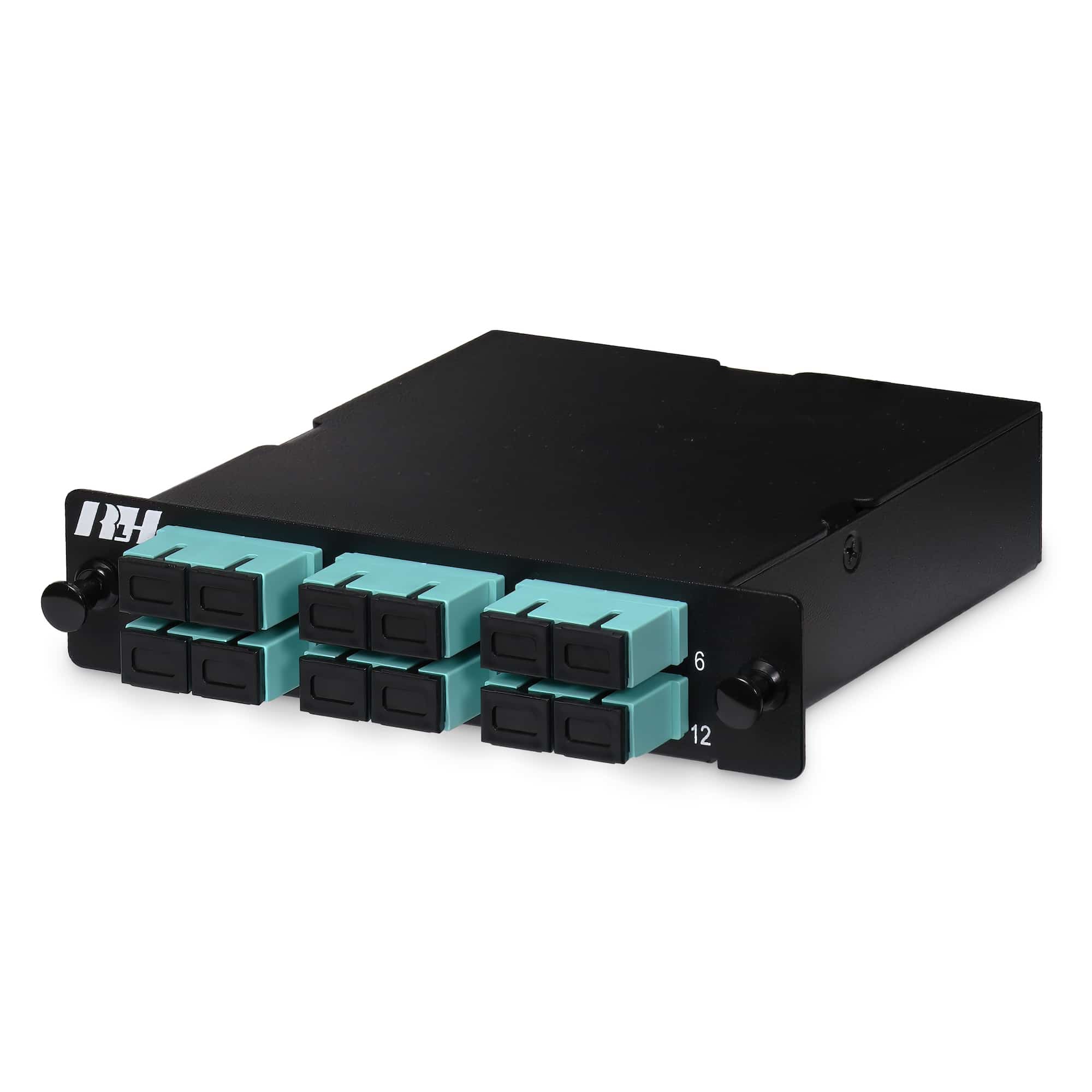

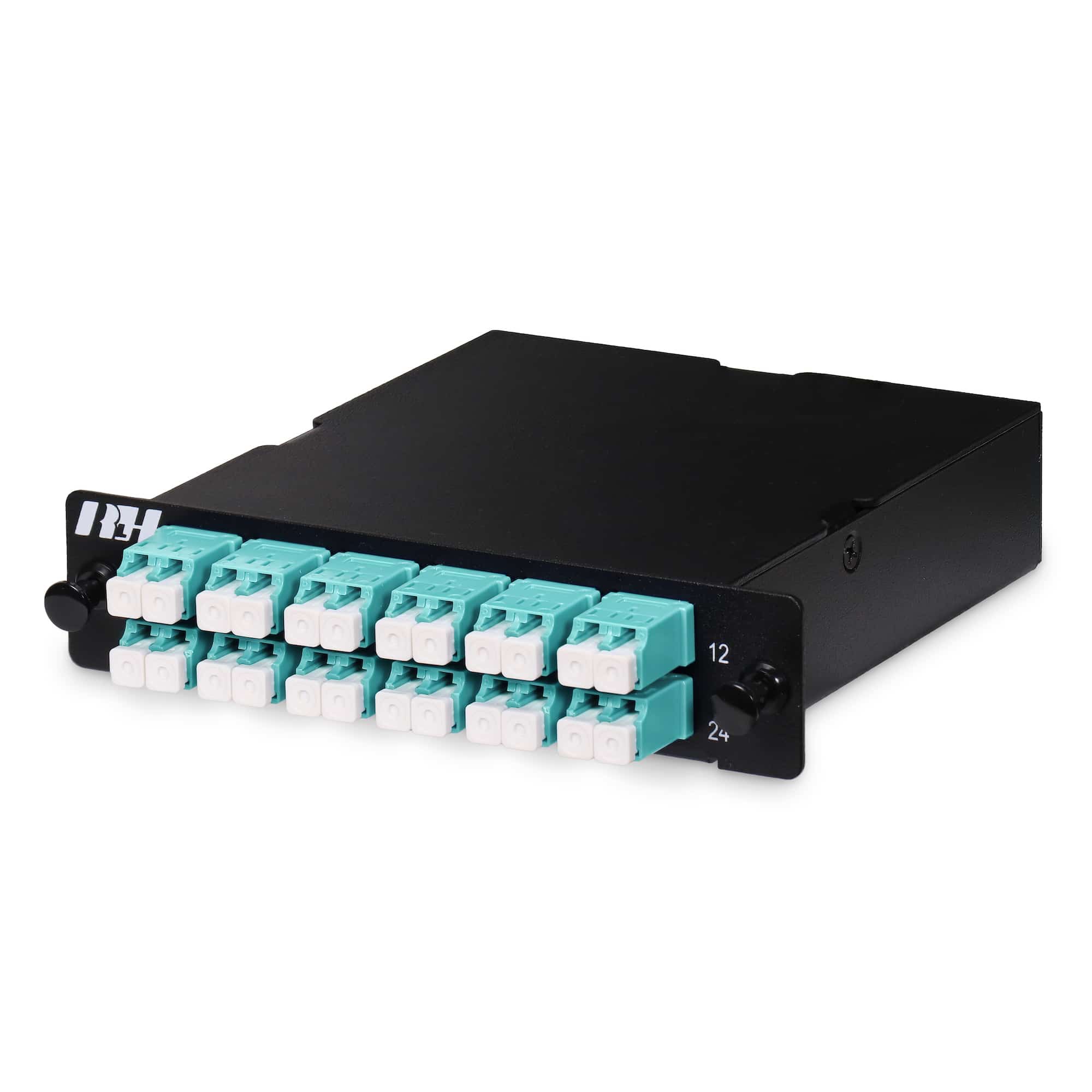

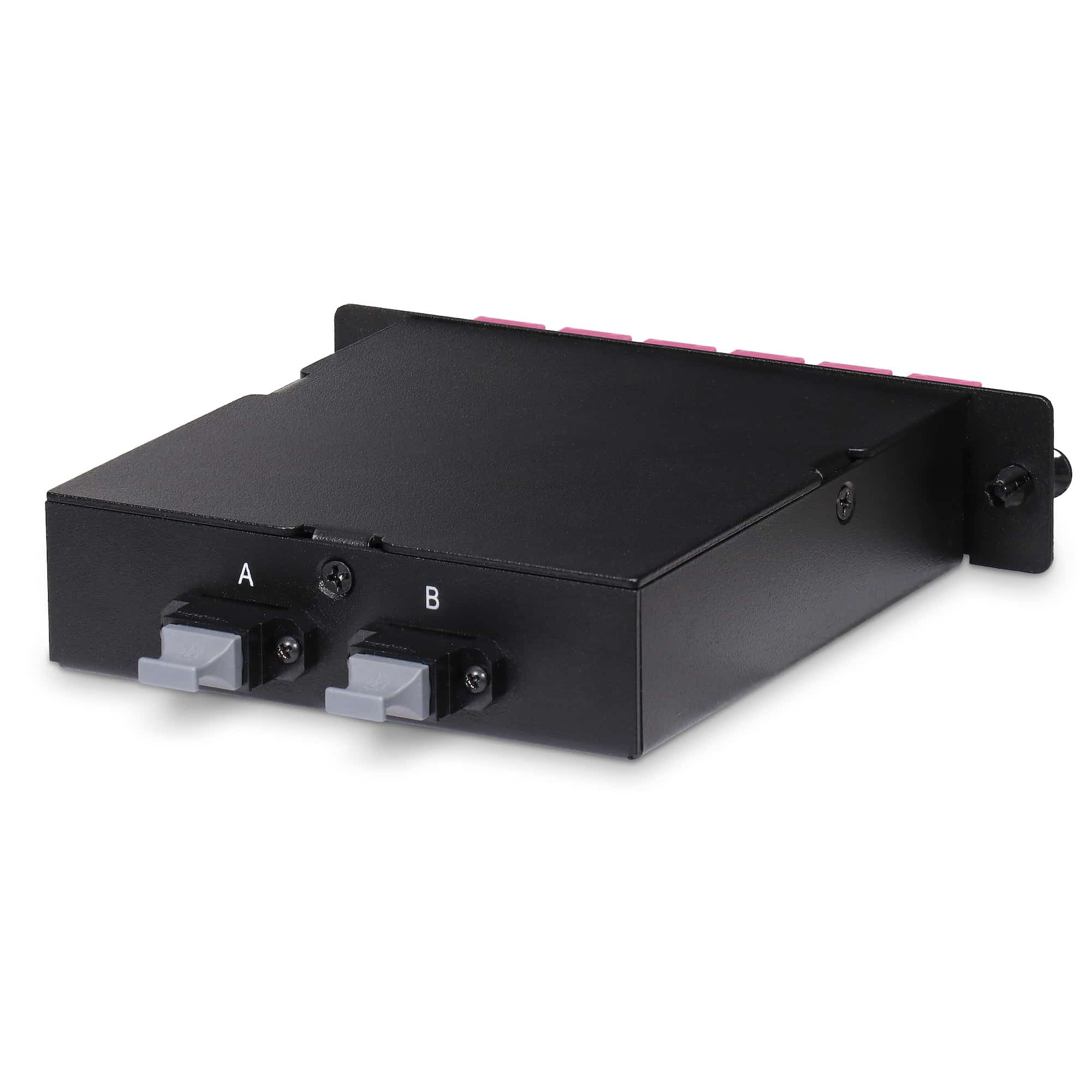

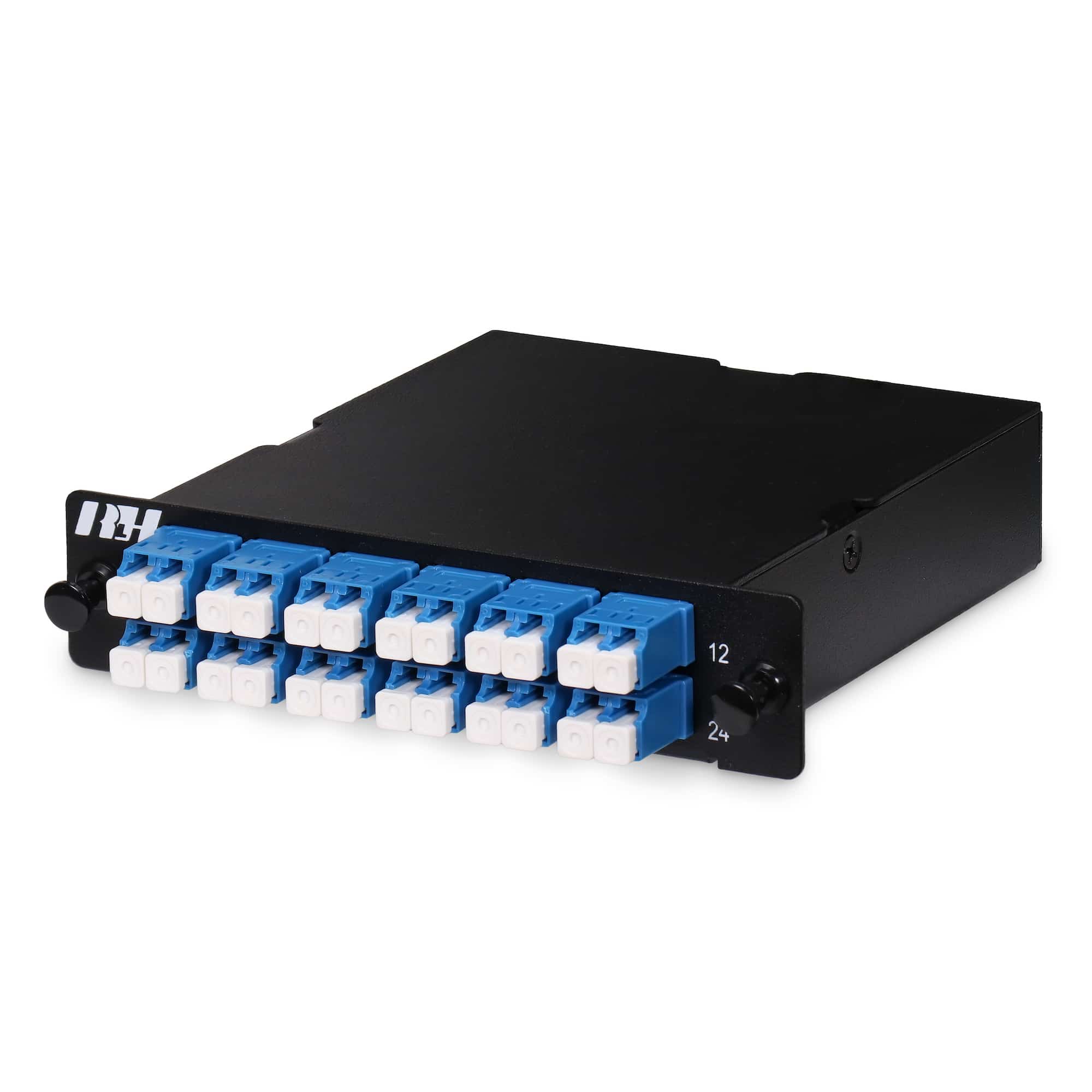

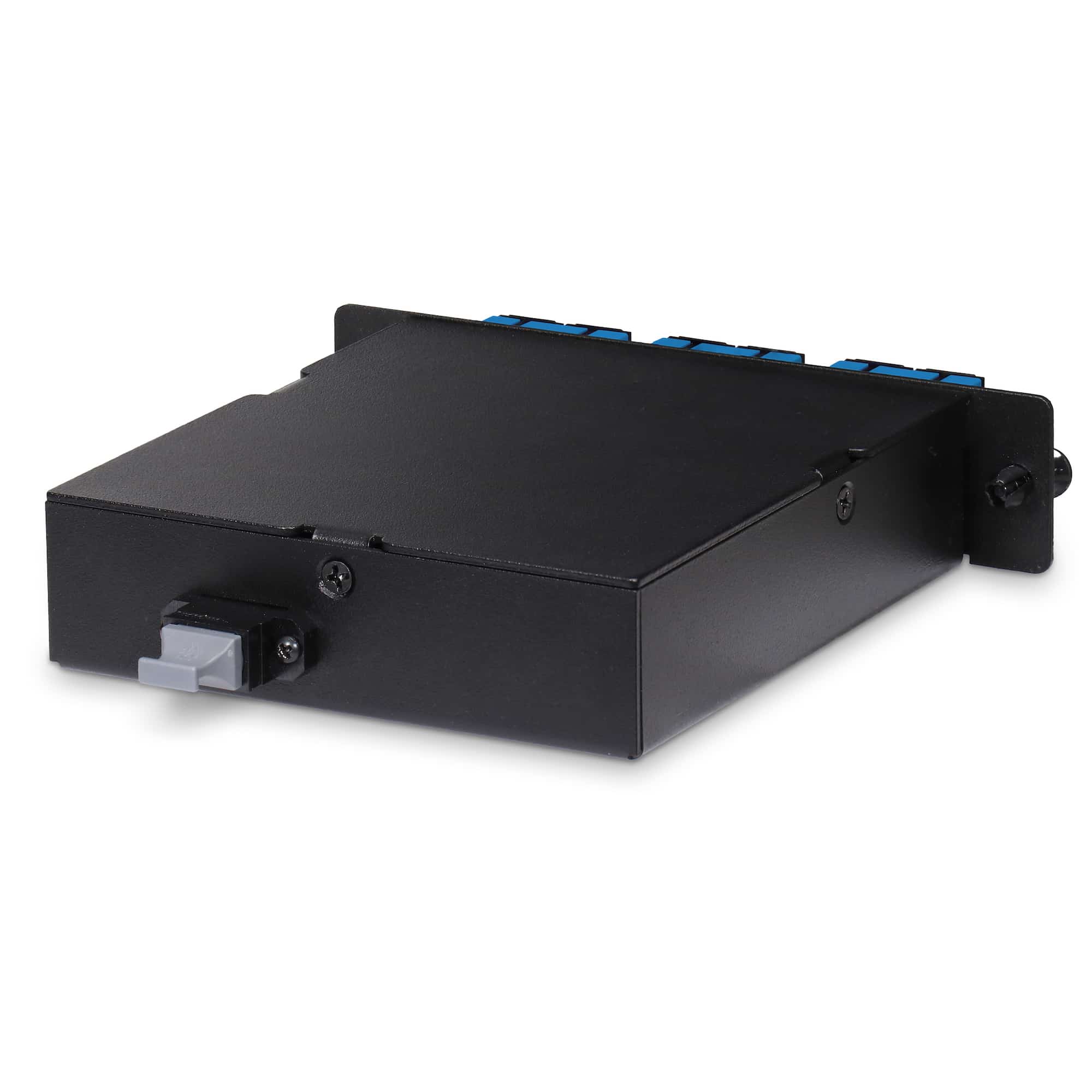

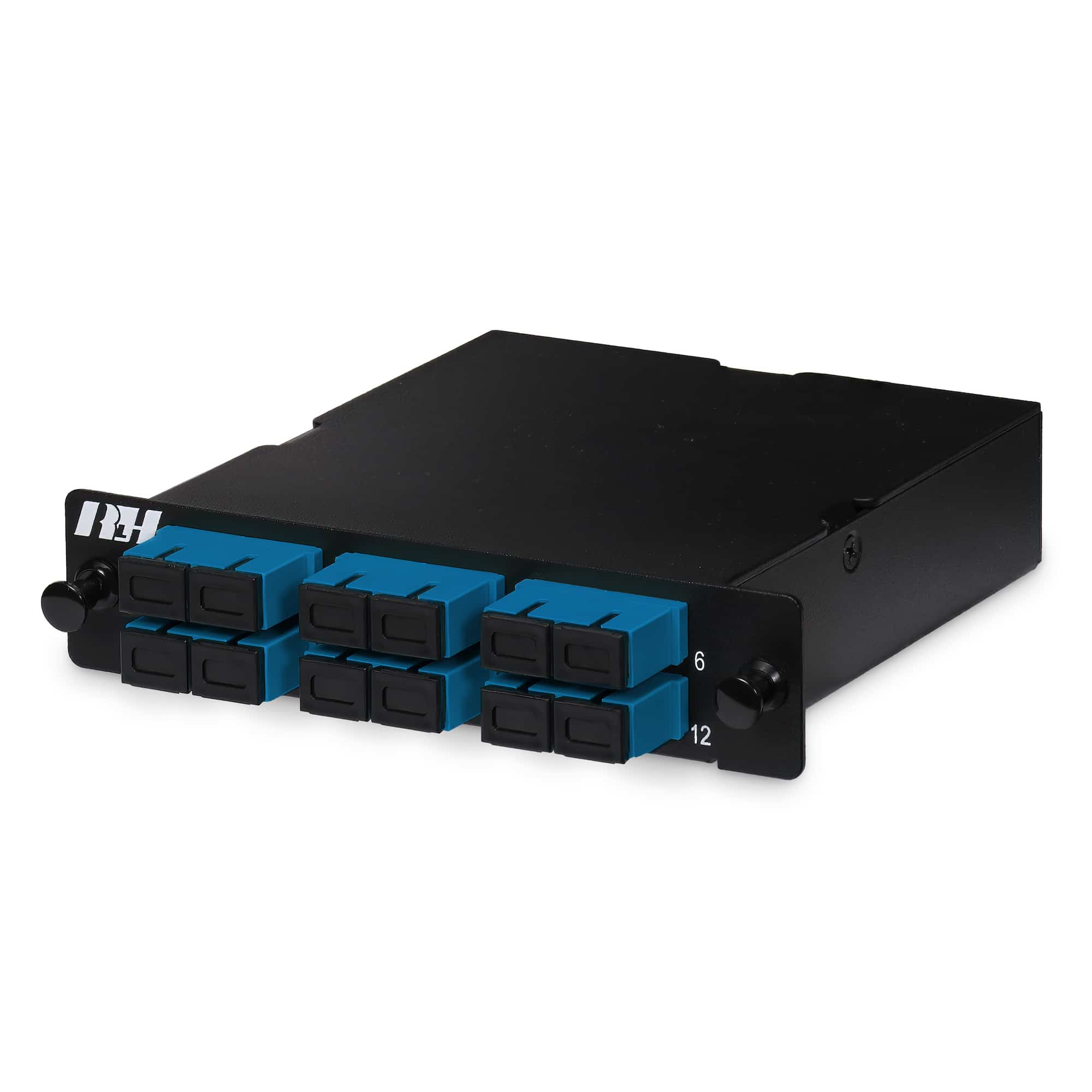

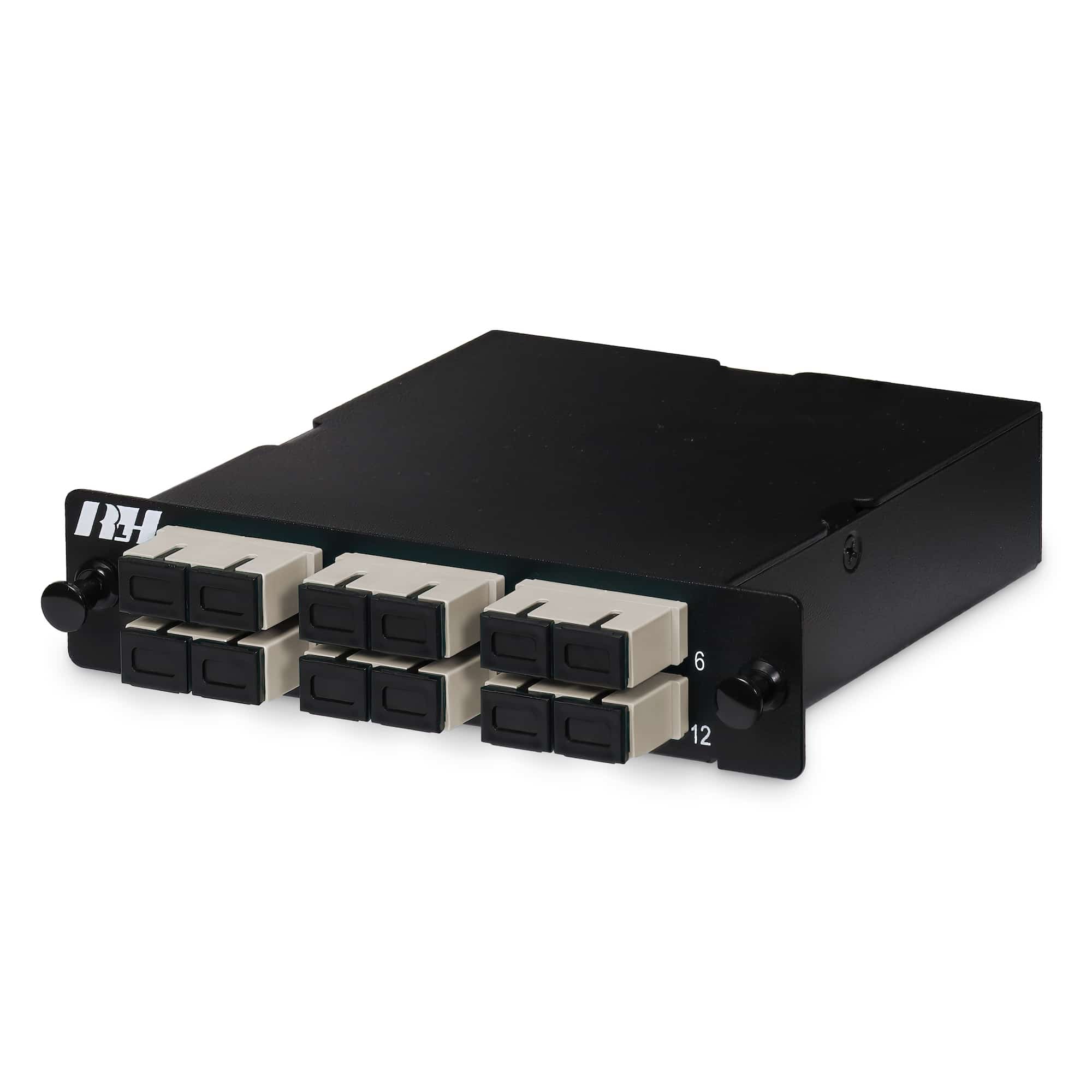

Compact, LGX Compatible Elite® MTP® Breakout Cassette
RLH Elite MTP® Fiber Cassettes are specially designed to reduce installation time and cost for optical network infrastructure deployment. The Cassette is compact in size with SC or LC adaptors at the front and MTP adaptor(s) at the back. This system enables a 12 or 24 fiber MTP trunk cable connection to instantly break out to SC or LC connector types for immediate use.
These Cassettes use USConec MTP Elite adapters with high quality Corning optical fiber and polish finishes providing extra low loss performance. They are fully tested and ready for installation.
They are sized to be compatible with all RLH fiber patch panels that utilize LGX style adapter plates, so they may be mixed and matched as needed in compatible patch panels. This common adapter plate format is also compatible with patch panels from many other vendors, and provides maximum flexibility when integrating MTP cables into a standard patching environment with other fiber adapters.
- Male (Pinned) 12 or 24 fiber USConec Elite® MTP® Connectors
- High quality Corning optical fiber Internal Breakout
- Singlemode and multimode fiber types available
- Durable steel construction
- LGX Form factor with Push/Pull latches
- Compatible with many fiber patch panels that support LGX Foot Print Adapter Plates
- Includes individual test results
- Meets or exceeds industry standards
- Conveniently identified fiber positions
- Save installation time and labor
Cassette Construction:
Steel
Cassette Mounting:
LGX Style Mounting
Cassette Dimensions:
4.02” (W) x 4.57” (D) x 1.12” (H), (102 mm x 116 mm x 28.5 mm)
*Not including faceplate
MTP Adapter:
Key Up to Key Down
Polarity:
Type A (Straight Through)
MTP Adapter Compliance:
Exceeds TIA-604-5, and IEC 61754-7-X Requirements
General Information

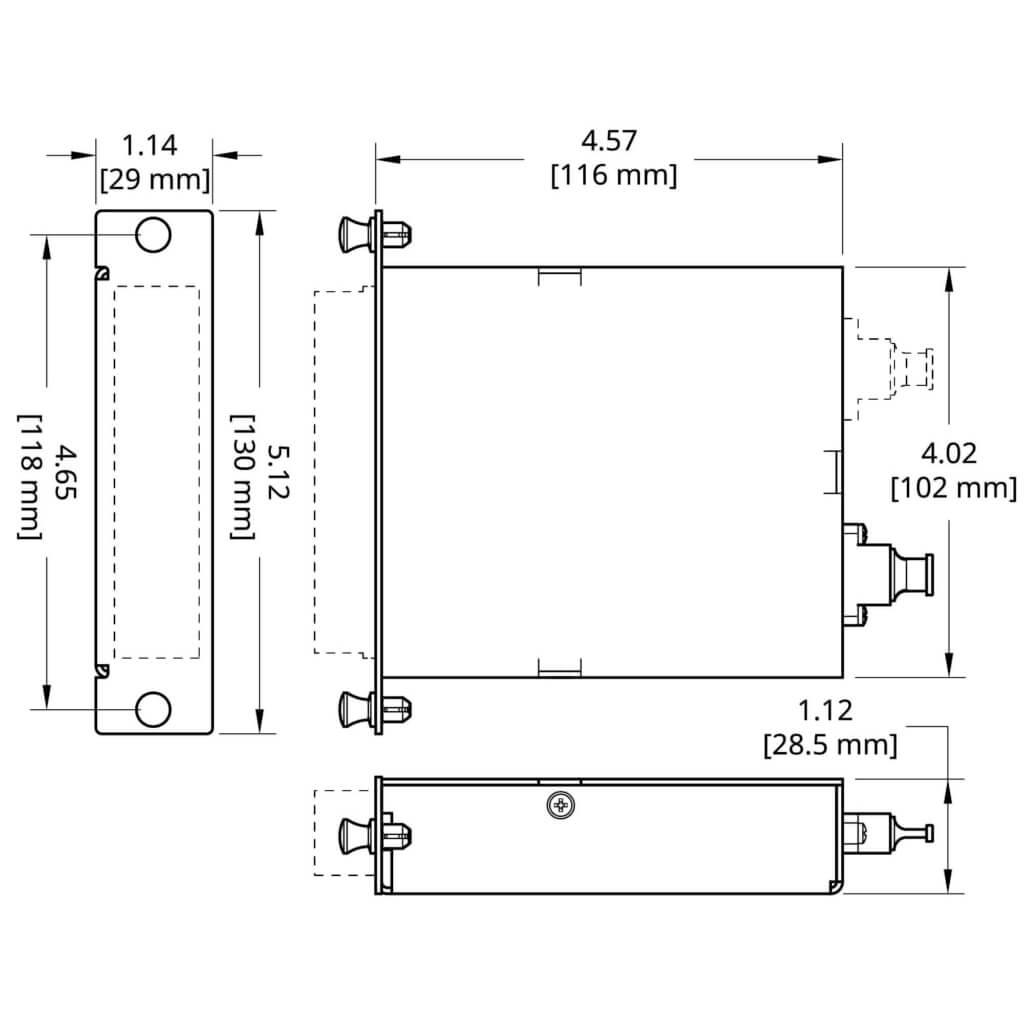

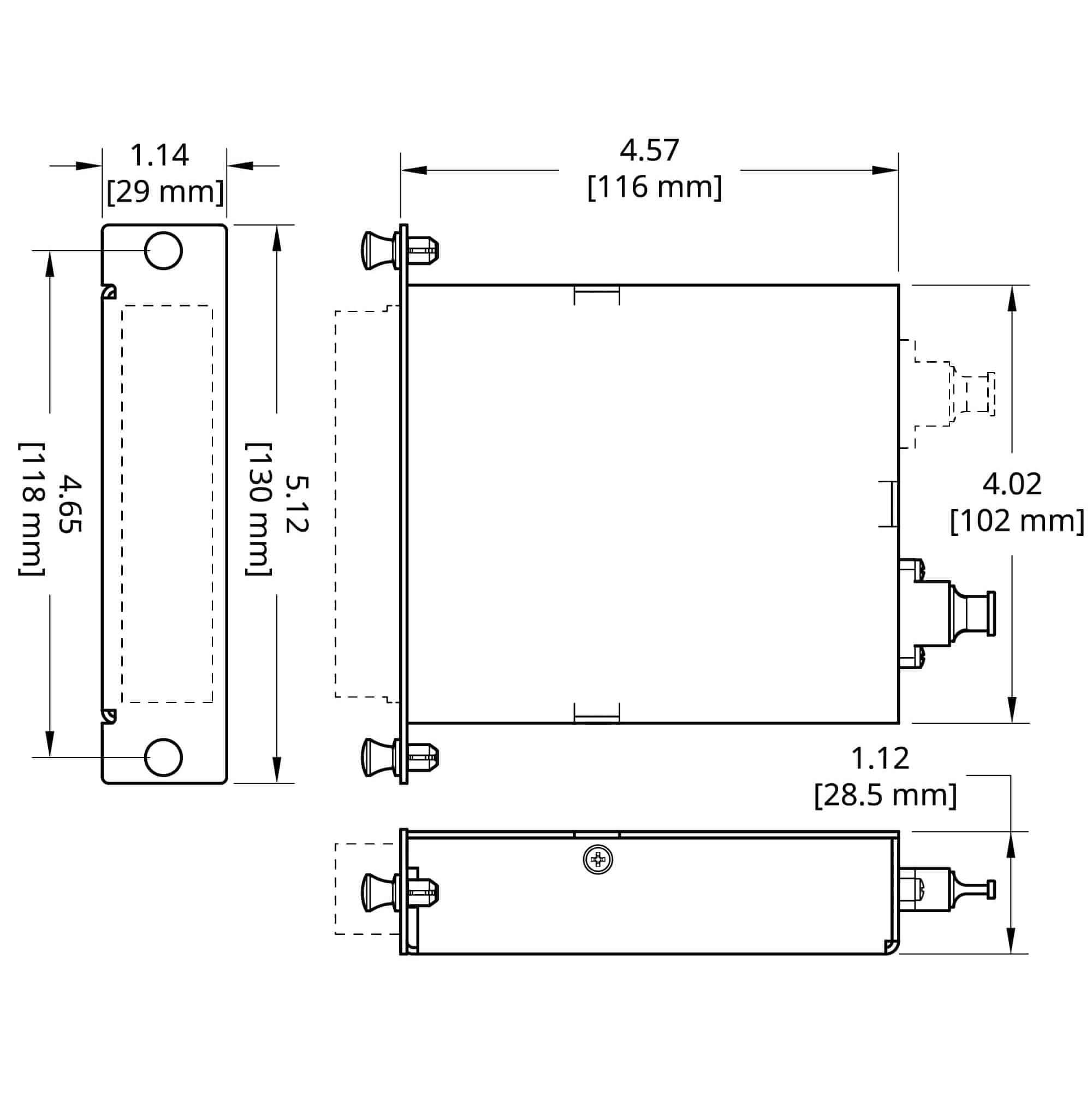

Specialized Drawings
- Dimensional Drawings
- 24 Fiber LC Duplex, Dual MTP Connectors:
MTPC-2M-24XXXX-1 - 24 Fiber LC Duplex, Single MTP Connector:
MTPC-1M-24XXXX-1 - 12 Fiber LC Duplex, Single MTP Connector:
MTPC-1M-12XXXX-1 - 12 Fiber SC Duplex, Single MTP Connector:
MTPC-1M-12XXXX-1
- STEP Files (3D Model)
- 24 Fiber LC Duplex, Dual MTP Connectors:
MTPC-2M-24XXXX-1 - 24 Fiber LC Duplex, Single MTP Connector:
MTPC-1M-24XXXX-1 - 12 Fiber LC Duplex, Single MTP Connector:
MTPC-1M-12XXXX-1 - 12 Fiber SC Duplex, Single MTP Connector:
MTPC-1M-12XXXX-1
MTPC-1M-12MMLC-1
MTPC-1M-12MXLC-1
MTPC-1M-12MCLC-1
MTPC-1M-12SMLC-1
MTPC-1M-12SMLA-1
MTPC-1M-12MMSC-1
MTPC-1M-12MXSC-1
MTPC-1M-12MCSC-1
MTPC-1M-12SMSC-1
MTPC-1M-12SMSA-1
MTPC-2M-24MMLC-1
MTPC-2M-24MXLC-1
MTPC-2M-24MCLC-1
MTPC-2M-24SMLC-1
MTPC-2M-24SMLA-1
MTPC-1M-24MMLC-1
MTPC-1M-24MXLC-1
MTPC-1M-24MCLC-1
MTPC-1M-24SMLC-1
MTPC-1M-24SMLA-1
Ordering
LGX ELITE MTP® Fiber Cassette
| Product configuration | Total Fibers | Fiber Type | Adapter | MTP Adapters | Part number | Price | hf:att:pa_total-fibers | hf:att:pa_fiber-type | hf:att:pa_adapter | hf:att:pa_mtp-adapters | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 12 Fiber LC Duplex, (1 x 12), Multimode OM1, LGX MTP Cassette | 12 | Multimode - OM1 | LC | 1 | MTPC-1M-12MMLC-1 | $120.00 | 12 | multimode-om1 | lc | 1 | |
| 12 Fiber LC Duplex, (1 x 12), Multimode OM3, LGX MTP Cassette | 12 | Multimode - OM3 | LC | 1 | MTPC-1M-12MXLC-1 | $125.00 | 12 | multimode-om3 | lc | 1 | |
 | 12 Fiber LC Duplex, (1 x 12), Multimode OM4, LGX MTP Cassette | 12 | Multimode - OM4 | LC | 1 | MTPC-1M-12MCLC-1 | $135.00 | 12 | multimode-om4 | lc | 1 | |
 | 12 Fiber LC Duplex, (1 x 12), Singlemode OS2, LGX MTP Cassette | 12 | Singlemode - OS2 | LC | 1 | MTPC-1M-12SMLC-1 | $145.00 | 12 | singlemode-os2 | lc | 1 | |
 | 12 Fiber LC/APC Duplex, (1 x 12), Singlemode OS2, LGX MTP Cassette | 12 | Singlemode - OS2 | LC/APC | 1 | MTPC-1M-12SMLA-1 | $155.00 | 12 | singlemode-os2 | lc-apc | 1 | |
 | 12 Fiber SC Duplex, (1 x 12), Multimode OM1, LGX MTP Cassette | 12 | Multimode - OM1 | SC | 1 | MTPC-1M-12MMSC-1 | $120.00 | 12 | multimode-om1 | sc | 1 | |
 | 12 Fiber SC Duplex, (1 x 12), Multimode OM3, LGX MTP Cassette | 12 | Multimode - OM3 | SC | 1 | MTPC-1M-12MXSC-1 | $125.00 | 12 | multimode-om3 | sc | 1 | |
| 12 Fiber SC Duplex, (1 x 12), Multimode OM4, LGX MTP Cassette | 12 | Multimode - OM4 | SC | 1 | MTPC-1M-12MCSC-1 | $135.00 | 12 | multimode-om4 | sc | 1 | |
 | 12 Fiber SC Duplex, (1 x 12), Singlemode OS2, LGX MTP Cassette | 12 | Singlemode - OS2 | SC | 1 | MTPC-1M-12SMSC-1 | $145.00 | 12 | singlemode-os2 | sc | 1 | |
 | 12 Fiber SC/APC Duplex, (1 x 12), Singlemode OS2, LGX MTP Cassette | 12 | Singlemode - OS2 | LC/APC | 1 | MTPC-1M-12SMSA-1 | $155.00 | 12 | singlemode-os2 | lc-apc | 1 | |
 | 24 Fiber LC Duplex, (2 x 12), Multimode OM1, LGX MTP Cassette | 24 | Multimode - OM1 | LC | 2 | MTPC-2M-24MMLC-1 | $270.00 | 24 | multimode-om1 | lc | 2 | |
 | 24 Fiber LC Duplex, (2 x 12), Multimode OM3, LGX MTP Cassette | 24 | Multimode - OM3 | LC | 2 | MTPC-2M-24MXLC-1 | $280.00 | 24 | multimode-om3 | lc | 2 | |
 | 24 Fiber LC Duplex, (2 x 12), Multimode OM4, LGX MTP Cassette | 24 | Multimode - OM4 | LC | 2 | MTPC-2M-24MCLC-1 | $295.00 | 24 | multimode-om4 | lc | 2 | |
| 24 Fiber LC Duplex, (2 x 12), Singlemode OS2, LGX MTP Cassette | 24 | Singlemode - OS2 | LC | 2 | MTPC-2M-24SMLC-1 | $305.00 | 24 | singlemode-os2 | lc | 2 | |
 | 24 Fiber LC/APC Duplex, (2 x 12), Singlemode OS2, LGX MTP Cassette | 24 | Singlemode - OS2 | LC/APC | 2 | MTPC-2M-24SMLA-1 | $325.00 | 24 | singlemode-os2 | lc-apc | 2 | |
| 24 Fiber LC Duplex, (1 x 24), Multimode OM1, LGX MTP Cassette | 24 | Multimode - OM1 | LC | 1 | MTPC-1M-24MMLC-1 | $225.00 | 24 | multimode-om1 | lc | 1 | |
| 24 Fiber LC Duplex, (1 x 24), Multimode OM3, LGX MTP Cassette | 24 | Multimode - OM3 | LC | 1 | MTPC-1M-24MXLC-1 | $235.00 | 24 | multimode-om3 | lc | 1 | |
| 24 Fiber LC Duplex, (1 x 24), Multimode OM4, LGX MTP Cassette | 24 | Multimode - OM4 | LC | 1 | MTPC-1M-24MCLC-1 | $250.00 | 24 | multimode-om4 | lc | 1 | |
| 24 Fiber LC Duplex, (1 x 24), Singlemode OS2, LGX MTP Cassette | 24 | Singlemode - OS2 | LC | 1 | MTPC-1M-24SMLC-1 | $265.00 | 24 | singlemode-os2 | lc | 1 | |
| 24 Fiber LC/APC Duplex, (1 x 24), Singlemode OS2, LGX MTP Cassette | 24 | Singlemode - OS2 | LC/APC | 1 | MTPC-1M-24SMLA-1 | $285.00 | 24 | singlemode-os2 | lc-apc | 1 |
