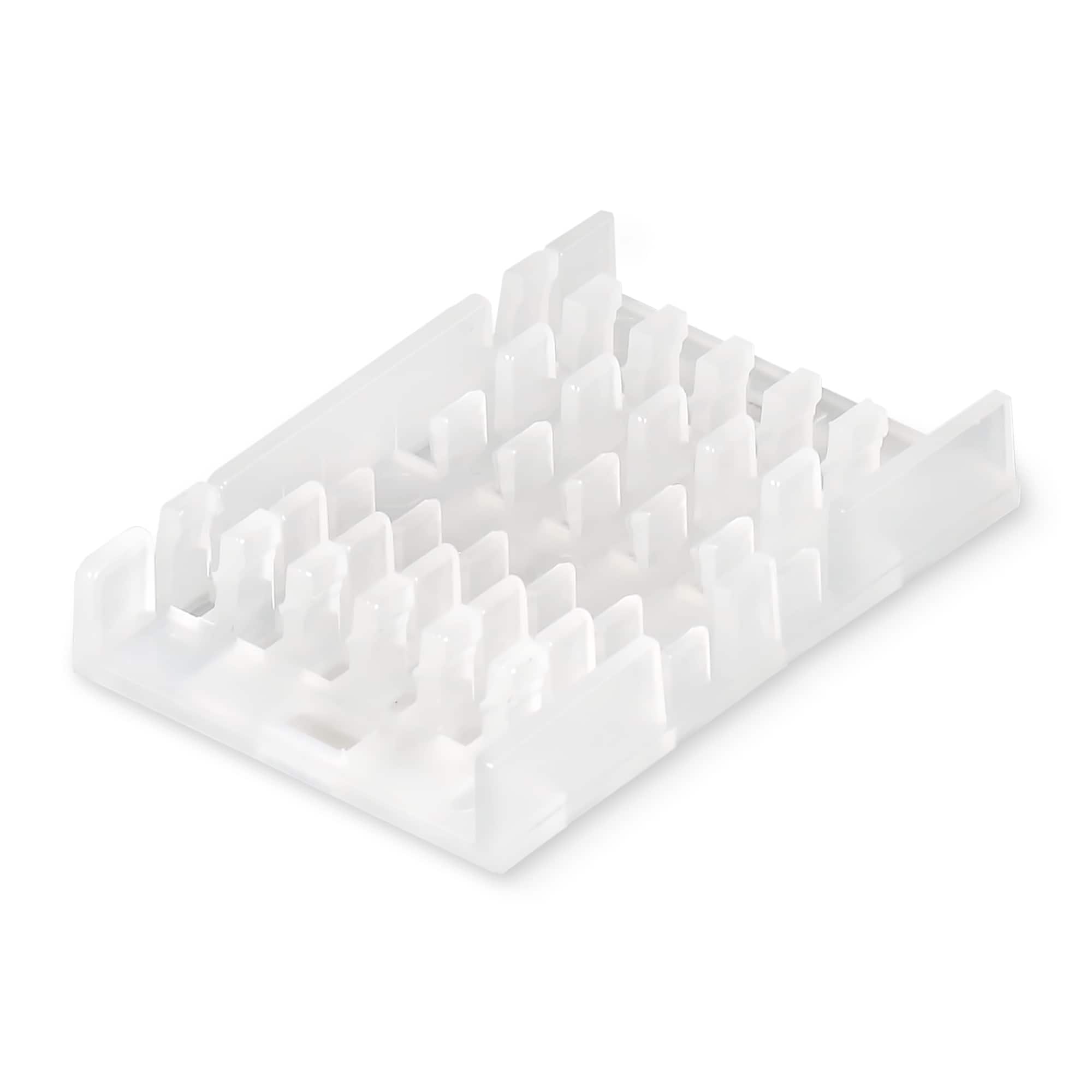

12-Position Fiber Splice Holder
Overview
Features
Specs
Docs
Numbers
Overview
Splice holders provide organization of fiber splices and are typically used in small fiber patch panels and compact spaces. Splice holders include an adhesive backing for easy and quick installation.
Compatibility:
- PWSN-A-1 – Slimline Nano Fiber Patch Panel
- PWS1-A-1 – Slimline Fiber Patch Panel
- PWS2-A-1 – Slimline 2 Plate Fiber Patch Panel
- All RLH: FUSIONSS-40MM-XXX Splice sleeves
Features

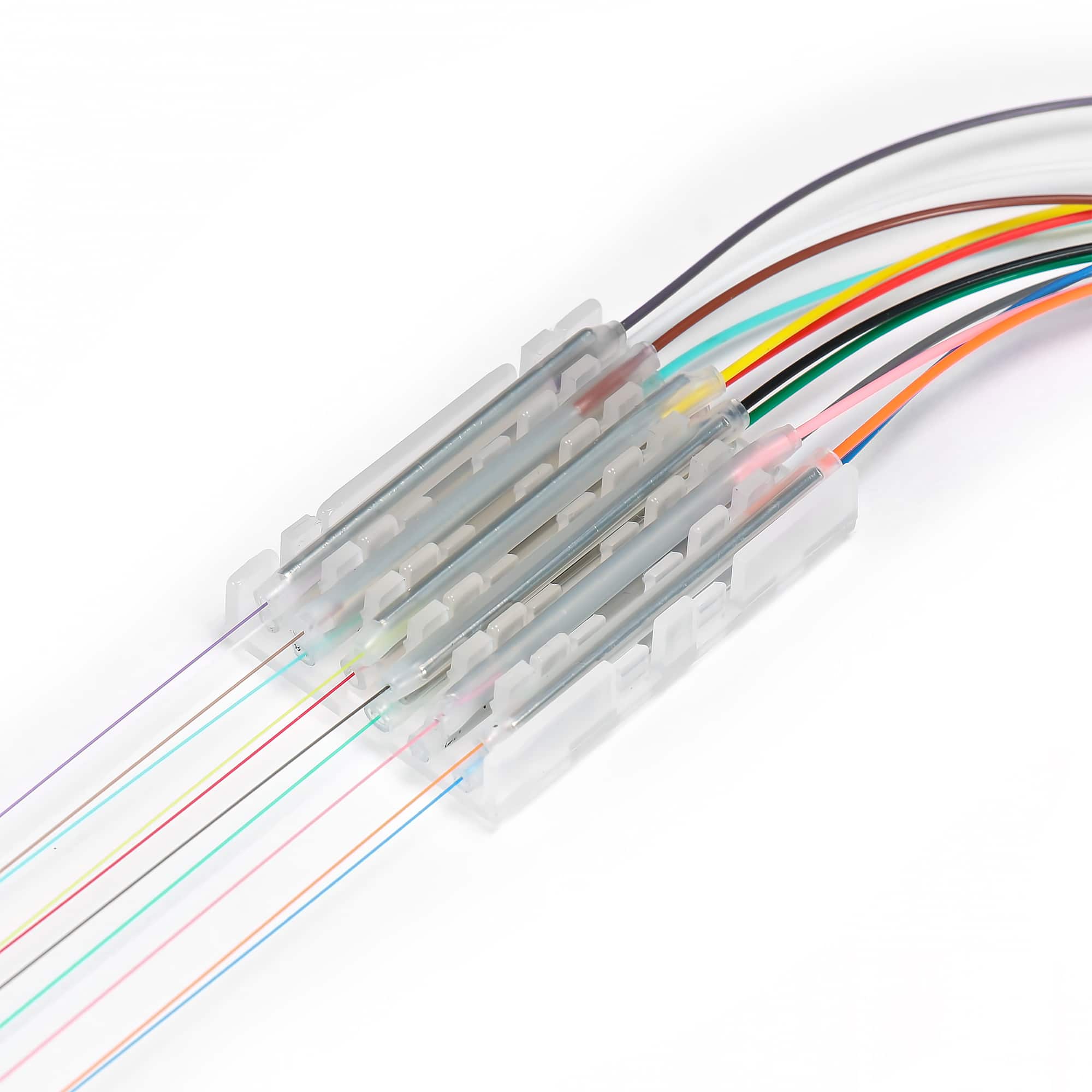

- Holds up to 12 fiber splice sleeves
- For use with 40mm length & 2.6mm diameter splice sleeves
- Fits 2 sleeves per slot
- Compact size
- Includes adhesive backing
Specs
Dimensions:
1.65” (L) x 1.12” (W) x 0.35” (H), (42mm x 28.5mm x 9mm)
Weight:
0.016 lbs
Material:
Molded plastic with adhesive backing
Docs
General Information
Numbers
RLH-FSH-04
RLH-FSH-04-FSPS
Ordering
Mini Fiber Splice Holder
| Short description | Part number | Price | |
|---|---|---|---|
| Mini Adhesive 12-Position Fiber Splice Holder | RLH-FSH-04 | $5.00 | |
| Mini Adhesive 12-Position Fiber Splice Holder with 15 Splice Sleeves | RLH-FSH-04-FSPS | $10.00 |
- Splice holders are compatible with 2.6mm diameter splice protection sleeves (after shrink)
