Slide Out Tray Holds LGX 12 Fiber Adapter Plates for up to 144 Fiber Capacity

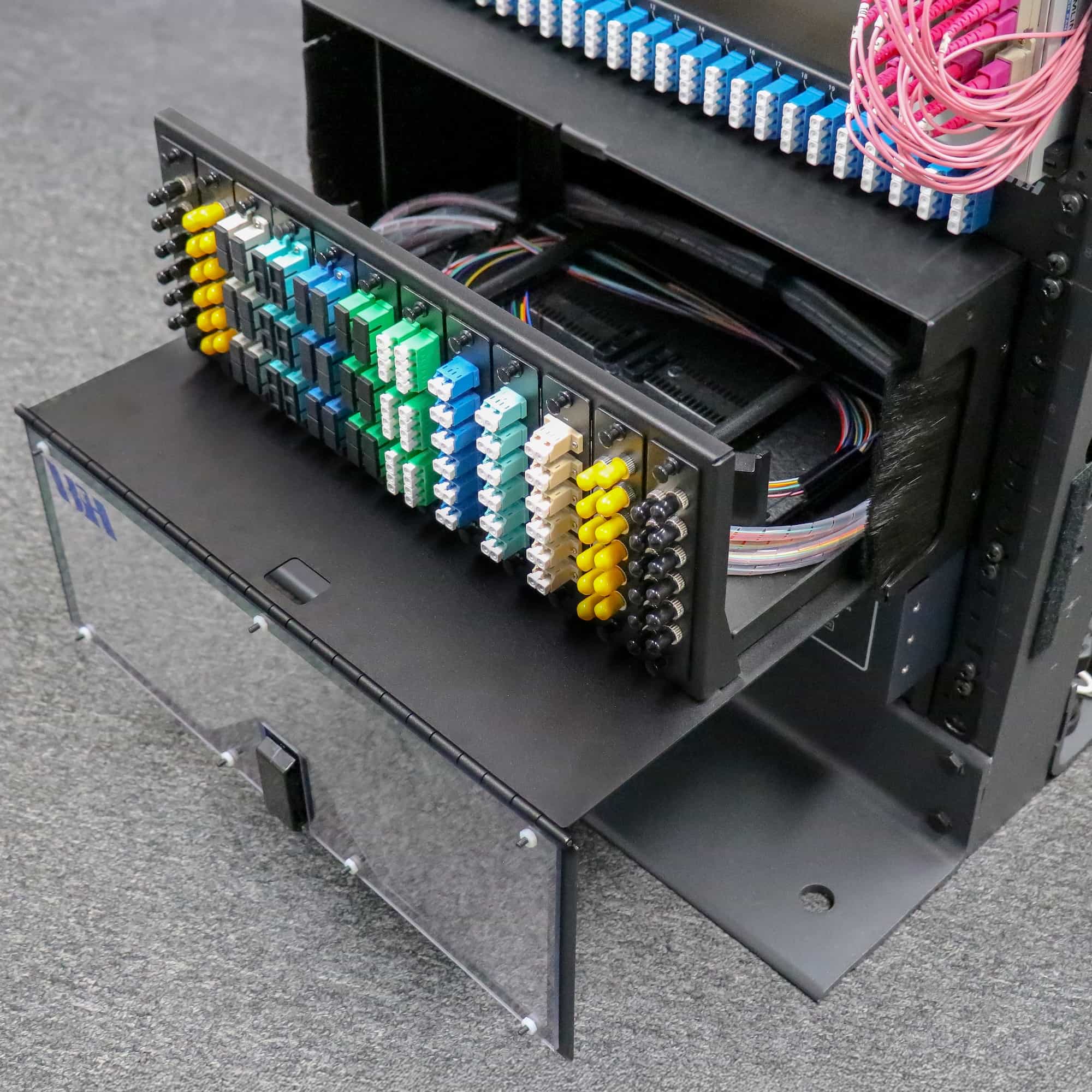

The RLH FiberLink 4U fiber patch panel is designed to provide a user friendly solution for fiber optic patching and/or splicing in a 19/23” rack. It holds up to 12 LGX compatible fiber adapter plates, fiber splice trays, and is ideal for installation in a wide variety of environments including substations, equipment rooms, central offices, and outdoor enclosures.
FiberLink patch panels are constructed from powder coated steel and aluminum alloy, and feature a hinged door with large window, removable slide out tray, and spacious rear access with tilt-adjustable cable entry strain relief brackets. Large cable access ports with brush style debris guards guide fiber in and out of the enclosure.
Fiber assemblies or pigtails can be custom ordered and pre-terminated into the patch panel for a complete turn-key solution. Adapter plates may be ordered separately.
Features

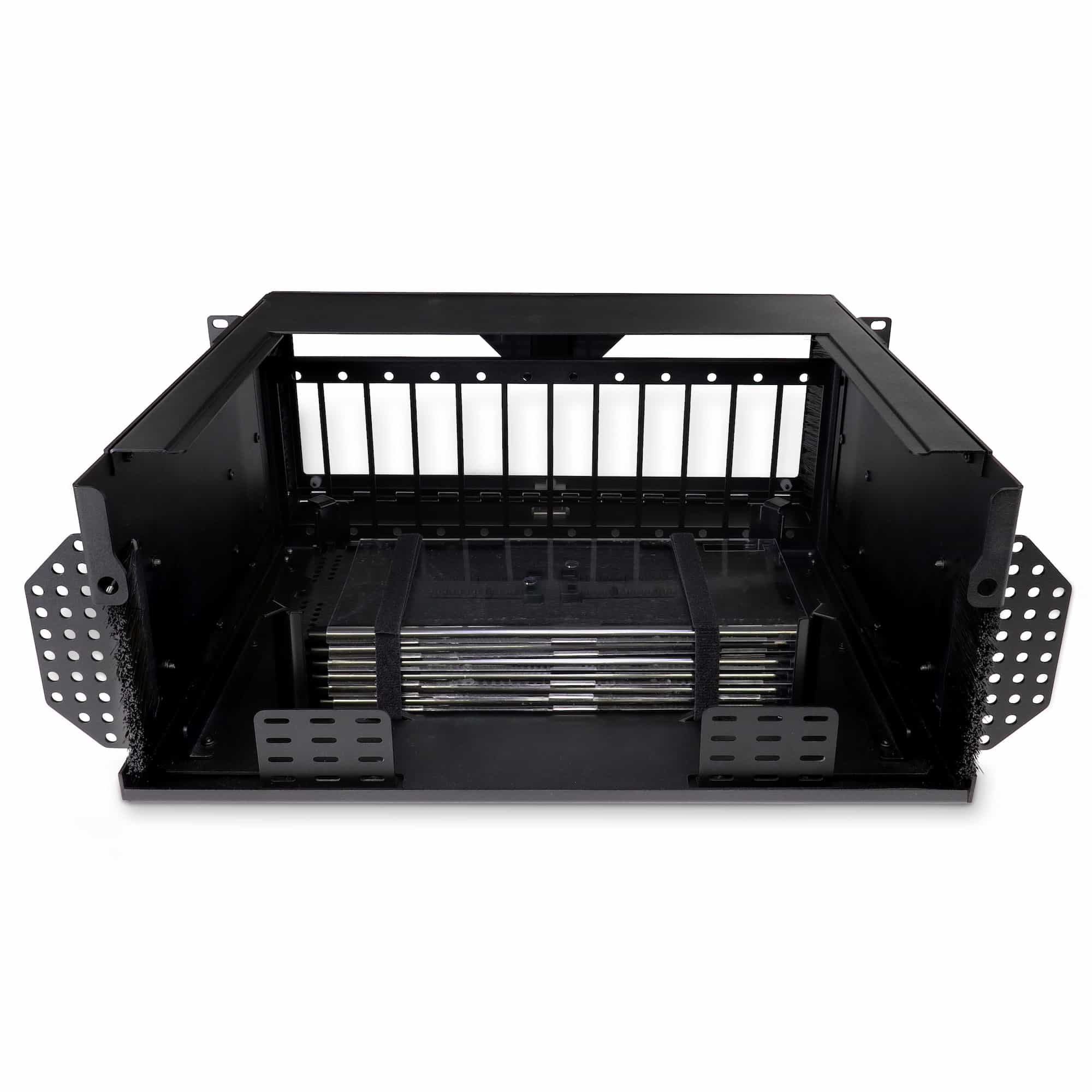

- Extra large rear cover allows full access to cable storage area
- Installer friendly built-in cable management & splice tray storage
- Holds 12 adapter plates, up to 144 fiber capacity
- Adjustable 19/23″ rack ears, for front or center mounting

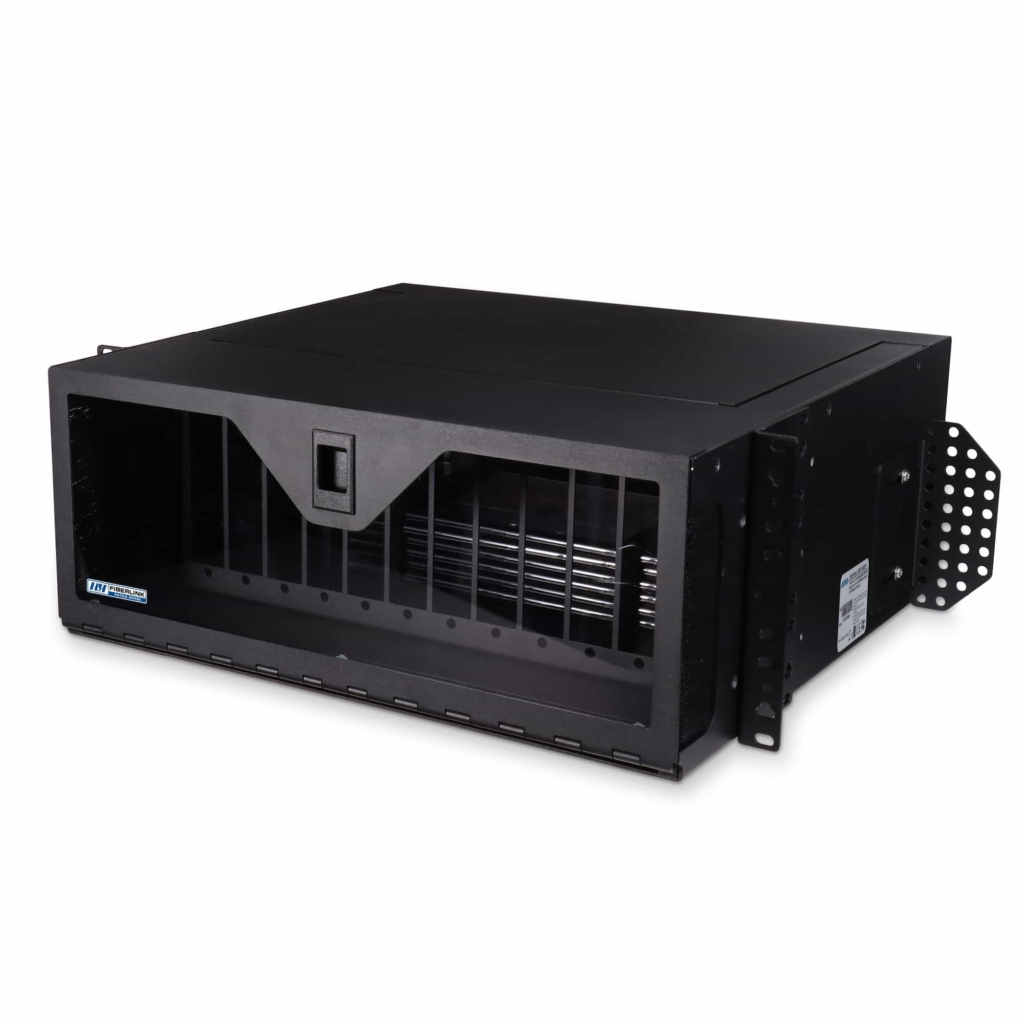

- Hinged door with viewing window
- Brush style cable entry protection
- Fiber identification labels included

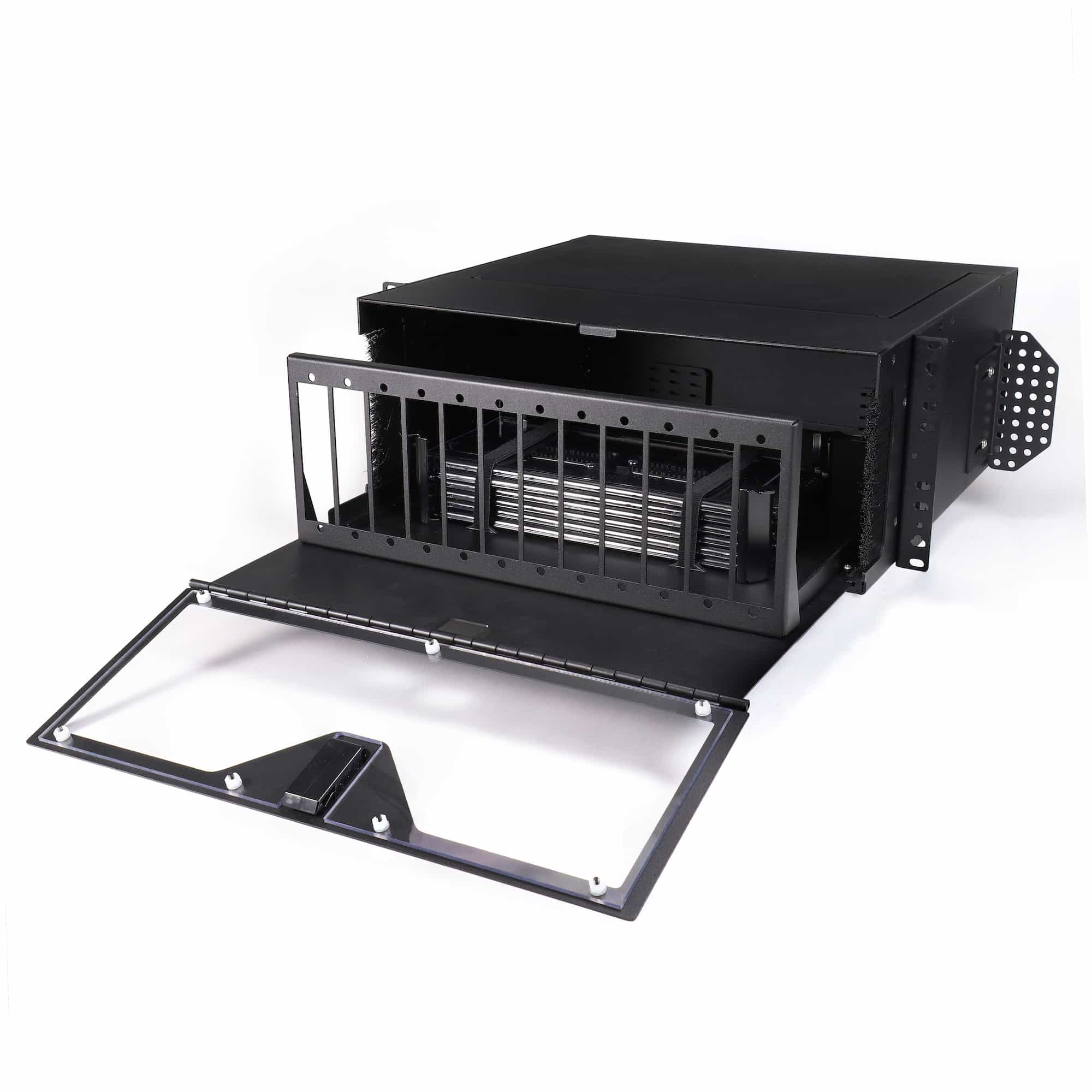

- Removable sliding tray
- Available unloaded, or pre-loaded with splice trays, adapter plates, and fiber pigtails
- (2) cable strain relief brackets included
Please see the product documentation for the complete list of specifications
Adapter Plates
Holds 12 LGX® plates*, Up to 24 Fibers each plate
*ordered separately
Splice Trays
24 Fiber Splice Tray (RLH-FST-03)
Construction
– Powder Coated steel and aluminum alloy housing
– Slide out tray with latching door and polycarbonate window
– Ultra wide rear cover with swell latches
– Adjustable cable stress relief brackets
Accessory Kit
Qty. 1 — 36” x 1/2” Velcro® for securing fiber
Qty. 12 — Cable Ties
Qty. 2 — Distribution Chart Labels, 96 Fiber

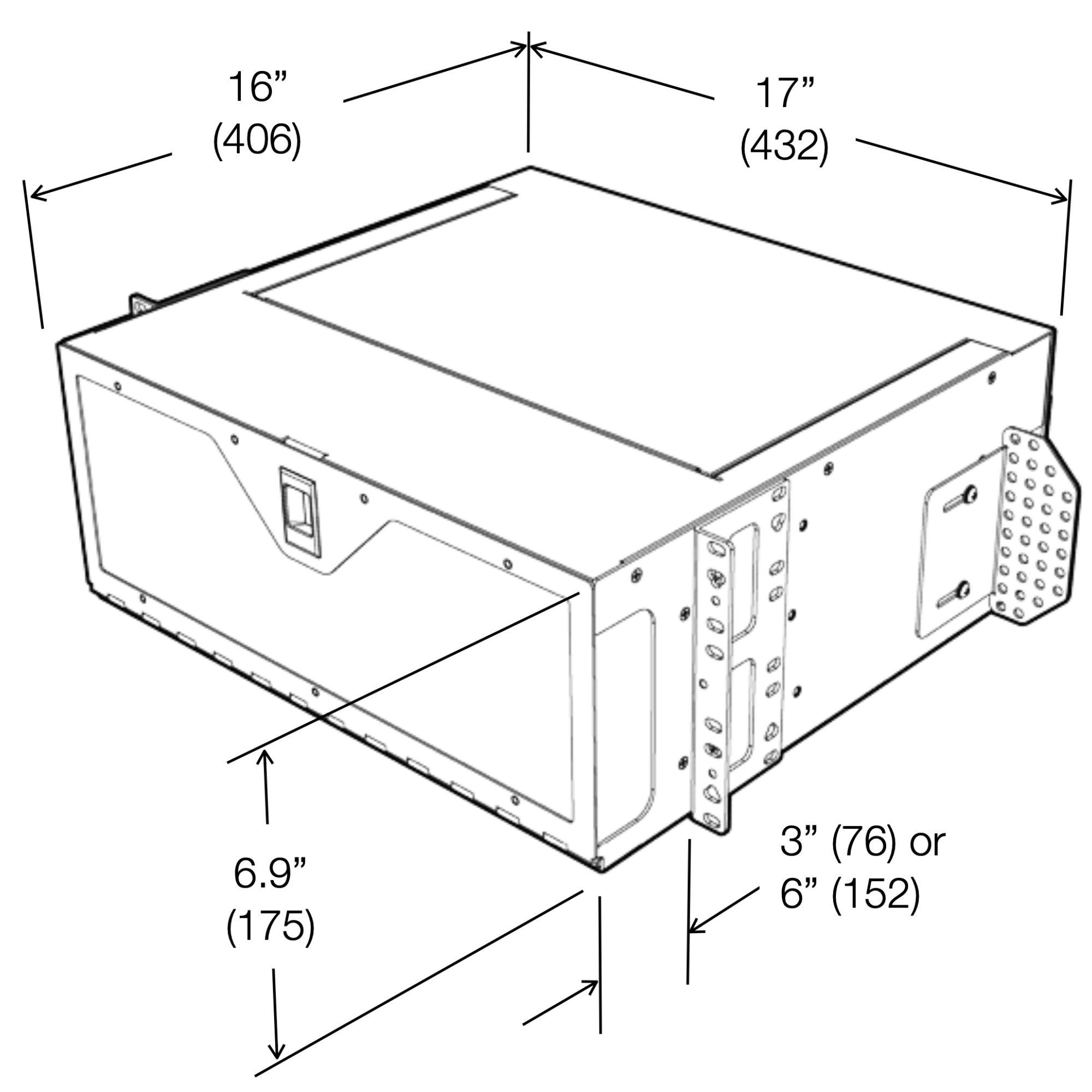

Dimensions
17” (W) x 16” (D) x 6.9” (H), (432mm x 406mm x 175mm)
Product Information
Guide
PRFL4-1
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
FiberLink 4RU Rack Mount Fiber Patch Panel
| Short description | Part number | Price | |
|---|---|---|---|
| FiberLink 4RU Fiber Patch Pane, Rack Mount, 12 LGX Adapter Plate Capacity | PRFL4-1 | $340.00 |
