Hardened Infrastructure Fiber Patch Panel for Outside Plant
The RLH Hardened Infrastructure Patch Panel for Outside Plant (HIPPO) is an ideal solution for splicing and patching fiber optic cable where a weatherproof rating is desired. With substation, power plant, and extreme outdoor environments in mind, the HIPPO was designed to fit the needs of these demanding environments while at the same time being easy to install and modify.

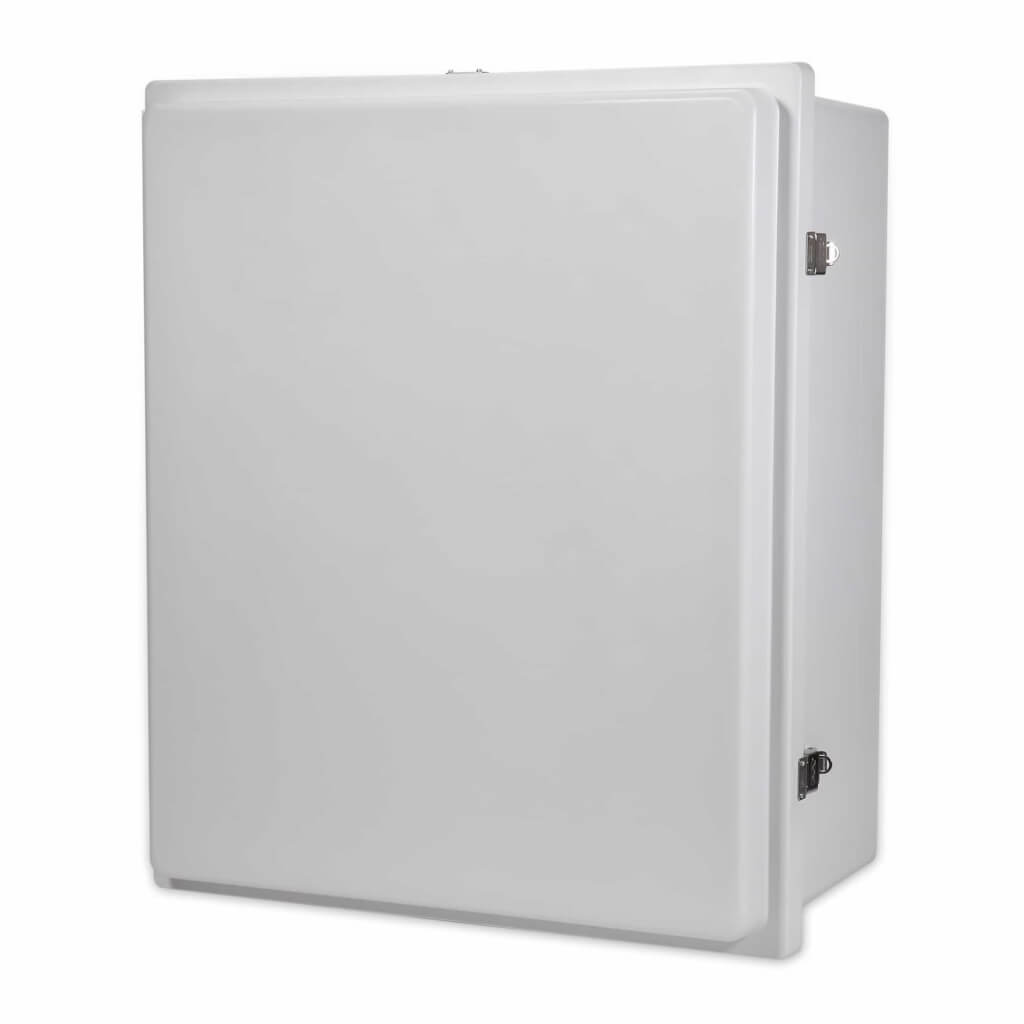

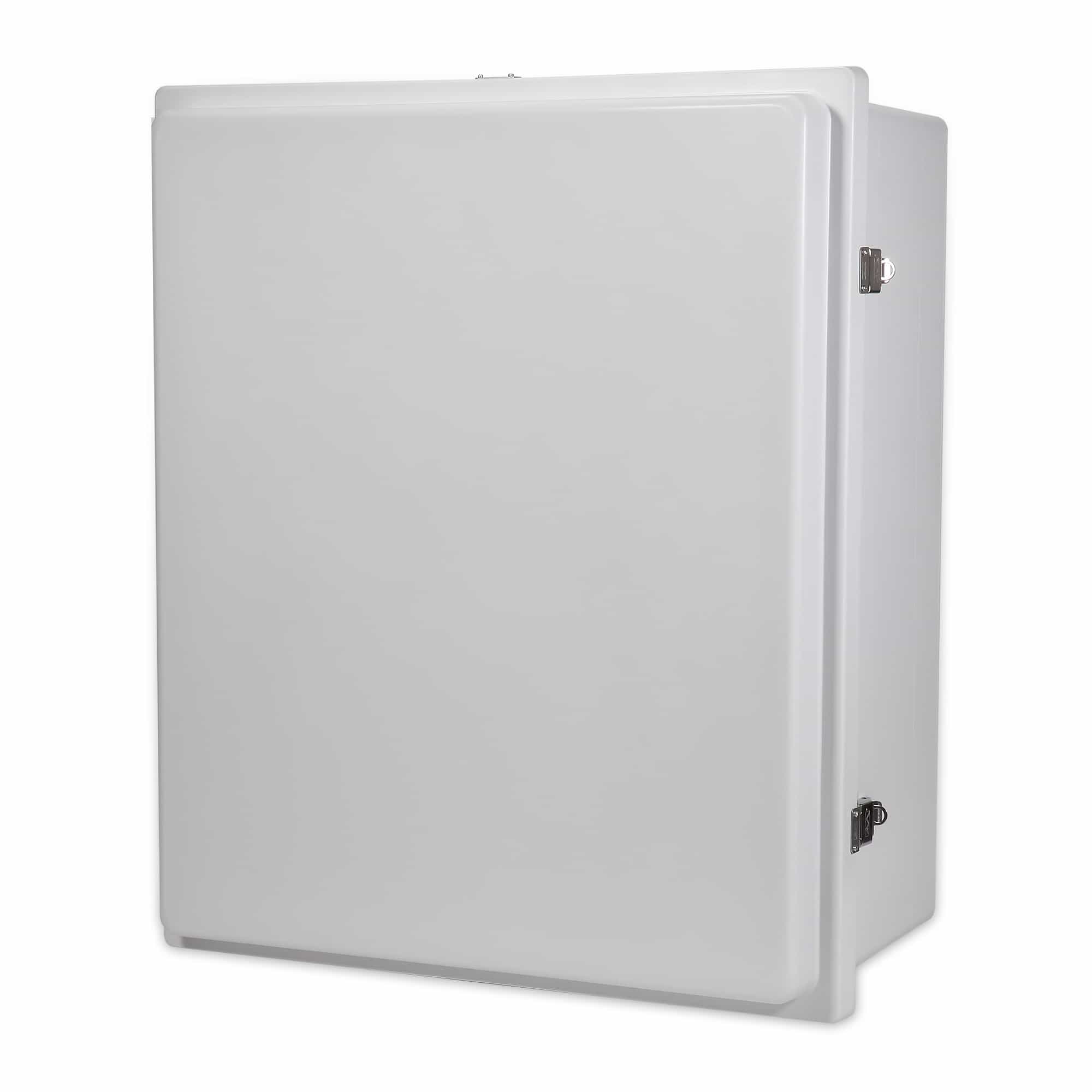

This outdoor fiber solution is enclosed in a NEMA 4X, UL Listed, non-corrosive, non-conductive, light weight, and easy to modify fiberglass enclosure. It’s especially well suited for extreme temperatures and corrosive environments. It can be wall mounted with its included mounting feet or pole mounted with an optional pole mount kit. It is secured by two pad lockable snap latches.

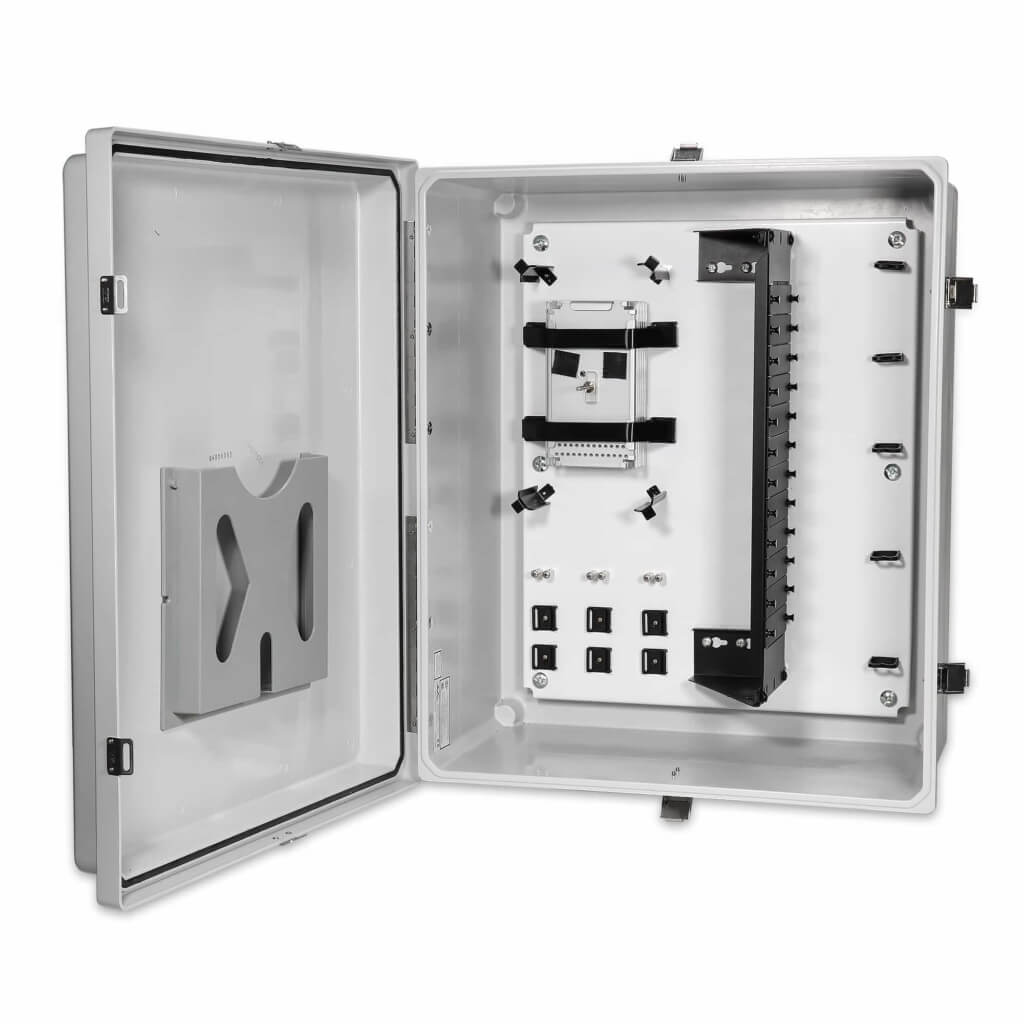

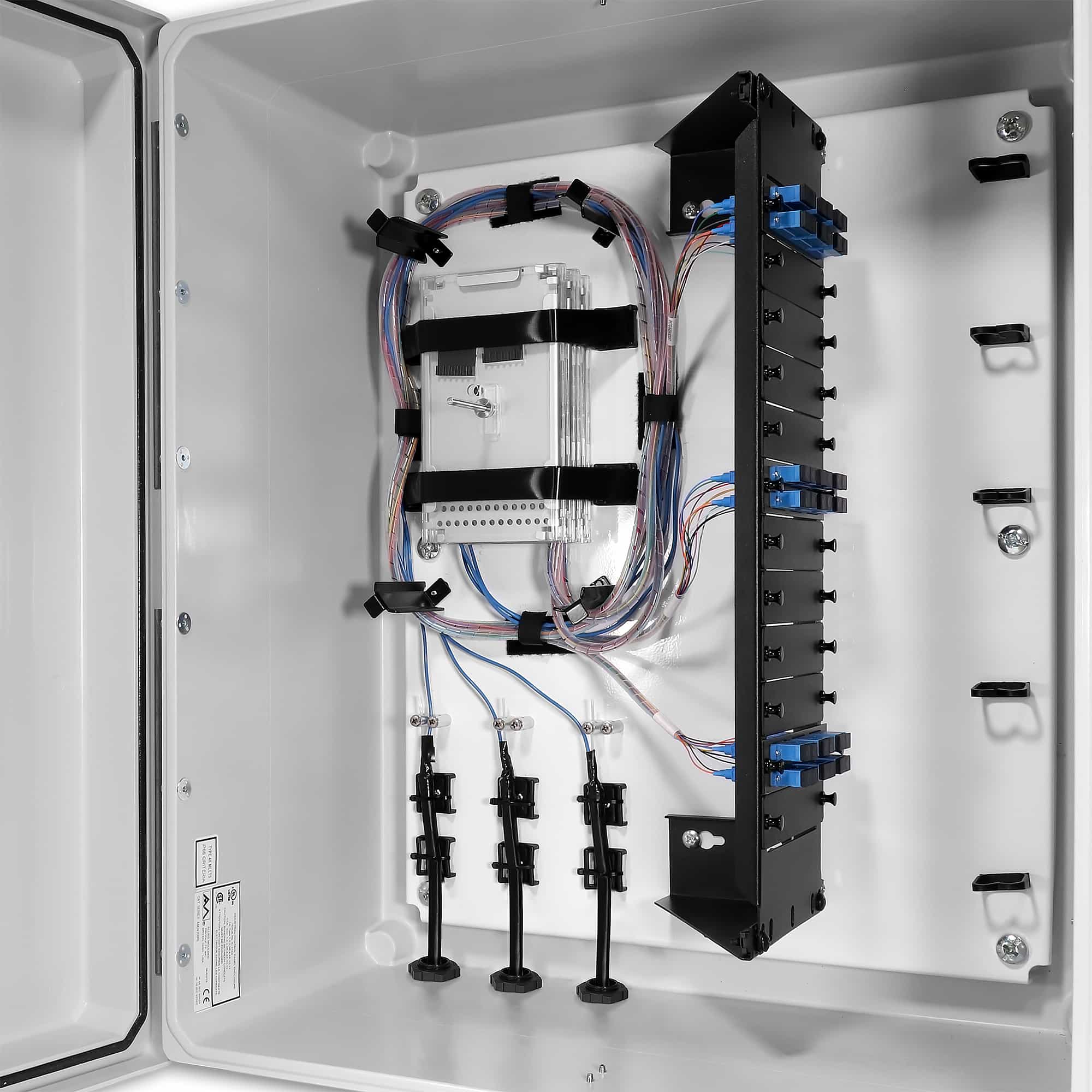

It comes standard with 12 fiber adapter plate slots, fiber management cable guides, fiber splice trays, splice sleeves, document holder, distribution chart, cable mounting tiedowns, and Velcro® straps for securing splice trays and fiber cable. The included accessory kit contains liquid tight break through plugs and cord grips, together with fiber strength member clamps allowing for the safe entrance and exit of fiber optic cable.
Fiber adapter plates may be ordered separately or preinstalled and are available with ST, SC, FC, LC, MTRJ, UPC and APC style adapters.
- Holds up to 12 LGX® adapter plates, blank adapter plates included
- NEMA 4X, UL Listed Enclosure, ready for outdoor installation
- Ready to patch or splice with included accessories
- Wall or Pole Mounted (with Optional pole mount kit)
- Easy to modify compared to metallic enclosures

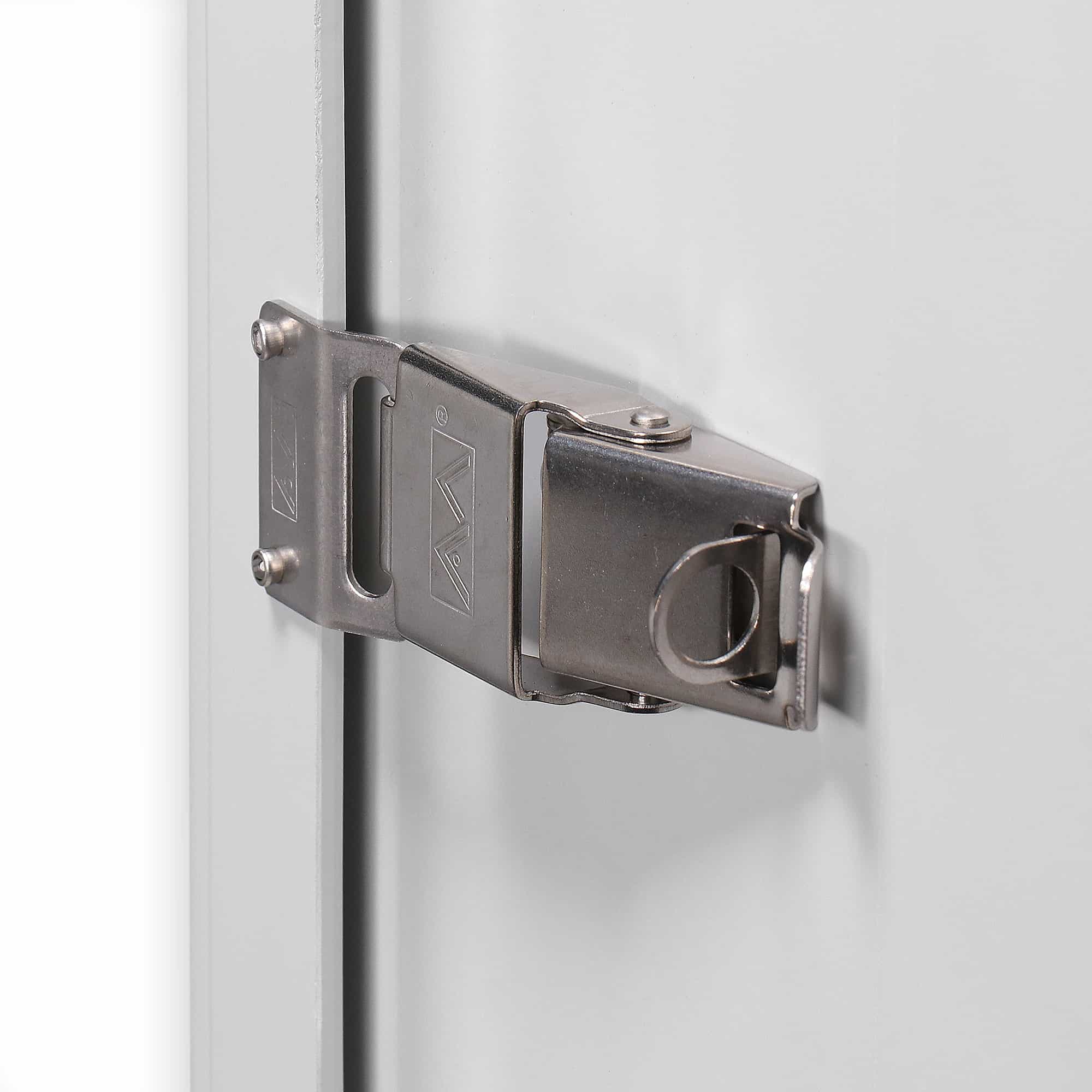

- 2 Pad lockable latches for additional security
- Includes 6 strain relief clamps for securing entry cable
- Includes liquid tight cord grips & plugs
- Adapter plates may be removed with fibers attached
- Includes Velcro tie downs for fiber management
- Holds ST, SC, FC, LC, MTRJ, UPC, APC adapters
- Order preconfigured with fiber pigtails installed
- Made in USA
Adapter Plates
Holds 12 adapter plates
Splice Trays
Quantity 6, 12 Position
Mounting Style
Wall or pole mount (with optional pole mount kit)
Environmental
Indoor or outdoor use: NEMA types 1, 2, 3, 3R, 4, 4X, 12 and 13
Construction
Injection molded polycarbonate thermoplastic

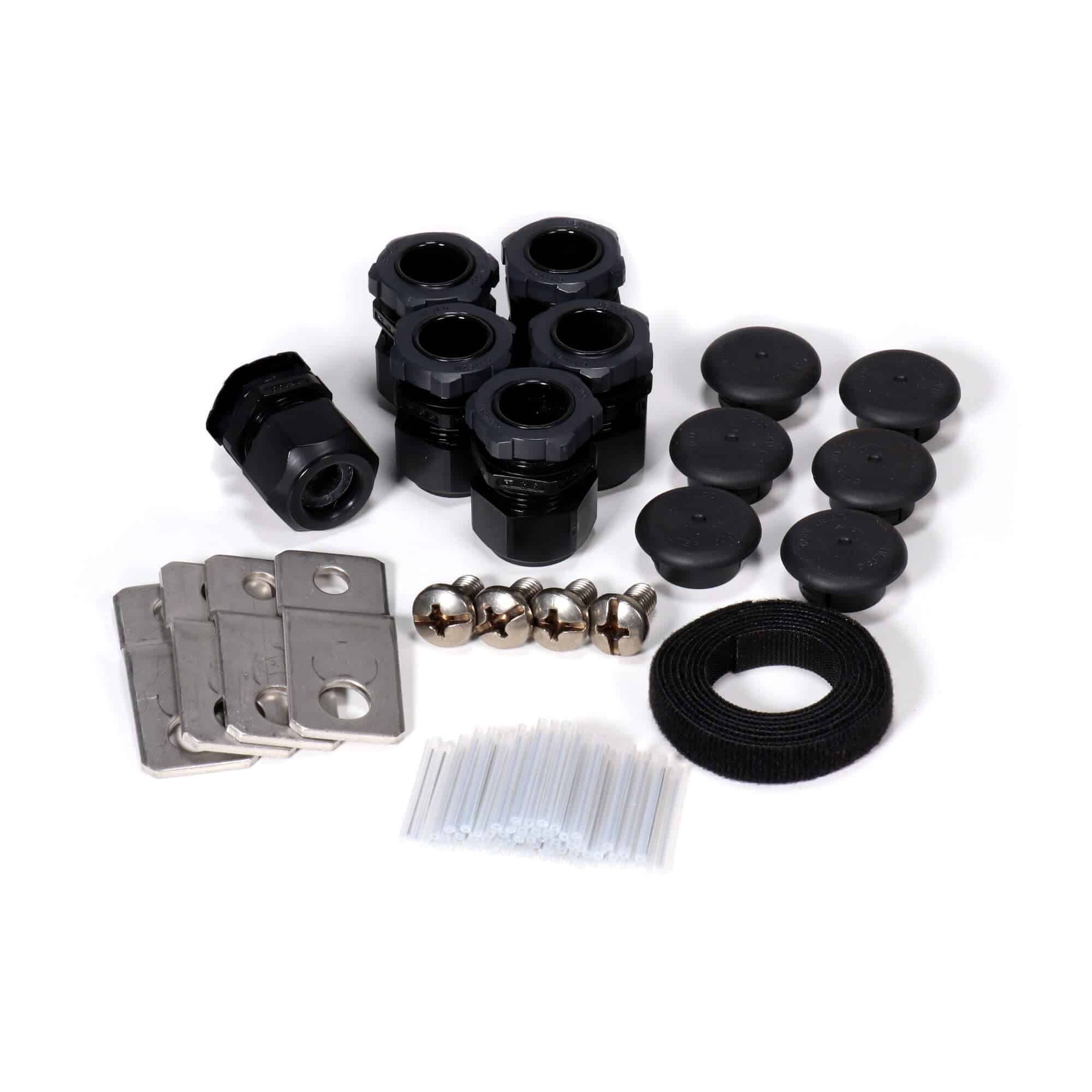

Accessory Kit
Qty. 80 – Splice sleeves
Qty. 1 – 36” x 1/2” Velcro® for securing fiber
Qty. 12 – Cable Ties
Qty. 6 – Liquid Tight Cord grip, cable diameter .250″ – .490″
Qty. 6 – Liquid Tight Break-Thru plugs, cable diameter .200″ – .715″
Qty. 1 – Distribution Chart

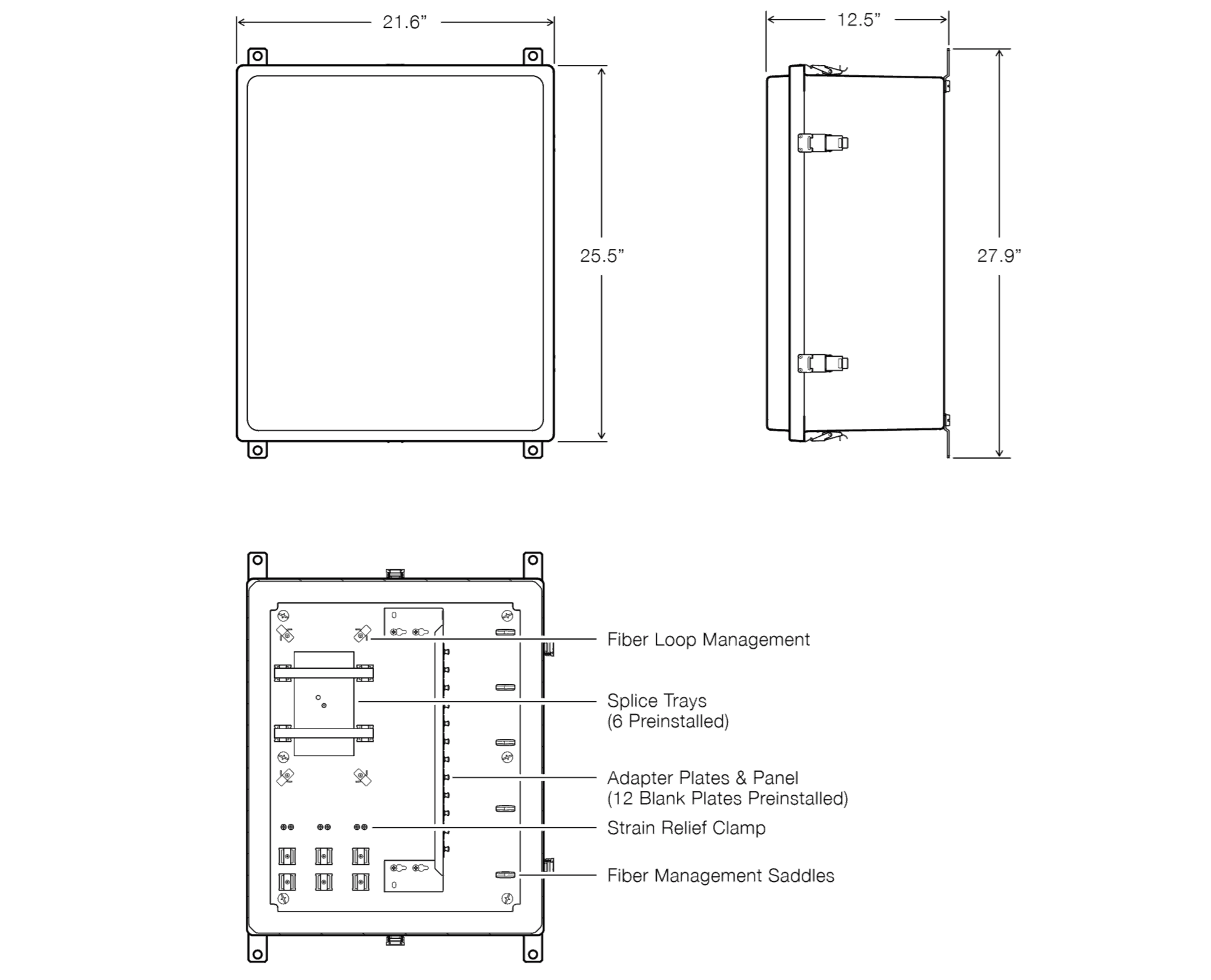

Dimensions
W 21.6 in. x H 25.5 in. x D 12.5 in. (550mm x 650mm x 320mm)
HIPPO12-1
PMK-242010-F-1
$1,195.00
Lead Time: 1 to 2 Weeks*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
HIPPO 12 Plate Fiber Patch Panel
Short description | Part number | Price | |
---|---|---|---|
HIPPO 12 Outdoor Fiber Patch Panel | HIPPO12-1 | $1,195.00 |
- Fiber Adapter Plates (black) and Splice on Fiber Pigtails are ordered separately and may be preinstalled prior to shipping.
Pole Mount Bracket for HIPPO12-1
Short description | Part number | Price | |
---|---|---|---|
Pole Mount Bracket for HIPPO12-1, Compatible with Pole Diameters of 15" | PMK-242010-F-1 | $145.00 |
