Rack Mount, 2RU, Splicing and Patching up to 96 Fibers​
The Manta 2RU Fiber Patch Panel is designed to offer an easy to use easy to access solution for fiber patching and fiber optic splicing.

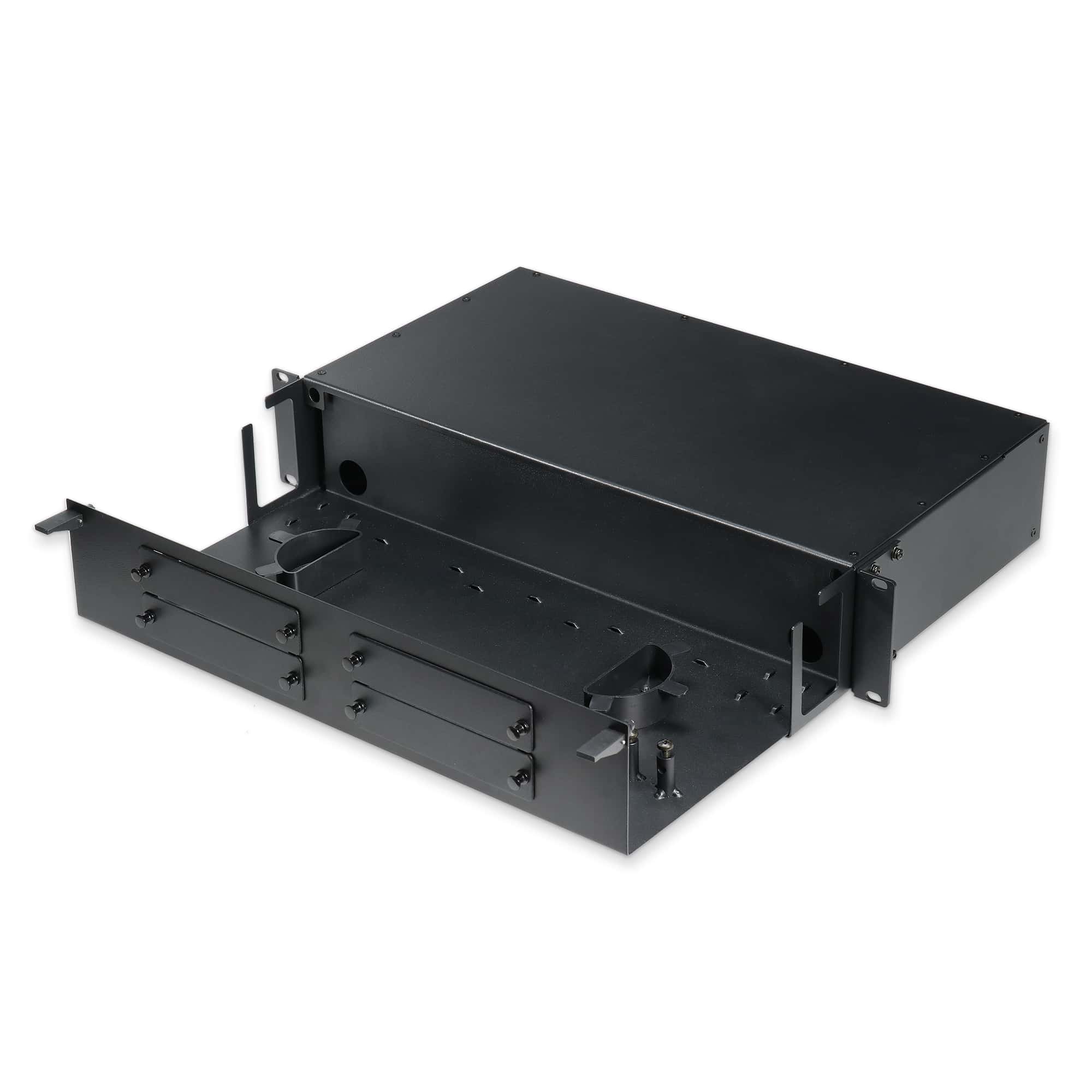

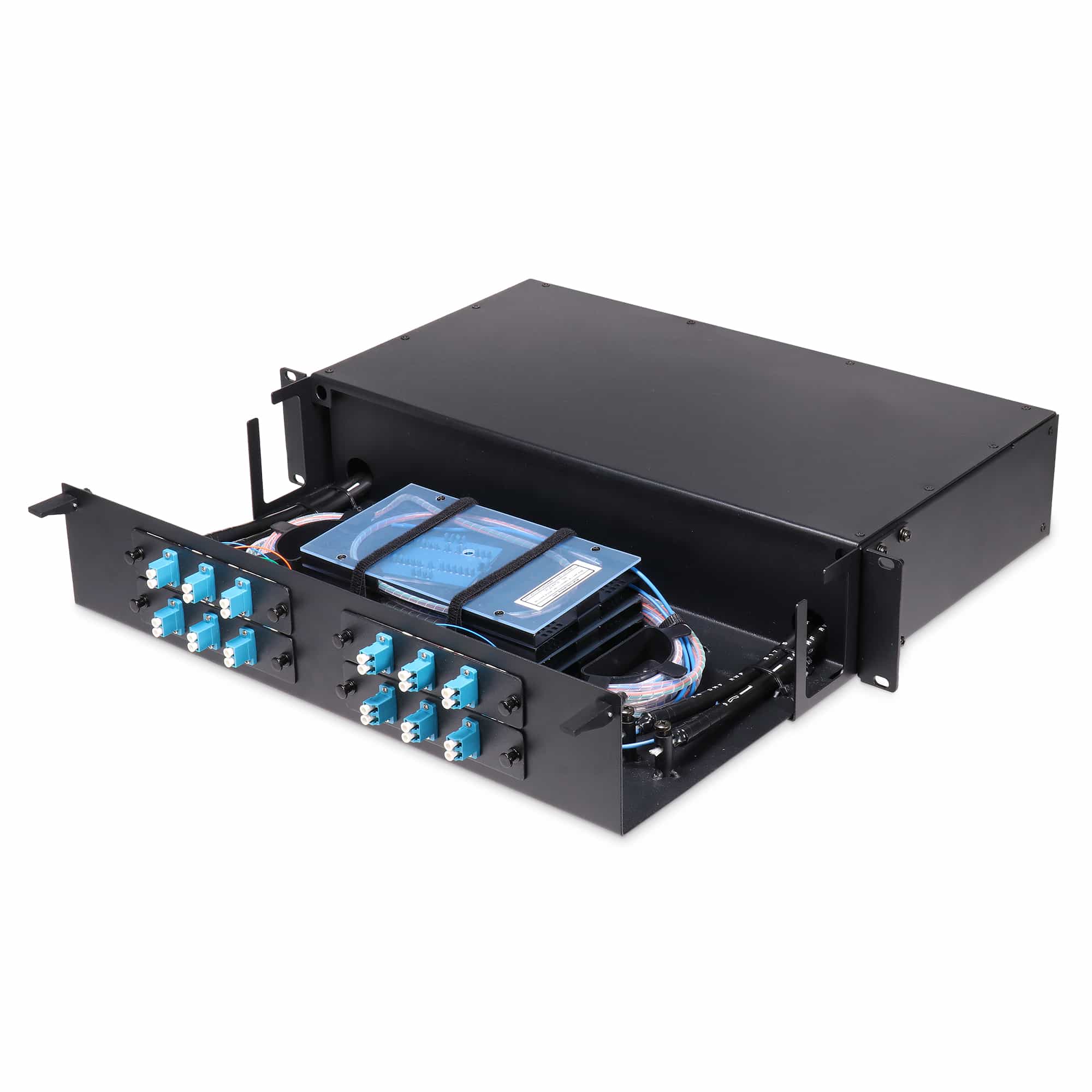

This rack mount fiber patch panel will hold 4 LGX style adapter plates, includes multiple anchor points for securing internal cable routing, and features a slide out tray for easy access. The front features built-in connector protection keeping connectors safe from accidental bumps and swipes.

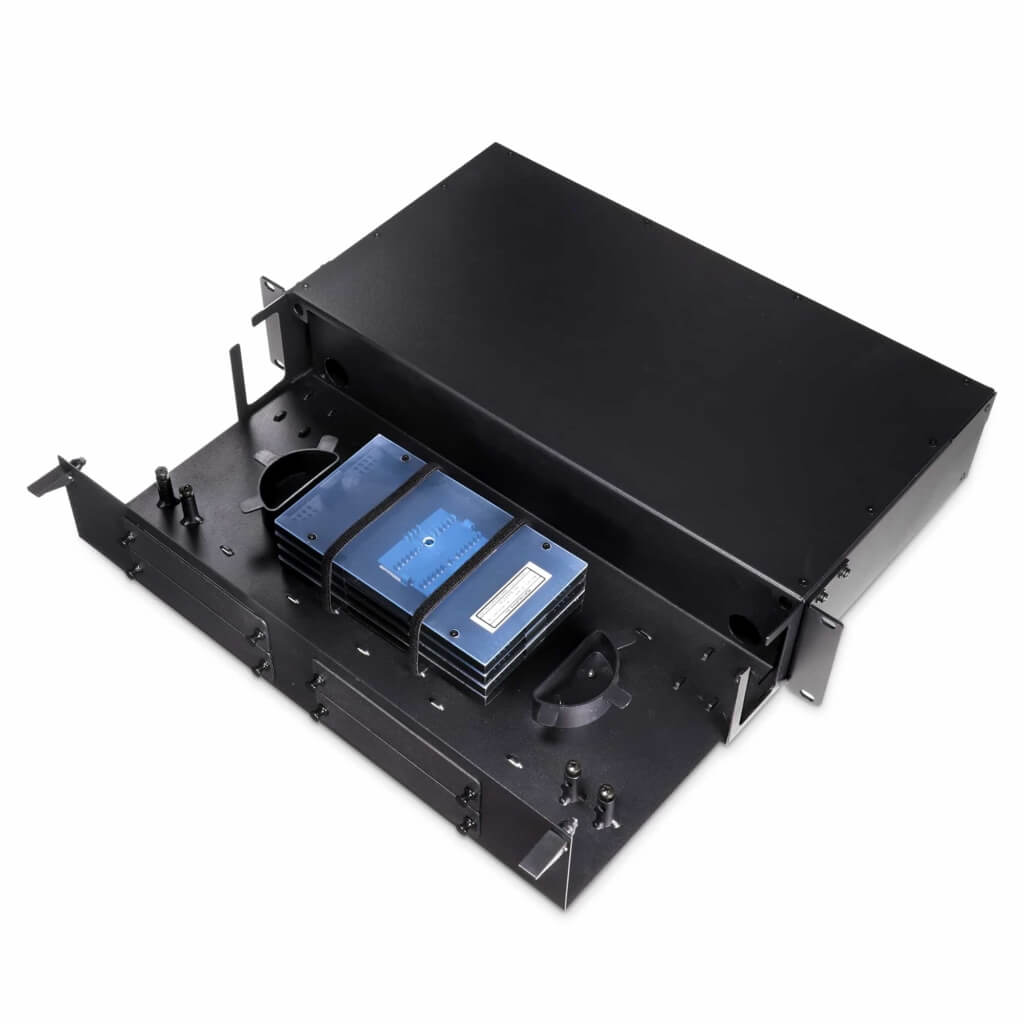

Adapter plates, splice trays and fiber pigtails, can be ordered separately or bundled together with the patch panel through our configurator.
- Holds 4 LGX® adapter plates
- Built-in cable management hooks
- Built-in lip for bump protection
- Multiple built-in anchor points to secure fiber cable routing
- Includes 2 strength member clamps for securing entry cable
- Includes Velcro® straps for cable management
Adapter Plates:
Holds 4 LGX® plates Up to 24 Fibers each plate

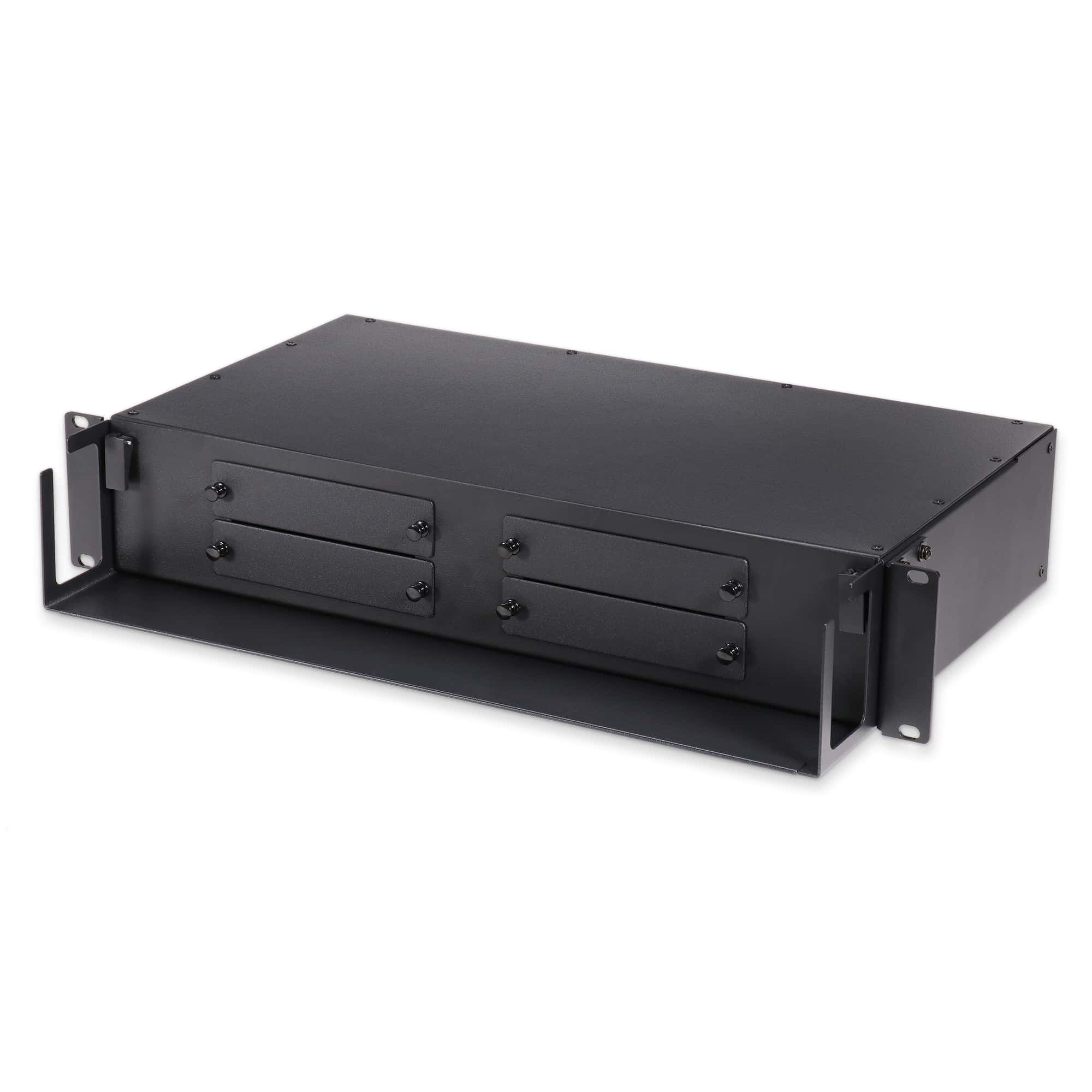

* Includes 4 Blank Adapter Plates when not ordered with accompanying adapter plates
Mounting Style:
Rack Mount, 2RU
Environmental:
Indoor or inside weatherproof enclosure
Construction:
Powder coated steel
Accessory Kit:
Qty. 8 – 4″ x 1/4″ Velcro® straps for securing fiber cable
Qty. 2 – 18″ x 1/4″ Velcro® straps for securing optional fiber splice trays
Qty. 6 – 8″ Cable ties for securing entry cable
Qty. 4 – Cage nuts and bolts for rack mounting
Dimensions:
16.93″ W x 3.4″ H x 11.58″ D (430mm x 86.5mm x 294mm)
* Not including ears
General Information
Customize Your Patch Panel
Use the RLH Product Configurator to add Fiber Adapter Plates and Fiber Pigtails to your order.
MANTA4-1
$95.00
Lead Time: 2 to 3 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Manta 2RU Fiber Patch Panel
Short description | Part number | Price | |
---|---|---|---|
Manta Fiber Patch Pane, Rack Mount, 2RU, Splicing and Patching up to 96 Fibers | MANTA4-1 | $95.00 |
- Fiber Adapter Plates (black), Splice Trays, and Splice on Fiber Pigtails are also available
- See our Product Configurator for preinstallation of Adapter Plates and Splice on Fiber Pigtails
