Angled Adapter Plates, Cable Strain Relief Kits, & Unparalleled Access for Splicing

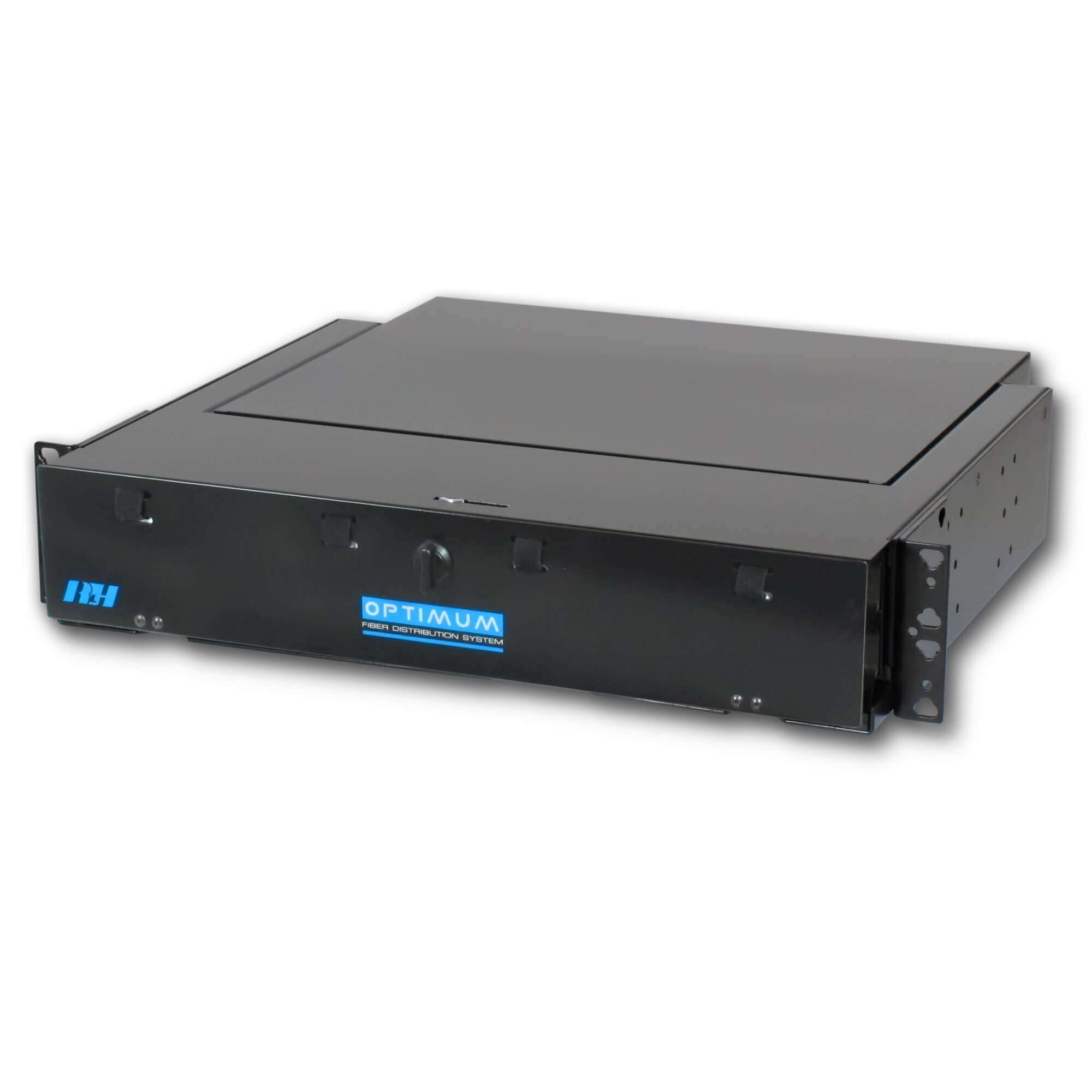

The RLH Optimum 2RU fiber patch panel is part of a series of fully integrated fiber distribution systems. The user friendly design makes the Optimum series the superior solution for fiber patching and/or splicing optical fiber in a 19/23” rack. It holds up to 4 fiber adapter plates (up to 96-fibers), 4 splice trays, and is ideal for installation in a wide variety of environments including substations, equipment rooms, central offices, and outdoor enclosures.
Optimum Series fiber patch panels are constructed from powder coated aluminum alloy, and feature a removable hinged powder-coated aluminum door with quarter-turn cam-lock, removable slide out tray, and removable rear access with self-sealing cable entry grommets. Optional strain relief kits featuring Peel n’ Seal technology provide proper routing and securing of fiber optic entrance cables at the rear, from above, the side or below.
Fiber assemblies or pigtails can be custom ordered and pre-terminated into the patch panel for a complete turn-key solution. The patch panels, splice trays and adapter plates may also be ordered separately. The plates are held securely in the housing with push-pull retainers that require no tools.

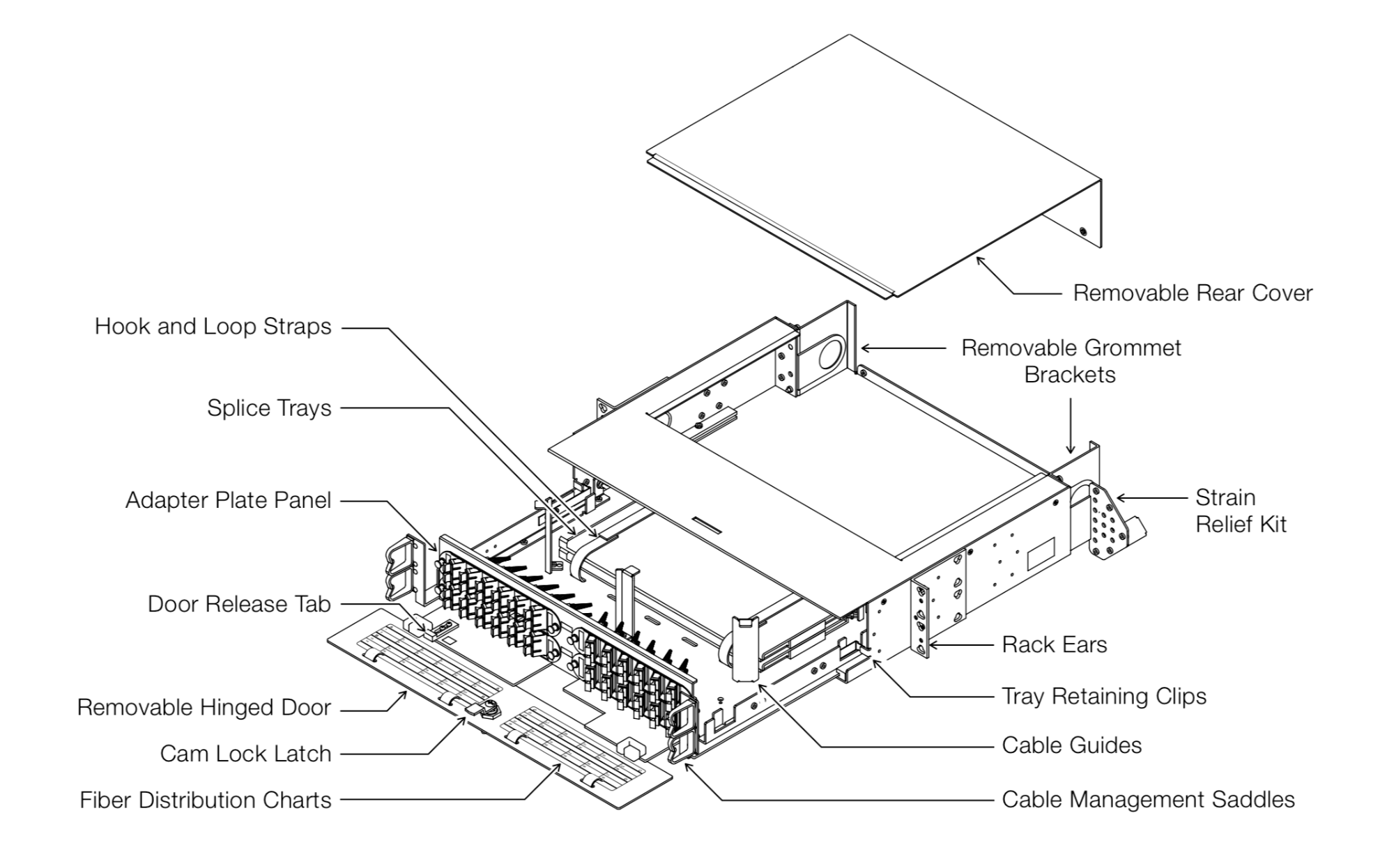

- Installer friendly built-in cable management & splice tray storage

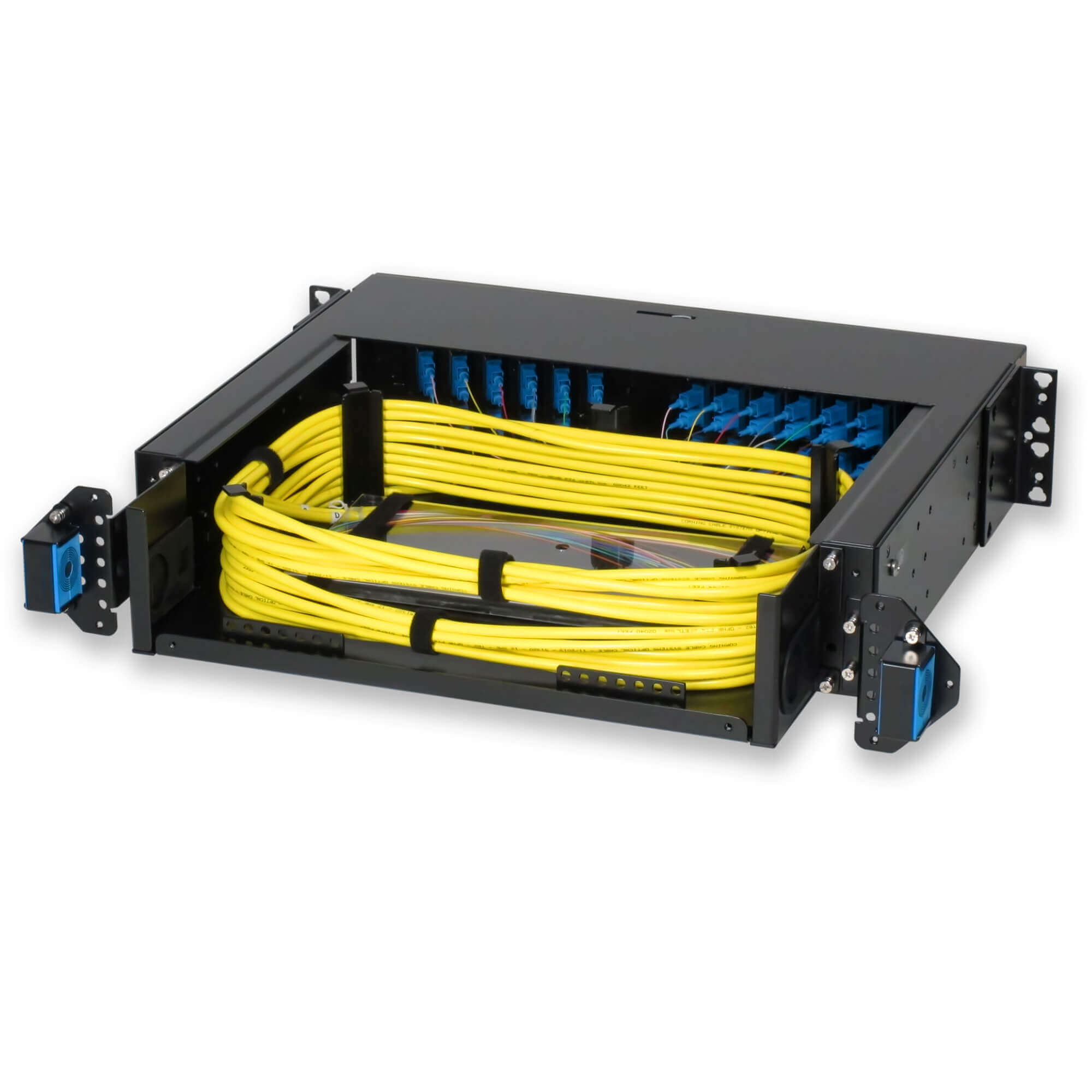

- Extra large rear cover allows unparalleled access to splice tray/cable area
- Holds 4 adapter plates, up to 96 fiber capacity
- EIA 19” or 23″ rack front or mid/center mounting
- Removable heavy-duty hinged door
- Self-sealing grommets provide superior dust and rodent protection
- Convenient fiber identification system
- Angled adapter plates for optimal fiber routing
- Removable sliding tray, rear cover, and entry grommets allow a for a variety of cable arrangements and easy maintenance
- Entry grommet brackets allow incoming fiber to be removed from the housing without cutting
- Additional options include our peel and seal fiber cable strain relief kits, splice trays, adapter plates, and fiber pigtails
- Can be custom ordered with fully terminated cable or pigtails
- Made in USA
General Information
PRO-2B-1
PRO-SRK-2
RLH-FST-03
APO-BLANK
APO-ST12-LSSM
APO-ST12-LSMM
APO-SC6-LDSM
APO-SC6-LDSA
APO-SC6-LDMM
APO-SC6-LDMX
APO-SC12-LSSM
APO-SC12-LSSA
APO-SC12-LSMM
APO-SC12-LSMX
APO-LC12-LDSM
APO-LC12-LDSA
APO-LC12-LDMM
APO-LC12-LDMX
$645.00
Lead Time: 2 to 3 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.

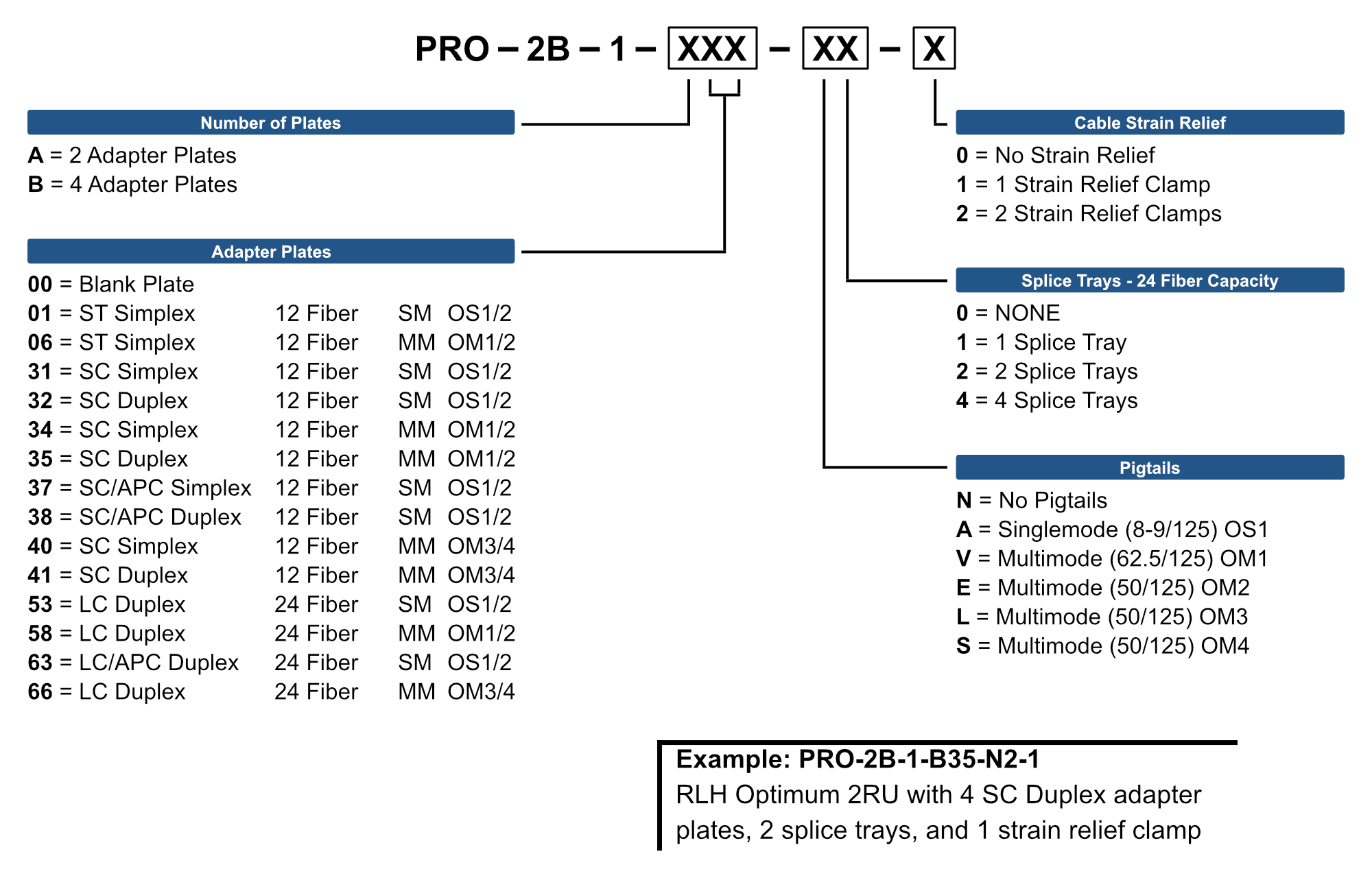

Ordering
Optimum 2RU Fiber Patch Panel
Short description | Part number | Price | |
---|---|---|---|
2RU Optimum Series Fiber Patch Panel, 4 Optimum Adapter Plate Capacity | PRO-2B-1 | $645.00 |
Optimum Accessories
Short description | Part number | Price | |
---|---|---|---|
2RU Optimum Strain Relief Kit - Includes 1 Clamp | PRO-SRK-2 | $60.00 | |
Optimum Fiber Splice Tray - 24 Positions | RLH-FST-03 | $65.00 |
Optimum Fiber Adapter Plates
Product configuration | Fibers | Adapter | Mode | Fiber Type | Adapter Color | Plex | Part number | Price | hf:att:pa_fibers | hf:att:pa_adapter | hf:att:pa_mode | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Blank Optimum Adapter Plate | None | N/A | Singlemode | OS1/OS2 | N/A | Simplex | APO-BLANK | $10.00 | none | n-a | singlemode | |
ST 12 Fiber Optimum Adapter Plate With Simplex Singlemode OS1/OS2 Adapters | 12 | ST | Singlemode | OS1/OS2 | Metal | Simplex | APO-ST12-LSSM | $75.00 | 12 | st | singlemode | |
ST 12 Fiber Optimum Adapter Plate With Simplex Multimode OM1/OM2 Adapters | 12 | ST | Multimode | OM1/OM2 | Metal | Simplex | APO-ST12-LSMM | $75.00 | 12 | st | multimode | |
SC 12 Fiber Optimum Adapter Plate With Duplex Singlemode OS1/OS2 Adapters | 12 | SC | Singlemode | OS1/OS2 | Blue | Duplex | APO-SC6-LDSM | $70.00 | 12 | sc | singlemode | |
SC/APC 12 Fiber Optimum Adapter Plate With Duplex Singlemode OS1/OS2 Adapters | 12 | SC/APC | Singlemode | OS1/OS2 | Green | Duplex | APO-SC6-LDSA | $70.00 | 12 | sc-apc | singlemode | |
SC 12 Fiber Optimum Adapter Plate With Duplex Multimode OM1/OM2 Adapters | 12 | SC | Multimode | OM1/OM2 | Beige | Duplex | APO-SC6-LDMM | $65.00 | 12 | sc | multimode | |
SC 12 Fiber Optimum Adapter Plate With Duplex Multimode OM3/OM4 Adapters | 12 | SC | Multimode | OM3/OM4 | Aqua | Duplex | APO-SC6-LDMX | $65.00 | 12 | sc | multimode | |
SC 12 Fiber Optimum Adapter Plate With Simplex Singlemode OS1/OS2 Adapters | 12 | SC | Singlemode | OS1/OS2 | Blue | Simplex | APO-SC12-LSSM | $75.00 | 12 | sc | singlemode | |
SC/APC 12 Fiber Optimum Adapter Plate With Simplex Singlemode OS1/OS2 Adapters | 12 | SC/APC | Singlemode | OS1/OS2 | Green | Simplex | APO-SC12-LSSA | $75.00 | 12 | sc-apc | singlemode | |
SC 12 Fiber Optimum Adapter Plate With Simplex Multimode OM1/OM2 Adapters | 12 | SC | Multimode | OM1/OM2 | Beige | Simplex | APO-SC12-LSMM | $70.00 | 12 | sc | multimode | |
SC 12 Fiber Optimum Adapter Plate With Simplex Multimode OM3/OM4 Adapters | 12 | SC | Multimode | OM3/OM4 | Aqua | Simplex | APO-SC12-LSMX | $70.00 | 12 | sc | multimode | |
LC 24 Fiber Optimum Adapter Plate With Duplex Singlemode OS1/OS2 Adapters | 24 | LC | Singlemode | OS1/OS2 | Blue | Duplex | APO-LC12-LDSM | $105.00 | 24 | lc | singlemode | |
LC/APC 24 Fiber Optimum Adapter Plate With Duplex Singlemode OS1/OS2 Adapters | 24 | LC/APC | Singlemode | OS1/OS2 | Green | Duplex | APO-LC12-LDSA | $105.00 | 24 | lc-apc | singlemode | |
LC 24 Fiber Optimum Adapter Plate With Duplex Multimode OM1/OM2 Adapters | 24 | LC | Multimode | OM1/OM2 | Beige | Duplex | APO-LC12-LDMM | $95.00 | 24 | lc | multimode | |
LC 24 Fiber Optimum Adapter Plate With Duplex Multimode OM3/OM4 Adapters | 24 | LC | Multimode | OM3/OM4 | Aqua | Duplex | APO-LC12-LDMX | $95.00 | 24 | lc | multimode |

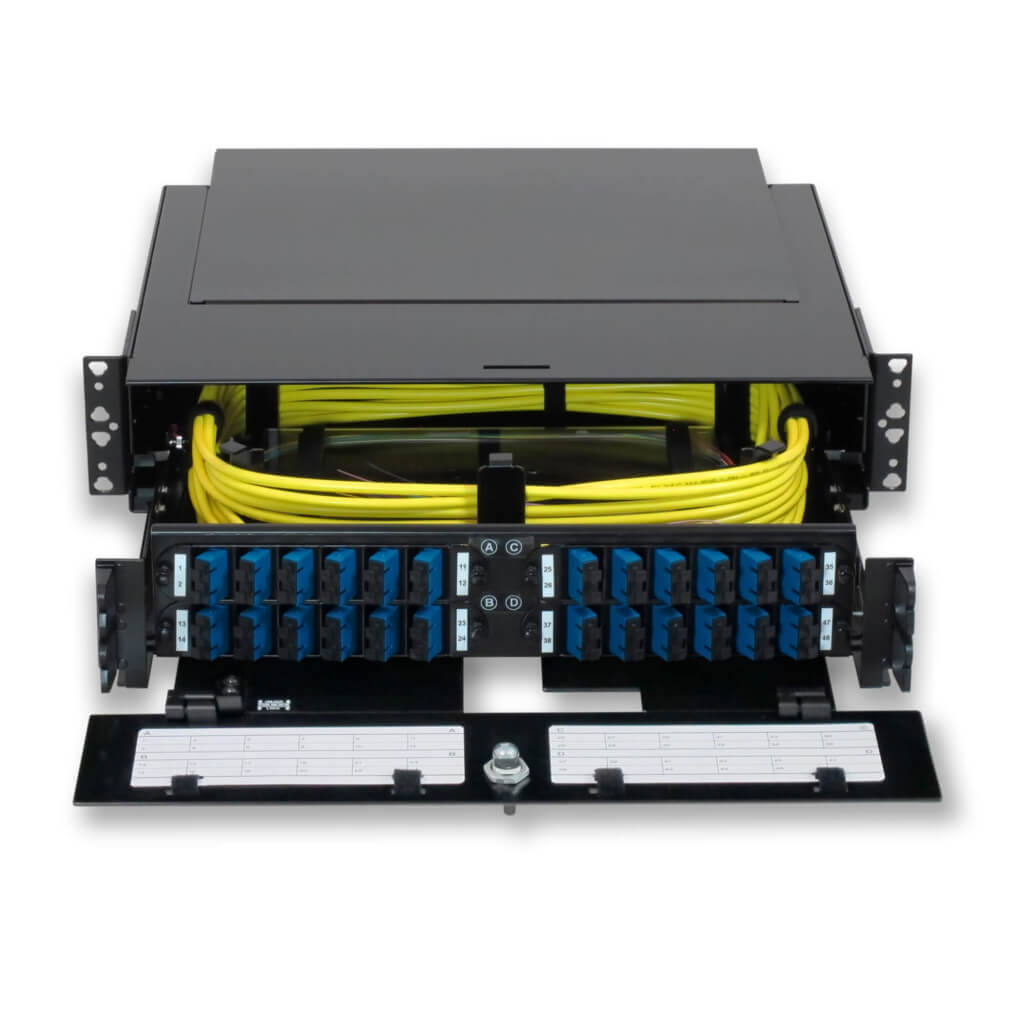

Pre-Loaded Optimum 2RU Fiber Patch Panel
