Wall Mount, Small Footprint, Fiber Splicing and Patching up to 96 Fibers
The RLH Scorpion 4 Plate Fiber Patch Panel is designed for fiber optic patching and splicing applications where wall or back board space is at a premium. It is designed to fit into small enclosures, the small footprint and door design allow the patch panel to be opened & closed without taking up additional backboard room for clearance.

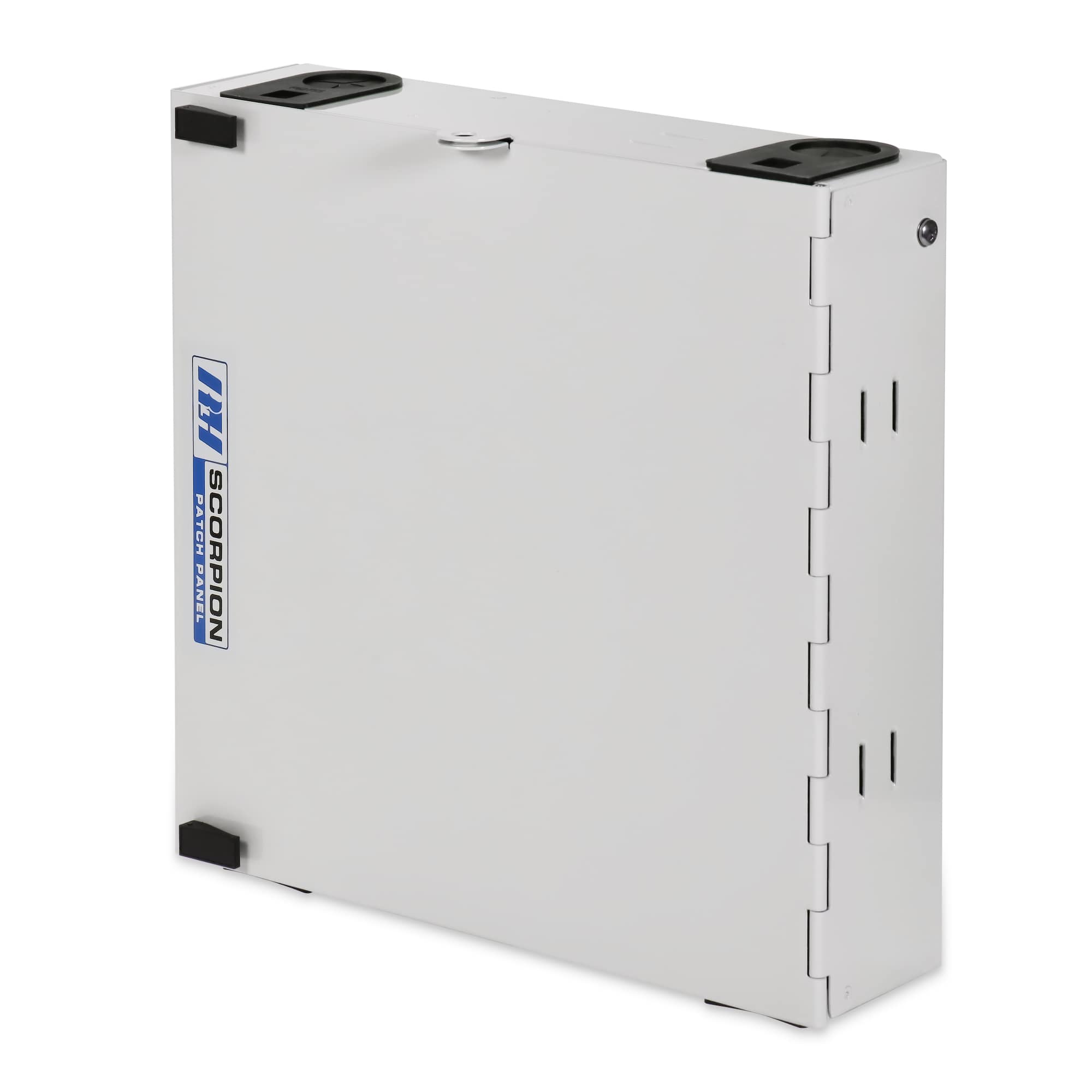

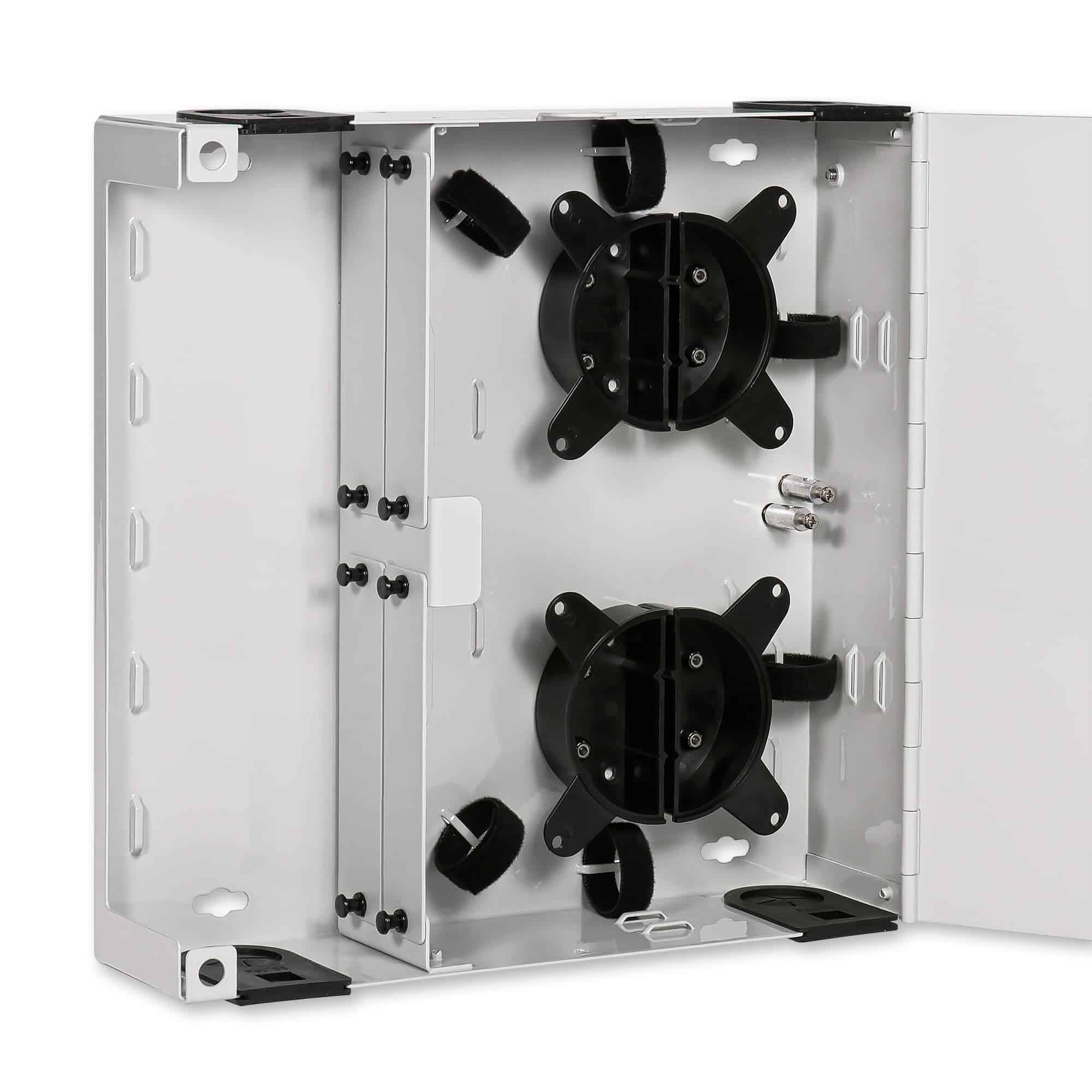

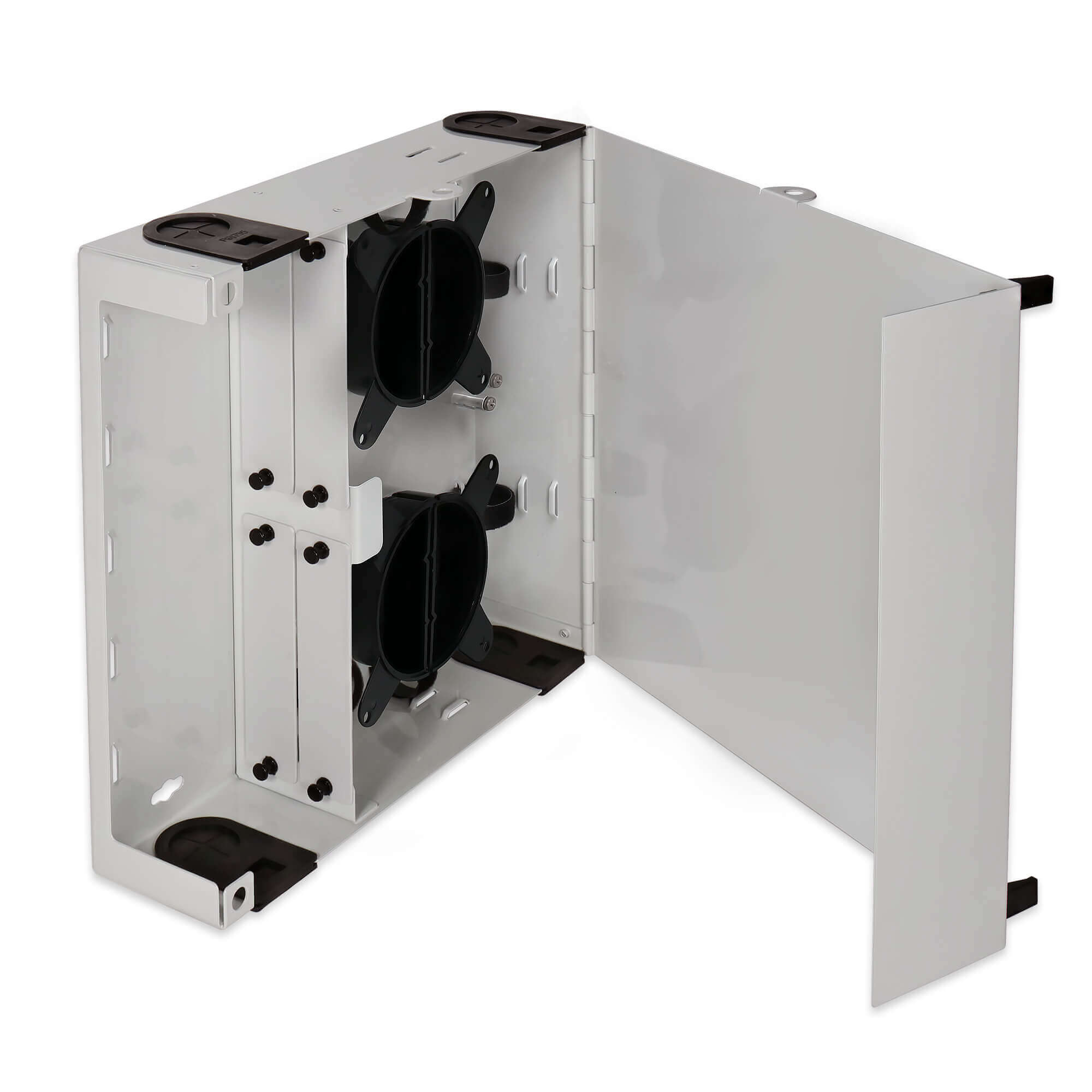

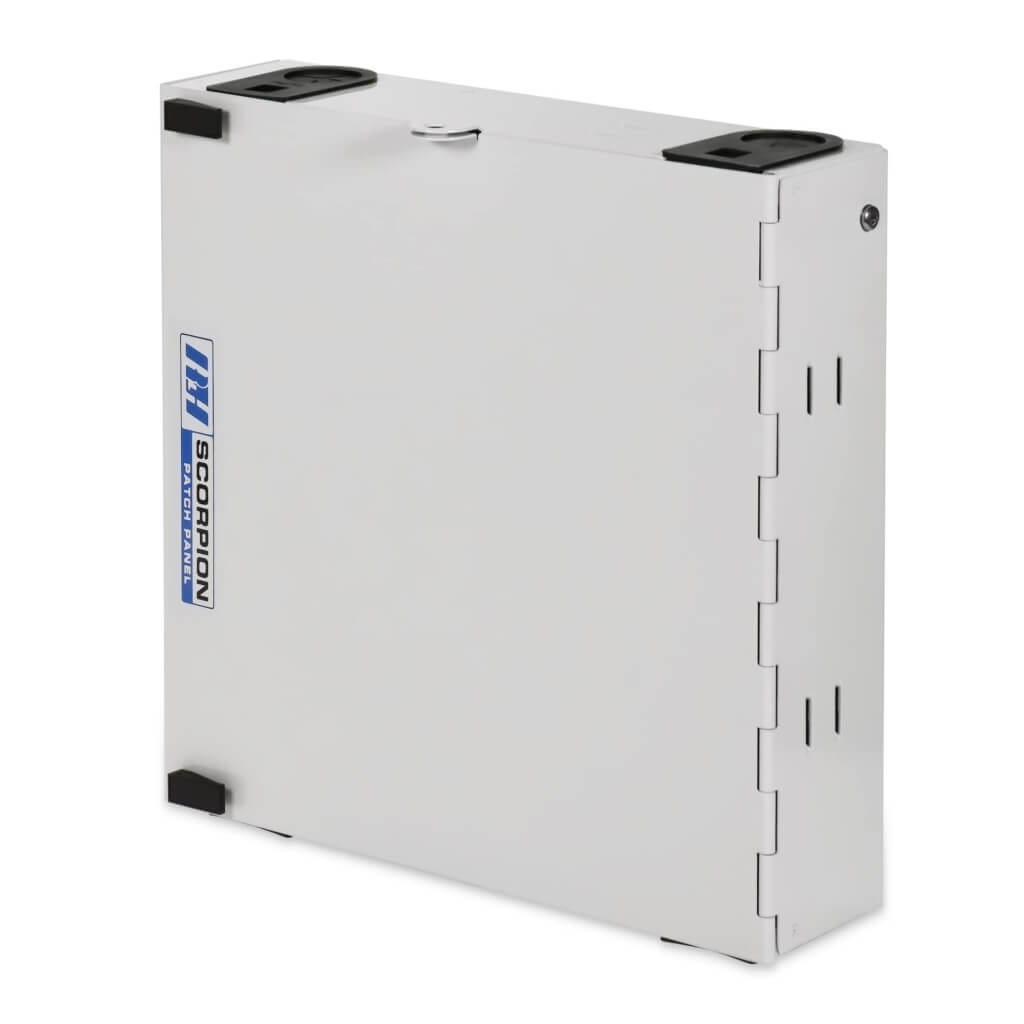

The fiber patch panel has a large wrap around door for easy access, which is secured with flip latches. A built-in padlock hasp provides additional security if desired. It comes standard with fiber management spools, distribution chart, cable mounting tiedowns, and Velcro® straps for securing fiber cable. Self-sealing removable 1-1/4” grommets on the top and bottom of the enclosure, together with fiber strength member clamps, allow for safe entrance and exit of fiber optic cable. Wall mounting hardware is also included.

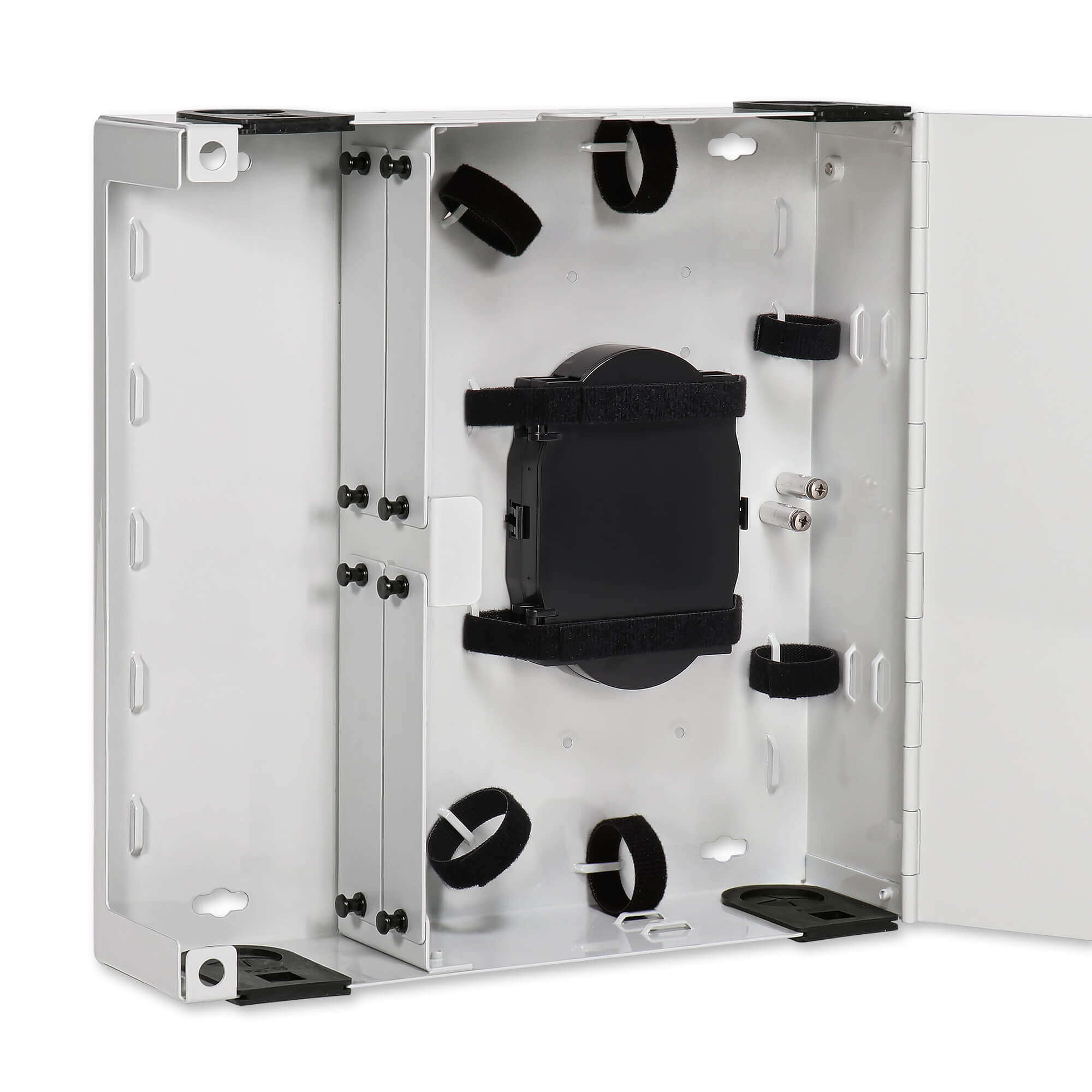

Adapter plates, fiber pigtails, and splice trays may be ordered separately or preinstalled and are available with ST, SC, FC, LC, MTRJ, UPC and APC style adapters. When ordered using our configurator, the Adapter Plates (grey) are preinstalled and Splice on Fiber Pigtails are bundled with the patch panel for convenience.
This patch panel was designed and is made in the USA.
- Holds 4 LGX® adapter plates, blank adapter plates included
- Small Footprint, Fully encloses distribution fiber
- Self-sealing removable grommets (up to 1-1/4”) on the top and bottom
- Hinged door with flip latches

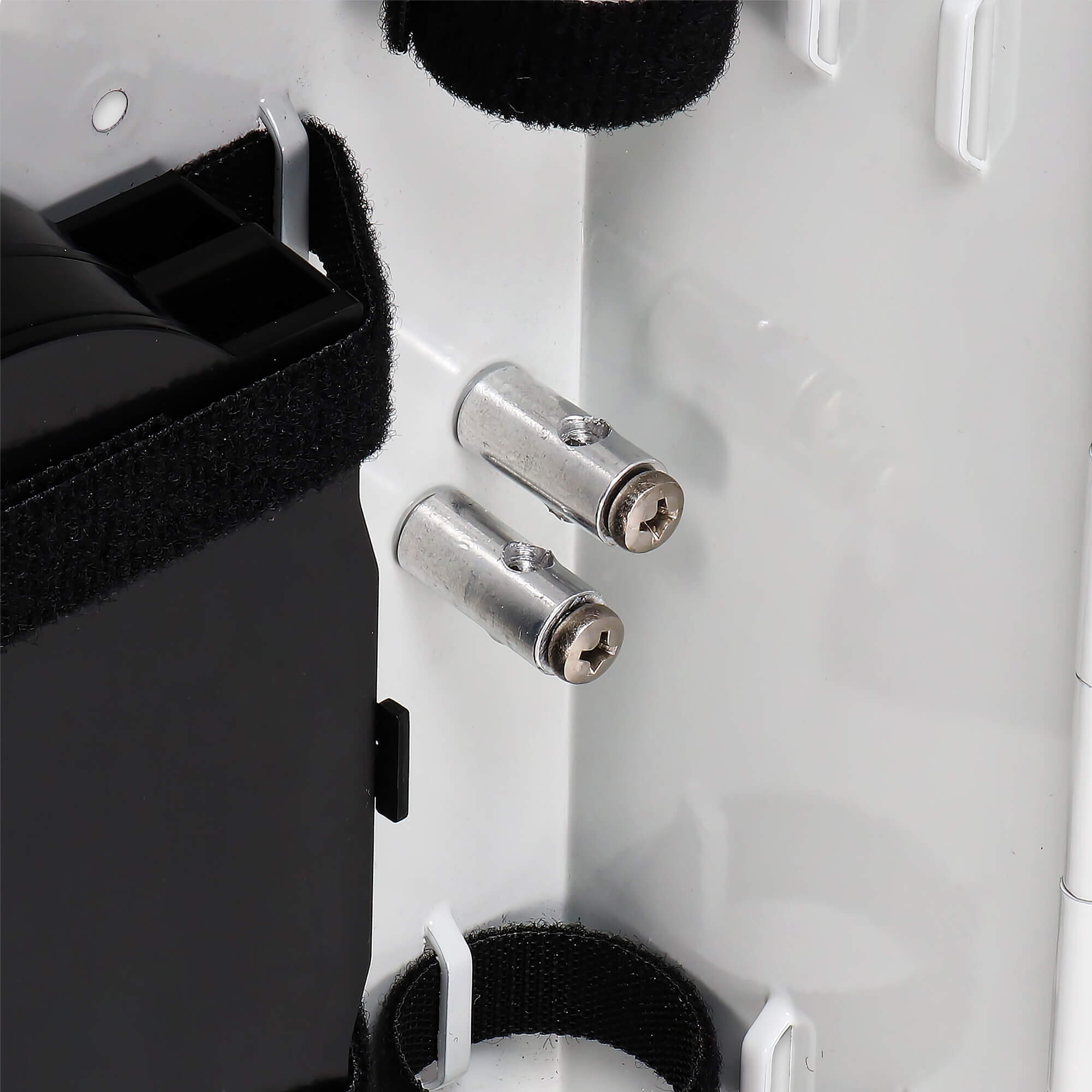

- Includes 2 strength member clamps for securing entry cable
- Adapter plates may be removed with fibers attached
- Includes Velcro for easy and flexible fiber management
- Durable powder coated steel construction
- Multiple built in anchor points to secure fiber cable inside
- Splice trays and sleeves ordered seperately
- Holds ST, SC, FC, LC, MTRJ, UPC, APC style adapters
- Wall mounting hardware , cable ties, & distribution chart included
- Made in USA
Adapter Plates:
Holds 4 LGX® adapter plates
Mounting Style:
Wall or panel mount
Environmental:
Indoor or inside weatherproof enclosure
Construction:
Powder coated steel, hinged door with padlock hasp and flip latches
Accessory Kit:
Qty. 1 – 30” x 1/2” Velcro® straps for securing fiber
Qty. 2 – 12” x 1/2” Velcro® straps for securing Splice Trays
Qty. 10 – Cable ties
Qty. 2 – Distribution chart labels
Qty. 4 – #10 x 3/4” Mounting screws and washers

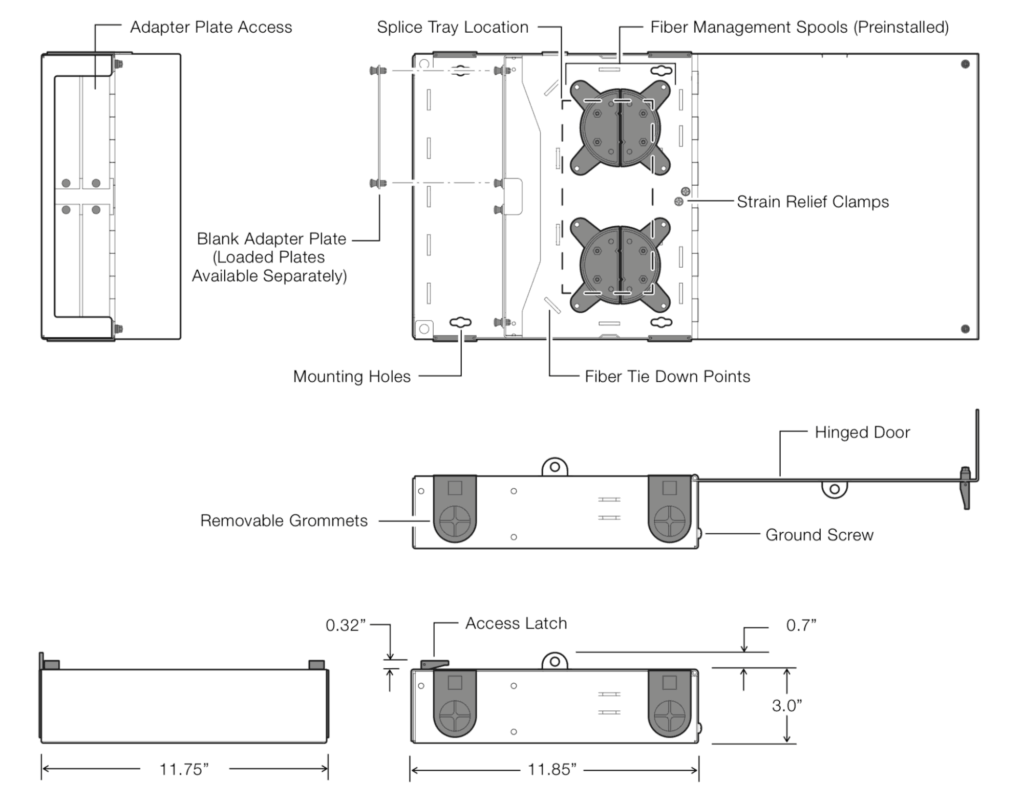

Dimensions:
W 11.8 in. x H 11.75 in. x D 3.7 in. (300mm x 299mm x 94mm)
General Information
Specialized Drawings
Miscellaneous
Customize Your Patch Panel
Use the RLH Product Configurator to add Fiber Adapter Plates and Fiber Pigtails to your order.
SCORP4-1
$125.00
Lead Time: 2 to 3 Days*
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Scorpion 4 Plate Fiber Patch Panel
Short description | Part number | Price | |
---|---|---|---|
Scorpion 4 Plate Wall Mount Fiber Patch Panel | SCORP4-1 | $125.00 |
- Fiber Adapter Plates (grey) and Splice on Fiber Pigtails are also available
- See our Product Configurator for preinstallation of Adapter Plates and Splice on Fiber Pigtails
