Heavy Duty Bracket Which Holds Two Fiber Adapter Plates, Wall or DIN Rail Mounted
The Toro Fiber Adapter Plate Bracket is a compact, cost effective way to breakout fiber in a wall mount or DIN rail environment where splicing is not necessary and space is at a premium.
This heavy duty steel bracket holds two, LGX foot print, fiber adapter plates. Fiber Adapter Plates (grey) are ordered separately and are available with a wide range of connector options and fiber counts. ST, SC, FC, LC are just some of the adapter types available. This bracket can accommodate up to 48 Fibers when used with two 24 Fiber LC adapter plates.
The Toro Fiber Adapter Plate Bracket is powder coated light grey and can be wall mounted with the included hardware or it can be DIN rail mounted when ordered with the accessory DIN clip. It can be ordered together with adapter plates pre-installed for quick installation in the field.
Features

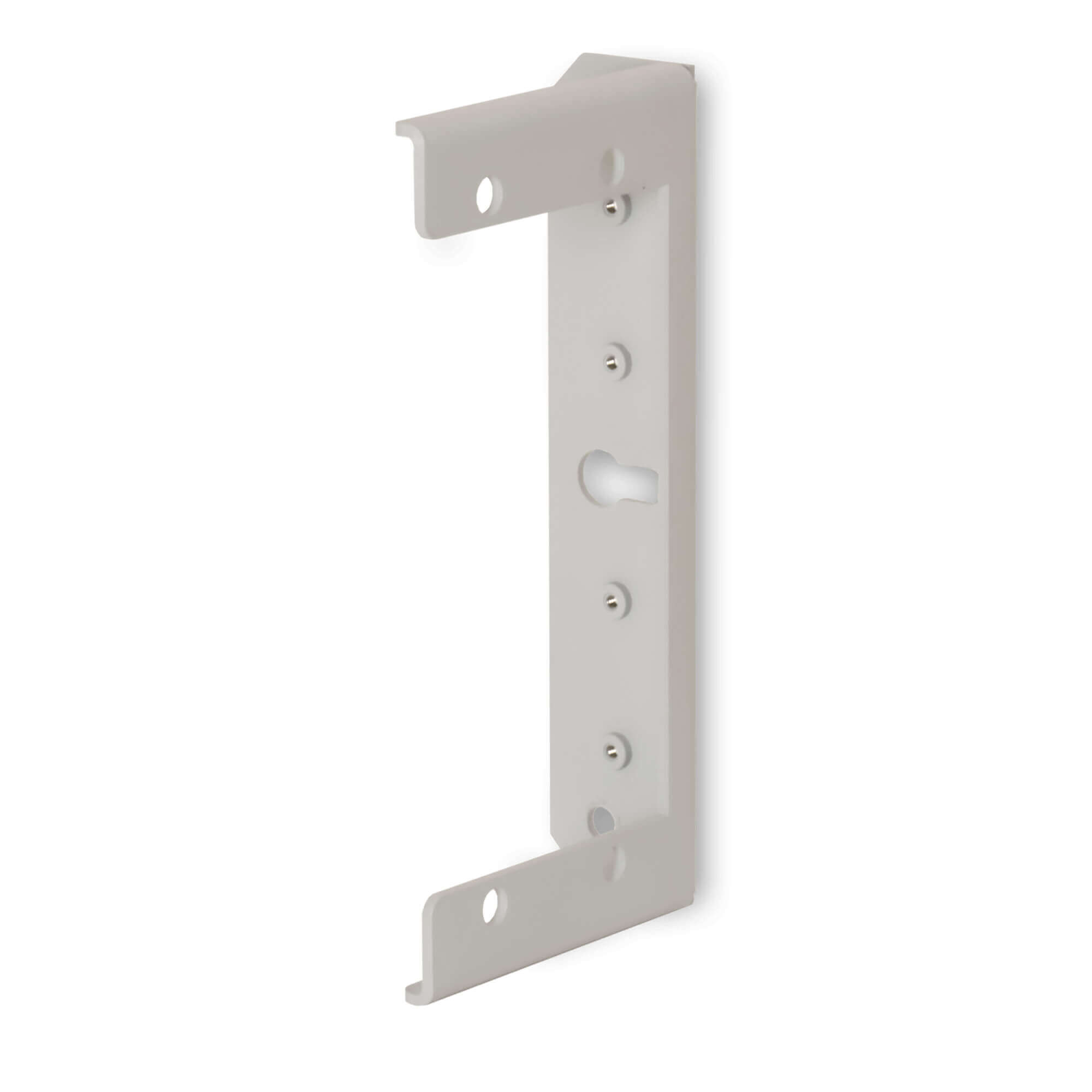

- Steel bracket, powder coated light grey
- Holds two (2) Fiber adapter plates
- Compatible with RLH Fiber Adapter Plates and LGX Foot Print Adapter Plates
- Supports up to 48 fiber strands, when used with LC Quad Adapter Plates
- Wide variety of adapters plates available: ST, SC, FC, LC, MTRJ, MTP, and APC
- Low Profile less than 3 inches deep
- Wall mounting hardware included
- Optional heavy duty DIN-Rail Clip available
- Limited Lifetime Warranty
Please see the product documentation for the complete list of specifications
Adapter Plates:
Holds 2 plates (Up to 24 fibers per plate with LC Quad Adapters)
Adapter Plate Compatibility:
LGX Fiber Adapter Plate Compatible
Adapter Plate Dimensions: H 5.13” x W 1.20”
*4.65″ is the distance from hole to hole of plate plunger latches
Mounting Style:

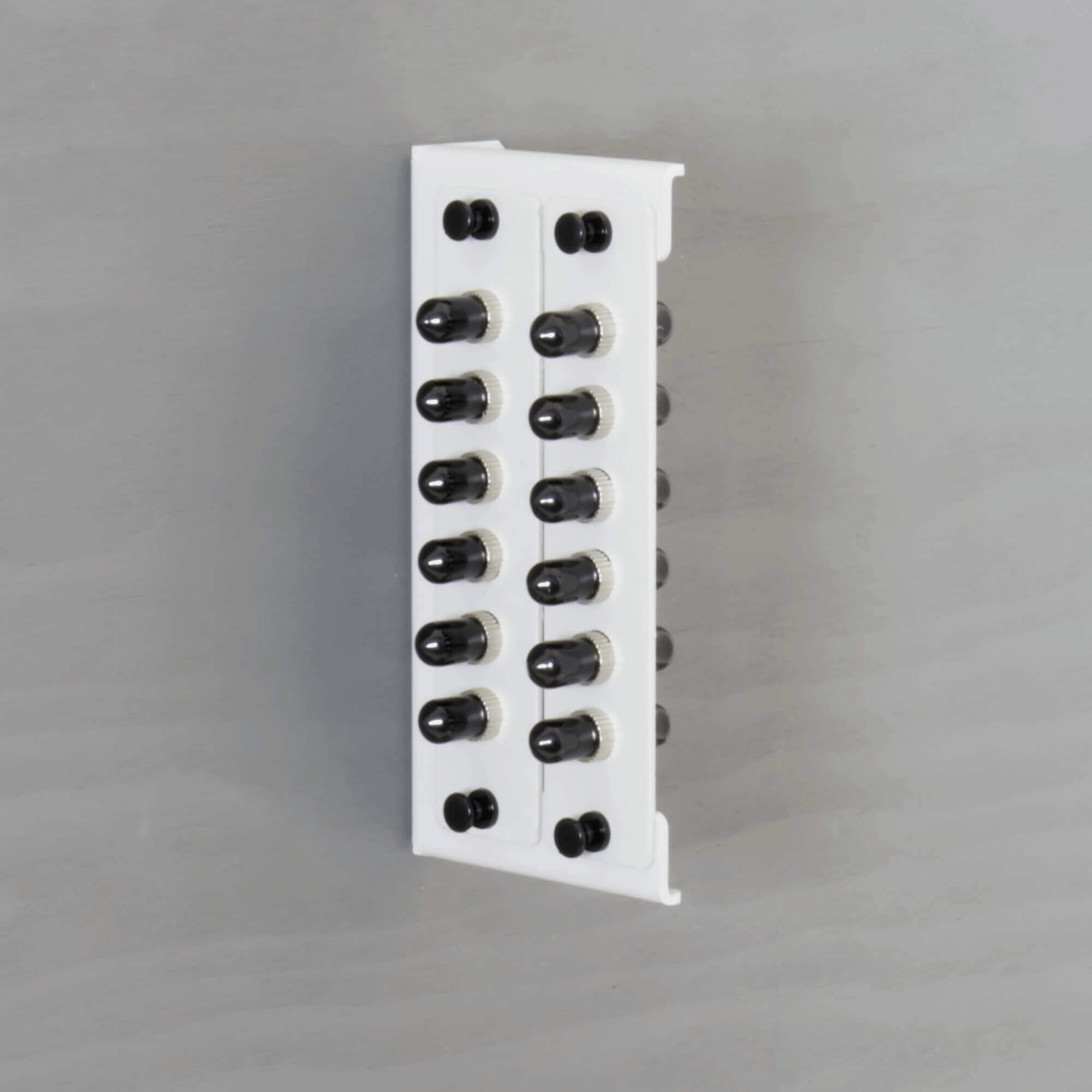

Wall, Hardware Included

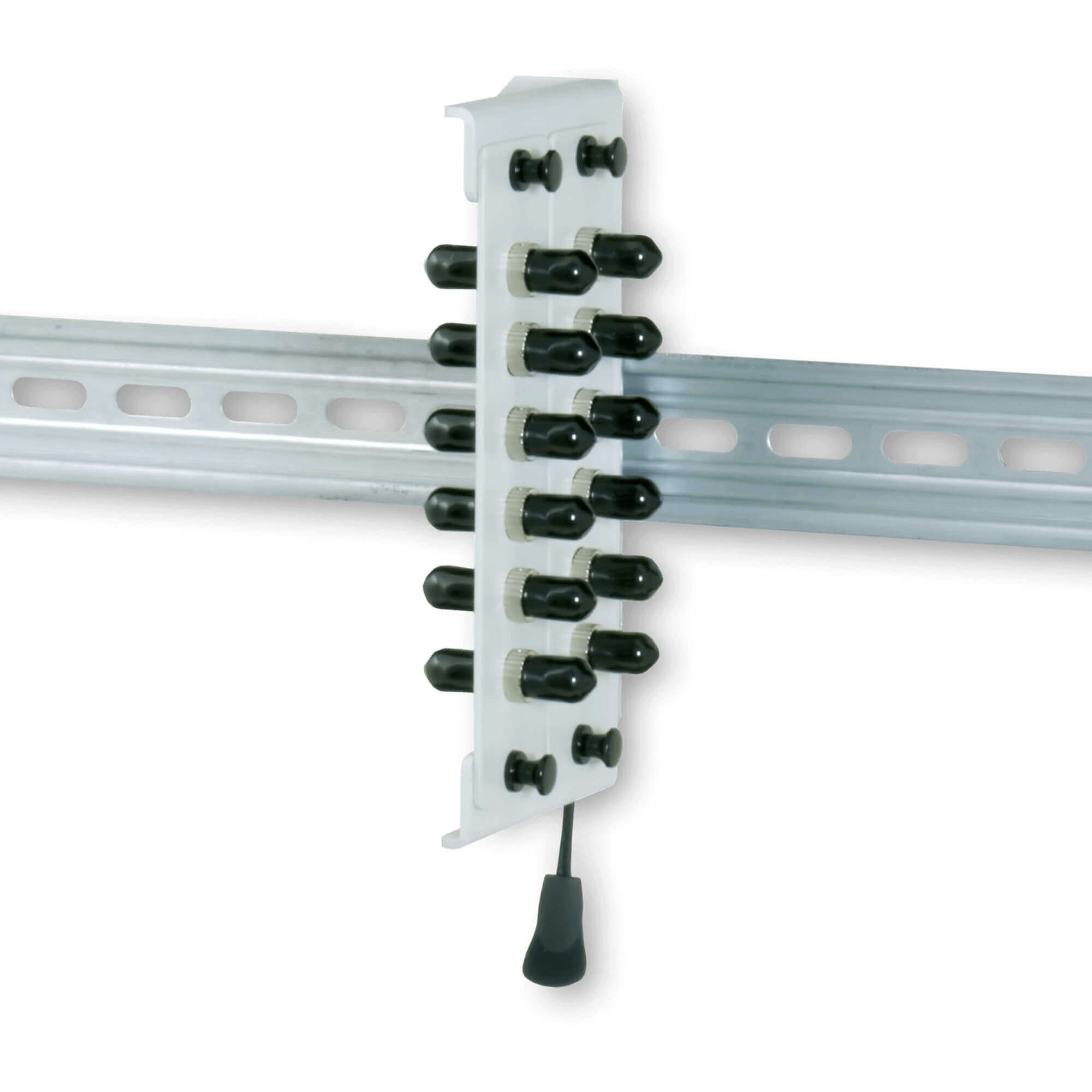

DIN rail (DIN rail kit ordered separately or may be ordered pre-installed)
Environmental:
Indoor, 2 plate bracket design

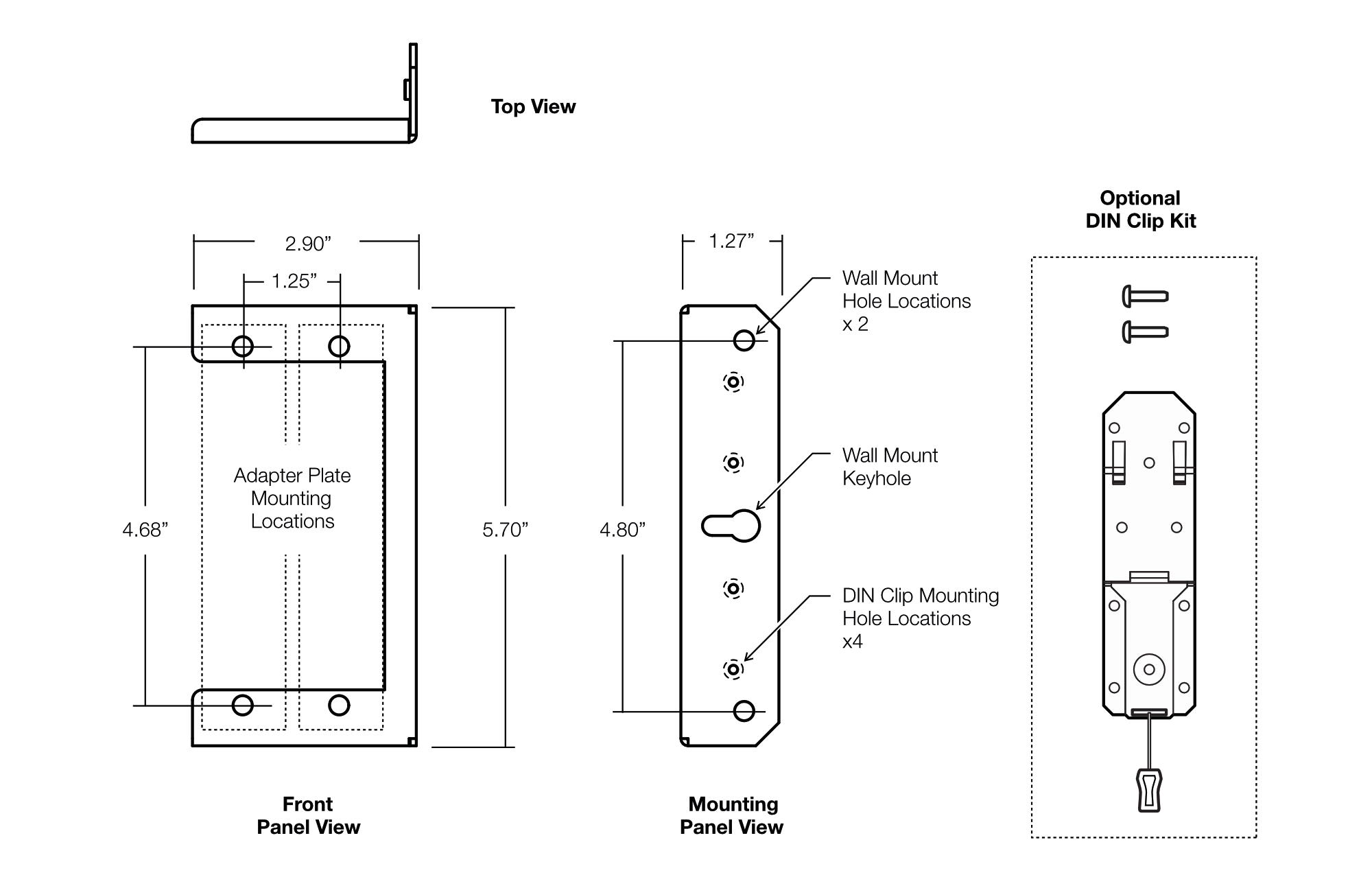

Dimensions:
W 1.27 in. x H 5.70 in. x D 2.90 in. (33mm x 145mm x 74mm)
General Information
Guide
Customize Your Patch Panel
Use the RLH Product Configurator to add Fiber Adapter Plates and DIN Clip to your order.
WMB2-A-1
WMB2-A-1-D
DIN-CLIP30
For product questions, volume pricing and/or delivery outside of the US and Canada, please contact sales.
Ordering
Toro Fiber Adapter Plate Bracket
| Short description | Part number | Price | |
|---|---|---|---|
| Wall Mount, DIN Clip Not Included | WMB2-A-1 | $15.00 | |
| Din Mount, With DIN Clip | WMB2-A-1-D | $45.00 |
- Adapter Plates (grey) are ordered separately
Heavy Duty DIN Clip
| Short description | Part number | Price | |
|---|---|---|---|
| Heavy Duty DIN Clip For: PWSN-A-1, PWS1-A-1, PWS2-A-1, & WMB2-A-1 | DIN-CLIP30 | $30.00 |
